MQTT Integration cannot connect to broker (MQTT LXC)

[bruno-dogancic]

Hey there,

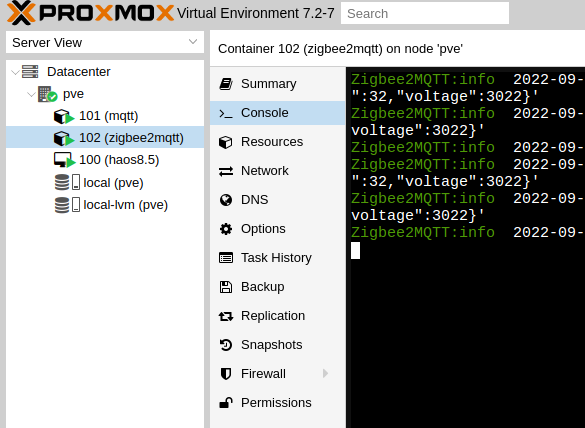

I've started moving my HA installation (or rather doing a fresh test) to a HASOS in Proxmox on top of HP EliteDesk 800 G2 mini.

I like the idea of having HA in a VM and MQTT+Z2M in containers.

The two are working just fine but I'm unable to setup the MQTT integration inside the HA.

Do you have any suggestion? (On the RPi, I've run mosquito addon and as far as I can remember HAOS on bare metal RPi automatically suggested to configure MQTT integration).

edit1: I've used the scripts provided to install HA in VM, as well as MQTT and Z2M.

edit2: MQTT communication with the Z2M

> [email protected] start
> node index.js

Zigbee2MQTT:info  2022-09-01 02:35:08: Logging to console and directory: '/opt/zigbee2mqtt/data/log/2022-09-01.02-35-08' filename: log.txt
Zigbee2MQTT:info  2022-09-01 02:35:08: Starting Zigbee2MQTT version 1.27.0 (commit #e0a9323)
Zigbee2MQTT:info  2022-09-01 02:35:08: Starting zigbee-herdsman (0.14.46)
Zigbee2MQTT:info  2022-09-01 02:35:19: zigbee-herdsman started (resumed)
Zigbee2MQTT:info  2022-09-01 02:35:19: Coordinator firmware version: '{"meta":{"maintrel":1,"majorrel":2,"minorrel":7,"product":1,"revision":20210120,"transportrev":2},"type":"zStack3x0"}'
Zigbee2MQTT:info  2022-09-01 02:35:19: Currently 1 devices are joined:
Zigbee2MQTT:info  2022-09-01 02:35:19: 0x00158d00045a2954 (0x00158d00045a2954): WXKG01LM - Xiaomi MiJia wireless switch (EndDevice)
Zigbee2MQTT:info  2022-09-01 02:35:19: Zigbee: disabling joining new devices.
Zigbee2MQTT:info  2022-09-01 02:35:19: Connecting to MQTT server at mqtt://192.168.2.23:1883
Zigbee2MQTT:info  2022-09-01 02:35:20: Connected to MQTT server
Zigbee2MQTT:info  2022-09-01 02:35:20: MQTT publish: topic 'zigbee2mqtt/bridge/state', payload '{"state":"online"}'
Zigbee2MQTT:info  2022-09-01 02:35:20: Started frontend on port 0.0.0.0:9442
Zigbee2MQTT:info  2022-09-01 02:35:20: MQTT publish: topic 'homeassistant/sensor/0x00158d00045a2954/battery/config', payload '{"availability":[{"topic":"zigbee2mqtt/bridge/state","value_template":"{{ value_json.state }}"}],"device":{"identifiers":["zigbee2mqtt_0x00158d00045a2954"],"manufacturer":"Xiaomi","model":"MiJia wireless switch (WXKG01LM)","name":"0x00158d00045a2954"},"device_class":"battery","enabled_by_default":true,"entity_category":"diagnostic","name":"0x00158d00045a2954 battery","state_class":"measurement","state_topic":"zigbee2mqtt/0x00158d00045a2954","unique_id":"0x00158d00045a2954_battery_zigbee2mqtt","unit_of_measurement":"%","value_template":"{{ value_json.battery }}"}'
Zigbee2MQTT:info  2022-09-01 02:35:20: MQTT publish: topic 'homeassistant/sensor/0x00158d00045a2954/action/config', payload '{"availability":[{"topic":"zigbee2mqtt/bridge/state","value_template":"{{ value_json.state }}"}],"device":{"identifiers":["zigbee2mqtt_0x00158d00045a2954"],"manufacturer":"Xiaomi","model":"MiJia wireless switch (WXKG01LM)","name":"0x00158d00045a2954"},"enabled_by_default":true,"icon":"mdi:gesture-double-tap","name":"0x00158d00045a2954 action","state_topic":"zigbee2mqtt/0x00158d00045a2954","unique_id":"0x00158d00045a2954_action_zigbee2mqtt","value_template":"{{ value_json.action }}"}'
Zigbee2MQTT:info  2022-09-01 02:35:20: MQTT publish: topic 'homeassistant/sensor/0x00158d00045a2954/voltage/config', payload '{"availability":[{"topic":"zigbee2mqtt/bridge/state","value_template":"{{ value_json.state }}"}],"device":{"identifiers":["zigbee2mqtt_0x00158d00045a2954"],"manufacturer":"Xiaomi","model":"MiJia wireless switch (WXKG01LM)","name":"0x00158d00045a2954"},"device_class":"voltage","enabled_by_default":false,"entity_category":"diagnostic","name":"0x00158d00045a2954 voltage","state_class":"measurement","state_topic":"zigbee2mqtt/0x00158d00045a2954","unique_id":"0x00158d00045a2954_voltage_zigbee2mqtt","unit_of_measurement":"mV","value_template":"{{ value_json.voltage }}"}'
Zigbee2MQTT:info  2022-09-01 02:35:20: MQTT publish: topic 'homeassistant/sensor/0x00158d00045a2954/power_outage_count/config', payload '{"availability":[{"topic":"zigbee2mqtt/bridge/state","value_template":"{{ value_json.state }}"}],"device":{"identifiers":["zigbee2mqtt_0x00158d00045a2954"],"manufacturer":"Xiaomi","model":"MiJia wireless switch (WXKG01LM)","name":"0x00158d00045a2954"},"enabled_by_default":true,"name":"0x00158d00045a2954 power outage count","state_topic":"zigbee2mqtt/0x00158d00045a2954","unique_id":"0x00158d00045a2954_power_outage_count_zigbee2mqtt","value_template":"{{ value_json.power_outage_count }}"}'
Zigbee2MQTT:info  2022-09-01 02:35:20: MQTT publish: topic 'homeassistant/sensor/0x00158d00045a2954/linkquality/config', payload '{"availability":[{"topic":"zigbee2mqtt/bridge/state","value_template":"{{ value_json.state }}"}],"device":{"identifiers":["zigbee2mqtt_0x00158d00045a2954"],"manufacturer":"Xiaomi","model":"MiJia wireless switch (WXKG01LM)","name":"0x00158d00045a2954"},"enabled_by_default":false,"entity_category":"diagnostic","icon":"mdi:signal","name":"0x00158d00045a2954 linkquality","state_class":"measurement","state_topic":"zigbee2mqtt/0x00158d00045a2954","unique_id":"0x00158d00045a2954_linkquality_zigbee2mqtt","unit_of_measurement":"lqi","value_template":"{{ value_json.linkquality }}"}'
Zigbee2MQTT:info  2022-09-01 02:35:20: MQTT publish: topic 'zigbee2mqtt/bridge/state', payload '{"state":"online"}'
Zigbee2MQTT:info  2022-09-01 02:35:20: MQTT publish: topic 'zigbee2mqtt/0x00158d00045a2954', payload '{"action":null,"battery":null,"linkquality":114,"power_outage_count":null,"voltage":null}'
Zigbee2MQTT:info  2022-09-01 02:35:22: MQTT publish: topic 'zigbee2mqtt/0x00158d00045a2954', payload '{"action":"single","battery":null,"linkquality":156,"power_outage_count":null,"voltage":null}'
Zigbee2MQTT:info  2022-09-01 02:35:22: MQTT publish: topic 'zigbee2mqtt/0x00158d00045a2954', payload '{"action":"","battery":null,"linkquality":156,"power_outage_count":null,"voltage":null}'
Zigbee2MQTT:info  2022-09-01 02:35:22: MQTT publish: topic 'zigbee2mqtt/0x00158d00045a2954/action', payload 'single'```

[tteck]

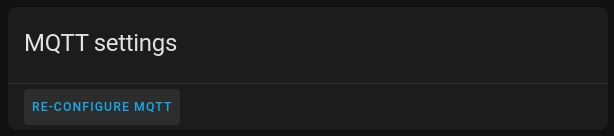

Did you add the MQTT integration in HA?

[bruno-dogancic]

Hey there! Thank you for help and moving the post to approapriate place.

This is exactly the problem... I'm unable to start the MQTT home assistant integration.

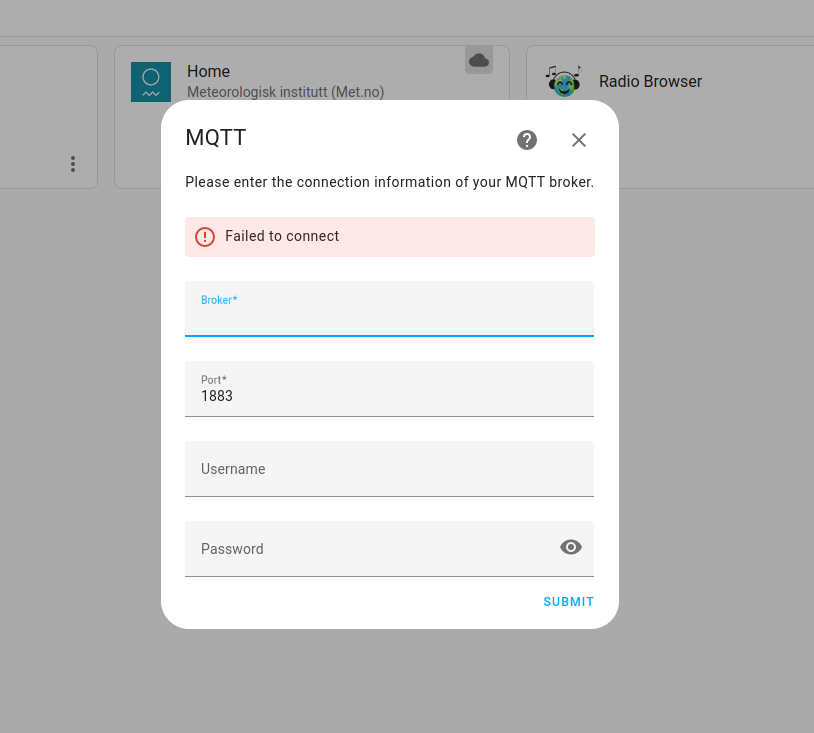

I provide the neccessary information, hangs for few seconds as if it is trying to connect and then throws:

I've search for this exact problem elswhere and there is not much answer.

I can normally ping from from my MQTT and Z2M towards the HA VM.

root@mqtt:~# ping 192.168.2.25
PING 192.168.2.25 (192.168.2.25) 56(84) bytes of data.
64 bytes from 192.168.2.25: icmp_seq=1 ttl=64 time=0.075 ms
64 bytes from 192.168.2.25: icmp_seq=2 ttl=64 time=0.039 ms
64 bytes from 192.168.2.25: icmp_seq=3 ttl=64 time=0.040 ms

64 bytes from 192.168.2.25: icmp_seq=4 ttl=64 time=0.037 ms
^C
--- 192.168.2.25 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3064ms
rtt min/avg/max/mdev = 0.037/0.047/0.075/0.015 ms
root@mqtt:~#

So I guess the network is functioning as expected.

Also, this is everything on a single node.

[tteck]

I'm sure you've rebooted everything?

[tteck]

Double and triple check the server IP, user and password. I've never had an issue if those are correct. 🤷🏻‍♂️

[bruno-dogancic]

Ok, it worked. 😕 I guess the process is a bit different from when I ran mosquito inside the HA.

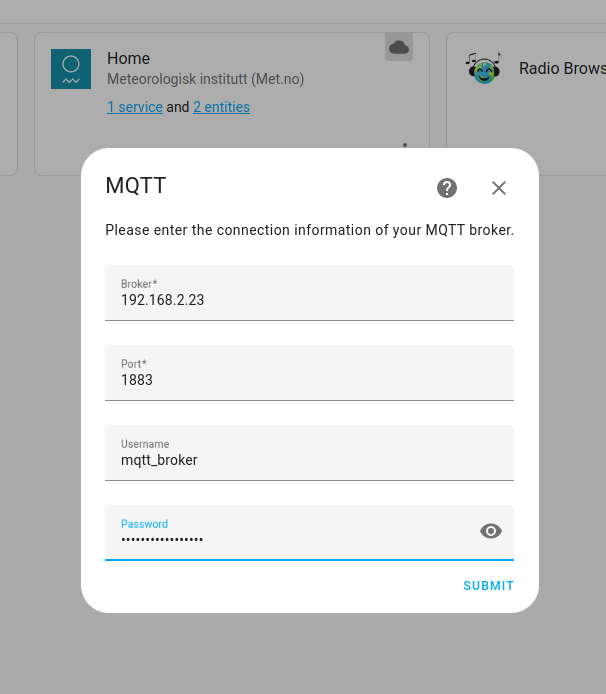

For anyone who stumbles upon this - I created a new user inside HA (as per instructions on many places) and used the name of this user in the MQTT Broker field (this is completely wrong). A working example should be something like this:

mqtt_broker: an IP address of the MQTT LXC container
port: 1883 (unchanged, default)
mqtt user: < user > you defined when running the script sudo mosquitto_passwd -c /etc/mosquitto/passwd <usr>
mqtt password: < password > you defined when running the script

sudo mosquitto_passwd -c /etc/mosquitto/passwd <usr>
Password: < password >
Repeat password: < password >

Thanks once more. Now continuing further down the proxmox path 😸

[tteck]

Good deal ! 👍🏻
