Zigbee2MQTT can't connect at start service #910

rollingafull · 2023-01-06T07:14:44Z

rollingafull
Jan 6, 2023

hi,

After serveral installs when i start service with 'npm start' always receive same message, 'MQTT error: connect ECONNREFUSED 192.168.2.103:1883'
I try with default dhcp config and with fixed ip.
I try with default configuration.yml only changing device and with server mqtt:// with ipaddress and localhost.
Always same message.

Has anybody this issue?

"root@zigbee2mqtt:/opt/zigbee2mqtt# npm start

[email protected] start
node index.js

Building Zigbee2MQTT... (initial build), finished
Zigbee2MQTT:info 2023-01-06 07:05:28: Logging to console and directory: '/opt/zigbee2mqtt/data/log/2023-01-06.07-05-28' filename: log.txt
Zigbee2MQTT:info 2023-01-06 07:05:28: Starting Zigbee2MQTT version 1.29.0 (commit #dddce571)
Zigbee2MQTT:info 2023-01-06 07:05:28: Starting zigbee-herdsman (0.14.83)
Zigbee2MQTT:info 2023-01-06 07:05:44: zigbee-herdsman started (reset)
Zigbee2MQTT:info 2023-01-06 07:05:44: Coordinator firmware version: '{"meta":{"maintrel":1,"majorrel":2,"minorrel":7,"product":1,"revision":20220219,"transportrev":2},"type":"zStack3x0"}'
Zigbee2MQTT:info 2023-01-06 07:05:44: Currently 0 devices are joined:
Zigbee2MQTT:info 2023-01-06 07:05:44: Zigbee: disabling joining new devices.
Zigbee2MQTT:info 2023-01-06 07:05:44: Connecting to MQTT server at mqtt://192.168.2.103
Zigbee2MQTT:error 2023-01-06 07:05:44: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:05:44: MQTT failed to connect, exiting...
Zigbee2MQTT:info 2023-01-06 07:05:44: Stopping zigbee-herdsman...
Zigbee2MQTT:error 2023-01-06 07:05:45: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:05:46: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:05:47: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:05:48: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:05:49: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:05:50: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:05:51: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:05:52: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:info 2023-01-06 07:05:52: Stopped zigbee-herdsman
root@zigbee2mqtt:/opt/zigbee2mqtt#"

My config file:

"homeassistant: false
permit_join: false
mqtt:
base_topic: zigbee2mqtt
server: mqtt://192.168.2.103
serial:
port: >-
/dev/serial/by-id/usb-ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_4cbb26a42c3bec1186fca4957a0af07f-if00-port0
advanced:
network_key:
- 127
- 137
- 151
- 69
- 199
- 25
- 157
- 39
- 71
- 160
- 11
- 92
- 102
- 205
- 192
- 59
homeassistant_legacy_entity_attributes: false
legacy_api: false
legacy_availability_payload: false
frontend: true
device_options:
legacy: false"

Answered by tteck

Jan 6, 2023

frontend:
  port: 9442
homeassistant: true
permit_join: false
mqtt:
  base_topic: zigbee2mqtt
  server: 'mqtt://192.168.2.103:1883'
  user: usr
  password: pwd
  keepalive: 60
  reject_unauthorized: true
  version: 4
serial:
  port: /dev/serial/by-id/usb-ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_4cbb26a42c3bec1186fca4957a0af07f-if00-port0
advanced:
  pan_id: GENERATE
  network_key: GENERATE
  channel: 20

Are you putting your MQTT user/password in?

View full answer

tteck · 2023-01-06T07:18:56Z

tteck
Jan 6, 2023
Maintainer

'mqtt://192.168.2.103:1883'

0 replies

rollingafull · 2023-01-06T07:22:11Z

rollingafull
Jan 6, 2023
Author

yes i also try it without sucess.

2 replies

tteck Jan 6, 2023
Maintainer

mqtt:
  base_topic: zigbee2mqtt
  server: 'mqtt://192.168.2.103:1883'
  user: usr
  password: pwd
  keepalive: 60
  reject_unauthorized: true
  version: 4

tteck Jan 6, 2023
Maintainer

check indents

rollingafull · 2023-01-06T07:29:49Z

rollingafull
Jan 6, 2023
Author

thanks fora quick reply.

Yes i also try your config previously without sucess.

"root@zigbee2mqtt:/opt/zigbee2mqtt# cat /opt/zigbee2mqtt/data/configuration.yaml
homeassistant: false
permit_join: false
mqtt:
base_topic: zigbee2mqtt
server: 'mqtt://192.168.2.103:1883'
user: rolling
password: mypassword
keepalive: 60
reject_unauthorized: true
version: 4
serial:
port: >-
/dev/serial/by-id/usb-ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_4cbb26a42c3bec1186fca4957a0af07f-if00-port0
advanced:
network_key:
- 127
- 137
- 151
- 69
- 199
- 25
- 157
- 39
- 71
- 160
- 11
- 92
- 102
- 205
- 192
- 59
homeassistant_legacy_entity_attributes: false
legacy_api: false
legacy_availability_payload: false
frontend: true
device_options:
legacy: false
root@zigbee2mqtt:/opt/zigbee2mqtt# npm start

[email protected] start
node index.js

Zigbee2MQTT:info 2023-01-06 07:29:02: Logging to console and directory: '/opt/zigbee2mqtt/data/log/2023-01-06.07-29-02' filename: log.txt
Zigbee2MQTT:info 2023-01-06 07:29:02: Starting Zigbee2MQTT version 1.29.0 (commit #dddce571)
Zigbee2MQTT:info 2023-01-06 07:29:02: Starting zigbee-herdsman (0.14.83)
Zigbee2MQTT:info 2023-01-06 07:29:03: zigbee-herdsman started (resumed)
Zigbee2MQTT:info 2023-01-06 07:29:03: Coordinator firmware version: '{"meta":{"maintrel":1,"majorrel":2,"minorrel":7,"product":1,"revision":20220219,"transportrev":2},"type":"zStack3x0"}'
Zigbee2MQTT:info 2023-01-06 07:29:03: Currently 0 devices are joined:
Zigbee2MQTT:info 2023-01-06 07:29:03: Zigbee: disabling joining new devices.
Zigbee2MQTT:info 2023-01-06 07:29:03: Connecting to MQTT server at mqtt://192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:29:03: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:29:03: MQTT failed to connect, exiting...
Zigbee2MQTT:info 2023-01-06 07:29:03: Stopping zigbee-herdsman...
Zigbee2MQTT:error 2023-01-06 07:29:04: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:29:05: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:29:06: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:29:07: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:29:08: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:29:09: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:29:10: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:error 2023-01-06 07:29:11: MQTT error: connect ECONNREFUSED 192.168.2.103:1883
Zigbee2MQTT:info 2023-01-06 07:29:11: Stopped zigbee-herdsman
root@zigbee2mqtt:/opt/zigbee2mqtt#
"

what is the user and password that i must put on configuration.yml?

0 replies

tteck · 2023-01-06T07:31:29Z

tteck
Jan 6, 2023
Maintainer

frontend:
  port: 9442
homeassistant: true
permit_join: false
mqtt:
  base_topic: zigbee2mqtt
  server: 'mqtt://192.168.2.103:1883'
  user: usr
  password: pwd
  keepalive: 60
  reject_unauthorized: true
  version: 4
serial:
  port: /dev/serial/by-id/usb-ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_4cbb26a42c3bec1186fca4957a0af07f-if00-port0
advanced:
  pan_id: GENERATE
  network_key: GENERATE
  channel: 20

Are you putting your MQTT user/password in?

8 replies

rollingafull Jan 6, 2023
Author

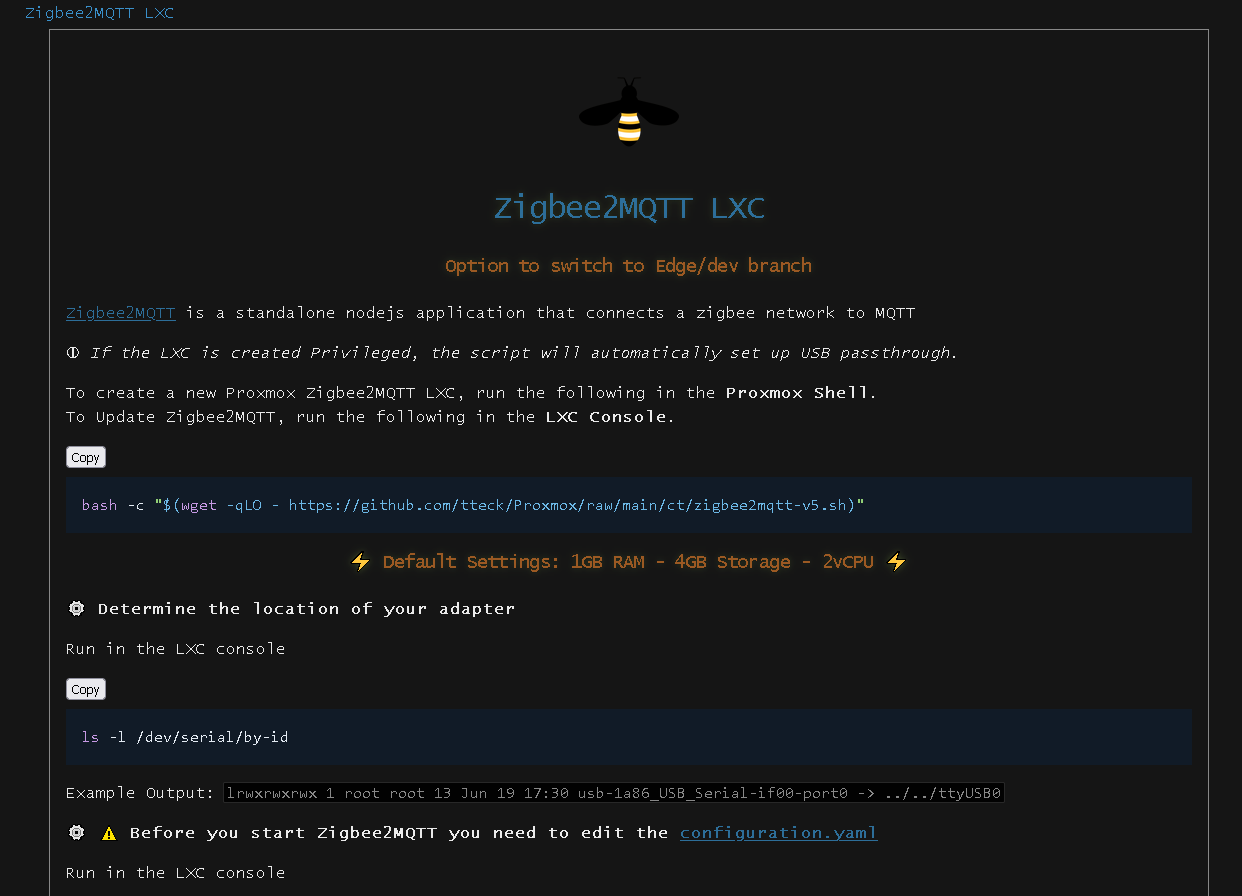

sorry @tteck but i'm blind, i can't see this instructions... :-(

tteck Jan 6, 2023
Maintainer

rollingafull Jan 6, 2023
Author

Thanks, i whill try it.

But i'm installing this container, and it not has this instructions, sorry.
Maybee is necesary update it?

tteck Jan 6, 2023
Maintainer

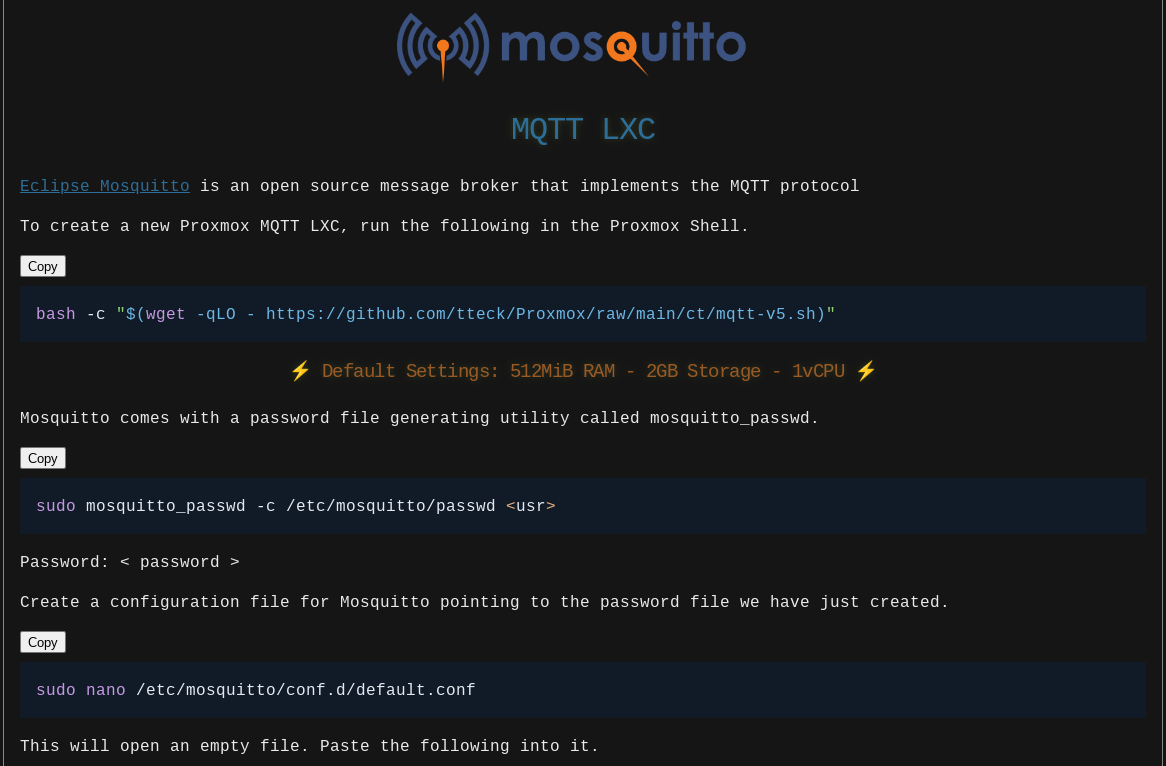

You must have a working MQTT broker before installing Zigbee2MQTT

rollingafull Jan 6, 2023
Author

I now undertand it. Sorry.
Is necesary a MQTT LXC for connect, i not check this requisite.

Thanks for your help.
