Wasm DataGrid Row detail dissapearing

[DomagojJugovich]

Video is attached.
First half of video is UWP head that works, second half WASM in Chrome that missbehaves, also resizing columns does nothing (not in video).

ApplicationFrameHost_nnnOX4o6O5.mp4

[DomagojJugovich]

[jeromelaban]

It looks like something was not backported to the UWP version of the Community Toolkit for Uno. Can you try with the 7.1.10 version of the toolkit and let us know?

[DomagojJugovich]

It is the same with 7.1.10 in WASM

(cleaned obj/bin folders to be shure, clean/rebuild)
(cleaned cache and site data in chrome)

[DomagojJugovich]

XAML of DataGrid

<controls:DataGrid Grid.Column="0" Grid.Row="1" AutoGenerateColumns="False" Name="machinesGrid" CanUserResizeColumns="True" MaxColumnWidth="420"
                           CanUserSortColumns="True" AlternatingRowBackground="AliceBlue" RowHeight="68"
                           RowDetailsVisibilityMode="VisibleWhenSelected">
            <controls:DataGrid.Columns>
                <controls:DataGridTextColumn Header="Machine" CanUserSort="True"
                                           Binding="{Binding MachineName, Mode=OneWay}" IsReadOnly="True"/>
                <controls:DataGridTextColumn Header="IP"
                                           Binding="{Binding IPadress, Mode=OneWay}" IsReadOnly="True"/>
                <controls:DataGridTextColumn Header="User" MinWidth="175" CanUserSort="True"
                                           Binding="{Binding UserName, Mode=OneWay}" IsReadOnly="True"/>
                 <controls:DataGridTemplateColumn Header="LastSync" >
                    <controls:DataGridTemplateColumn.CellTemplate>
                        <DataTemplate>
                            <Border Background="{Binding LastSync,Converter={StaticResource ValueToBrushConv}}">
                                <TextBlock Text="{Binding LastSync, Mode=OneWay}" ></TextBlock>
                            </Border>
                        </DataTemplate>
                    </controls:DataGridTemplateColumn.CellTemplate>
                </controls:DataGridTemplateColumn>
                <controls:DataGridTextColumn Header="AppFolderVersions" MinWidth="175"  CanUserSort="True"
                                           Binding="{Binding AppFolderVersions, Mode=OneWay}" IsReadOnly="True"/>
            </controls:DataGrid.Columns>
            <controls:DataGrid.RowDetailsTemplate>
                <DataTemplate x:DataType="local:Machine">
                    <Grid Margin="20,10" Padding="5" Height="500">
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition Width="*" />
                        </Grid.ColumnDefinitions>
                        <Grid.RowDefinitions>
                            <RowDefinition Height="*" />
                            <RowDefinition Height="*" />
                        </Grid.RowDefinitions>
                        <TextBox TextWrapping="Wrap" Grid.Column="0" Grid.Row="0" IsReadOnly="True" Text="{x:Bind Path=LogChanges}" ScrollViewer.HorizontalScrollBarVisibility="Auto"
                                ScrollViewer.VerticalScrollBarVisibility="Auto"
                                />
                        <TextBox TextWrapping="Wrap" Grid.Column="0" Grid.Row="1" IsReadOnly="True" Foreground="Red" FontSize="13" Text="{x:Bind Path=LogErrors}" ScrollViewer.HorizontalScrollBarVisibility="Auto"
                                ScrollViewer.VerticalScrollBarVisibility="Auto"
                                />
                   </Grid>
                 </DataTemplate>
            </controls:DataGrid.RowDetailsTemplate>
        </controls:DataGrid>

[jeromelaban]

Thanks for the report. Let's follow in #11184.

Here's a repro in the Playground: https://playground.platform.uno/#6cc47a2d

[DomagojJugovich]

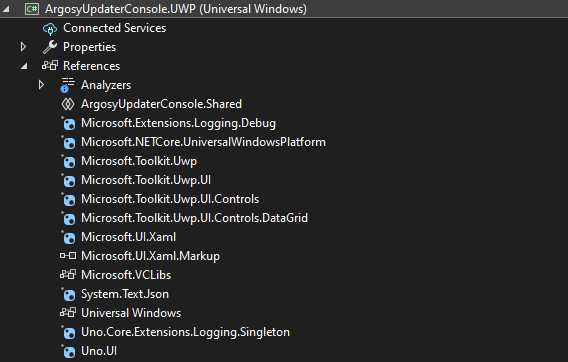

UWP project references ::::::

<PackageReference Include="Microsoft.NETCore.UniversalWindowsPlatform"> <!-- If, in the same solution, you are referencing a project that uses https://github.com/onovotny/MSBuildSdkExtras, you need to make sure that the version provided here matches https://github.com/novotnyllc/MSBuildSdkExtras/blob/main/Source/MSBuild.Sdk.Extras/DefaultItems/ImplicitPackages.targets#L11. This is not an issue when libraries are referenced through nuget packages. See https://github.com/unoplatform/uno/issues/446 for more details. --> <Version>6.2.11</Version> </PackageReference> <PackageReference Include="Microsoft.Toolkit.Uwp"> <Version>7.1.3</Version> </PackageReference> <PackageReference Include="Microsoft.Toolkit.Uwp.UI"> <Version>7.1.3</Version> </PackageReference> <PackageReference Include="Microsoft.Toolkit.Uwp.UI.Controls"> <Version>7.1.3</Version> </PackageReference> <PackageReference Include="Microsoft.Toolkit.Uwp.UI.Controls.DataGrid"> <Version>7.1.3</Version> </PackageReference> <PackageReference Include="Microsoft.UI.Xaml" Version="2.7.1" /> <PackageReference Include="System.Text.Json"> <Version>7.0.1</Version> </PackageReference> <PackageReference Include="Uno.UI" Version="4.7.30" /> <PackageReference Include="Microsoft.Extensions.Logging.Debug" Version="5.0.0" /> <PackageReference Include="Uno.Core.Extensions.Logging.Singleton" Version="4.0.1" />

[DomagojJugovich]

I also tried to make 4.7 newest template with WinUI, WASM (no UWP) but cant get WASM to work and gave up for now.
