DNS 出站流量似乎并没有被转发到内置 DNS

[qianbinbin]

我在 Linux 搭建了透明代理（单纯上网，没有用作主路由或旁路由），个人的理解是标记 dns-out 的出站查询应该被转发到 V2Ray 内置的 DNS，但似乎并没有。

简略配置如下：

{
  "inbounds": [
    {
      "tag": "all-in",
      "protocol": "dokodemo-door"
    }
  ],
  "outbounds": [
    {
      "tag": "dns-out",
      "protocol": "dns",
      "streamSettings": {
        "sockopt": {
          "mark": 255
        }
      }
    }
  ],
  "dns": {
    "servers": [
      "https://1.1.1.1/dns-query",
      {
        "address": "223.5.5.5",
        "domains": [
          "geosite:cn"
        ]
      }
    ]
  },
  "routing": {
    "rules": [
      {
        "type": "field",
        "port": 53,
        "inboundTag": [
          "all-in"
        ],
        "outboundTag": "dns-out"
      }
    ]
  }
}

但查看日志发现，不管是 curl baidu.com 还是 curl google.com，V2Ray 配置里的 223.5.5.5 和 https://1.1.1.1/dns-query 都被无视了，走了 114 的 DNS：

2023/04/19 14:44:18 192.168.0.xxx:59114 accepted udp:114.114.114.114:53 [dns-out]

114 是我主路由的配置，Linux 把它自动拉取在了 /etc/resolv.conf 中，所以看起来就是使用了系统默认的 DNS。

谢谢各位大佬！

[mydogshitgold]

I believe that you forgot this part:

{
  "tag": "dns-out",
  "proxySettings": {
    "tag": "proxy_outbound_tag"
  }
}

replace proxy_outbound_tag with yours.

[mydogshitgold]

Additionally, setup a fallback DNS server for "dns-out" in case the request isn't A / AAAA, or bad things will happen.

{
  "tag": "dns-out",
  "settings": {
    "address": "1.1.1.1",
    "port": 53
  },
  "proxySettings": {
    "tag": "proxy_outbound_tag"
  }
}

[qianbinbin]

Thank you for your reply, but why this article not configured like this?

[qianbinbin]

I tried:

  "settings": {
    "address": "1.1.1.1",
    "port": 53
  },
  "proxySettings": {
    "tag": "proxy"
  }

But still seems not working.

[mydogshitgold]

What is the debug log? Can you post your full configuration?

[mydogshitgold]

Sorry for misunderstanding your v2ray log in the first place. Your DNS traffic was probably not actually sent to `114.114.114.114', if you configured the DNS hijacking correctly.

The configuration listed in the guide should work, but it wouldn't respond to non-A/AAAA queries. So adding the "proxySettings" and "settings" is still important. I think your configuration is probably working fine and you just misunderstood the rather misleading logs.

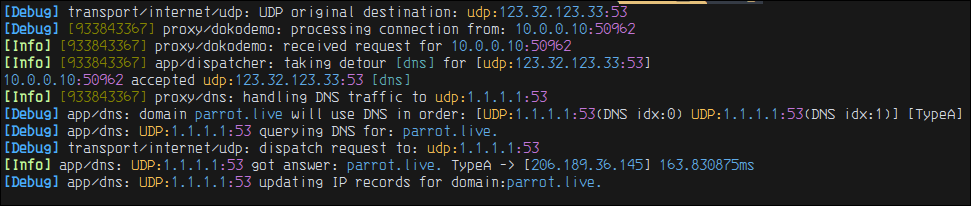

If you set the log level to "debug" or "info" you should see that v2ray is actually sending the DNS traffic to the server configured in the "dns" block.

e.g. I run send a DNS lookup for the domain parrot.live to server 123.32.123.33:

dig +short @123.32.123.33 parrot.live

The access log from v2ray reads like this:

10.0.0.10:50962 accepted udp:123.32.123.33:53 [dns]

But the real packets were sent to 1.1.1.1, just as I configured it.

[qianbinbin]

Many thanks! I was misled by the logs 😊
