How to draw text on the plain surface?

[Mikalai]

Hello,

In order to simplify localization I wanted to remove text from textures and draw it above surface using vsg::Text. I tried to draw some text on the plain surface but the result of my attempt was not good. I though it is enough to draw a quad and above it, with minimal offset to avoid z fighting, draw a text. But it didn't work. I modified vsgtext example to show what I encountered.

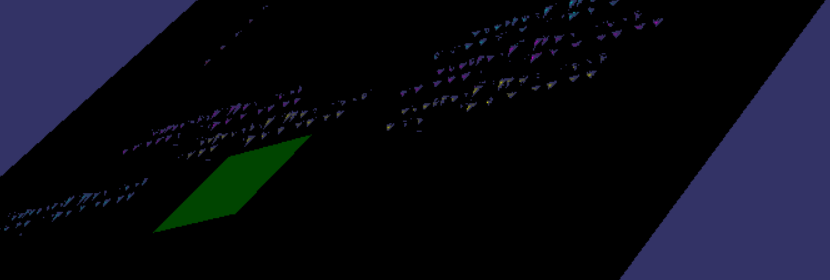

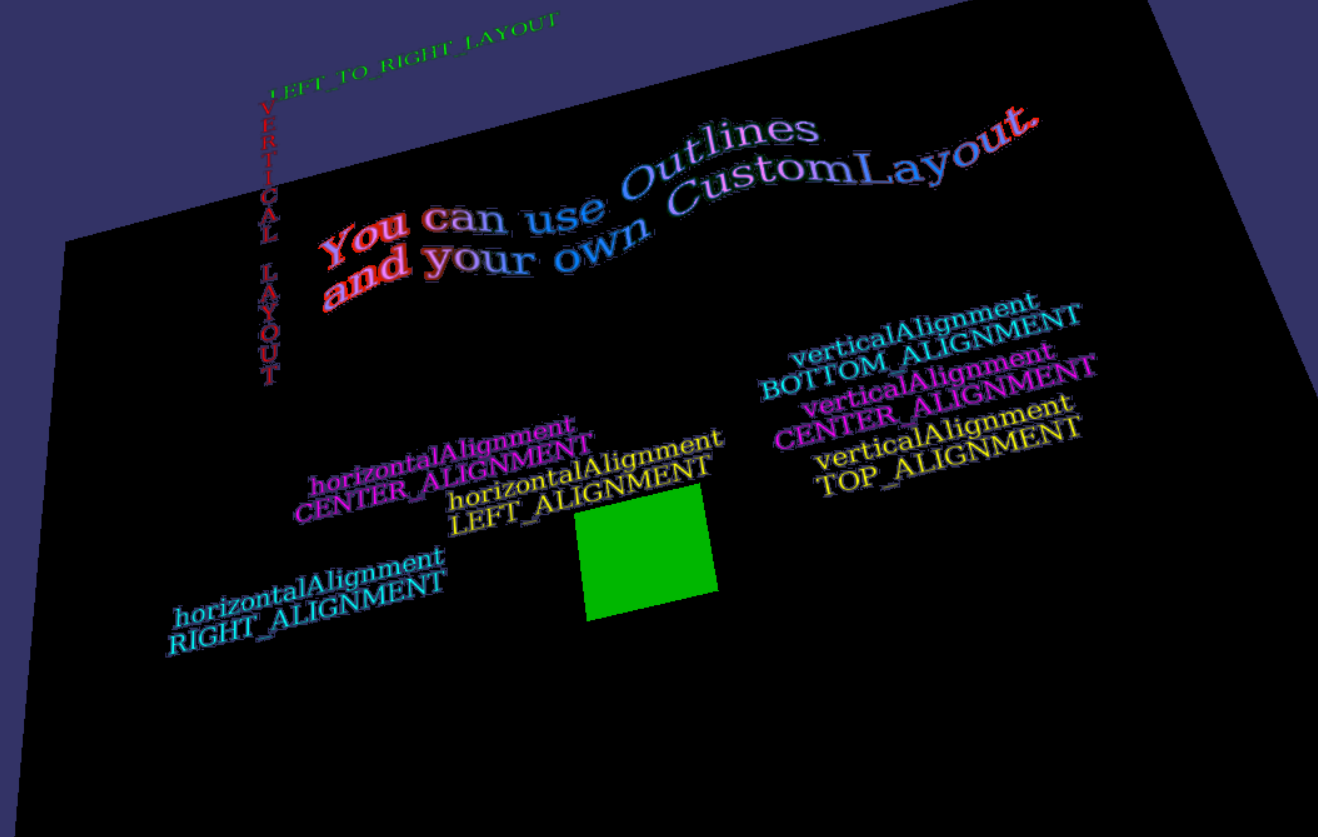

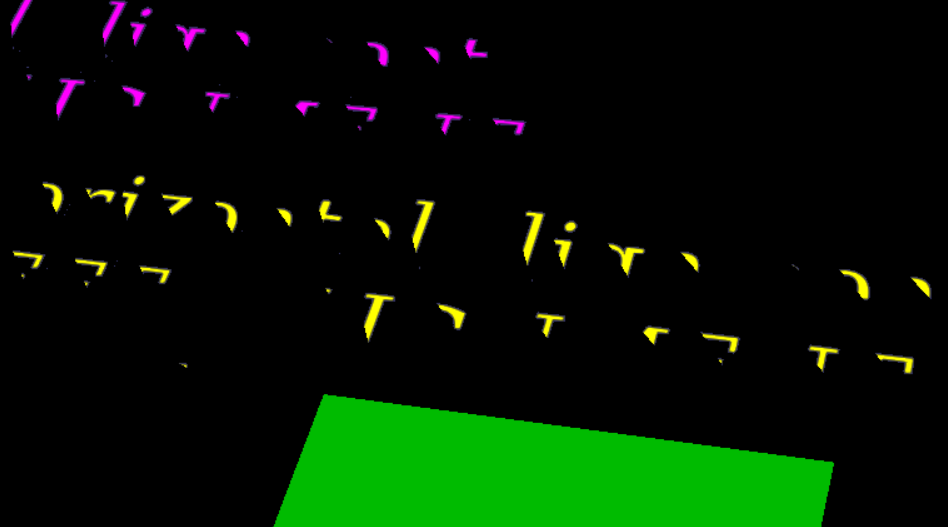

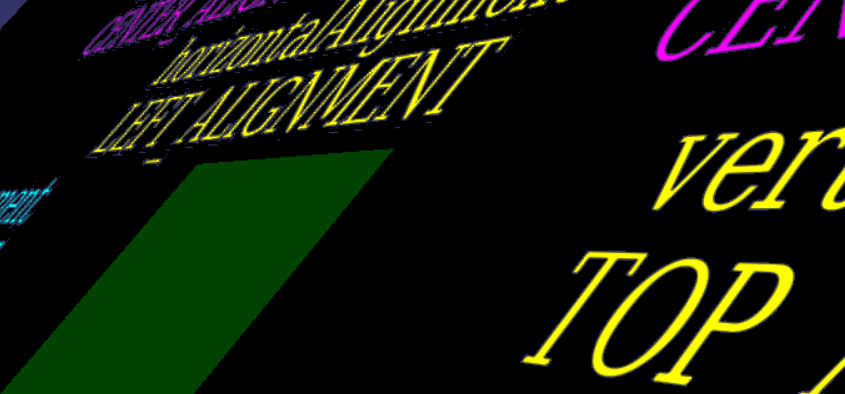

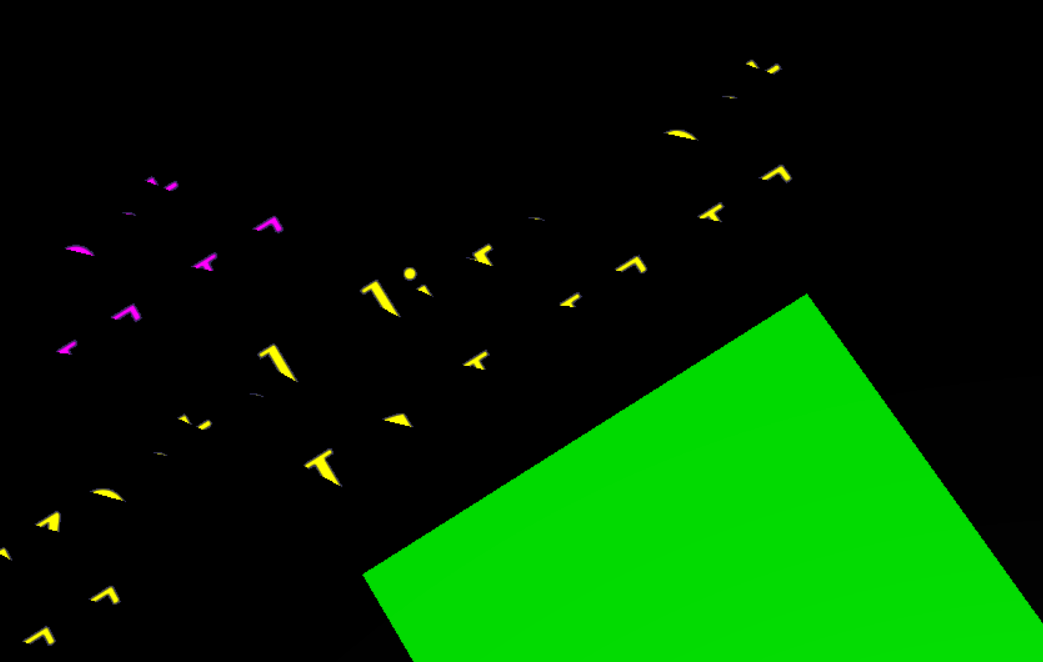

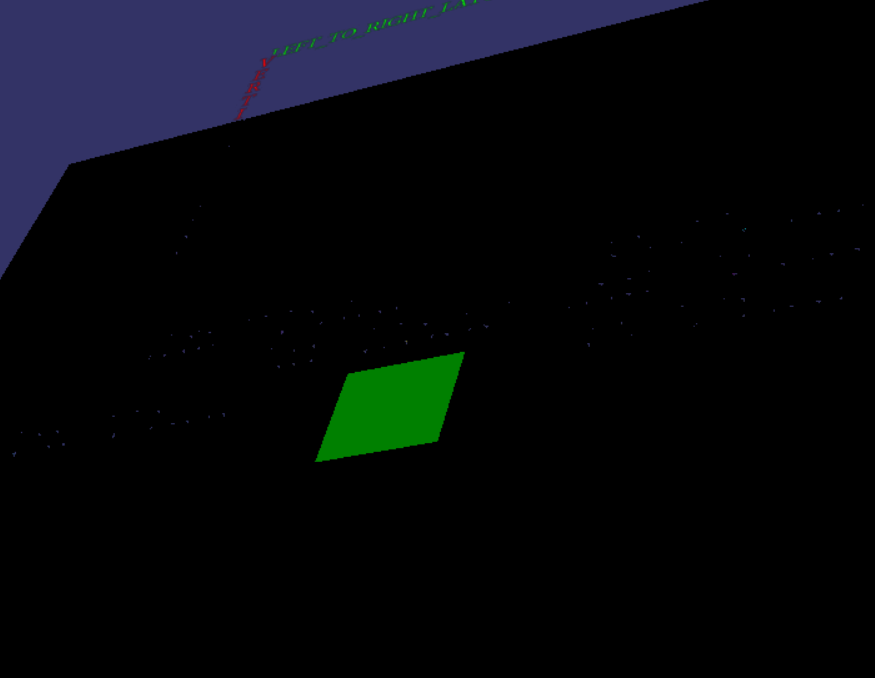

Green quad and text are on the same distance from black quad. And green quad is rendered as expected independently of the view. But text goes behind black quad and can be visible fully only at specific angles.

Maybe this is expected behavior and just another approach should be used in such cases. How to properly draw text on the plain surface?

Attach modified vsgtext example

#include <iostream>
#include <vsg/all.h>

#ifdef vsgXchange_FOUND
#    include <vsgXchange/all.h>
#endif

vsg::ref_ptr<vsg::Node> createQuad(const vsg::vec3& origin, const vsg::vec3& horizontal, const vsg::vec3& vertical, vsg::ref_ptr<vsg::Data> sourceData = {})
{
    struct ConvertToRGBA : public vsg::Visitor
    {
        vsg::ref_ptr<vsg::Data> textureData;

        void apply(vsg::Data& data) override
        {
            textureData = &data;
        }

        void apply(vsg::uintArray2D& fa) override
        {
            // treat as a 24bit depth buffer
            float div = 1.0f / static_cast<float>(1 << 24);

            auto rgba = vsg::vec4Array2D::create(fa.width(), fa.height(), vsg::Data::Properties{VK_FORMAT_R32G32B32A32_SFLOAT});
            auto dest_itr = rgba->begin();
            for (auto& v : fa)
            {
                float m = static_cast<float>(v) * div;
                (*dest_itr++).set(m, m, m, 1.0);
            }
            textureData = rgba;
        }

        void apply(vsg::floatArray2D& fa) override
        {
            auto rgba = vsg::vec4Array2D::create(fa.width(), fa.height(), vsg::Data::Properties{VK_FORMAT_R32G32B32A32_SFLOAT});
            auto dest_itr = rgba->begin();
            for (auto& v : fa)
            {
                (*dest_itr++).set(v, v, v, 1.0);
            }
            textureData = rgba;
        }

        vsg::ref_ptr<vsg::Data> convert(vsg::ref_ptr<vsg::Data> data)
        {
            if (data)
                data->accept(*this);
            else
            {
                auto image = vsg::vec4Array2D::create(1, 1, vsg::Data::Properties{VK_FORMAT_R32G32B32A32_SFLOAT});
                image->set(0, 0, vsg::vec4(0.5f, 1.0f, 0.5f, 1.0f));
                textureData = image;
            }

            return textureData;
        }

    } convertToRGBA;

    // set up search paths to SPIRV shaders and textures
    vsg::Paths searchPaths = vsg::getEnvPaths("VSG_FILE_PATH");

    auto textureData = convertToRGBA.convert(sourceData);
    if (!textureData) return {};

    // load shaders
    vsg::ref_ptr<vsg::ShaderStage> vertexShader = vsg::ShaderStage::read(VK_SHADER_STAGE_VERTEX_BIT, "main", vsg::findFile("shaders/vert_PushConstants.spv", searchPaths));
    vsg::ref_ptr<vsg::ShaderStage> fragmentShader = vsg::ShaderStage::read(VK_SHADER_STAGE_FRAGMENT_BIT, "main", vsg::findFile("shaders/frag_PushConstants.spv", searchPaths));
    if (!vertexShader || !fragmentShader)
    {
        std::cout << "Could not create shaders." << std::endl;
        return {};
    }

    // set up graphics pipeline
    vsg::DescriptorSetLayoutBindings descriptorBindings{
        {0, VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER, 1, VK_SHADER_STAGE_FRAGMENT_BIT, nullptr} // { binding, descriptorTpe, descriptorCount, stageFlags, pImmutableSamplers}
    };

    auto descriptorSetLayout = vsg::DescriptorSetLayout::create(descriptorBindings);

    vsg::PushConstantRanges pushConstantRanges{
        {VK_SHADER_STAGE_VERTEX_BIT, 0, 128} // projection view, and model matrices, actual push constant calls automatically provided by the VSG's DispatchTraversal
    };

    vsg::VertexInputState::Bindings vertexBindingsDescriptions{
        VkVertexInputBindingDescription{0, sizeof(vsg::vec3), VK_VERTEX_INPUT_RATE_VERTEX}, // vertex data
        VkVertexInputBindingDescription{1, sizeof(vsg::vec3), VK_VERTEX_INPUT_RATE_VERTEX}, // colour data
        VkVertexInputBindingDescription{2, sizeof(vsg::vec2), VK_VERTEX_INPUT_RATE_VERTEX}  // tex coord data
    };

    vsg::VertexInputState::Attributes vertexAttributeDescriptions{
        VkVertexInputAttributeDescription{0, 0, VK_FORMAT_R32G32B32_SFLOAT, 0}, // vertex data
        VkVertexInputAttributeDescription{1, 1, VK_FORMAT_R32G32B32_SFLOAT, 0}, // colour data
        VkVertexInputAttributeDescription{2, 2, VK_FORMAT_R32G32_SFLOAT, 0},    // tex coord data
    };

    vsg::GraphicsPipelineStates pipelineStates{
        vsg::VertexInputState::create(vertexBindingsDescriptions, vertexAttributeDescriptions),
        vsg::InputAssemblyState::create(),
        vsg::RasterizationState::create(),
        vsg::MultisampleState::create(),
        vsg::ColorBlendState::create(),
        vsg::DepthStencilState::create()};

    auto pipelineLayout = vsg::PipelineLayout::create(vsg::DescriptorSetLayouts{descriptorSetLayout}, pushConstantRanges);
    auto graphicsPipeline = vsg::GraphicsPipeline::create(pipelineLayout, vsg::ShaderStages{vertexShader, fragmentShader}, pipelineStates);
    auto bindGraphicsPipeline = vsg::BindGraphicsPipeline::create(graphicsPipeline);

    // create texture image and associated DescriptorSets and binding
    auto texture = vsg::DescriptorImage::create(vsg::Sampler::create(), textureData, 0, 0, VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER);

    auto descriptorSet = vsg::DescriptorSet::create(descriptorSetLayout, vsg::Descriptors{texture});
    auto bindDescriptorSets = vsg::BindDescriptorSets::create(VK_PIPELINE_BIND_POINT_GRAPHICS, pipelineLayout, 0, vsg::DescriptorSets{descriptorSet});

    // create StateGroup as the root of the scene/command graph to hold the GraphicsProgram, and binding of Descriptors to decorate the whole graph
    auto scenegraph = vsg::StateGroup::create();
    scenegraph->add(bindGraphicsPipeline);
    scenegraph->add(bindDescriptorSets);

    // set up model transformation node
    auto transform = vsg::MatrixTransform::create(); // VK_SHADER_STAGE_VERTEX_BIT

    // add transform to root of the scene graph
    scenegraph->addChild(transform);

    // set up vertex and index arrays
    auto vertices = vsg::vec3Array::create(
        {origin,
         origin + horizontal,
         origin + horizontal + vertical,
         origin + vertical}); // VK_FORMAT_R32G32B32_SFLOAT, VK_VERTEX_INPUT_RATE_INSTANCE, VK_BUFFER_USAGE_VERTEX_BUFFER_BIT, VK_SHARING_MODE_EXCLUSIVE

    auto colors = vsg::vec3Array::create(
        {{1.0f, 1.0f, 1.0f},
         {1.0f, 1.0f, 1.0f},
         {1.0f, 1.0f, 1.0f},
         {1.0f, 1.0f, 1.0f}}); // VK_FORMAT_R32G32B32_SFLOAT, VK_VERTEX_INPUT_RATE_VERTEX, VK_BUFFER_USAGE_VERTEX_BUFFER_BIT, VK_SHARING_MODE_EXCLUSIVE

    bool top_left = textureData->properties.origin == vsg::TOP_LEFT; // in Vulkan the origin is by default top left.
    float left = 0.0f;
    float right = 1.0f;
    float top = top_left ? 0.0f : 1.0f;
    float bottom = top_left ? 1.0f : 0.0f;
    auto texcoords = vsg::vec2Array::create(
        {{left, bottom},
         {right, bottom},
         {right, top},
         {left, top}}); // VK_FORMAT_R32G32_SFLOAT, VK_VERTEX_INPUT_RATE_VERTEX, VK_BUFFER_USAGE_VERTEX_BUFFER_BIT, VK_SHARING_MODE_EXCLUSIVE

    auto indices = vsg::ushortArray::create(
        {0, 1, 2,
         2, 3, 0}); // VK_BUFFER_USAGE_INDEX_BUFFER_BIT, VK_SHARING_MODE_EXCLUSIVE

    // setup geometry
    auto drawCommands = vsg::Commands::create();
    drawCommands->addChild(vsg::BindVertexBuffers::create(0, vsg::DataList{vertices, colors, texcoords}));
    drawCommands->addChild(vsg::BindIndexBuffer::create(indices));
    drawCommands->addChild(vsg::DrawIndexed::create(6, 1, 0, 0, 0));

    // add drawCommands to transform
    transform->addChild(drawCommands);

    return scenegraph;
}

int main(int argc, char** argv)
{
    // set up defaults and read command line arguments to override them
    vsg::CommandLine arguments(&argc, argv);

    auto windowTraits = vsg::WindowTraits::create("vsg::Text example");
    windowTraits->debugLayer = arguments.read({"--debug", "-d"});
    windowTraits->apiDumpLayer = arguments.read({"--api", "-a"});
    arguments.read({"--window", "-w"}, windowTraits->width, windowTraits->height);
    auto font_filename = arguments.value(std::string("fonts/times.vsgb"), "-f");
    auto output_filename = arguments.value(std::string(), "-o");
    auto render_all_glyphs = arguments.read("--all");
    auto enable_tests = arguments.read("--test");
    auto numFrames = arguments.value(-1, "--nf");
    auto clearColor = arguments.value(vsg::vec4(0.2f, 0.2f, 0.4f, 1.0f), "--clear");
    bool disableDepthTest = arguments.read({"--ddt", "--disable-depth-test"});
    if (arguments.errors()) return arguments.writeErrorMessages(std::cerr);

    // set up search paths to SPIRV shaders and textures
    auto options = vsg::Options::create();
    options->paths = vsg::getEnvPaths("VSG_FILE_PATH");
#ifdef vsgXchange_all
    // add vsgXchange's support for reading and writing 3rd party file formats
    options->add(vsgXchange::all::create());
#endif

    arguments.read(options);

    auto font = vsg::read_cast<vsg::Font>(font_filename, options);

    if (!font)
    {
        std::cout << "Failing to read font : " << font_filename << std::endl;
        return 1;
    }

    if (disableDepthTest)
    {
        // assign a custom StateSet to options->shaderSets so that subsequent TextGroup::setup(0, options) call will pass in our custom ShaderSet.
        auto shaderSet = options->shaderSets["text"] = vsg::createTextShaderSet(options);

        // create a DepthStencilState, disable depth test and add this to the ShaderSet::defaultGraphicsPipelineStates container so it's used when setting up the TextGroup subgraph
        auto depthStencilState = vsg::DepthStencilState::create();
        depthStencilState->depthTestEnable = VK_FALSE;
        shaderSet->defaultGraphicsPipelineStates.push_back(depthStencilState);
    }

    // set up model transformation node
    auto scenegraph = vsg::Group::create();

    if (render_all_glyphs)
    {
        auto layout = vsg::StandardLayout::create();
        layout->position = vsg::vec3(0.0, 0.0, 0.0);
        layout->horizontal = vsg::vec3(1.0, 0.0, 0.0);
        layout->vertical = vsg::vec3(0.0, 0.0, 1.0);
        layout->color = vsg::vec4(1.0, 1.0, 1.0, 1.0);

        std::set<uint32_t> characters;
        for (auto c : *(font->charmap))
        {
            if (c != 0) characters.insert(c);
        }

        size_t num_glyphs = characters.size();
        size_t row_lenghth = static_cast<size_t>(ceil(sqrt(float(num_glyphs))));
        size_t num_rows = num_glyphs / row_lenghth;
        if ((num_glyphs % num_rows) != 0) ++num_rows;

        // use an uintArray to store the text string as the full font charcodes can go up to very large values.
        auto text_string = vsg::uintArray::create(num_glyphs + num_rows - 1);
        auto text_itr = text_string->begin();

        size_t i = 0;
        size_t column = 0;

        for (auto c : characters)
        {
            ++i;
            ++column;

            (*text_itr++) = c;

            if (column >= row_lenghth)
            {
                (*text_itr++) = '\n';
                column = 0;
            }
        }

        auto text = vsg::Text::create();
        text->font = font;
        text->layout = layout;
        text->text = text_string;
        text->setup(0, options);

        scenegraph->addChild(text);
    }
    else
    {
        /*{
            auto layout = vsg::StandardLayout::create();
            layout->horizontalAlignment = vsg::StandardLayout::CENTER_ALIGNMENT;
            layout->position = vsg::vec3(6.0, 0.0, 0.0);
            layout->horizontal = vsg::vec3(1.0, 0.0, 0.0);
            layout->vertical = vsg::vec3(0.0, 1.0, 0.0);
            layout->color = vsg::vec4(1.0, 1.0, 1.0, 1.0);
            layout->outlineWidth = 0.1;
            layout->billboard = true;

            auto text = vsg::Text::create();
            text->text = vsg::stringValue::create("VulkanSceneGraph now\nhas SDF text support.");
            text->font = font;
            text->layout = layout;
            text->setup(0, options);
            scenegraph->addChild(text);

            if (enable_tests)
            {
                auto quad = createQuad(layout->position, layout->horizontal, layout->vertical);
                scenegraph->addChild(quad);
            }
        }*/

        {
            auto layout = vsg::StandardLayout::create();
            layout->glyphLayout = vsg::StandardLayout::VERTICAL_LAYOUT;
            layout->position = vsg::vec3(-1.0, 0.0, 2.0);
            layout->horizontal = vsg::vec3(0.5, 0.0, 0.0);
            layout->vertical = vsg::vec3(0.0, 0.0, 0.5);
            layout->color = vsg::vec4(1.0, 0.0, 0.0, 1.0);

            auto text = vsg::Text::create();
            text->text = vsg::stringValue::create("VERTICAL_LAYOUT");
            text->font = font;
            text->layout = layout;
            text->setup(0, options);
            scenegraph->addChild(text);

            if (enable_tests)
            {
                auto quad = createQuad(layout->position, layout->horizontal, layout->vertical);
                scenegraph->addChild(quad);
            }
        }

        {
            auto layout = vsg::StandardLayout::create();
            layout->glyphLayout = vsg::StandardLayout::LEFT_TO_RIGHT_LAYOUT;
            layout->position = vsg::vec3(-1.0, 0.0, 2.0);
            layout->horizontal = vsg::vec3(0.5, 0.0, 0.0);
            layout->vertical = vsg::vec3(0.0, 0.0, 0.5);
            layout->color = vsg::vec4(0.0, 1.0, 0.0, 1.0);

            auto text = vsg::Text::create();
            text->text = vsg::stringValue::create("LEFT_TO_RIGHT_LAYOUT");
            text->font = font;
            text->layout = layout;
            text->setup(0, options);
            scenegraph->addChild(text);

            if (enable_tests)
            {
                auto quad = createQuad(layout->position, layout->horizontal, layout->vertical);
                scenegraph->addChild(quad);
            }
        }

        {
            auto layout = vsg::StandardLayout::create();
            layout->glyphLayout = vsg::StandardLayout::RIGHT_TO_LEFT_LAYOUT;
            layout->position = vsg::vec3(13.0, 0.0, 2.0);
            layout->horizontal = vsg::vec3(0.5, 0.0, 0.0);
            layout->vertical = vsg::vec3(0.0, 0.0, 0.5);
            layout->color = vsg::vec4(0.0, 0.0, 1.0, 1.0);

            auto text = vsg::Text::create();
            text->text = vsg::stringValue::create("RIGHT_TO_LEFT_LAYOUT");
            text->font = font;
            text->layout = layout;
            text->setup(0, options);
            scenegraph->addChild(text);

            if (enable_tests)
            {
                auto quad = createQuad(layout->position, layout->horizontal, layout->vertical);
                scenegraph->addChild(quad);
            }
        }

        {
            auto layout = vsg::StandardLayout::create();
            layout->horizontalAlignment = vsg::StandardLayout::CENTER_ALIGNMENT;
            layout->position = vsg::vec3(2.0, 0.0, -8.0);
            layout->horizontal = vsg::vec3(0.5, 0.0, 0.0);
            layout->vertical = vsg::vec3(0.0, 0.0, 0.5);
            layout->color = vsg::vec4(1.0, 0.0, 1.0, 1.0);

            auto text = vsg::Text::create();
            text->text = vsg::stringValue::create("horizontalAlignment\nCENTER_ALIGNMENT");
            text->font = font;
            text->layout = layout;
            text->setup(0, options);
            scenegraph->addChild(text);

            if (enable_tests)
            {
                auto quad = createQuad(layout->position, layout->horizontal, layout->vertical);
                scenegraph->addChild(quad);
            }
        }

        {
            auto layout = vsg::StandardLayout::create();
            layout->horizontalAlignment = vsg::StandardLayout::LEFT_ALIGNMENT;
            layout->position = vsg::vec3(2.0, 0.0, -9.0);
            layout->horizontal = vsg::vec3(0.5, 0.0, 0.0);
            layout->vertical = vsg::vec3(0.0, 0.0, 0.5);
            layout->color = vsg::vec4(1.0, 1.0, 0.0, 1.0);

            auto text = vsg::Text::create();
            text->text = vsg::stringValue::create("horizontalAlignment\nLEFT_ALIGNMENT");
            text->font = font;
            text->layout = layout;
            text->setup(0, options);
            scenegraph->addChild(text);

            if (enable_tests)
            {
                auto quad = createQuad(layout->position, layout->horizontal, layout->vertical);
                scenegraph->addChild(quad);
            }
        }

        {
            auto layout = vsg::StandardLayout::create();
            layout->horizontalAlignment = vsg::StandardLayout::RIGHT_ALIGNMENT;
            layout->position = vsg::vec3(2.0, 0.0, -10.0);
            layout->horizontal = vsg::vec3(0.5, 0.0, 0.0);
            layout->vertical = vsg::vec3(0.0, 0.0, 0.5);
            layout->color = vsg::vec4(0.0, 1.0, 1.0, 1.0);

            auto text = vsg::Text::create();
            text->text = vsg::stringValue::create("horizontalAlignment\nRIGHT_ALIGNMENT");
            text->font = font;
            text->layout = layout;
            text->setup(0, options);
            scenegraph->addChild(text);

            if (enable_tests)
            {
                auto quad = createQuad(layout->position, layout->horizontal, layout->vertical);
                scenegraph->addChild(quad);
            }
        }

        {
            auto layout = vsg::StandardLayout::create();
            layout->horizontalAlignment = vsg::StandardLayout::CENTER_ALIGNMENT;
            layout->verticalAlignment = vsg::StandardLayout::BOTTOM_ALIGNMENT;
            layout->position = vsg::vec3(10.0, 0.0, -8.5);
            layout->horizontal = vsg::vec3(0.5, 0.0, 0.0);
            layout->vertical = vsg::vec3(0.0, 0.0, 0.5);
            layout->color = vsg::vec4(0.0, 1.0, 1.0, 1.0);

            auto text = vsg::Text::create();
            text->text = vsg::stringValue::create("verticalAlignment\nBOTTOM_ALIGNMENT");
            text->font = font;
            text->layout = layout;
            text->setup(0, options);
            scenegraph->addChild(text);

            if (enable_tests)
            {
                auto quad = createQuad(layout->position, layout->horizontal, layout->vertical);
                scenegraph->addChild(quad);
            }
        }

        {
            auto layout = vsg::StandardLayout::create();
            layout->horizontalAlignment = vsg::StandardLayout::CENTER_ALIGNMENT;
            layout->verticalAlignment = vsg::StandardLayout::CENTER_ALIGNMENT;
            layout->position = vsg::vec3(10.0, 0.0, -9.0);
            layout->horizontal = vsg::vec3(0.5, 0.0, 0.0);
            layout->vertical = vsg::vec3(0.0, 0.0, 0.5);
            layout->color = vsg::vec4(1.0, 0.0, 1.0, 1.0);

            auto text = vsg::Text::create();
            text->text = vsg::stringValue::create("verticalAlignment\nCENTER_ALIGNMENT");
            text->font = font;
            text->layout = layout;
            text->setup(0, options);
            scenegraph->addChild(text);

            if (enable_tests)
            {
                auto quad = createQuad(layout->position, layout->horizontal, layout->vertical);
                scenegraph->addChild(quad);
            }
        }

        {
            auto layout = vsg::StandardLayout::create();
            layout->horizontalAlignment = vsg::StandardLayout::CENTER_ALIGNMENT;
            layout->verticalAlignment = vsg::StandardLayout::TOP_ALIGNMENT;
            layout->position = vsg::vec3(10.0, 0.0, -9.5);
            layout->horizontal = vsg::vec3(0.5, 0.0, 0.0);
            layout->vertical = vsg::vec3(0.0, 0.0, 0.5);
            layout->color = vsg::vec4(1.0, 1.0, 0.0, 1.0);

            auto text = vsg::Text::create();
            text->text = vsg::stringValue::create("verticalAlignment\nTOP_ALIGNMENT");
            text->font = font;
            text->layout = layout;
            text->setup(0, options);
            scenegraph->addChild(text);

            if (enable_tests)
            {
                auto quad = createQuad(layout->position, layout->horizontal, layout->vertical);
                scenegraph->addChild(quad);
            }
        }

        if (output_filename.empty())
        {
            struct CustomLayout : public vsg::Inherit<vsg::StandardLayout, CustomLayout>
            {
                void layout(const vsg::Data* text, const vsg::Font& font, vsg::TextQuads& quads) override
                {
                    // Let the base StandardLayout class do the basic glyph setup
                    Inherit::layout(text, font, quads);

                    // modify each generated glyph quad's position and colours etc.
                    for (auto& quad : quads)
                    {
                        for (int i = 0; i < 4; ++i)
                        {
                            quad.vertices[i].z += 0.5f * sin(quad.vertices[i].x);
                            quad.colors[i].r = 0.5f + 0.5f * sin(quad.vertices[i].x);
                            quad.outlineColors[i] = vsg::vec4(cos(0.5 * quad.vertices[i].x), 0.1f, 0.0f, 1.0f);
                            quad.outlineWidths[i] = 0.1f + 0.15f * (1.0f + sin(quad.vertices[i].x));
                        }
                    }
                };
            };

            auto layout = CustomLayout::create();
            layout->position = vsg::vec3(0.0, 0.0, -3.0);
            layout->horizontal = vsg::vec3(1.0, 0.0, 0.0);
            layout->vertical = vsg::vec3(0.0, 0.0, 1.0);
            layout->color = vsg::vec4(1.0, 0.5, 1.0, 1.0);

            auto text = vsg::Text::create();
            text->text = vsg::stringValue::create("You can use Outlines\nand your own CustomLayout.");
            text->font = font;
            text->layout = layout;
            text->setup(0, options);
            scenegraph->addChild(text);
        }
    }

    //auto dynamic_text_label = vsg::stringValue::create("GpuLayoutTechnique");
    //auto dynamic_text_layout = vsg::StandardLayout::create();
    //auto dynamic_text = vsg::Text::create();
    //{
    //    // currently vsg::GpuLayoutTechnique is the only technique that supports dynamic update of the text parameters
    //    dynamic_text->technique = vsg::GpuLayoutTechnique::create();

    //    dynamic_text_layout->billboard = true;
    //    dynamic_text_layout->position = vsg::vec3(0.0, 0.0, -6.0);
    //    dynamic_text_layout->horizontal = vsg::vec3(1.0, 0.0, 0.0);
    //    dynamic_text_layout->vertical = dynamic_text_layout->billboard ? vsg::vec3(0.0, 1.0, 0.0) : vsg::vec3(0.0, 0.0, 1.0) ;
    //    dynamic_text_layout->color = vsg::vec4(1.0, 0.9, 1.0, 1.0);
    //    dynamic_text_layout->outlineWidth = 0.1;

    //    dynamic_text->text = dynamic_text_label;
    //    dynamic_text->font = font;
    //    dynamic_text->layout = dynamic_text_layout;
    //    dynamic_text->setup(32); // allocate enough space for max possible characters
    //    scenegraph->addChild(dynamic_text);
    //}

    auto bounds = vsg::visit<vsg::ComputeBounds>(scenegraph).bounds;
    double diameter = vsg::length(bounds.max - bounds.min);
    vsg::GeometryInfo geomInfo;
    vsg::StateInfo stateInfo;
    vsg::Builder builder;

    geomInfo.position.set(
        (bounds.min.x + bounds.max.x) * 0.5,
        0.01,
        bounds.min.z);

    geomInfo.dx.set(diameter, 0.0, 0.0);
    geomInfo.dy.set(0.0, 0.0, diameter);
    geomInfo.color.set(0.0, 0.0, 0.0, 1.0);
    stateInfo.two_sided = true;
    auto q1 = builder.createQuad(geomInfo, stateInfo);

    geomInfo.position.y = 0.0;
    geomInfo.dx.set(diameter / 10.0, 0.0, 0.0);
    geomInfo.dy.set(0.0, 0.0, diameter / 10);
    geomInfo.color.set(0.0, 1.0, 0.0, 1.0);

    auto q2 = builder.createQuad(geomInfo, stateInfo);
    scenegraph->addChild(q2);
    scenegraph->addChild(q1);


    if (!output_filename.empty())
    {
        vsg::write(scenegraph, output_filename);
        return 1;
    }

    // create the viewer and assign window(s) to it
    auto viewer = vsg::Viewer::create();

    auto window = vsg::Window::create(windowTraits);
    if (!window)
    {
        std::cout << "Could not create window." << std::endl;
        return 1;
    }

    window->clearColor() = VkClearColorValue{{clearColor.r, clearColor.g, clearColor.b, clearColor.a}};

    viewer->addWindow(window);

    // camera related details
    // compute the bounds of the scene graph to help position camera
    vsg::ComputeBounds computeBounds;
    scenegraph->accept(computeBounds);
    vsg::dvec3 centre = (computeBounds.bounds.min + computeBounds.bounds.max) * 0.5;
    double radius = vsg::length(computeBounds.bounds.max - computeBounds.bounds.min) * 0.6;
    double nearFarRatio = 0.001;

    // set up the camera
    auto viewport = vsg::ViewportState::create(window->extent2D());
    auto perspective = vsg::Perspective::create(30.0, static_cast<double>(window->extent2D().width) / static_cast<double>(window->extent2D().height), nearFarRatio * radius, radius * 1000.0);
    auto lookAt = vsg::LookAt::create(centre + vsg::dvec3(0.0, -radius * 3.5, 0.0), centre, vsg::dvec3(0.0, 0.0, 1.0));
    auto camera = vsg::Camera::create(perspective, lookAt, viewport);

    auto commandGraph = vsg::createCommandGraphForView(window, camera, scenegraph);
    viewer->assignRecordAndSubmitTaskAndPresentation({commandGraph});

    // compile the Vulkan objects
    viewer->compile();

    // assign Trackball
    viewer->addEventHandler(vsg::Trackball::create(camera));

    // assign a CloseHandler to the Viewer to respond to pressing Escape or press the window close button
    viewer->addEventHandlers({vsg::CloseHandler::create(viewer)});

    // main frame loop
    while (viewer->advanceToNextFrame() && (numFrames < 0 || (numFrames--) > 0))
    {
        // update the dynamic_text label string and position
        /*dynamic_text_label->value() = vsg::make_string("GpuLayoutTechnique: ", viewer->getFrameStamp()->frameCount);
        dynamic_text_layout->position.x += 0.01;
        dynamic_text->setup(0, options);*/

        // pass any events into EventHandlers assigned to the Viewer
        viewer->handleEvents();

        viewer->update();

        viewer->recordAndSubmit();

        viewer->present();
    }

    // clean up done automatically thanks to ref_ptr<>
    return 0;
}

Thanks

[Mikalai]

When I removed these lines from text vertex shader my problem was fixed but probably this broke something else I don't use.

gl_Position.z -= inPosition.z*0.001;
gl_Position.z -= inTexCoord.z*0.001;

[robertosfield]

When I removed these lines from text vertex shader my problem was fixed but probably this broke something
else I don't use.

gl_Position.z -= inPosition.z0.001;
gl_Position.z -= inTexCoord.z0.001;

Good to hear you've made some progress.

This above changes me wonder if the change to use reverse depth with the VSG by default broke the text shaders as these depth changes are meant to prevent adjacent glyphs from over writing the depth value of the next glyph being rendered. The glyph quads are oversized a little to ensure any text outline effect has room to be rendered.

I will review the text shaders as they were written before the reverse depth was introduced and may have been missed in the change. It may be that the above trick should be += rather than -=.

[robertosfield]

@Mikalai I have now had a chance to run the modified vsgtext and have changed the sign of the depth offset as the shader offset was written before the VSG's default depth buffer order was changed to reverse depth, but these shaders were missed.

I have checked the changes on the shaders into vsgExamples master:

VSG commit: adf1e2e
vsgExamples commit: vsg-dev/vsgExamples@f54e2fc

With this modified examples works fine.

[Mikalai]

Thanks, works great now
