New zwavejs2mqtt docker-compose container showing all devices as unknown but has ids

[iDontWantAUsername]

Hi,

I was planning on moving from the legacy zwave to zwavejs in Home Assistant which i run on a Raspberry Pi 4 with all Aeotec Zwave devices.

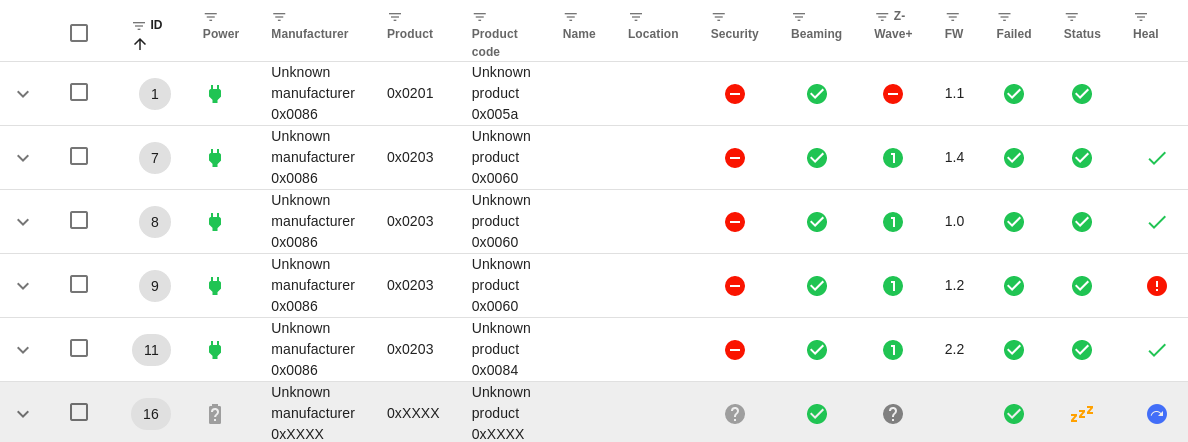

I have used the docker-compose solution for this which seems to setup fine and does find my devices associated with the Z-wave stick however all the (non-battery) devices are showing up as Unknown Manufacturer and Unknown Product, strangely however all the devices have their product code listed and link to the correct items in the zwavejs device database:

This seems to cause me to also miss the configuration parameters, these work find in the legacy home assistant.

Note: i have tried disabling the Home Assistant Z-Wave integration rebooting the Pi and then loading up the zwavejs interface so i don't think there are any issues with 2 integrations running at the same time.

Re-Interviewing node 7 (Aeotec Switch https://devices.zwave-js.io/?jumpTo=0x0086:0x0203:0x0060:1.4 ) gives the following log:

2021-11-30 18:46:42.021 INFO ZWAVE: Node 7: interview started
2021-11-30 18:46:42.040 INFO ZWAVE: Success zwave api call refreshInfo undefined
2021-11-30 18:46:42.056 INFO ZWAVE: Node 7: interview stage PROTOCOLINFO completed
2021-11-30 18:46:42.060 DEBUG MQTT: Publishing to zwave/nodeID_7/status: { time: 1638258402058, value: true, status: 'Alive', nodeId: 7 } with options { qos: 1, retain: true }
2021-11-30 18:46:42.175 INFO ZWAVE: Node 7: interview stage NODEINFO completed
2021-11-30 18:46:42.177 DEBUG MQTT: Publishing to zwave/nodeID_7/status: { time: 1638258402177, value: true, status: 'Alive', nodeId: 7 } with options { qos: 1, retain: true }
2021-11-30 18:46:44.496 INFO ZWAVE: Node 7: value added: 114-0-manufacturerId => 134
2021-11-30 18:46:44.498 INFO ZWAVE: Node 7: value added: 114-0-productType => 515
2021-11-30 18:46:44.500 INFO ZWAVE: Node 7: value added: 114-0-productId => 96
2021-11-30 18:46:44.878 INFO ZWAVE: Node 7: value added: 134-0-libraryType => 3
2021-11-30 18:46:44.879 INFO ZWAVE: Node 7: value added: 134-0-protocolVersion => 4.54
2021-11-30 18:46:44.880 INFO ZWAVE: Node 7: value added: 134-0-firmwareVersions => 1.4
2021-11-30 18:46:44.881 INFO ZWAVE: Node 7: value added: 134-0-hardwareVersion => 96
2021-11-30 18:46:49.054 INFO ZWAVE: Node 7: value added: 37-0-currentValue => false
2021-11-30 18:46:49.056 INFO ZWAVE: Node 7: value added: 37-0-targetValue => undefined
2021-11-30 18:46:49.085 INFO ZWAVE: Node 7: metadata updated: 38-0-Up
2021-11-30 18:46:49.087 INFO ZWAVE: Node 7: metadata updated: 38-0-Down
2021-11-30 18:46:49.234 INFO ZWAVE: Node 7: value added: 38-0-targetValue => undefined
2021-11-30 18:46:49.236 INFO ZWAVE: Node 7: value added: 38-0-currentValue => 99
2021-11-30 18:46:49.432 INFO ZWAVE: Node 7: metadata updated: 51-0-currentColor-2
2021-11-30 18:46:49.434 INFO ZWAVE: Node 7: metadata updated: 51-0-targetColor-2
2021-11-30 18:46:49.438 INFO ZWAVE: Node 7: metadata updated: 51-0-currentColor-3
2021-11-30 18:46:49.440 INFO ZWAVE: Node 7: metadata updated: 51-0-targetColor-3
2021-11-30 18:46:49.446 INFO ZWAVE: Node 7: metadata updated: 51-0-currentColor-4
2021-11-30 18:46:49.448 INFO ZWAVE: Node 7: metadata updated: 51-0-targetColor-4
2021-11-30 18:46:49.453 INFO ZWAVE: Node 7: metadata updated: 51-0-currentColor
2021-11-30 18:46:49.455 INFO ZWAVE: Node 7: metadata updated: 51-0-targetColor
2021-11-30 18:46:49.457 INFO ZWAVE: Node 7: metadata updated: 51-0-hexColor
2021-11-30 18:46:49.613 INFO ZWAVE: Node 7: value added: 51-0-currentColor-2 => 27
2021-11-30 18:46:49.615 INFO ZWAVE: Node 7: value added: 51-0-currentColor => [object Object]
2021-11-30 18:46:49.616 INFO ZWAVE: Node 7: value added: 51-0-hexColor => 1b0000
2021-11-30 18:46:49.803 INFO ZWAVE: Node 7: value added: 51-0-currentColor-3 => 20
2021-11-30 18:46:49.805 DEBUG MQTT: Publishing to zwave/nodeID_7/51/0/currentColor: { time: 1638258409805, value: { red: 27, green: 20 } } with options { qos: 1, retain: true }
2021-11-30 18:46:49.806 INFO ZWAVE: Node 7: value updated: 51-0-currentColor [object Object] => [object Object]
2021-11-30 18:46:49.807 DEBUG MQTT: Publishing to zwave/nodeID_7/51/0/hexColor: { time: 1638258409807, value: '1b1400' } with options { qos: 1, retain: true }
2021-11-30 18:46:49.808 INFO ZWAVE: Node 7: value updated: 51-0-hexColor 1b0000 => 1b1400
2021-11-30 18:46:49.998 DEBUG MQTT: Publishing to zwave/nodeID_7/51/0/currentColor/3: { time: 1638258409998, value: 20 } with options { qos: 1, retain: true }
2021-11-30 18:46:49.999 INFO ZWAVE: Node 7: value updated: 51-0-currentColor-3 20 => 20
2021-11-30 18:46:50.001 DEBUG MQTT: Publishing to zwave/nodeID_7/51/0/currentColor: { time: 1638258410001, value: { red: 27, green: 20 } } with options { qos: 1, retain: true }
2021-11-30 18:46:50.002 INFO ZWAVE: Node 7: value updated: 51-0-currentColor [object Object] => [object Object]
2021-11-30 18:46:50.004 DEBUG MQTT: Publishing to zwave/nodeID_7/51/0/hexColor: { time: 1638258410003, value: '1b1400' } with options { qos: 1, retain: true }
2021-11-30 18:46:50.004 INFO ZWAVE: Node 7: value updated: 51-0-hexColor 1b1400 => 1b1400
2021-11-30 18:47:00.085 INFO ZWAVE: Node 7: metadata updated: 50-0-reset
2021-11-30 18:47:40.557 INFO ZWAVE: Node 7: interview stage COMMANDCLASSES completed
2021-11-30 18:47:40.561 DEBUG MQTT: Publishing to zwave/nodeID_7/status: { time: 1638258460561, value: true, status: 'Alive', nodeId: 7 } with options { qos: 1, retain: true }
2021-11-30 18:47:40.563 INFO ZWAVE: Node 7: interview stage OVERWRITECONFIG completed
2021-11-30 18:47:40.567 DEBUG MQTT: Publishing to zwave/nodeID_7/status: { time: 1638258460567, value: true, status: 'Alive', nodeId: 7 } with options { qos: 1, retain: true }
2021-11-30 18:47:40.568 INFO ZWAVE: Node 7: interview stage COMPLETE completed
2021-11-30 18:47:40.571 DEBUG MQTT: Publishing to zwave/nodeID_7/status: { time: 1638258460570, value: true, status: 'Alive', nodeId: 7 } with options { qos: 1, retain: true }
2021-11-30 18:47:40.617 INFO ZWAVE: Node 7: value added 7-37-0-currentValue => false
2021-11-30 18:47:40.618 INFO ZWAVE: Node 7: value added 7-37-0-targetValue => undefined
2021-11-30 18:47:40.620 INFO ZWAVE: Node 7: value added 7-38-0-targetValue => undefined
2021-11-30 18:47:40.621 INFO ZWAVE: Node 7: value added 7-38-0-duration => NaNs
2021-11-30 18:47:40.624 DEBUG MQTT: Publishing to zwave/nodeID_7/38/0/duration: {
time: 1638258460623,
value: Duration {
unit: 'seconds',
_value: undefined,
[value]: [Getter/Setter]
}
} with options { qos: 1, retain: true }
2021-11-30 18:47:40.631 INFO ZWAVE: Node 7: value added 7-38-0-currentValue => 99
2021-11-30 18:47:40.632 INFO ZWAVE: Node 7: value added 7-38-0-Up => undefined
2021-11-30 18:47:40.632 INFO ZWAVE: Node 7: value added 7-38-0-Down => undefined
2021-11-30 18:47:40.633 INFO ZWAVE: Node 7: value added 7-51-0-duration => NaNs
2021-11-30 18:47:40.634 DEBUG MQTT: Publishing to zwave/nodeID_7/51/0/duration: {
time: 1638258460633,
value: Duration {
unit: 'seconds',
_value: undefined,
[value]: [Getter/Setter]
}
} with options { qos: 1, retain: true }
2021-11-30 18:47:40.641 INFO ZWAVE: Node 7: value added 7-51-0-currentColor-2 => 27
2021-11-30 18:47:40.646 INFO ZWAVE: Node 7: value added 7-51-0-currentColor-3 => 20
2021-11-30 18:47:40.652 INFO ZWAVE: Node 7: value added 7-51-0-currentColor => [object Object]
2021-11-30 18:47:40.652 INFO ZWAVE: Node 7: value added 7-51-0-hexColor => 1b1400
2021-11-30 18:47:40.653 INFO ZWAVE: Node 7: value added 7-51-0-targetColor-2 => undefined
2021-11-30 18:47:40.653 INFO ZWAVE: Node 7: value added 7-51-0-targetColor-3 => undefined
2021-11-30 18:47:40.666 INFO ZWAVE: Node 7: value added 7-51-0-currentColor-4 => undefined
2021-11-30 18:47:40.667 DEBUG MQTT: Publishing to zwave/nodeID_7/51/0/currentColor/4: { time: 1638258460666, value: undefined } with options { qos: 1, retain: true }
2021-11-30 18:47:40.667 INFO ZWAVE: Node 7: value added 7-51-0-targetColor-4 => undefined
2021-11-30 18:47:40.668 INFO ZWAVE: Node 7: value added 7-51-0-targetColor => undefined
2021-11-30 18:47:40.668 INFO ZWAVE: Node 7: value added 7-50-0-reset => undefined
2021-11-30 18:47:40.669 INFO ZWAVE: Node 7: value added 7-114-0-manufacturerId => 134
2021-11-30 18:47:40.670 INFO ZWAVE: Node 7: value added 7-114-0-productType => 515
2021-11-30 18:47:40.670 INFO ZWAVE: Node 7: value added 7-114-0-productId => 96
2021-11-30 18:47:40.671 INFO ZWAVE: Node 7: value added 7-134-0-libraryType => 3
2021-11-30 18:47:40.671 INFO ZWAVE: Node 7: value added 7-134-0-protocolVersion => 4.54
2021-11-30 18:47:40.672 INFO ZWAVE: Node 7: value added 7-134-0-firmwareVersions => 1.4
2021-11-30 18:47:40.673 DEBUG MQTT: Publishing to zwave/nodeID_7/134/0/firmwareVersions: { time: 1638258460672, value: [ '1.4', [length]: 1 ] } with options { qos: 1, retain: true }
2021-11-30 18:47:40.673 INFO ZWAVE: Node 7: value added 7-134-0-hardwareVersion => 96
2021-11-30 18:47:40.677 DEBUG MQTT: Publishing to zwave/nodeID_7/status: { time: 1638258460677, value: true, status: 'Alive', nodeId: 7 } with options { qos: 1, retain: true }
2021-11-30 18:47:40.678 DEBUG ZWAVE: Node 7: mapping absence of CC 128 (Battery) to node property 'isBatteryPowered
2021-11-30 18:47:40.678 INFO ZWAVE: Node 7 ready: Unknown manufacturer 0x0086 - Unknown product 0x0060 (0x0203)
2021-11-30 18:47:40.679 INFO ZWAVE: Node 7: interview COMPLETED, all values are updated

The interface shows the following versions:
zwavejs2mqtt: 5.12.0
zwave-js: 8.7.6

i am using an Aeotec Gen 5 Z-Stick as the controller: https://devices.zwave-js.io/?jumpTo=0x0086:0x0201:0x005a:1.1

I tried including a new battery switch and this also missing the manufacturer and product details (which worked straight away in the legacy zwave when i turned it back on) so this doesn't seem to be an issue with already linked devices.

Any ideas what i am doing wrong or what i should try to get the product details to pull through properly? Please let me know if any further information is required.

Thanks in advance,
Richard

[AlCalzone]

This looks like an issue with the compose setup, specifically how the store and external config directory is handled. The driver can't find the configuration files for some reason.
https://zwave-js.github.io/zwavejs2mqtt/#/getting-started/docker

@robertsLando this is your turf :)

[robertsLando]

@iDontWantAUsername Could you share your docker compose file?

[robertsLando]

Just to be sure, try to set ZWAVEJS_EXTERNAL_CONFIG env var to /usr/src/app/store/.config-db

[robertsLando]

It should be set here but 🤷🏼‍♂️

[iDontWantAUsername]

Awesome that worked.

I ran
docker-compose down
docker-compose pull
docker-compose up -d

and now the device details are coming through

Thanks all for your help

[AlCalzone]

@robertsLando you might wanna add that ENV variable to the docker-compose.yml example in the docs.

[robertsLando]

#2009
