Zipato Mini Keypad integration problem in Jeedom with Z-Wave JS plugin.

[OUARZA]

Hello
I migrated my equipment from Open Z-Wave to Z-Wave JS.

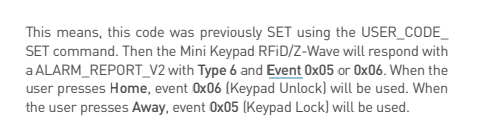

I have a problem with my ZIPATO keyboard. I can't get the 'home/away' button pressed and the UserID to go up in command.
My badges are registered correctly.
Can you help me ?
Thanks in advance.
Mathieu
z-wave js.txt

[robertsLando]

@OUARZA do you see any event in events tab of your node when you press the button? Just go to the control panel ui, expand the node that match your zipato keyboard and go to its events tab, press the button and check if something happens there

[OUARZA]

Hello @robertsLando ,
Yes, the information goes back correctly in the event
Mathieu

2022-12-05T10:23:53.330Z - SLEEP
Arg 0:
0
2022-12-05T10:23:54.077Z - READY
2022-12-05T10:24:50.157Z - WAKE UP
Arg 0:
1
2022-12-05T10:24:51.326Z - SLEEP
Arg 0:
2
2022-12-05T10:24:55.495Z - VALUE UPDATED
Arg 0:
└─commandClassName: Notification
└─commandClass: 113
└─property: alarmType
└─endpoint: 0
└─newValue: 0
└─prevValue: 0
└─propertyName: alarmType
2022-12-05T10:24:55.500Z - VALUE UPDATED
Arg 0:
└─commandClassName: Notification
└─commandClass: 113
└─property: alarmLevel
└─endpoint: 0
└─newValue: 0
└─prevValue: 255
└─propertyName: alarmLevel
2022-12-05T10:24:55.514Z - NOTIFICATION
Arg 0:
113
Arg 1:
└─type: 6
└─event: 6
└─label: Access Control
└─eventLabel: Keypad unlock operation
└─parameters
└──userId: 1
2022-12-05T10:24:55.648Z - WAKE UP
Arg 0:
1
2022-12-05T10:24:56.737Z - SLEEP
Arg 0:
2

[robertsLando]

Ok so if you see it there it is sent to MQTT, what are you using to connect zwave to jeedom? MQTT discovery? Zwave-js-server?

[OUARZA]

@robertsLando I don't want to talk nonsense but I believe the new plugin goes through MQTT
https://doc.jeedom.com/en_US/plugins/automation%20protocol/zwavejs/

[robertsLando]

@OUARZA Yeah, in that case you should ask them how that can be added to your dashboard, the message is sent to MQTT but you need a widget to display it, never used jeedom so cannot help you so much for that

[OUARZA]

My question is awaiting an answer. The configuration is good, but the information does not go up.

[robertsLando]

You should try checking with mqtt explorer but if you see the event there it is also sent via mqtt. prefix/location/nodename/113/alarmLevel

[OUARZA]

Log of MQTT:

[2022-12-05 20:09:42]DEBUG : {"zwave":{"50":{"113":[{"alarmType":{"time":1670267382493,"value":0},"alarmLevel":{"time":1670267382497,"value":0},"Access_Control":{"Keypad_unlock_operation":{"time":1670267382510,"value":{"userId":1}}}}],"status":{"time":1670267382550,"value":true,"status":"Awake","nodeId":50},"nodeinfo":{"id":50,"name":"","loc":"","neighbors":[],"ready":true,"available":true,"failed":false,"inited":true,"eventsQueue":[{"time":"2022-12-05T19:09:09.457Z","event":"sleep","args":[0]},{"time":"2022-12-05T19:09:10.218Z","event":"ready","args":[]},{"time":"2022-12-05T19:09:36.155Z","event":"wake up","args":[1]},{"time":"2022-12-05T19:09:37.291Z","event":"sleep","args":[2]},{"time":"2022-12-05T19:09:42.496Z","event":"value updated","args":[{"commandClassName":"Notification","commandClass":113,"property":"alarmType","endpoint":0,"newValue":0,"prevValue":0,"propertyName":"alarmType"}]},{"time":"2022-12-05T19:09:42.499Z","event":"value updated","args":[{"commandClassName":"Notification","commandClass":113,"property":"alarmLevel","endpoint":0,"newValue":0,"prevValue":255,"propertyName":"alarmLevel"}]},{"time":"2022-12-05T19:09:42.513Z","event":"notification","args":[113,{"type":6,"event":6,"label":"Access Control","eventLabel":"Keypad unlock operation","parameters":{"userId":1}}]}],"status":"Awake","interviewStage":"Complete","hexId":"0x0097-0x6131-0x4501","dbLink":"https:\/\/devices.zwave-js.io\/?jumpTo=0x0097:0x6131:0x4501:0.28","manufacturerId":151,"productId":17665,"productType":24881,"deviceConfig":{"filename":"\/var\/www\/html\/plugins\/zwavejs\/resources\/zwave-js-ui\/node_modules\/@zwave-js\/config\/config\/devices\/0x0097\/mini_keypad_rfid.json","isEmbedded":true,"manufacturer":"Wintop","manufacturerId":151,"label":"MINI KEYPAD RFID","description":"Keypad with alarm activation rfid tag","devices":[{"productType":24881,"productId":16641},{"productType":24881,"productId":17665},{"productType":24881,"productId":21761}],"firmwareVersion":{"min":"0.0","max":"255.255"},"associations":[],"paramInformation":{"_map":[]}},"productLabel":"MINI KEYPAD RFID","productDescription":"Keypad with alarm activation rfid tag","manufacturer":"Wintop","firmwareVersion":"0.28","protocolVersion":3,"nodeType":1,"endpointsCount":0,"endpointIndizes":[],"isSecure":false,"security":"None","supportsSecurity":false,"supportsBeaming":true,"isControllerNode":false,"isListening":false,"isFrequentListening":false,"isRouting":true,"keepAwake":false,"maxDataRate":40000,"deviceClass":{"basic":4,"generic":64,"specific":0},"firmwareCapabilities":{"firmwareUpgradable":false},"deviceId":"151-17665-24881","minBatteryLevel":62,"batteryLevels":[62],"statistics":{"commandsTX":0,"commandsRX":2,"commandsDroppedRX":0,"commandsDroppedTX":0,"timeoutResponse":0},"lastActive":1670267382481}},"_EVENTS":{"ZWAVE_GATEWAY-Jeedom":{"node":{"statistics_updated":{"data":[{"id":50,"inited":true,"status":1,"isControllerNode":false,"interviewStage":5,"deviceClass":{"basic":"Routing Slave","generic":"Entry Control","specific":"Unused","mandatorySupportedCCs":[],"mandatoryControlCCs":[]},"ready":true,"isListening":false,"isFrequentListening":false,"canSleep":true,"isRouting":true,"supportedDataRates":[40000],"maxDataRate":40000,"supportsSecurity":false,"isSecure":false,"supportsBeaming":true,"protocolVersion":3,"firmwareVersion":"0.28","manufacturerId":151,"manufacturer":"Wintop","productId":17665,"productDescription":"Keypad with alarm activation rfid tag","productType":24881,"productLabel":"MINI KEYPAD RFID","deviceDatabaseUrl":"https:\/\/devices.zwave-js.io\/?jumpTo=0x0097:0x6131:0x4501:0.28","keepAwake":false},{"commandsTX":0,"commandsRX":2,"commandsDroppedRX":0,"commandsDroppedTX":0,"timeoutResponse":0}]},"node_value_updated":{"data":[{"id":50,"inited":true,"status":1,"isControllerNode":false,"interviewStage":5,"deviceClass":{"basic":"Routing Slave","generic":"Entry Control","specific":"Unused","mandatorySupportedCCs":[],"mandatoryControlCCs":[]},"ready":true,"isListening":false,"isFrequentListening":false,"canSleep":true,"isRouting":true,"supportedDataRates":[40000],"maxDataRate":40000,"supportsSecurity":false,"isSecure":false,"supportsBeaming":true,"protocolVersion":3,"firmwareVersion":"0.28","manufacturerId":151,"manufacturer":"Wintop","productId":17665,"productDescription":"Keypad with alarm activation rfid tag","productType":24881,"productLabel":"MINI KEYPAD RFID","deviceDatabaseUrl":"https:\/\/devices.zwave-js.io\/?jumpTo=0x0097:0x6131:0x4501:0.28","keepAwake":false},{"commandClassName":"Notification","commandClass":113,"property":"alarmLevel","endpoint":0,"newValue":0,"prevValue":255,"propertyName":"alarmLevel"}]},"node_notification":{"data":[{"id":50,"inited":true,"status":1,"isControllerNode":false,"interviewStage":5,"deviceClass":{"basic":"Routing Slave","generic":"Entry Control","specific":"Unused","mandatorySupportedCCs":[],"mandatoryControlCCs":[]},"ready":true,"isListening":false,"isFrequentListening":false,"canSleep":true,"isRouting":true,"supportedDataRates":[40000],"maxDataRate":40000,"supportsSecurity":false,"isSecure":false,"supportsBeaming":true,"protocolVersion":3,"firmwareVersion":"0.28","manufacturerId":151,"manufacturer":"Wintop","productId":17665,"productDescription":"Keypad with alarm activation rfid tag","productType":24881,"productLabel":"MINI KEYPAD RFID","deviceDatabaseUrl":"https:\/\/devices.zwave-js.io\/?jumpTo=0x0097:0x6131:0x4501:0.28","keepAwake":false},113,{"type":6,"event":6,"label":"Access Control","eventLabel":"Keypad unlock operation","parameters":{"userId":1}}]},"node_wakeup":{"data":[{"id":50,"inited":true,"status":2,"isControllerNode":false,"interviewStage":5,"deviceClass":{"basic":"Routing Slave","generic":"Entry Control","specific":"Unused","mandatorySupportedCCs":[],"mandatoryControlCCs":[]},"ready":true,"isListening":false,"isFrequentListening":false,"canSleep":true,"isRouting":true,"supportedDataRates":[40000],"maxDataRate":40000,"supportsSecurity":false,"isSecure":false,"supportsBeaming":true,"protocolVersion":3,"firmwareVersion":"0.28","manufacturerId":151,"manufacturer":"Wintop","productId":17665,"productDescription":"Keypad with alarm activation rfid tag","productType":24881,"productLabel":"MINI KEYPAD RFID","deviceDatabaseUrl":"https:\/\/devices.zwave-js.io\/?jumpTo=0x0097:0x6131:0x4501:0.28","keepAwake":false}]}}}}}}

[robertsLando]

@OUARZA Ok so as you can see that is sent, so what?

[OUARZA]

I will wait for the return of the Jeedom developers.

[OUARZA]

@robertsLando
Thank you very much, if you can tell him that he has not implemented everything. This part is missing

You can tell him that we had a discussion on the forum and that there is plenty of information.
https://community.jeedom.com/t/zipato-minikeypad-rfid-avec-zwavejs/94827/49

[OUARZA]

@robertsLando
You can thank the Jeedom developer for me or tell me who he is.

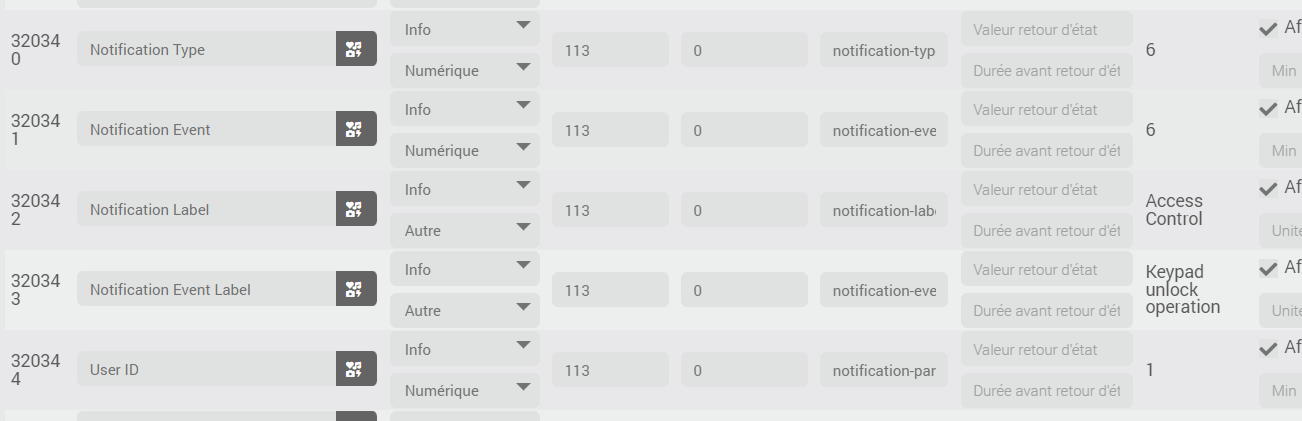

The latest update recovers all the necessary information.
Thank you

[robertsLando]

Glad that is fixed now 👍🏼

[robertsLando]

It's sarakha63

[OUARZA]

cool it's my neighbor 🤣
