Real-Time Gesture Mimicry

Controlling a 3D-Printed Robotic Hand Using Webcam-Based Hand Tracking

Overview

This project mirrors a human hand in real time using:

• A webcam for hand tracking

• MediaPipe for landmark detection

• An Arduino-controlled 3D-printed robotic hand

The system detects finger openness and maps it to servo angles, allowing the robotic hand to mimic live gestures.

This repository documents the full pipeline: vision → metric extraction → control logic → actuation.

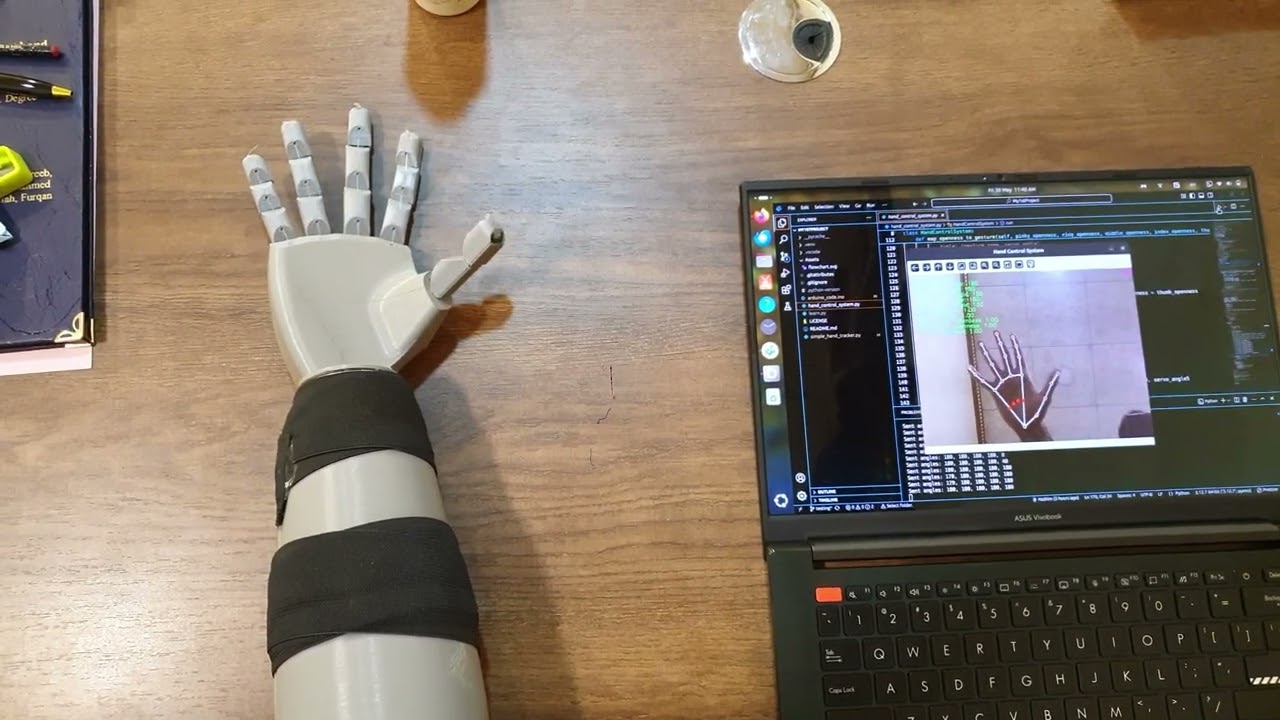

Demo

System Architecture

1. Hand Detection

• MediaPipe extracts 21 hand landmarks.

2. Openness Metric

• Finger states are calculated relative to anatomical reference points.

3. Mapping Layer

• Openness values are converted into servo angles.

4. Actuation

• Angles are transmitted to the Arduino via serial communication.

5. Execution

• Servos drive the 3D-printed hand accordingly.

Control Flow

Project Status

⚠ Development is currently paused.

The system works in its current experimental form, but it is not production-ready.
A full rewrite is planned in the future to achieve architectural clarity and conceptual ownership.

Dependencies

• mediapipe — hand landmark detection

• opencv-python — video capture and processing

• pyserial — Arduino communication

Install with:

pip install -r requirements.txt

File Structure

• simple_hand_tracker.py — camera + landmark detection + openness calculation

• hand_control_system.py — mapping + serial communication

• Arduino_code.ino — servo control firmware

• code dissection [WIP].md — technical breakdown

• requirements.txt — Python dependencies

Philosophy

This project is built primarily for my own use and learning.

It evolves when I need something, want to improve something, or decide to explore an idea.
It is not driven by feature requests, deadlines, or a public roadmap.

You are welcome to use it, fork it, or build on it.

However:

• There are no guarantees of support

• There are no timelines

• Feature requests may be ignored

• The direction of the project is decided solely by me

If you need a specific feature, open a PR and implement it.

Donations are appreciated, but they do not grant influence over the project.

This is a personal tool first, public software second.

Roadmap (Long-Term)

• Decouple hand orientation from openness metric

• Improve calibration robustness

• Hardware abstraction for variable actuator counts

• Packaging for Linux / macOS / Windows

• Full rewrite with redesigned architecture

Contributions

Please read CONTRIBUTING.md before opening issues or pull requests.
