On-premises Active Directory Deployed in the Cloud (Azure)

This tutorial outlines the implementation of on-premises Active Directory within Azure Virtual Machines.

Environments and Technologies Used

• Microsoft Azure (Virtual Machines/Compute)
• Remote Desktop
• Active Directory Domain Services
• PowerShell

Operating Systems Used

• Windows Server 2022
• Windows 10 (22H2)

High-Level Deployment and Configuration Steps

• Preparing the AD Infrastructure in Azure
• Deploying Active Directory
• Creating Users with PowerShell
• Group Policy and Managing Accounts

---

Deployment and Configuration Steps

Part 1: Preparing the AD Infrastructure in Azure

Setup Domain Controller in Azure

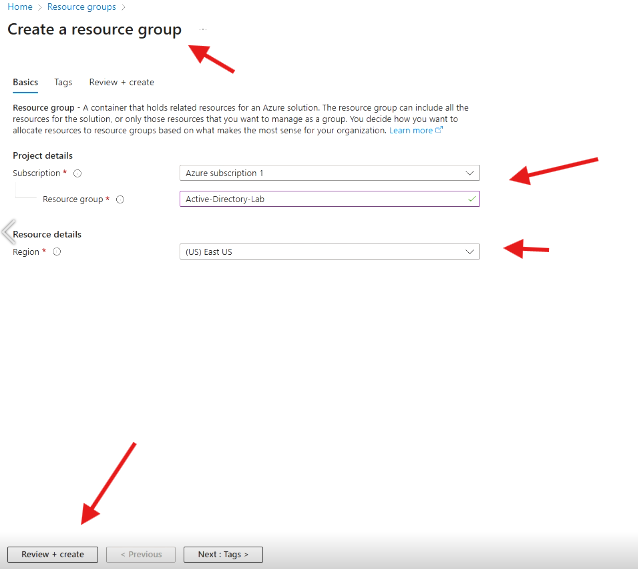

1. Create a Resource Group:
   • Navigate to the Azure Portal and create a new Resource Group for the lab environment.

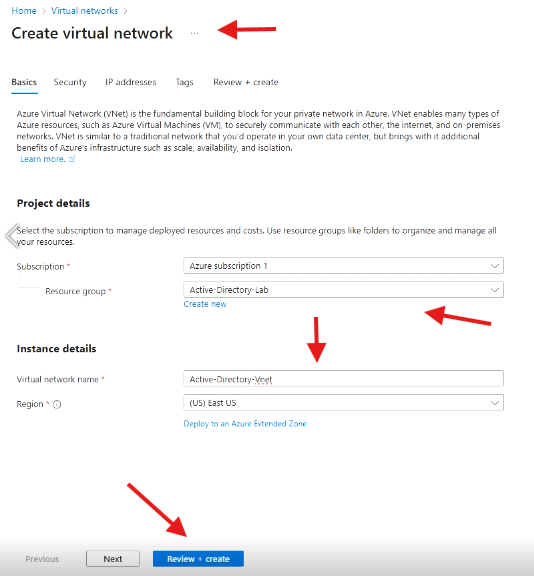

2. Create a Virtual Network and Subnet:
   • Set up a Virtual Network with a subnet to host your VMs.

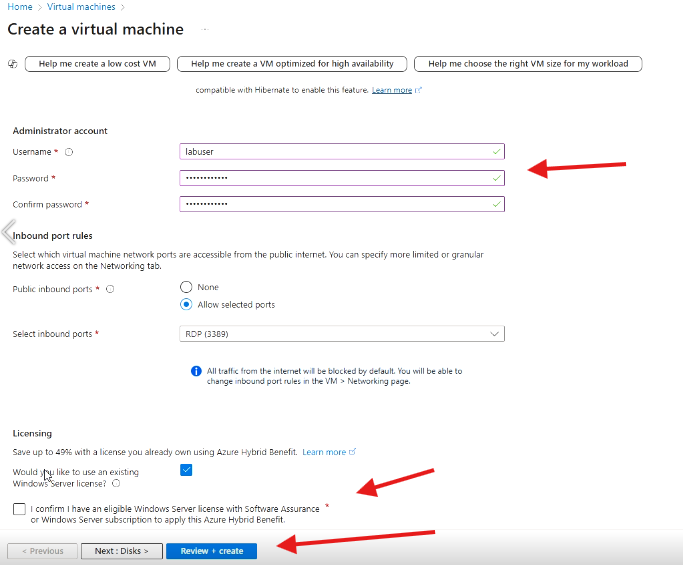

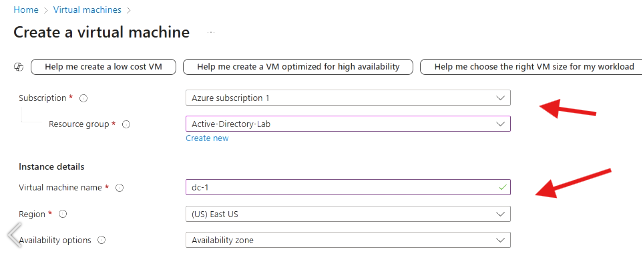

3. Create the Domain Controller VM (Windows Server 2022):
   • Name the VM: DC-1.
   • Ensure that the VM is on the Virtual Network created previously.

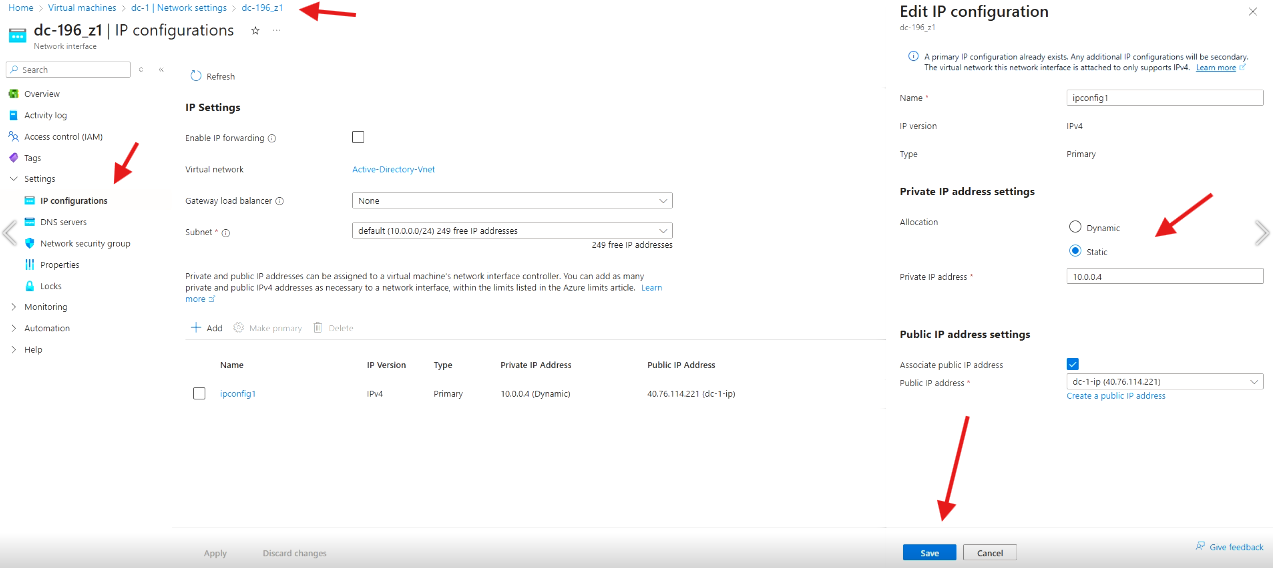

4. Set Static Private IP for DC-1:
   • After the VM is created, navigate to its Network Interface Card (NIC) settings and set the private IP to static.

5. Disable Windows Firewall:
   • Log in to DC-1 and disable the Windows Firewall for testing connectivity.

Setup Client-1 in Azure

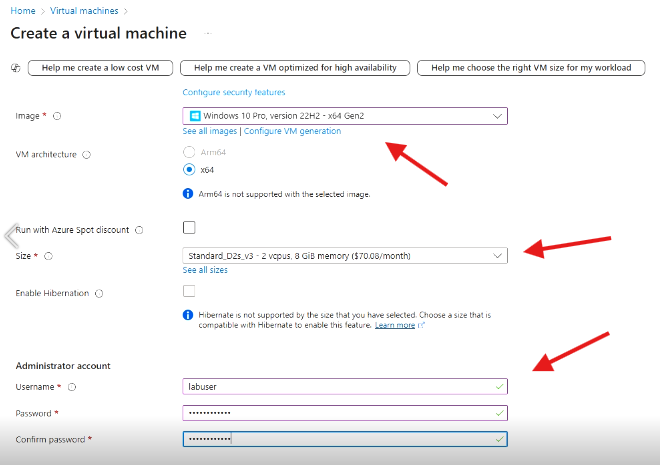

1. Create the Client VM (Windows 10 22H2):
   • Name the VM: Client-1.

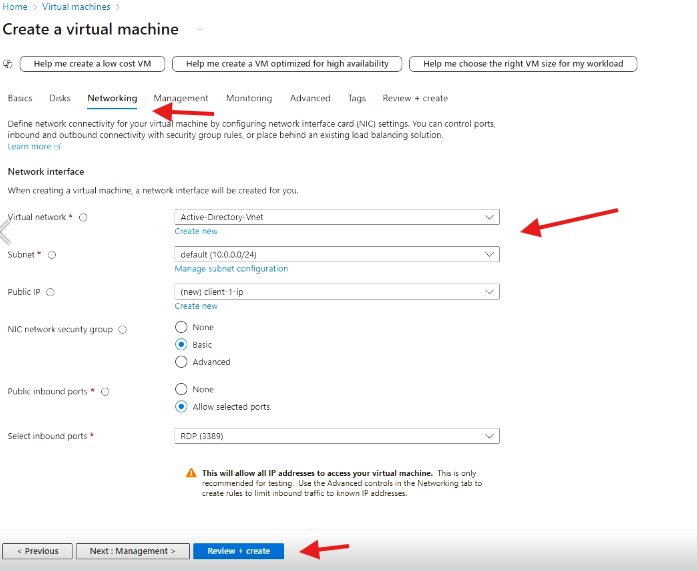

2. Attach Client-1 to the Same Region and Virtual Network:
   • Ensure it is in the same Virtual Network and subnet as DC-1.

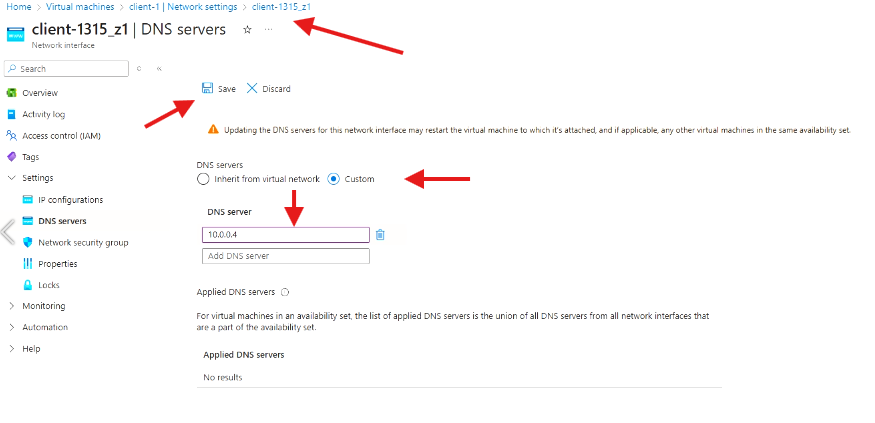

3. Set DNS Settings:
   • Update Client-1's DNS settings to point to DC-1's private IP address.

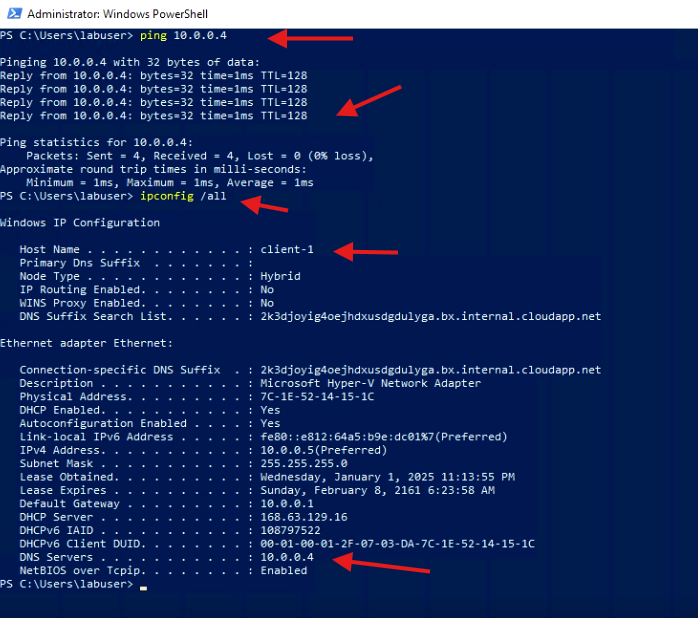

4. Test Connectivity:

   • Restart Client-1 from the Azure Portal.
   • Log into Client-1 and use the ping command to test connectivity with DC-1.

5. Verify DNS Settings:

   • Run ipconfig /all in PowerShell on Client-1 to ensure the DNS points to DC-1.

---

Part 2: Deploying Active Directory

Install Active Directory

1. Log in to DC-1.

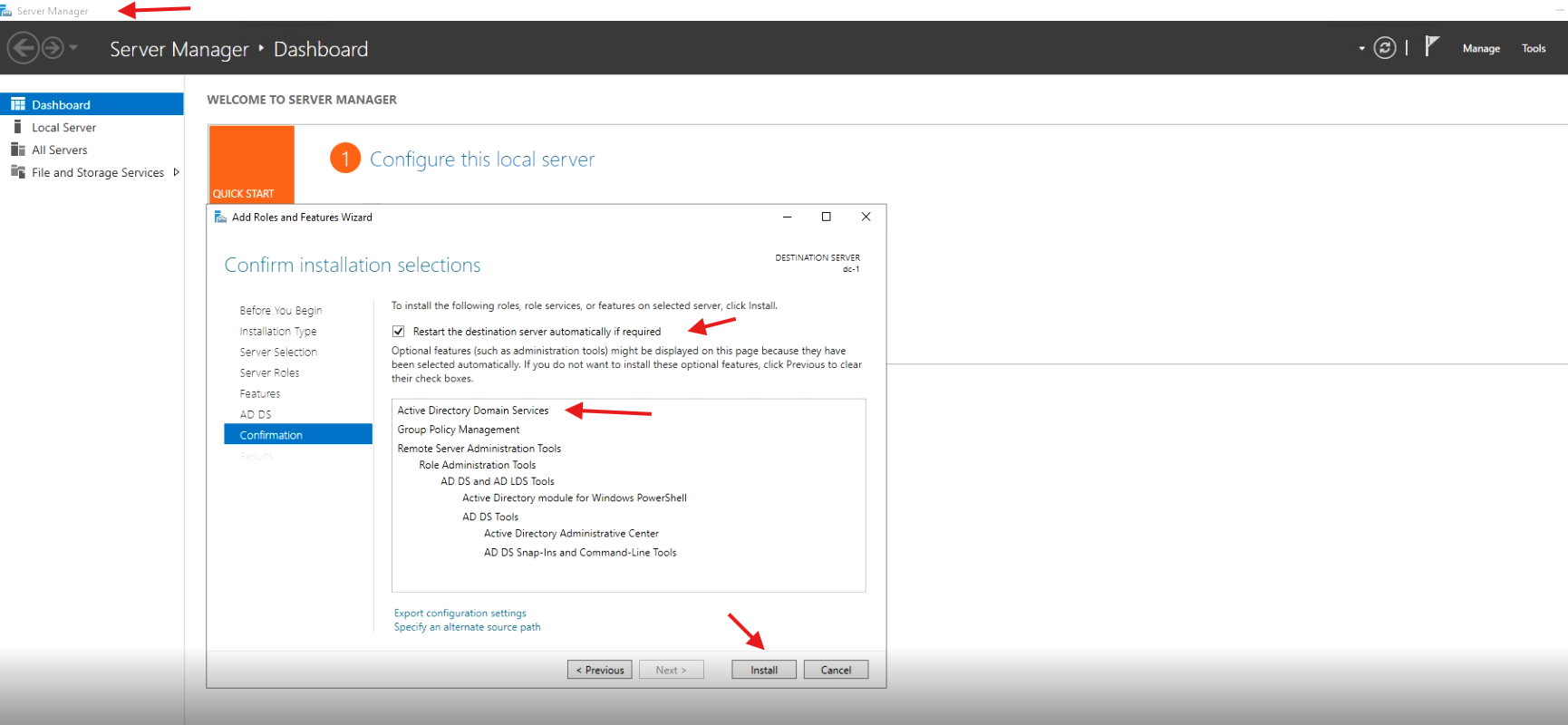

2. Install Active Directory Domain Services (AD DS).

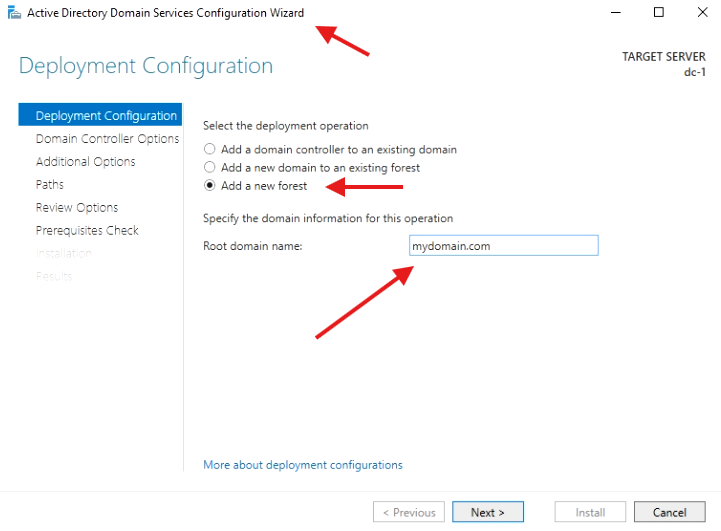

3. Promote DC-1 as a Domain Controller and set up a new forest (e.g., mydomain.com).
4. Restart DC-1 and log in as mydomain.com\labuser.

Create a Domain Admin User

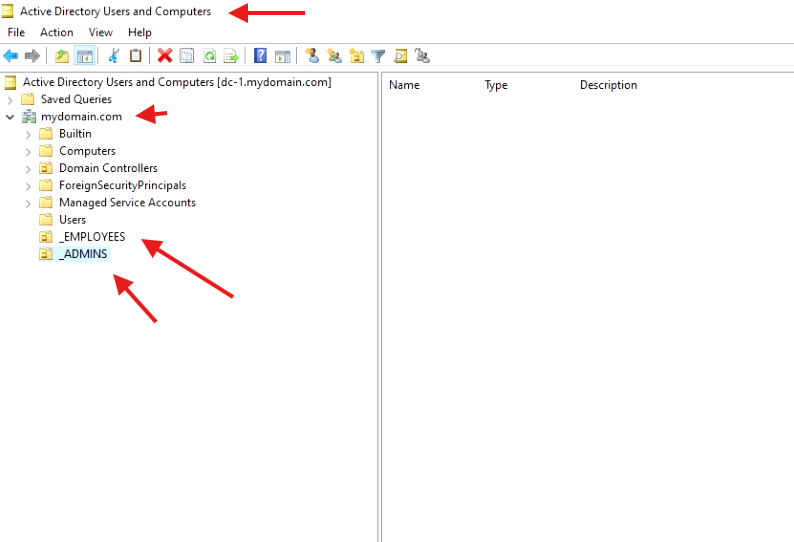

1. Open Active Directory Users and Computers (ADUC).
2. Create an Organizational Unit (OU) named _EMPLOYEES.
3. Create another OU named _ADMINS.
4. Add a new user:
   • Name: Jane Doe
   • Username: jane_admin
   • Password: Cyberlab123!

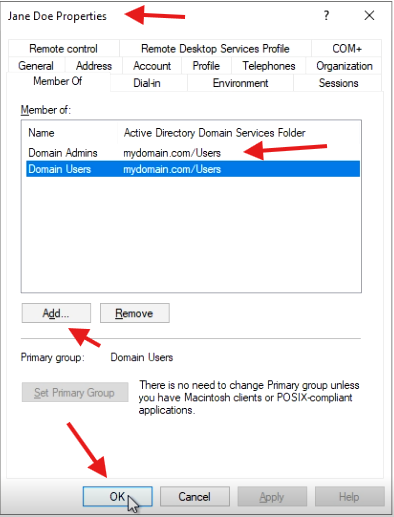

5. Add jane_admin to the Domain Admins security group.
6. Log out and log back in as mydomain.com\jane_admin.

Join Client-1 to the Domain

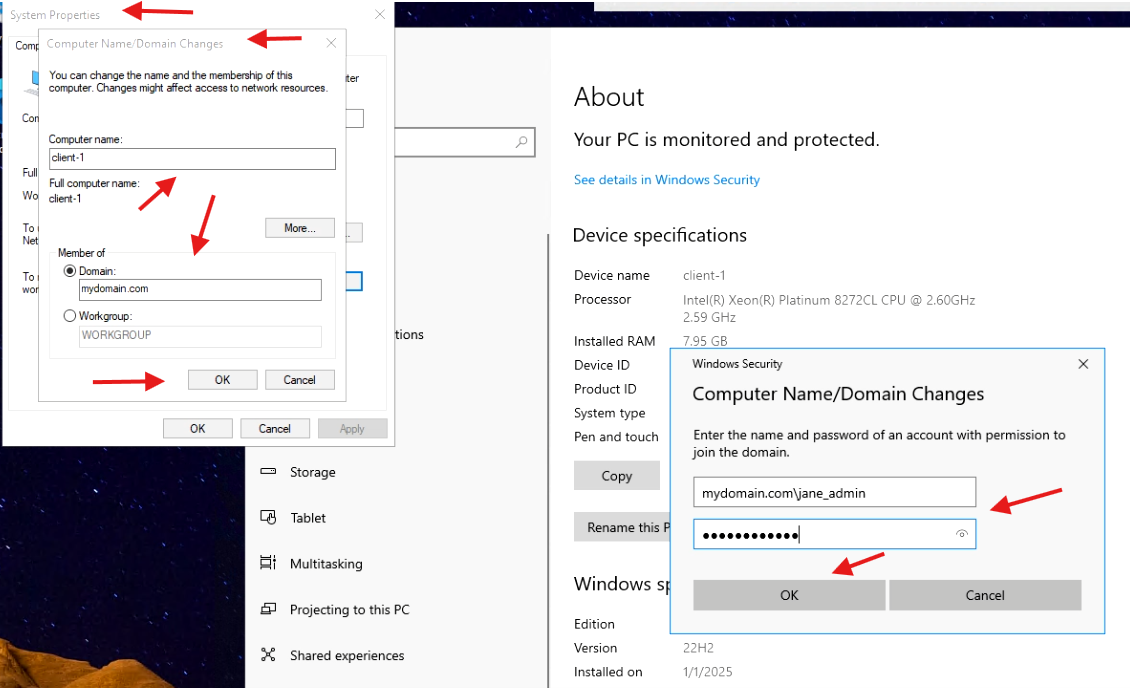

1. Log in as the local admin and join Client-1 to the domain.

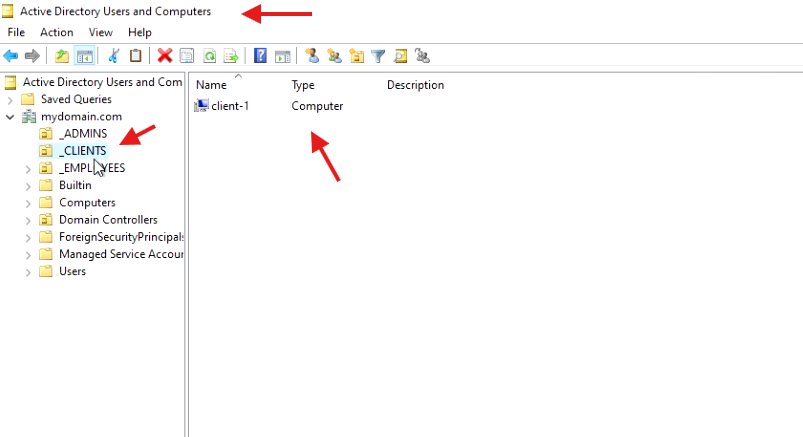

2. Create a new OU titled '_CLIENTS' & add Client-1 in ADUC to _CLIENTS.

---

Part 3: Creating Users with PowerShell

Setup Remote Desktop for Domain Users

1. Log into Client-1 as mydomain.com\jane_admin.
2. Open System Properties and enable Remote Desktop.
3. Allow "domain users" access to Remote Desktop.

Create Users with PowerShell

1. Log in to DC-1 as jane_admin.
2. Open PowerShell ISE as an administrator.
3. Create multiple new users using a script (script link: https://github.com/joshmadakor1/AD_PS/blob/master/Generate-Names-Create-Users.ps1).

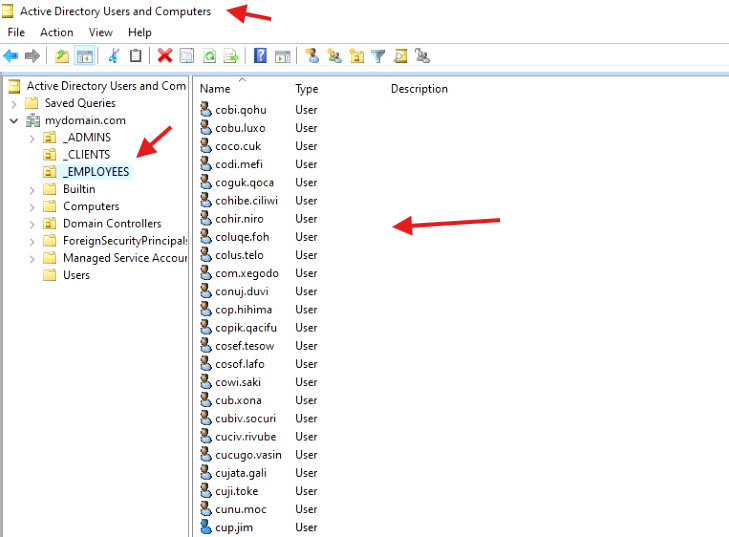

4. Verify users appear in the _EMPLOYEES OU in ADUC.

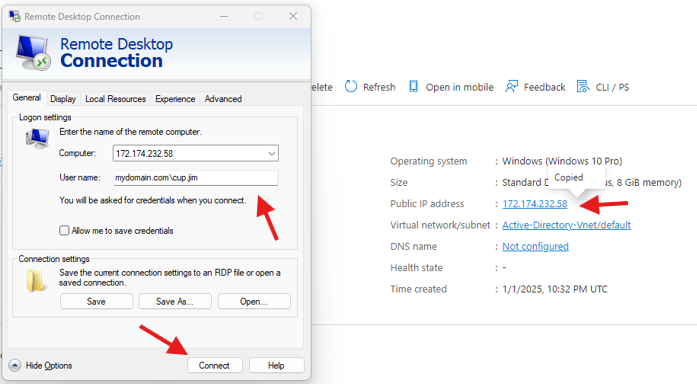

5. Attempt to log into Client-1 with one of the created accounts.

---

Part 4: Group Policy and Managing Accounts

Account Lockout Configuration

1. Log in to DC-1.
2. Open Group Policy Management.
3. Edit the Default Domain Policy:
   • Set account lockout threshold to 5 invalid attempts.

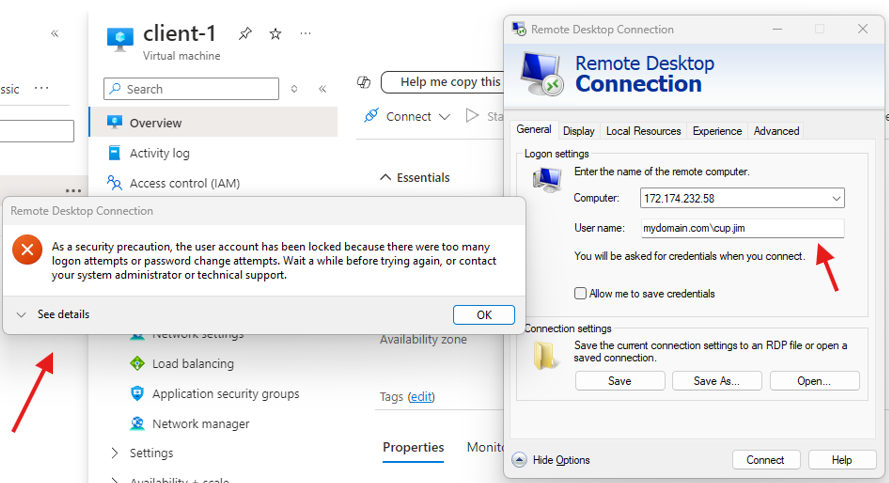

4. Attempt to log in with a user account using incorrect passwords. Observe the account lockout behavior.
5. Unlock the account in ADUC and reset the password.

Enable and Disable Accounts

1. Disable a user account in ADUC.

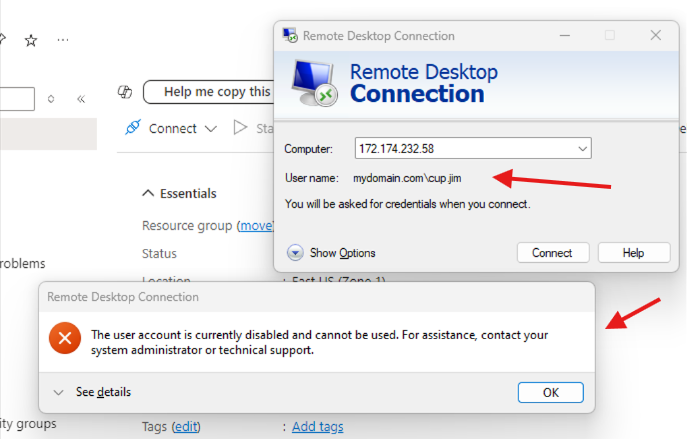

2. Attempt to log in with the disabled account and observe the error message.

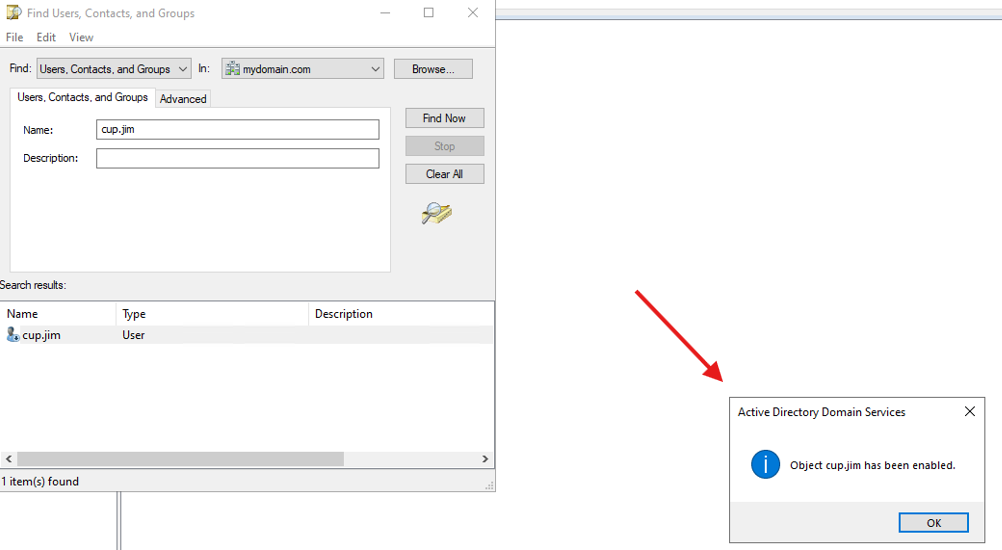

3. Re-enable the account and log in successfully.

Observing Logs

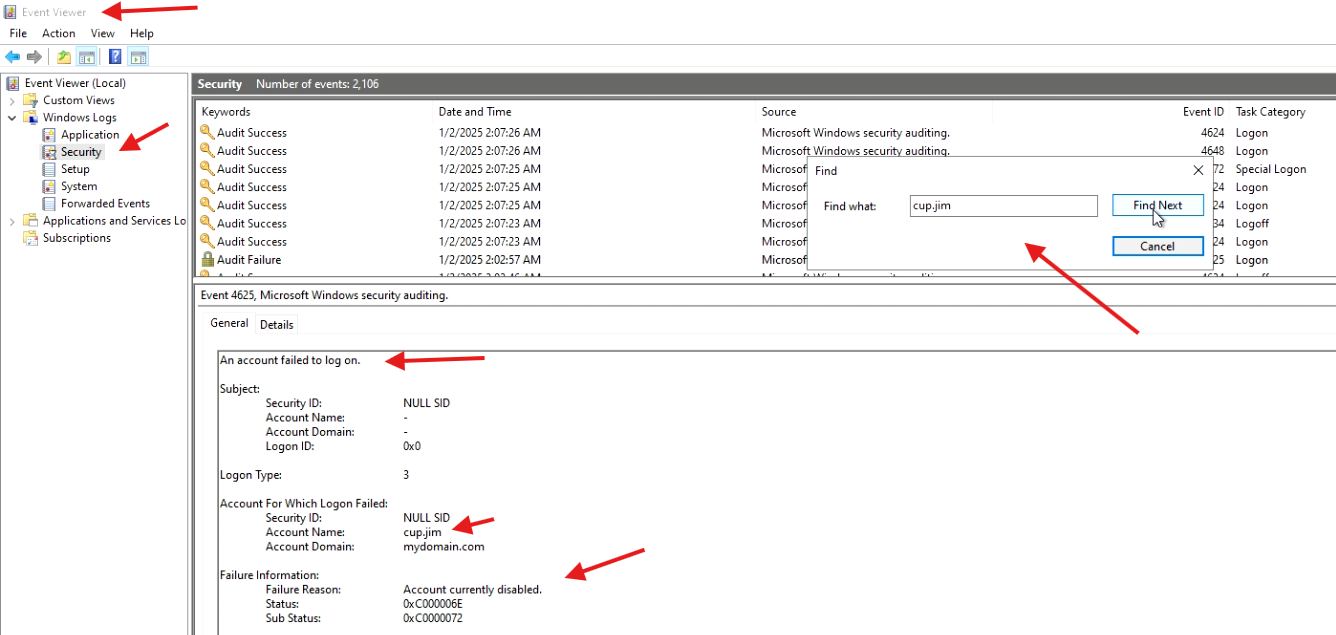

1. Review authentication and account-related logs in Event Viewer:
   • Log on DC-1 for domain-level events (shown below).
   • Log on Client-1 for local events.

---

Completion

Congratulations! You have successfully deployed and configured an on-premises Active Directory environment in Azure.
