Support Ref3dPtg, read names to stringify for NamePtg

[oleglpts]

Now, when processing file with defined names, does not occur an exception "External address not supported"

[DissectMalware]

Thank you for the pr. Could you please also provide a sample file?

[oleglpts]

Test:

Opening workbook... Done! (0.0014884471893310547 seconds)
Reading sheet SheetRecord(rId='rId1', state=<SheetState.VISIBLE: 0>, sheetId=1, name='VBA Macro & formulas', type='worksheet', loc='worksheets/sheet1.bin', id=0)...
INDEX(B1:B2, MATCH(H2, A1:A2, 0))
GetFormula0 (GET.CELL(6, [@-1, @0]))
A1:A2
B1:B2
C1:C2
INDEX(C1:C2, MATCH(H2, A1:A2, 0))
GetFormula1 (GET.CELL(6, [@-1, @0]))
GetFormula2 (GET.CELL(6, [@1, @-3]))
GetFormula3 (GET.CELL(6, [$H, $4]))
Done! (0.0009677410125732422 seconds)

simple_test.zip

[oleglpts]

You can modify the test so that relative links are resolved when the cell is known:

`

...
def convert_to_column_name(n):
     string = ""
     while n > 0:
         n, remainder = divmod(n - 1, 26)
         string = chr(ord('A') + remainder) + string
     return string
...

    with wb.get_sheet_by_name(s.name) as sheet:
        for row in sheet:
            for cell in row:
                formula_str = Formula.parse(cell.formula)
                if formula_str._tokens:
                    try:
                        formula = formula_str.stringify(wb)
                        if formula is not None:
                            form = formula.split('[')
                            coordinates = [x.split(']')[0].split(',') for x in form[1:]]
                            if coordinates:
                                formula = ''
                                for i, c in enumerate(coordinates):
                                    pair = [x.strip() for x in c]
                                    abs_column = convert_to_column_name(cell.col + int(pair[0][1:]) + 1) \
                                        if pair[0].startswith('@') else pair[0]
                                    abs_row = cell.row_num + int(pair[1][1:]) + 1 \
                                        if pair[1].startswith('@') else pair[1]
                                    formula += form[i] + abs_column + str(abs_row) + \
                                        form[i + 1].split(']')[-1]
                        print(formula)
                    except NotImplementedError as exp:
                        print('ERROR({}) {}'.format(exp, str(cell)))
                    except Exception:
                        print('ERROR ' + str(cell))
    d = time.time() - a
    print('Done! ({} seconds)'.format(d))

`

There is a better algorithm, this is the first thing that came to mind.

Then the output will be like

Opening workbook... Done! (0.0018291473388671875 seconds)
Reading sheet SheetRecord(type='worksheet', sheetId=1, rId='rId1', loc='worksheets/sheet1.bin', name='VBA Macro & formulas', id=0, state=<SheetState.VISIBLE: 0>)...
INDEX(B1:B2, MATCH(H2, A1:A2, 0))
GetFormula0 (GET.CELL(6, H3))
A1:A2
B1:B2
C1:C2
INDEX(C1:C2, MATCH(H2, A1:A2, 0))
GetFormula1 (GET.CELL(6, H4))
GetFormula2 (GET.CELL(6, H3))
GetFormula3 (GET.CELL(6, $H$4))
Done! (0.0011293888092041016 seconds)

[DissectMalware]

Thank you for the explanation and also for the sample. I will merge the code shortly.

"GetFormula1 (GET.CELL(6, H4))
GetFormula2 (GET.CELL(6, H3))"

is definitely preferred to:

"GetFormula1 (GET.CELL(6, [@-1, @0]))
GetFormula2 (GET.CELL(6, [@1, @-3]))"

As the later is not a valid macro.

XLMMacroDeobfuscator, an XLM emulator, relies on pyxlsb2 to extract XLM. XLMMacroDeobfuscator's underlying assumption is that pyxlsb2 output is valid XLM and interpretable.

[oleglpts]

Ok. Then, I think, the best is "GET.CELL(6, H4)" - it is interpretable, not "GetFormula1 (GET.CELL(6, H4)". GetFormula1 is just the name for GET.CELL(6, [@-1, @0]).

[DissectMalware]

Yup you are right. It was a copy/pasting mistake. My focus was on H4 and [@-1, @0]

[DissectMalware]

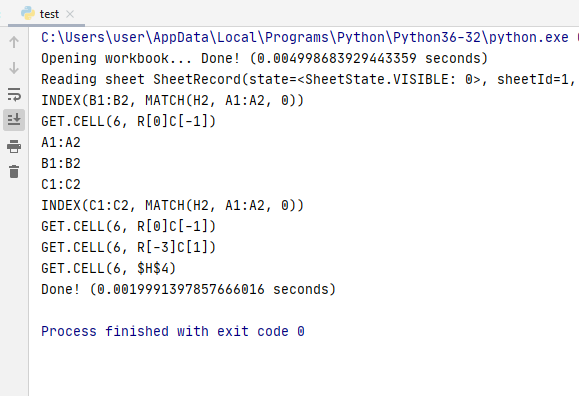

Updated cell_address method in Ref3dPtg

Does the output make sense? (mixing r1c1 and a1 notations might be a bad idea but we don't have current cell information so it is hard to stick with a1 addressing when we stringfy the formulas referred by the defined names)

[oleglpts]

I propose this solution: add the optional parameters row and col to NamePtg.stringify and immediately resolve the relative links to the interpreted form when the cell is known (see here ).
