Example: UART Loopback
UNDER CONSTRUCTION, UPDATES IN PROGRESS
The simplest possible UART Loopback is a single wire connecting the receive input side to the transmit output side:
One version of that code looks like:
#pragma MAIN main
uint1_t main(uint1_t uart_rx){
return uart_rx;
}A similar version where global wires uart_rx and uart_tx are exposed from inside a top.h header looks like:
// See top level IO pin config in top.h
#include "top.h"
#pragma MAIN main
void main(){
uart_tx = uart_rx;
}Most dev boards come with some integrated USB-UART functionality. If not, any cheap dongle options can be found online.
For ex. when a pico-ice dev board is plugged in by default a /dev/ttyACM1 TTY device appears on the system. Using a terminal IO program like tio you can type into the window and see your characters printed to the screen as a test of functionality.
$ sudo tio /dev/ttyACM1 -b 115200
[tio 23:54:17] tio v1.32
[tio 23:54:17] Press ctrl-t q to quit
[tio 23:54:17] Connected
YAY loopback works!
[tio 23:54:25] Disconnected
It is recommended to follow the design patterns shown in a series of examples designed for dev boards.
The UART loopback section of top.c is shown below:
// See top level IO pin config in top.h
#include "top.h"
MAIN_MHZ(uart_main, UART_CLK_MHZ)
void uart_main(){
// Default loopback connect
uart_tx_mac_word_in = uart_rx_mac_word_out;
uart_rx_mac_out_ready = uart_tx_mac_in_ready;
}Notice the include of top.h where top level IO is configured.
For instance inside top.h you might configure the UART MAC instance like so:
// Configure UART module
#define UART_TX_OUT_WIRE ice_25
#define UART_RX_IN_WIRE ice_27
#define UART_CLK_MHZ PLL_CLK_MHZ
#define UART_BAUD 115200
#include "uart/uart_mac.c"specifying which top level wires to use, and rate constants.
Inside uart_mac.c and uart_mac.h you will see reusable implementations of UART receive and transmit.
uart_mac.h has a function called uart_rx_1b where the majority of code for UART receive lives.
UART RX is a state machine that waits for the START bit, captures the 8 bits of data, followed by the STOP bit, and repeats.
What does the IO look like? The physical input is single uart rx wire
uint1_t uart_rx;but the interface to the user is a byte stream, a data, valid, ready handshake.
// RX side
// Globally visible ports / wires
// Inputs
uint1_t uart_rx_mac_out_ready;
// Outputs
stream(uint8_t) uart_rx_mac_word_out;
uint1_t uart_rx_mac_overflow;The ready in this case is just use to signal overflow=dropped data or not (it doesn't actual push back on UART like CTS/RTS).
TODO
uart_mac.h has a function called uart_tx_1b where the majority of code for UART transmit lives.
TODO
More concise/hierarchical PipelineC source varieties for this design can be found here and here. A C test program for exercising the loopback can be found here.
Below is a flattened 'everything in uart loopback in one file' version of the code:
// Loopback UART with just enough buffering
// as to never overflow with balanced I/O bandwidth
#include "uintN_t.h"
// Each main function is a clock domain
// Only one clock in the design for now 'sys_clk' @ 100MHz
#define SYS_CLK_MHZ 100.0
#define CLKS_PER_SEC (SYS_CLK_MHZ*1000000.0)
#define SEC_PER_CLK (1.0/CLKS_PER_SEC)
#pragma MAIN_MHZ sys_clk_main 100.0
#pragma PART "xc7a35ticsg324-1l" // xc7a35ticsg324-1l = Arty, xcvu9p-flgb2104-2-i = AWS F1
// UART PHY?MAC?(de)serialize? logic
#define UART_BAUD 115200
#define UART_WORD_BITS 8
#define uart_word_t uint8_t
#define uart_bit_count_t uint4_t
#define uart_word_from_bits uint1_array8_le // PipelineC built in func
#define UART_SEC_PER_BIT (1.0/UART_BAUD)
#define UART_CLKS_PER_BIT_FLOAT (UART_SEC_PER_BIT/SEC_PER_CLK)
#define UART_CLKS_PER_BIT ((uart_clk_count_t)UART_CLKS_PER_BIT_FLOAT)
#define UART_CLKS_PER_BIT_DIV2 ((uart_clk_count_t)(UART_CLKS_PER_BIT_FLOAT/2.0))
#define uart_clk_count_t uint16_t
#define UART_IDLE 1
#define UART_START 0
#define UART_STOP UART_IDLE
// Convert framed async serial data to sync data+valid word stream
// rule of thumb name "_s" 'stream' if has .valid and .data
typedef struct uart_mac_s
{
uart_word_t data;
uint1_t valid;
}uart_mac_s;
// RX side
// Stateful regs
typedef enum uart_rx_mac_state_t
{
IDLE,
WAIT_START,
RECEIVE
}uart_rx_mac_state_t;
uart_rx_mac_state_t uart_rx_mac_state;
uart_clk_count_t uart_rx_clk_counter;
uart_bit_count_t uart_rx_bit_counter;
uint1_t uart_rx_bit_buffer[UART_WORD_BITS];
// RX logic
uart_mac_s uart_rx_mac(uint1_t data_in)
{
// Default no output
uart_mac_s output;
output.data = 0;
output.valid = 0;
// State machine for receiving
if(uart_rx_mac_state==IDLE)
{
// Wait for line to be high, idle, powered, etc
if(data_in==UART_IDLE)
{
// Then wait for the start bit
uart_rx_mac_state = WAIT_START;
uart_rx_clk_counter = 0;
}
}
else if(uart_rx_mac_state==WAIT_START)
{
// Wait for the start bit=0
if(data_in==UART_START)
{
// Wait half a bit period to align to center of clk period
uart_rx_clk_counter += 1;
if(uart_rx_clk_counter >= UART_CLKS_PER_BIT_DIV2)
{
// Begin loop of sampling each bit
uart_rx_mac_state = RECEIVE;
uart_rx_clk_counter = 0;
uart_rx_bit_counter = 0;
}
}
}
else if(uart_rx_mac_state==RECEIVE)
{
// Count a full bit period and then sample
uart_rx_clk_counter += 1;
if(uart_rx_clk_counter >= UART_CLKS_PER_BIT)
{
// Reset counter for next bit
uart_rx_clk_counter = 0;
// Shift bit buffer to make room for incoming bit
uint32_t i;
for(i=0;i<(UART_WORD_BITS-1);i=i+1)
{
uart_rx_bit_buffer[i] = uart_rx_bit_buffer[i+1];
}
// Sample current bit into back of shift buffer
uart_rx_bit_buffer[UART_WORD_BITS-1] = data_in;
uart_rx_bit_counter += 1;
// Last bit of word?
if(uart_rx_bit_counter==UART_WORD_BITS)
{
// Output the full valid word
output.data = uart_word_from_bits(uart_rx_bit_buffer);
output.valid = 1;
// Back to idle waiting for next word
uart_rx_mac_state = IDLE;
}
}
}
return output;
}
// TX side
// Slight clock differences between RX and TX sides can occur.
// Do a hacky off by one fewer clock cycles to ensure TX bandwidth
// is always slighty greater than RX bandwidth to avoid overflow
#define TX_CHEAT_CYCLES 1
// Stateful regs
typedef enum uart_tx_mac_state_t
{
IDLE,
SEND_START,
TRANSMIT,
SEND_STOP
}uart_tx_mac_state_t;
uart_tx_mac_state_t uart_tx_mac_state;
uart_clk_count_t uart_tx_clk_counter;
uart_bit_count_t uart_tx_bit_counter;
uart_mac_s uart_tx_word_in_buffer;
uint1_t uart_tx_bit_buffer[UART_WORD_BITS];
// Output type
typedef struct uart_tx_mac_o_t
{
uint1_t word_in_ready;
uint1_t data_out;
uint1_t overflow;
}uart_tx_mac_o_t;
// TX logic
uart_tx_mac_o_t uart_tx_mac(uart_mac_s word_in)
{
// Default no output
uart_tx_mac_o_t output;
output.word_in_ready = 0;
output.data_out = UART_IDLE; // UART high==idle
uint32_t i = 0;
// Ready for an incoming word to send
// if dont have valid word_in already (i.e. input buffer empty)
output.word_in_ready = !uart_tx_word_in_buffer.valid;
output.overflow = !output.word_in_ready & word_in.valid;
// Input registers
if(output.word_in_ready)
{
uart_tx_word_in_buffer = word_in;
}
// State machine for transmitting
if(uart_tx_mac_state==IDLE)
{
// Wait for valid bits in input buffer
if(uart_tx_word_in_buffer.valid)
{
// Save the bits of the word into shift buffer
for(i=0;i<UART_WORD_BITS;i=i+1)
{
uart_tx_bit_buffer[i] = uart_tx_word_in_buffer.data >> i;
}
// Start transmitting start bit
uart_tx_mac_state = SEND_START;
uart_tx_clk_counter = 0;
// No longer need data in input buffer
uart_tx_word_in_buffer.valid = 0;
}
}
// Pass through single cycle low latency from IDLE to SEND_START since if()
if(uart_tx_mac_state==SEND_START)
{
// Output start bit for one bit period
output.data_out = UART_START;
uart_tx_clk_counter += 1;
if(uart_tx_clk_counter >= (UART_CLKS_PER_BIT-TX_CHEAT_CYCLES))
{
// Then move onto transmitting word bits
uart_tx_mac_state = TRANSMIT;
uart_tx_clk_counter = 0;
uart_tx_bit_counter = 0;
}
}
else if(uart_tx_mac_state==TRANSMIT)
{
// Output from front of shift buffer for one bit period
output.data_out = uart_tx_bit_buffer[0];
uart_tx_clk_counter += 1;
if(uart_tx_clk_counter >= (UART_CLKS_PER_BIT-TX_CHEAT_CYCLES))
{
// Reset counter for next bit
uart_tx_clk_counter = 0;
// Shift bit buffer to bring next bit to front
for(i=0;i<(UART_WORD_BITS-1);i=i+1)
{
uart_tx_bit_buffer[i] = uart_tx_bit_buffer[i+1];
}
uart_tx_bit_counter += 1;
// Last bit of word?
if(uart_tx_bit_counter==UART_WORD_BITS)
{
// Send the final stop bit
uart_tx_mac_state = SEND_STOP;
uart_tx_clk_counter = 0;
}
}
}
else if(uart_tx_mac_state==SEND_STOP)
{
// Output stop bit for one bit period
output.data_out = UART_STOP;
uart_tx_clk_counter += 1;
if(uart_tx_clk_counter>=(UART_CLKS_PER_BIT-TX_CHEAT_CYCLES))
{
// Then back to idle
uart_tx_mac_state = IDLE;
}
}
return output;
}
// Make structs that wrap up the inputs and outputs
typedef struct sys_clk_main_inputs_t
{
// UART Input
uint1_t uart_txd_in;
} sys_clk_main_inputs_t;
typedef struct sys_clk_main_outputs_t
{
// UART Output
uint1_t uart_rxd_out;
// LEDs
uint1_t led[4];
} sys_clk_main_outputs_t;
// Sticky save overflow bit
uint1_t overflow;
// Break path from rx->tx in one clock by having buffer reg
uart_mac_s rx_word_buffer;
// The sys_clk_main function
sys_clk_main_outputs_t sys_clk_main(sys_clk_main_inputs_t inputs)
{
// Loopback RX to TX without connecting backwards facing flow control/ready
uart_mac_s rx_word = uart_rx_mac(inputs.uart_txd_in);
uart_tx_mac_o_t uart_tx_mac_output = uart_tx_mac(rx_word_buffer);
// Break path from rx->tx in one clock by having buffer reg
rx_word_buffer = rx_word;
sys_clk_main_outputs_t outputs;
outputs.uart_rxd_out = uart_tx_mac_output.data_out;
// Light up all four leds if overflow occurs
overflow = overflow | uart_tx_mac_output.overflow; // Sticky
outputs.led[0] = overflow;
outputs.led[1] = overflow;
outputs.led[2] = overflow;
outputs.led[3] = overflow;
return outputs;
}Other versions of UART MAC code make use of valid-ready stream handshaking.

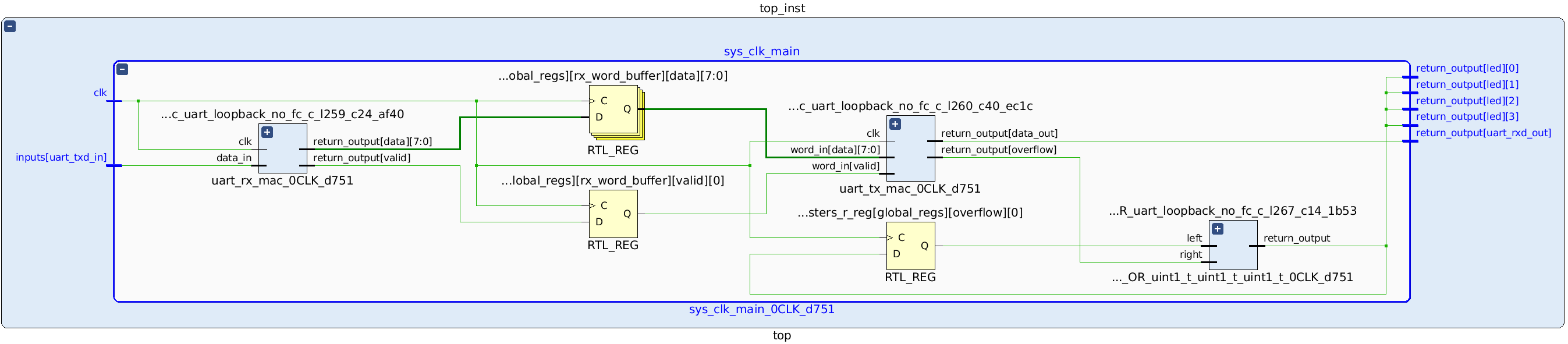

In more advanced examples you will want to use the auto-pipelining features of PipelineC. This stateful function example cannot be further pipelined, no further latency can be traded off for throughput. Luckily as-written it is expected to run at a maximum of ~140MHz, plenty of margin to meet timing on the 100MHz system clock, no further design changes are needed.
================== Beginning Throughput Sweep ================================
Function: sys_clk_main Target MHz: 100.0
Starting with blank sweep state...
...determining slicing information for each main function...
sys_clk_main : currently is 0 clocks latency...
sys_clk_main current slices: []
Running: /media/1TB/Programs/Linux/Xilinx/Vivado/2019.2/bin/vivado -journal /home/julian/pipelinec_syn_output/top/vivado.jou -log /home/julian/pipelinec_syn_output/top/vivado_d751.log -mode batch -source "/home/julian/pipelinec_syn_output/top/top_d751.tcl"
Unclear stages from register names...
Start?: 0 sys_clk_main/uart_rx_mac_uart_loopback_no_fc_c_l259_c24_af40/registers_r_reg[global_regs][uart_rx_clk_counter][4]
sys_clk_main/uart_rx_mac[uart_loopback_no_fc_c_l259_c24_af40]
End?: 0 sys_clk_main/registers_r_reg[global_regs][rx_word_buffer][data][0]
sys_clk_main
Really unclear regs?
MHz: 147.23203769140164
Found maximum pipeline latency...
================== Writing Results of Throughput Sweep ================================
Done.
-- Top level file connecting to PipelineC generated code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
library UNISIM;
use UNISIM.VCOMPONENTS.ALL;
-- PipelineC packages
use work.c_structs_pkg.all;
entity board is
port (
CLK100MHZ : in std_logic;
sw : in std_logic_vector(3 downto 0);
led : out std_logic_vector(3 downto 0);
uart_rxd_out : out std_logic;
uart_txd_in : in std_logic
);
end board;
architecture arch of board is
-- Sync inputs to CLK100MHZ
signal sw_r, sw_rr : std_logic_vector(3 downto 0);
signal uart_txd_in_r, uart_txd_in_rr : std_logic;
-- IO type conversion
signal sys_clk_main_inputs : sys_clk_main_inputs_t;
signal sys_clk_main_outputs : sys_clk_main_outputs_t;
begin
-- Sync inputs to CLK100MHZ (can also be done in PipelineC code)
process(CLK100MHZ) begin
if rising_edge(CLK100MHZ) then
sw_r <= sw;
sw_rr <= sw_r;
uart_txd_in_r <= uart_txd_in;
uart_txd_in_rr <= uart_txd_in_r;
end if;
end process;
-- IO type conversion
process(
-- Inputs to module
sw_rr,
uart_txd_in_rr,
-- Outputs from PipelineC
sys_clk_main_outputs
) begin
-- Input
--sys_clk_main_inputs.sw(0) <= sw_rr(0);
--sys_clk_main_inputs.sw(1) <= sw_rr(1);
--sys_clk_main_inputs.sw(2) <= sw_rr(2);
--sys_clk_main_inputs.sw(3) <= sw_rr(3);
sys_clk_main_inputs.uart_txd_in(0) <= uart_txd_in_rr;
-- Outputs
led(0) <= sys_clk_main_outputs.led(0)(0);
led(1) <= sys_clk_main_outputs.led(1)(0);
led(2) <= sys_clk_main_outputs.led(2)(0);
led(3) <= sys_clk_main_outputs.led(3)(0);
uart_rxd_out <= sys_clk_main_outputs.uart_rxd_out(0);
end process;
-- The PipelineC generated entity
top_inst : entity work.top port map (
clk_sys_clk_main => CLK100MHZ,
sys_clk_main_inputs => sys_clk_main_inputs,
sys_clk_main_return_output => sys_clk_main_outputs
);
end arch;Function elaboration to combinatorial logic:
Top level containing the two MAC modules and sticky overflow bit.
The RX and TX modules are best viewed by opening the Vivado project and using elaborated RTL schematic viewer as they have quite a few cells.
Resource usage:
