Boom

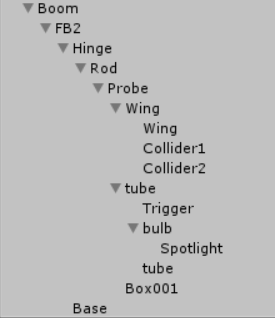

This is the basic structure of a Boom

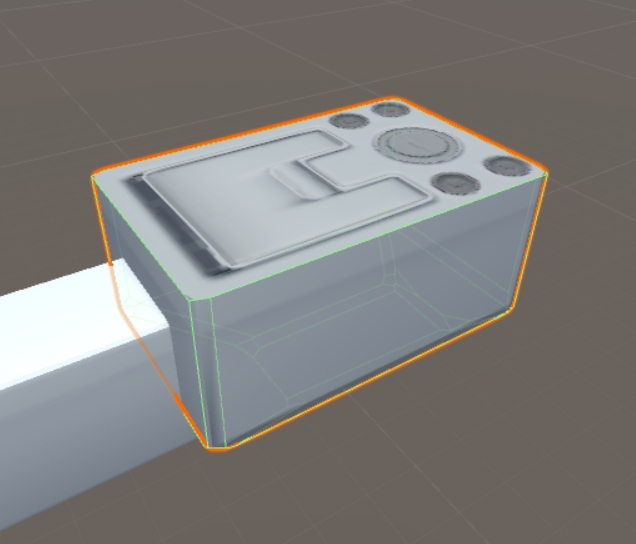

Base
No moving part

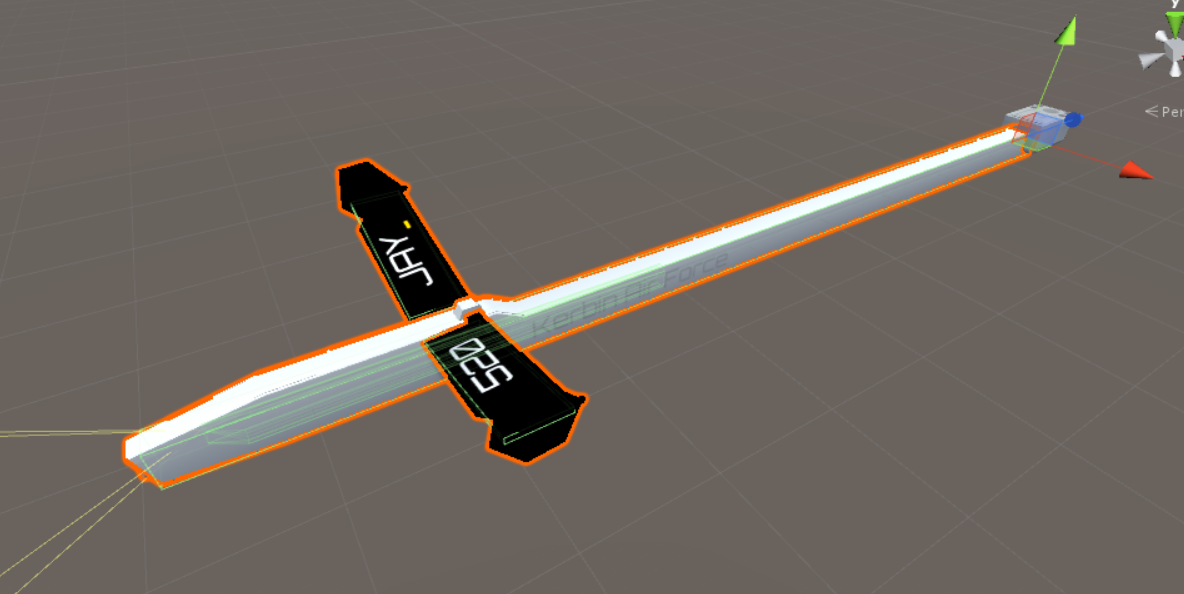

Hinge
Moveable, controlled by module FuelBoom
Hinge and the following structure will rotation based on its Transform
The name must be Hinge

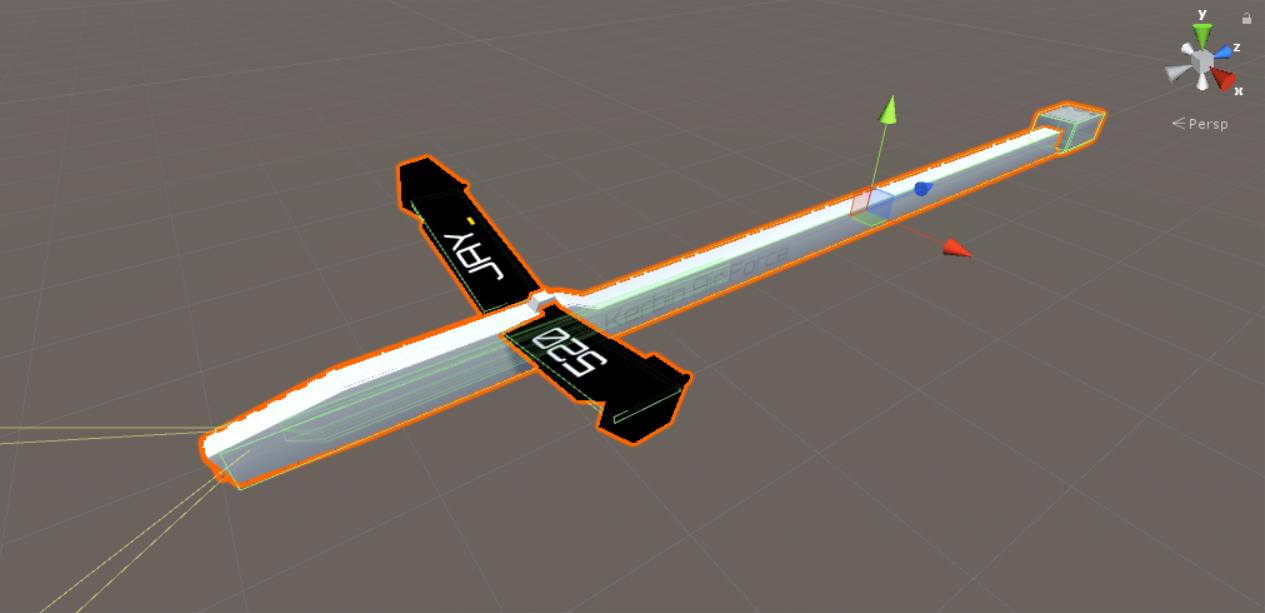

Rod
An object carries Animation component
Probe
An empty object(I don't know why there is an object like this, it is not necessary)

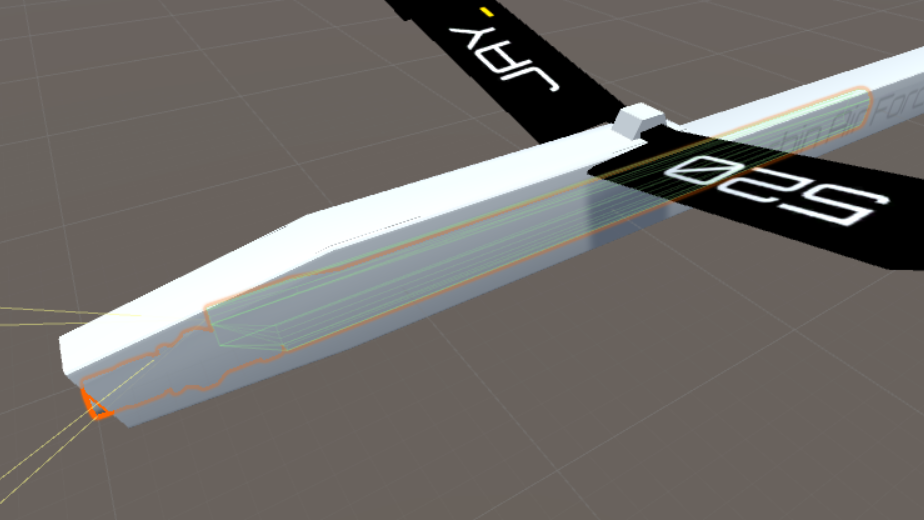

Wing
Moveable part, controlled by animation

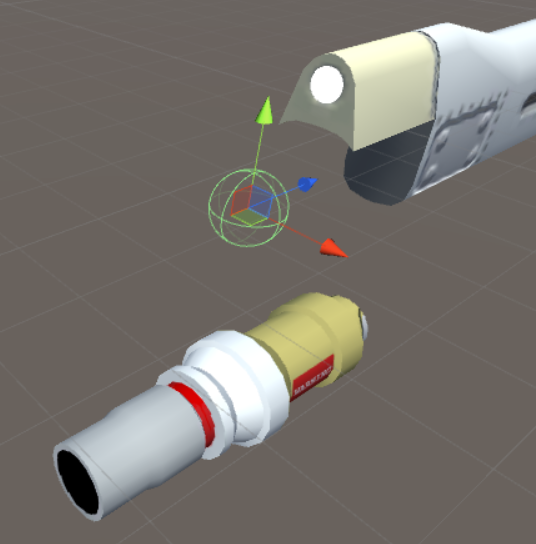

tube
Moveable part, controlled by animation

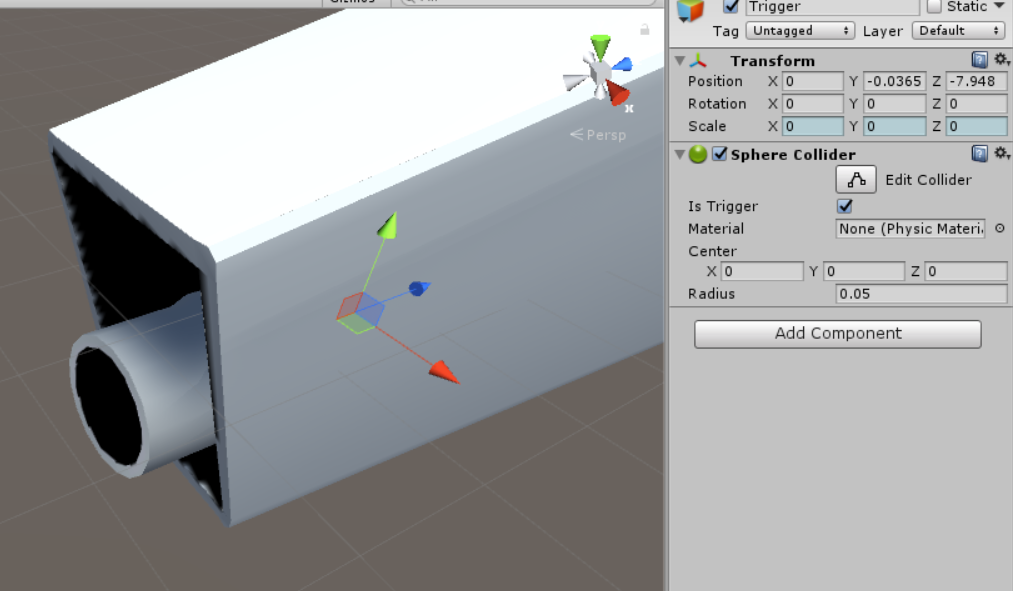

Trigger
An object carries a Collider
Scale is (0,0,0) when tube is stowed

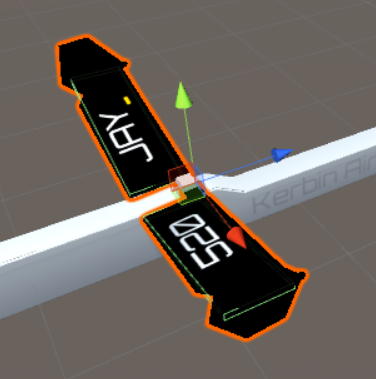

Scale become (1,1,1) after extending as shown below(Remove the front part)

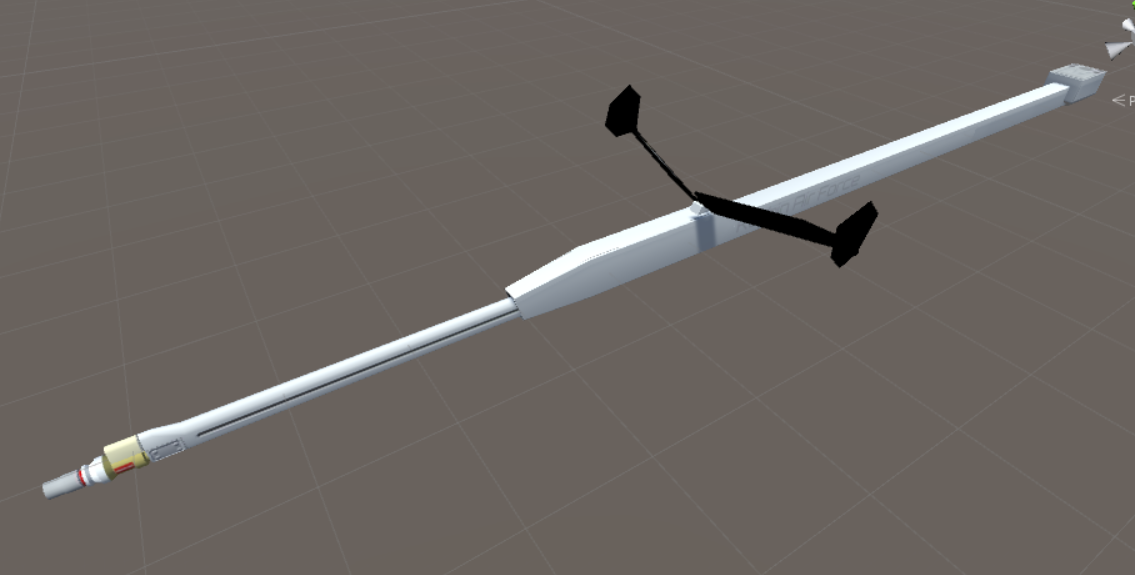

After the animation execution
CFG
MODULE
{
name = FuelDrogue
hasDeployAnimation = true
deployAnimName = **Your Animation Name**
}
MODULE
{
name = FuelBoom
}
MODULE
{
name = IsAARSpart
ShowLog = true
Broken = false
}
