Terraform AWS Hetzner CloudWatch Integration

This Terraform module enables seamless integration between Hetzner Cloud resources and AWS CloudWatch, allowing you to monitor your Hetzner infrastructure using AWS CloudWatch metrics.

Features

• Fetch metrics from Hetzner Cloud API (Load Balancers and Servers)
• Store metrics in AWS CloudWatch for centralized monitoring
• Uses AWS Step Functions for reliable metric collection
• Supports both Load Balancer and Server metrics
• Configurable IAM roles and EventBridge connections
• Scheduled metric collection via AWS Step Functions

Supported Metrics

Load Balancer Metrics

• Open Connections: Number of currently open connections
• Connections Per Second: Rate of new connections
• Requests Per Second: HTTP/HTTPS requests processed per second
• Bandwidth In/Out: Network traffic in bytes per second

Server Metrics

• CPU: CPU utilization percentage
• Disk IOPS: Read/write operations per second
• Disk Bandwidth: Disk read/write throughput in bytes per second
• Network Bandwidth: Network traffic in/out in bytes per second
• Network Packets: Packet count in/out per second

Architecture

This module creates:

1. AWS EventBridge Connection: Securely stores your Hetzner Cloud API token
2. AWS Step Functions State Machine: Fetches metrics from Hetzner Cloud API
3. IAM Role & Policy: Provides necessary permissions for the state machine
4. CloudWatch Metrics: Stores metrics in custom namespaces (HetznerLoadBalancer or HetznerServer)

Usage

Load Balancer Monitoring

module "loadbalancer_metrics" {
  source  = "kamranbiglari/hetzner-cloudwatch-integration/aws"
  version = "~> 1.0"

  hetzner_cloud_api_token = var.hetzner_api_token
  metric_type             = "loadbalancer"
  name                    = "hetzner-lb-metrics"

  # Enable automatic metric collection every 5 minutes
  create_scheduler    = true
  schedule_expression = "rate(5 minutes)"

  data = {
    loadbalancer_id = "123456"
  }
}

Server Monitoring

module "server_metrics" {
  source  = "kamranbiglari/hetzner-cloudwatch-integration/aws"
  version = "~> 1.0"

  hetzner_cloud_api_token = var.hetzner_api_token
  metric_type             = "server"
  name                    = "hetzner-server-metrics"

  # Enable automatic metric collection every 5 minutes
  create_scheduler    = true
  schedule_expression = "rate(5 minutes)"

  data = {
    server_id = "789012"
  }
}

Using Existing EventBridge Connection

module "server_metrics" {
  source  = "kamranbiglari/hetzner-cloudwatch-integration/aws"
  version = "~> 1.0"

  create_event_connection = false
  event_connection_arn    = "arn:aws:events:us-east-1:123456789012:connection/hetzner-api/abc123"

  metric_type = "server"
  name        = "hetzner-server-metrics"

  data = {
    server_id = "789012"
  }
}

Using Existing IAM Role

module "loadbalancer_metrics" {
  source  = "kamranbiglari/hetzner-cloudwatch-integration/aws"
  version = "~> 1.0"

  hetzner_cloud_api_token = var.hetzner_api_token
  create_role             = false
  role_arn                = "arn:aws:iam::123456789012:role/custom-sfn-role"

  metric_type = "loadbalancer"
  name        = "hetzner-lb-metrics"

  data = {
    loadbalancer_id = "123456"
  }
}

Scheduling Metric Collection

The module includes built-in support for automatic metric collection using AWS EventBridge Scheduler.

Using Built-in Scheduler (Recommended)

Simply set create_scheduler = true and specify your desired schedule:

module "loadbalancer_metrics" {
  source  = "kamranbiglari/hetzner-cloudwatch-integration/aws"
  version = "~> 1.0"

  hetzner_cloud_api_token = var.hetzner_api_token
  metric_type             = "loadbalancer"
  name                    = "hetzner-lb-metrics"

  # Enable automatic metric collection
  create_scheduler    = true
  schedule_expression = "rate(5 minutes)"  # or use cron: "cron(0/5 * * * ? *)"

  data = {
    loadbalancer_id = "123456"
  }
}

Using Existing Scheduler IAM Role

If you have an existing IAM role for the scheduler:

module "loadbalancer_metrics" {
  source  = "kamranbiglari/hetzner-cloudwatch-integration/aws"
  version = "~> 1.0"

  hetzner_cloud_api_token = var.hetzner_api_token
  metric_type             = "loadbalancer"
  name                    = "hetzner-lb-metrics"

  # Use existing scheduler role
  create_scheduler      = true
  create_scheduler_role = false
  scheduler_role_arn    = "arn:aws:iam::123456789012:role/my-scheduler-role"
  schedule_expression   = "rate(5 minutes)"

  data = {
    loadbalancer_id = "123456"
  }
}

Manual Invocation

If you prefer to invoke the state machine manually or use your own scheduling solution, simply omit the create_scheduler parameter (defaults to false).

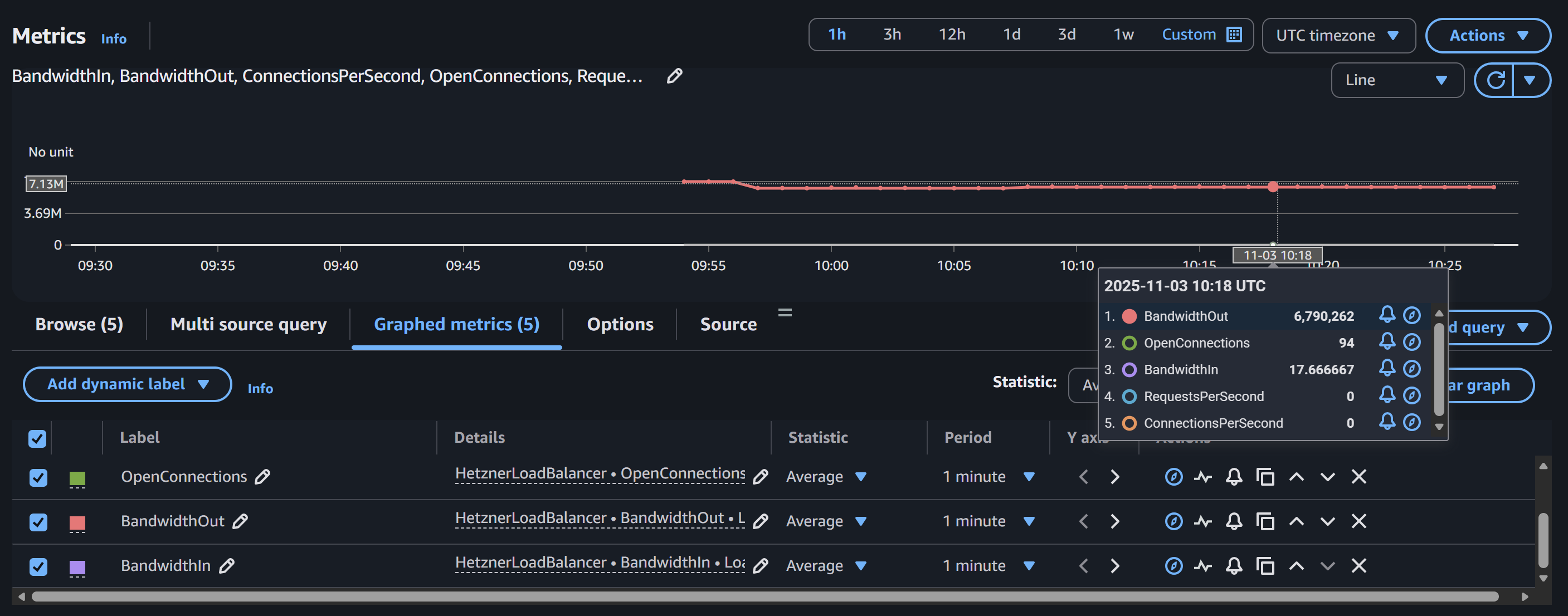

CloudWatch Metrics

Accessing Metrics

Metrics are stored in CloudWatch under custom namespaces:

• Load Balancers: HetznerLoadBalancer
• Servers: HetznerServer

Each metric includes a dimension identifying the resource:

• Load Balancers: LoadBalancerId
• Servers: ServerId

Example CloudWatch Query

Using AWS CLI to query CPU metrics for a server:

aws cloudwatch get-metric-statistics \
  --namespace HetznerServer \
  --metric-name CPU \
  --dimensions Name=ServerId,Value=789012 \
  --start-time 2025-01-01T00:00:00Z \
  --end-time 2025-01-01T01:00:00Z \
  --period 300 \
  --statistics Average

Security Considerations

• API Token: Your Hetzner Cloud API token is securely stored in AWS Secrets Manager via EventBridge Connections
• IAM Permissions: The module follows the principle of least privilege
• Namespace Restrictions: CloudWatch permissions are scoped to specific namespaces

Cost Considerations

• Step Functions: Charged per state transition (Express Workflows)
• CloudWatch: Charged per custom metric and API requests
• Secrets Manager: Minimal cost for storing the API token
• EventBridge: No additional cost for connections

Typical cost for monitoring one resource with 5-minute intervals: ~$1-2/month

Troubleshooting

State Machine Execution Failed

Check CloudWatch Logs for the Step Functions execution to see detailed error messages.

No Metrics in CloudWatch

1. Verify the Hetzner Cloud API token is valid
2. Check that the resource ID (loadbalancer_id or server_id) is correct
3. Ensure the Step Functions state machine has been executed
4. Review IAM permissions for the state machine role

Invalid Metric Data

Ensure your Hetzner Cloud resource has been running long enough to generate metrics (typically 5+ minutes).

Examples

See the examples directory for complete working examples:

• Load Balancer Monitoring
• Server Monitoring

Contributing

Contributions are welcome! Please open an issue or submit a pull request.

License

Apache 2.0 Licensed. See LICENSE for full details.

Acknowledgments

This module integrates with:

• Hetzner Cloud API
• AWS Step Functions
• AWS CloudWatch

---

Requirements

No requirements.

Providers

Name	Version
aws	n/a

Modules

No modules.

Resources

Name	Type
aws_cloudwatch_event_connection.this	resource
aws_iam_role.scheduler	resource
aws_iam_role.sfn	resource
aws_iam_role_policy.scheduler	resource
aws_iam_role_policy.sfn	resource
aws_scheduler_schedule.this	resource
aws_sfn_state_machine.this	resource

Inputs

Name	Description	Type	Default	Required
create	Controls whether resources should be created	bool	true	no
create_event_connection	Controls whether the event connection should be created	bool	true	no
create_role	Controls whether the IAM role should be created	bool	true	no
create_scheduler	Controls whether the EventBridge Scheduler should be created	bool	false	no
create_scheduler_role	Controls whether the IAM role for the scheduler should be created	bool	true	no
data	value	map(string)	n/a	yes
event_connection_arn	ARN of the event connection	string	null	no
event_connection_name	Name of the event connection	string	null	no
hetzner_cloud_api_token	API token for Hetzner Cloud	string	null	no
metric_type	Type of the metric	string	n/a	yes
name	Name of application	string	n/a	yes
role_arn	ARN of the IAM role	string	null	no
role_prefix	Prefix for the IAM role	string	"hetzner-cloudwatch"	no
schedule_expression	Schedule expression for the EventBridge Scheduler (e.g., 'rate(5 minutes)')	string	"rate(5 minutes)"	no
scheduler_role_arn	ARN of an existing IAM role for the scheduler. Required if create_scheduler_role is false	string	null	no

Outputs

Name	Description
event_connection_arn	ARN of the EventBridge connection
iam_role_arn	ARN of the IAM role used by the state machine
scheduler_role_arn	ARN of the IAM role used by the scheduler
scheduler_schedule_arn	ARN of the EventBridge Scheduler schedule
state_machine_arn	ARN of the Step Functions state machine
state_machine_name	Name of the Step Functions state machine
