SpawnScene

Create interactive 3D Gaussian Splat scenes from a single photo — entirely in your browser.

SpawnScene is a fully client-side Gaussian Splatting application built with Blazor WebAssembly. It uses monocular depth estimation (DistillAnyDepth / DepthAnything V2) to generate 3D scenes from a single photograph, with the entire pipeline running on the GPU via WebGPU and SpawnDev.ILGPU.

✨ What It Does

• 🔮 Depth Estimation — DistillAnyDepth (default) and DepthAnything V2 via ONNX Runtime Web on the WebGPU execution provider
• ⚡ GPU Gaussian Generation — ILGPU compute kernel unprojects depth + color into 14M+ packed Gaussian splats
• 🎲 Stochastic Rasterization — Sort-free rendering via Monte Carlo estimation (StochasticSplats, ICCV 2025). Eliminates the radix sort bottleneck entirely, maintaining 45-60 FPS with 14M+ splats
• 🔄 Temporal Accumulation — Multi-SPP with velocity-adaptive EMA blending for progressive convergence
• 👁 Real-Time Viewer — WebGPU splat renderer with EWA anti-aliasing and CAS post-processing sharpening
• 📦 PLY / SPLAT Loading — Load pre-built scenes from .ply or .splat files
• 🔒 Fully Client-Side — No server, no uploads. All GPU compute runs in your browser.

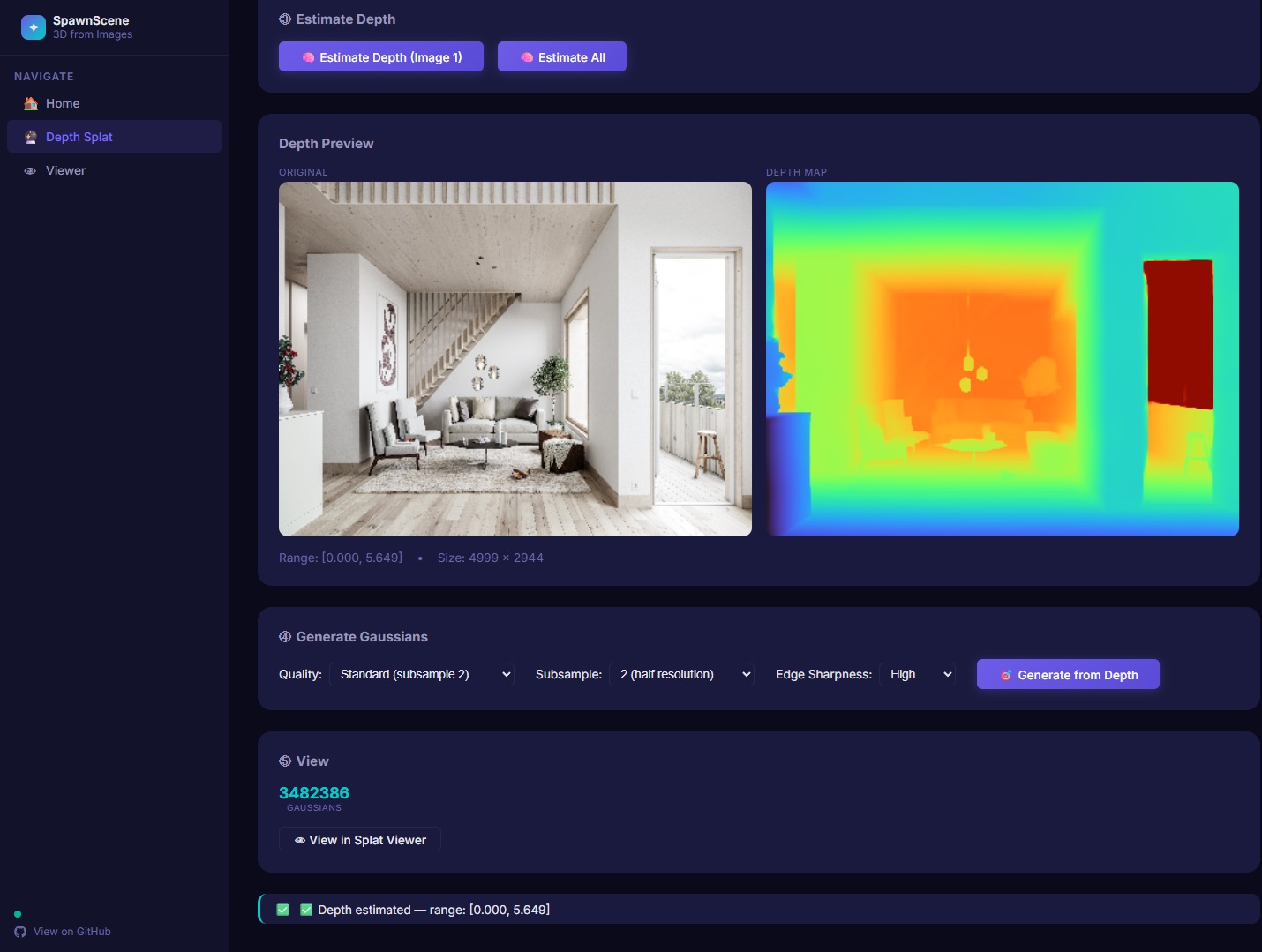

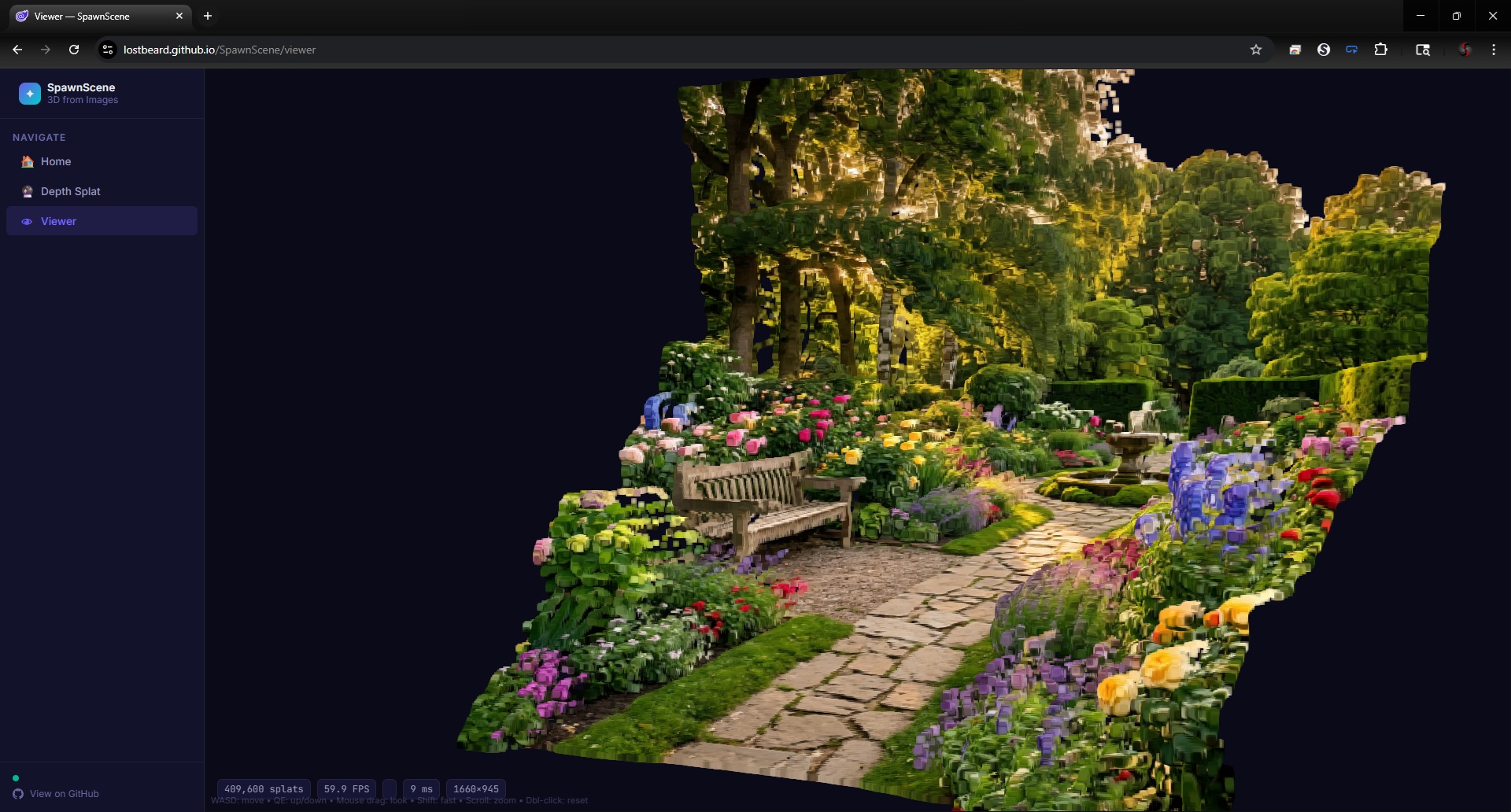

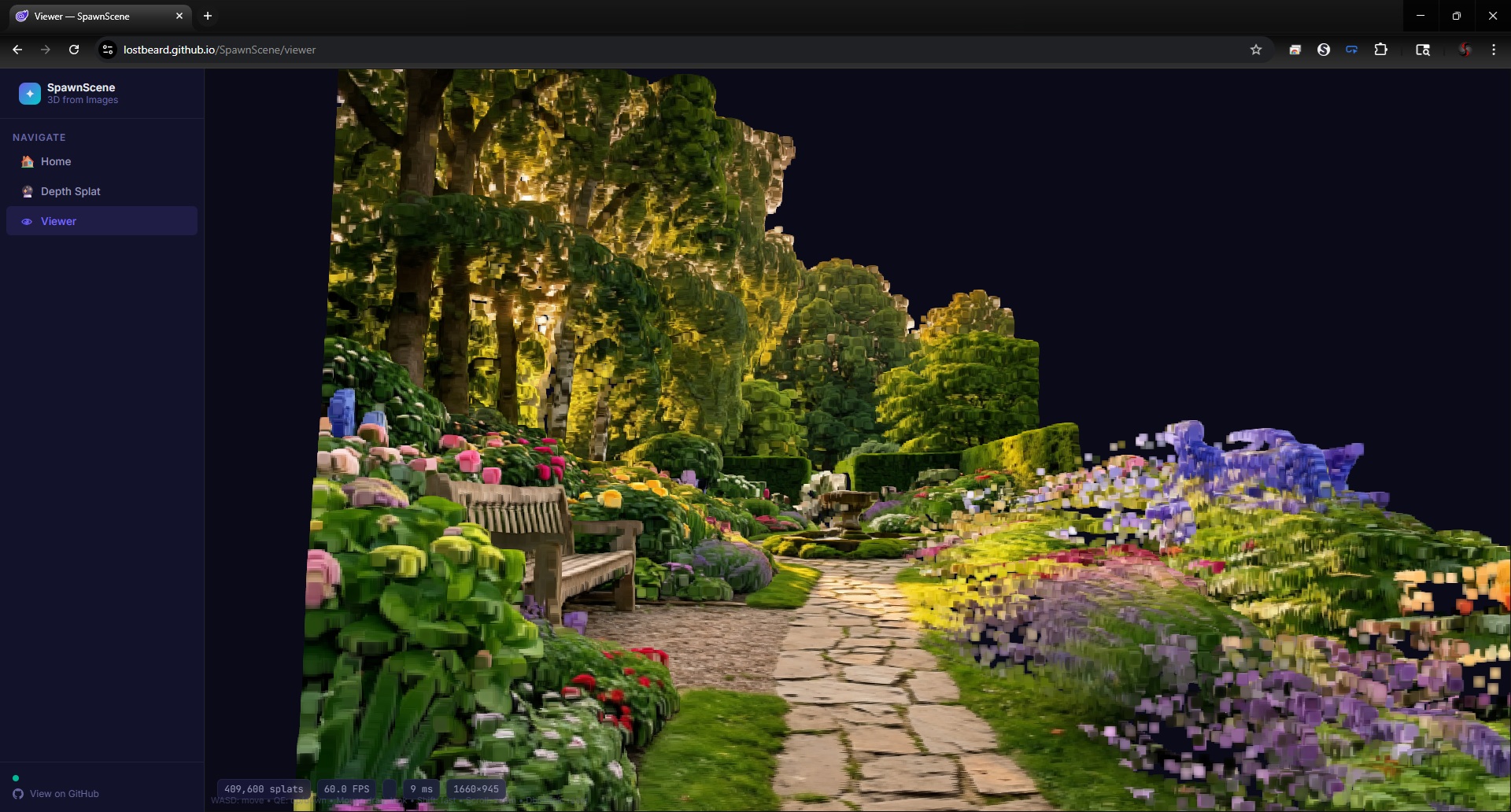

Screenshots

🚀 Pipeline

Single photo
  → GPU (one-time upload)
  → ILGPU PreprocessKernel        RGBA → NCHW float[1,3,518,518]
  → ONNX WebGPU inference         DistillAnyDepth Small (default)
  → ILGPU ResizeKernel            518×518 → original resolution
  → ILGPU MinMaxReduce            2 floats to CPU (UI metadata only)
  → ILGPU UnprojectAndPackKernel  depth + RGBA → 10 floats/splat
  → WebGPU pack compute           Float32 → Float16/UNorm8 (once at upload)
  → Per frame (stochastic mode):
      → WebGPU stochastic render  billboard quads + stochastic discard + depth test
      → WebGPU accumulate blend   temporal EMA into persistent texture
      → WebGPU CAS display        sharpening → canvas

🛠️ Tech Stack

Component	Technology
App framework	Blazor WebAssembly (.NET 10)
JS interop	SpawnDev.BlazorJS
GPU compute	SpawnDev.ILGPU 4.0.0 (WebGPU backend)
Depth estimation	ONNX Runtime Web 1.25 (WebGPU EP)
Depth models	DistillAnyDepth Small (default), DepthAnything V2 Small
Rendering	Native WebGPU (WGSL shaders)
Language	C# 13

📋 Requirements

• WebGPU-capable browser: Chrome 113+, Edge 113+, or Safari 18+
• No installation required — runs entirely client-side

📁 Project Structure

SpawnScene/
├── Models/
│   ├── Gaussian3D.cs              # 3D Gaussian splat struct
│   ├── GaussianScene.cs           # Scene container (CPU or GPU-resident)
│   ├── CameraParams.cs            # Camera intrinsics/extrinsics + view matrix
│   ├── DepthResult.cs             # GPU-resident depth map + metadata
│   └── Project.cs                 # Project, ProjectSettings, ProjectSource, ProjectScene
├── Services/
│   ├── GpuShareService.cs         # WebGPU device sharing (monkey-patches navigator.gpu)
│   ├── GpuService.cs              # ILGPU WebGPU accelerator lifecycle
│   ├── DepthEstimationService.cs  # ONNX depth inference + GPU pre/post-processing
│   ├── DepthToGaussianKernel.cs   # ILGPU kernel: depth → packed Gaussian buffer
│   ├── GpuSplatSorter.cs          # ILGPU radix sort + velocity tracking
│   ├── GpuGaussianRenderer.cs     # WebGPU renderer (stochastic + sorted + CAS)
│   ├── GpuDepthColorizer.cs       # GPU Turbo colormap for depth preview
│   ├── RenderService.cs           # Render loop + scene upload coordination
│   ├── SceneManager.cs            # Active scene + camera state
│   ├── CameraController.cs        # FPS-style camera (WASD + mouse look)
│   └── ProjectService.cs          # OPFS-backed project CRUD + storage
├── UI/                            # WebGPU UI framework (VR-ready, no HTML elements)
│   ├── FontAtlas.cs               # Runtime bitmap font atlas generation
│   ├── UIRenderer.cs              # Batched quad renderer (single draw call overlay)
│   ├── UIShaders.cs               # WGSL vertex/fragment for UI quads
│   ├── InputManager.cs            # Unified input (mouse, keyboard, gamepad)
│   ├── UIElement.cs               # Base element with hit testing
│   └── Elements/
│       ├── UILabel.cs             # Text rendering
│       ├── UIButton.cs            # Clickable button with states
│       ├── UIPanel.cs             # Container with background
│       └── UISlider.cs            # Horizontal drag slider
├── Pages/
│   ├── Home.razor                 # Landing page (Blazor HTML)
│   ├── Studio.razor               # Unified tool: projects + generation + viewer (WebGPU UI)
│   ├── DepthSplat.razor           # Legacy: standalone depth estimation UI
│   └── Viewer.razor               # Legacy: standalone 3D viewer
└── Formats/
    ├── PlyParser.cs               # PLY file parser
    └── SplatParser.cs             # SPLAT file parser

🏃 Getting Started

Prerequisites

• .NET 10 SDK
• A WebGPU-capable browser (Chrome 113+ recommended)

Run Locally

cd SpawnScene
dotnet run

Navigate to https://localhost:5001 (or the URL shown in the terminal).

Usage

1. Depth Splat — Load a depth model (DistillAnyDepth or DepthAnything V2), upload a photo, estimate depth, generate Gaussians
2. View in Splat Viewer — Navigate to the 3D viewer to explore the generated scene
3. Viewer — Can also load .ply or .splat files directly

🗺️ Roadmap

• ✅ Sort-free stochastic rasterization — eliminates radix sort bottleneck for 14M+ splat scenes
• 🔲 Full zero-copy depth pipeline — keep ONNX output on GPU (blocked by ORT bug #26107)
• 🔲 Multi-image scenes — merge depth splat clouds from multiple photos
• 🔲 Live camera input — real-time scene generation from device camera
• 🔲 WebXR / VR headset viewing
• 🔲 Scene export (PLY / SPLAT)
• 🔲 Improved Gaussian quality — learned opacity, covariance, spherical harmonics
• 🔲 Peer-to-peer cooperative scanning via WebRTC
• 🔲 Video input support

📜 License

MIT License — see LICENSE for details.

👤 Author

Todd Tanner (@LostBeard)
