Widget Windows

Widget Windows

Creating widgets onto the canvas used to be a pain. Now, it's easier and takes just 1 method to do so. Using the provided methods also simplify the process greatly, making it more beginner-friendly. For information on tkinter widgets, take a look at effbot.org

---

Table of Contents

1. Button
2. Checkbutton
3. Entry
   • Getting Values from an Entry on Click
4. Frame
5. Label
6. LabelFrame
7. Listbox
8. PanedWindow
9. RadioButton
10. Scale
11. Scrollbar
12. Spinbox

---

Important Note:

**kwargs are automatically allocated to the correct element, i.e background will be "allocated" towards the widget while "anchor" will be allocated to the window creation

---

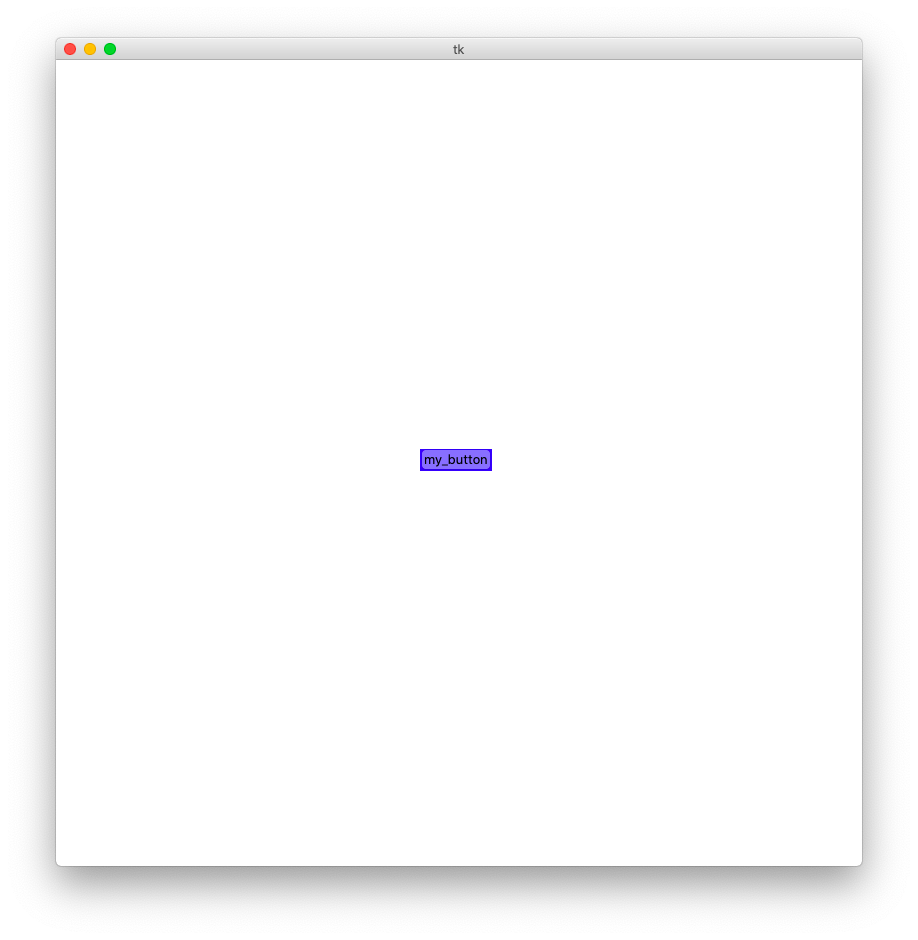

create_button()

Puts a button on the canvas

from typing import Tuple
from numbers import Real
from tkinter import Button
def create_button(self, x: Real, y: Real, **kwargs) -> Tuple[int, Button]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

#button that prints "Hello world!" on click
canvas.create_button(
    400, 400, text = "my_button", highlightbackground = "blue", anchor = "center", command = print("Hello world!")
)

canvas.update()
canvas.mainloop()

---

create_checkbutton()

Puts a checkbutton on the canvas

from numbers import Real
from typing import Tuple
from tkinter import Checkbutton
def create_checkbutton(self, x: Real, y: Real, **kwargs) -> Tuple[int, Checkbutton]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

#checkbutton that is activated by defualt
_, checkbutton = canvas.create_checkbutton(
        400, 400, anchor = "center", bg = "brown", fg = "white", text = "My Checkbutton"
)
checkbutton.toggle()

canvas.update()
canvas.mainloop()

---

create_entry()

Puts an entry box on the canvas

from numbers import Real
from typing import Tuple
from tkinter import Entry
def create_entry(self, x: Real, y: Real, **kwargs) -> Tuple[int, Entry]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk, StringVar

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

content = StringVar()
canvas.create_entry(400, 400, anchor = "center", textvariable = content, fg = "black", bg = "white")
content.set("a default value")

canvas.update()
canvas.mainloop()

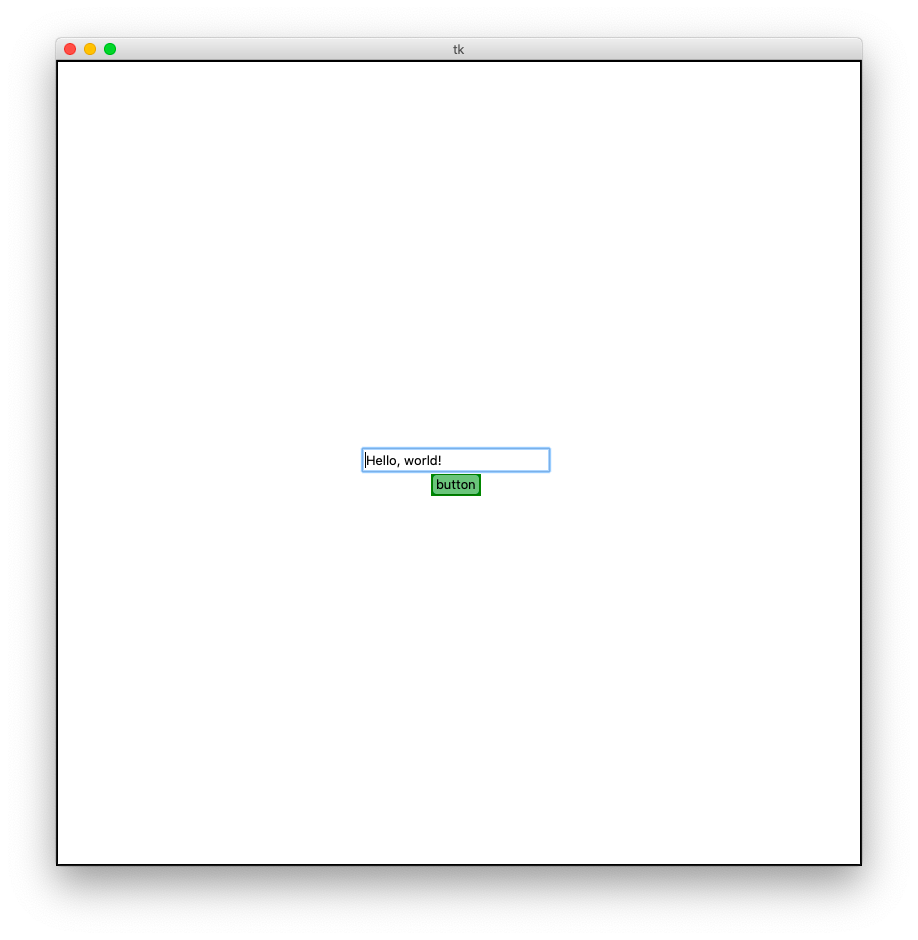

Getting Values from an Entry on Click

A use for the Entry and Button widgets is to submit a form when a button is clicked.

from CanvasPlus import CanvasPlus
from tkinter import Tk, StringVar

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

#create an entry and set it's default value
content = StringVar()
canvas.create_entry(400, 400, anchor = "center", textvariable = content, fg = "black", bg = "white")
content.set("Hello, world!")

#create button to print the value in the previously created entry
canvas.create_button(
    400, 425, anchor = "center", text = "button", width = 50, highlightbackground = "green",
    command = lambda e = content: print(e.get())
)

canvas.update()
canvas.mainloop()

This implementation acheives a simillar outcome

from CanvasPlus import CanvasPlus
from tkinter import Tk, StringVar

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

def output(var):
    print(var.get())

#create an entry and set it's default value
content = StringVar()
canvas.create_entry(400, 400, anchor = "center", textvariable = content, fg = "black", bg = "white")
content.set("Hello, world!")

#create button to print the value in the previously cretaed entry
canvas.create_button(
    400, 425, anchor = "center", text = "button", width = 50, highlightbackground = "green",
    command = lambda e = content: output(e)
)

canvas.update()
canvas.mainloop()

When the button is clicked:
stdout:

Hello world!

---

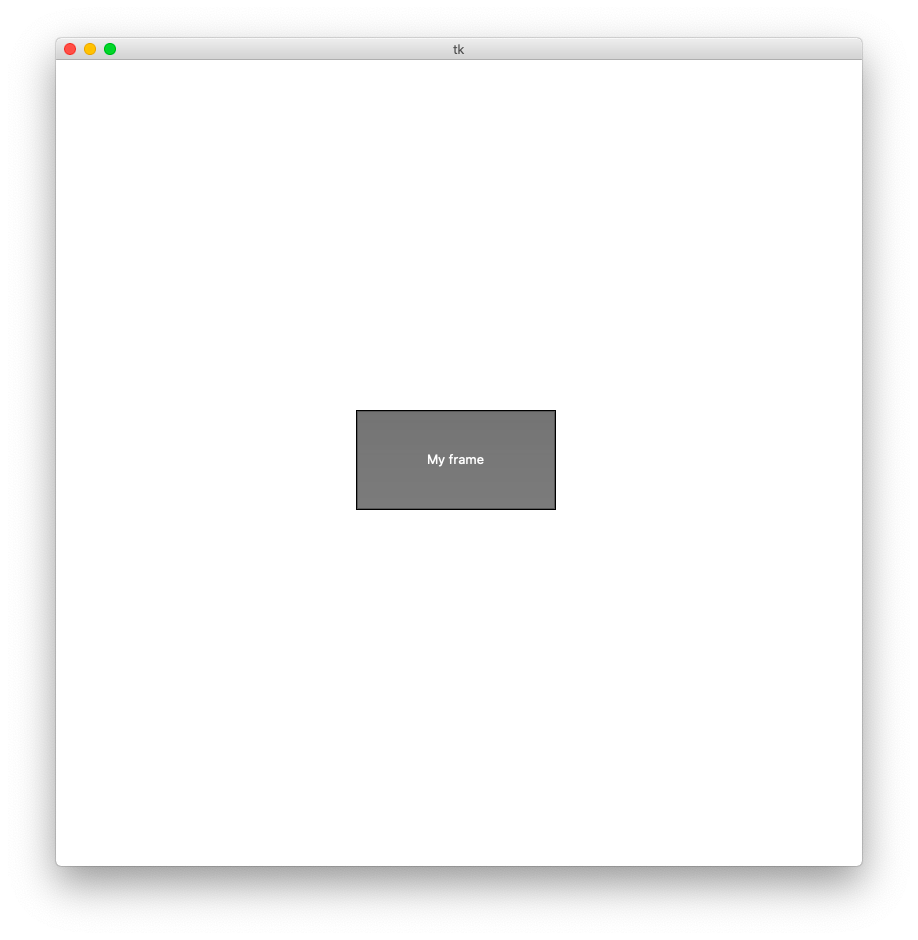

create_frame()

Puts a frame widget on the canvas

from numbers import Real
from typing import Tuple
from tkinter import Frame
def create_frame(self, x: Real, y: Real, **kwargs) -> Tuple[int, Frame]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

canvas.create_frame(
    400, 400, anchor = "center", text = "My frame", height = 100, width = 200,
    bg = "black", fg = "white", highlightbackground = "black"
)

canvas.update()
canvas.mainloop()

---

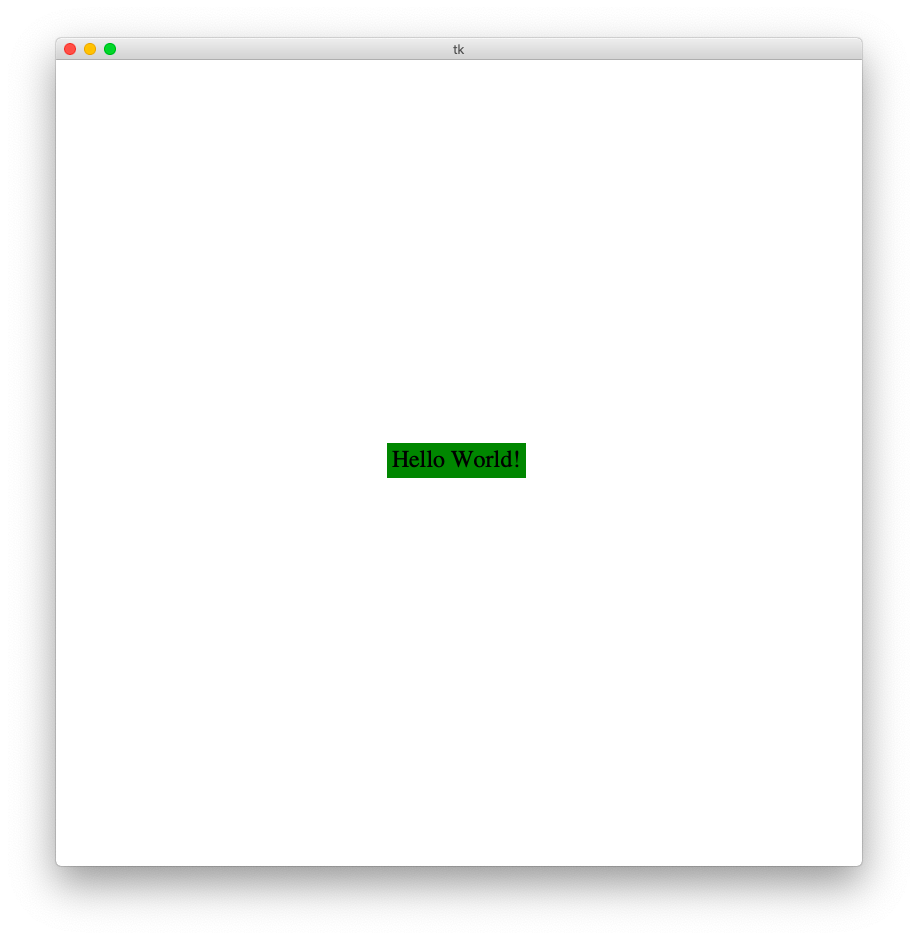

create_label()

Puts a label on the canvas

from numbers import Real
from typing import Tuple
from tkinter import Label
def create_label(self, x: Real, y: Real, **kwargs) -> Tuple[int, Label]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

canvas.create_label(
    400, 400, font = ("Times", "24"), fg = "black", bg = "green",
    text = "Hello World!", anchor = "center"
)

canvas.update()
canvas.mainloop()

---

create_labelframe()

Puts a label frame on the canvas

from numbers import Real
from typing import Tuple
from tkinter import LabelFrame
def create_labelframe(self, x: Real, y: Real, **kwargs) -> Tuple[int, LabelFrame]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

canvas.create_labelframe(
    400, 400, font = ("Times", "24"), fg = "black", bg = "green",
    anchor = "center", width = 100, height = 200
)

canvas.update()
canvas.mainloop()

---

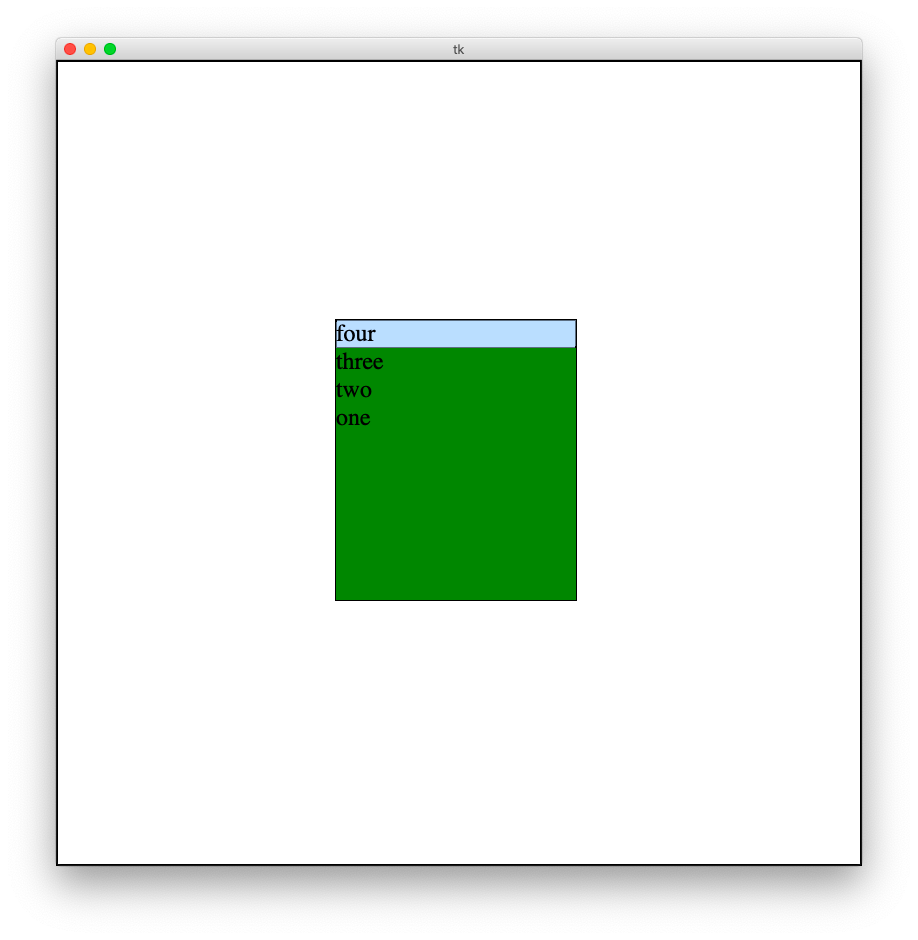

create_listbox()

Puts a listbox on the canvas

from numbers import Real
from typing import Tuple
from tkinter import Listbox
def create_listbox(self, x: Real, y: Real, **kwargs) -> Tuple[int, Listbox]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

_, listbox = canvas.create_listbox(
    400, 400, font = ("Times", "24"), fg = "black", bg = "green",
    anchor = "center"
)

for item in ["one", "two", "three", "four"]:
    listbox.insert(-1, item)

canvas.update()
canvas.mainloop()

---

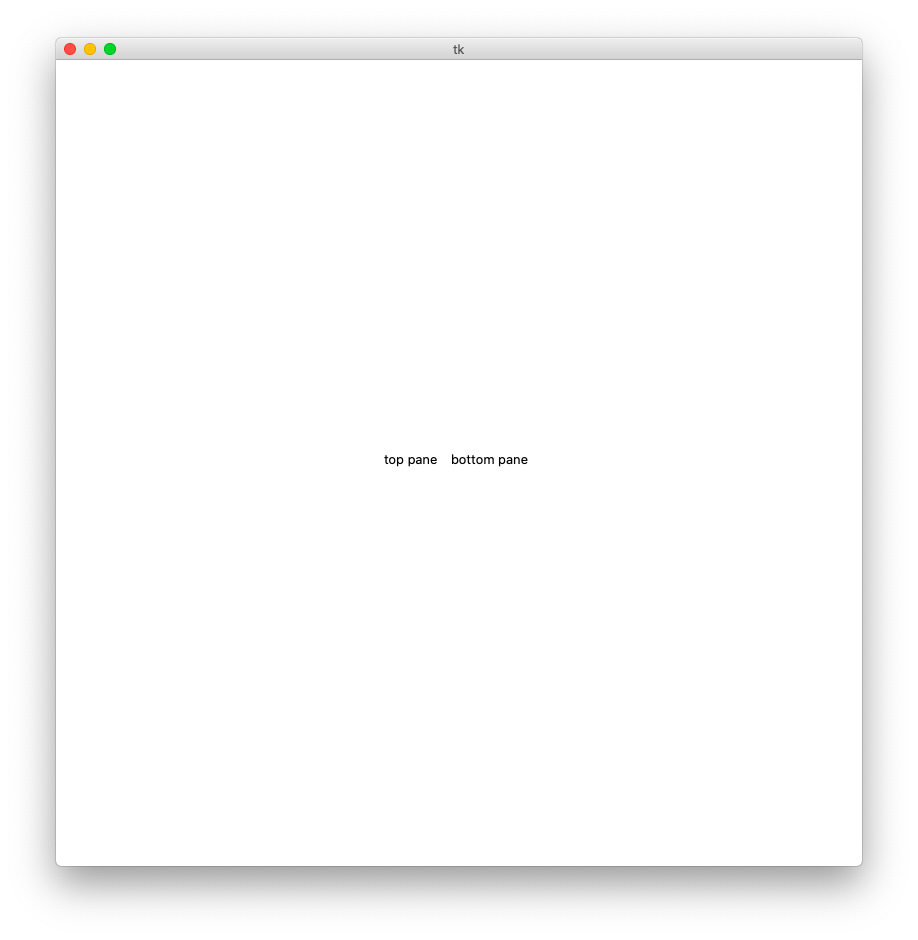

create_panedwindow()

Puts ____ on the canvas

from numbers import Real
from typing import Tuple
from tkinter import PanedWindow
def create_pannedwindow(self, x: Real, y: Real, **kwargs) -> Tuple[int, PanedWindow]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk, Label

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

_, window = canvas.create_panedwindow(400, 400)
top = Label(window, text="top pane")
window.add(top)

bottom = Label(window, text="bottom pane")
window.add(bottom)

canvas.update()
canvas.mainloop()

---

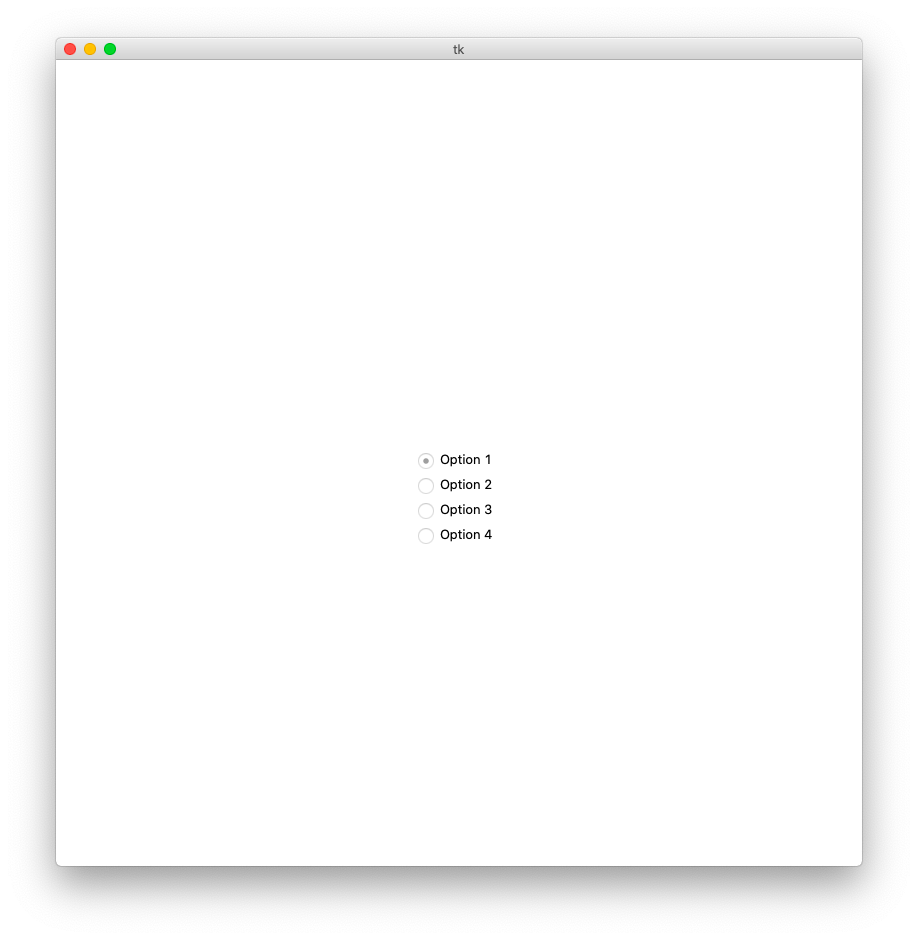

create_radiobutton()

Puts a radio button on the canvas

from numbers import Real
from typing import Tuple
from tkinter import Radiobutton
def create_radiobutton(self, x: Real, y: Real, **kwargs) -> Tuple[int, Radiobutton]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk, StringVar

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

counter = 0

MODES = [
    ("Option 1", "1"),
    ("Option 2", "2"),
    ("Option 3", "3"),
    ("Option 4", "4"),
]

content = StringVar()
content.set("1") # initialize

for text, mode in MODES:
    button = canvas.create_radiobutton(
        400, 400+counter*25, text = text, variable = content, value = mode, anchor = "center"
    )
    counter += 1

canvas.update()
canvas.mainloop()

---

create_scale()

Puts scale on the canvas

from numbers import Real
from typing import Tuple
from tkinter import Scale
def create_scale(self, x: Real, y: Real, **kwargs) -> Tuple[int, Scale]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

canvas.create_scale(
    400, 400, anchor = "center", from_ = 0, to = 100,
    bg = "black", fg = "white"
)

canvas.update()
canvas.mainloop()

---

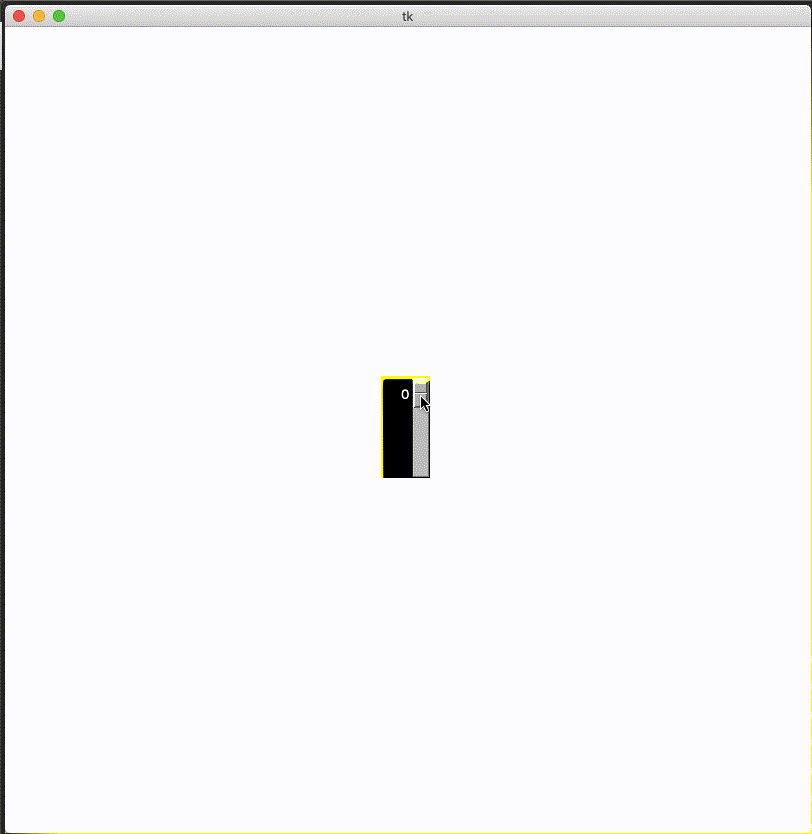

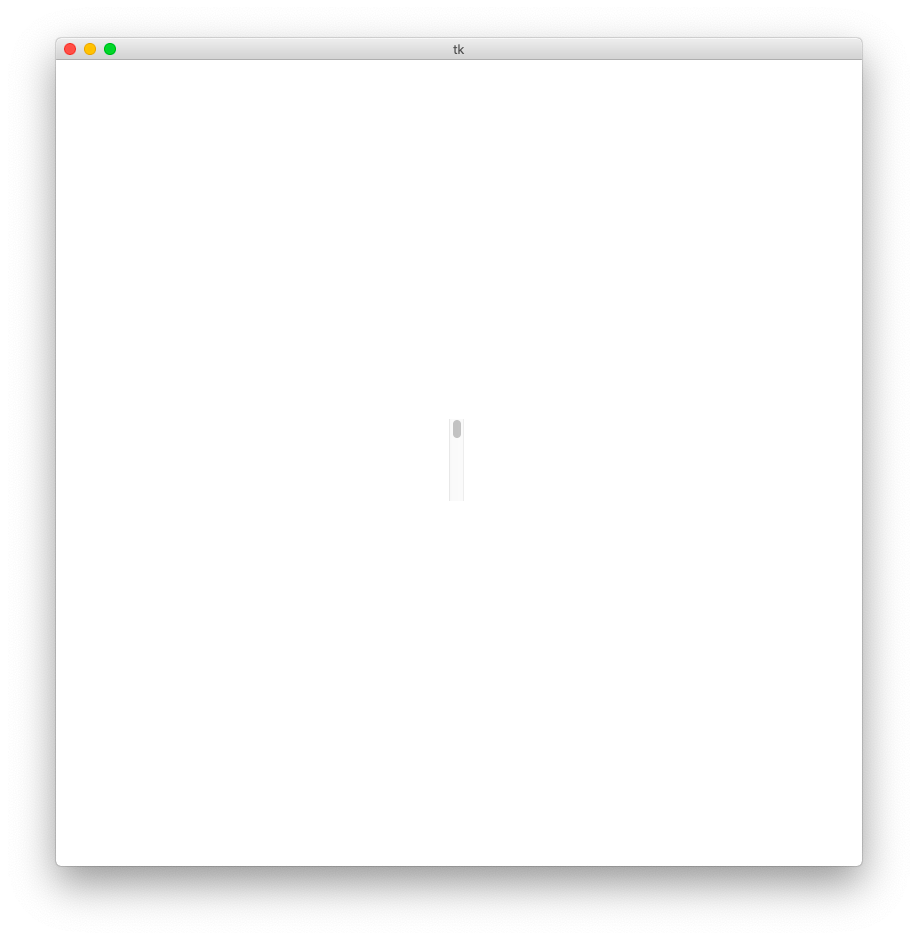

create_scrollbar()

Puts a scrollbar on the canvas

from numbers import Real
from typing import Tuple
from tkinter import Scrollbar
def create_scrollbar(self, x: Real, y: Real, **kwargs) -> Tuple[int, Scrollbar]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

canvas.create_scrollbar(400, 400, anchor = "center", bg = "black")

canvas.update()
canvas.mainloop()

---

create_spinbox()

Puts a spinbox on the canvas

from numbers import Real
from typing import Tuple
from tkinter import Spinbox
def create_spinbox(self, x: Real, y: Real, **kwargs) -> Tuple[int, Spinbox]

Example:

from CanvasPlus import CanvasPlus
from tkinter import Tk

root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()

canvas.create_spinbox(400, 400, from_ = 0, to = 100)

canvas.update()
canvas.mainloop()
