MeshCentral Stylish UI

A modern UI theme for MeshCentral, enhancing the default interface with improved responsiveness, refined layouts, and consistent design elements.

---

🌐 Demo Server

You can try MeshCentral Stylish UI live on our demo instance.
Click the image below to open the demo

Credentials:

• Username: demo
• Password: demo

Important

• The demo environment is for visual testing only — please don’t store real data.
• The system is reset periodically.
• Some administrative features are disabled for security reasons.

---

🖼️ Screenshots

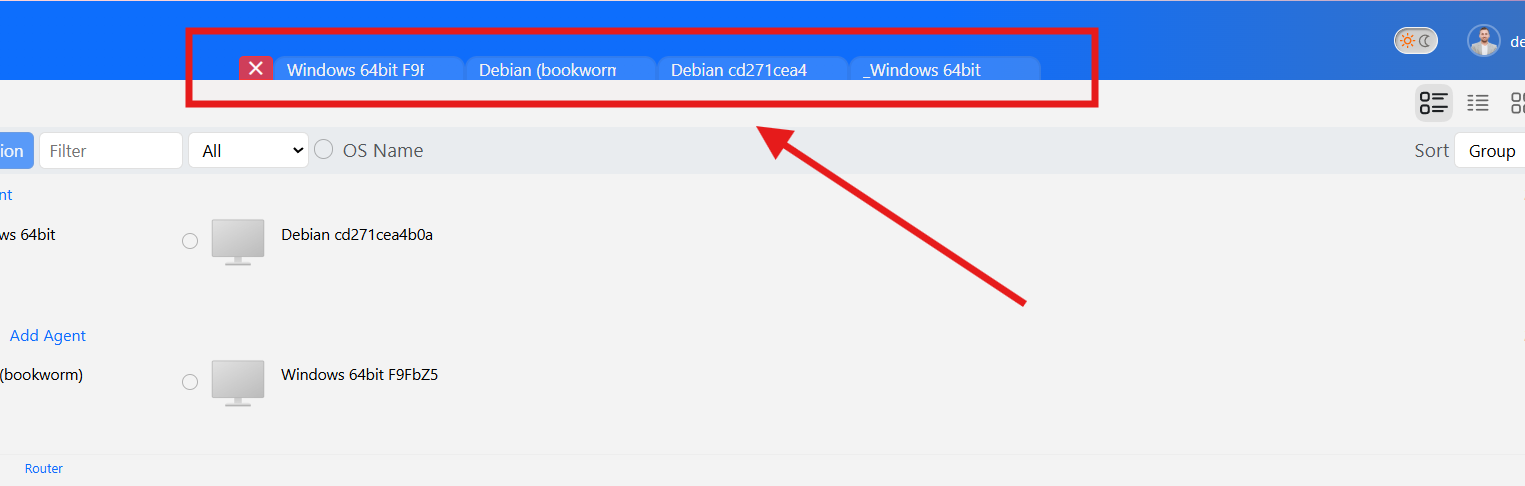

History Tabs
Context Menu Dropdown	Notifications Redesign
Leftbar New Icons	TopBar Icons
Power Graph

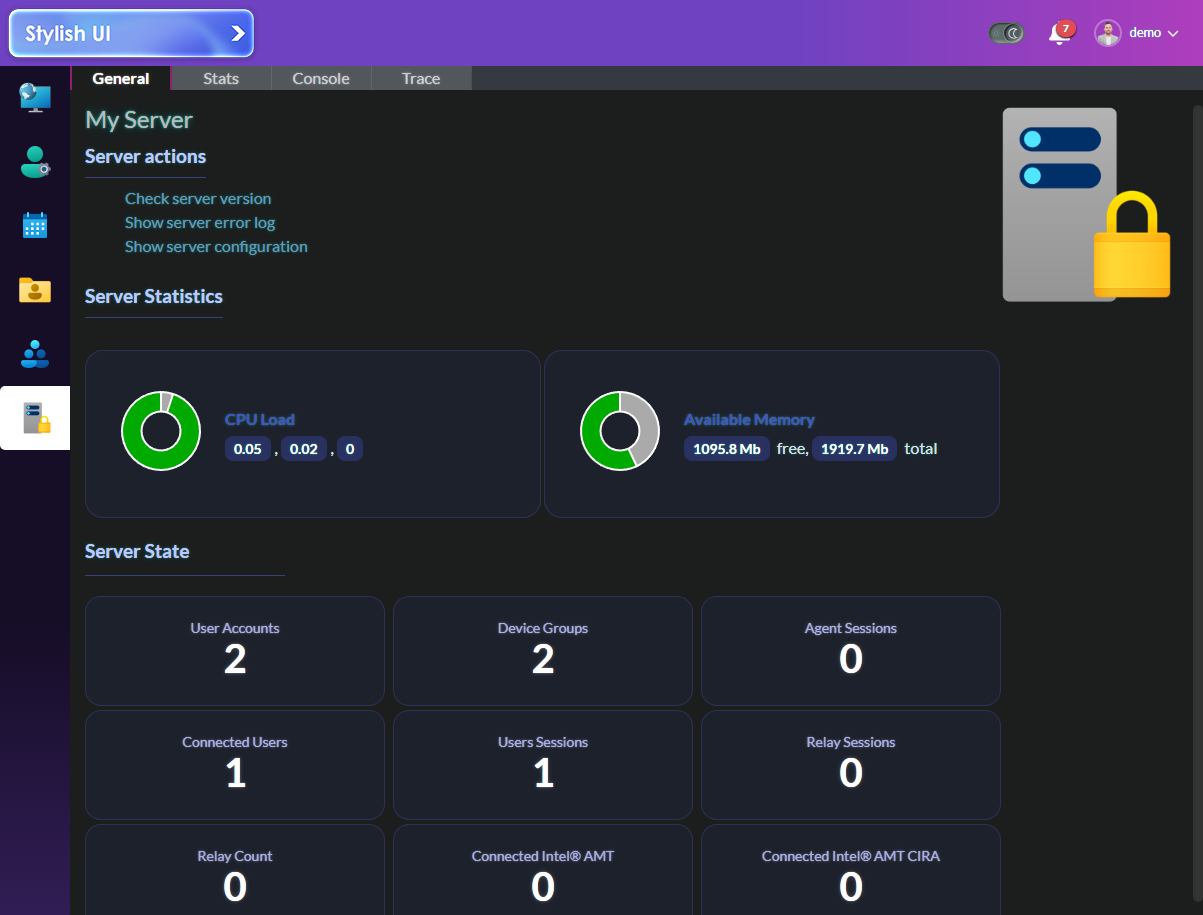

My Server
Themed Bars

---

🎬 Demo Video

StylishUI.mp4

Notifications.mp4

And much, much more...

---

📦 Structure

meshcentral-data/
meshcentral-web/
└── public/
    ├── images/
    └── styles/
        └── custom.css
    └── scripts/
        └── custom.js

• images/ → Contains all custom image assets.
• styles/custom.css → Compiled file that combines all component-level styles.
• styles/components/ → Individual CSS files, separated by customization type.
• scripts/custom.js → Empty script file that allows you to add custom JavaScript functionality.

---

⚙️ How to Apply

Click to expand

General

1. If it doesn’t exist yet, create the meshcentral-web/ folder in the MeshCentral root directory — alongside meshcentral-data/

2. Create the following subfolders inside meshcentral-web/ if they don’t already exist:

   meshcentral-web/public/images/
   meshcentral-web/public/styles/
   meshcentral-web/public/scripts/


3. Copy all files from images/ to:

   meshcentral-web/public/images/


4. Copy styles/custom.css to:

   meshcentral-web/public/styles/custom.css


5. Copy scripts/custom.js to:

   meshcentral-web/public/scripts/custom.js


6. Change to Modern UI

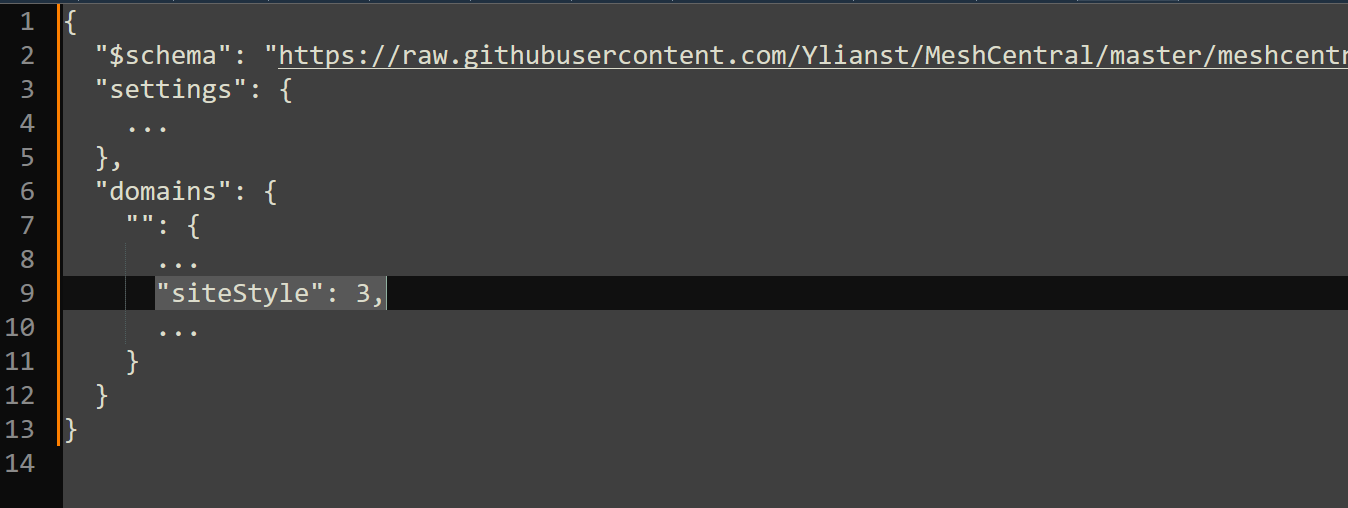

PS: You can also make Modern UI the default for all users by editing the meshcentral-data/config.json file and adding the following line under the default domain at "domains" section: "siteStyle": 3,

7. Refresh your browser (CTRL + SHIFT + R)

The files under styles/components/ are for reference only.
Use them if you prefer to apply specific parts of the customization instead of the full custom.css.

Docker

With Docker, you can simply add environment flags to apply Stylish UI.

The MeshCentral entrypoint will automatically download the compatible Stylish UI version for your server.

You may choose to keep the meshcentral-web folder persistent or not.

Environment flags:
INSTALL_STYLISHUI=true
STYLISHUI_FORCE_LATEST=true

When STYLISHUI_FORCE_LATEST=true, the container always downloads the latest Stylish UI commits, regardless of the MeshCentral version.

When STYLISHUI_FORCE_LATEST=false, the container downloads the Stylish UI version compatible with your MeshCentral version.

Docker compose:

version: 'x.x'
services:
meshcentral:
  image: ...
  environment:
    - INSTALL_STYLISHUI=true
    - STYLISHUI_FORCE_LATEST=true
  volumes:
    ...
  ports:
    ...
  networks:
    ...

volumes:
...

networks:
...

---

🧩 Components Overview

File	Description
Background.css	Background visuals and transparency effects
ColumnsAndListView.css	List and column layout adjustments
Device-GeneralPage.css	Device details and general page styling
DropDownContextMenu.css	Dropdown and context menu enhancements
LeftBarCustomIcons.css	Custom icons for the left navigation bar
LeftBarShrinkAndColors.css	Compact mode and color adjustments for the left bar
LittleStuff.css	Minor UI refinements and miscellaneous tweaks
LoginPage.css	Login screen layout and visuals
Masthead.css	Header (masthead) styling
MenuIcons.css	Custom Menu Icons
MobileStyles.css	Mobile styling
MyEvents.css	Events section customization
MyServerButton.css	Styling for the “My Server” button
Notifications.css	Visual adjustments for notifications
TopBar.css	Main top bar styling
TopMenu.css	Main Menu mobile view themed
UIMenu.css	General UI menu styling

---

🧠 Notes

• The custom.css file is safe to overwrite at any time.
• Always back up your /meshcentral-web/ folder before updating.

---

🏅 Credits

• Pjotr - dear friend and the inspiration behind this project
• TheDevRyan — outstanding contributions throughout the project
• GlitchedCod — for most of the icons
• Simon — for general guidance
• MeshCentral — the ultimate RMM solution!
• MeshCentral @OpenHub — About MeshCentral

---

Built with ❤️ by Melo
Feedback? Open an issue or star the repo!
