Race Condition Vulnerability Lab

A comprehensive demonstration of Time-of-Check-Time-of-Use (TOCTOU) race condition vulnerabilities in Unix-like systems. This lab explores how symbolic link attacks can exploit the time window between access permission checks and file operations in setuid programs.

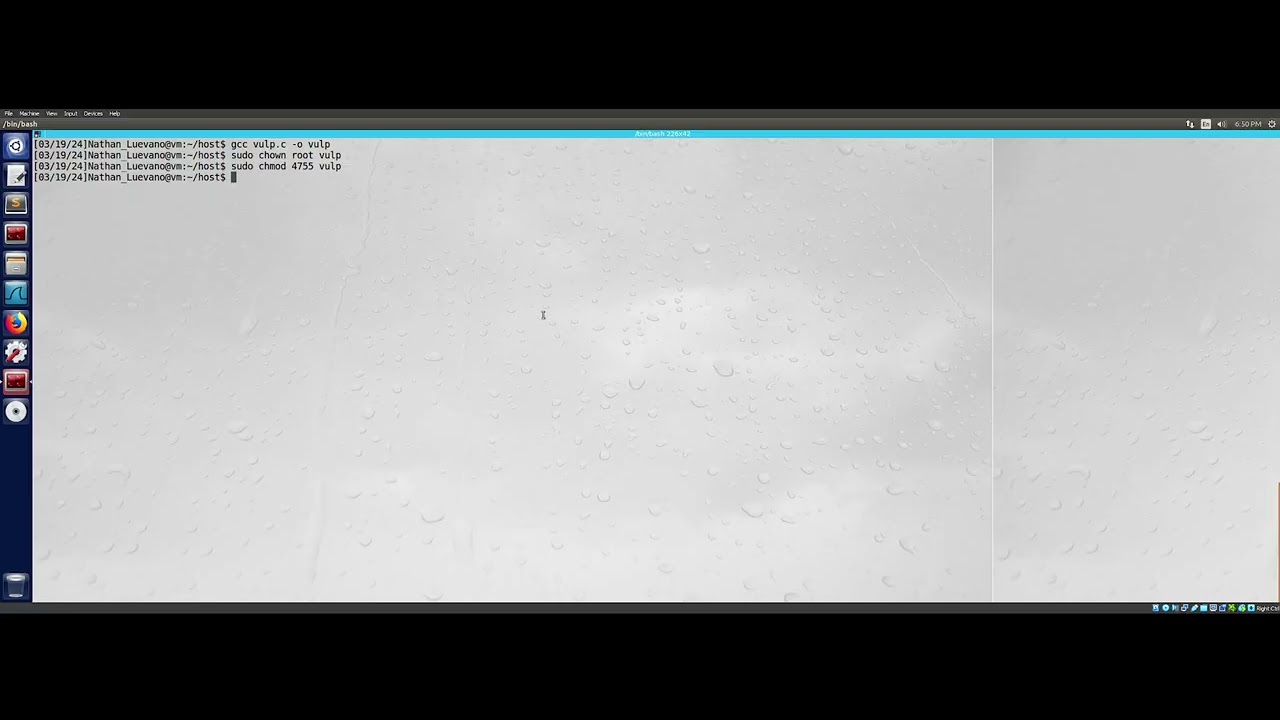

Video Walkthrough

Click the image above to watch a complete walkthrough of this lab

Overview

This repository contains a vulnerable C program and attack scripts that demonstrate a classic race condition vulnerability. The vulnerable program appears harmless at first glance but contains a critical flaw in how it handles file access permissions, allowing attackers to manipulate symbolic links and gain unauthorized access to protected system files.

Files Included

vulp.c - Vulnerable Program

A setuid root program that:

• Accepts user input (up to 50 characters)
• Checks write permissions for /tmp/XYZ using access()
• Opens and appends user input to the file if permission check passes
• Contains a race condition between the permission check and file operation

target_process.sh - Attack Orchestration Script

Bash script that:

• Monitors changes to /etc/passwd file
• Continuously executes the vulnerable program with crafted input
• Stops execution when the target file has been successfully modified
• Demonstrates the persistence required for successful race condition attacks

Vulnerability Details

The Race Condition

The vulnerability exists in the time window between:

1. Time of Check: access(fn, W_OK) - checking write permissions
2. Time of Use: fopen(fn, "a+") - actually opening the file

During this brief window, an attacker can:

• Remove the original /tmp/XYZ file
• Create a symbolic link from /tmp/XYZ to a protected file (e.g., /etc/passwd)
• Cause the program to write to the protected file instead

Attack Methodology

1. Target Selection: /etc/passwd - the system password file
2. Payload Creation: Crafted user entry with root privileges (UID 0)
3. Symbolic Link Manipulation: Rapidly switching /tmp/XYZ between regular file and symbolic link
4. Privilege Escalation: Adding a new root account without password

Prerequisites and Setup

System Requirements

• Linux system (Ubuntu/Debian preferred)
• GCC compiler
• Root/sudo access for initial setup

Disabling Ubuntu Protection

Ubuntu 10.10+ includes built-in protection against symbolic link attacks. Disable this protection:

sudo sysctl -w fs.protected_symlinks=0

To re-enable protection:

sudo sysctl -w fs.protected_symlinks=1

Compilation and Setup

1. Compile the vulnerable program:

gcc vulp.c -o vulp

2. Set appropriate permissions (setuid root):

sudo chown root vulp
sudo chmod 4755 vulp

3. Make scripts executable:

chmod +x target_process.sh

Attack Demonstration

Payload Construction

The attack payload creates a new user entry for /etc/passwd:

test:U6aMy0wojraho:0:0:test:/root:/bin/bash

Where:

• test: Username
• U6aMy0wojraho: Passwordless hash (empty password)
• 0: User ID (root privilege)
• 0: Group ID (root group)

Execution Steps

1. Start the target process:

./target_process.sh

2. Run the attack process (in separate terminal):

./attack.sh  # (Attack script creating symbolic links)

3. Monitor for success: The target process will output "STOP... The passwd file has been changed" when successful

4. Test privilege escalation:

su test  # No password required
id       # Should show uid=0 (root)

Key Learning Objectives

Security Concepts Demonstrated

• TOCTOU Vulnerabilities: Understanding time-based race conditions
• Setuid Program Risks: How privilege escalation can be exploited
• Symbolic Link Attacks: Manipulating file system links for unauthorized access
• System File Protection: Importance of atomic operations and proper validation

Attack Techniques

• Race Condition Exploitation: Timing attacks against file operations
• Symbolic Link Manipulation: Rapid switching between file types
• Privilege Escalation: Gaining root access through system file modification
• Persistence Mechanisms: Continuous attack attempts until success

Defensive Measures

Code-Level Protections

1. Use file descriptors consistently: Open file once and reuse the descriptor
2. Implement atomic operations: Use openat() with O_NOFOLLOW flag
3. Avoid TOCTOU patterns: Eliminate separate check and use operations
4. Validate file types: Ensure files are not symbolic links before use

System-Level Protections

1. Enable symbolic link protection: Keep fs.protected_symlinks=1
2. Use temporary directories with proper permissions: Restrict access to temp files
3. Implement mandatory access controls: SELinux, AppArmor, etc.
4. Regular security audits: Identify and fix TOCTOU vulnerabilities
