Single frontend serving multiple different domains using http

Single frontend serving multiple different domains using http.

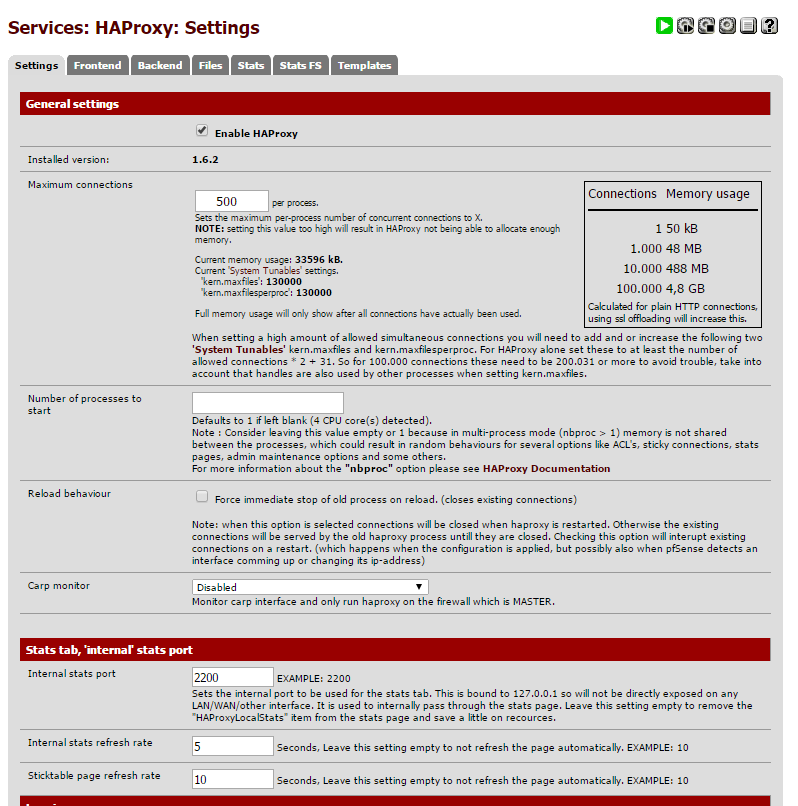

Settings: Enable haproxy, set the maximum number of connections, set stats port and refresh intervals.

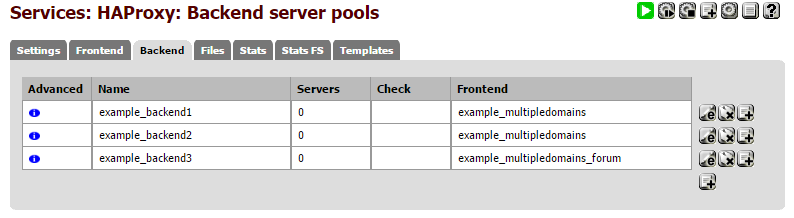

Backend overview

Backends the place to start, add a backend, and configure the servers and ports used on the lan or dmz server-network.

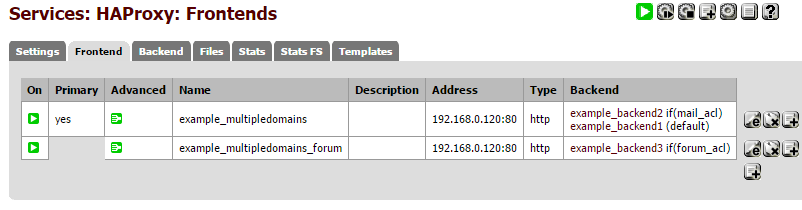

Frontend overview

Frontends need to be added that will listen for incomming connections, and will forward users to the default-backend or a specific backend determined by the acl and action rules.

The 3 backends in this example configuration are used from two (shared)frontends, basically they could all be used from 1 frontend, or be split over 3 frontends it depends a little what configuration is convenient for your purposes. Since 'actions' where introduced these are my preferred way to configure it all from 1 frontend.

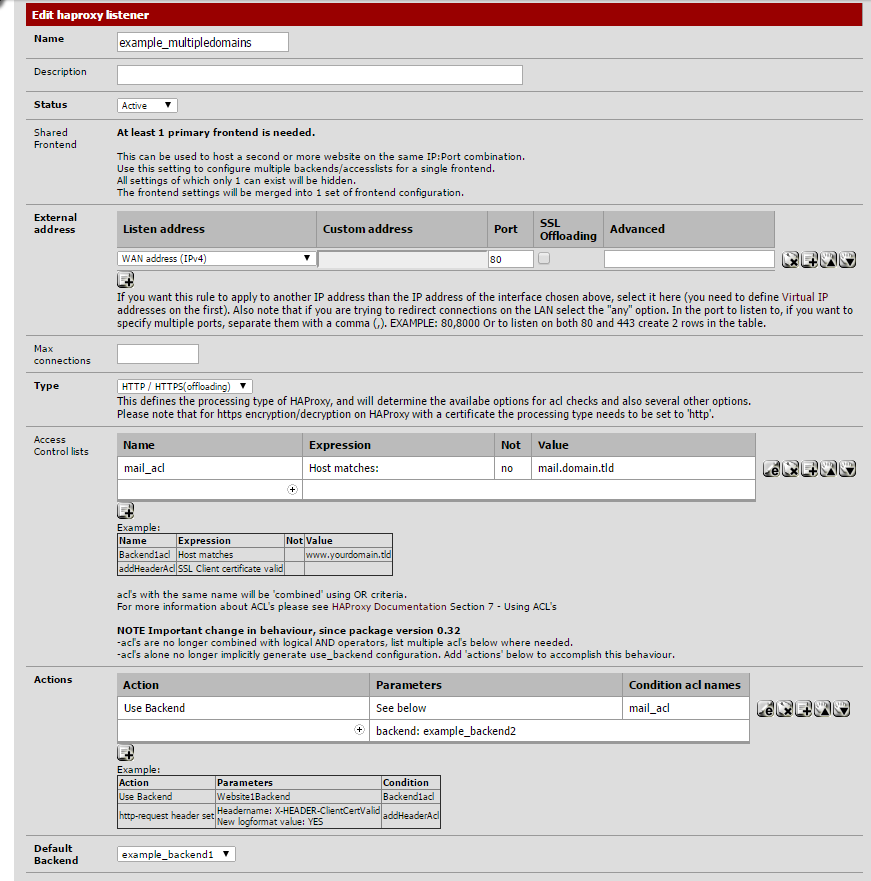

First frontend:

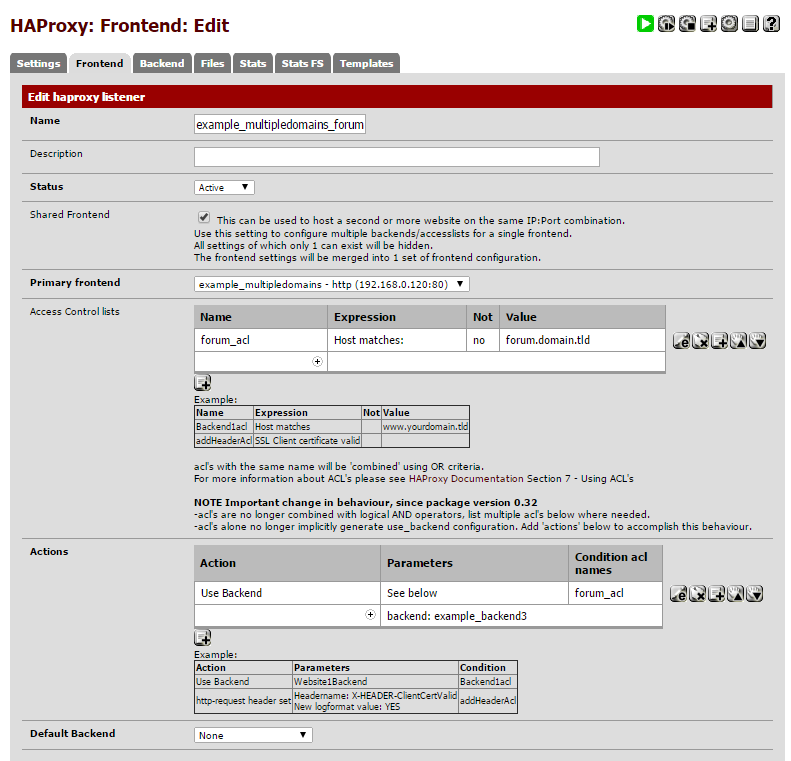

Second frontend:

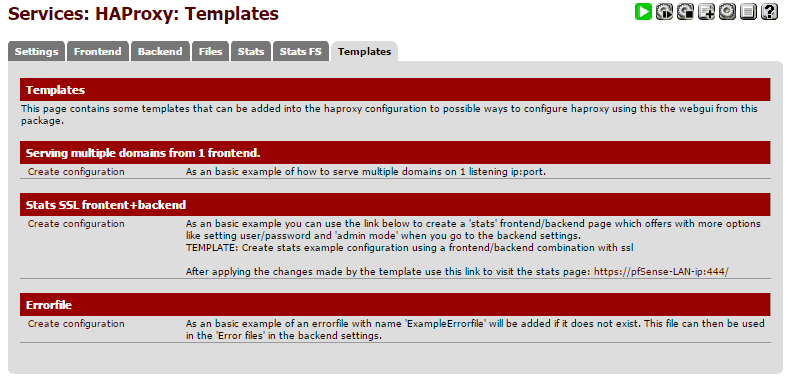

Templates

The configuration explained on this wiki page can be easily created by applying the 'template' from the template tab in the package. It will 'run' but the 3 domain names need to be pointed to pfSense wan-ip, for testing this can be done with 'host overrides' the pfSense dns-resolver. Also all 3 backends are configured to show the stats page for that backend. To make it more functional servers should be configured in each backend.
