TSForecasting: Automated Time Series Forecasting Framework

Framework Contextualization

The TSForecasting project offers a comprehensive and integrated pipeline designed to Automate Time Series Forecasting applications. By implementing multivariate approaches that incorporate multiple regression models, it combines varied relevant modules such as SKLearn, AutoGluon, CatBoost and XGBoost, following an Expanding Window structured approach for performance evaluation ensuring a robust, scalable and optimized forecasting solution.

The architecture design includes five main sections: data preprocessing, feature engineering, hyperparameter optimization, model evaluation and forecasting, which are organized and customizable in a pipeline structure.

This project aims at providing the following application capabilities:

• General applicability on tabular datasets: The developed forecasting procedures are applicable on any data table associated with any Time Series Forecasting scopes.

• Hyperparameter optimization and customization: It provides full configuration for each model hyperparameter through the customization of model_configurations dictionary, allowing optimal performance to be obtained for any use case.

• Robustness and improvement of predictive results: The implementation of the TSForecasting pipeline aims to improve the predictive performance directly associated with the application of the best performing forecasting method.

• Prediction intervals with multiple methods: Four coverage levels (80%, 90%, 95%, 99%) with four estimation methods (ensemble, quantile, conformal, gaussian) for robust uncertainty quantification.

Main Development Tools

Major frameworks used to build this project:

• Sklearn
• AutoGluon
• CatBoost
• XGBoost

Performance Evaluation Structure

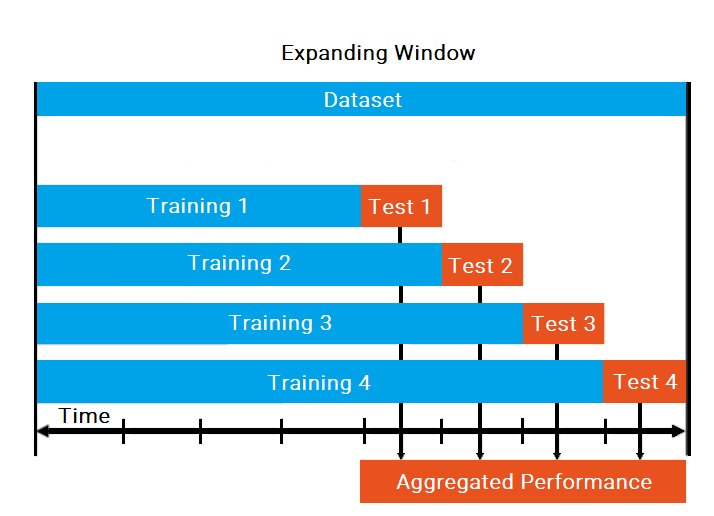

The Expanding Window evaluation technique provides a temporal approximation of the real value of time series data. The first test segment is selected according to the train length and then forecasted in accordance with the forecast horizon. The starting position of each subsequent segment is set in direct relation to the sliding window size - if the sliding size equals the forecast size, each segment starts at the end of the previous one. This process repeats until all time series data is segmented, using all iterations and observations to construct an aggregated and robust performance analysis for each predicted point.

Where to get it

Binary installer for the latest released version is available at the Python Package Index (PyPI).

Installation

To install this package from Pypi repository run the following command:

pip install tsforecasting

Usage Examples

1. TSForecasting - Automated Time Series Forecasting

The first step after importing the package is to load a dataset and define your DateTime (datetime64[ns] type) and Target column to be predicted, then rename them to Date and y, respectively.

The pipeline follows a straightforward workflow: configure parameters, fit the model across expanding windows, evaluate performance, and generate forecasts with prediction intervals. The fit_forecast method trains and evaluates all selected models using the expanding window approach, automatically selecting the best performer. The history method returns detailed performance metrics across all windows and horizons, while forecast generates future predictions using the best model.

Pipeline Parameters:

• train_size: Proportion of data used for the initial training window (0.3 to 1.0)
• lags: Number of lag features (window size) - how many past observations each input sample includes
• horizon: Number of future time steps to forecast
• sliding_size: Window expansion size per iteration (sliding_size >= horizon recommended)
• models: List of models to evaluate and ensemble. Available options:
  • RandomForest, ExtraTrees, GBR, KNN, GeneralizedLR
  • XGBoost, Catboost, AutoGluon
• hparameters: Nested dictionary containing model-specific hyperparameter configurations (customizable via model_configurations())
• granularity: Time frequency of the data - 1m, 30m, 1h, 1d, 1wk, 1mo (default: 1d)
• metric: Evaluation metric for model selection - MAE, MAPE, or MSE (default: MAE)

from tsforecasting import TSForecasting, model_configurations
import pandas as pd
import warnings
warnings.filterwarnings("ignore", category=Warning)

# Load and prepare data
data = pd.read_csv('your_timeseries.csv')
data = data.rename(columns={'DateTime_Column': 'Date', 'Target_Column': 'y'})
data['Date'] = pd.to_datetime(data['Date'])
data = data[['Date', 'y']]

# Get and customize model hyperparameters
hparameters = model_configurations()
hparameters["RandomForest"]["n_estimators"] = 100
hparameters["XGBoost"]["n_estimators"] = 100
hparameters["Catboost"]["iterations"] = 100

# Configure and fit pipeline
tsf = TSForecasting(
    train_size=0.80,
    lags=10,
    horizon=10,
    sliding_size=10,
    models=['RandomForest', 'ExtraTrees', 'GBR', 'KNN',
            'XGBoost', 'Catboost'],
    hparameters=hparameters,
    granularity='1d',
    metric='MAE'
)
tsf.fit_forecast(dataset=data)

# Get performance history
history = tsf.history()
print(f"Best Model: {tsf.selected_model}")

# Generate forecast with prediction intervals
forecast = tsf.forecast()
print(forecast[['Date', 'y', 'y_lower_90', 'y_upper_90']])

Performance Analysis

The history() method returns a PerformanceHistory dataclass containing detailed evaluation results essential for analyzing forecasting performance across models, windows, and horizons.

# Access history components
history = tsf.history()

# 1. Predictions DataFrame - Raw forecasts per window with timestamps
predictions = history.predictions
print(f"Shape: {predictions.shape}")
print(predictions.head())
# Columns: Date, y_horizon_1..N, y_forecast_horizon_1..N, Window, Model

# 2. Complete Performance - Detailed metrics per window and horizon
performance_complete = history.performance_complete
print(performance_complete.head(10))
# Columns: Model, Window, Horizon, MAE, MAPE, MSE, Max Error

# 3. Performance by Horizon - Aggregated metrics across windows per horizon
performance_horizon = history.performance_by_horizon
print(performance_horizon)
# Useful for understanding error growth over forecast horizon

# 4. Leaderboard - Model rankings by selected metric
leaderboard = history.leaderboard
print(leaderboard.to_string(index=False))
# Models ranked by mean performance across all windows

# 5. Selected Model
print(f"Best Model: {history.selected_model}")

2. Builder Pattern (Alternative Configuration)

For more readable configuration, use the fluent builder pattern:

from tsforecasting import TSForecastingBuilder

tsf = (TSForecastingBuilder()
       .with_train_size(0.80)
       .with_lags(10)
       .with_horizon(10)
       .with_sliding_size(10)
       .with_models(['RandomForest', 'XGBoost'])
       .with_granularity('1d')
       .with_metric('MAE')
       .with_preprocessing(scaler='robust', datetime_features=True)
       .build())

tsf.fit_forecast(dataset=data)
forecast = tsf.forecast()

3. Prediction Intervals

TSForecasting generates prediction intervals at four fixed coverage levels: 80%, 90%, 95%, and 99%. Four estimation methods are available:

Method	Description	Best For
ensemble	Average of all three methods (default)	General use, most robust
quantile	Empirical percentiles of residuals	Asymmetric error distributions
conformal	Distribution-free coverage guarantee	Theoretical guarantees
gaussian	Parametric normal assumption	Symmetric, well-behaved errors

Mathematical Formulations:

• Quantile: Computes empirical percentiles of historical residuals (lower = forecast + percentile(residuals, α/2)). Captures asymmetric errors without distributional assumptions.

• Conformal: Uses absolute errors as nonconformity scores with finite-sample correction. Provides coverage guarantees with symmetric, constant-width intervals.

• Gaussian: Assumes normally distributed residuals (lower = forecast + bias - z × std). Efficient and accounts for systematic bias.

• Ensemble (Default): Averages bounds from all three methods, balancing their strengths for robust uncertainty estimates.

# Default: ensemble method (recommended)
forecast = tsf.forecast()

# Specific methods
forecast = tsf.forecast(interval_method="quantile")
forecast = tsf.forecast(interval_method="conformal")
forecast = tsf.forecast(interval_method="gaussian")

4. Auxiliary Methods

Processing - Time Series Transformation

The make_timeseries method transforms a DataFrame into a supervised learning format ready for time series analysis:

• window_size: Number of past observations (lags) each sample includes
• horizon: Number of future time steps to predict
• datetime_engineering: Enriches dataset with date-time features (year, month, day of week, etc.)

from tsforecasting import Processing

processor = Processing()
timeseries = processor.make_timeseries(
    dataset=data,
    window_size=10,
    horizon=5,
    datetime_engineering=True
)

TreeBasedFeatureSelector - Feature Selection

Select most relevant features based on tree-based importance:

from tsforecasting import TreeBasedFeatureSelector

selector = TreeBasedFeatureSelector(
    algorithm='ExtraTrees',      # RandomForest, ExtraTrees, GBR
    relevance_threshold=0.95,    # Keep features explaining 95% of variance
    n_estimators=100
)
selector.fit(X, y)
X_selected = selector.transform(X)
print(selector.selected_features)

Detailed Timeseries Examples

TSForecasting Guideline Examples

Citation

If you use TSForecasting in your research, please cite:

@software{tsforecasting,
  author = {Luis Fernando Santos},
  title = {TSForecasting: Automated Time Series Forecasting Framework},
  year = {2022},
  url = {https://github.com/TsLu1s/TSForecasting}
}

License

Distributed under the MIT License. See LICENSE for more information.

Contact

Luis Santos - LinkedIn
