🆑 add: Rotation Tools section with Fix (Toes), Fix (Tail), Fix (Belly) for per-reference Y-axis rotation correction add: Generic MirrorRotation method with bit flag axis selection (1=X, 2=Y, 4=Z) operating in avatar root local space add: Mirror L to R and Mirror R to L buttons for foot references add: Compute Left/Right/Hips buttons to reset individual references to initial bone position and rotation add: Use Global Forward/Up toggle for initial reference generation with root deviation warning add: EnsureReferencesExist recovery method for regenerating deleted References hierarchy without full revert add: TryFixFootRotation dual check falling back to child bones containing "toe" if humanoid toes missing qol: Reorganized wizard UI with Setup/Revert buttons at top, collapsible Tools and Edit Visuals foldouts below qol: Wizard detects existing ResoniteBipedAvatarDescriptor on avatar root change and populates setup flags qol: Optional reference overrides cleared on avatar root swap to prevent stale positioning fix: Optional reference slots use avatar root rotation instead of unreliable bone axis rotation fix: Added null guards with Debug.LogWarning on all public descriptor methods fix: PostProcessConversion null-safe for optional foot and hips references fix: Dirty marking on rotation fix buttons for immediate gizmo updates Doc: Added section markers into ResoniteAvatarSetupWizard /🆑
Contributor
Author
It should now even be able to handle if for some ungodly reason avatar root is Z = backwards
|
Contributor
Author
|
Oh also since i forgot to mention it Look for a Tail bone or Belly bone respectively to intuit Hip rotation from those non standard bones Fix Toes both supports Biped Toes AND a random slot containing "toes" in the foot hierarchy |
…ot just Valid REQUIRED refs
Contributor
Author
|
Had to fix a small oversight where my Reference Geerator logic Aggressively created ALL Potential references instead of properly checking against Existing Refs on Biped + User given refs and skipping if neither is properly provided |
Fix: The undo for try position Tool anchors wasnt recording child movemet, only parents Cleanup: Downgrade Logs that act as pure reminders and are not actually an issue from Warn to Log Cleanup: duplicate [ExecuteInEditMode] flag
Contributor
Author
|
|
Frooxius
reviewed
Mar 27, 2026
Assets/ResoniteSDK/Processors/Avatar/ResoniteBipedAvatarDescriptor.cs
Outdated
Show resolved
Hide resolved
Frooxius
reviewed
Mar 27, 2026
| var window = GetWindow<ResoniteAvatarSetupWizard>(); | ||
| window.titleContent = new GUIContent("Avatar Setup Wizard"); | ||
| window.minSize = new Vector2(400, 500); | ||
| window.minSize = new Vector2(420, 500); |
Contributor
Author
There was a problem hiding this comment.
That's pretty high! :D
Should be the minimum size to be legible as an undocked window! (at least on my machine)
(Docked windows for better or worse are allowed to override this)
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
2 participants
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.

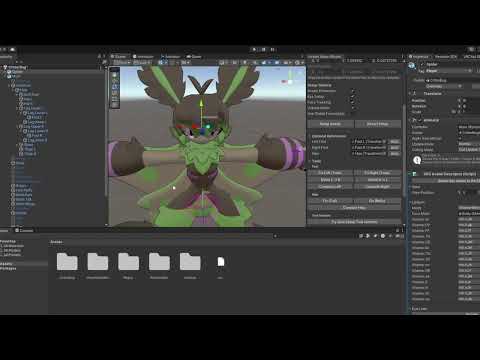

Refactors parts of my Avatar Setup Wizard, properly implements optional bone setup and adds a buch of vector tools to assist users with Avatar Setup.
Also adds some sectioning comments into my code so i remember to add features related to each other in the same section blocks
Also thought it may be useful if people can programmatically parse my changes so below is a machine readable changelog
🆑
add: Rotation Tools section with Fix (Toes), Fix (Tail), Fix (Belly) for per-reference Y-axis rotation correction
add: Generic MirrorRotation method with bit flag axis selection (1=X, 2=Y, 4=Z) operating in avatar root local space
add: Mirror L to R and Mirror R to L buttons for foot references
add: Compute Left/Right/Hips buttons to reset individual references to initial bone position and rotation
add: Use Global Forward/Up toggle for initial reference generation with root deviation warning
add: EnsureReferencesExist recovery method for regenerating deleted References hierarchy without full revert
add: TryFixFootRotation dual check falling back to child bones containing "toe" if humanoid toes missing
qol: Reorganized wizard UI with Setup/Revert buttons at top, collapsible Tools and Edit Visuals foldouts below
qol: Wizard detects existing ResoniteBipedAvatarDescriptor on avatar root change and populates setup flags
qol: Optional reference overrides cleared on avatar root swap to prevent stale positioning
fix: Optional reference slots use avatar root rotation instead of unreliable bone axis rotation
fix: Added null guards with Debug.LogWarning on all public descriptor methods
fix: PostProcessConversion null-safe for optional foot and hips references
fix: Dirty marking on rotation fix buttons for immediate gizmo updates
doc: Added section markers into ResoniteAvatarSetupWizard
fix: try position Tool anchors records child movement now for undo.
clean: Downgrade Logs that act as pure reminders and are not actually an issue from Warn to Log
clean: remove duplicate [ExecuteInEditMode] flag
/:cl:
