API Management Automation Using Bicep

I tried to automate API Management automation and came across Azure API Management DevOps Resource Kit repository on GitHub. It has a creator and extractor tools but has some things broken and not very convenient to work with.

Here we'll automate the entire API deployment using bicep scripts.

If you're not too familiar with BICEP, you can use the Microsoft Bicep Docs

Azure Resource Group

Create a resource group on azure portal that you want to deploy APIM into. I have created api-devops resource group.

Virtual Network

Without Virtual Network (VNet)

You can skip the virtualNetworkConfiguration and virtualNetworkType properties modules\apiManagement.bicep when creating the APIM instance.

For this article, I am going to create this in a private VNet.

Within Private Virtual Network (VNet)

If you want to use it without VNet, you can skip this section and move to next.

• Create a VNet and a subnet for APIM within the VNet.

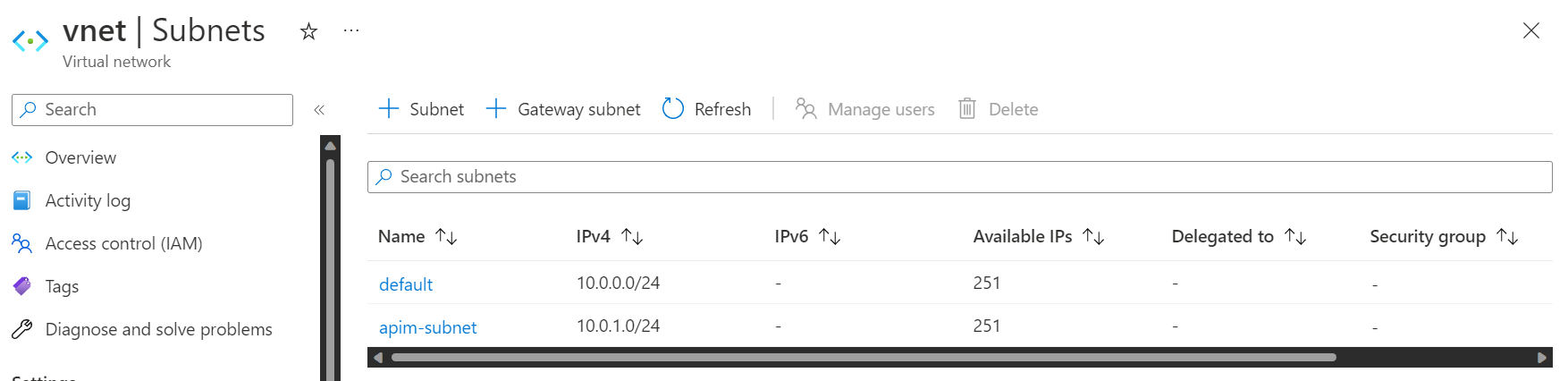

• Created subnet apim-subnet in VNet that I will use.
• Get the resource id of the subnet using az-cli.
• Copy the id (resourceId) of the subnet. You will need it later.

Bicep Refresher

This is a very basic refresher of what we need. Please refer Bicep Docs for more in-depth documentation.

• param <param-name> <param-type>
  this is to tell that the template accept a parameter <param-name> of type <param-type>
  Ex. param x string - accepts a parameter x of type string.
  type can be array, object, int, string
• param <param-name> <param-type> = <default-value>
  if a value is not passed for the parameter, its default value is used.
• module <symobolic-name> <path-to-file> = <params>
  we can declare the resources in modules and re-use the module in templates.
• [for i in list] - add a for loop to the templates
• if (condition) - only deploy resources if condition is true

Deployment

After each step you can verify your deployment using az-cli.
az deployment group create --resource-group api-devops --template-file apim.bicep --parameters ./apim.parameters.json

Create APIM Instance

• Check the code at https://github.com/ankurcharan/azure-api-management-devops/tree/createApim
• At modules/apiManagement.bicep it accepts multiple parameters and then we can create the instance of APIM.

resource apiManagementService 'Microsoft.ApiManagement/service@2021-08-01' = {
  name: apiManagementInstanceName
  location: location
  tags: tags
  sku: {
    capacity: skuCount
    name: sku
  }
  properties: {
    publisherEmail: 'ankurcharan@outlook.com'
    publisherName: 'Ankur Charan'
    virtualNetworkConfiguration: {
      subnetResourceId: subnetResourceId
    }
    virtualNetworkType: virtualNetworkType
  }
}

Parameters:

• name: name of the apim instance
• location: azure region you want the instance to be created in
• sku:
  • capacity: capacity of the sku (number of deployed units of the sku)
  • name: name of the sku
• properties:
  • publisherEmail: email of publisher
  • publisherName: name of publisher

  Note: You can skip the below VNet configurations if you want to use a public facing backend. If you want to use a private VNet then you can use these two configurations.

  • virtualNetworkType: The type of VPN in which API Management service needs to be configured in. None (Default Value) means the API Management service is not part of any Virtual Network, External means the API Management deployment is set up inside a Virtual Network having an Internet Facing Endpoint, and Internal means that API Management deployment is setup inside a Virtual Network having an Intranet Facing Endpoint only.
    Allowed values are 'External', 'Internal' and 'None'
  • virtualNetworkConfiguration.subnetResourceId: it takes the resource id of the subnet if you want this to have a private vnet.

With this much you will have an API Management instance running in your resource group.

• and then we have declared the output values of the instance created

output name string = apiManagementInstanceName
output resourceId string = apiManagementService.id
output apimGatewayUrl string = apiManagementService.properties.gatewayUrl

• this module is called at apim.bicep

module apiManagementService 'modules/apiManagement.bicep' = {
	name: apiManagementServiceName
	params: {
		tags: tags
		apiManagementInstanceName: apiManagementServiceName
		location: location
		subnetResourceId: subnetResourceId
		virtualNetworkType: 'External'
	}
}

It uses the module we create above to create the APIM instance. And we also get the outputs that we define above that we'll use in next steps.

• Parameters file
  We also have parameters file apim.parameters.json which currently only has two parameters.
  apiManagementServiceName will be the name of your APIM instance.
  subnetResourceId is the resource id of your apim subnet.

• APIM instance created

Adding global policy

We will add a global policy that will apply to all APIs in the APIM. I have kept it empty and would just forward all requests as it is. You can read more about APIM policies at https://learn.microsoft.com/en-us/azure/api-management/api-management-policies

• Check the code at https://github.com/ankurcharan/azure-api-management-devops/tree/globalPolicy
• Added a new xml file policies/global-policy.xml this is the global
• A new step is added at modules/apiManagement.bicep

resource globalPolicy 'Microsoft.ApiManagement/service/policies@2021-12-01-preview' = {
  name: 'policy'
  parent: apiManagementService
  properties: {
    value: loadTextContent('../policies/global-policy.xml')
    format: 'rawxml'
  }
}

• parent is given the APIM instance. it is used to create resource names for ARM templates. You can read more at https://learn.microsoft.com/en-us/azure/azure-resource-manager/bicep/child-resource-name-type
• format is the format of the policy. It support different format. We are giving it xml hance rawxml
• value is the contents of the policy. loadtextContent('path/to/file') is a bicep function that loads the contents of the file to the bicep.
• You can check global policy from Azure portal. Go to API from left nav. click on All APIs. and that is where your contents of global policy would reflect.

Swagger

• Check the code at https://github.com/ankurcharan/azure-api-management-devops/tree/swaggerFile
• Added a swagger specification at api-spec/jsonplaceholder.json
• Normally, you would create this file in the build pipeline and then use it to deploy APIs. I have added this explicitly for simplicity.
• Swagger is a api-specification swagger, checkout swagger.io. And you can have a demo at https://editor.swagger.io/

Adding APIs

• Checkout the code at https://github.com/ankurcharan/azure-api-management-devops/tree/api
• Now here is a new module at modules/apiManagement.api.bicep

resource api 'Microsoft.ApiManagement/service/apis@2021-01-01-preview' = {
  parent: service
  name: apiServiceName
  properties: {
    description: apiServiceDescription
    type: 'http'
    isCurrent: true
    subscriptionRequired: false
    displayName: apiServiceDisplayName
    serviceUrl: apiServiceUrl
    path: suffix
    protocols: [
      protocol
    ]
    value: apiSpecification
    format: specificationFormat
    apiType: 'http'
  }
}

• value is the api specification content. In our case the swagger file.
• format is the format of the api spec. If its OpenApi3.0 (openapi / openapi+json) or if its Swagger2.0 (swagger-json) of it its link to the swagger.
• We have used this module in apim.bicep
• There is a new parameter apiInformation with default value being arrau of api information objects. You can pass the value of this from parameter file but then you have to serialize the swagger specification file in a string and then pass it. Using bicep, it gives us a function loadTextContent('path') which does that for you. And since this is not going to change much if you're doing this for same application. (or multi-region / multi-tenant) than we can use this default value of the parameters.
• this also has an another resource declaration

resource service 'Microsoft.ApiManagement/service@2021-08-01' existing = {
  name: apiManagementServiceName
}

• existing keyword checks for existing resources.

• this checks the api management instance exists with the name apiManagementServiceName and then proceed with creating the API.

• using this module from apim.bicep

module apisDeploy 'modules/apiManagement.api.bicep' = [for (config, i) in apiInformation: {
	name: '${i}-${config.apiName}-import-${apiManagementServiceName}'
	params: {
		apiSpecification: config.apiSpecContent
		apiServiceUrl: config.serviceUrl
		apiServiceDisplayName: config.apiDisplayName
		apiServiceName: config.apiName
		suffix: config.suffix
		apiManagementServiceName: apiManagementServiceName
		specificationFormat: config.specificationFormat
	}
}]

• we have traverse on the array of api information and used it to create all the api that are defined in the array. this is useful if you have multiple microservice that you want to expose to the customers and manage through APIM. ie. if you want to add more apis add another item in apiInformation array and you're done.
• apiInfomation[0] object is

{
    apiName: 'json-placeholder'
    apiDisplayName: 'JsonPlaceholder'
    specificationFormat: 'openapi+json'
    suffix: '/jp'
    serviceUrl: 'https://jsonplaceholder.typicode.com/'
    apiSpecContent: loadTextContent('api-spec/jsonplaceholder.json')
}

• apiName is the name of the api use for referencing it if you want to create products or policies.

• apiDisplayName is what you'll see on the portal.

• specificationFormat is the format of the api specification.

• serviceUrl is the backend url of the service.

• apiSpecContent is the specification content of the apis.

• DependsOn - this is an array of resources that you want your currently resource to be deployed after.

dependsOn: [
    apiManagementService
]

this means that current resource deployment depends on the resource represented by symbolic name apiManagementService (apim instance, cause obviously you'd want to create the APIs only if APIM exists).

• APIs added to APIM instance

you can also see all the operations are added to APIM.

Adding API Policy

• You might want to add API specific policies on APIM.

• Check code at https://github.com/ankurcharan/azure-api-management-devops/tree/apiPolicy

• In apim.bicep we have added a new line in apiInformation to load the contents of the policy. policyContents: loadTextContent('policies/apiPolicy-jsonplaceholder.xml')

• added a new API policy at policies/apiPolicy-jsonplaceholder.xml

• added a policy deploymenr module at modules/apiManagement.api.policy.bicep

• api policy deploy against a policy so it checks tha particular API exists already in the APIM

// checks if API exists
resource api 'Microsoft.ApiManagement/service/apis@2021-01-01-preview' existing = {
  parent: service
  name: apiServiceName
}

// add APIs policy
resource apiPolicy 'Microsoft.ApiManagement/service/apis/policies@2021-01-01-preview' = {
  parent: api
  name: 'policy'
  properties: {
    value: policyXML
    format: xmlFormat
  }
}

• notice how we have added api as the parent of apiPolicy

• this module is used at apim.bicep

module apiPolicyDeploy 'modules/apiManagement.api.policy.bicep' = [for (config, i) in apiInformation: {
	name: '${i}-${config.apiName}-policy'
	params: {
		apiManagementServiceName: apiManagementServiceName
		apiServiceName: config.apiName
		policyXML: config.policyContents
	}
	dependsOn: [
		apisDeploy
	]
}]

• apiServiceName is the api name in the APIM instance for which to deploy policies.

• policyXML is the contents of the policy. You can read more about APIM policies at at https://learn.microsoft.com/en-us/azure/api-management/api-management-policies.

• You can see the API policy at

Whatever policy you have added for your API would be updated here.

Final Code

You can browse through the final code at https://github.com/ankurcharan/azure-api-management-devops/tree/main

You can run this template and this would automate your APIM creation and API deployment using Swagger.

Let me know if you want to add more features of the APIM to this template like Products, Subscriptions, Groups, LogAnalytics Workspace etc.
