Integration‐GL.iNet

Integrate adguardhome-sync with GL.iNet Routers

This guide has been tested with a GL.Inet FLint 2 (GL-MT6000) running Firmware v4.8.3 (OpenWRT 21.02). It might also work with other GL.iNet Routers and different Firmware versions, but was not tested. It is assumed your router IP is 192.168.2.1. If that is not the case, replace the IP in the upcoming steps with your correct one.

Warning

The version of AdGuard Home you are syncing from must NOT be newer than the version of AdGuard Home on the Router, otherwise sync will fail!

Problem

By default, when trying to access the interface for AdGuard Home (192.168.2.1:3000), you are blocked by the login screen of the GL.iNet Router and adguardhome-sync won't work. You can though access directly the login interface of AdGuard Home with 192.168.2.1:3000/login.html. But you do not have login credentials out of the box.

Solution

Steps on the Router

• Login to the Admin Panel
• Enable Adguard Home:
  • Applications -> AdGuard Home -> Enable
  • AdGuard Home Handle Client Requests -> Enable
• Enable SSH on the Router:
  • System -> Security -> Access Control -> SSH -> Enable
  • Click Apply
• SSH into the Router:
  • Open a console and type ssh root@192.168.2.1
  • Type in the root password
  • You should see the terminal stating root@GL-MT6000:~#


    • If you are an advanced user, you can create an SSH Key and add this key to /etc/dropbear/authorized_keys. This way you don't have to type in the root password everytime you SSH into the Router, but you are logged in automatically

  • Generate a password for the AdGuard Home login:
    • Steps were taken from Reset web password
    • If you already have a system which has htpasswd, skip the next sub-step

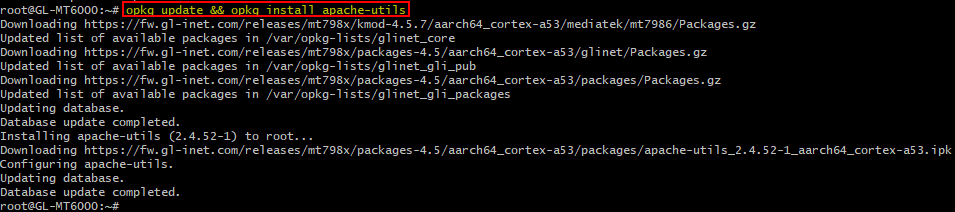

    • Install htpasswd
      • In the terminal type opkg update && opkg install apache-utils

    • Type htpasswd -B -C 10 -n -b YourDesiredUsername YourDesiredSuperSecretPassword
    • You will get username and hashed password in a username:hashedpassword format

    • Copy & paste that into a temporary textfile
    • Type opkg remove apache-utils to remove the package again if desired
  • Prepare login information:

    • In a temporary text file, prepare the following code and replace it with your result from htpasswd:

      users:
        - name: YourDesiredUsername
          password: $2y$10$2I2muCksiN8PkDAbZ.mLT.fnZ6AmJPx7tN.CgEg0W.lnyOT6cCg3u

    • Copy it to the clipboard

  • In the terminal type vi /etc/AdGuardHome/config.yaml
    • In the bottom left of vi you should see something like - /etc/AdGuardHome/config.yaml

  • The beginning of the file should look like this

  • Press i to enable insert mode in vi. You should see a I in the bottom left now
  • Replace the users: [] part with what you have prepared (normally mouse rightclick -> paste) and it should look like this

    • Pay attention to the spacings!
      • users: does not have spacings
      • - name: has 2 spacings to the left
      • password has 4 spacings to the left
    • Press Esc to leave insert mode
    • Type :wq to save the file and exit vi
    • Type exit to log out from the SSH session
  • Disable AdGuard Home in Applications -> AdGuard Home
  • Apply
  • Enable AdGuard Home again
  • Open 192.168.2.1:3000/login.html and log in with your credentials YourDesiredUsername and YourDesiredSuperSecretPassword

Steps for adguardhome-sync

• Open adguardhome-sync.yaml
• Either edit the replica or replicas section to contain the following information:

# url of the replica instance
  url: http://192.168.2.1 # do NOT add a port!
  username: YourDesiredUsername
  password: YourDesiredSuperSecretPassword

• Save the file and restart adguardhome-sync

• Once you have synced settings from your other AdGuard Home instance, you can swap origin and replicain your adguardhome-sync.yaml if you want to use AdGuard Home on the router as DNS #1.
