RouterRD

Router Redundancy Detector

ABOUT TOOL :

RouterRD tool is used to detect the two router state which uses HSRP(Hot Standby Routing Protocol) or VRRP(Virtual Router Redundancy Protocol) and send Email if any router is down.

AVAILABLE ON :

• Linux

TESTED ON :

• Kali Linux
• Ubuntu

REQUIREMENTS :

• internet
• ssmtp
• mailutils
• cron
• inetutils-ping
• storage 400 MB
• Gmail ID
• Gmail App Password

FEATURES :

[+]--Ping two Routers and send Email if any Router down.

[+]--It will accurately identifies and notifies you in real-time.

[+]--Customization of Email sent time

INSTALLATION [Kali Linux & Ubuntu] :

[+]--Note:- Don't delete any of the scripts

[+]--Now you need internet connection to continue further process...

• sudo apt-get update -y
• sudo apt-get upgrade -y
• sudo apt-get install ssmtp -y
• sudo apt-get install mailutils -y
• sudo apt-get install cron -y
• sudo apt-get install inetutils-ping -y
• cd $HOME
• git clone https://github.com/billy-paul1234/RouterRD.git
• cd RouterRD
• ls
• sudo bash setup.sh

[+]--Now provide your Email and router information.

[+]--Now it will generate a Single line command and now copy the command and paste it in crontab.

• sudo crontab -e

[+]--Now select you editor.

[+]--Now past the command and save it.

[+]--Now your router will automatically checked for each minute.

[+]--You can also use it as a command ( routerrd -h ).

USAGE OPTIONS [Kali Linux & Ubuntu] :

[+]--To use the ( routerrd ) command as mannul follow the instruction bellow.

Usage:
           routerrd  [ R1-ip ]    [ R2-ip ]
Example:
           routerrd 192.168.1.2  192.168.1.3
R1-ip  -->  Router 1 ip address
R2-ip  -->  Router 2 ip address

[+]--If you want to check your router state for each minute, add the line like bellow example by typing the command ( sudo crontab -e  )
[+]--Don't forget to customize your ip and time

Syntax:
         * * * * * routerrd   [ R1 ip ]     [ R2 ip ]    [ TI ]  [ 'M' or 'S' ]
Example:
         * * * * * routerrd  192.168.1.2   192.168.1.3     20       'M'
         * * * * * routerrd  192.168.1.2   192.168.1.3     50       'S'

TI       -->  Timei to send mail if the router is still down
              For Minute use ( 2 - 58 )
              For Seconds Use ( 10 - 50 )
'M'      -->  Time in minutes
'S'      -->  Time is seconds

routerrd -h --> to display this usage options

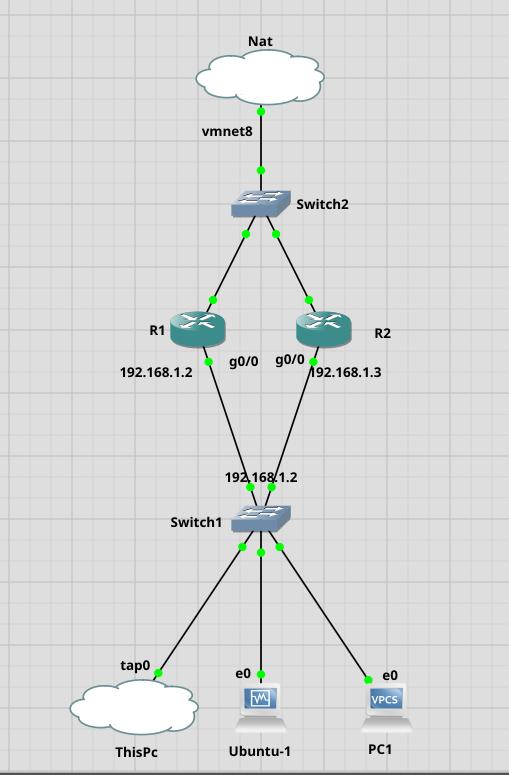

SCREEN SHOTS [GNS3]

OTHER PROJECTS:

arp-kill (Man In The Middle Attack Detection Tool)

Calculator Vault (Calculator Vault App Using Flutter)

ResumePdfToJsonOrCsv ( Convert resume pdf to json or csv )

CONNECT ME IN:

WARNING :

This tool is only tested on Kali Linux and Ubuntu with GNS3 emulator..
