Learning Unified Representation of 3D Gaussian Splatting

Yuelin Xin¹ · Yuheng Liu¹ · Xiaohui Xie¹ · Xinke Li²

¹UC Irvine ²City University of Hong Kong

International Conference on Learning Representations 2026

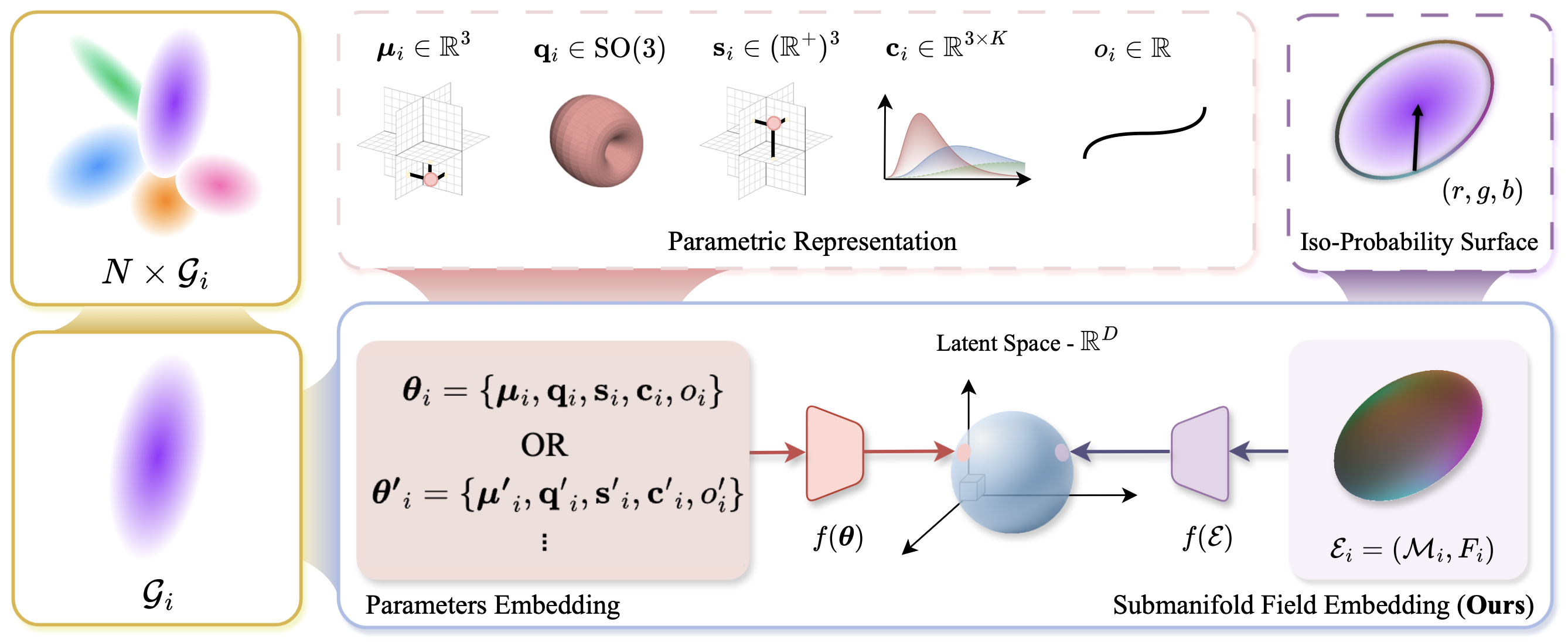

A well-designed vectorized representation is crucial for the learning systems natively based on 3D Gaussian Splatting. While 3DGS enables efficient and explicit 3D reconstruction, its parameter-based representation remains hard to learn as features, especially for neural-network-based models. Directly feeding raw Gaussian parameters into learning frameworks fails to address the non-unique and heterogeneous nature of the Gaussian parameterization, yielding highly data-dependent models. This challenge motivates us to explore a more principled approach to represent 3D Gaussian Splatting in neural networks that preserves the underlying color and geometric structure while enforcing unique mapping and channel homogeneity. In this paper, we propose an embedding representation of 3DGS based on continuous submanifold fields that encapsulate the intrinsic information of Gaussian primitives, thereby benefiting the learning of 3DGS.

News

• 2026-01-27: Initial code release.

Setup

Install dependencies:

pip install -r requirements.txt

Quick Start

What you need to know to use this codebase

In this codebase, all 3DGS is processed using the Gaussian class implemented in dataset/gaussiangen.py. You have to use this class to represent 3DGS data in order to run the rest of the codebase directly.

Converting between Embeddings and 3D Gaussian Splatting

You can find some demo code for converting embeddings to 3D Gaussian Splatting format and save it to ply file in the converter.py file. You can implement this in your own code that takes in embeddings predicted by another model, and covert them to Gaussian representations. You can import the Converter class from converter.py to use it for converting embeddings to Gaussians. You will need to load the pre-trained embedding model checkpoint to initialize the Converter class. We have provided two 0th order checkpoints (compiled):

• checkpoint_sfvae_sh0.pth: baseline checkpoint
• checkpoint_sfvae_sh0_144.pth: for 4x faster inference with very slightly lower reconstruction quality

You can also run the converter.py script directly to convert between embeddings and 3DGS.:

python converter.py \
    --gaussian2emb \ # or --emb2gaussian
    --src_path <INPUT_PATH> \
    --dist_path <OUTPUT_PATH>

Loading Data

We implemented several dataset classes in dataset/ply_data.py for loading 3DGS data from ply files. You may also find a dataset that loads embeddings data from npz files in the same script. You can use these dataset classes to load your own data in ply (3DGS) or npz (embeddings) format.

Visualization

In addition, you can also find a 3DGS rendering function called visualize_gaussian in the utils/visualization.py file, implemented with gsplat, which can be used to render a given list of Gaussians. You may also use your own rasterization pipeline such as the original diff-gaussian-rasterization codebase.

Training

Train your own embedding model to reproduce our results:

python train_embedding.py \
    --model sfvae \
    --dataset gaussiangen \
    --num_points 144 \
    --num_samples 500000 \
    --epoch 1000 \
    --bs 1000 \
    --embedding_dim 32 \
    --norm_weight 0.001 \
    --grid_dim 12 \
    --cuda 0 \
    --weight_path <CHECKPOINT_PATH>

Optional: resume from a checkpoint.

python train_embedding.py --resume True --weight_path <CHECKPOINT_PATH>

Citation

@inproceedings{gsembedding2026,
  title={Learning Unified Representation of 3D Gaussian Splatting},
  author={Yuelin Xin and Yuheng Liu and Xiaohui Xie and Xinke Li},
  booktitle={International Conference on Learning Representations},
  year={2026}
}

Contact

For questions or issues, please open a GitHub issue or contact yuelix1@uci.edu

License

This project is released under the Apache 2.0 License. See LICENSE for details.
