The Community Staking Module (CSM) is the first permissionless module in the Lido protocol, allowing anyone to start running validators on the Ethereum blockchain with much greater capital efficiency compared to running a regular ("vanilla") Ethereum validator.
A distributed validator (DVT) is an Ethereum validator that runs on more than one node. SSV Network is a set of tools providing permissionless access to running distributed validators.
This tutorial uses the Holesky testnet for demonstration purposes, but the same steps can be applied to the mainnet.
- CPU: Quad-core
- RAM: 16GB
- Storage: 512GB NVME SSD (For mainnet at least 2TB)
A full guide to setting up your operating system can be found here or here. For this tutorial, I'm assuming that all cluster members are running Linux with Git and Docker installed, and have properly secured their servers.
Creating a trust-minimised distributed Valdator cluster requires a multi-sig wallet for management, a split contract to distribute rewards to operators, and the client software needed to run the SSV DVT. Operators also need a full Ethereum node with an execution and consensus client of their choice, and the MEV-boost client configured with at least one of the Lido approved relays.
ssvnode is the software that allows validators to be run on a group of independent nodes - a cluster. A complete multi-container Docker setup including execution client, consensus client, MEV-Boost and the ssvnode client can be found in this repository https://github.com/cnupy/ssv-validator-node and the first step is to clone it:
git clone https://github.com/cnupy/ssv-validator-node.git
Make sure your user has the docker role. If not you can use this command to add it:
sudo usermod -a -G docker $USER
You will then need to exit the ssh session and log in again.
Finally, you will need to create the .env configuration file:
cd ssv-validator-node
cp .env.sample .env
Edit the .env in your favourite editor and set the variable NETWORK=holesky.

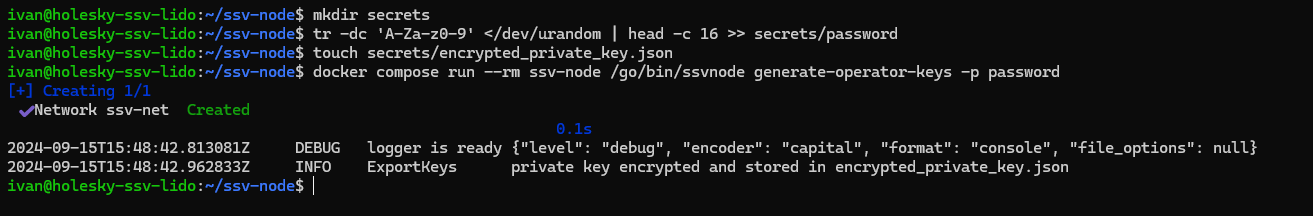

All cluster members will need an encrypted key pair to run their node. To create the operator key pair the operator first generates an encryption password:
mkdir secrets
tr -dc 'A-Za-z0-9' </dev/urandom | head -c 16 >> secrets/password
And then execute this code to generate the key:
touch secrets/encrypted_private_key.json
docker compose run --rm ssv-node \
/go/bin/ssvnode \
generate-operator-keys \
-p password

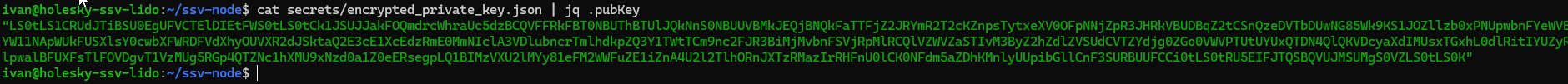

To view the public key use this command:
cat secrets/encrypted_private_key.json | jq .pubKey
At this point, each operator must make a backup of the encrypted_private_key.json and the password files!
Detailed instructions on how to create a Safe Wallet can be found here. The Holesky Testnet Safe deployment can be found at this address: https://holesky-safe.protofire.io
One of the cluster members should obtain the signer addresses from all the cluster members, then connect his signer wallet and choose to create a new Safe.

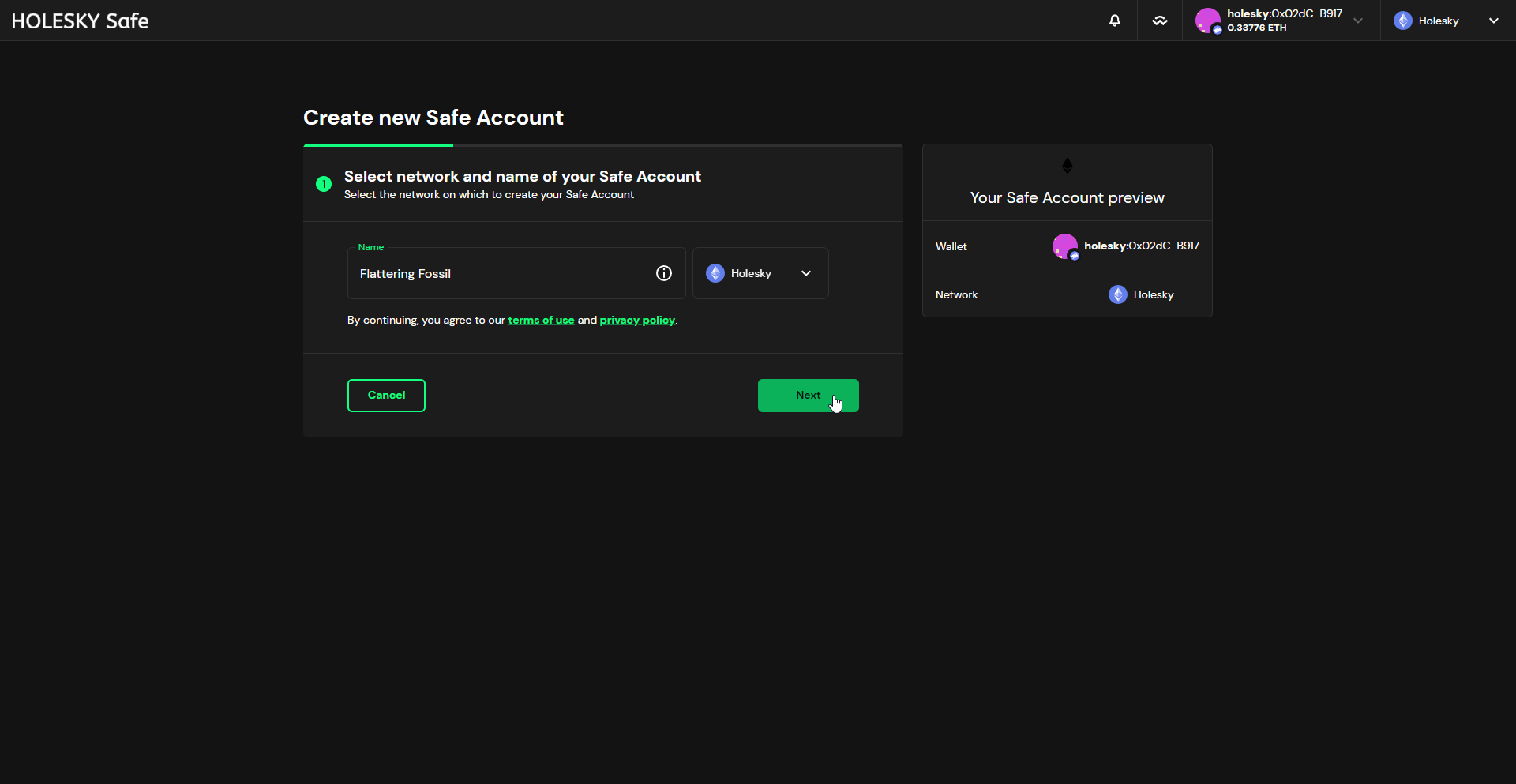

After giving the Safe a name and selecting the Holesky network, he continues by clicking the Next button.
Then he adds all the signer addresses of the cluster members and proceeds to the final step by clicking the Next button.
Finally, he sends the transaction to create the Safe by clicking on the Create button.
One of the cluster members should obtain the reward addresses from all the cluster members. Then he should open https://app.splits.org and select to create a new contract. Then he should select Holesky for the network.
Select Split for the contract type.
Add the reward addresses of all cluster members. Then he can choose whether the contract is immutable (recommended option), whether he wants to sponsor the maintainers of splits.org, and whether there is a distribution bounty so that third parties can distribute the rewards in exchange for a small fee.
Finally, click the Create Split button, execute the transaction and share the created split contract with all cluster members for review.
The SSV operator registry is located at this address: https://app.ssv.network
To register an operator each cluster member must connect their wallet, change the Network to Holesky in the upper right corner and click the Join as Operator button.

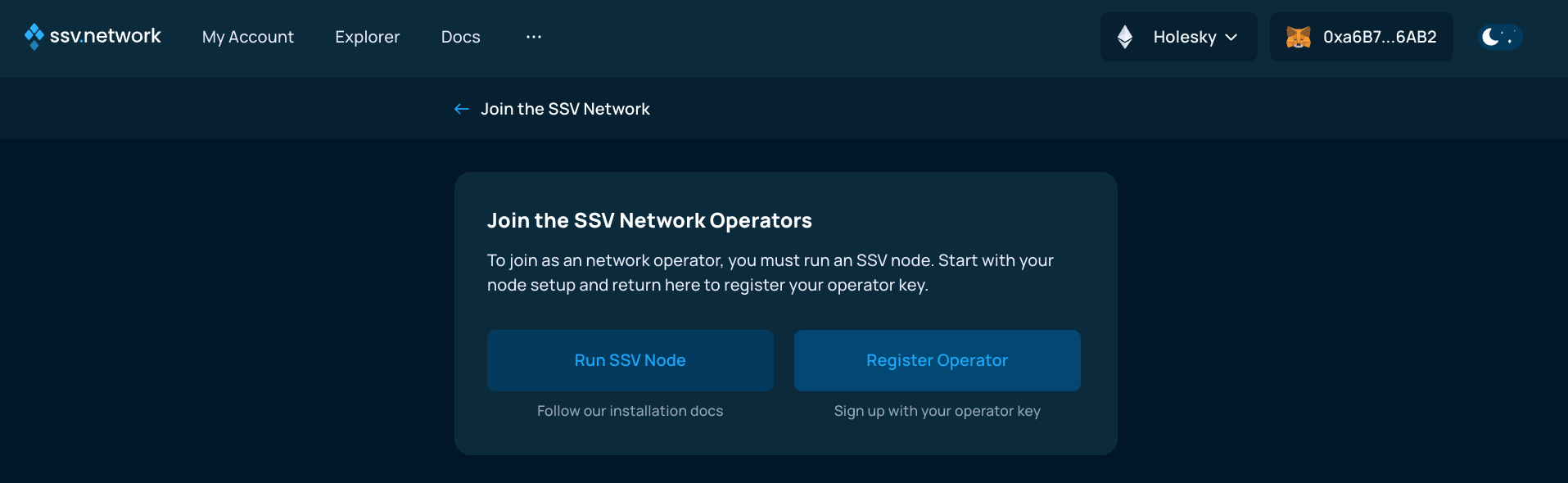

Click the Register Operator button.

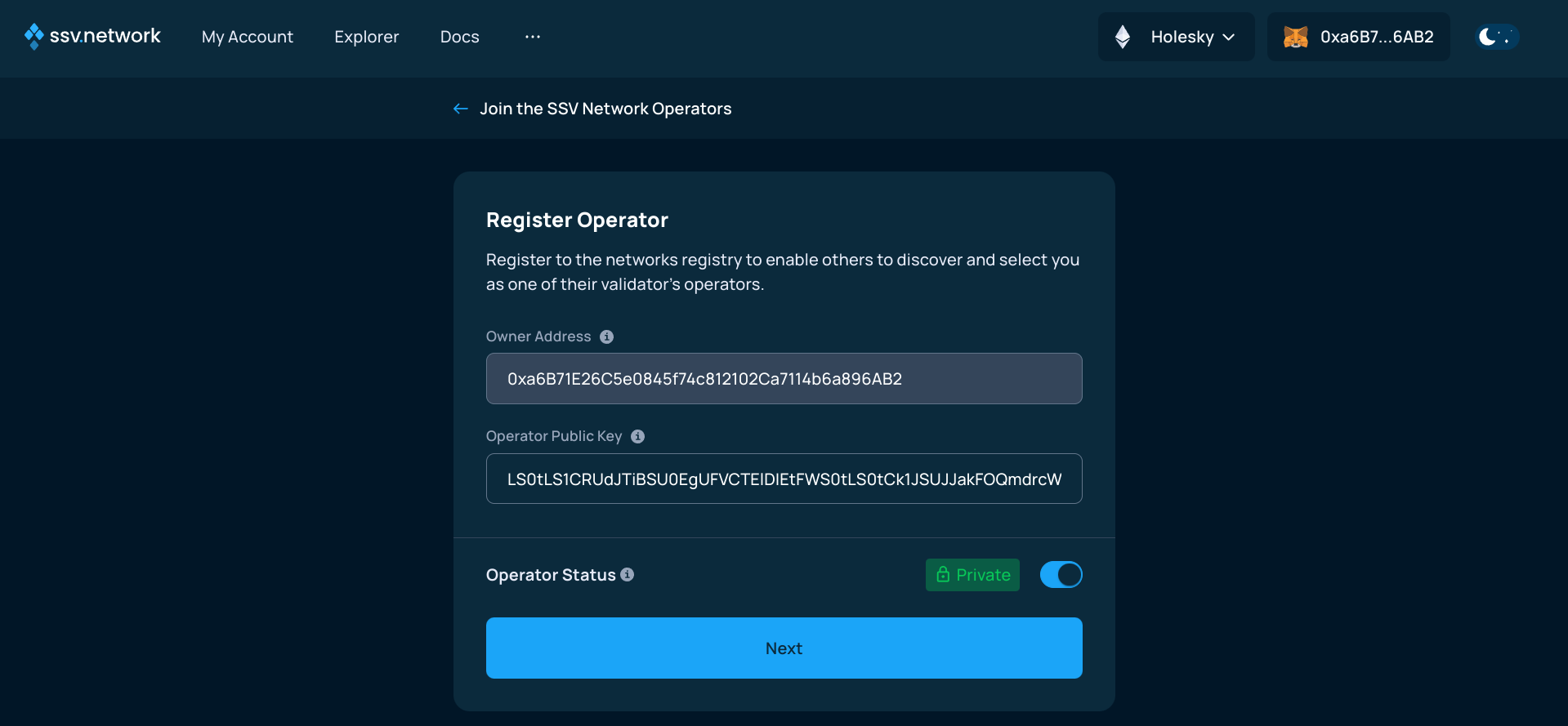

Fill in the public key generated earlier, select the Private toggle and continue to the next step.

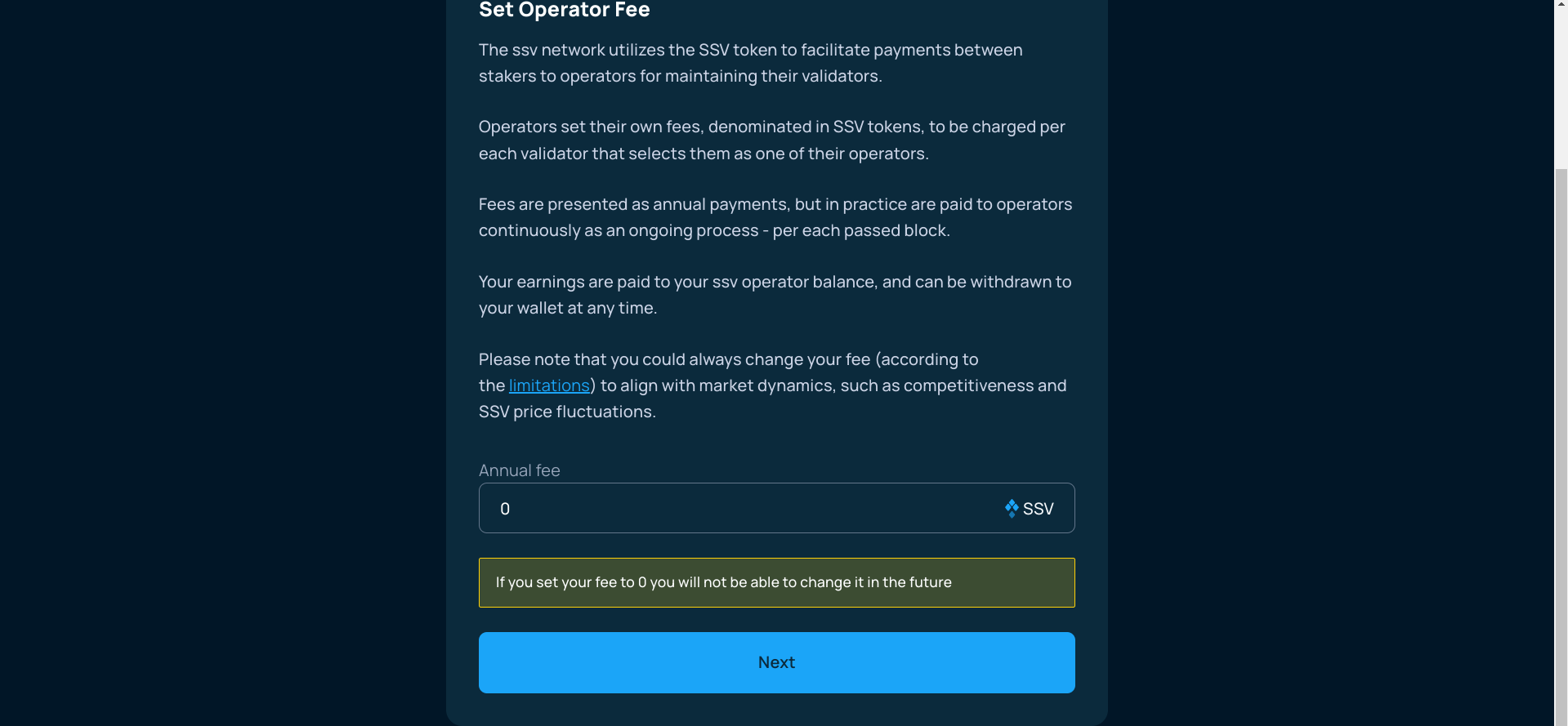

Select 0 for the operator fee and click the Next button.

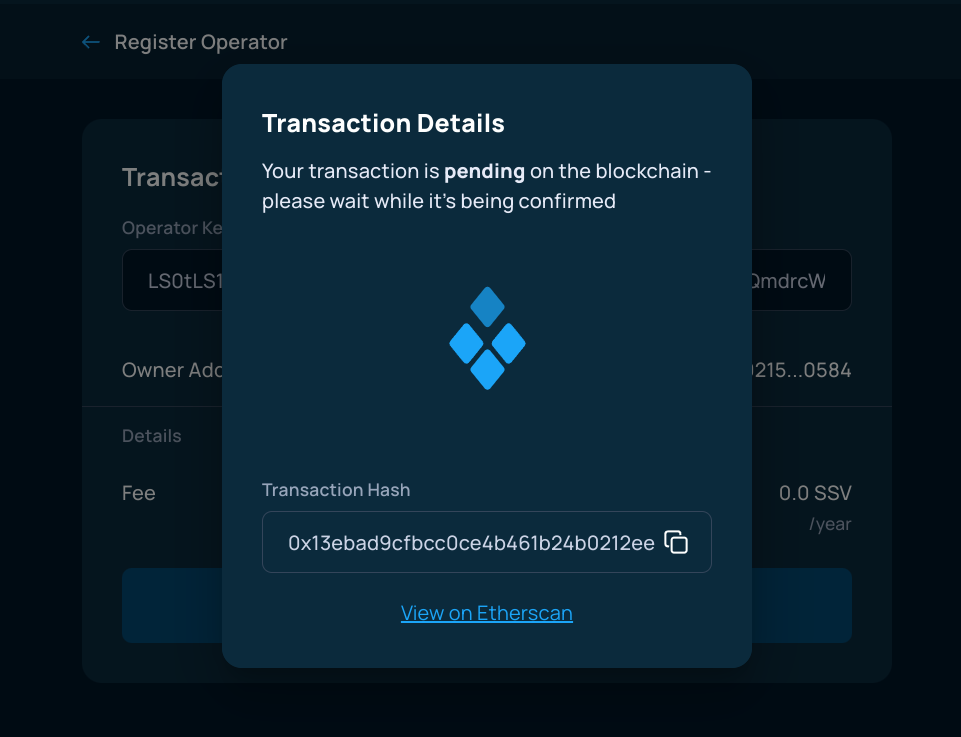

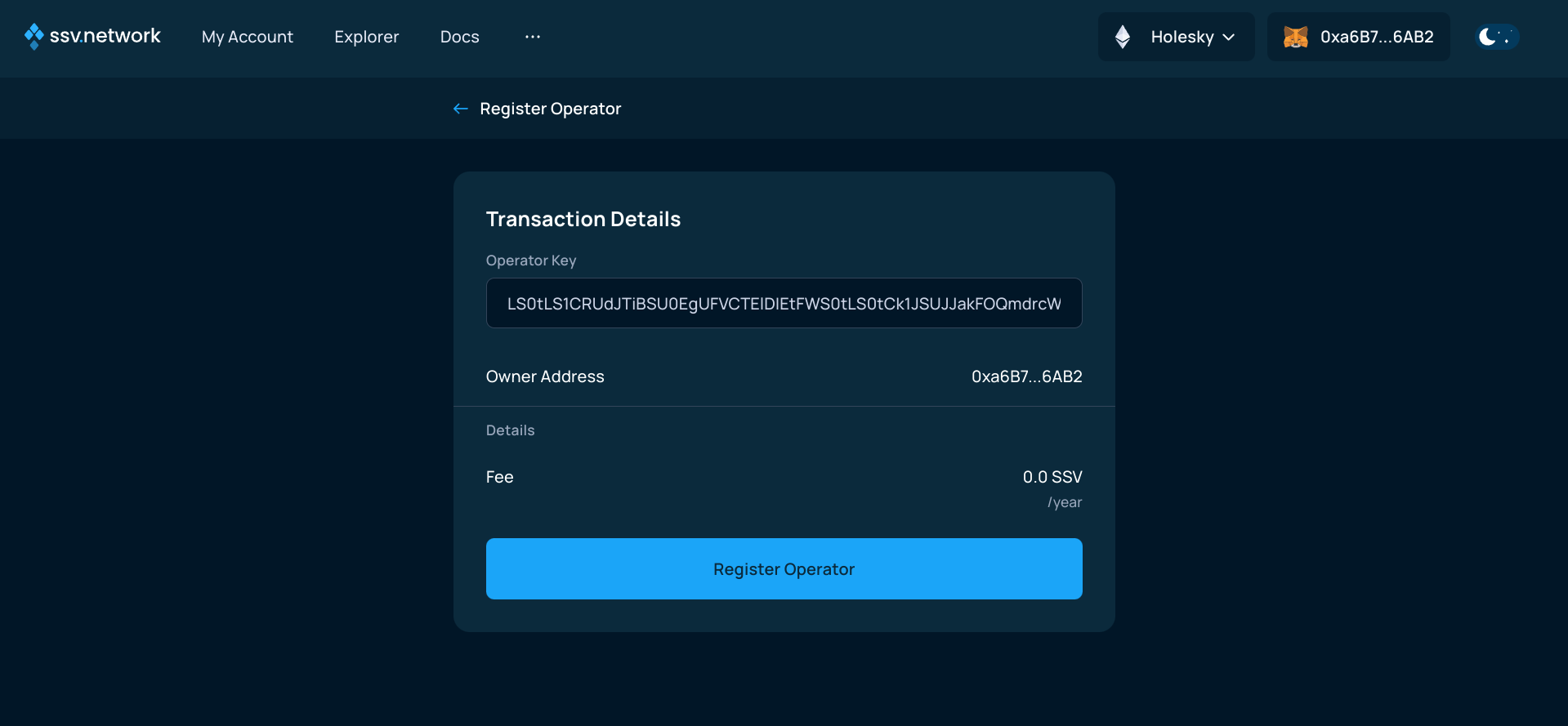

Finally register the operator by clicking the Register Operator button and sign the transaction.
After the transaction is executed the operator is ready for use.

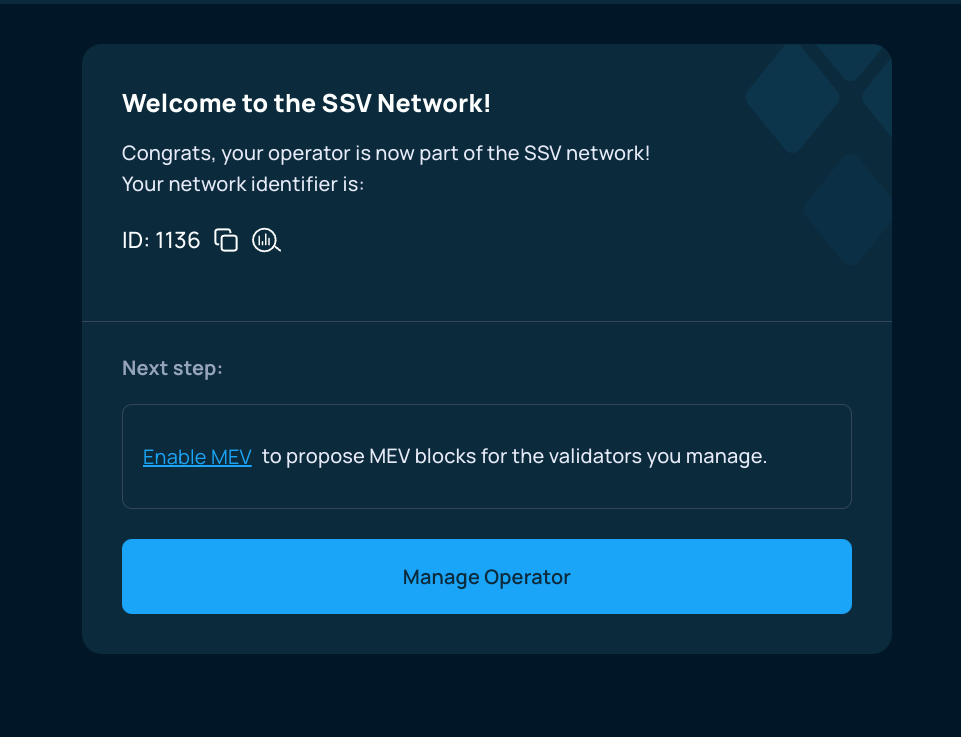

Take note of the operator ID and click on the Manage Operator button.

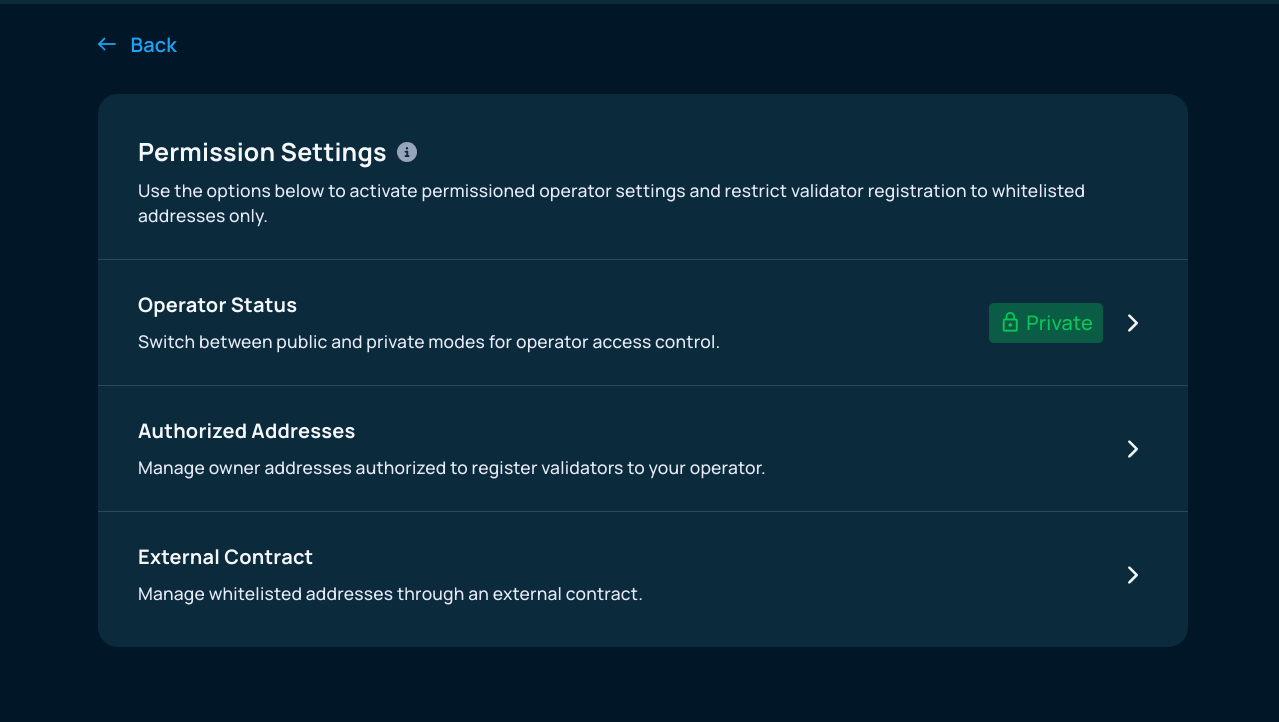

In the upper right corner select the three dots button and select the Permission Settings option.
Click on the Authorized Addresses option.

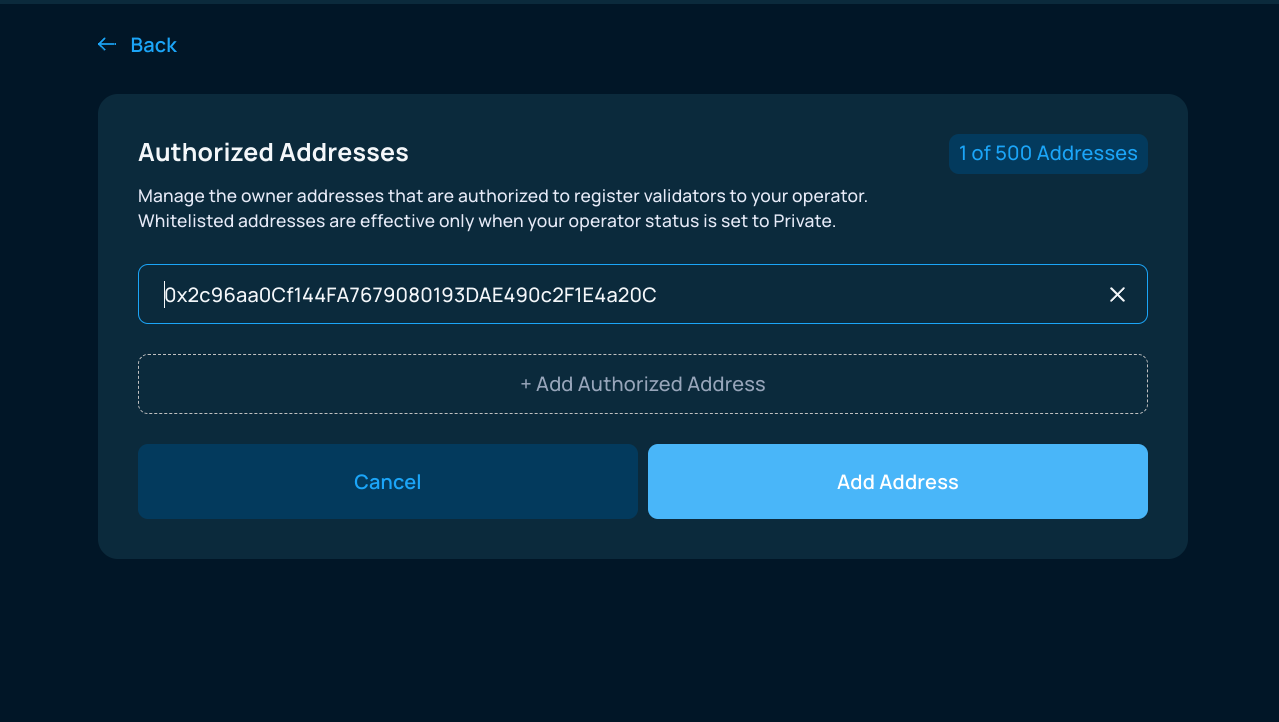

Enter the address of the Safe wallet, click on the Add Addresses button and sign the transaction.
To run DKG each operator must enable the ssv-dkg service for their node. To do so each cluster member should first set their operator ID in the .env file.
SSV_OPERATOR_ID=1234
Finally, start the service using this command:
docker compose up -d ssv-dkg
If the node has a static public IP one easy option would be to use it as a service endpoint: https://xxx.xxx.xxx.xxx:3030. Depending on the operating system and the network equipment there might be additional steps needed to open the port in the firewall and make it publicly accessible.
If there is no public static IP available or the node is behind CGNAT the operator can use a free VPN service called tailscale to share the DKG endpoint. First, create an account at https://login.tailscale.com.
To install tailscale on the node run this command:
curl -fsSL https://tailscale.com/install.sh | sh
sudo tailscale up

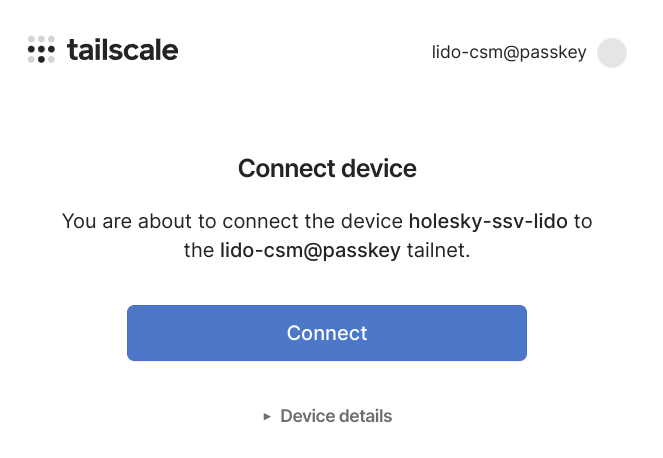

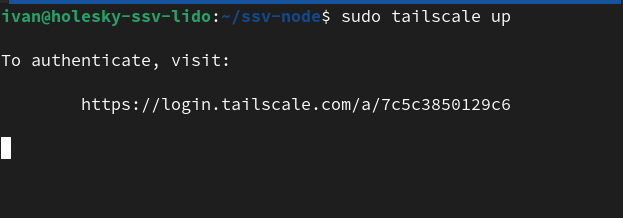

Copy the authentication link and paste it into the browser to authenticate the node.
Finally, click on the Connect button.

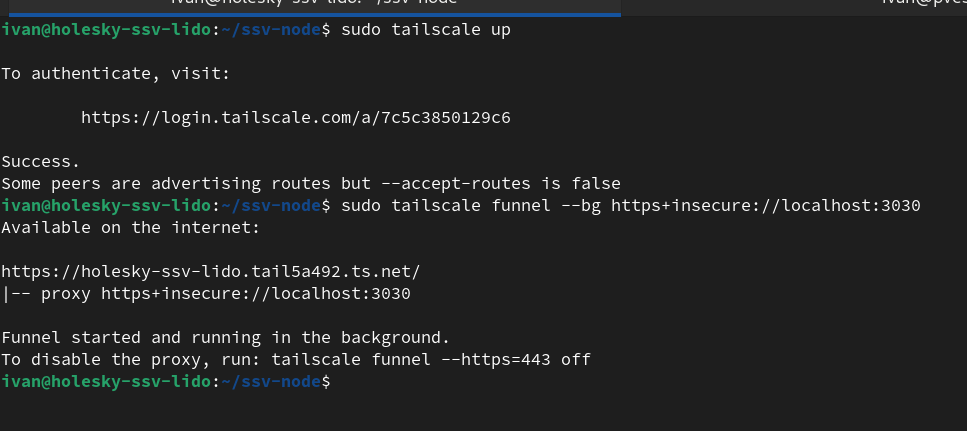

After successful authentication run:
sudo tailscale funnel --bg https+insecure://localhost:3030
The public endpoint URL https://xxxxx.xxxxx.ts.net is shown on the screen.
The operator can test the DKG endpoint by running this command:
docker compose run --rm ssv-dkg ping --ip https://xxx.xxx.xxx.xxxx
or
docker compose run --rm ssv-dkg ping --ip https://xxxxx.xxxxxx.ts.net
If successfully configured a message similar to this one should appear.

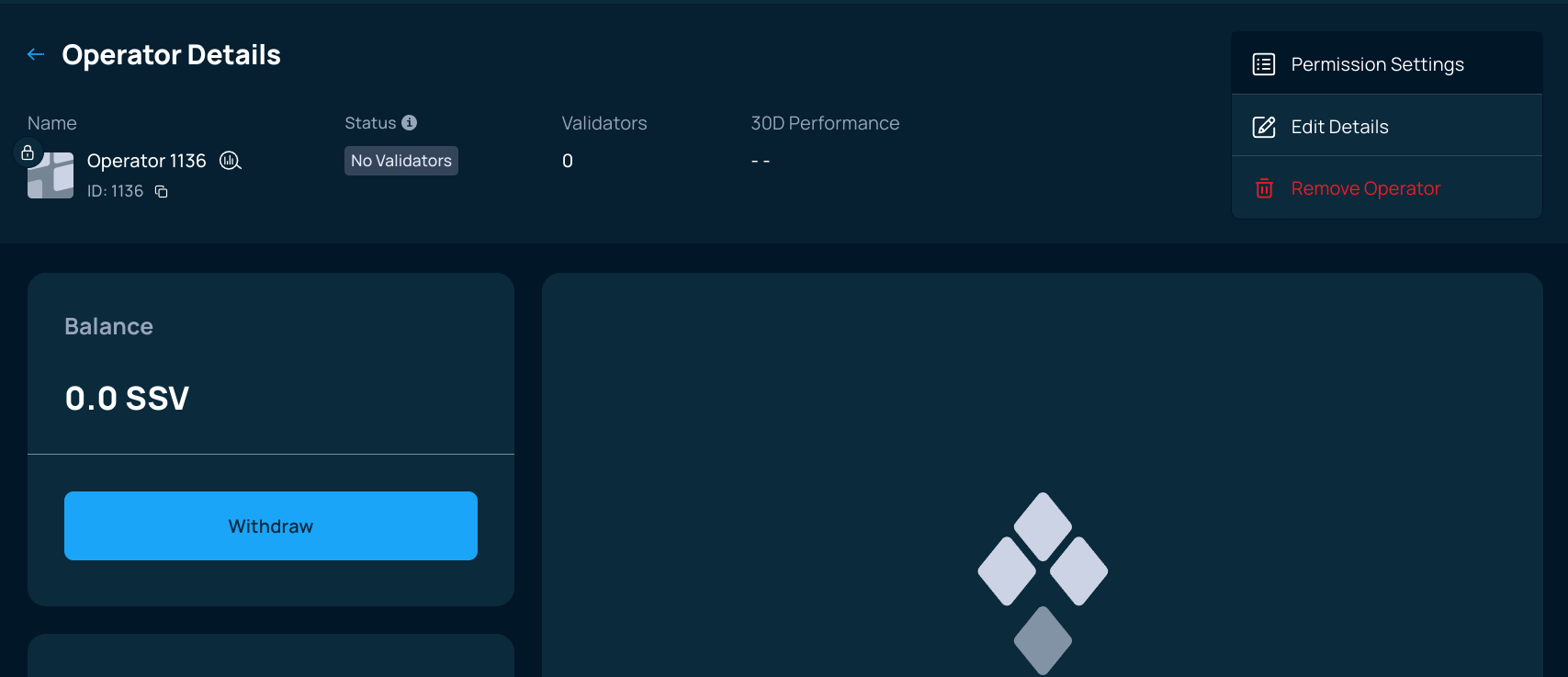

In the upper right corner of the Operator details screen select the three dots button and select the Edit Details option.

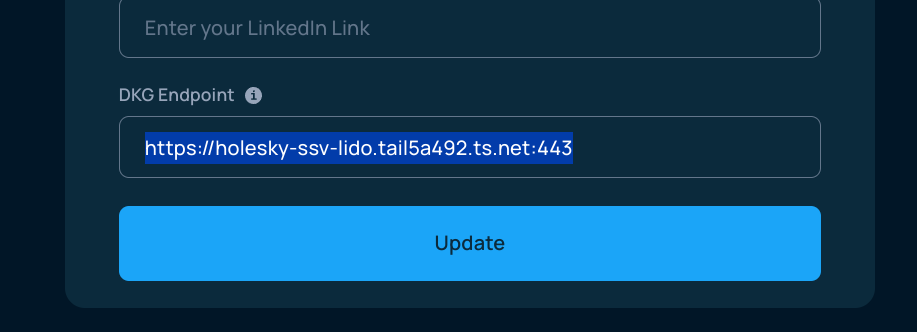

At the bottom of the screen fill in the DKG Endpoint field, click on the Update button and confirm the change with your signature.
Note: setting the endpoint URL requires a port. If using tailscale the port is 443.
The official SSV documentation contains detailed instructions on setting up a distributed cluster.
After all cluster members have registered their operators one of the cluster members opens the SSV web app and connects the cluster Safe wallet.

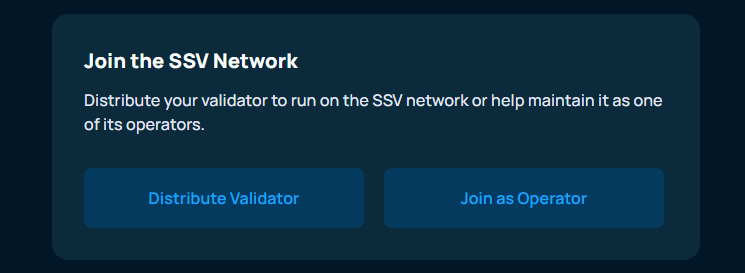

Then click on the Distribute Validator button on the next page.

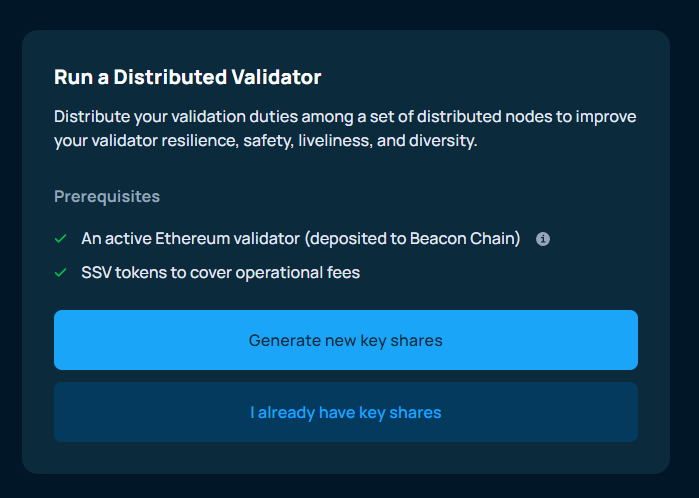

And then on the Generate new key shares button.

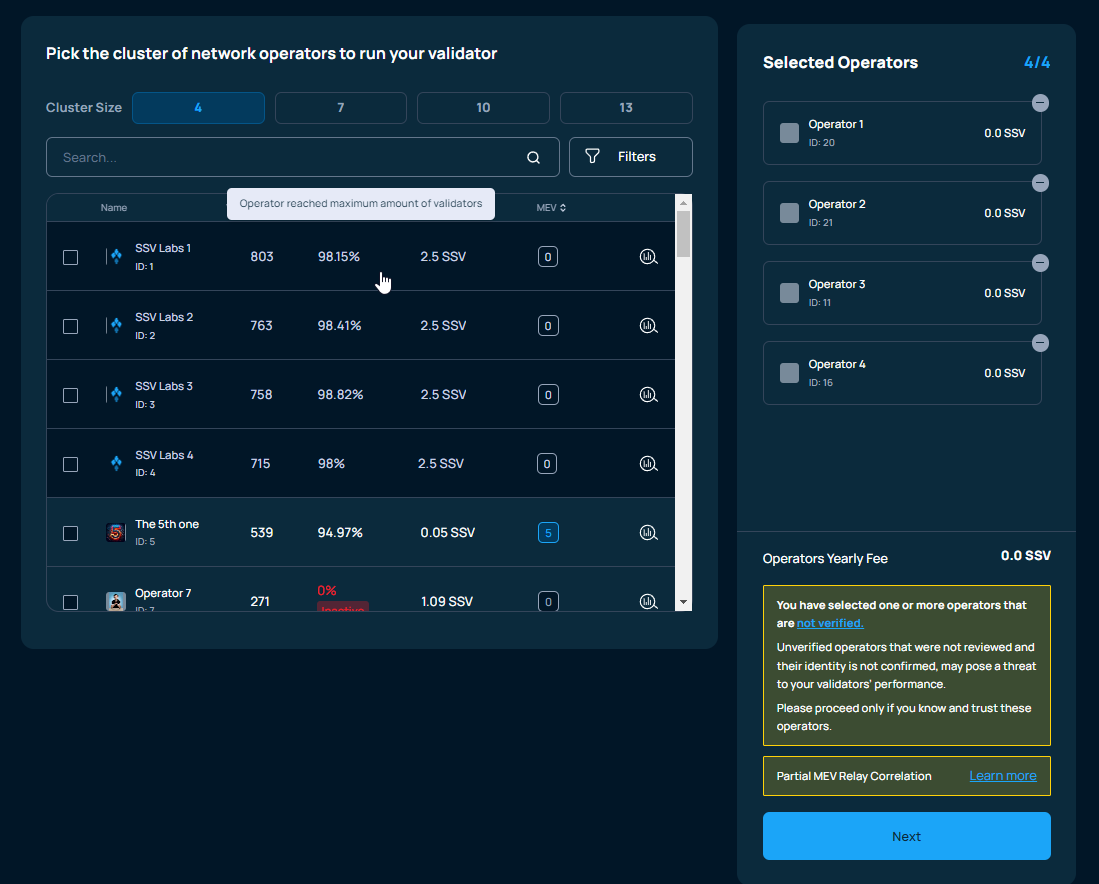

Select the cluster size, select the cluster operators from the list and click on the Next button.

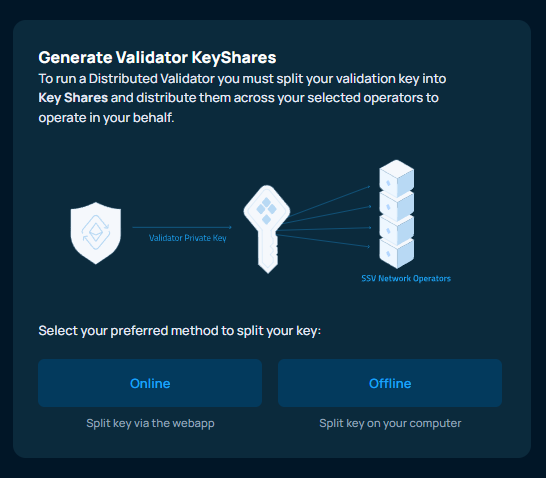

Click on the Offline button.

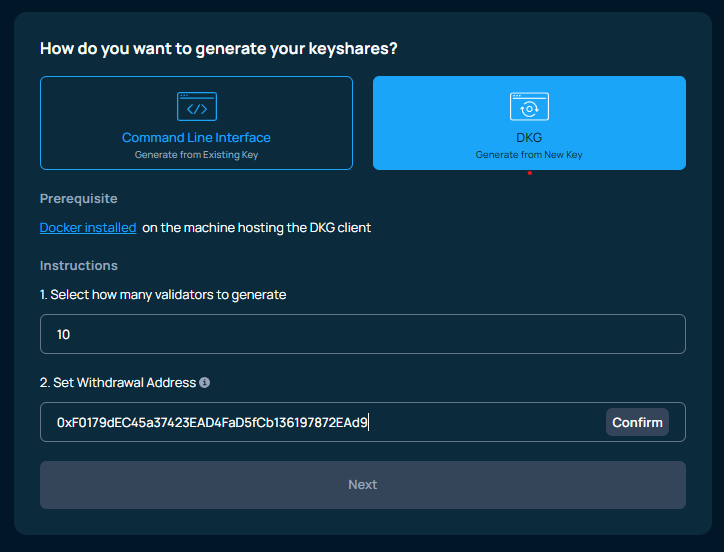

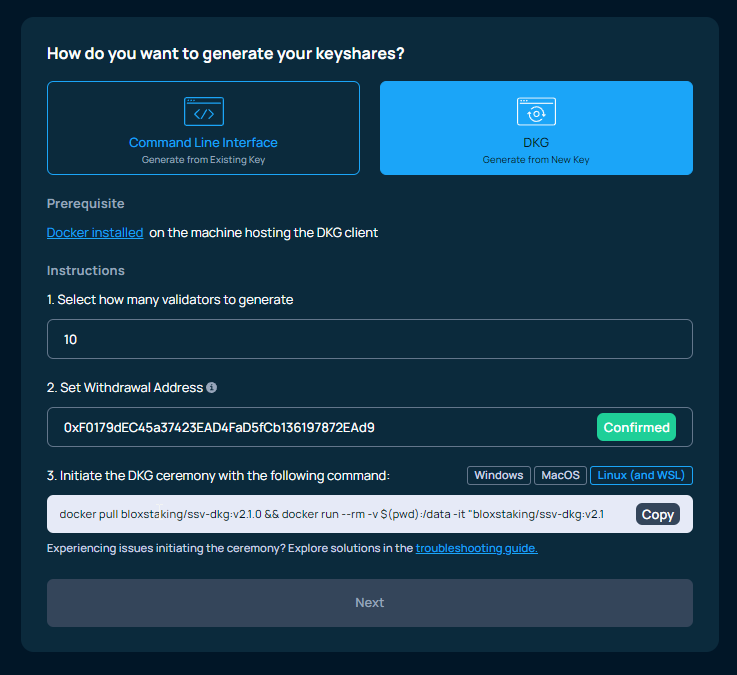

On the next screen select the number of validators the cluster will be running, set the Withdrawal Address to Lido's Withdrawal Vault - 0xF0179dEC45a37423EAD4FaD5fCb136197872EAd9 as per Lido documentation and click on the Confirm button next to it.
Note: The mainnet Withdrawal Vault addresses is 0xB9D7934878B5FB9610B3fE8A5e441e8fad7E293f (source)
Once confirmed, select the operating system and copy the DKG ceremony command. The command can be executed on any machine with Docker installed.

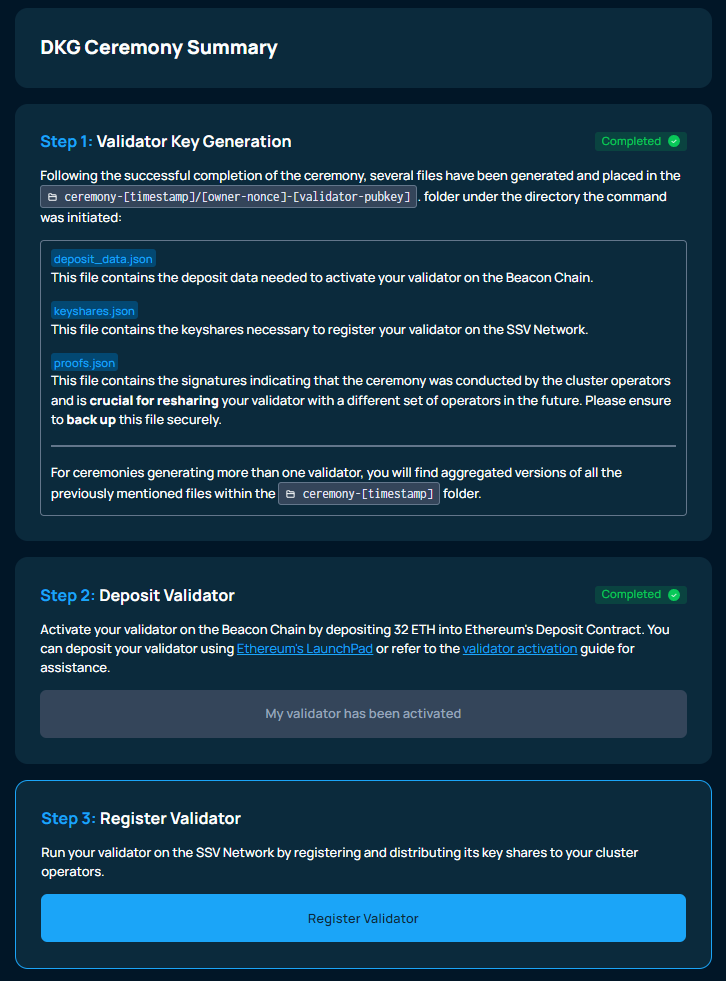

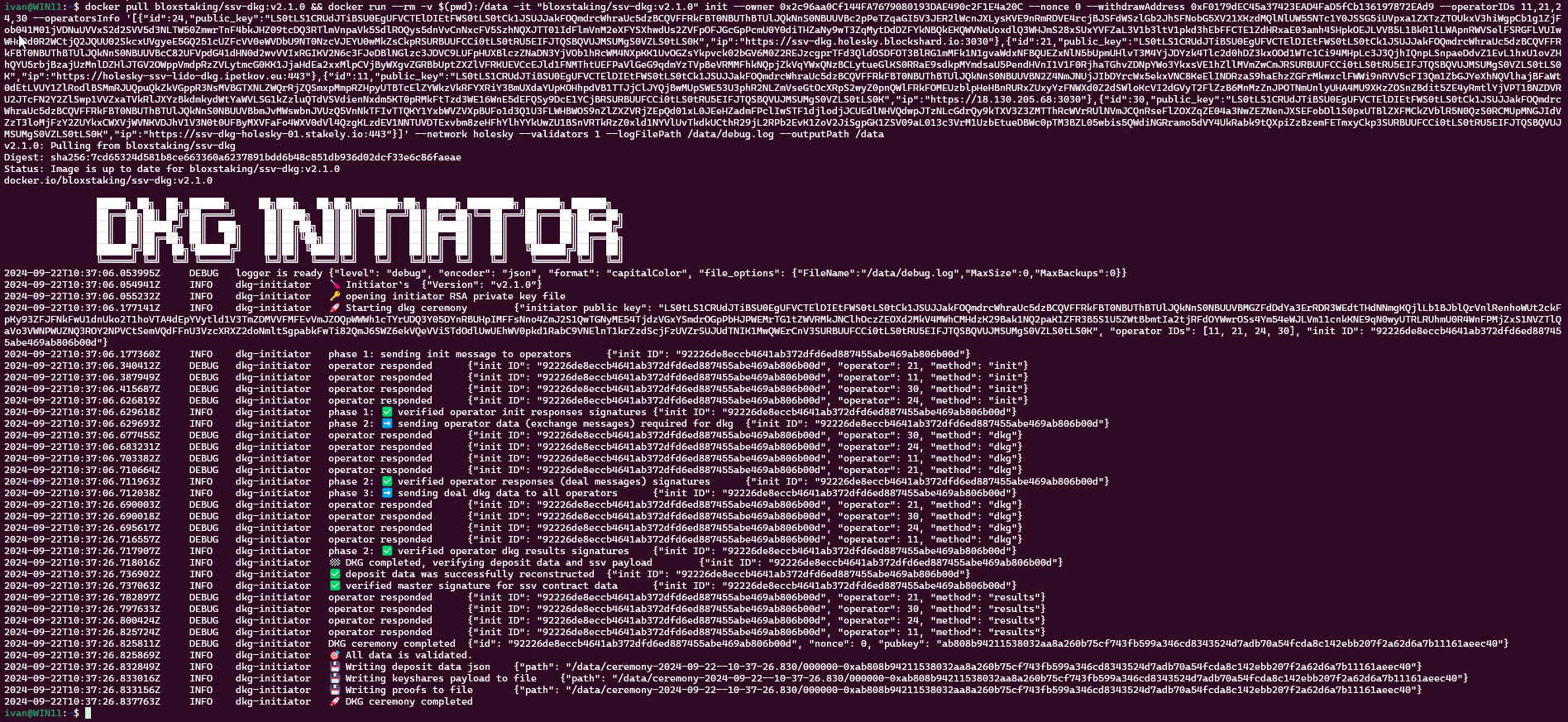

After executing the command a screen similar to the one below can be observed indicating the successful completion of the DKG ceremony.

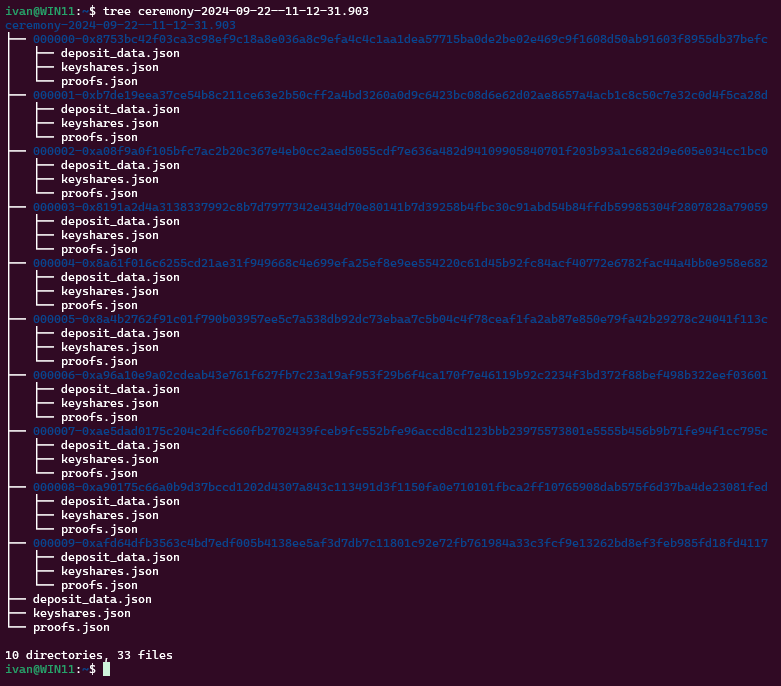

Several files have been generated and placed in a directory named ceremony-yyyy-MM-dd--hh-mm-ss.mmm with multiple sub-folders for each validator key [nonce]-[validator_pubkey]:
deposit-[validator_pubkey].json - this file contains the deposit data necessary to activate the validator
keyshares-[validator_pubkey].json - this file contains the keyshares necessary to register the validator on the SSV network
proofs.json - this file contains the signatures indicating that the ceremony was conducted by the cluster operators and is crucial for resharing the validators with a different set of operators in the future.
Please ensure to back up all the files securely.
Return to the web browser and acknowledge the statement about validator deposits (although, for the moment, that's not been done yet), and then click on the Register Validator button.

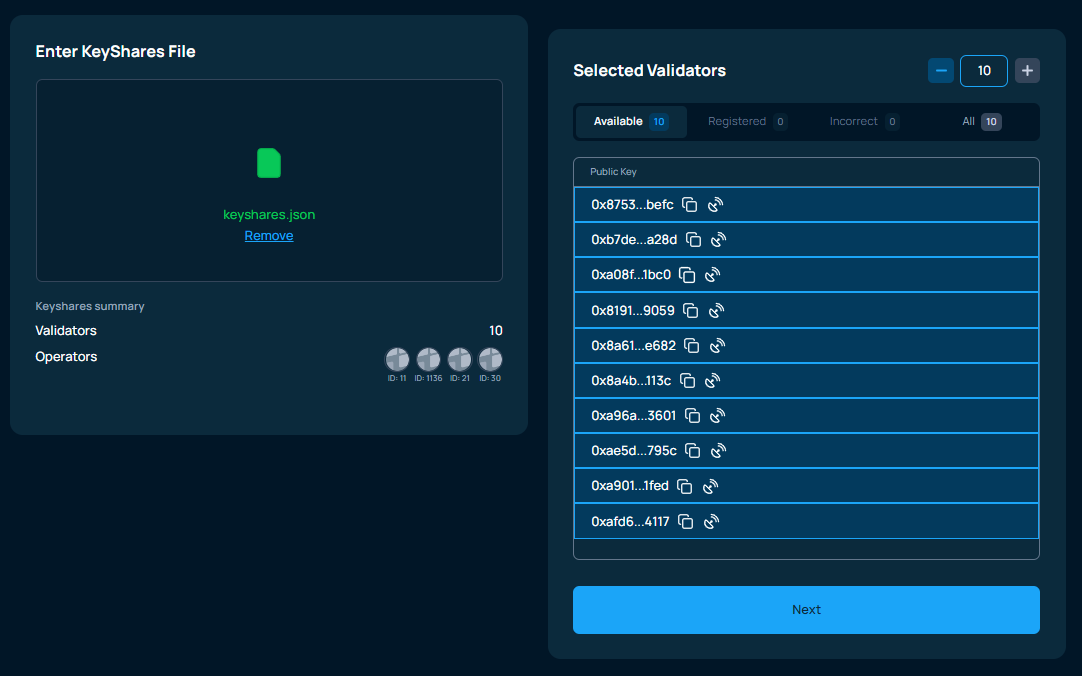

Select the validators you are about to register and click on the Next button.
Note: there is a limit of 20 validators you can register in a single transaction. This is due to limitations of the Safe Wallet. For this reason, if you need to register more than 20 validators from a single keyshares.json file, you will need to repeat the procedure above, without actually executing the DKG ceremony, and upload the same keyshares.json file multiple times. The SSV web app will recognize previously registered validators "automagically", and skip them.

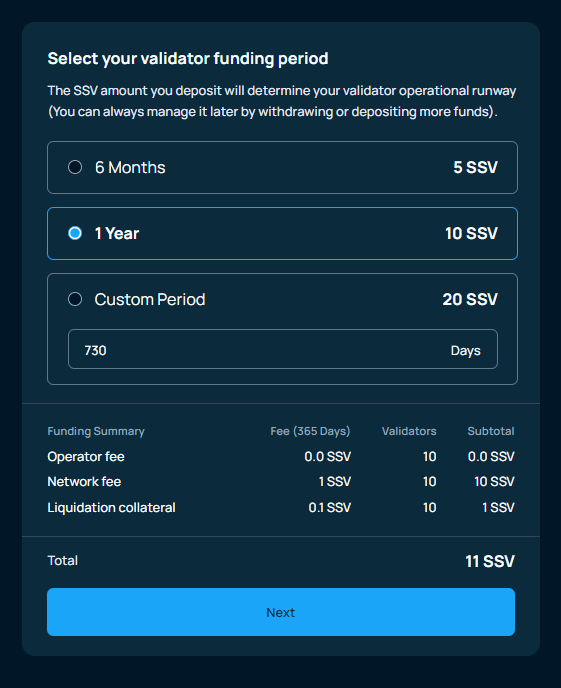

On the funding screen select for how long the cluster will be running and click the Next button.
Note: To obtain SSV tokens on the Holesky network the official SSV faucet can be used.

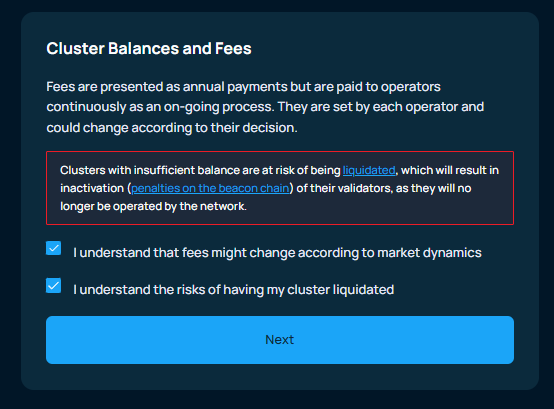

Acknowledge and accept the warning regarding cluster balances and fees and click on the Next button.

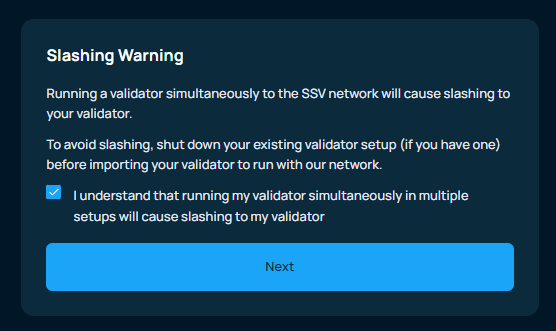

Acknowledge and accept the warning regarding slashing risks and click on the Next button.

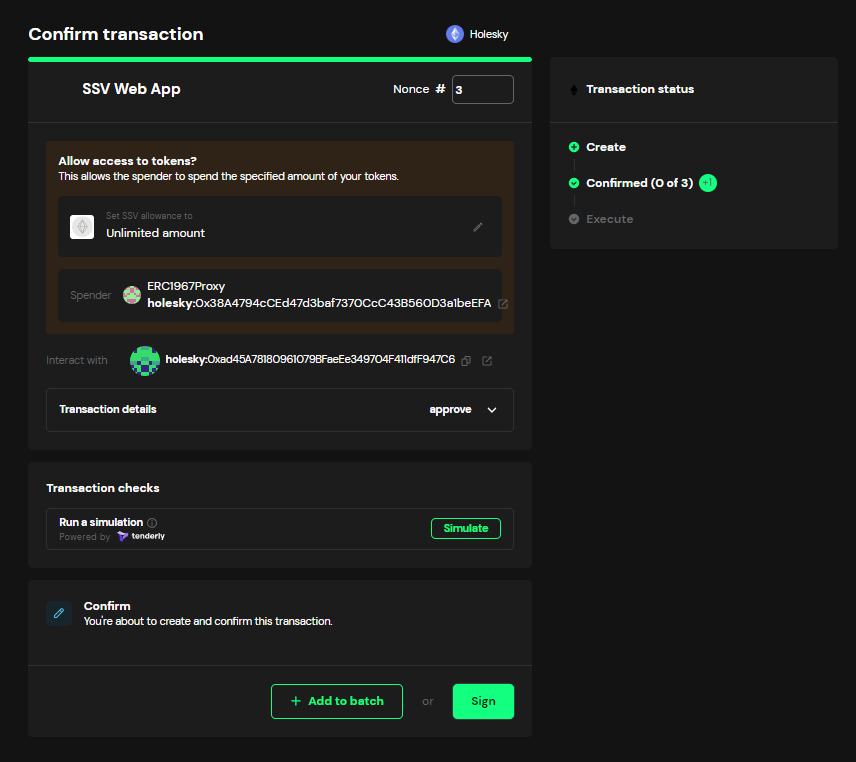

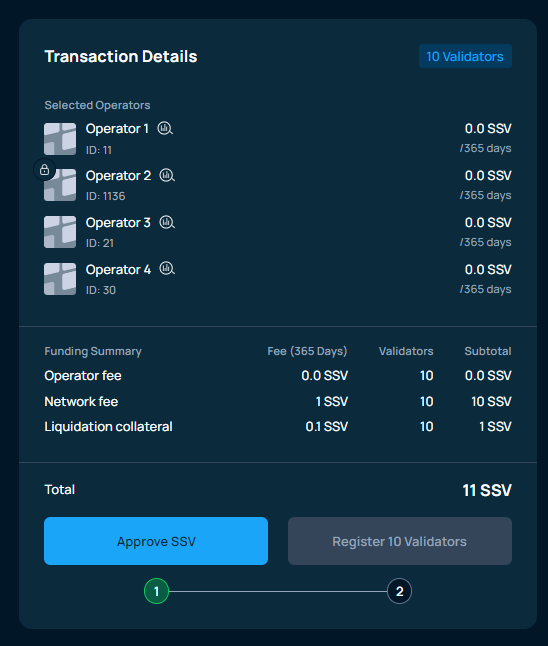

Approve the SSV spending.

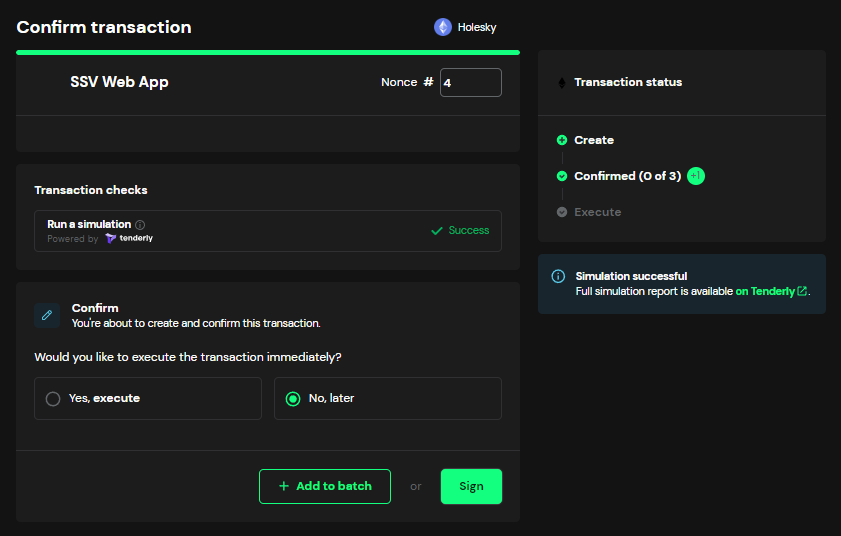

Sign the transaction in the Safe and share it with the rest of the cluster members.

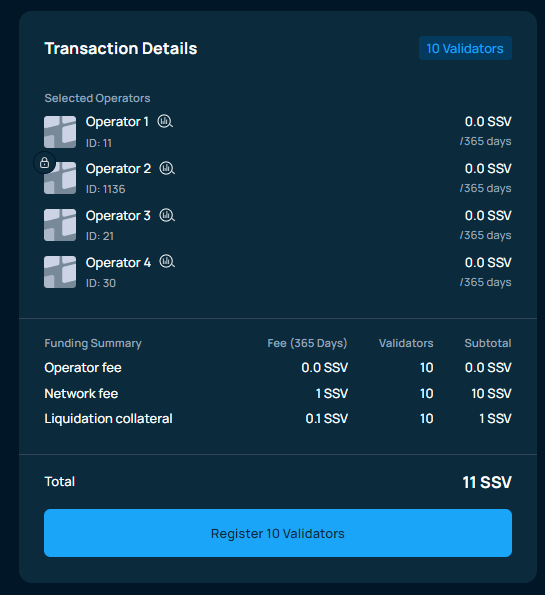

Once the signature threshold has been reached and the transaction has been executed, click on the Register Validators button.
Again sign and share the transaction with other cluster members.
The last step would be to set the cluster fee recipient to Lido's Execution Layer Rewards Vault - 0xE73a3602b99f1f913e72F8bdcBC235e206794Ac8. To do so open the My Account tab and click on the Fee Address button.

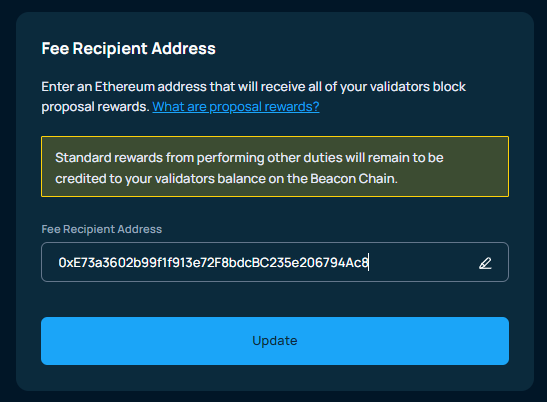

Set the Fee Recipient Address field to 0xE73a3602b99f1f913e72F8bdcBC235e206794Ac8 as per Lido documentation and click the Update button.
Note: The mainnet Fee Recipient address is 0x388C818CA8B9251b393131C08a736A67ccB19297 (source)
Once again sign the transaction in Safe and share it with other cluster members for approval.
After this, the validators are ready to be registered with Lido CSM.
MEV stands for Maximal Extractable Value. This is the additional value that can be captured by the block proposer by optimising the selection and order of the transactions included in the proposed block. Such an optimisation often requires the use of sophisticated algorithms and access to resources not available to the regular node operator. The parties capable of doing this are called Searchers. They find the most profitable transactions, bundle them and provide the bundles to the Block Builders who assemble the bundles into a complete block. At the beginning of each epoch, node operators register the validators they control with a Block Builder (or Relay) of their choice and if they are selected to propose a block they can choose to propose the one provided by the Relay in exchange for an additional tip. If the operator wishes to connect to multiple Relays a software called MEV-Boost is required. Using MEV-Boost allows the operator to select the most profitable block from all the connected Relays, creating a kind of Block Marketplace. In the context of Lido CSM, it is worth noting that running MEV-Boost is a requirement. Although there are currently no penalties for proposing self-built blocks, this may change in the future.
To configure MEV-boost each cluster memeber needs to edit the .env file and set the BUILDER_API_ENABLED=true and MEVBOOST_RELAYS= to the URL of at least one of Lido's approved MEV relays here. Multiple relays must be separated by a comma. The use of unapproved relays is strictly forbidden! All cluster members must use identical configurations (same relays) to avoid missing block proposals due to a lack of consensus!
Each cluster member should start the node with the following command:
docker compose up -d
At this point, execution and consensus clients should start syncing, and the SSV client should start waiting for the validators to be activated.
Before deploying the keys to the Lido CSM module each cluster member can verify the keys registered to SSV are the same that they created via DKG. To do so they must the Safe Wallet app, identify the transaction that registered validators to SSV and copy the transaction hash by clicking on the Copy icon.
Then run the following in the cluster directory:
docker run --rm\
-u root:root \
-v $(pwd)/dkg-output:/dkg \
-v $(pwd)/merge-output:/output \
raekwonthethird/ssv-automate:v0.0.4-holesky \
merge-deposit /dkg -t <TX_HASH_FROM_SAFE> -o /output

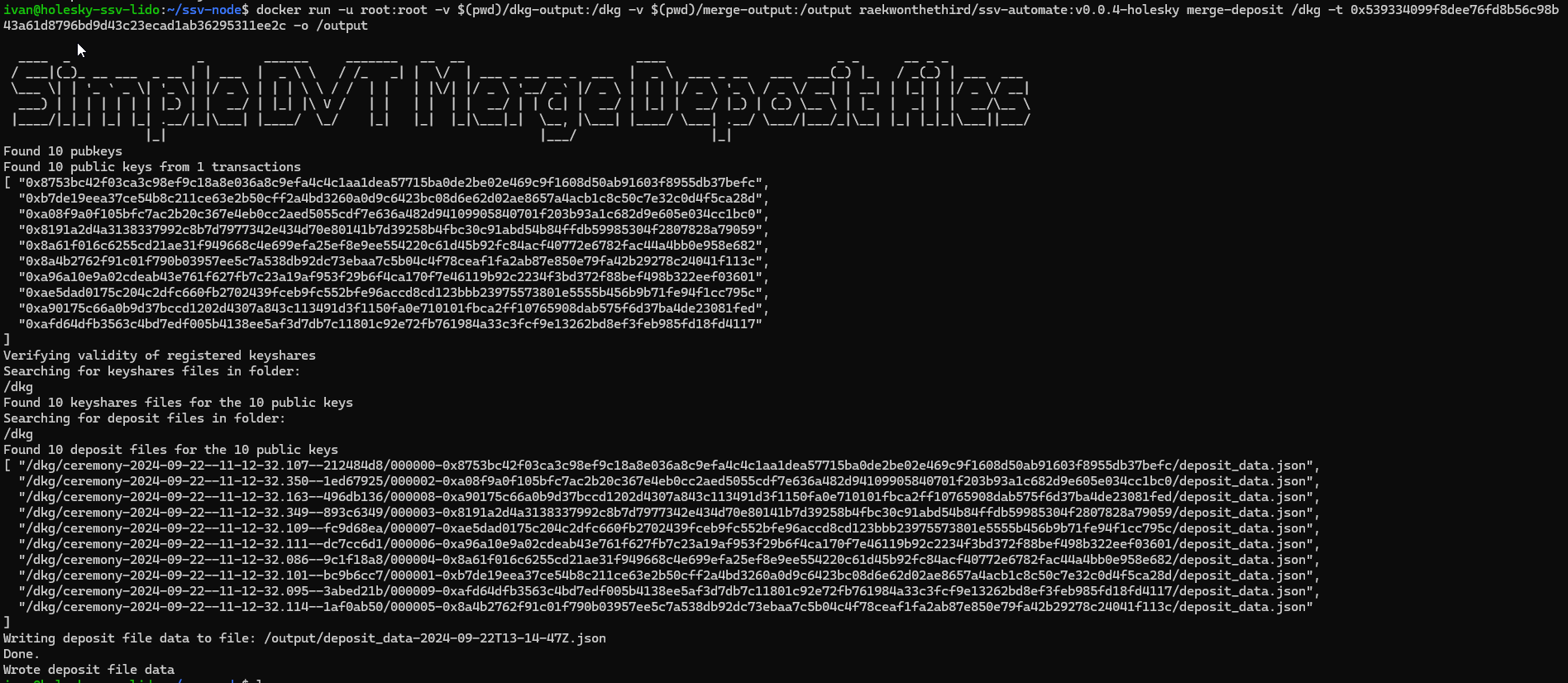

The expected result would be similar to the following screen:
The tool will verify the validity of the registered validators (i.e. the correctness of keyshares, user nonce, and operator keys involved), using SSV API.
For additional security, cluster participants could visually check the public keys in their aggregate deposit-data.json file in the merge-output folder to verify that they match those registered to SSV.

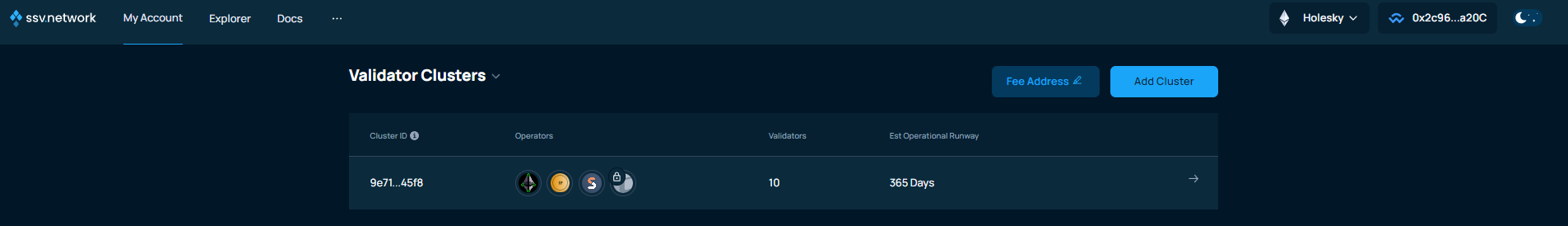

To do so log in on the SSV web app with the cluster's multi-sig account. Under My Account page, verify that there is only one cluster and that the operators in it are the expected cluster participants. Copy the public key of (at least) one of the validators from the cluster by clicking on the copy icon.

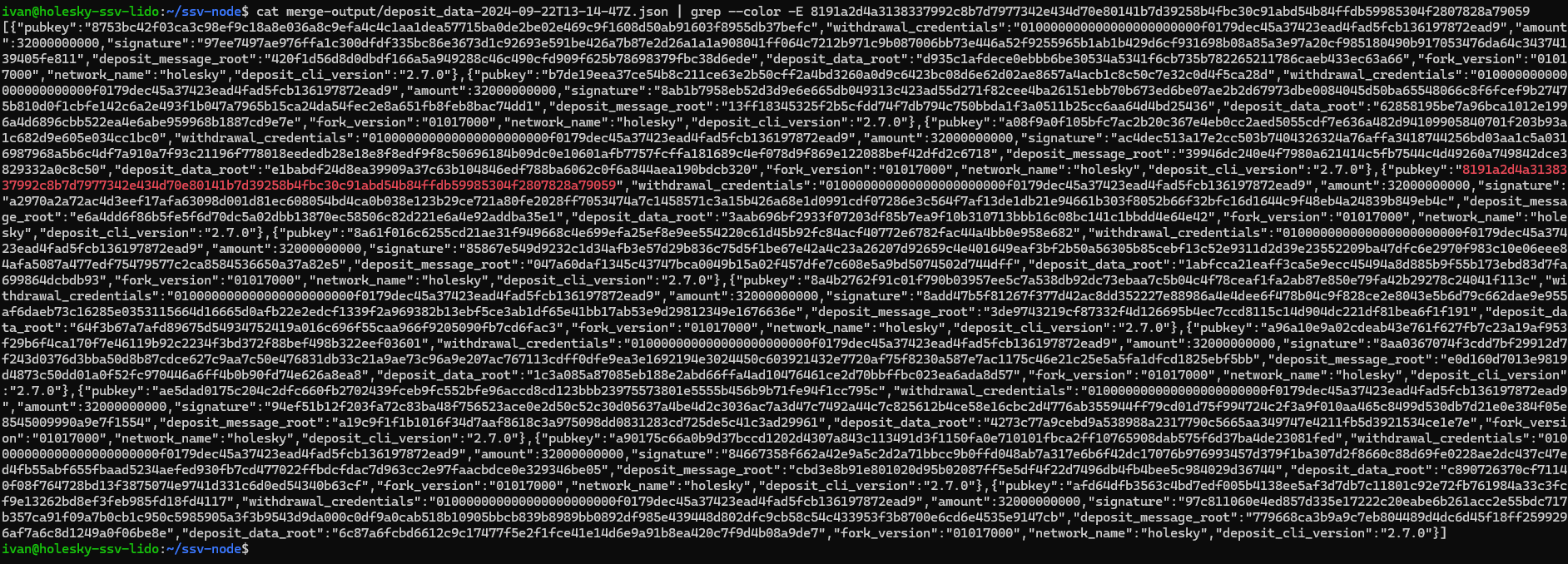

Then, grep the deposit-data.json file in the merge-output folder to verify that there is a matching public key in it.
cat merge-output/deposit_data-yyyy-MM-ddThh-mm-ssZ.json \
| grep --color -E <validator_pub_key>
One of the cluster members opens the Lido CSM widget using this address https://csm.testnet.fi/?mode=extended. Note the mode=extended parameter. This allows the Lido CSM reward address to be set to the split contract created earlier. He connects the cluster Safe to the widget using WalletConnect.
Copies the connection link...
And pastes it into the Safe WalletConnect screen.
He clicks on the Create Node Operator button...
Pastes the contents of the deposit-data.json file into the Upload deposit data field. There should be enough ETH/stETH/wstETH deposited in the cluster Safe to cover the bond.
Expand the Specify custom addresses section...
Set the Reward Address field to the Split contract address and the Manager Address field to the Safe wallet address. Make sure you select the Extended option before creating the operator, otherwise the reward address will have ultimate control over the node operator, and since this is a simple splitter contract, you won't be able to make any changes to the operator, as this contract has no signing capabilities. Check that the correct addresses are set and click the Create Node Operator button.
Sign the transaction in the safe and share it with the rest of the cluster members.
Before signing the transaction, the remaining members should check that the transaction details contain the correct manager address (the address of the Safe) and reward address (the address of the split contract).
Once the signature threshold has been reached and the transaction has been executed, the cluster is ready for deposit from Lido CSM.
You can follow this guide for the steps required to monitor your CSM operator.
There are two types of rewards in CSM: bond rewards and operator rewards. The bond in Lido CSM is held in stETH and stETH being a rabasing token changes it's balance (most likely increasing) once a day. Operator rewards come from operating the node and include a share of the execution layer and consensus layer rewards. They are socialised across all operators and are awarded when the operator performs above a certain threshold, calculated every 7 days on the Holesky testnet and every 28 days on Mainnet.
To claim your rewards, go to the Bond & Rewards menu and select the Claim tab.
WARNING: Make sure you claim your rewards in wstETH (Wrapped Staked Ether), this is the only token compatible with the Split contract. When you request ETH, you will receive an NFT representing the withdrawal claim, which the Splitter contract cannot distribute. stETH is a rebasing token and when the supply decreases or increases, either not all recipients will be able to withdraw their share, or the yield will be stuck in Split. More information can be found in the splits.org documentation.

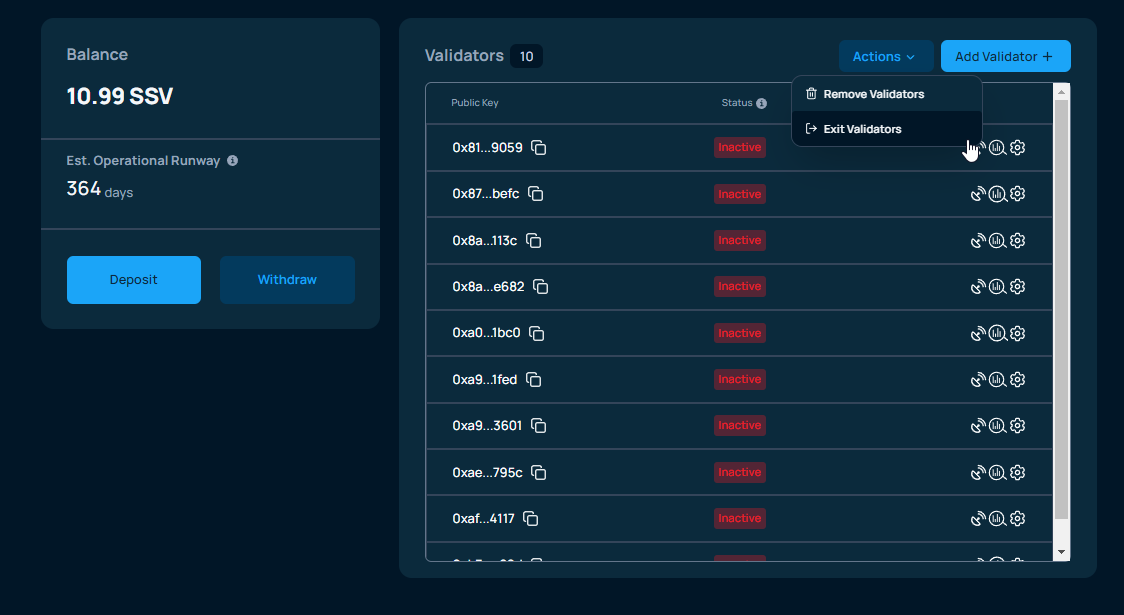

You can use the SSV web app to exit the validators.
