SecuritasSimulatio

Web based tool to interact with data in the ATT&CK Framework as well as build and facilitate Cyber Security tabletops.

If you'd like to install it yourself documentation is below. If you want to just give it a try feel free to visit: (https://adeptus.vigilocyber.com)

Command Summaries

The MITRE ATT&CK chatbot supports the following commands to interact with MITRE ATT&CK data and manage tabletop exercises. Commands are case-insensitive and entered in the chat interface.

• create-tabletop: Designs a new tabletop exercise, guiding users to define a scenario with technologies, techniques (TTPs), injects, and a narrative. The exercise is saved as a JSON definition in the tabletops database table for later use.
• run-tabletop: Opens a selected tabletop exercise in a new browser tab, displaying the narrative, injects, facilitation tips, and a notes panel for real-time findings. Notes are saved to the completed_tabletops table as they are entered.
• ttp id : Retrieves details for a specific MITRE ATT&CK technique by its ID (e.g., T1059). Returns the technique’s name, description, tactics, platforms, detection, and mitigation from the techniques table.
• ttp search : Searches MITRE ATT&CK techniques by name or description matching the query term. Returns a list of relevant techniques from the techniques table.
• ttp detail : Provides in-depth information for a specific technique by ID, including external references and relationships (e.g., campaigns, groups) from the external_references and relationships tables.
• group : Searches for a MITRE ATT&CK group by name or ID (e.g., G0027). Returns group details, such as description and associated campaigns, from the groups table.
• software : Searches for software or tools by name or ID (e.g., S0002). Returns details like description and associated techniques from the software and software_technique_relationships tables.
• campaign : Searches for a MITRE ATT&CK campaign by name or ID (e.g., C0001). Returns campaign details and related techniques from the campaigns and campaign_technique_relationships tables.
• graph : Generates a visual relationship graph for a given ID (e.g., technique, group, or software), showing connections like associated groups or techniques, using data from the relationships table.
• recommend : Provides log source recommendations for detecting a specific TTP, leveraging data from the dettect_data_sources table to suggest relevant data sources and platforms.
• group_ttps : Lists all TTPs associated with a specific group (e.g., G0027), retrieved from the group_technique_relationships table.

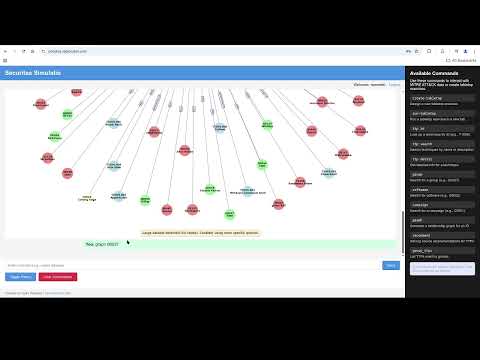

Demo Video

Setup

Information in this section assumes at least Ubuntu 24.04.

Infrastructure

• Python (My version was 3.13.2)
• MySQL or MariaDB
• Ollama (Model in use for demo was phi3:latest)

Requirements Install requirements by hand or using requirements.txt

• pyyaml
• requests
• mysql-connector-python
• networkx
• matplotlib
• discord.py
• python-dotenv
• flask
• Flask-Session
• Flask-Login
• aiohttp
• bcrypt

Schema & Data File Creation

• Create database & user
• Import schema.sql file

  mysql -h {host} -u {username} -p {database name} < schema.sql

• Get enterprise-attack.json:

  https://github.com/mitre/cti/blob/master/enterprise-attack/enterprise-attack.json

• Examine generateGenDET.py, specifically lines 17-86 this is a generic way to generate our monitoring/DETTECT controls.
• Run generateGenDET.py to create data-sources.yaml

  python generateGenDET.py

• Run detect2sql.py to read the data-source.yaml and create the sql to import into the database:

  python detect2sql.py

• Run mitre2sql.py to read enterprise-attack.json and generate the main sql import:

  python mitre2sql.py

• Import the sql files:

  mysql -h {host} -u {username} -p {database name} < mitre_full.sql
  mysql -h {host} -u {username} -p {database name} < dettect_import.sql

Configure .env File

• Copy .env-sample to .env and update (samples below): OLLAMA_URL="http://localhost:11434" DB_HOST="localhost" DB_USER="user" DB_PASS="password" DB="mitre" ENABLE_TABLETOP=true

Tweaking LLM

• If you want to try a different model you can modify line 239 (yes eventually it will be an env variable):

  "model": "{ollama model name}"

Running

• Run app.py, this will listen on port 5000. I'd recommend a reverse proxy

  python app.py

If you run into issues feel free to open an issue here or ask quesitons.

Licenses

MITRE ATT&CK Data

The MITRE ATT&CK dataset is licensed under the Apache 2.0 License. Copyright (c) MITRE Corporation See https://www.apache.org/licenses/LICENSE-2.0 for details.

Open-Source Libraries

This project uses the following libraries:

• Flask: MIT License (https://github.com/pallets/flask)
• discord.py: MIT License (https://github.com/Rapptz/discord.py)
• mysql-connector-python: Apache 2.0 License (https://github.com/mysql/mysql-connector-python) See requirements.txt for the full list.
