Prometheus Hetzner Storage Box Exporter

Modern Prometheus exporter for Hetzner Storage Box with comprehensive metrics

Quick Start • Metrics • Installation • Grafana Dashboard • Configuration

📋 Overview

A Prometheus exporter for Hetzner Storage Box using the modern Hetzner Cloud API.

✅ 15+ comprehensive metrics - Storage usage, access settings, snapshots, and protection status
🐳 Multi-architecture Docker - Images for amd64 and arm64
☸️ Kubernetes ready - Pre-built manifests included
🎯 Lightweight - Under 50MB memory usage
📈 Grafana dashboard - 21-panel dashboard ready to import (download)
🔒 Bearer token auth - Secure API authentication

Key Features

All-in-one solution - Includes Docker images, K8s manifests, and Grafana dashboard
Additional metrics - Access settings (SSH, Samba, WebDAV, ZFS), snapshot plans, and delete protection
Production ready - Health checks, structured logging, and comprehensive error handling

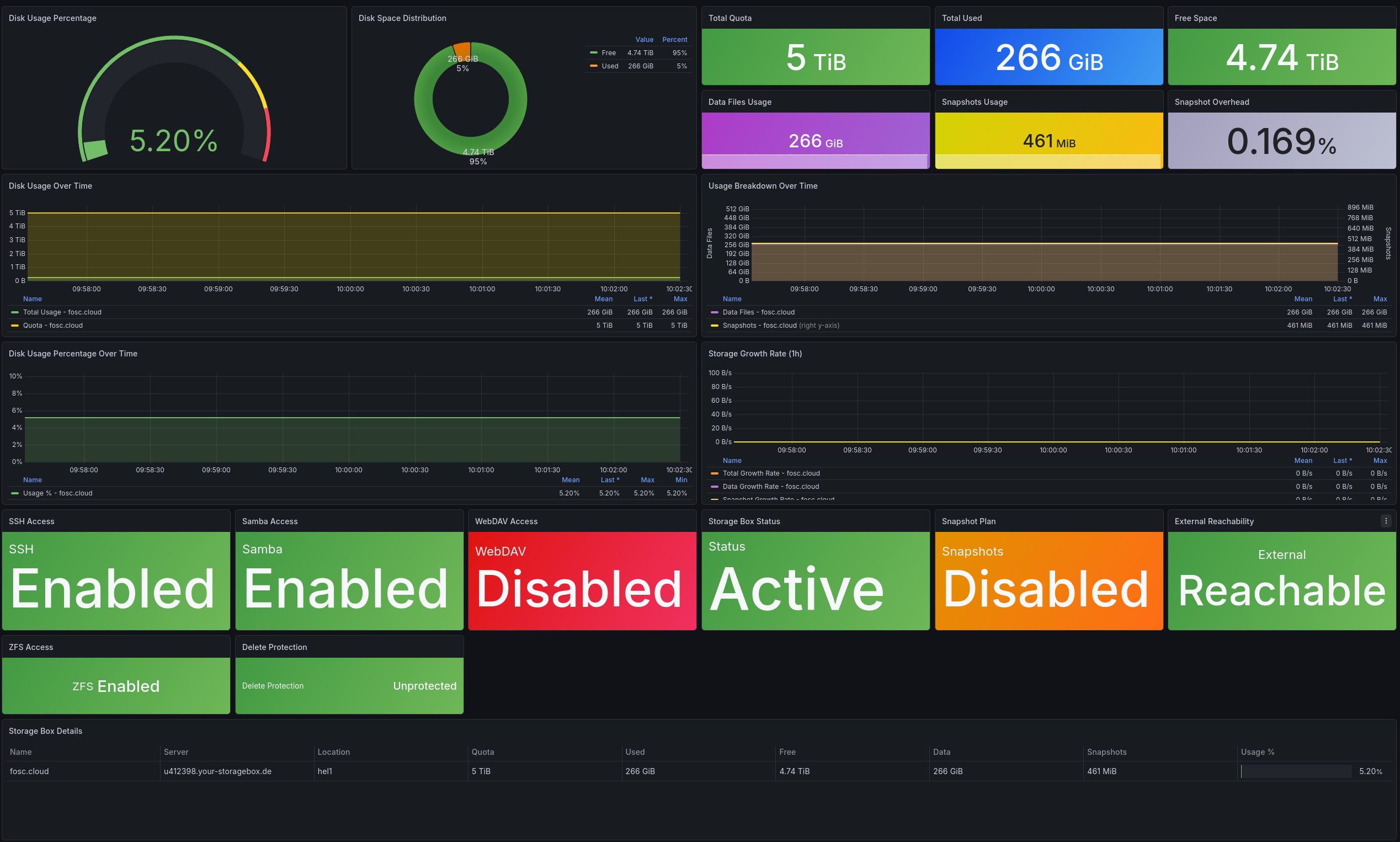

📊 Dashboard Preview

Click on dashboard image to download the JSON file for import

🚀 Quick Start

Prerequisites

You need a Hetzner API token with read permissions:

Log in to Hetzner Cloud Console
Navigate to Security → API Tokens
Create a new token with Read permissions
Copy the token for configuration

Docker Compose (Recommended)

docker-compose up -d

Docker

docker run -d \
  --name storagebox-exporter \
  -p 9509:9509 \
  -e HETZNER_TOKEN="your-api-token" \
  ghcr.io/crstian19/prometheus-storagebox-exporter:latest

# With token file (recommended for NixOS)
echo "your-api-token" > /run/secrets/hetzner-token
docker run -d \
  --name storagebox-exporter \
  -p 9509:9509 \
  -v /run/secrets/hetzner-token:/run/secrets/hetzner-token:ro \
  -e HETZNER_TOKEN_FILE="/run/secrets/hetzner-token" \
  ghcr.io/crstian19/prometheus-storagebox-exporter:latest

🐳 Multi-Architecture Docker Images

Our Docker images are built for multiple architectures with automatic platform detection:

# Automatically pulls the right image for your platform:
docker pull ghcr.io/crstian19/prometheus-storagebox-exporter:latest

# Available architectures:
# - Linux amd64 (Intel/AMD)
# - Linux arm64 (ARM 64-bit)
# - macOS amd64 (Intel Mac)
# - macOS arm64 (Apple Silicon)

🏷️ Available Tags:

latest - Latest release (multi-arch)
v0.x.x - Specific version (multi-arch)
latest-amd64 - Intel/AMD specific
latest-arm64 - ARM specific

Binary

# Linux amd64
wget https://github.com/crstian19/prometheus-storagebox-exporter/releases/latest/download/prometheus-storagebox-exporter_linux_x86_64.tar.gz
tar xzf prometheus-storagebox-exporter_linux_x86_64.tar.gz

# Run with environment variable
export HETZNER_TOKEN="your-api-token"
./prometheus-storagebox-exporter

# Or with token file (recommended for NixOS)
echo "your-api-token" > /run/secrets/hetzner-token
export HETZNER_TOKEN_FILE="/run/secrets/hetzner-token"
./prometheus-storagebox-exporter

Access Metrics

Open http://localhost:9509/metrics to view the exported metrics.

⚙️ Configuration

Environment Variables

Variable	Default	Description
`HETZNER_TOKEN`	required	Hetzner API token (mutually exclusive with HETZNER_TOKEN_FILE)
`HETZNER_TOKEN_FILE`	optional	Path to file containing Hetzner API token (mutually exclusive with HETZNER_TOKEN)
`LISTEN_ADDRESS`	`:9509`	Address to listen on
`METRICS_PATH`	`/metrics`	Path for metrics endpoint
`LOG_LEVEL`	`info`	Log level (debug, info, warn, error)
`CACHE_TTL`	`0`	Cache TTL in seconds, 0 to disable (default: disabled)
`CACHE_MAX_SIZE`	`0`	Cache maximum size in bytes, 0 for unlimited
`CACHE_CLEANUP_INTERVAL`	`0`	Cache cleanup interval in seconds, 0 for 10s default
`CACHE_STORAGE_TYPE`	`memory`	Cache storage type (memory, redis)

Command-line Flags

./prometheus-storagebox-exporter --help

Flags:
  --hetzner-token string           Hetzner API token (can also be set via HETZNER_TOKEN env var)
  --hetzner-token-file string      Path to file containing Hetzner API token (can also be set via HETZNER_TOKEN_FILE env var)
  --listen-address string          Address to listen on for HTTP requests (default ":9509")
  --metrics-path string            Path under which to expose metrics (default "/metrics")
  --log-level string               Log level (debug, info, warn, error) (default "info")
  --cache-ttl int                  Cache TTL in seconds, 0 to disable (can also be set via CACHE_TTL env var, default: 0 - disabled)
  --cache-max-size int64           Cache maximum size in bytes, 0 for unlimited (can also be set via CACHE_MAX_SIZE env var, default: 0 - unlimited)
  --cache-cleanup-interval int     Cache cleanup interval in seconds, 0 for default (can also be set via CACHE_CLEANUP_INTERVAL env var, default: 0 - 10s)
  --cache-storage-type string      Cache storage type (memory, redis) (can also be set via CACHE_STORAGE_TYPE env var, default: memory)
  --version                        Show version information and exit

Cache Configuration (Optional)

⚠️ Cache is disabled by default following Prometheus best practices. Use scrape_interval in Prometheus instead of caching for most use cases.

When to Enable Cache

Multiple Prometheus instances: Prevent duplicate API calls
Rate limiting concerns: Reduce API request frequency
Development/Testing: Minimize API calls during testing

Cache Configuration Examples

# Enable cache with 60s TTL, 1MB size limit
export CACHE_TTL=60
export CACHE_MAX_SIZE=1048576
export CACHE_CLEANUP_INTERVAL=30

# Enable with memory limit only (10s cleanup interval)
export CACHE_TTL=120
export CACHE_MAX_SIZE=5242880

# Enable with custom cleanup interval
export CACHE_TTL=300
export CACHE_CLEANUP_INTERVAL=60

Prometheus Configuration (Recommended Alternative)

# prometheus.yml
scrape_configs:
  - job_name: 'storagebox-exporter'
    scrape_interval: 5m    # Control scraping frequency
    scrape_timeout: 30s
    static_configs:
      - targets: ['localhost:9509']

📊 Metrics

The exporter exposes 15+ metrics organized in 4 categories:

Core Storage Metrics

Metric	Type	Description	Labels
`storagebox_disk_quota_bytes`	Gauge	Total storage quota in bytes	id, name, server, location
`storagebox_disk_usage_bytes`	Gauge	Total used diskspace in bytes	id, name, server, location
`storagebox_disk_usage_data_bytes`	Gauge	Diskspace used by files in bytes	id, name, server, location
`storagebox_disk_usage_snapshots_bytes`	Gauge	Diskspace used by snapshots in bytes	id, name, server, location

Information & Status Metrics

Metric	Type	Description	Labels
`storagebox_info`	Info	Storage box information (value always 1)	id, name, username, server, location, storage_type, system
`storagebox_status`	Gauge	Current status (1=active, 0=inactive)	id, name, status
`storagebox_created_timestamp`	Gauge	Unix timestamp of creation	id, name

Access Settings Metrics

Metric	Type	Description	Labels
`storagebox_access_ssh_enabled`	Gauge	SSH access enabled (1=yes, 0=no)	id, name
`storagebox_access_samba_enabled`	Gauge	Samba/CIFS access enabled (1=yes, 0=no)	id, name
`storagebox_access_webdav_enabled`	Gauge	WebDAV access enabled (1=yes, 0=no)	id, name
`storagebox_access_zfs_enabled`	Gauge	ZFS access enabled (1=yes, 0=no)	id, name
`storagebox_reachable_externally`	Gauge	External reachability (1=yes, 0=no)	id, name

Protection & Snapshot Metrics

Metric	Type	Description	Labels
`storagebox_snapshot_plan_enabled`	Gauge	Automatic snapshots configured (1=yes, 0=no)	id, name
`storagebox_protection_delete`	Gauge	Delete protection status (1=protected, 0=no)	id, name

Exporter Metrics

Metric	Type	Description
`storagebox_exporter_scrape_duration_seconds`	Gauge	Duration of the scrape in seconds
`storagebox_exporter_scrape_errors_total`	Counter	Total number of scrape errors
`storagebox_exporter_up`	Gauge	Exporter health status (1=healthy, 0=unhealthy)
`storagebox_exporter_cache_hits_total`	Counter	Total number of cache hits (0 when cache disabled)
`storagebox_exporter_cache_misses_total`	Counter	Total number of cache misses (increments every scrape when cache disabled)

Dashboard Features

📊 Overview Section: Gauges for disk usage percentage and disk space distribution
📈 Time Series Graphs:
- Disk usage over time with quota visualization
- Usage breakdown (Data vs Snapshots) with dual Y-axes
- Disk usage percentage trends
- Storage growth rate analysis (1h intervals)
📋 Detailed Table: Complete storage box details with all metrics
🔧 Access Status: Visual indicators for SSH, Samba, WebDAV, and ZFS access
🛡️ Configuration Info: Snapshot plan and delete protection status
📊 Multi-box Support: Variable to filter by specific storage box or view all

Quick test with Docker Compose

The repository includes a complete Docker Compose test with pre-configured dashboard:

# Start all services (Exporter + Prometheus + Grafana)
./test-env.sh

# Or manually:
docker-compose -f docker-compose.dev.yml up -d

Access points:

🎯 Grafana Dashboard: http://localhost:3000 (admin/admin) - Dashboard is pre-imported
📈 Prometheus: http://localhost:9090
🔧 Exporter: http://localhost:9509/metrics

💡 For production: Import the dashboard manually using grafana-dashboard.json

Dashboard Panels

The dashboard includes:

Disk Usage Percentage (Gauge)
Disk Space Distribution (Pie)
Total Quota (Stat)
Total Used (Stat)
Free Space (Stat)
Data Files Usage (Stat)

Snapshots Usage (Stat)
Snapshot Overhead (Stat)
Disk Usage Over Time
Usage Breakdown Over Time
Disk Usage Percentage Over Time
Storage Growth Rate (1h)

Access Settings Panels:

SSH Access Status
Samba Access Status
WebDAV Access Status
ZFS Access Status
External Reachability Status

Configuration Panels:

Storage Box Status
Snapshot Plan Status
Delete Protection Status

Details Table:

Storage Box Details (comprehensive table)

🐳 Docker Deployment

Docker Compose

Complete docker-compose.yml example with Prometheus and Grafana:

Click to expand Docker Compose

version: '3.8'

services:
  # Storage Box Exporter
  storagebox-exporter:
    image: ghcr.io/crstian19/prometheus-storagebox-exporter:latest
    container_name: storagebox-exporter
    restart: unless-stopped
    ports:
      - "9509:9509"
    environment:
      - HETZNER_TOKEN=${HETZNER_TOKEN}
      # Optional cache configuration (uncomment to enable)
      # - CACHE_TTL=60
      # - CACHE_MAX_SIZE=1048576
      # - CACHE_CLEANUP_INTERVAL=30
    networks:
      - monitoring

  # Prometheus
  prometheus:
    image: prom/prometheus:latest
    container_name: prometheus
    restart: unless-stopped
    ports:
      - "9090:9090"
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml:ro
      - prometheus-data:/prometheus
    command:
      - '--config.file=/etc/prometheus/prometheus.yml'
      - '--storage.tsdb.path=/prometheus'
      - '--web.console.libraries=/usr/share/prometheus/console_libraries'
      - '--web.console.templates=/usr/share/prometheus/consoles'
      - '--web.enable-lifecycle'
    networks:
      - monitoring
    depends_on:
      - storagebox-exporter

  # Grafana
  grafana:
    image: grafana/grafana:10.2.0
    container_name: grafana
    restart: unless-stopped
    ports:
      - "3000:3000"
    environment:
      - GF_SECURITY_ADMIN_USER=admin
      - GF_SECURITY_ADMIN_PASSWORD=admin
      - GF_USERS_ALLOW_SIGN_UP=false
    volumes:
      - grafana-data:/var/lib/grafana
      - ./grafana-provisioning:/etc/grafana/provisioning:ro
    networks:
      - monitoring
    depends_on:
      - prometheus

networks:
  monitoring:
    driver: bridge

volumes:
  prometheus-data:
  grafana-data:

Prometheus Configuration

Add to your prometheus.yml:

scrape_configs:
  - job_name: 'hetzner-storagebox'
    static_configs:
      - targets: ['storagebox-exporter:9509']
    scrape_interval: 60s
    scrape_timeout: 30s

☸️ Kubernetes Deployment

Quick Deploy

# Apply all manifests
kubectl apply -f k8s/

# Check status
kubectl get pods -n monitoring

Manifests

Click to expand Kubernetes YAML

apiVersion: v1
kind: Secret
metadata:
  name: storagebox-exporter-secret
  namespace: monitoring
type: Opaque
stringData:
  hetzner-token: "your-api-token-here"
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: storagebox-exporter
  namespace: monitoring
  labels:
    app: storagebox-exporter
spec:
  replicas: 1
  selector:
    matchLabels:
      app: storagebox-exporter
  template:
    metadata:
      labels:
        app: storagebox-exporter
    spec:
      containers:
      - name: storagebox-exporter
        image: ghcr.io/crstian19/prometheus-storagebox-exporter:latest
        ports:
        - containerPort: 9509
          name: metrics
        env:
        - name: HETZNER_TOKEN
          valueFrom:
            secretKeyRef:
              name: storagebox-exporter-secret
              key: hetzner-token
        livenessProbe:
          httpGet:
            path: /health
            port: metrics
          initialDelaySeconds: 10
          periodSeconds: 30
        readinessProbe:
          httpGet:
            path: /health
            port: metrics
          initialDelaySeconds: 5
          periodSeconds: 10
        resources:
          requests:
            memory: "32Mi"
            cpu: "50m"
          limits:
            memory: "64Mi"
            cpu: "100m"
---
apiVersion: v1
kind: Service
metadata:
  name: storagebox-exporter
  namespace: monitoring
  labels:
    app: storagebox-exporter
spec:
  type: ClusterIP
  ports:
  - port: 9509
    targetPort: metrics
    name: metrics
  selector:
    app: storagebox-exporter
---
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: storagebox-exporter
  namespace: monitoring
  labels:
    app: storagebox-exporter
spec:
  selector:
    matchLabels:
      app: storagebox-exporter
  endpoints:
  - port: metrics
    interval: 60s
    scrapeTimeout: 30s

🏗️ Development

Building

# Build binary
go build -o prometheus-storagebox-exporter .

# Build Docker image
docker build -t prometheus-storagebox-exporter .

# Run tests
go test -v ./...

# Run linter
golangci-lint run

Project Structure

.
├── main.go                 # Application entry point
├── internal/
│   ├── collector/          # Prometheus collector implementation
│   ├── hetzner/           # Hetzner API client
│   └── config/            # Configuration handling
├── grafana-provisioning/  # Grafana dashboard provisioning
├── k8s/                   # Kubernetes manifests
├── .github/workflows/     # CI/CD pipelines
├── Dockerfile             # Multi-stage Docker build
├── docker-compose.yml     # Docker Compose configuration
├── docker-compose.dev.yml # Development environment
└── DESIGN.md             # Architecture documentation

🐛 Troubleshooting

Common Issues

Error: "HETZNER_TOKEN or HETZNER_TOKEN_FILE environment variable is required"

Make sure you've set either the HETZNER_TOKEN environment variable or the HETZNER_TOKEN_FILE environment variable.

# Option 1: Direct token
export HETZNER_TOKEN="your-token-here"
./prometheus-storagebox-exporter

# Option 2: Token from file (recommended for NixOS)
echo "your-token-here" > /run/secrets/hetzner-token
export HETZNER_TOKEN_FILE="/run/secrets/hetzner-token"
./prometheus-storagebox-exporter

Error: "cannot specify both HETZNER_TOKEN and HETZNER_TOKEN_FILE"

You cannot specify both token methods simultaneously. Choose either HETZNER_TOKEN or HETZNER_TOKEN_FILE, not both.

# Correct: Use only one method
export HETZNER_TOKEN="your-token-here"
# or
export HETZNER_TOKEN_FILE="/path/to/token/file"

Error: "API request failed with status 401"

Your API token is invalid or has expired. Generate a new token from the Hetzner Cloud Console with Read permissions.

Error: "API request failed with status 403"

Your API token doesn't have sufficient permissions. Ensure the token has at least Read permissions.

No metrics appearing in Prometheus

Check exporter health: curl http://localhost:9509/health
Check metrics endpoint: curl http://localhost:9509/metrics
Verify Prometheus configuration
Check exporter logs: docker logs storagebox-exporter

Grafana dashboard shows "No data"

Verify Prometheus is scraping the exporter
Check the data source URL in Grafana
Ensure the storage box variable has values
Check the time range in Grafana

🤝 Contributing

Contributions are welcome! Please:

Fork the repository
Create a feature branch (git checkout -b feature/amazing-feature)
Commit your changes (git commit -m 'Add amazing feature')
Push to the branch (git push origin feature/amazing-feature)
Open a Pull Request

Adding New Metrics

Update the collector in internal/collector/storagebox.go
Add metric definitions
Update the Grafana dashboard (grafana-dashboard.json) if needed
Update this README

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.

🙏 Credits

Technologies

Hetzner Storage Box - Backup storage solution
Hetzner Cloud API - Modern API infrastructure
Prometheus - Monitoring toolkit and time series database
Grafana - Analytics and monitoring platform
Go - Programming language

Inspiration

fleaz/prometheus-storagebox-exporter - Original implementation
Prometheus exporter best practices

📞 Support

Issues: Report a bug
Features: Request a feature
Security: Report a vulnerability
Documentation: DESIGN.md for architecture details

💝 Donate

If you find this project useful and want to support its development, you can donate via PayPal:

Your support helps keep this project maintained and improved! 🙏

⭐ If this project helped you, consider giving it a star!

Made with ❤️ from 🇪🇸 for the Prometheus and Hetzner communities

Name		Name	Last commit message	Last commit date
Latest commit History 94 Commits
.github/workflows		.github/workflows
grafana-provisioning		grafana-provisioning
internal		internal
.env.example		.env.example
.gitignore		.gitignore
.golangci.yml		.golangci.yml
.goreleaser.yml		.goreleaser.yml
CHANGELOG.md		CHANGELOG.md
DESIGN.md		DESIGN.md
Dockerfile		Dockerfile
LICENSE		LICENSE
Makefile		Makefile
README.md		README.md
docker-compose.dev.yml		docker-compose.dev.yml
docker-compose.yml		docker-compose.yml
go.mod		go.mod
go.sum		go.sum
main.go		main.go
prometheus.yml		prometheus.yml
test-env.sh		test-env.sh

License

crstian19/prometheus-storagebox-exporter

Folders and files

Latest commit

History

Repository files navigation

Prometheus Hetzner Storage Box Exporter

📋 Overview

Key Features

📊 Dashboard Preview

🚀 Quick Start

Prerequisites

Docker Compose (Recommended)

Docker

Binary

Access Metrics

⚙️ Configuration

Environment Variables

Command-line Flags

Cache Configuration (Optional)

When to Enable Cache

Cache Configuration Examples

Prometheus Configuration (Recommended Alternative)

📊 Metrics

Core Storage Metrics

Information & Status Metrics

Access Settings Metrics

Protection & Snapshot Metrics

Exporter Metrics

Dashboard Features

Quick test with Docker Compose

Dashboard Panels

🐳 Docker Deployment

Docker Compose

Prometheus Configuration

☸️ Kubernetes Deployment

Quick Deploy

Manifests

🏗️ Development

Building

Project Structure

🐛 Troubleshooting

Common Issues

🤝 Contributing

Adding New Metrics

📄 License

🙏 Credits

Technologies

Inspiration

📞 Support

💝 Donate

About

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases 9

Packages 0

Uh oh!

Contributors 3

Uh oh!

Languages

Packages
