Pi Hole Long Term Statistics v.0.2.2

A dashboard built with Dash and Plotly to explore long-term DNS query data from Pi-hole v.6 FTL database files. Visualize allowed vs blocked domains, top clients, and query trends over time. I originally made this for my own use, but if you find it useful, a ⭐ would be awesome!

Disclaimer : This is an unofficial, third-party project. The Pi Hole team and the development of PiHole software is not related to this project.

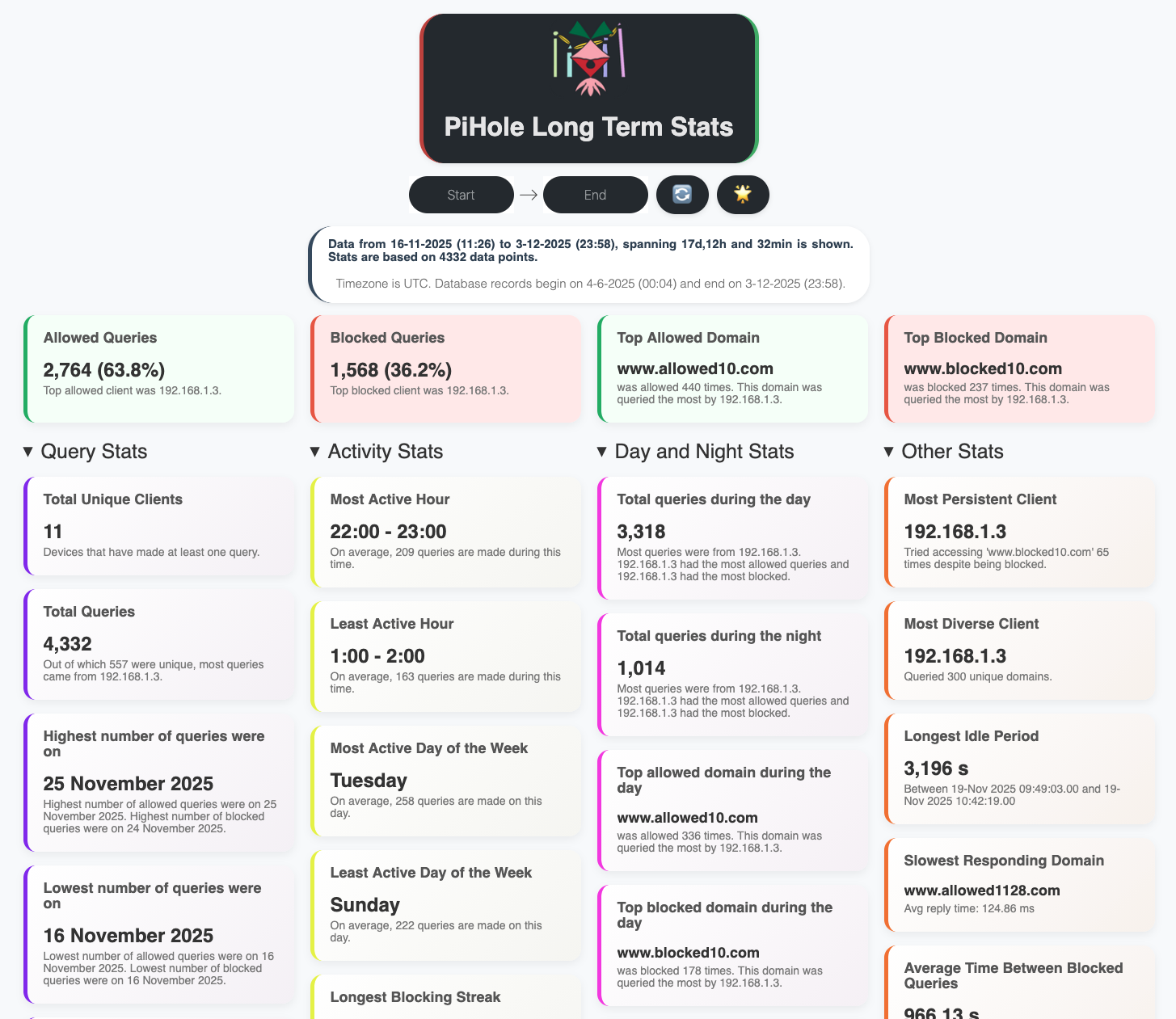

See more screenshots. (The screenshots use a mock database.)

🧰 Features

• ➕ Combine multiple databases and visualize consolidated stats.
• 🗂️ Info cards : Query stats, Activity stats, Day and Night stats. See all supported metrics.
• 📈 Interactive charts for query trends and client behavior, heatmaps showing day-hour stats, reply-times visualisation and more.
• 🔍 Filter queries by client.
• 🌐 View any number of top blocked/allowed domains, top clients.
• 📅 Analyze queries and compute stats over a custom date range and visualize them.
• ❌ Exclude domains using regex patterns before computing stats.

📦 Dependencies

• Python (>=3.11). See requirements.txt for dependencies.
• Pi-hole (> v.6) FTL database file (pihole-FTL.db)

🚀 Getting Started

Warning

Using your actual Pi-hole FTL db file for querying is not recommended and it is advised to use a copy. Place the copy in the project root or specify its path using the --db_path argument or PIHOLE_LT_STATS_DB_PATH environment variable. In any case, PiHoleLongTermStats does not monitor for changes in the Pi-hole FTL db file even if you mount it.

Tip

• You can set up a cron job to periodically copy the FTL database to the db_path PIHOLE_LT_STATS_DB_PATH location, ensuring your stats are updated without touching the live database. Use the reload button in the dashboard to refresh the stats.
• Set your timezone (e.g "Europe/Berlin") using --timezone or PIHOLE_LT_STATS_TIMEZONE.

Important

• PiHoleLongTermStats reloads the Pi-hole FTL database and recalculates stats whenever the dashboard is refreshed or the reload button is clicked.
• If no date range is selected, it uses the default period set by --days or PIHOLE_LT_STATS_DAYS.
• Large date ranges may lead to increased memory usage.
• When multiple database files are provided, PiHoleLongTermStats concatenates them into a single dataframe and sorts the combined data by timestamp. Duplicate entries are not removed for calculating stats. Consolidating multiple databases can lead to increased memory usage.

Tip

There are multiple ways to run the dashboard: using Python or Docker.

🐳 Using Docker

Click to expand.

If you have a copy of your pihole-FTL.db file, you can quickly run the dashboard using Docker Compose.

1. Make a directory for PiHoleLongtermStats:

   mkdir PiHoleLongTermStats
   cd PiHoleLongTermStats

2. Make a copy/backup of your pihole-FTL.db (Important!) and place it in the PiHoleLongTermStats directory:

   # Example: Copy from the default Pi-hole location
   sudo cp /etc/pihole/pihole-FTL.db .
   # Ensure the user running the app has read permissions
   sudo chown $USER:$USER pihole-FTL.db

3. Make a docker-compose.yml file in the same directory:

   services:
     pihole-long-term-stats:
       image: ghcr.io/davistdaniel/piholelongtermstats:latest
       container_name: pihole-lt-stats
       ports:
         - "9292:9292"  # Map host port to container port
       volumes:
         - ./pihole-FTL.db:/app/pihole-FTL.db:ro  # Path to your Pi-hole DB file (adjust if it's not in current directory)
         # To include additional Pi-hole databases, mount each one similarly:
         #- ./pihole-FTL-2.db:/app/pihole-FTL-2.db:ro
       environment:
         - PIHOLE_LT_STATS_DB_PATH=/app/pihole-FTL.db  # Path inside the container to the mounted DB file

         # Provide multiple databases by listing their container paths as a
         # comma-separated string, e.g.:
         #- PIHOLE_LT_STATS_DB_PATH=/app/pihole-FTL.db,/app/pihole-FTL-2.db

         - PIHOLE_LT_STATS_DAYS=31                     # Number of days from now of data to analyze; change if desired
         - PIHOLE_LT_STATS_PORT=9292                   # Port the app listens to inside container; keep in sync with ports mapping
         - PIHOLE_LT_STATS_NCLIENTS=10                 # Number of clients to show in top clients plots
         - PIHOLE_LT_STATS_NDOMAINS=10                 # Number of domains to show in top domains plots
         - PIHOLE_LT_STATS_TIMEZONE=UTC                # timezone for display
         #- PIHOLE_LT_STATS_IGNORE_DOMAINS=.*\.local   # regex patterns for excluding domains. Example: to exclude all .local domains use .*\.local

         # To ignore multiple domain patterns, separate each regex with a comma.
         # example definition below ignores: anything ending in .local, anything starting with ads, exactly example.com
         #- PIHOLE_LT_STATS_IGNORE_DOMAINS=.*\.local,^ads\.,^example\.com$

       restart: unless-stopped


   and run using :

   sudo docker compose up -d

4. Open your browser and visit http://localhost:9292

🐍 Using Python

If installing using python, you can install from this git repo or as a package from PyPi.

Install from PyPi :

Click to expand.

1. Install PiHoleLongTermStats from PyPi

   python -m pip install piholelongtermstats

2. Make a directory for PiHoleLongtermStats (optional):

   mkdir PiHoleLongTermStats
   cd PiHoleLongTermStats

3. Make a copy/backup of your pihole-FTL.db (Important!) and place it in the PiHoleLongTermStats directory:

   # Example: Copy from the default Pi-hole location
   sudo cp /etc/pihole/pihole-FTL.db .
   # Ensure the user running the app has read permissions
   sudo chown $USER:$USER pihole-FTL.db

4. Run the app:

   piholelongtermstats [OPTIONS]

5. Open your browser and visit http://localhost:9292

   Examples for python (Click to expand.)

   To start the dashboard and visualize a single pihole-FTL database file for the last 15 days, with top 20 clients and top 15 domains on port 9292 while ingoring all domains which end with ".local":

   piholelongtermstats --db_path pihole-FTL.db --days 15 --n_clients 20 --n_domains 15 --port 9292 --ignore-domains ".*\.local"

   To combine two databases, provide paths as comma-separated strings:

   piholelongtermstats --db_path pihole-FTL.db,pihole-FTL-2.db

   To exclude multiple domains, provide comma-separated regex patterns:

   piholelongtermstats --ignore-domains ".*\.local,.*\.apple.com"

Install from source :

Click to expand.

1. Clone this repository and move into the project folder:

   git clone https://github.com/davistdaniel/PiHoleLongTermStats.git
   cd PiHoleLongTermStats

2. Install dependencies using pip:

   pip install -r requirements.txt

3. Make a copy/backup of your pihole-FTL.db (Important!) and place it in the PiHoleLongTermStats directory:

   # Example: Copy from the default Pi-hole location
   sudo cp /etc/pihole/pihole-FTL.db .
   # Ensure the user running the app has read permissions
   sudo chown $USER:$USER pihole-FTL.db

4. Run the app:

   python piholelongtermstats/app.py [OPTIONS]

   See the Configuration section below for available options.

5. Open your browser and visit http://localhost:9292

   Examples for python (Click to expand.)

   To start the dashboard and visualize a single pihole-FTL database file for the last 15 days, with top 20 clients and top 15 domains on port 9292 while ingoring all domains which end with ".local":

   python piholelongtermstats/app.py --db_path pihole-FTL.db --days 15 --n_clients 20 --n_domains 15 --port 9292 --ignore-domains ".*\.local"

   To combine two databases, provide paths as comma-separated strings:

   python piholelongtermstats/app.py --db_path pihole-FTL.db,pihole-FTL-2.db

   To exclude multiple domains, provide comma-separated regex patterns:

   python piholelongtermstats/app.py --ignore-domains ".*\.local,.*\.apple.com"

⚙️ Configuration

You can configure the application using command-line arguments or environment variables:

Command-Line Argument	Environment Variable	Default Value	Description
--db_path	PIHOLE_LT_STATS_DB_PATH	pihole-FTL.db	Path to the copied Pi-hole database file. Multiple databases can be combined by providing paths as comma-separated strings.
--days	PIHOLE_LT_STATS_DAYS	31	Number of days back from today to analyze.
--port	PIHOLE_LT_STATS_PORT	9292	Port number to serve the Dash app on.
--n_clients	PIHOLE_LT_STATS_NCLIENTS	10	Number of top clients to show in top clients plots.
--n_domains	PIHOLE_LT_STATS_NDOMAINS	10	Number of top clients to show in top clients plots.
--port	PIHOLE_LT_STATS_TIMEZONE	UTC	Timezone for displaying times in the dashboard.
--ignore-domains	PIHOLE_LT_STATS_IGNORE_DOMAINS	""	Comma-separated regex patterns to exclude domains from from stats (e.g to exlcude all .local domains, use ".*.local")

🧑‍💻 Contributing

Any contribution, feature ideas or bug fixes are always welcome.

Star History

Supported metrics

Metric	Description
Allowed Queries	Total number of queries that were allowed through the Pi-hole.
Blocked Queries	Total number of queries that were blocked by the Pi-hole.
Top Allowed Domain	The domain which was allowed the most
Top Blocked Domain	The domain which was blocked the most
Total Unique Clients	The total number of unique devices that made queries.
Total Queries	Total number of queries processed by the Pi-hole.
Highest number of queries were on	The date with the peak query count.
Lowest number of queries were on	The date with the lowest query count.
Average reply time	The average time it takes for the Pi-hole to respond to a query.
Most Active Hour	The hour with the highest number of queries.
Least Active Hour	The hour with the lowest number of queries.
Most Active Day of the Week	The day with the highest query activity.
Least Active Day of the Week	The day with the lowest query activity.
Longest Blocking Streak	The longest consecutive period where queries were blocked.
Longest Allowing Streak	The longest consecutive period where queries were allowed.
Total queries during the day	Total number of queries made during daytime hours (06:00 to 23:59).
Total queries during the night	Total number of queries made during nighttime hours.
Top allowed domain during the day	The most allowed domain during the day.
Top blocked domain during the day	The most blocked domain during the day.
Top allowed domain during the night	The most allowed domain during the night.
Top blocked domain during the night	The most blocked domain during the night.
Most Persistent Client	The client that made the highest number of queries.
Most Diverse Client	The client that queried a blocked domain the most times.
Longest Idle Period	The longest period without any queries.
Slowest Responding Domain	The domain with the highest average response time.
Average Time Between Blocked Queries	Average interval between consecutive blocked queries.
Average Time Between Allowed Queries	Average interval between consecutive allowed queries.

📄 License

MIT
