Dhishan Amaranath
16909360
The entry here is an detailed description of thought process and tools used for cracking an MAC application and finally making a KeyGen.
The crackme used here is an MSJ [Mac Serial Junkie] 2009 challenge and can be found at [https://reverse.put.as/wp-content/uploads/2010/05/MSJ20091.zip][crackme].
According to Merriam-Webster Dictionary, Reverse Engineering (RE) is "disassemble or analyze in detail in order to discover concepts involved in manufacture."
As the definition goes, We need to understand the logic which went into the application. As we are all aware, the final executable any CPU can run is an Binary File which consists of just 0's and 1's. The process before this was an assembly language code generated usually from an high level language.
- file
- strings
- class-dump
- OTX
- lldb
The first question about the binary is what is the type of the file or in more detail what architecture the binary is made for.
UNIX based system have an built in utility called file for finding the type of the executable. This works usually by finding the metadata stored in the binary itself.
Dhishan:crackme$ file Challenge\ #1.app/
Challenge #1.app/: directoryThe Application which we could see with that cute logos are basically a directory. That further allows us to change directory into them and find our binaries
file
Dhishan:crackme$ file Challenge\ #1.app/Contents/MacOS/Challenge\ #1
Challenge #1.app/Contents/MacOS/Challenge #1: Mach-O universal binary with 2 architectures
Challenge #1.app/Contents/MacOS/Challenge #1 (for architecture i386): Mach-O executable i386
Challenge #1.app/Contents/MacOS/Challenge #1 (for architecture ppc): Mach-O executable ppcThe file commands tells us that the binary is a multiple architecture compatible.
And by knowing that the binary is an i386 architecture, we know the data size of the registers or instructions we are dealing with are 32 bits.
Also we can see our pc architecture using the following command
uname -astrings
There is another GNU built in utility called strings which prints all the strings inside the binary.
Remember that the each character is a byte Each memory unit is a byte too and a set of characters stored together in a binary are strings. There is more to that but thats all we need to know about it.
Dhishan:crackme$ strings Challenge\ #1.app/Contents/MacOS/Challenge\ #1This gave me a huge list of strings and with a little observation I was able to categorize them, A sample is as below
| Variables | Methods | UI |
|---|---|---|
| name | validateSerial:forName: | mainWindow |
| serial | isRegistered | nameField |
| length | verifyRegistration | serialField |
| isEqual |
From this list we already know a lot of details like the application has two UI fields for name and serial, and validateSerial:forName: method kind of hints us that the serial is validated against the user name.
class-dump
The next tool I discuss here is to retrieve the names of classes, methods etc. Its a part of the Otool we discuss later. This genius tool gives the names of the classes and methods used in the application for any MAC-O files built using Objective-C.
Dhishan:class-dump$ ./class-dump ../crackme/Challenge\ #1.app/Contents/MacOS/Challenge\ #1
@interface Level1 : NSObject
{
id errorSheet;
id incorrectSerialSheet;
id mainWindow;
id nameField;
id registeredSheet;
id serialField;
id welcomeSheet;
BOOL hasBeenRegistered;
}
- (void)awakeFromNib;
- (void)applicationDidFinishLaunching:(id)arg1;
- (void)continueWelcomeButton:(id)arg1;
- (void)quitCorrectSerialButton:(id)arg1;
- (void)okErrorSheetButton:(id)arg1;
- (void)okIncorrectSerialButton:(id)arg1;
- (void)cancelButton:(id)arg1;
- (void)unregisterButton:(id)arg1;
- (void)emailResults:(id)arg1;
- (void)verifyRegistration:(id)arg1;
- (BOOL)isRegistered;
- (BOOL)validateSerial:(id)arg1 forName:(id)arg2;
- (BOOL)applicationShouldTerminateAfterLastWindowClosed:(id)arg1;
@endNow our intuition of the methods we categorized from the strings tool is validated.
OTX
With this information in hand we are more than ready to disassemble our binary. There are various tools which disassemble our binary and my favorite is OTX. Its an GUI which uses the Otool in background provided by Xcode to disassemble. Assembly files have .asm extension.
lldb
The most important tool I will be using is a debugger, Which basically allows us to peek at CPU level, how the application is executed instruction by instruction. One such widely used debugger is GDB. I will be using lldb an Apple's version of the gdb.
You can learn more on using LLDB Practical Debugging with LLDB Dancing with the debugger GDB vs LLDB commands
Function 1:
(void)verifyRegistration:(id)arg1
With a little knowledge of computer architecture I was quickly able to decode the first few lines of the asm which are function call conventions. More can be found Here
+0 0000288e pushl %ebp
+1 0000288f movl %esp,%ebp
+3 00002891 pushl %esi
+4 00002892 pushl %ebx
+5 00002893 subl $0x20,%espWithout further looking into the next line of assembly I followed the code to next call instruction a little down the line.
+26 000028a8 calll 0x0000505e -[(%esp,1) stringValue]There were many such calling instructions and each time there were repeated instructions moving data into the stack. And each call was made to the same address 0x0000505e but different scenarious.
+52 000028c2 calll 0x0000505e -[(%esp,1) isEqual:]
+61 000028cb calll 0x0000504a _NSBeep
+127 0000290d calll 0x0000505e -[(%esp,1) stringValue]It was a clear indication that the function at 0x0000505e should be some kind of call handling method.
$esp represented stack pointer and details of other registers can be found at x86 Registers
For all purposes I considered the method at 0x0000505e as an Black Box where the arguments were pushed on the stack orderly. The next instructions after the call repeatedly involved use of General Purpose Register $EAX So I was able to deduce that the return from the call must be put in $EAX.
Now a little more to confirm, I ran the application with our debugger lldb using
Dhishan:MacOS$ sudo lldb Challenge\ #1disassembled code from OTX gave me the relative address of the function and was able to place breakpoints before the call and step through the code. Findings revealed that changes before and after the call involved only $EAX and $EDX and no alteration to the stack.

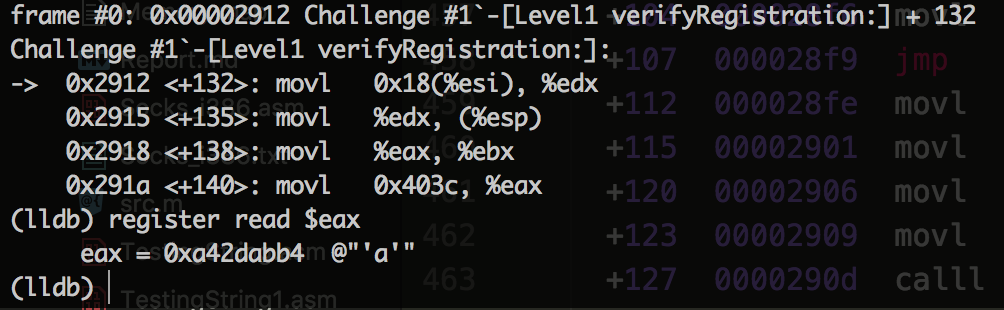

Example Screenshot:
The example call above was made with arguments (id)nameField and an address pointed at 0x0000403c in stack. As we had already discovered from strings tool, The nameField appears to contain the the name value. The address might correspond to a function name stringValue because the result was string representation of our userid. The result as expected in the $EAX register was @"'a'". The format is String representation in the Objective-C.
This confirmed that the before the call, stack contained the function addresses in some form and the arguments. And the results were put in the
$EAXregister and call was returned.
validateSerial:forName:

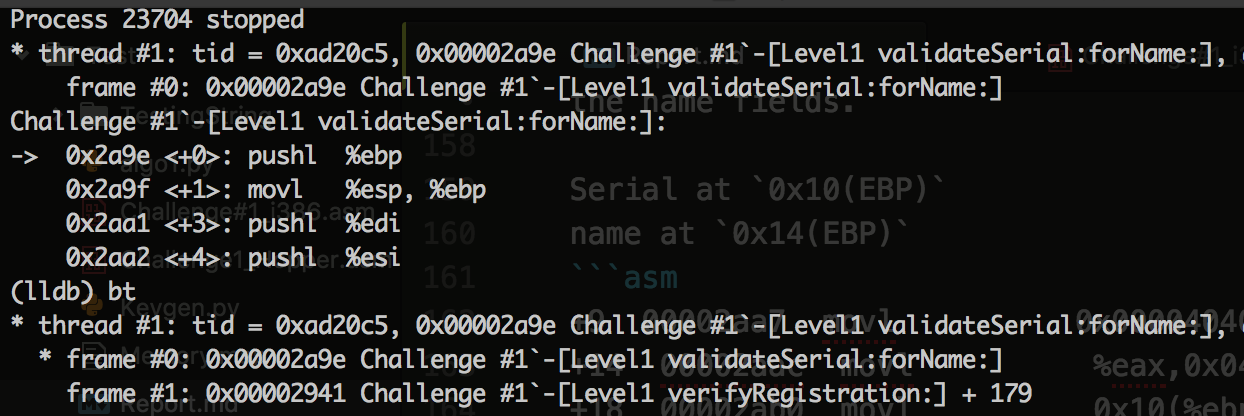

The next important function was validateSerial:forName: with two arguments (id)nameField and (id)serialField. From the function name and set of arguments passed, this looks like the function which validates the serial with the corresponding name. Breakpointing at the start of the function and using bt in lldb, I was able to get the call stack as below:
The function was called from our previous function with the name, serial and address of the function pushed in the stack. Tracing back the stack I was able to deduce the location of serial and the name fields to be :
-Serial at 0x10(EBP)
-name at 0x14(EBP)
The next snipped which was interesting was a jump based on the result of a stack to the end of the function. This cant be good. It appears like a return statement if some condition is not validated.
+9 00002aa7 movl 0x00004040,%eax length
+14 00002aac movl %eax,0x04(%esp)
+18 00002ab0 movl 0x10(%ebp),%eax
+21 00002ab3 movl %eax,(%esp)
+24 00002ab6 calll 0x0000505e -[(%esp,1) length]
+29 00002abb cmpl $0x08,%eax
+32 00002abe jne 0x00002c4e This call is made to a function called length with serial as an argument. The result is tested with an immediate value of 8 cmpl $0x08,%eax.
It is intuitive that the designer is testing for the length of the serial to be 8 characters
So our First deduction with respect to serial:
The length of the password should be 8 characters
Scrolling down the assembly the next two calls were little different they were interdependent. i.e. The result of one function is used for the other
movl 0x14(%ebp),%eax
movl %eax,(%esp)
calll 0x0000505e -[(%esp,1) lossyCString]
movl %eax,(%esp)
calll 0x00005063 _strlen
movl %eax,0xd0(%ebp)The name at 0x14(%ebp) is passed into a function called lossyCString and the result is passed into a function called _strlen. It is clear that the user id is converted into string and its length is found.
The length is stored in the stack at location 0xd0(%ebp)
The code snippet below with an unconditional jump and the jump if above with a compare instruction, hints us that there is a loop.
jmp 0x00002b27
....
cmpl %ebx,0xd0(%ebp)
ja 0x00002af0And looking briefly inside the loop, it was sort of an algorithm and I named it algorithm 1.
A similar structure was found couple of lines later with slight modifications and I called it Algorithm 2.
And for each algorithm loop comparator constant is an value it stored earlier at 0xd0(%ebp) which is the length of the name field.
Now we have two black boxes [Not really black though] running different algorithms taking the same inputs [nameField]. After each algorithm, there was a Repetition of a code snipped which called our call handler with the arguments
- result of the algorithms
0x- 'stringWithFormat'
- 'NSString'
movl $0x00003078,0x08(%esp) # Ascii(0x3078) = 0x
movl %eax,0x0c(%esp) # Output of the algorithm is in $eax
movl 0x00004028,%eax # Memory at 0x00004028 points to methodstringWithFormat
movl %eax,0x04(%esp) # Memory at 0x00004054 points to class NSString
movl 0x00004054,%eax
movl %eax,(%esp)
calll 0x0000505eThe result from the call in the register $eax was little ambiguous and with the help of Google I was able to figure out the syntax and wanted to reconstruct the code to better understand.

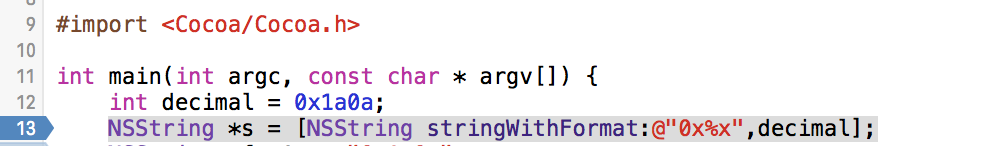

With a little tweaking and experimenting in Xcode in Objective-C I was able to reproduce the assembly snippet.

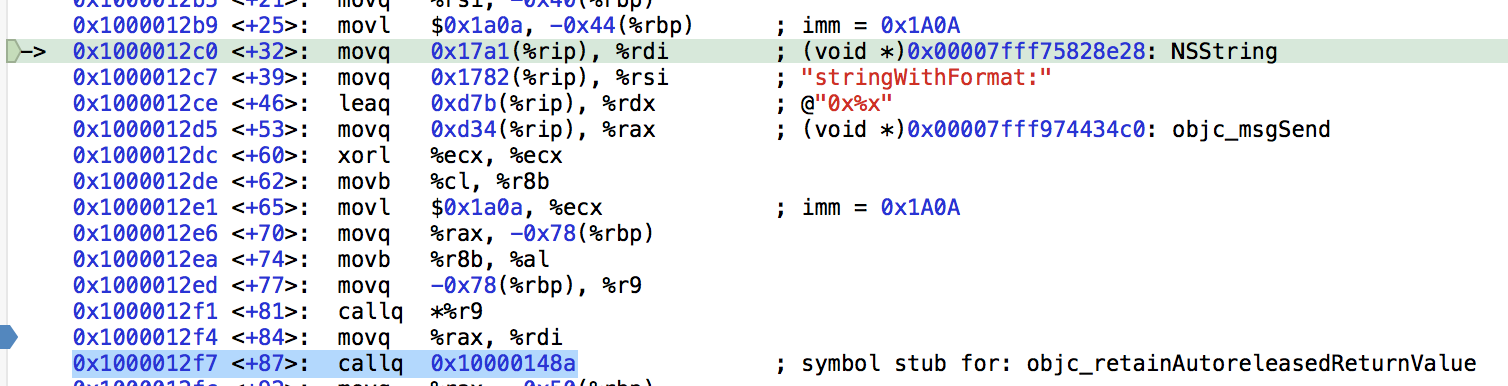

NSString *s = [NSString stringWithFormat:@"0x%x",decimal];0x1000012b9 <+25>: movl $0x1a0a, -0x44(%rbp) ; imm = 0x1A0A
0x1000012c0 <+32>: movq 0x17a1(%rip), %rdi ; (void *)0x00007fff75828e28: NSString
0x1000012c7 <+39>: movq 0x1782(%rip), %rsi ; "stringWithFormat:"
0x1000012ce <+46>: leaq 0xd7b(%rip), %rdx ; @"0x%x"
0x1000012d5 <+53>: movq 0xd34(%rip), %rax ; (void *)0x00007fff974434c0: objc_msgSend
0x1000012f7 <+87>: callq 0x10000148aThe instruction was compiled to my system architecture and was little different in the Register names and found the mapping and found out the function used in the original is the same as I guessed it.
From the above experiment I was able to conclude that the
nameis taken as input and passed into two different algorithms and the individual results are converted into strings and stored in stack.
Next code snipped as expected should be something related to serial:
movl %ebx,0x08(%esp) -EBX = 0 @+267
movl %esi,0x0c(%esp) -ESI = 4 @+262
movl %eax,0xdc(%ebp)
movl 0x00004048,%eax -substringWithRange
movl %eax,0x04(%esp)
movl 0x10(%ebp),%eax
movl %eax,(%esp)
calll 0x0000505e -[(%esp,1) substringWithRange:]We know the location of the serial is at 0x10(EBP) and it is pushed into stack with the another argument substringWithRange and two more arguments 0 [$EBX] & 4 [$ESI]. It is almost clear that the serial is sent into a function called substringWithRange with two more arguments 0 and 4. The substringWithRange function from the Objective-C strings class takes the string, the start index and the length and returns the substring.
Again I was able to reproduce and verify with Xcode.
NSString *foo = [foo1 substringWithRange:NSMakeRange(0, 4)];![][S_xcode3]
Also a little bit of googling I was able to find out that the foo above contains the pointer to the memory location containing the returned string and similarly so should be the Contents of the $eax register when the call returns. Using LLDB I verified it as follows and voila! 😊
![][S_appsr1] ![][S_memread]
A similar call was made for the last 4 character of the serial.
calll 0x0000505e
-[(%esp,1) substringWithRange:] Stack = Serial, substringWithRange, ESI = 4, EDI = 4The next interesting code snippet was a comparison one:
00002c0f movl %ebx,(%esp)
00002c14 movl 0xd8(%ebp),%eax
00002c17 movl %eax,0x08(%esp)
00002c1b movl 0x00004008,%eax
00002c20 movl %eax,0x04(%esp)
00002c24 calll 0x0000505e -[(%esp,1) isEqual:]
00002c29 testb %al,%al
00002c2b je 0x00002c4e return;If you recall, the result of algorithm 1 - string converted value was put into 0xd8(%ebp). We can now observe that the result of algorithm 1 is passed with the first 4 characters of the serial to an function called isEqual. The result in al [byte addressable $eax register] now tells if both the arguments were equal.
testb %al,%al
je 0x00002c4eThe AL register value if 1 then the zero flag is not set and then jump wont happen to the end of the function, which means, they should be equal.
Exactly similar arguments were passed but variation this time was the result of algorithm 2 with last 4 characters of the serial.
If you are thinking what I am thinking, then we know we just cracked our application.:blush:
however the code snippet below for clarification
00002c40 calll 0x0000505e -[(%esp,1) isEqual:]
00002c45 movl $0x00000001,%edx
00002c4a testb %al,%al
00002c4c jne 0x00002c5
00002c4e xorl %edx,%edx
00002c50 addl $0x3c,%esp
00002c53 movl %edx,%eaxIf you Remember your digital logic class you would know that xoring the value with itself would result in 0. If the result is equal then $edx would be 1 other wise its 0 from the xor result. And we know for sure that the function returns the result in the $EAX register.
The first digits of the serial value should be equal to algorithm one and the last four digits to the result of algorithm 2. As we saw earlier the algorithms used the
nameand presented the results.
Decoding the algorithms were relatively easy and I made a python GUI application for generating serial based on the username
![][S_keygen] ![][S_success]
