The Signal Protocol is a cryptographic protocol that provides end-to-end encryption for instant messaging and voice calls. This repository houses a simple node project to demonstrate how the Signal Protocol could be implemented. As per the actual specification / setup of the Signal Procotol, this project has both a ReactJS client and a simple server that connects to the clients via a websocket for message transfers.
When you use a messaging app that supports the Signal Protocol, your messages are encrypted on your device before they are sent. This means that only the intended recipient can decrypt and read the message, and nobody else, including the app developer or the server that the message passes through, can access the content of the message.
The Signal Protocol uses a combination of symmetric and asymmetric encryption to achieve this level of security. When you start a conversation with someone, your device generates a set of keys that are used to encrypt and decrypt the messages. These keys are shared securely between the devices of the participants in the conversation. This mechanism is know as The Extended Triple Key Exchange Protocol or X3DH for short.
The Signal Protocol also provides features like forward secrecy and deniability. Forward secrecy means that even if an attacker were to obtain the encryption keys, they would not be able to decrypt previously sent messages. Deniability means that it is impossible to prove that a particular message was sent by a particular person, which can be useful in situations where privacy is important. To achieve this, the protocol uses a mechanism known as the Double Ratchet mechanism.
The protocol relies heavily on what is known as the Diffie Hellman key exchange (DH for short) where a private key from one party is used to compute a shared secret using the public key of another remote party. Likewise, the remote party computes another secret using his private key and the other's public key. The resulting secrets should be identical, hence the term 'shared secret'. The advange of a DH key exchange is to establish a shared secret or 'password' between two parties without ever sharing it over a network.
The Extended Triple Diffie-Hellman (or X3DH) algorithm is used to establish the initial shared secret key between two users, Alice and Bob, based on their public keys and using a server. Bob has already published some information on a server and Alice wants to establish a shared secret key with Bob in order to send him an encrypted message, while Bob is not online. Alice must therefore be able to perform the key exchange using simply the information stored on the server. The server can also be used to store messages by either of them until the other one can retrieve them.
To perform an X3DH key agreement with Bob, Alice contacts the server and fetches a "prekey bundle" containing the following values:
Bob's public identity key IKB
Bob's signed prekey SPKB
Bob's prekey signature Sig(IKB, Encode(SPKB))
Bob's one-time prekey OPKB
The server should provide one of Bob's one-time prekeys if one exists, and then delete it. If all of Bob's one-time prekeys on the server have been deleted, the bundle will not contain a one-time prekey.
Alice verifies the prekey signature and aborts the protocol if verification fails. Alice then generates an ephemeral key pair with public key EKA.
If the bundle does not contain a one-time prekey, she calculates:
DH1 = DH(IKA, SPKB)
DH2 = DH(EKA, IKB)
DH3 = DH(EKA, SPKB)
SK = KDF(DH1 || DH2 || DH3)
Where the KDF is a cryptographic function used to derive one or more secret keys from a shared secret or a master key. In our case, the KDF is a simple hashing function that uses the SHA-256 algorithm.
If the bundle does contain a one-time prekey, the calculation is modified to include an additional DH:
DH4 = DH(EKA, OPKB)
SK = KDF(DH1 || DH2 || DH3 || DH4)
Where SK is a shared key that the other party (Bob) should be able to derive on his end without Alice telling/sending it to him.
Note that this sample application does not handle missing one-time prekey in the prekey bundle as described above. The server expects a one-time prekey in each bundle sent by users, in this case, Bob.

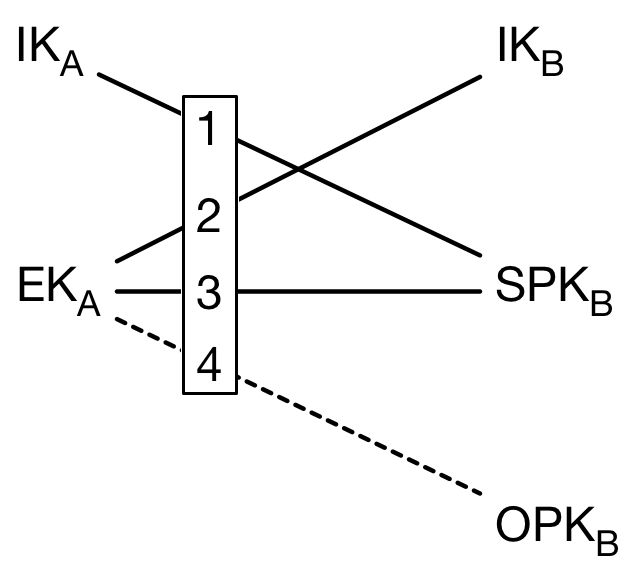

Visually, the following exchanges happen:
After calculating SK, Alice deletes her ephemeral private key and the DH outputs. She then send a post-exchange key bundle to the server that Bob can retrieve at a later date to establish an identical SK. The post-exchange key bundle contains:
Alice's public identity key IKA
Alice's generated public ephemeral key EKA
After retreiving the post key bundle, Bob calculates the following:
DH1 = DH(SPK, IK)
DH2 = DH(IK, EK)
DH3 = DH(SPK, EK)
DH4 = DH(OPK, EK)
And like Alice computes a SK like so:
SK = KDF(DH1 || DH2 || DH3 || DH4)
Note that a DH key pair exchanges (ex: DH2 = DH(IK, EK)) on their own do not mean anything. It is the combined set of results from DH key exchanges of various keys that provides security. For instance, the key exchange with the IK of both parties provides 'mutual authentication'. Should the IK of one party by forged or replaced by an outsider, the resulting shared secret will not match and encryption won't be established
The Double Ratchet algorithm is used by two parties to exchange encrypted messages based on a shared secret key. After performed a X3DH to agree on the shared secret key, the parties will use the Double Ratchet to send and receive encrypted messages.
The parties derive new keys for every "Double Ratchet" message so that earlier keys cannot be calculated from later ones. The parties also send Diffie-Hellman public values attached to their messages. The results of Diffie-Hellman calculations are mixed into the derived keys so that later keys cannot be calculated from earlier ones. These properties gives some protection to earlier or later encrypted messages in case of a compromise of a party's keys. The Double Ratchet uses two types of keys: root keys and chain keys. Root keys are long-term keys used to derive new chain keys, while chain keys are used to encrypt and decrypt messages.
To start a session, two parties should have computed an identical share secret known as the root keys in the Double Ratchet mechanism. Each party then derives two chain keys: a sending chain key and a receiving chain key. The sending chain key is used to encrypt messages sent by the party, while the receiving chain key is used to decrypt messages received by the party.
As messages are sent and received, the chain keys are updated. Each time a message is sent, the sending chain key is updated, and a new chain key is derived from the root key. Similarly, each time a message is received, the receiving chain key is updated, and a new chain key is derived from the root key. This ensures that if an attacker is able to compromise one chain key, they cannot compromise the entire session, as the next chain key has already been derived from the root key.

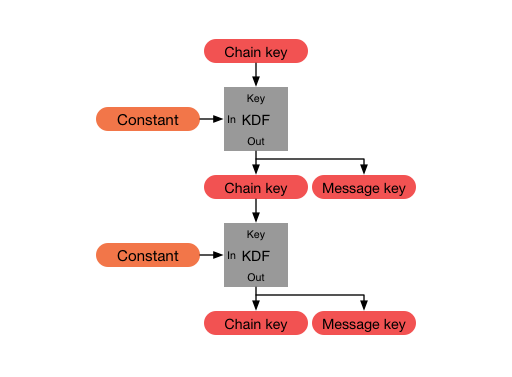

Visually, a ratchet looks like the following:
Where the message key is used to encrypt or decrypt text (or any other piece of data for that matter) respectively for the sending and receiving ratchets.
The Double Ratchet also includes a message counter and a timestamp, which are included in the message header. This ensures that messages are delivered in order and that an attacker cannot replay an old message.
By deriving new chain keys from the root key, the Double Ratchet provides forward secrecy and protects against compromise of previous chain keys. The message counter and timestamp ensure that messages are delivered in order and prevent replay attacks.
Upon running npm run start_all, both a react client and the websocket server are spun up on http://localhost:3000 and ws://localhost:4030 respectively. To connect multiple clients, simply duplicate the browser tab or create a new tab with http://localhost:3000. You can connect up to a hardcoded 10 clients simultaneously, though, the encryption could work for an unlimited number of users.
You can also expose both the client and the server to a local network by following the simple instructions here and here.
The actual Signal Protocol-related code can be found here.

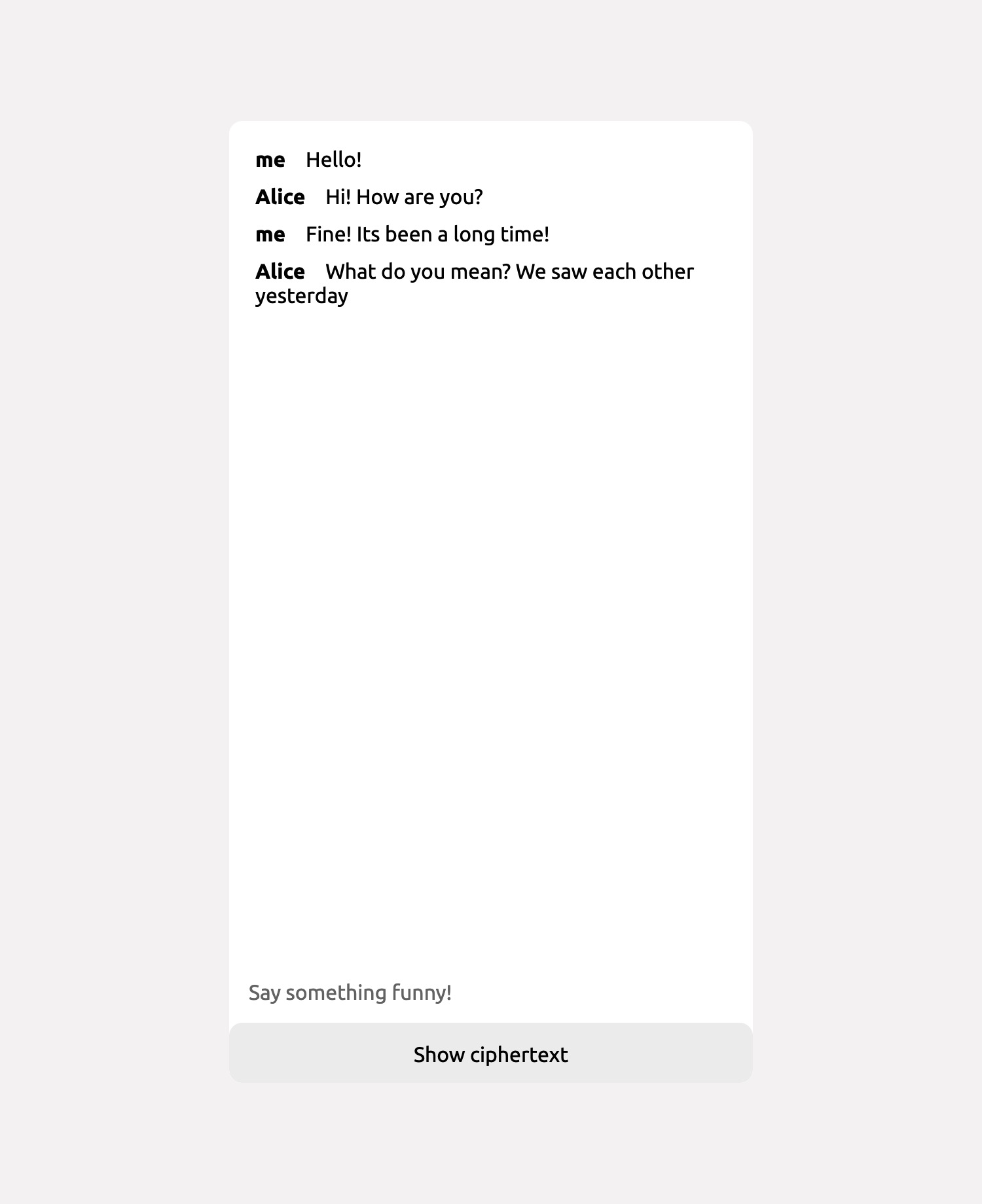

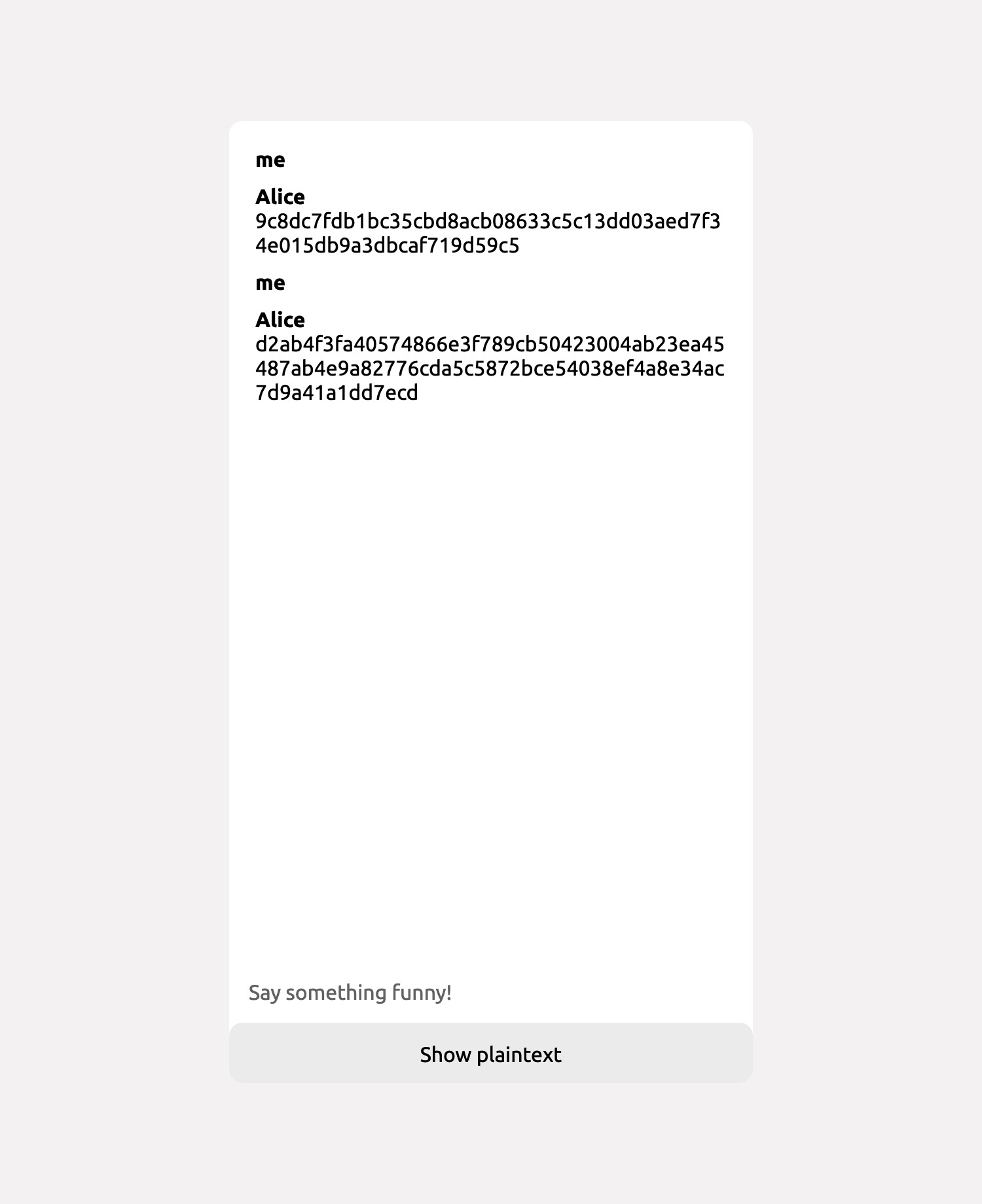

Images displaying two react clients, Bob and Alice, with both plain and encrypted messages.
The messages transfered over the network through the server look like the following (from the node console). Note the lack of ledgible messages:
{
id: 'e306992c-335e-41db-a934-c13fbdd97a93',
type: 'chat',
text: {
header: { counter: 4, date: '2023-04-09T09:22:28.328Z' },
ciphertext: 'd2ab4f3fa40574866e3f789cb50423004ab23ea45487ab4e9a82776cda5c5872bce54038ef4a8e34ac7d9a41a1dd7ecd'
},
to: { id: '496a9e00-bfeb-4d43-87d0-105a6a34e8f1' },
from: { id: 'ebc44f87-f289-4498-898f-056fa3470178' }
}
And on Bob's side, the computed for Alice was (as seen the debug console in the browser):
And vice versa on Alice's side:
signal specification of the x3dh
