Forge 1.8.9-1.12.2 handshake protocol support #144

iceiix · 2019-05-11T23:26:42Z

#134 #88 added Forge 1.7.10 handshake support, but 1.8.9 and later uses slightly different handshakes

iceiix · 2019-05-11T23:29:12Z

RegistryData packets parse without error:

FML|HS ServerHello: fml_protocol_version=2, override_dimension=Some(0)
FML|HS msg=ServerHello { fml_protocol_version: 2, override_dimension: Some(0) }
Received FML|HS ServerHello 2 Some(0)
FML|HS msg=ModList { mods: [ForgeMod { modid: "FML", version: "8.0.99.99" }, ForgeMod { modid: "Forge", version: "11.15.1.2318" }, ForgeMod { modid: "mcp", version: "9.19" }] }
Received FML|HS ModList: [ForgeMod { modid: "FML", version: "8.0.99.99" }, ForgeMod { modid: "Forge", version: "11.15.1.2318" }, ForgeMod { modid: "mcp", version: "9.19" }]
FML|HS msg=RegistryData { has_more: true, name: "minecraft:potions",...
FML|HS msg=RegistryData { has_more: true, name: "minecraft:villagerprofessions...
FML|HS msg=RegistryData { has_more: true, name: "minecraft:blocks",...
FML|HS msg=RegistryData { has_more: false, name: "minecraft:items", ...

but then the connection drops after complete:

FML|HS msg=HandshakeAck { phase: WaitingCAck }
FML|HS msg=HandshakeAck { phase: Complete }
FML|HS handshake complete!
thread 'main' panicked at 'Err: IOError(Os { code: 54, kind: ConnectionReset, message: "Connection reset by peer" })', src/server/mod.rs:448:33

The server logs:

[16:19:45] [Netty Server IO 2/INFO] [FML]: Client attempting to join with 3 mods : [email protected],[email protected],[email protected]
[16:19:45] [Netty Server IO 2/ERROR] [FML]: Attempt to double complete the network connection!
[16:19:45] [Netty Server IO 2/ERROR] [FML]: HandshakeCompletionHandler exception
net.minecraftforge.fml.common.network.FMLNetworkException: Attempt to double complete!
at net.minecraftforge.fml.common.network.handshake.NetworkDispatcher.completeHandshake(NetworkDispatcher.java:534) ~[NetworkDispatcher.class:?]

https://github.com/MinecraftForge/MinecraftForge/blob/1.8.9/src/main/java/net/minecraftforge/fml/common/network/handshake/NetworkDispatcher.java#L533

iceiix · 2019-05-11T23:46:40Z

https://wiki.vg/Minecraft_Forge_Handshake#Forge_handshake

S→C: A series of RegistryData packets is sent, with hasMore being true for all packets except the last.

Client reads and stores each RegistryData, continuing reading until hasMore is false. Once hasMore is false, it checks whether it has all of the needed blocks/items. If it does not, it disconnects. Otherwise, continue.

C→S: A HandshakeAck packet is sent with phase being WAITINGSERVERCOMPLETE (3).

but I was sending WaitingServerData in reply to RegistryData (and ModIdData)... was that wrong for ModIdData too? ModList is supposed to be replied with WaitingServerData. Changing to WaitingServerComplete works (for 1.8.9, test 1.7.10).

… accidentally

iceiix · 2019-05-12T00:19:41Z

Tested with:

1.8.9 (forge 11.15.1.2318)
1.10.2 (forge 12.18.3.2511)
1.11.2 (forge 13.20.1.2588)
1.1.12 (forge 14.23.5.2837)

but with no mods on the server. Retested with http://files.minecraftforge.net/maven/cpw/mods/ironchest/index_1.8.9.html installed on the server, then fails:

Explanation at: https://wiki.vg/Minecraft_Forge_Handshake#Connection_to_a_forge_server
Omitting \0FML\0 on the end of the server address didn't matter for 1.7.10 for some reason.

https://wiki.vg/Minecraft_Forge_Handshake#Connection_to_a_forge_server

iceiix · 2019-05-12T00:38:51Z

After adding \0FML\0, able to connect to:

1.8.9 + forge 11.15.1.2318 + ironchest
1.10.2 + forge 12.18.3.2511 + ironchest
1.11.2 + forge 13.20.1.2588 + ironchest
1.12.2 + forge 14.23.5.2837 + ironchest

http://files.minecraftforge.net/maven/cpw/mods/ironchest/ only goes up to release 1.12.2 (and snapshot 13w02b, which is protocol 53 = a few weeks after 1.4.7, not supported pre-1.7.10).

http://files.minecraftforge.net/maven/net/minecraftforge/forge/index_1.13.2.html has Forge 1.13.2 but would need a 1.13.2 mod. https://bot.notenoughmods.com/1.13.2.html lists 18 mods, including ironchests as dev-only but can't find the 1.13.2 download on the link given.

https://bot.notenoughmods.com/1.14.html has 3 mods and there is also https://fabricmc.net but Forge doesn't have a 1.14 release yet on http://files.minecraftforge.net/maven/net/minecraftforge/forge.

iceiix · 2019-05-12T00:42:50Z

https://minecraft.curseforge.com/projects/iron-chests/files has ironchests for 1.13.2 (not http://files.minecraftforge.net/maven/cpw/mods/ironchest/ for some reason)

iceiix · 2019-05-12T01:01:46Z

1.13.2 + forge 25.0.198 + ironchest

changed the ping packet data, kicked:

packet = Some(StatusResponse(StatusResponse { status: "{"description":{"text":"A Minecraft Server"},"players":{"max":20,"online":0},"version":{"name":"1.13.2","protocol":404},"forgeData":{"channels":[{"res":"ironchest:main_channel","version":"1","required":false}],"mods":[{"modId":"forge","modmarker":"ANY"},{"modId":"ironchest","modmarker":"1.13.2-8.0.2"}],"fmlNetworkVersion":2}}" }))
about to parse id=1, dir=Clientbound state=Status
packet = Some(StatusPong(StatusPong { ping: 42 }))
[main.rs:95][INFO] Detected server protocol version 404
about to parse id=0, dir=Clientbound state=Login

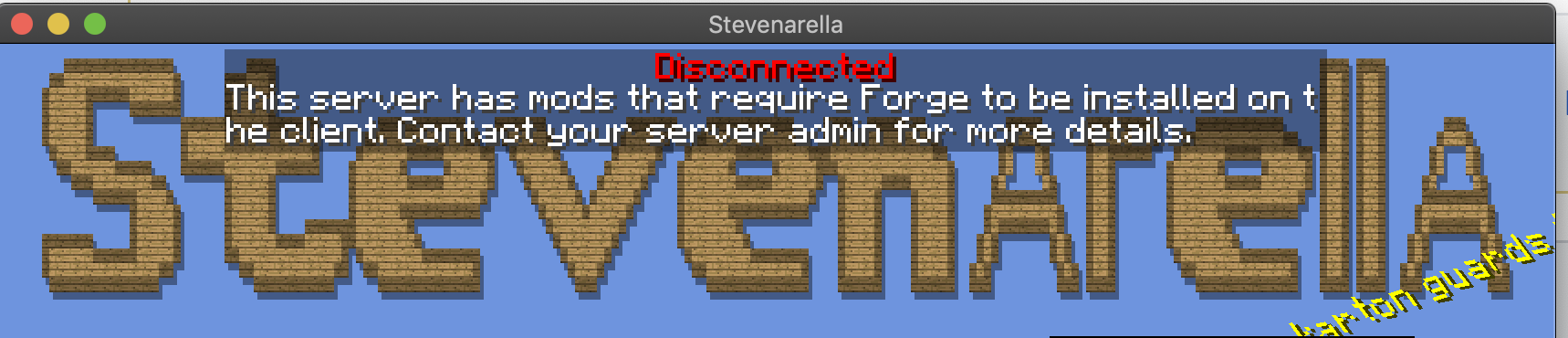

packet = Some(LoginDisconnect(LoginDisconnect { reason: Text(TextComponent { text: "This server has mods that require Forge to be installed on the client. Contact your server admin for more details.", modifier: Modifier { extra: None, bold: None, italic: None, underlined: None, strikethrough: None, obfuscated: None, color: None } }) }))

{
  "description": {
    "text": "A Minecraft Server"
  },
  "players": {
    "max": 20,
    "online": 0
  },
  "version": {
    "name": "1.13.2",
    "protocol": 404
  },
  "forgeData": {
    "channels": [
      {
        "res": "ironchest:main_channel",
        "version": "1",
        "required": false
      }
    ],
    "mods": [
      {
        "modId": "forge",
        "modmarker": "ANY"
      },
      {
        "modId": "ironchest",
        "modmarker": "1.13.2-8.0.2"
      }
    ],
    "fmlNetworkVersion": 2
  }
}

iceiix · 2019-05-12T01:31:49Z

[main.rs:95][INFO] Detected server protocol version 404
about to parse id=1b, dir=Clientbound state=Login
thread '' panicked at 'bad packet id 0x1b in Clientbound Login', src/protocol/versions/v1_13_2.rs:1:1

This reverts commit ef9ab70.

iceiix · 2019-05-12T01:32:29Z

Since it evolves more drastic changes, keeping this PR for up to 1.12.2 splitting off 1.13.2+

iceiix · 2019-05-12T14:27:52Z

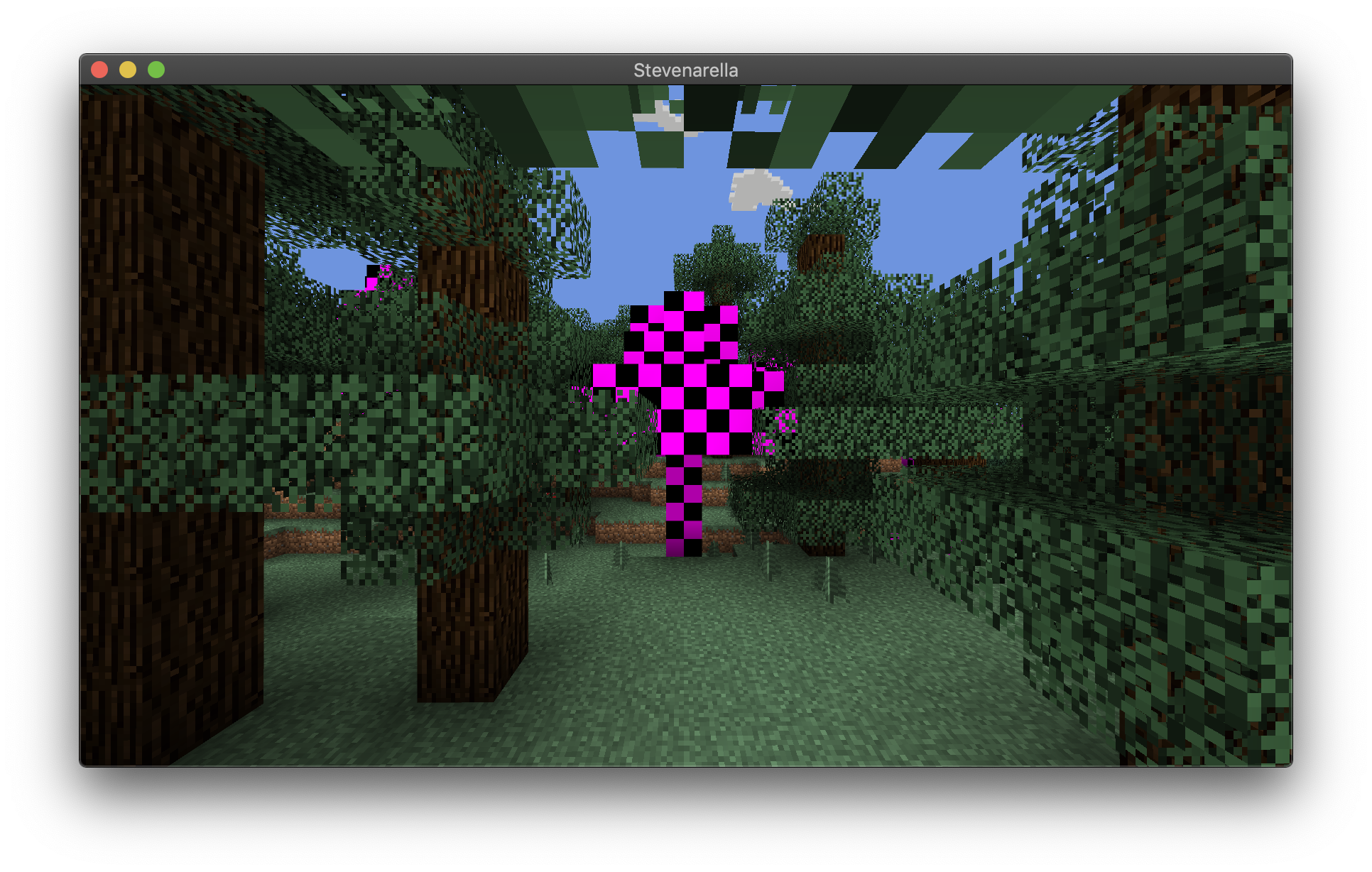

Testing with top Forge modpacks:

https://www.feed-the-beast.com/modpacks?filter-sort=5
https://minecraft.curseforge.com/modpacks?filter-sort=5

Project_Ozone_2-Server-v.2.4.0 (1.7.10, Curseforge top 1)

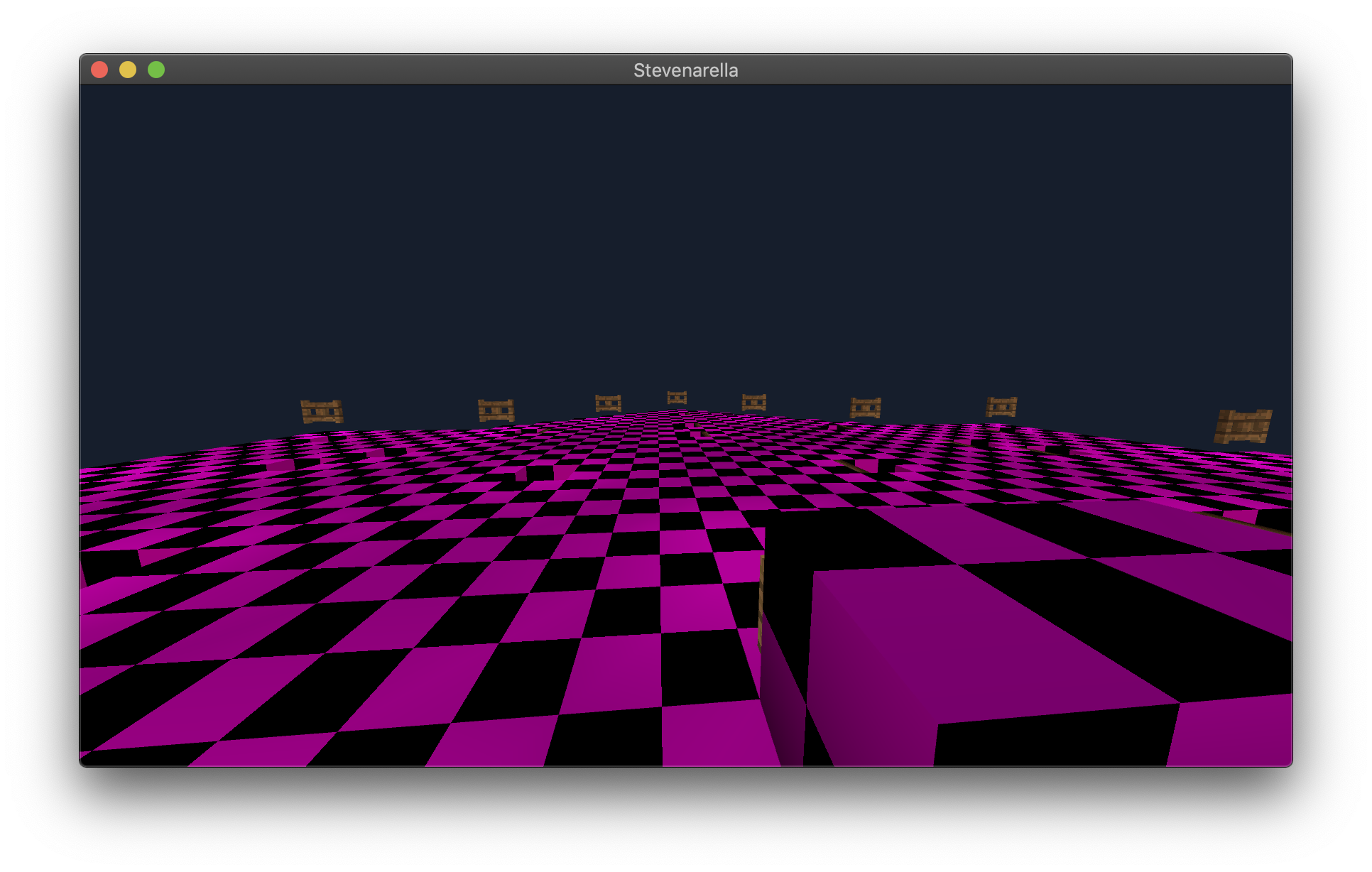

Agrarian Skies AS2-1.1.14-Server (1.7.10, Curseforge top 2)

SevTech_Ages_Server_3.1.1 (1.12.2, Curseforge top 3)
crash #146 1.12.2 Forge: SevTech: Ages crashes: error: StringError("failed to fill whole buffer") / java.util.zip.DataFormatException: incorrect header check

iceiix · 2019-05-12T14:43:32Z

FTBPresentsSkyfactory3Server_3.0.15 (1.10.2, FTB top 1)
same crash as #146, failed to fill whole buffer on ModList + io.netty.handler.codec.DecoderException: java.util.zip.DataFormatException: incorrect header check on server

FTBInfinityServer_3.0.2 (1.7.10, FTB top 2)

FTBBeyondServer_1.11.0 (1.10.2, FTB top 3)
again same #146 crash

The first in support for modded content, a simple custom block: "rockwool" from the Thermal Expansion and Thermal Foundation mods for Forge: https://ftb.gamepedia.com/Rockwool_(Thermal_Expansion_3) This makes use of the Forge handshake (#88 #134 #144), matching the mod block names from the negotiation to numeric identifiers in the world to steven_blocks. Rockwool was chosen due to ease of implementation, it looks like wool from vanilla (except is fire-proof), and by supporting it the groundwork necessary is laid for more sophisticated mod support. Tested with Thermal Expansion on 1.7.10, 1.10.2 (FTB Beyond), and 1.12.2 Forge servers. * Add `modid` macro token, skipped from vanilla mappings * Add ThermalExpansionRockwool block (1.7.10) * Register modded blocks by modid->[data], and lookup block metadata * Save block IDs from ModIdData/RegistryData to World modded_block_ids * Add namespaced mod ids for ModIdData, \u{1}=block \u{2}=item * Add ThermalFoundation's Rockwool (1.12.2)

Adds support for connecting to Forge servers from 1.8.9 up to 1.12.2. (1.7.10 was already supported with #134 #88) Tested on: - 1.8.9 + forge 11.15.1.2318 + ironchest - 1.10.2 + forge 12.18.3.2511 + ironchest - 1.11.2 + forge 13.20.1.2588 + ironchest - 1.12.2 + forge 14.23.5.2837 + ironchest Changes: * Parse and handle FmlHs::RegistryData packet for 1.8+ * Fix RegistryData acknowledgement phase WaitingServerComplete * Fix acknowledgement phase for 1.7.10 ModIdData too, somehow it worked accidentally * Append \0FML\0 to end of server hostname if Forge mods detected https://wiki.vg/Minecraft_Forge_Handshake#Connection_to_a_forge_server

The first in support for modded content, a simple custom block: "rockwool" from the Thermal Expansion and Thermal Foundation mods for Forge: https://ftb.gamepedia.com/Rockwool_(Thermal_Expansion_3) This makes use of the Forge handshake (#88 #134 #144), matching the mod block names from the negotiation to numeric identifiers in the world to steven_blocks. Rockwool was chosen due to ease of implementation, it looks like wool from vanilla (except is fire-proof), and by supporting it the groundwork necessary is laid for more sophisticated mod support. Tested with Thermal Expansion on 1.7.10, 1.10.2 (FTB Beyond), and 1.12.2 Forge servers. * Add `modid` macro token, skipped from vanilla mappings * Add ThermalExpansionRockwool block (1.7.10) * Register modded blocks by modid->[data], and lookup block metadata * Save block IDs from ModIdData/RegistryData to World modded_block_ids * Add namespaced mod ids for ModIdData, \u{1}=block \u{2}=item * Add ThermalFoundation's Rockwool (1.12.2)

Adds support for connecting to Forge servers from 1.8.9 up to 1.12.2. (1.7.10 was already supported with #134 #88) Tested on: - 1.8.9 + forge 11.15.1.2318 + ironchest - 1.10.2 + forge 12.18.3.2511 + ironchest - 1.11.2 + forge 13.20.1.2588 + ironchest - 1.12.2 + forge 14.23.5.2837 + ironchest Changes: * Parse and handle FmlHs::RegistryData packet for 1.8+ * Fix RegistryData acknowledgement phase WaitingServerComplete * Fix acknowledgement phase for 1.7.10 ModIdData too, somehow it worked accidentally * Append \0FML\0 to end of server hostname if Forge mods detected https://wiki.vg/Minecraft_Forge_Handshake#Connection_to_a_forge_server

The first in support for modded content, a simple custom block: "rockwool" from the Thermal Expansion and Thermal Foundation mods for Forge: https://ftb.gamepedia.com/Rockwool_(Thermal_Expansion_3) This makes use of the Forge handshake (#88 #134 #144), matching the mod block names from the negotiation to numeric identifiers in the world to steven_blocks. Rockwool was chosen due to ease of implementation, it looks like wool from vanilla (except is fire-proof), and by supporting it the groundwork necessary is laid for more sophisticated mod support. Tested with Thermal Expansion on 1.7.10, 1.10.2 (FTB Beyond), and 1.12.2 Forge servers. * Add `modid` macro token, skipped from vanilla mappings * Add ThermalExpansionRockwool block (1.7.10) * Register modded blocks by modid->[data], and lookup block metadata * Save block IDs from ModIdData/RegistryData to World modded_block_ids * Add namespaced mod ids for ModIdData, \u{1}=block \u{2}=item * Add ThermalFoundation's Rockwool (1.12.2)

Adds support for connecting to Forge servers from 1.8.9 up to 1.12.2. (1.7.10 was already supported with #134 #88) Tested on: - 1.8.9 + forge 11.15.1.2318 + ironchest - 1.10.2 + forge 12.18.3.2511 + ironchest - 1.11.2 + forge 13.20.1.2588 + ironchest - 1.12.2 + forge 14.23.5.2837 + ironchest Changes: * Parse and handle FmlHs::RegistryData packet for 1.8+ * Fix RegistryData acknowledgement phase WaitingServerComplete * Fix acknowledgement phase for 1.7.10 ModIdData too, somehow it worked accidentally * Append \0FML\0 to end of server hostname if Forge mods detected https://wiki.vg/Minecraft_Forge_Handshake#Connection_to_a_forge_server

The first in support for modded content, a simple custom block: "rockwool" from the Thermal Expansion and Thermal Foundation mods for Forge: https://ftb.gamepedia.com/Rockwool_(Thermal_Expansion_3) This makes use of the Forge handshake (#88 #134 #144), matching the mod block names from the negotiation to numeric identifiers in the world to steven_blocks. Rockwool was chosen due to ease of implementation, it looks like wool from vanilla (except is fire-proof), and by supporting it the groundwork necessary is laid for more sophisticated mod support. Tested with Thermal Expansion on 1.7.10, 1.10.2 (FTB Beyond), and 1.12.2 Forge servers. * Add `modid` macro token, skipped from vanilla mappings * Add ThermalExpansionRockwool block (1.7.10) * Register modded blocks by modid->[data], and lookup block metadata * Save block IDs from ModIdData/RegistryData to World modded_block_ids * Add namespaced mod ids for ModIdData, \u{1}=block \u{2}=item * Add ThermalFoundation's Rockwool (1.12.2)

Adds support for connecting to Forge servers from 1.8.9 up to 1.12.2. (1.7.10 was already supported with #134 #88) Tested on: - 1.8.9 + forge 11.15.1.2318 + ironchest - 1.10.2 + forge 12.18.3.2511 + ironchest - 1.11.2 + forge 13.20.1.2588 + ironchest - 1.12.2 + forge 14.23.5.2837 + ironchest Changes: * Parse and handle FmlHs::RegistryData packet for 1.8+ * Fix RegistryData acknowledgement phase WaitingServerComplete * Fix acknowledgement phase for 1.7.10 ModIdData too, somehow it worked accidentally * Append \0FML\0 to end of server hostname if Forge mods detected https://wiki.vg/Minecraft_Forge_Handshake#Connection_to_a_forge_server

The first in support for modded content, a simple custom block: "rockwool" from the Thermal Expansion and Thermal Foundation mods for Forge: https://ftb.gamepedia.com/Rockwool_(Thermal_Expansion_3) This makes use of the Forge handshake (#88 #134 #144), matching the mod block names from the negotiation to numeric identifiers in the world to steven_blocks. Rockwool was chosen due to ease of implementation, it looks like wool from vanilla (except is fire-proof), and by supporting it the groundwork necessary is laid for more sophisticated mod support. Tested with Thermal Expansion on 1.7.10, 1.10.2 (FTB Beyond), and 1.12.2 Forge servers. * Add `modid` macro token, skipped from vanilla mappings * Add ThermalExpansionRockwool block (1.7.10) * Register modded blocks by modid->[data], and lookup block metadata * Save block IDs from ModIdData/RegistryData to World modded_block_ids * Add namespaced mod ids for ModIdData, \u{1}=block \u{2}=item * Add ThermalFoundation's Rockwool (1.12.2)

Parse FmlHs::RegistryData packet for 1.8+

ac0b284

iceiix added the enhancement New feature or request label May 11, 2019

iceiix added 2 commits May 11, 2019 16:39

Handle RegistryData, send ack only once no longer has more

55d0568

Fix RegistryData acknowledgement phase WaitingServerComplete

cca3406

Fix acknowledgement phase for 1.7.10 ModIdData too, somehow it worked…

2f1e0f3

… accidentally

Append \0FML\0 to end of server hostname if Forge mods detected

268b425

https://wiki.vg/Minecraft_Forge_Handshake#Connection_to_a_forge_server

Add new Forge 1.13 server list ping JSON mod parsing

ef9ab70

Revert "Add new Forge 1.13 server list ping JSON mod parsing"

7e9c00e

This reverts commit ef9ab70.

iceiix changed the title ~~Forge 1.8.9+ handshake protocol support~~ Forge 1.8.9-1.12.2 handshake protocol support May 12, 2019

Whitespace

f1f1ed9

iceiix merged commit 0cd02fd into master May 12, 2019

iceiix deleted the forge18 branch May 12, 2019 01:37

This was referenced May 12, 2019

Forge 1.13.2 protocol handshake support #145

Merged

1.12.2/1.10.2 Forge: Beyond/Skyfactory3/SevTech Ages crashes: error: StringError("failed to fill whole buffer") / java.util.zip.DataFormatException: incorrect header check #146

Closed

This was referenced May 12, 2019

1.12.2 Forge: SevTech Ages advancements crashes StringError("stream did not contain valid UTF-8") #148

Closed

Modded block demo: Thermal Expansion's rockwool #153

Merged
