Turing Machine Assignment

Program a Turing Machine.

Background

Alan Turing was an

English computer scientist, mathematician, logician, cryptanalyst, philosopher, and theoretical biologist. Turing was highly influential in the development of theoretical computer science

Turing formalised important concepts such as algorithm and computation by introducing the concept now known as a Turing machine.

Short Introduction

A turing machine can be thought of as a machine with

1. An infinite tape which can be read from and written to.
2. A IO head does the reading and writing.
3. An internal state, which influences the actions of the machine.
4. A transition table that together with the state determines the next action.

The transition table and the state the machine is determine the next action in the following way. For a state the machine can be in, and for a symbol that the head can read from the tape there is a row in the transition table. That row describes

1. which state the machine should transition in.
2. What symbol to write to the tape.
3. Which way to move the head.

Below is an example of a transition table.

Current state	Symbol read	Next state	Symbol to write	Head movement
0	'A'	0	'A'	R(ight)
0	'B'	1	'B'	R
1	'_'	2	'B'	L(eft)
2	'A'	2	'A'	L
2	'_'	3	'_'	R

If a combination of a state and a symbol is not present in the table, the machine halts.

Programming

In this assignment you are going to program a Turing Machine. The Turing Machine accepts a JSON file. Below you can find the above transition table translated into a loadable JSON file.

{
  "tm": {
    "tape": {
      "left": [],
      "current": "A",
      "right": ["A", "A", "A"]
    },
    "state": 0,
    "transitions": [
      { "current": [0, "A"], "next": [0, "A", "R"] },
      { "current": [0, "B"], "next": [1, "B", "R"] },
      { "current": [1, "_"], "next": [2, "B", "L"] },
      { "current": [2, "A"], "next": [2, "A", "L"] },
      { "current": [2, "_"], "next": [3, "_", "R"] }
    ]
  },
  "blank": "_",
  "visible_tape": 5,
  "running": false
}

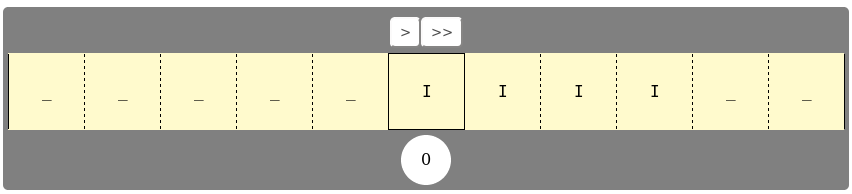

There are two buttons on the Turing Machine. One button labelled >. This allows one to step through the operation of the machine. The other button is labelled >>. When pressed the machine will automatically step through the its program. Pressing it again will pauze the machine.

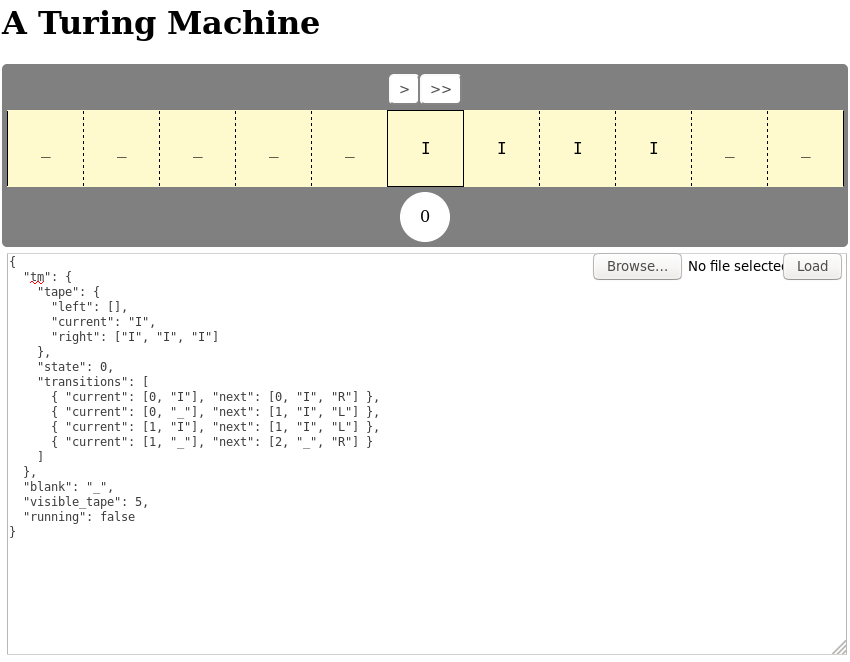

You can paste a JSON program into the textarea. The load button loads the program in the Turing machine. An other option is to select a JSON program file, which then get loaded automatically.

Assignment

Take your pick of the problems below and write a Turing Machine program for it.

Problems

Binary Successor

Given a number n written down in binary, determine the binary representation of the successor, i.e. the binary representation of n+.

Example

37 is 10101 in binary. The succcessor of 37 is 38, which is 10110 in binary.

Parity of Ones

Given a binary number, e.g. 10101 for 37, determine the parity of the number of ones in the representation.

Example

In 10101 there are 3 1s. 3 is an odd number so the parity of the number of 1s in 10101 is 1. If the number of 1s would be even the parity should be 0.

Copy

Copy a given string of A and B

Example

When the string ABBA is found on the tape, the copy program would leave the tape as ABBA_ABBA when the program finishes.

Palindrome

Determine if a string of A and Bs is a palindrome.

Example

ABBA is a palindrome, ABAB is not a palindrome.
