l0onie

This repository contains the official implementation for the paper L0onie: Compressing COINs with L0-constraints.

This code enables the training of sparse SIREN models using constrained $L_0$ regularization for the task of image compression. We train models to minimize the reconstruction error of an image subject to a constraint on the compression ratio, measured in bits-per-pixel. We implement and solve the constrained optimization problems using the Cooper library.

Fun fact: Loonie is a colloquial name for the Canadian one dollar coin!

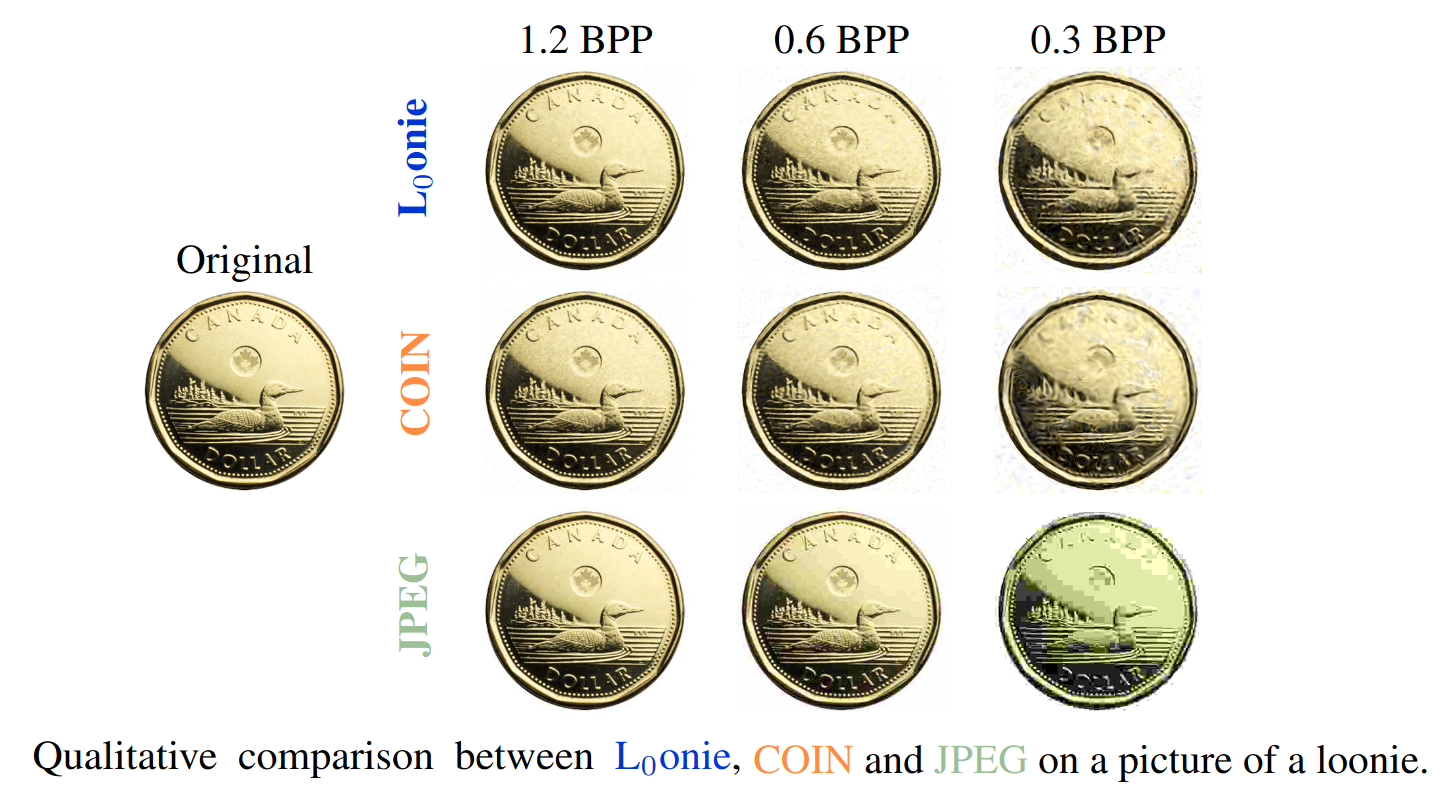

This figure depicts a circulating unit of currency. Its use in this work contends as fair use for it is limited to a commentary relating to the image of the currency itself. The image of all Canadian coins is the copyright of the Royal Canadian Mint.

Setup

Create an environment using your favorite tool and install the required packages.

pip install -r requirements.txt

Configs

We use ml_collections.config_dict to handle hyper-parameters for our experiments. You can find config files under the configs folder. In the Examples section, we demonstrate how to use these configs to trigger runs.

Weights and Biases

If you don't have a Weights and Biases account, or prefer not to log metrics to their servers, you can use the flag --config.wandb.use_wandb=False.

Examples

Experiments can be triggered by runing the main.py script. We provide config files to facilitate running the three supported experiment kinds: training a fully dense model (COIN), training an $L_0$-sparsifiable model (L$_0$onie) or applying magnitude pruning on a pre-trained model and then fine-tuning its remaining weights.

L0onie

Train a L0onie to achieve a BPP of 0.15.

python main.py --config=configs/debug_task.py:gated --config.train.target_bpp=0.15

COIN

Train a SIREN model with 5 hidden layers of 30 units each.

python main.py --config=configs/debug_task.py:coin_baseline --config.model.hidden_dims='(30,30,30,30,30)'

Magnitude Pruning

Prune a pre-trained model to achieve a BPP of 0.07 and then fine-tune for 10000 steps.

python main.py --config=configs/debug_task.py:magnitude_pruning --config.model.hidden_dims='(30,30,30,30,30)' --config.train.target_bpp=0.07

Note that when performing magnitude pruning, we search for a pre-trained "COIN" model with the provided hidden_dims in the WandB server. Therefore, in order for this command to work you must first run the previous baseline.

Project structure

l0onie
├── bash_scripts
├── codec_baselines
├── configs
├── gated
├── get_results
├── kodak_dataset
├── magnitude_pruning
├── tests
├── utils
├── main.py            # Script used for running experiments
├── README.md
├── requirements.txt

Bash scripts

We executed our experiments on a computer cluster with Slurm job management. The bash scripts used for triggering these runs are contained in the bash_scripts folder.

Codec

We use the CompressAI library to compress images using JPEG. baselines.py automates this process for the Kodak dataset.

Configs

configs contains files with basic configurations for the experiments presented throughout our paper. For instance, baseline.py indicates the learning rate, optimizer and other details used for our replication of COIN experiments.

These files were designed to be used in conjunction with the scripts in the bash_scripts folder. Arguments that are required to trigger a run, but were not specified in the config file are marked explicitly. You can find these values in the corresponding bash_scripts file, as well as in the appendix of the paper.

Gated

The gated folder contains the main components used to construct l0onies.

Fully connected $L_0$ layers with unstructured sparsity are found inside of layers.py.

The models.py and siren.py modules implement MLPs composed of $L_0$ layers and Sine activations. They also contain functionality for "pruning" these models, i.e. absorbing their stochastic gates into their parameters.

Results: plots

The get_results folder includes scripts for producing the plots and tables found in the paper. These scripts depend on calls to the Weights and Biases API for retrieving logged metrics. Calling wandb_utils.py retrieves and saves some metrics locally which are necessary for calling other scripts.

Magnitude Pruning

We provide a FrozenGatedModel, which has untrainable gates associated with each parameter. This model is leveraged in magnitude_pruning.py, where parameters are "pruned" based on magnitude by setting their respective gates to zero.

Tests

Automated tests implemented on Pytest are included in the tests folder.

Utils

utils contains various project utils.

├── utils
│   ├── basic_utils.py
│   ├── cmp_utils.py        # Construct Cooper ConstrainedMinimizationProblem
│   ├── coin_utils.py       # Image compression utils, e.g. PSNR and BPP measurement
│   ├── core_utils.py       # Utils for main.py, e.g. train and compress loops
│   ├── wandb_utils.py      # Formatting for logging to WandB

Acknowledgements

Our implementation of $L_0$-sparse models is based on the code by C. Louizos, M. Welling, and D. P. Kingma for the paper Learning Sparse Neural Networks through L0 Regularization, ICLR, 2018.

Our implementation of SIRENs (neural networks with Sine activation functions) and the initialization of their parameters is based on the code by E. Dupont, A. Goliński, M. Alizadeh, Y. W. Teh and A. Doucet for the paper COIN: COmpression with Implicit Neural representations, ICLR - Neural Compression Workshop, 2021.
