MikoPBX User Access Control Module

Read this in other languages: English, Русский.

Overview

ModuleUsersUI is a comprehensive access control module for MikoPBX that enables multi-user access with role-based permissions. It provides granular control over web interface sections, REST API endpoints, and call history visibility.

Key Features

Access Groups Management

• Role-Based Access Control (RBAC): Create unlimited access groups with specific permissions
• Full Access Mode: Option to grant unrestricted access for administrator groups
• Custom Home Page: Configure landing page after login for each group
• Granular Permissions: Control access to individual interface sections and actions

Authentication Methods

• Local Authentication: Username/password stored in MikoPBX database
• LDAP/Active Directory: Integration with corporate directory services
  • Support for OpenLDAP and Microsoft Active Directory
  • Configurable user filters and attribute mapping
  • Automatic user synchronization

Permission Categories

Web Interface (AdminCabinet)

Fine-grained control over MikoPBX admin panel sections:

• View: Access to list and index pages
• Modify: Ability to open and view record details
• Edit/Delete: Create, update, and remove records

Supported sections include:

• Employees and Extensions
• Call Queues and Conference Rooms
• IVR Menus and Dialplan Applications
• Incoming/Outgoing Routes
• Providers (SIP/IAX)
• Sound Files
• Call History (CDR)
• System Settings
• And more...

REST API Access

Control which API endpoints users can access:

• Standard CRUD operations (getList, getRecord, saveRecord, delete)
• Custom actions per endpoint
• Automatic linking between UI and API permissions

Call History (CDR) Filtering

Restrict call record visibility based on employee assignments:

• No Filter: Show all call records
• Only Selected: Show only calls involving specific employees
• Outgoing Only: Show only outgoing calls from selected employees
• Except Selected: Hide calls from specific employees

User Profile Self-Service

• Password change for local users
• Passkey (WebAuthn) management for passwordless authentication

Architecture

Database Models

Model	Description
AccessGroups	Access group definitions with permissions
AccessGroupsRights	Granular permission assignments
AccessGroupCDRFilter	CDR filter rules per group
UsersCredentials	User authentication data
LdapConfig	LDAP server configuration

Key Components

• UsersUIACL: Core ACL modification logic integrating with MikoPBX
• UsersUIAuthenticator: Handles local and LDAP authentication
• AutoLinkedActionsResolver: Automatic UI↔API permission linking
• UsersUICDRFilter: CDR visibility filtering

Installation

1. Download module from MikoPBX Marketplace or GitHub Releases
2. Upload via Modules → Install Module in MikoPBX admin panel
3. Enable the module
4. Configure access groups and assign users

Requirements

• MikoPBX 2025.1.1 or higher
• PHP 8.3+
• Valid license (commercial module)

Configuration

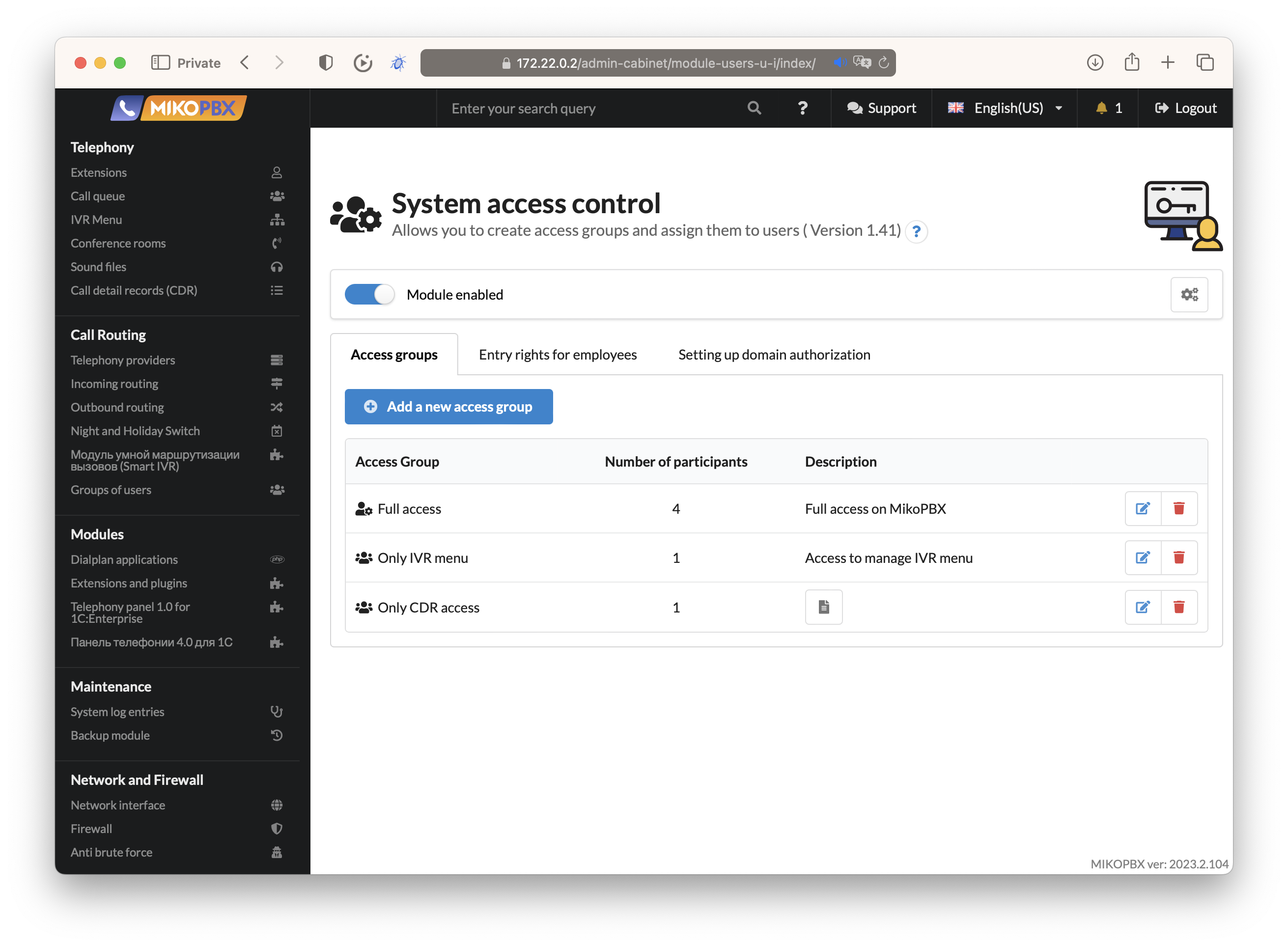

Creating an Access Group

1. Navigate to Modules → User Access Control
2. Click Add New Access Group
3. Configure:
   • Group name and description
   • Full access toggle (for admin groups)
   • Home page after login
   • Interface permissions
   • REST API permissions
   • CDR filter settings

Adding Users

1. Go to Extensions section
2. Edit an employee
3. In MikoPBX Login tab:
   • Enable login access
   • Set username and password
   • Select access group
   • Optionally enable LDAP authentication

LDAP Configuration

1. Navigate to LDAP Settings tab in module
2. Configure:
   • Server address and port
   • Admin credentials for directory queries
   • Base DN
   • User filter and attributes
3. Test connection and user retrieval

API Integration

The module automatically manages permissions for REST API v3 endpoints:

GET  /pbxcore/api/v3/{resource}          → getList
GET  /pbxcore/api/v3/{resource}/{id}     → getRecord
POST /pbxcore/api/v3/{resource}          → create
PUT  /pbxcore/api/v3/{resource}/{id}     → update
DELETE /pbxcore/api/v3/{resource}/{id}   → delete

Development

Running Tests

# Unit tests (PHP)
./vendor/bin/phpunit

# Integration tests (Python)
cd Tests/Integration
pip install -r requirements.txt
cp .env.example .env
# Configure .env with your MikoPBX instance
pytest

Project Structure

ModuleUsersUI/
├── App/
│   ├── Controllers/     # MVC Controllers
│   ├── Forms/           # Phalcon Forms
│   └── Views/           # Volt Templates
├── Lib/
│   ├── ACL/             # Access Control Logic
│   └── *.php            # Core Libraries
├── Models/              # Phalcon ORM Models
├── Messages/            # i18n Translations
├── Setup/               # Installation Scripts
├── Tests/               # Test Suites
└── public/assets/       # Frontend Resources

Documentation

Full documentation available at:

• English: docs.mikopbx.com
• Russian: docs.mikopbx.ru

Support

• Telegram: @mikopbx_dev
• Email: help@miko.ru
• Issues: GitHub Issues

License

GPL-3.0-or-later - see LICENSE file for details.

Copyright © 2017-2025 MIKO LLC
