Implementation of RL Algorithms

Sarsa to Q-Learning

Monte-Carlo

Implemented Monte-Carlo method on GymMinigrid Envrionment, MiniGrid-Empty-8x8-v0.

Observation Space

• gen_obs generates partially observable agent's view (an image)
• For discrete observation, we use agent_pos, which returns the grid number at which the agent is present.

Action Space

Num	Action
0	Turn Left
1	Turn Right
2	Move Forward

Reward Function

• Reward is 1 when agent reaches goal, else 0

Hyperparameters

• Gamma
  • 0.9
• Training Episodes
  • 75
• Exploration
  • Epsilon = Epsilon/1.1

Results

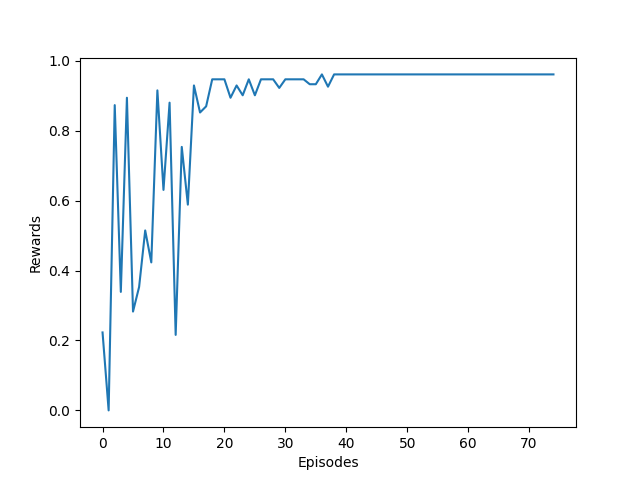

Training Reward

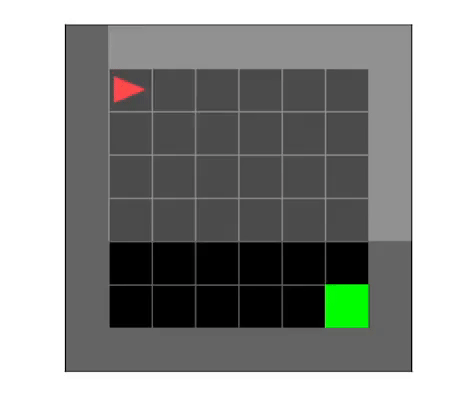

Simulation

SARSA-λ and SARSA backward

Implemented SARSA-λ and Backward SARSA method on GymMinigrid Envrionment, MiniGrid-Empty-8x8-v0 and MiniGrid-FourRooms-v0.

Observation Space

• gen_obs generates partially observable agent's view (an image)
• For discrete observation, we use agent_pos, which returns the grid number at which the agent is present.

Action Space

Num	Action
0	Turn Left
1	Turn Right
2	Move Forward

Reward Function

• Reward is 1 when agent reaches goal, else 0

Hyperparameters (SARSA-λ)

• Gamma
  • 0.9
• Sarsa Lambda
  • 0.99
• Training Episodes
  • 50
• Exploration
  • Epsilon = Epsilon/1.05

Results

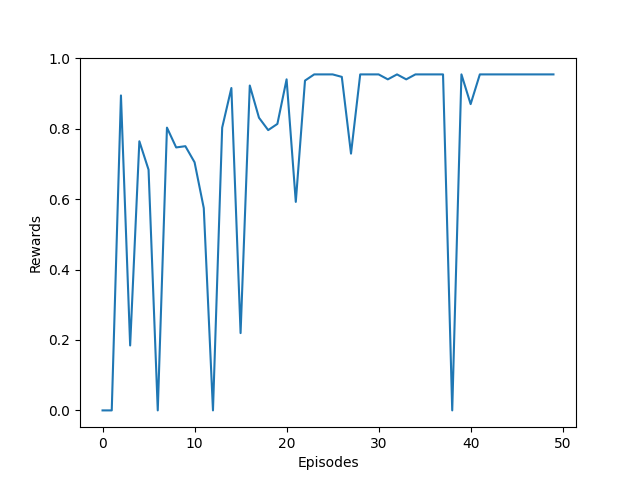

Training Reward

#### Simulation

### Hyperparameters (SARSA Backward) - Gamma - 0.9 - Sarsa Lambda - 0.9 - Training Episodes - 25 - Exploration - Epsilon = Epsilon/1.2

Results

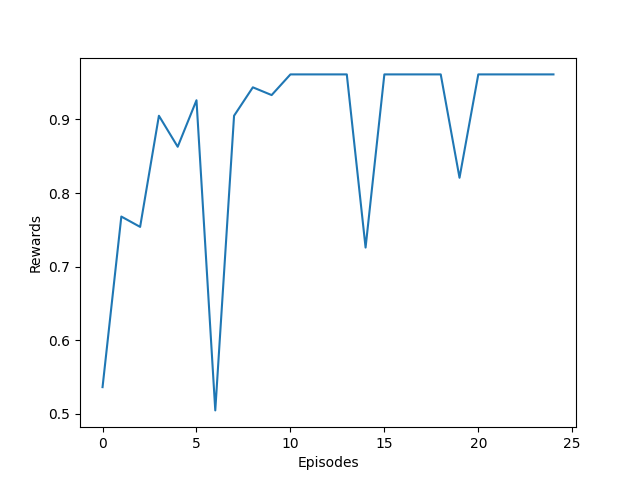

Training Reward

#### Simulation

Q-Learning

Implemented SARSA-λ and Backward SARSA method on GymMinigrid Envrionment, MiniGrid-Empty-8x8-v0.

Observation Space

• gen_obs generates partially observable agent's view (an image)
• For discrete observation, we use agent_pos, which returns the grid number at which the agent is present.

Action Space

Num	Action
0	Turn Left
1	Turn Right
2	Move Forward

Reward Function

• Reward is 1 when agent reaches goal, else 0

Hyperparameters

• Gamma
  • Trained agents with 5 different values of gamma
    • 0.9, 0.7, 0.5, 0.3, 0.1
• Training Episodes
  • 150
• Exploration
  • Epsilon = Epsilon/1.1

Results

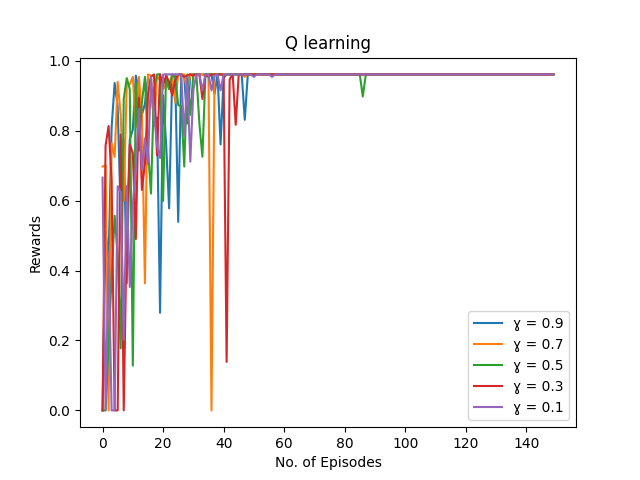

Training Reward

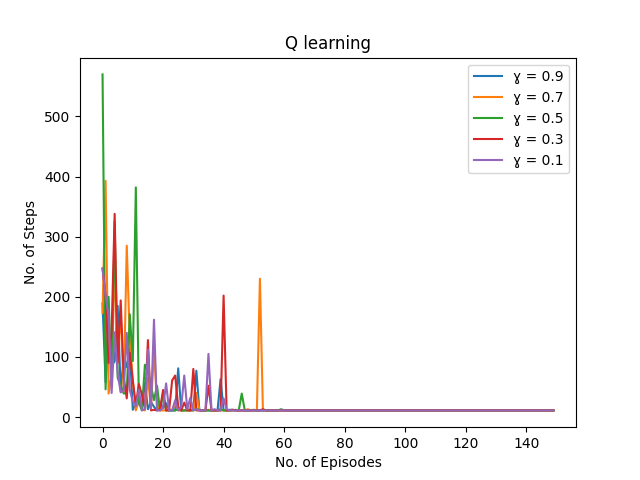

Steps vs Episodes

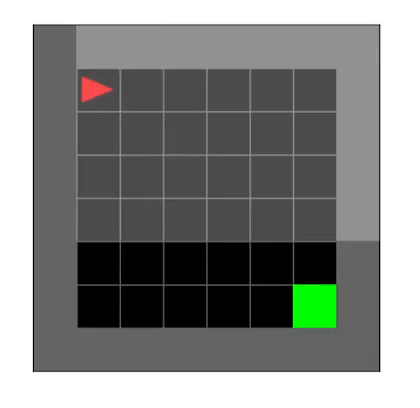

Simulation

Deep Q-Learning (DQN)

Implemented DQN on Gym Envrionment, Gym-CartPole-v0.

Observation Space

Num	Observation	Min	Max
0	Cart Position	-4.8	4.8
1	Cart Velocity	-Inf	Inf
2	Pole Angle	-0.418 rad(-24 deg)	0.418 rad(-24 deg)
3	Pole Angular Velocity	-Inf	Inf

Action Space

Num	Action
0	Push Cart to Left
1	Push Cart to Right

Reward Function

• Reward is 1 for every step taken, including the termination step

Hyperparameters

• Network Architecture
  • 4 Linear Layers of dim = [16, 32, 16, 2]
• Optimizer
  • Adam Optimizer
• Learning Rate
  • 0.0001
• Batch Size
  • 128
• Training Episodes
  • 700

Results

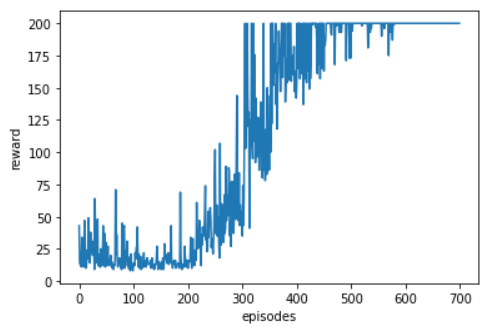

Training Reward

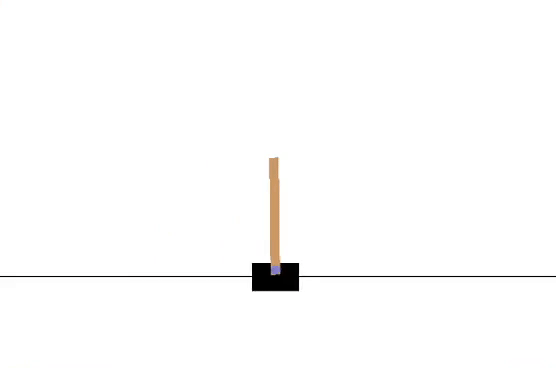

Simulation

Policy Gradient

Implemented Policy Gradient Method (Actor-Critic) on Gym Envrionment, Gym-CartPole-v0.

Observation Space

The observation is a ndarray with shape (3,) representing the x-y coordinates of the pendulum's free end and its angular velocity.

Num	Observation	Min	Max
0	x = cos(theta)	-1.0	1.0
1	y = sin(angle)	-1.0	1.0
2	Angular Velocity	-8.0	8.0

Action Space

The action is a ndarray with shape (1,) representing the torque applied to free end of the pendulum.

Num	Action	Min	Max
0	Torque	-2.0	2.0

Reward Function

• The reward function is a function of theta, angle made by the pendulum.

Hyperparameters

• Network Architecture

  • Actor
    • 4 Linear Layers of dim = [31,128,32,2]
  • Critic
    • 4 Linear Layers of dim = [31,128,32,1]

• Optimizer

  • Adam Optimizer

• Learning Rate

  • 0.0005

• Batch Size

  • 64

• Training Episodes

  • 1200

Results

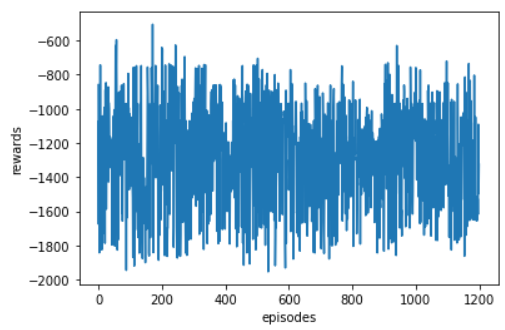

Training Reward

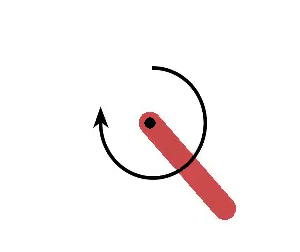

Simulation
