Original file line number | Diff line number | Diff line change |
---|---|---|
@@ -0,0 +1,140 @@ | ||
--- | ||
title: Screenshot bot Argus | ||
description: Bot to watch for repository's workflows with tests and pin screenshots differences images to bot's comment of pull request. | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
slug: screenshot-report-bot | ||
screenshots: | ||
- https://raw.githubusercontent.com/taiga-family/argus/refs/heads/main/.demo/error-report.png | ||
- https://raw.githubusercontent.com/taiga-family/argus/refs/heads/main/.demo/loading.png | ||
- https://raw.githubusercontent.com/taiga-family/argus/refs/heads/main/.demo/pr-closed.png | ||
authors: | ||
- nsbarsukov | ||
repository: taiga-family/argus | ||
host: https://screenshot-report-bot.vercel.app | ||
--- | ||
|
||
**Screenshot bot Argus** is a GitHub App built with [Probot](https://github.com/probot/probot) | ||
to watch for repository's workflows with tests, download artifacts with screenshots differences images, | ||
and pin these images to bot's comment of pull request. | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
|
||
> **Why "Argus"?** Argus is a many-eyed "all-seeing" giant in Greek mythology. | ||
> This character is known for having generated the saying "the eyes of Argus" | ||
> (being subject to strict scrutiny in one's actions to an invasive, distressing degree). | ||
> [(c) Wikipedia](https://en.wikipedia.org/wiki/Argus_Panoptes) | ||
|
||
Read more about this tool in the article:<br/> | ||
[«Bots should work, developers should think»: Writing Github App with Node.js](https://medium.com/its-tinkoff/bots-should-work-developers-should-think-writing-github-app-with-node-js-2e8eb049d7e4). | ||
|
||
## Setup :rocket: | ||
|
||
GitHub Action is recommended approach to use bot.<br /> | ||
However, its deployment as GitHub App is option too. | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
|
||
### As GitHub Action | ||
|
||
```yml | ||
# .github/workflows/screenshot-bot.yml | ||
on: | ||
workflow_run: | ||
workflows: [E2E Results] # <-- Choose any workflows to be watched by bot | ||
types: [requested, completed] | ||
branches-ignore: | ||
- 'main' | ||
- 'release/**' | ||
pull_request: | ||
types: [closed] | ||
|
||
jobs: | ||
awake-screenshot-bot: | ||
runs-on: ubuntu-latest | ||
permissions: | ||
actions: read | ||
contents: write | ||
pull-requests: write | ||
steps: | ||
- uses: taiga-family/argus@main | ||
env: | ||
GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }} | ||
``` | ||
|
||
### As GitHub App | ||
|
||
You can deploy your own Github App using this code and recipes from [Probot documentation](https://probot.github.io/docs/deployment) | ||
or use already hosted **[screenshot‑report‑bot](https://github.com/apps/screenshot-report-bot/installations/new)** | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
|
||
## Bot configurations :gear: | ||
|
||
Bot has configurable params which can be unique for every GitHub repository.<br> | ||
Every param is optional, and you can skip this section if default configuration satisfies you. | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
|
||
To pass custom params for bot you should create `screenshot-bot.config.yml` file inside the `.github` directory of repository. | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
|
||
**Example of `screenshot-bot.config.yml` file content** (you can paste it as it is) and **default values** of each param: | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
|
||
```yaml | ||
# array of RegExp strings to match images inside artifacts (by their path or file name) | ||
# which shows difference between two screenshot and which will be added to bot report comment | ||
diff-paths: [ | ||
# it is default Cypress folder name into which snapshot diffs are put | ||
'.*__diff_output__.*', | ||
] | ||
|
||
# array of attributes (key="value") for html-tag <img /> (screenshots) | ||
# e.g. ['width="200px"', 'height="300px"'] | ||
img-attrs: [] | ||
|
||
# Text which is placed at the beginning of section "Failed tests" | ||
failed-report-description: '' | ||
|
||
# Regular expression string to match images inside artifacts (by their path or file name) | ||
# which are created by new screenshot tests. | ||
new-screenshot-mark: '.*==new==.*' | ||
|
||
################################## | ||
# Not relevant for GitHub Action # | ||
################################## | ||
|
||
# array of regular expression strings to match workflow names | ||
# which should be watched by bot | ||
workflows: [ | ||
# all workflows with sub-string "screenshot" in their names | ||
'.*screenshot.*', | ||
] | ||
|
||
# array of RegExp strings to match branch names which should be skipped by bot | ||
branches-ignore: [] | ||
``` | ||
|
||
## What bot can do? :bulb: | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
|
||
- Holds first PR comment. | ||
All workflow updates edit already existing bot comment. | ||
No endless stream of comments from bot! | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||

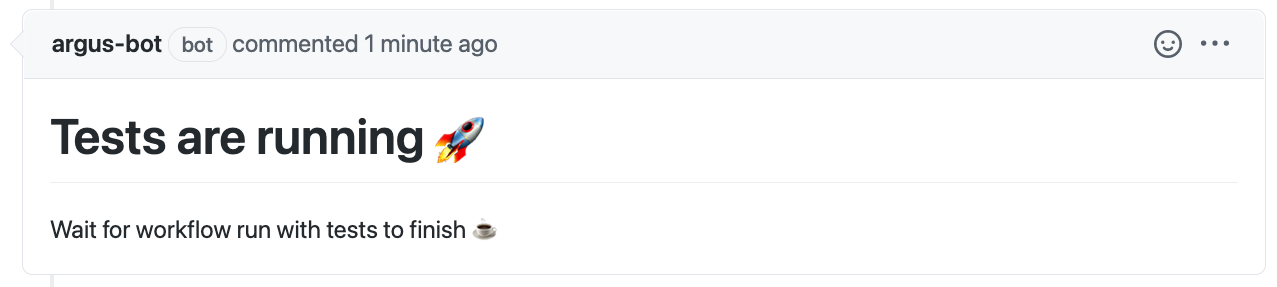

- Sets loading state comment when PR is opened or new commits are pushed to PR. | ||
 | ||

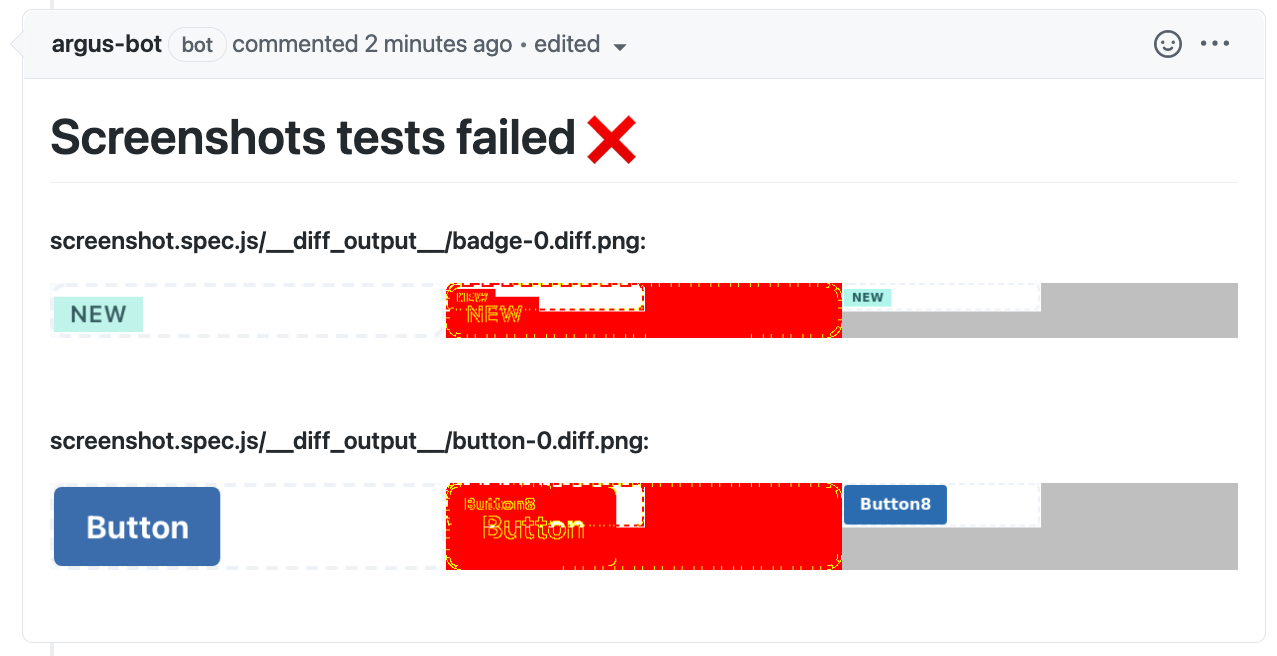

- Downloads artifacts from workflow with tests, finds screenshots diffs images, and pins them to the tests failure report. | ||
 | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||

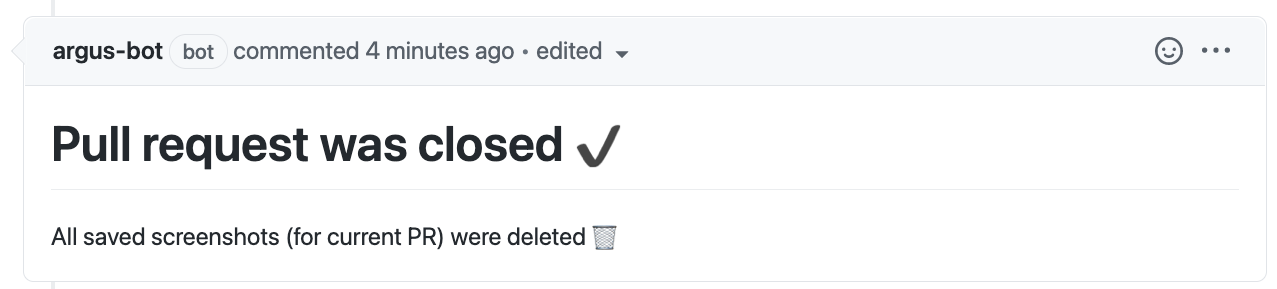

- Removes all uploaded images (for current PR) after closing pull request. | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
 | ||
|
||
## About Permissions :closed_lock_with_key: | ||
|
||
If you use bot as GitHub Action it is required to provide `permissions` property in your `yml` file.<br> | ||
If you use bot as GitHub App it asks for some permissions at the beginning of the bot's installation.<br> | ||
All requested permissions are really needed, and we do not ask for more permissions than necessary. | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
|
||
#### Permissions | ||
|
||
Bot requires the following repository's **permissions**: | ||
|
||
- `actions: read` - to get list of workflow run artifacts and download these artifacts. | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
- `contents: write` - to create new branch for storage of screenshot diffs images | ||
and to ability to upload/delete these screenshot diffs images. | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
- `metadata: read` - mandatory for Github App. | ||
- `pull_requests: write` - to create/edit PR's comment with bot's tests reports. | ||
|
||
#### Events | ||
|
||
Bot listens to the following repository's **events**: | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
||
|
||
- `pull_request` — bot listens to pull request closing to delete all saved screenshots for current closed PR. | ||
- `workflow_run` — bot listens to workflow completion to download artifacts and send tests report as PR comment. | ||
nsbarsukov marked this conversation as resolved.
Show resolved
Hide resolved
|
