ESP32-C3 SuperMini BME280 HTTP Sensor Node

A lightweight IoT firmware for ESP32-C3 SuperMini that reads environmental data from a BME280 sensor and periodically sends measurements as JSON to a remote HTTP endpoint.

This project is designed for simple environmental monitoring scenarios such as balcony/weather nodes, indoor climate tracking, or distributed sensor systems.

---

Features

• Temperature, humidity, and pressure measurement
• I²C BME280 sensor integration
• Wi-Fi auto connection with timeout protection
• HTTP JSON telemetry upload
• Retry logic for failed transmissions
• Sensor error detection
• Lightweight and stable runtime behavior
• PlatformIO build system

---

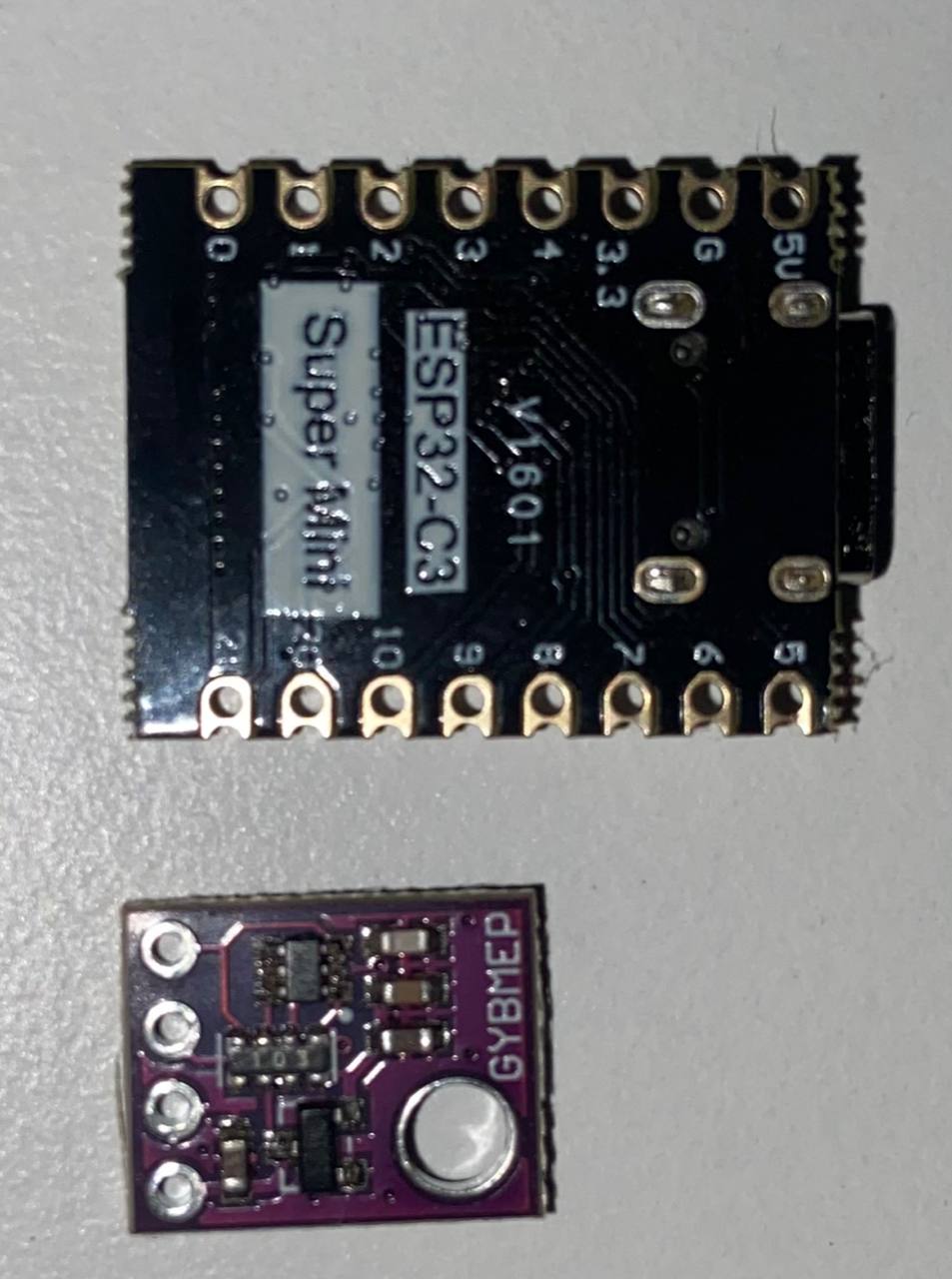

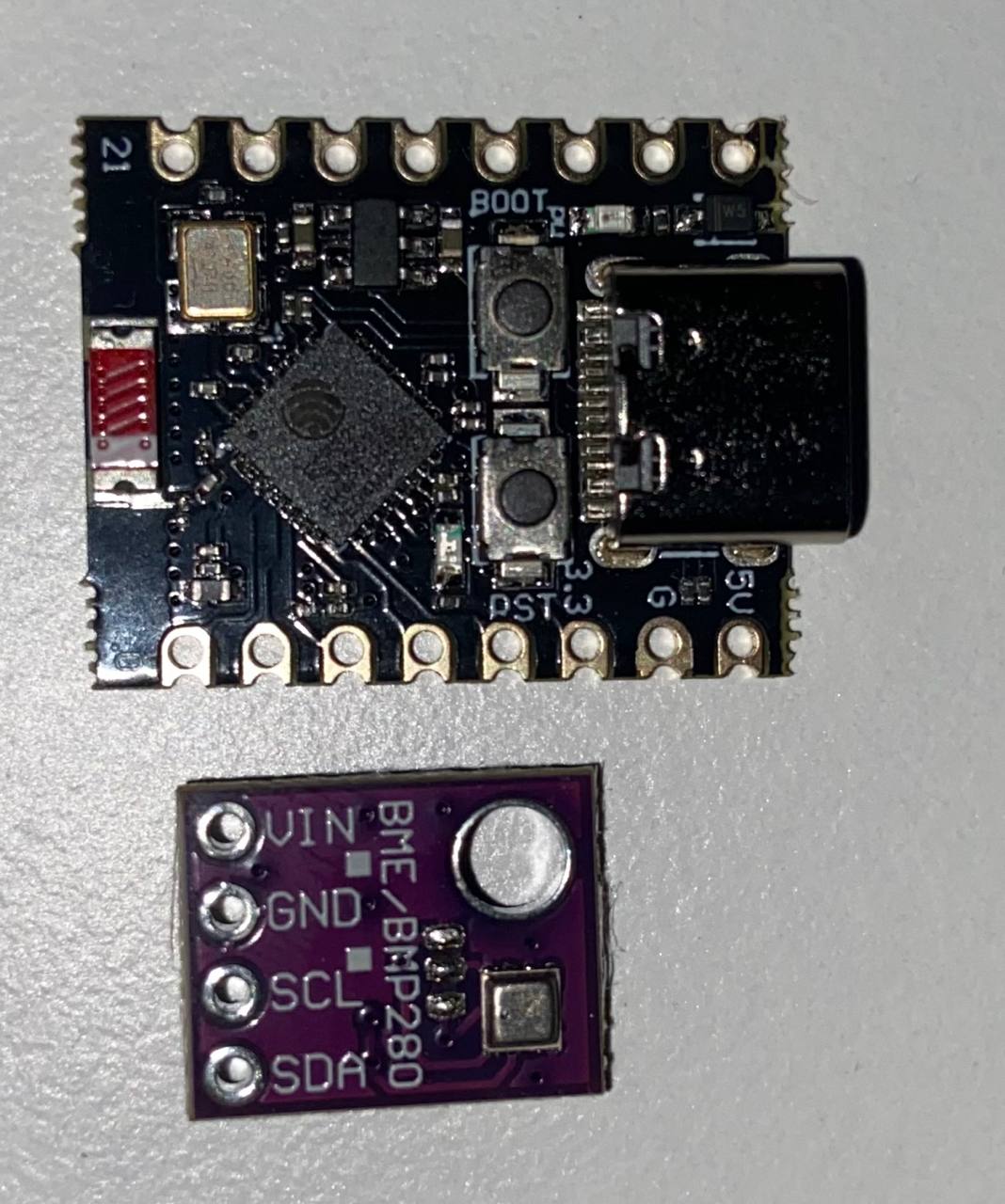

Hardware Requirements

Components

• ESP32-C3 SuperMini
• BME280 environmental sensor (I²C module)

Wiring

BME280	ESP32-C3
VIN	5V
GND	GND
SDA	GPIO 8
SCL	GPIO 9

Most BME280 modules support both 3.3V and 5V input, but 3.3V is safest for ESP32 logic.

---

Software Requirements

• VS Code
• PlatformIO extension
• ESP32 USB drivers

---

⚙ Installation

1. Clone the repository

git clone https://github.com/pvdiulin/ESP32-C3_BME280_HTTP_Sensor_Node.git
cd thmetrix

2. Configure credentials

Edit or create the file:

src/config.h

Example configuration:

#pragma once

#define WIFI_SSID "your_wifi_name"
#define WIFI_PASSWORD "your_wifi_password"

#define API_ENDPOINT "http://your-server/api/sensor"

#define LOCATION "location"

#define SEND_INTERVAL 30000

3. Build firmware

pio run

4. Upload to device

pio run -t upload

5. Monitor serial output

pio device monitor

---

Example JSON Payload

{
  "location": "balcony",
  "temperature": 23.6,
  "humidity": 44.8,
  "pressure": 1012.9
}

---

Troubleshooting

Sensor not detected

• Check wiring
• Confirm I²C address (0x76 or 0x77)
• Use 3.3V power
• Verify SDA/SCL pins

Wi-Fi connection issues

• Confirm credentials
• Check signal strength
• Watch serial logs

HTTP failures

• Verify API endpoint
• Ensure server is reachable
• Check firewall/network rules

---

Possible Extensions

• MQTT telemetry publishing
• Deep sleep battery operation
• OTA firmware updates
• Web dashboard integration
• Home Assistant support
• Data buffering and batching

---

MIT License — free to use, modify, and distribute.

---

Acknowledgements

• ESP32 Arduino framework
• Adafruit BME280 library
• ArduinoJson
• PlatformIO ecosystem
