Add treemap

[magnustymoteus]

• Add treemap module in js with RTreeMapPainter.mjs and RTreeMapToolTip.mjs that constitute:
  • Base drawing logic
  • Interactive features

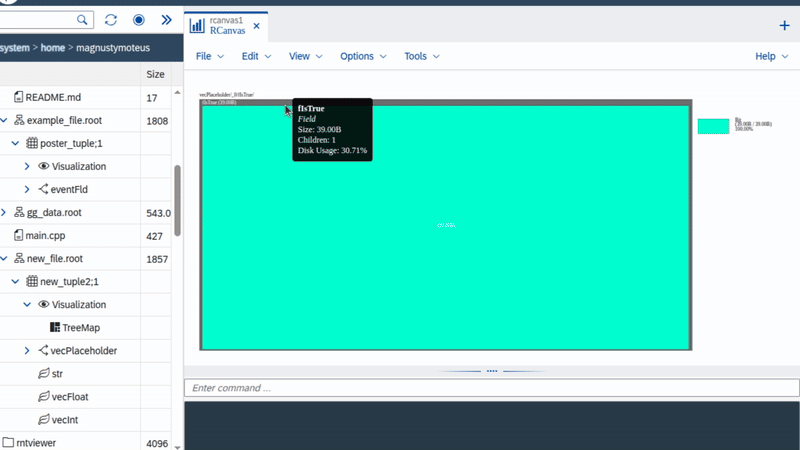

    • Hovering on a field/column which shows the tooltip with extra information
    • Scoping which zooms in or out into the corresponding field
    • Hovering on a legend entry highlights the columns with the hovered type

I am still a little confused about the ROOT file I need to attach for testing purposes. Since the RTreeMap visualization is available for any ROOT file with an RNTuple, is it okay if I just attach a ROOT file with an RNTuple in it?:
treemap.zip
(This is a .zip file with .root file in it because github refuses to accept .root files)

[linev]

I change to dev branch.

Can you move your files to modules/draw sub-directory?

Also in your file you have RNTuple object, but you implement RTreeMapPainter class.
So one need instance of that class in the ROOT file to be able test functionality.

[silverweed]

Also in your file you have RNTuple object, but you implement RTreeMapPainter class.
So one need instance of that class in the ROOT file to be able test functionality.

Why is this needed? I don't think we ever want to store a TreeMapPainter in a ROOT file

[magnustymoteus]

Moved files in /modules/treemap to modules/draw and deleted the treemap directory

[linev]

I don't think we ever want to store a TreeMapPainter in a ROOT file

While then I can add it to JSROOT CI tests - see here:

https://github.com/root-project/jsroot/actions/runs/17647937723/job/50150808637#step:10:1

[silverweed]

I don't think we ever want to store a TreeMapPainter in a ROOT file

While then I can add it to JSROOT CI tests - see here:

https://github.com/root-project/jsroot/actions/runs/17647937723/job/50150808637#step:10:1

I still don't understand. Does Patryk need to provide a ROOT file containing a TreeMapPainter? How is this ROOT file used exactly?

[linev]

Does Patryk need to provide a ROOT file containing a TreeMapPainter

Yes.

How is this ROOT file used exactly?

It will be add to set of our examples https://root.cern/js/latest/examples.htm and regularly checked.

[magnustymoteus]

This compressed root file should have an RTreeMapPainter instance inside:
treemap.zip

[linev]

This compressed root file should have an RTreeMapPainter instance inside:

This is exactly that I need.

I test code locally on my machine and if it works as expected I will merge PR and add file to jsroot testing

[linev]

I add several commits to fix several problems.

[linev]

There are many eslint warnings about coding conventions.
You can see them in CI or if you install it locally with

npm install
npm run check

You can fix them later if you want.

[linev]

Here how file is integrated into CI:

https://github.com/linev/jsroot-test/blob/master/Misc/treemap.svg

And this is how it shown in my dev environment:

https://jsroot.gsi.de/dev/examples.htm#misc_treemap

[linev]

And after merging of this PR.

One can write JavaScript code to directly display RNTuple from JSROOT.
We have code which read RNTuple structures so we can directly create RTreeMapPainter in JavaScript and display it.
I hope it can be done straight-forward.

[magnustymoteus]

There are many eslint warnings about coding conventions. You can see them in CI or if you install it locally with

npm install
npm run check

You can fix them later if you want.

I fixed them by running eslint fix on the corresponding files
