CAN Bus Demo with ESP32, LVGL, and DBC Code Generation

A demonstration project showcasing CAN bus communication between two ESP32 boards with LVGL GUI, DBC-based code generation, and a modular firmware architecture. This project is ideal for learning CAN protocols, embedded UI development, and code generation workflows.

---

🎯 What This Project Demonstrates

1. CAN Bus Communication

   • Dual ESP32 setup: one TX board (transmitter) and one RX board (receiver)
   • 500 kbps CAN communication using ESP32's built-in CAN controller
   • Message filtering, unpacking, and event-driven processing

2. DBC-Driven Code Generation

   • Define CAN messages in a standard .dbc file
   • Auto-generate C code for encoding/decoding using c-coderdbc
   • Type-safe message handling with generated structs

3. LVGL Graphical UI (RX Board)

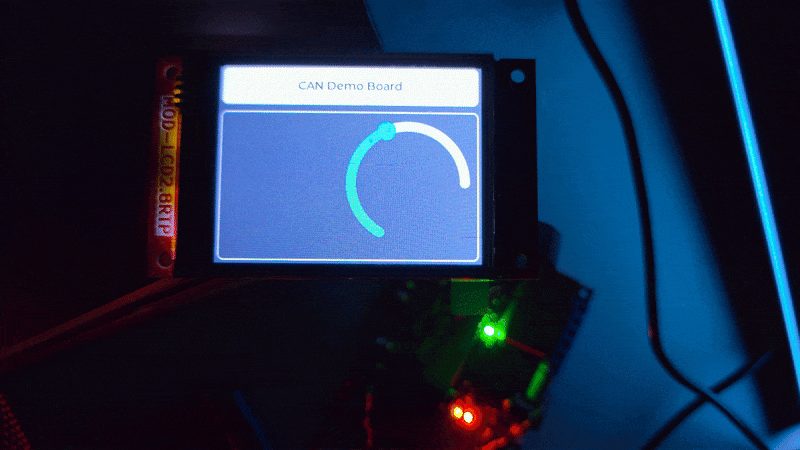

   • Real-time display of CAN data on TFT touchscreen
   • SquareLine Studio integration for UI design
   • Arc gauge for speed, turn signal indicators

4. Modular Firmware Architecture

   • Event-driven state machine with message routing
   • Pub/sub pattern for decoupled components
   • Health monitoring with automatic degradation and recovery

---

🚀 Quick Start

Prerequisites

1. Hardware

   • 2x ESP32 boards (e.g., ESP32-EVB or similar)
   • CAN transceivers (e.g., SN65HVD230 or MCP2551)
   • TFT display with touch (for RX board)
   • CAN bus wiring (120Ω termination resistors recommended)

2. Software

   • PlatformIO (VS Code extension or CLI)
   • Python 3.x (for optional documentation builds)
   • Git (to clone this repository)

Installation

1. Clone the repository

   git clone https://github.com/rvxfahim/CAN-Demo-ESP32.git
   cd CAN-Demo-ESP32

2. Configure serial ports (if different from defaults)
   Edit platformio.ini and set your COM ports:

   [env:rx_board]
   upload_port = COM8    ; Change to your RX board port
   monitor_port = COM8

   [env:tx_board]
   upload_port = COM9    ; Change to your TX board port
   monitor_port = COM9

3. Build and upload

   RX Board (receiver with display):

   pio run -e rx_board -t upload
   pio device monitor -e rx_board

   TX Board (transmitter):

   pio run -e tx_board -t upload
   pio device monitor -e tx_board

4. Connect the hardware

   • Wire CAN_H and CAN_L between boards through transceivers
   • Connect 120Ω termination resistors at both ends
   • Power both boards
   • TX will start sending Cluster frames; RX display will update

---

📖 Understanding the DBC Workflow

What is a DBC File?

A DBC (CAN Database) file is an industry-standard format for defining CAN messages, signals, and their properties. It serves as the single source of truth for all CAN communication in this project.

Location: tools/Lecture.dbc

Code Generation Process

This project uses c-coderdbc to auto-generate C encode/decode functions from the DBC file.

Step 1: Edit the DBC File

The example Lecture.dbc defines a Cluster message (ID 0x65) with signals:

• Speed (12-bit): 0–4095 range
• Left_Turn_Signal (1-bit): boolean
• Right_Turn_Signal (1-bit): boolean

You can edit this file with any text editor or use tools like CANdb++ Editor or SavvyCAN.

Step 2: Run the Code Generator

Windows:

cd tools\c-coderdbc
.\build\coderdbc.exe -dbc ..\Lecture.dbc -out ..\..\lib\Generated

This regenerates:

• lib/Generated/lib/lecture.c and lecture.h (generated code, do not edit)
• Helper files in lib/Generated/conf/, lib/Generated/inc/, etc.

Linux/macOS:
You'll need to compile c-coderdbc from source (see tools/c-coderdbc/README.md).

Step 3: Use Generated Types in Code

The firmware uses the generated types exclusively:

#include "lecture.h"  // Generated header

// Packing (TX side)
Cluster_t cluster = {0};
cluster.Speed = 2048;
cluster.Left_Turn_Signal = 1;
cluster.Right_Turn_Signal = 0;

uint8_t data[8];
Pack_Cluster_lecture(&cluster, data, 8);
CAN0.sendFrame({ .identifier = 0x65, .data = data, ... });

// Unpacking (RX side)
Cluster_t received;
Unpack_Cluster_lecture(&received, frame.data, frame.data_length_code);

Key principle: Never manually parse CAN bytes. Always use Pack_* and Unpack_* functions.

---

🏗️ Project Structure

CAN-Demo-ESP32/
├── platformio.ini           # Build config (two environments: rx_board, tx_board)
├── tools/
│   ├── Lecture.dbc          # CAN message definitions (source of truth)
│   └── c-coderdbc/          # DBC-to-C code generator
├── lib/
│   ├── Generated/           # Auto-generated C code (from DBC)
│   ├── CanDriver/           # ESP32 CAN driver abstraction
│   ├── Ui/                  # LVGL UI (SquareLine Studio exports)
│   └── TouchLibrary/        # Touch controller drivers
├── src/
│   ├── common/              # Shared code (MessageRouter, etc.)
│   ├── rx/                  # RX board firmware (main + modules)
│   ├── tx/                  # TX board firmware (main only)
│   └── generated_lecture_dbc.c  # Single include wrapper for DBC code
├── include/                 # Global headers (IOPins, TFT config)
├── docs/                    # Sphinx documentation source
└── README.md                # This file

---

📚 Documentation

For detailed architecture, sequence diagrams, and API references, see the full documentation:

🌐 GitHub Pages Documentation

Topics covered:

• Getting Started: Detailed setup and hardware connections
• Architecture: Component diagrams, state machines, data flow
• CAN & DBC: In-depth DBC workflow and regeneration steps
• Testing: Unit test guidelines and test hooks
• API Reference: Doxygen-generated class/function documentation

---

🔧 Configuration and Customization

CAN Parameters

• Bitrate: 500 kbps (configurable in CanInterface.cpp)
• Pins: GPIO 35 (RX), GPIO 5 (TX) — change in CanInterface::Initialize()
• Message ID: 0x65 for Cluster (defined in DBC)

Display and UI

• Screen: Configured in include/TFTConfiguration.h and lib/Ui/
• UI Design: Edit with SquareLine Studio, export to lib/Ui/
• Widgets: Arc gauge (ui_Arc1), labels (ui_RightLabel, ui_LeftLabel)

IO Relays (Blinkers)

• Pins: GPIO 25 (left), GPIO 26 (right) — see include/IOPins.h
• Blink Rate: 1 Hz (500ms ON/OFF) — adjust in IOModule::Update()

Health Monitoring

• Timeout: 1500ms (RX declares Degraded if no CAN frames) — see HealthMonitor.cpp

---

🧪 Testing and Troubleshooting

Common Issues

RX display doesn't update:

• Verify TX is sending frames (check TX serial monitor)
• Check CAN wiring and termination resistors
• Ensure both boards have matching bitrate (500 kbps)

Blinkers don't work:

• Confirm relay pins in include/IOPins.h match your hardware
• Verify Left_Turn_Signal / Right_Turn_Signal bits are set in TX

System shows "Degraded":

• Normal behavior when CAN frames stop arriving (timeout threshold)
• Should auto-recover when TX resumes

Build Errors

Missing LVGL or TFT_eSPI: PlatformIO will auto-install dependencies from lib_deps in platformio.ini.

Linker errors about Cluster_t: Ensure src/generated_lecture_dbc.c is included in the build (check build_src_filter).

---

🤝 Contributing

Contributions welcome! Please:

1. Fork the repository
2. Create a feature branch (git checkout -b feature/amazing-feature)
3. Commit changes (git commit -m 'Add amazing feature')
4. Push to branch (git push origin feature/amazing-feature)
5. Open a Pull Request

---

📄 License

This project is licensed under the GPLV3 License. See LICENSE file for details.

---

🔗 Key Technologies

• PlatformIO — Cross-platform embedded build system
• LVGL v9.1 — Lightweight graphics library
• TFT_eSPI — Fast TFT display driver
• SquareLine Studio — Drag-and-drop LVGL UI designer
• c-coderdbc — DBC-to-C code generator
• ESP32 Arduino — Arduino framework for ESP32

---
