ReDScribe

Let’s re-describe your code as your own friendly domain-specific language.

Features:

• Execution: You can execute mruby code (a lightweight Ruby) in Godot and emit signals from mruby to Godot.
• Editing: You can write and edit Ruby files in the Godot Editor.
• REPL: You can try out Ruby interactively in Godot.

Usage

extends Node

@onready var res := ReDScribe.new()

func _ready() -> void:
    res.method_missing.connect(_method_missing)
    res.channel.connect(_subscribe)
    res.perform("""

        Alice says: "Hello Ruby! ❤️"

        puts "Welcome to the world of Ruby v#{RUBY_VERSION}, powered by #{RUBY_ENGINE} 💎"

        Godot.emit_signal :spawn, { name: 'Alice', job: 'wizard', level: 1 }

    """)

func _method_missing(method_name: String, args: Array) -> void:
    print_debug('[method_missing] ', method_name, ': ', args)

func _subscribe(key: StringName, payload: Variant) -> void:
    print_debug('[subscribe] ', key, ': ', payload)


# -- Output --
#
#   [method_missing] Alice: [{ &"says": "Hello Ruby! ❤️" }]
#
#   Welcome to the world of Ruby v3.4, powered by mruby 💎
#
#   [subscribe] spawn: { &"name": "Alice", &"job": "wizard", &"level": 1 }
#

Architecture

Definitions

• Properties
  • String boot_file
  • String exception
• Methods
  • void set_boot_file(path: String)
  • void perform(dsl: String)
• Signals
  • channel(key: StringName, payload: Variant)
  • method_missing(method_name: String, args: Array)

Built-in mruby methods

mruby	description
require 'path/to/file'	loads res://path/to/file.rb file.
puts 'something'	prints something to the Output panel in Godot.
Object#method_missing	emits method_missing signal. (method_name: String, args: Array)
Godot.emit_signal(key, payload)	emits channel signal. (key: StringName, payload: Variant)
Godot::VERSION	Godot version

Type conversions

mruby		GDScript
true	⇒	true
false	⇒	false
nil	⇒	null
Float	⇒	float
Integer	⇒	int
Symbol	⇒	StringName
String	⇒	String
Hash	⇒	Dictionary
Array	⇒	Array
Range	⇒	Array
Time	⇒	Dictionary
(others)	⇒	String (#inspect called)

see: demo/test/gdextension/test_variant.gd

Installation

1. Download the addons.tar.gz from the release.
2. Extract the addons.tar.gz and place the redscribe directory into (Your godot project root)/addons directory.
3. Open the project settings and enable ReDScribe.

Screenshots

Editor

Note

For @ and :, syntax highlighting requires a following whitespace to work correctly.

REPL

Caution

In the REPL, local variables are undefined in the next input.

addons/redscribe/mrblib

I have created some libraries. If you'd like to use them, add require 'addons/redscribe/mrblib/xxx' at the top of your script.

see more: doc/addons/mrblib.md

Examples

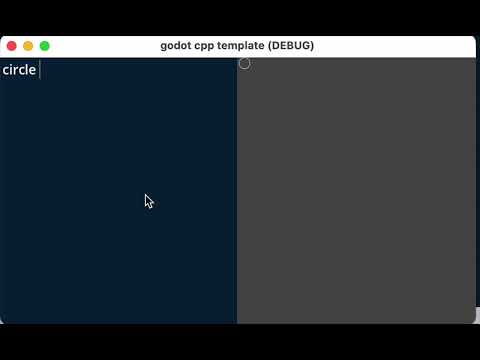

1. Live coding

see more: doc/examples/1_live_coding.md

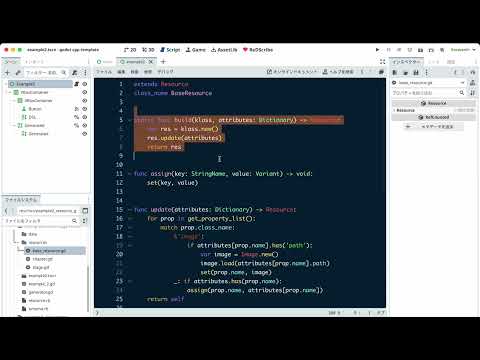

2. Resource generator

see more: doc/examples/2_resource_generator.md

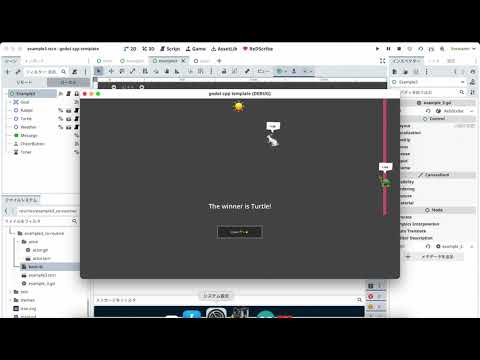

3. Actor (like Agent-based model)

see more: doc/examples/3_actor.md

4. Dialog controller (Coroutine)

see more: doc/examples/4_coroutine.md

Documentation

English : https://tkmfujise.github.io/redscribe-docs

日本語 : https://tkmfujise.github.io/redscribe-docs/ja

Development

build

After installing the required packages, run the following command.

$ rake

see: Rakefile

Roadmap

v0.1.0

• method_missing signal
• channel signal
• Godot module
• puts
• boot.rb
• require
• Editor
• REPL
• compile
  • debug/release
  • windows
  • mac
• Document
  • doc/*.adoc
  • README
  • Godot help
• Demo
  • Example0: Basic
  • Example1: Live Coding
  • Example2: Resource generator
  • Example3: Actor
  • Example4: Coroutine

v0.2.0 or later

• Document
  • Wiki
• Editor
  • Support multiple files open
  • Support search text
  • Code completion
  • Snippet
    • require
  • User definable theme
  • User definable syntax
• REPL
  • boot_file enabled
• mrblib
  • core_ext like ActiveSupport
    • Duration (e.g. 1.day.ago)
• src/*.cpp
  • Regexp support (call Godot RegEx)
  • remove global variables
• fix bugs
  • .rb files cannot be displayed on the first launch.
• compile
  • use github workflow
  • target
    • windows.x86_64
    • windows.x86_32
    • macos
    • linux.x86_64
    • linux.arm64
    • linux.rv64
    • android.x86_64
    • android.arm64
    • ios
