Summary

  • Add a new Mosaic tool (M) to the annotation system that allows users to pixelate/censor regions of an image by dragging a rectangle
  • Useful for hiding sensitive information (faces, text, personal data) before sharing screenshots
  • Fully integrated with existing undo/redo, export, presets, delete, and history systems

How it works

  1. Press M or click the Mosaic button (grid icon) to enter mosaic mode
  2. Click and drag a rectangle over the area to pixelate
  3. Adjust Block Size (5, 10, 15, 20, 30px) to control pixelation intensity
  4. Mosaic regions behave like annotations: selectable, movable, resizable, deletable
  5. Save flattens mosaic permanently into the image

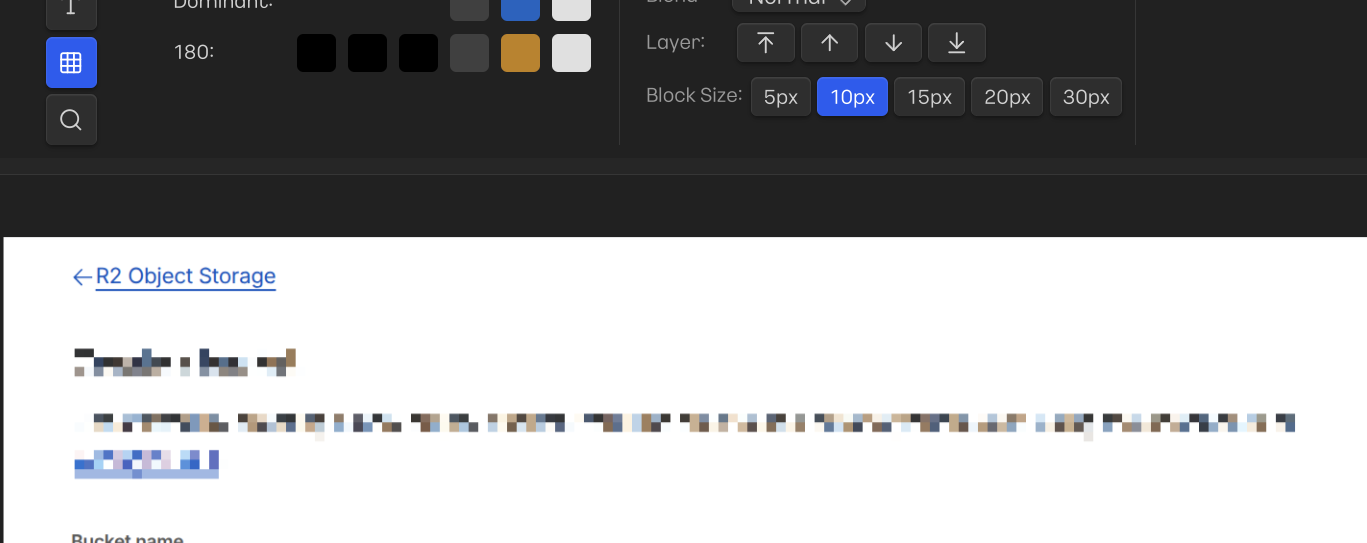

Mosaic tool demo

Technical details

  • New file: src/ImageAnnotation/tools/MosaicTool.ts — Core mosaic logic with __isMosaicRegion marker to distinguish mosaic FabricImage objects from the background image
  • Pixelation algorithm: Extract region → downscale → nearest-neighbor upscale (imageSmoothingEnabled = false)
  • Edge cases handled: Background bounds clamping, tiny drag ignore (<3px), spacebar panning override, viewport zoom via getScenePoint()

Files changed

File Change
src/ImageAnnotation/tools/MosaicTool.ts NEW — MosaicTool class, MOSAIC_MARKER, isMosaicImage()
src/ImageAnnotation/types.ts Add ToolMode.MOSAIC, MOSAIC_BLOCK_SIZES
src/ImageAnnotation/managers/ToolManager.ts Mosaic mode state, toggle, interactivity
src/ImageAnnotation/ui/ToolbarBuilder.ts Mosaic button + block size controls
src/ImageAnnotation/ImageAnnotationModal.ts MosaicTool integration, M hotkey, mouse events
src/ImageAnnotation/managers/HistoryManager.ts Mosaic marker serialization/restore
src/ImageAnnotation/export/ImageExporter.ts Index-based background detection (avoid mosaic confusion)
src/ImageConverterSettings.ts Mosaic presets
styles.css Block size controls styles
docs/Annotation tool.md Mosaic section + screenshot
tests/ Updated mocks for mosaic compatibility

Test plan

  • npm run build — passes
  • npm run lint — 0 errors
  • npm run test — all annotation tests pass (pre-existing unrelated failures only)
  • Manual test: M key → drag rectangle → pixelation applied
  • Manual test: Block size change → re-drag → different pixelation
  • Manual test: Ctrl+Z/Y undo/redo works with mosaic regions
  • Manual test: Select mosaic → Delete removes it
  • Manual test: Save → image file has mosaic baked in

Add a new Mosaic tool (M) that allows users to pixelate/censor regions
of an image by dragging a rectangle. Useful for hiding sensitive
information (faces, text, personal data) before sharing screenshots.

- New MosaicTool class with drag-to-pixelate interaction
- Block size control (5, 10, 15, 20, 30px)
- Full integration with undo/redo, export, presets, and delete
- Mosaic marker (`__isMosaicRegion`) to distinguish from background image
- Keyboard shortcut: M key
- Updated docs and tests
