xmake-vscode

A XMake integration in Visual Studio Code

Introduction

A XMake integration in Visual Studio Code.

You need install xmake first and a project with xmake.lua.

Please see xmake-github and website if you want to know more about xmake.

Features

• Project Management: Create new projects, add files, and manage project structure
• Language Support: Colorization and syntax highlighting for xmake.lua files
• IntelliSense: Auto-completion for XMake APIs and functions
• Status Bar: Quick access to build configuration and actions
• Command Palette: Full integration with VS Code commands
• Configuration Management: Configure platforms, architectures, toolchains, and build modes
• Build System: Build, rebuild, clean, and package projects
• Run and Debug: Integrated debugging with multiple debugger support
• Problem Detection: Real-time error and warning detection
• Macro Recording: Record and playback command sequences
• File Explorer: Dedicated XMake project explorer with target management
• Task Integration: VS Code tasks support for XMake commands

Quickstart

Colorization and Completion Lists

StatusBar

Commands

Configuration

Build

Run and Debug

Record and Playback

Problem

IntelliSense

xmake-vscode will generate .vscode/compile_commands.json file, so you need only add it to .vscode/c_cpp_properties.json to enable IntelliSense.

Automatic Generation Modes

The extension provides three modes for automatic generation of compile_commands.json:

• onFileChange (default): Generate compile_commands.json when xmake.lua files change
• onBuild: Generate compile_commands.json after building the project
• disabled: Disable automatic generation (manual generation via "XMake: UpdateIntellisense" command is still available)

You can configure this in VSCode settings with xmake.autoGenerateCompileCommands.

for example (.vscode/c_cpp_properties.json):

{
    "configurations": [
        {
            "compileCommands": ".vscode/compile_commands.json"
        }
    ],
    "version": 4
}

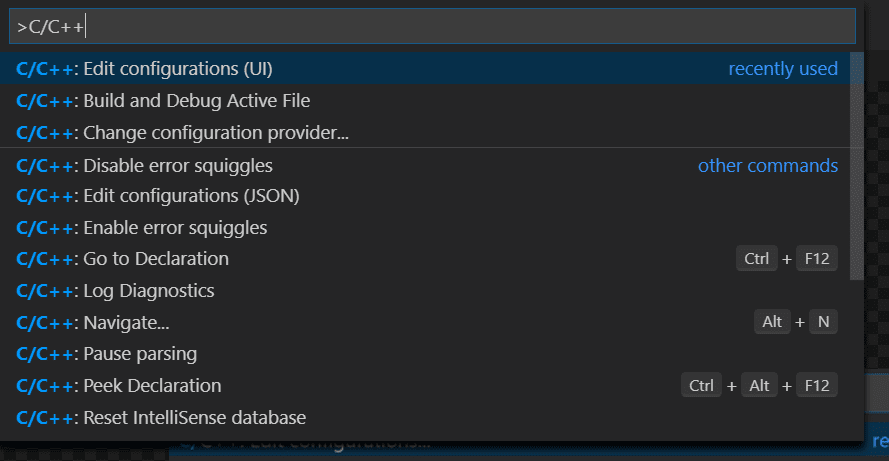

How can I generate c_cpp_properties.json?

These configuration settings are stored in your project's c_cpp_properties.json file. To edit this file, in VS Code, select C/C++: Edit Configurations (UI) from the Command Palette (⇧⌘P):

Please see IntelliSense for cross-compiling

Debugging

Debug via launch configurations (launch.json) is accessible only with Run->Start Debugging (not F5 keybinding) or via Launch Debug command.

attribute	type
name	string	Required. Launch configuration name, as you want it to appear in the Run and Debug panel.
type	string	Required. Set to xmake.
request	string	Required. Session initiation method:launch or attach.
target	string	Required. XMake target.
env	object	Additional environment variables. {"PATH" : "some/path"}
args	string ❘ [string]	Command line parameters. If not defined args are taken from debuggingTargetsArguments config.
cwd	string	If not defined xmake will use the target directory.
stopAtEntry	boolean	If set to true, the debugger should stop at the entry-point of the target (ignored on attach). Default value is false.
terminal	string	Destination of stdio streams: console for Debug Console integrated (default) for VSCode integrated terminal external for a new terminal window newExternal for a new terminal window but only with cli application (only cpptools / with lldb it will be converted to external)

Example:

{
    "configurations": [
    {
       "name": "XMake Debug",
        "type": "xmake",
        "request": "launch",
        "target": "example",
        "stopAtEntry": true
    }
  ]
}

Configurations related to debugging

Debugger extension

You can choose the debugger extension with xmake.debugConfigType, set it to:

• default for cpptools debugger
• codelldb for lldb debugger

Envs behaviour

You can choose the behaviour between xmake envs and envs that are defined in launch.json For an xmake envs that are like this {"PATH: "path/from/xmake"} and in launch.json {"PATH": "path/from/config"}.

Default is merge.

• With xmake.envBehaviour set to merge, the result is: {"PATH": "path/from/xmake;path/from/config"}.
• With xmake.envBehaviour set to erase, the result is: {"PATH": "path/from/xmake"}
• And with xmake.envBehaviour set to override, the result is: {"PATH": "path/from/config"}.

XMake envs will only be replaced for the same key, if another xmake env key is present, it will be present in the final result.

Global Configuration

We can configure them in settings.json

Basic Configuration

{
    "xmake.executable": "xmake",
    "xmake.logLevel": "normal",
    "xmake.buildLevel": "normal",
    "xmake.buildDirectory": "${workspaceRoot}/build",
    "xmake.workingDirectory": "${workspaceRoot}"
}

Advanced Configuration

{
    "xmake.executable": "xmake",
    "xmake.logLevel": "normal",
    "xmake.buildLevel": "normal",
    "xmake.buildDirectory": "${workspaceRoot}/build",
    "xmake.installDirectory": "",
    "xmake.packageDirectory": "",
    "xmake.workingDirectory": "${workspaceRoot}",
    "xmake.androidNDKDirectory": "",
    "xmake.QtDirectory": "",
    "xmake.WDKDirectory": "",
    "xmake.compileCommandsDirectory": ".vscode",
    "xmake.compileCommandsBackend": "clangd",
    "xmake.additionalConfigArguments": [],
    "xmake.runningTargetsArguments": {
        "default": []
    },
    "xmake.debuggingTargetsArguments": {
        "default": []
    },
    "xmake.debugConfigType": "default",
    "xmake.customDebugConfig": {},
    "xmake.envBehaviour": "merge",
    "xmake.enableSyntaxCheck": true,
    "xmake.runMode": "runOnly"
}

Status Bar Configuration

Control which buttons appear in the status bar:

{
    "xmake.status.showProject": false,
    "xmake.status.showXMake": true,
    "xmake.status.showPlatform": false,
    "xmake.status.showArch": false,
    "xmake.status.showMode": false,
    "xmake.status.showToolchain": false,
    "xmake.status.showTarget": false,
    "xmake.status.showBuild": true,
    "xmake.status.showRun": true,
    "xmake.status.showDebug": true
}

Configuration Options Details

Option	Type	Default	Description
xmake.executable	string	"xmake"	The xmake executable name / path
xmake.logLevel	string	"normal"	Log Level: verbose, normal, minimal
xmake.buildLevel	string	"normal"	Build Output Level: verbose, normal, debug
xmake.runMode	string	"runOnly"	Run Mode: runOnly, buildRun
xmake.buildDirectory	string	"${workspaceRoot}/build"	Build Output Directory
xmake.installDirectory	string	""	Install Output Directory
xmake.packageDirectory	string	""	Package Output Directory
xmake.workingDirectory	string	"${workspaceRoot}"	Project Working Directory
xmake.androidNDKDirectory	string	""	Android NDK Directory
xmake.QtDirectory	string	""	Qt Directory
xmake.WDKDirectory	string	""	Windows Driver Kit Directory
xmake.compileCommandsDirectory	string	".vscode"	compile_commands.json file directory
xmake.compileCommandsBackend	string	"clangd"	LSP backend for compile_commands
xmake.autoGenerateCompileCommands	string	"onFileChange"	Automatic generation mode: onFileChange, onBuild, disabled
xmake.additionalConfigArguments	array	[]	Additional config arguments, e.g. ["--cc=gcc", "--myopt=xxx"]
xmake.runningTargetsArguments	object	{"default": []}	Running targets arguments, e.g. {"targetName": ["args", "..."]}
xmake.debuggingTargetsArguments	object	{"default": []}	Debugging targets arguments
xmake.debugConfigType	string	"default"	Debug configuration type: default, codelldb, lldb-dap, gdb-dap
xmake.customDebugConfig	object	{}	Custom debugging configurations
xmake.envBehaviour	string	"merge"	Environment behaviour: erase, merge, override
xmake.enableSyntaxCheck	boolean	true	Enable Lua syntax check

XMake Explorer

The extension provides a dedicated XMake Explorer in the Activity Bar for project management.

Features

• Project Overview: View all targets and their configurations
• Target Management: Build, rebuild, clean, run, and debug individual targets
• Configuration Panel: Quick access to platform, architecture, mode, and toolchain settings
• Context Menu: Right-click actions for quick operations

Explorer Actions

• Build All: Build all targets in the project
• Rebuild All: Clean and build all targets
• Clean All: Clean all build artifacts
• Run All: Run all executable targets
• Configure: Open configuration settings

Available Commands

Access all XMake commands through the Command Palette (Ctrl+Shift+P or Cmd+Shift+P):

Project Commands

• XMake: CreateProject: Create a new XMake project
• XMake: NewFiles: Add new files to the project
• XMake: Show Explorer: Show/hide the XMake Explorer

Configuration Commands

• XMake: Configure: Configure the project
• XMake: Clean Configure: Clean and reconfigure the project
• XMake: Set Target Platform: Set the target platform
• XMake: Set Target Architecture: Set the target architecture
• XMake: Set Build Mode: Set the build mode (debug/release)
• XMake: Set Default Target: Set the default target
• XMake: toolchain: Set the toolchain

Build Commands

• XMake: Build: Build the current target
• XMake: BuildAll: Build all targets
• XMake: Rebuild: Rebuild the current target
• XMake: Clean: Clean the current target
• XMake: CleanAll: Clean all targets

Run and Debug Commands

• XMake: Run: Run the current target
• XMake: BuildRun: Build and run the target
• XMake: Debug: Start debugging
• XMake: Launch Debug: Launch with debugger

Package and Install Commands

• XMake: Package: Package the project
• XMake: Install: Install the project
• XMake: Uninstall: Uninstall the project

Utility Commands

• XMake: BeginMacro: Start recording commands
• XMake: EndMacro: Stop recording commands
• XMake: RunMacro: Run recorded macro
• XMake: RunLastCommand: Repeat the last command
• XMake: UpdateIntellisense: Update IntelliSense configuration

Task Integration

The extension supports VS Code tasks for XMake operations. Create a .vscode/tasks.json file:

{
    "version": "2.0.0",
    "tasks": [
        {
            "label": "XMake: Build",
            "type": "xmake",
            "task": "build",
            "problemMatcher": ["$gcc"],
            "group": {
                "kind": "build",
                "isDefault": true
            }
        },
        {
            "label": "XMake: Clean",
            "type": "xmake",
            "task": "clean",
            "problemMatcher": []
        },
        {
            "label": "XMake: Run",
            "type": "xmake",
            "task": "run",
            "problemMatcher": []
        }
    ]
}

Available Task Types

• build: Build the project
• clean: Clean build artifacts
• run: Run the target
• package: Package the project
• install: Install the project
• configure: Configure the project

Key Bindings

The extension provides the following default key bindings:

Key	Command	Description
F5	xmake.onDebug	Start debugging (when xmake is enabled)

You can customize these key bindings in VS Code preferences.

Platform-Specific Configuration

The extension supports platform-specific configuration. You can use platform prefixes in your settings:

{
    "xmake.executable": "xmake",
    "windows.xmake.executable": "xmake.exe",
    "linux.xmake.executable": "/usr/bin/xmake",
    "osx.xmake.executable": "/usr/local/bin/xmake"
}

Supported platform prefixes:

• windows for Windows
• linux for Linux
• osx for macOS

Troubleshooting

Common Issues

XMake not found

• Ensure XMake is installed and accessible in your system PATH
• Use xmake.executable setting to specify the full path to xmake executable

IntelliSense not working

• Check your xmake.autoGenerateCompileCommands setting:
  • Set to onFileChange to generate when xmake.lua changes
  • Set to onBuild to generate after building
  • Set to disabled and use XMake: UpdateIntellisense command manually
• Run XMake: UpdateIntellisense command to generate compile_commands.json manually
• Ensure your .vscode/c_cpp_properties.json references the correct compile commands file
• Check that the C/C++ extension is installed and enabled

Debugging not working

• Verify your launch.json configuration has the correct target name
• Check that the debugger extension (C/C++ or CodeLLDB) is installed
• Ensure the debug configuration type matches your debugger extension

Build fails

• Check the output panel for detailed error messages
• Verify your xmake.lua configuration is correct
• Ensure all required dependencies and tools are installed

Getting Help

• Documentation: XMake Official Documentation
• Issues: GitHub Issues
• Community:
  • Reddit
  • Discord
  • Telegram
  • QQ Group

Contributing

Contributions are welcome! Please see CONTRIBUTING.md for guidelines.

License

This project is licensed under the Apache License 2.0 - see the LICENSE file for details.
