CPU Simulation Using MontiArc Model

Contributors

• Dongze Yang (@ydzat)
  Speaker and Main Developer

• Xiangyu Tong (@XYTong)
  Architect and Slides Maker

• Shu Zhang
  Integrator

• Sheng Gu
  Tester

License

⚠️ Academic Integrity Warning
This project is intended for reference only. If you are working on a similar assignment, do not copy this repository.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License.

• ✅ You may view and reference the code for learning purposes
• ❌ You may NOT use this code for commercial purposes
• ❌ You may NOT submit this project (or modified versions) as part of your own coursework

Link: https://creativecommons.org/licenses/by-nc-nd/4.0/

Description of this project

This repository contains the final project for the course Model-based Systems Engineering.

The task description is available in the file: project_task.md.

This project aims to simulate a mordern CPU with MVP (minimum viable product). With the help of some open-source schematics (like NandGame) and the powerful ADL Montiarc, we have implemented such CPU which fullfills all the requirements successfully. Even more， our CPU-model supports most of the features of ll(1) grammar(e.g. recursive, iterative by using operation jump and combination of other related ops).

How to run

This project requires the following environment to build and run:

• Java 11 (tested with Eclipse Adoptium 11.0.26+4)
• Gradle 7.6

Make sure you're in the project root directory before running these commands.

• Build the project: gradle build

• Run tests: gradle test

Performance Params

1. Simulated physical params

Architecture	Memory Size	Data Precision	Instruction Size
von Neumann	10 Bytes	int8	16 Bit

2. Operations

Operations
X and Y
X or Y
X xor Y
invert X
X + Y
X - Y
X + 1
X - 1
Y - X
0 - Y
0 - X
Never
X > 0
X = 0
X ≥ 0
X < 0
X ≠ 0
X ≤ 0
Always

3. 16-Bit Instruction

Layer Hierarchy

File Structure

The CPU is designed and modelled with different layers below. Each layers consists of montiarc components. A layer is the dependency of all the layers below it. m000_circuits is the basic layer which has only atomic montiarc components(e.g. RelayDefaultOff, RelayDefaultOn). Since our project is a loose coupled system, it is extendable and can be resued by developer outside for further usage.

.

Components

The components shown below are their physical implementations. Even though this is just a simulation from a software-engineering point of view, our models follow strictly the corresponding physical implementations(e.g. in-and output, connections between components, data length and instruction length). The simulation is meaningless if it is out of touch with reality.

Atomic Components (Relays)

A relay logic circuit is an electrical network consisting of lines, or rungs, in which each line or rung must have continuity to enable the output device. WiKi

Here in our case, it is sufficient to only simulate the in-and output of relays regardless of its physical features.

Relay Off	Relay On

Theoretically all components can be decomposed by bunch of relays with specific combinations.

Notice: the compinents shown below use 16-bit as data precision and 8-bit is used in our case.

Logic Gate

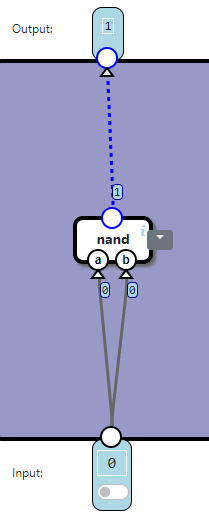

NandGate

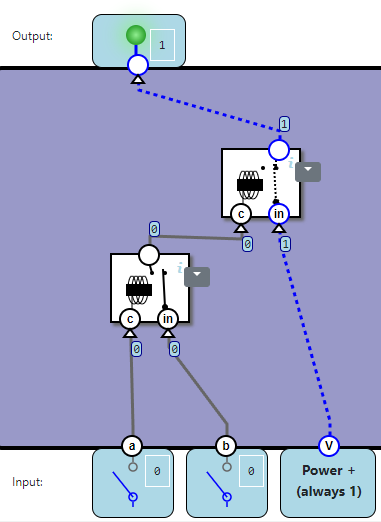

Our task is to connect inputs to output through wires and relays such that when both a and b inputs are 1, the output is 0. 1 represents electrical current, 0 represents no current. The V input carries constant current, i.e. always 1. The exact specification:

Input	Input	Output
a	b
0	0	1
0	1	1
1	0	1
1	1	0

Invert

Our next task is to build an inverter (inv) component. This inv-component has a single input and a single output. The output should be the opposite of the input, which can be visualized in the following tableau:

Input	Output
0	1	✓
1	0	✓

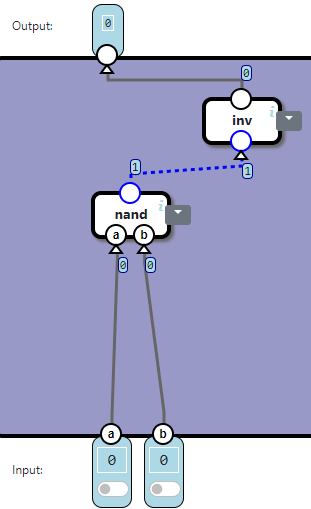

And

We create here an and gate with an output which is 1 when both inputs are 1:

Input	Input	Output
a	b
0	0	0	✓
0	1	0	✓
1	0	0	✓
1	1	1	✓

Or

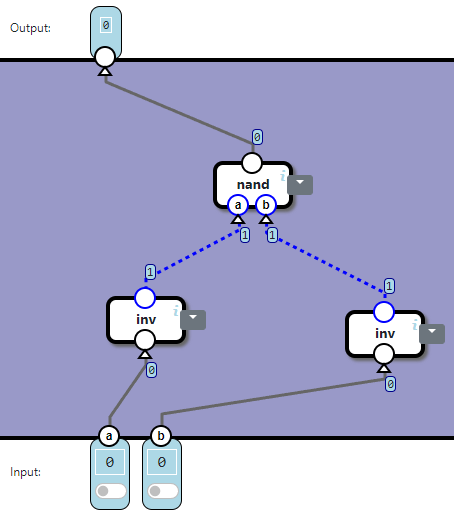

We create an or gate with an output which is 1 when at least one input is 1:

Input	Input	Output
a	b
0	0	0	✓
0	1	1	✓
1	0	1	✓
1	1	1	✓

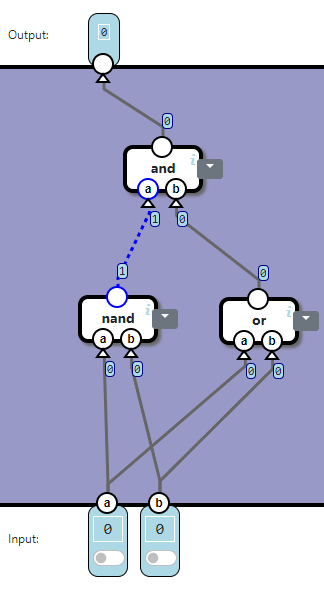

Xor

We create an xor gate's with an output which is 1 when the two inputs are different:

Input	Input	Output
a	b
0	0	0	✓
0	1	1	✓
1	0	1	✓
1	1		✓

TriGate

This is a Tri-State gate for 8-bit input data. It has an 8-bit input and output and an en input to control whether the part is enabled. When en=false, there should be no output from a hardware point of view, but from our simulation point of view, we set the output to false at this point.

Decoder38

3 to 8 decoder. The input is an address of length 3, and the output is an address of length 8. For example, if the input is 010 and the decimal representation is 2, then the output is 00000100, i.e., the second digit from the right (from 0) is true.

Arithmetics

Our next step is arithmetic operations. The processor are required to add and subtract numbers.

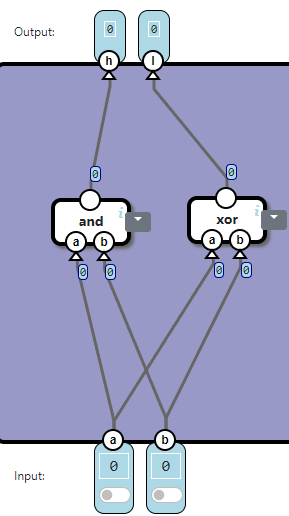

Half Adder

1. An add component is to add two one-bit numbers together. The result will be a two-bit number.
2. The h output is the high bit, the l is the low bit:

Input	Input	Output	Output
a	b	h	l
0	0	0	0
0	1	0	1
1	0	0	1
1	1	1	0

Full Adder

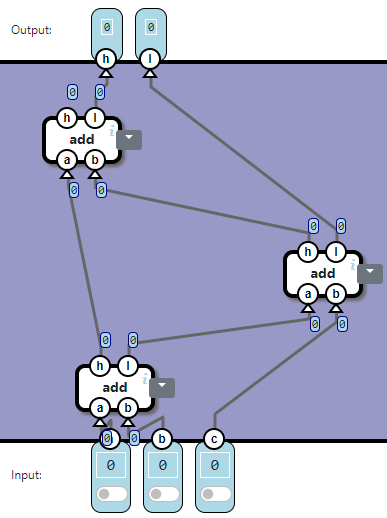

We have built an adder that can add two bits by Half Adder, but in order to add larger numbers we also need to take a 'carry' from a previous addition into consideration.

The component Full Adder adds three bits: a, b, and c. The output is a two-bit value. The h output is the high bit, the l is the low bit:

Input	Input	Input	Output	Output
a	b	c	h	l
0	0	0	0	0
0	0	1	0	1
0	1	0	0	1
0	1	1	1	0
1	0	0	0	1
1	0	1	1	0
1	1	0	1	0
1	1	1	1	1

Multi-bit Adder

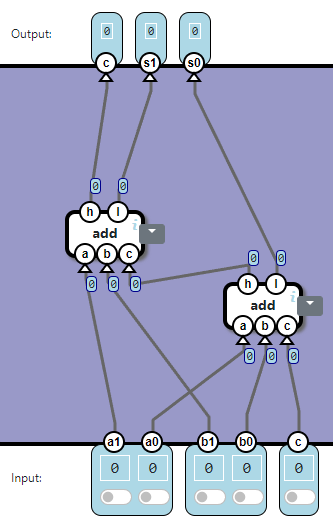

We have built a digital circuit that can add two multi-bit binary numbers together. It typically consists of several full adders combined in a cascade manner. Multi-bit adder adds two 2-bit numbers (and a 1-bit carry). 2-bit adders can be repeated to make adders work on larger numbers.

1. Input: a1 a0 is a 2-bit number. b1 b0 is a 2-bit number. c ('carry') is a 1-bit number.
2. Output: The sum of the input numbers as the 3-bit number c s1 s0 where c is the high bit.

Input	Input	Input	Input	Input	Output	Output	Output
a1	a0	b1	b0	c	c	s1	s0
1	0	1	0	1	1	0	1

Increment

After building different adders. We are ready to work with 8-bit numbers.The increment component can add 1 to a 16-bit number. Instead of 8 separate wires and connectors, they are bundled together and shown as a single connector, indicated by a small 8 label.

Subtraction

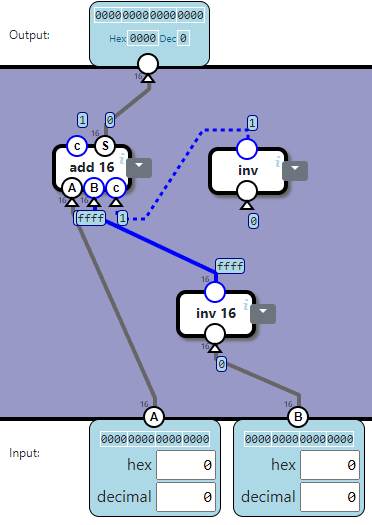

The subtraction component that subtracts one 8-bit number from another.

1. Output: A minus B as a 8-bit number
2. If the result is less than zero it is represented as 65536 plus the result.

Result	16-bit Binary	Unsigned Decimal
1	0000000000000001	1
0	0000000000000000	0
-1	1111111111111111	65535
-2	1111111111111110	65534
-3	1111111111111101	65533

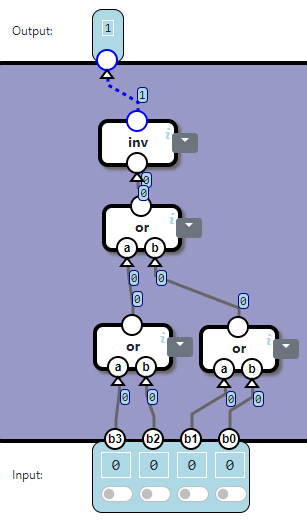

Equal to Zero

This component indicates if a number is zero. We have implement this for a 4-bit number first. Output: 1 if and only if all bits in the input are 0.

Less than Zero

A component that indicates if a 8-bit number is negative.

Output: 1 if the input as a 8-bit number is negative. A number is considered less than zero if bit 7 is 1.

Input	Output
input ≥ 0	0
input < 0	1

Switching

Selector

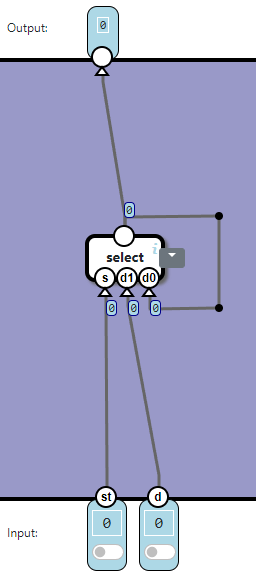

We creat here a select-component which selects one out of two input bits for output.

The s (select) bit indicates which input is selected: If 0, d0 is selected, if 1, d1 is selected.

Input	Input	Input	Output
s	d1	d0
0	0	0	0	✓
0	1	0	0	✓
0	0	1	1	✓
0	1	1	1	✓
1	0	0	0	✓
1	0	1	0	✓
1	1	0	1	✓
1	1	1	1	✓

Switch

We create a switch component which channels a data bit through one of two output channels. s (selector) can decide wether the d (data) bit is dispatched through c1 or c0.

Input	Input	Output	Output
s	d	c1	c0
0	0	0	0	✓
0	1	0	1	✓
1	0	0	0	✓
1	1	1	0	✓

Selector88

This is an 8-bit, 8-input selector with an input address length of 3. The output is a piece of data that is selected.

Assume that there are inputs:

d0 = [00000000]
d1 = [00000001]
d2 = [00000010]
d3 = [00000011]
d4 = [00000100]
d5 = [00000101]
d6 = [00000110]
d7 = [00000111]

ad2, ad1, ad0 = 1, 0, 0

This means take the 100₂th = 4₁₀th data (starting from 0), then the output is:

00000100

Arithmetic Logic Unit

Logic Unit

This part can determine which operation out of 4 operations should perdorm on the two 8-bit inputs X and Y, decided by the two bit flags op0 and op1.

op1	op0	output
0	0	X and Y
0	1	X or Y
1	0	X xor Y
1	1	invert X

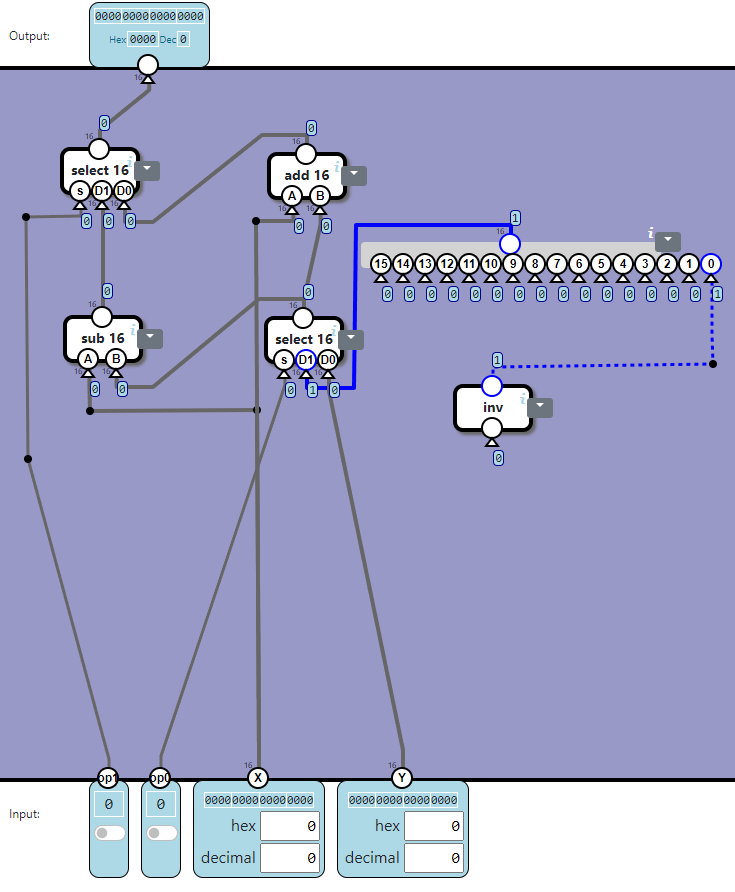

Arithmetic Unit

This part can determine which operation out of 4 arithmetic operations should perdorm on the two 8-bit inputs X and Y, decided by the two bit flags op0 and op1.

op1	op0	output
0	0	X+Y
0	1	X-Y
1	0	X+1
1	1	X-1

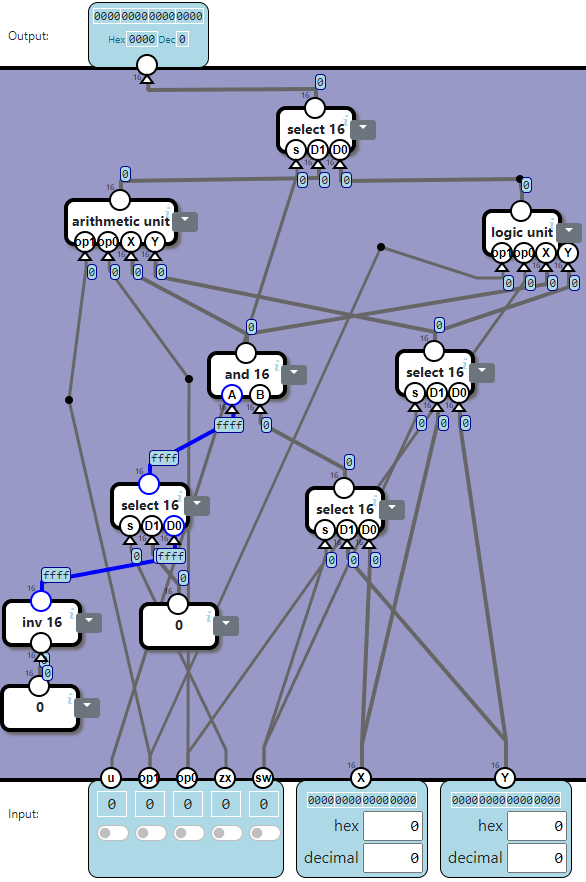

ALU

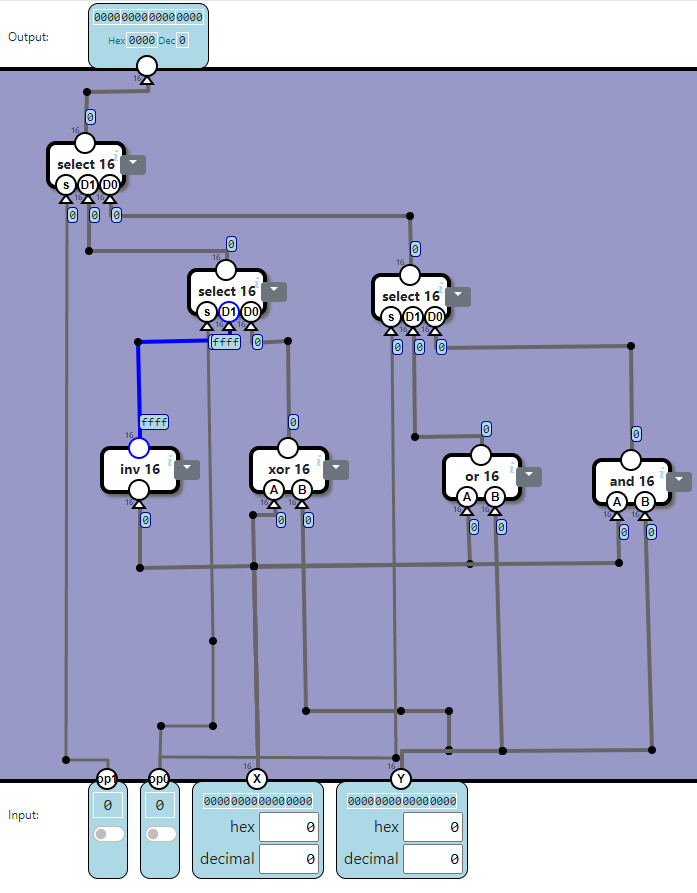

In this part we combine the logic and arithmetic operations:

Input	Input	Input	Output
u	op1	op0
0	0	0	X and Y
0	1	1	X or Y
0	1	0	X xor Y
0	1	1	invert X
1	0	0	X + Y
1	1	0	X - Y
1	0	1	X + 1
1	1	1	X - 1

Condition

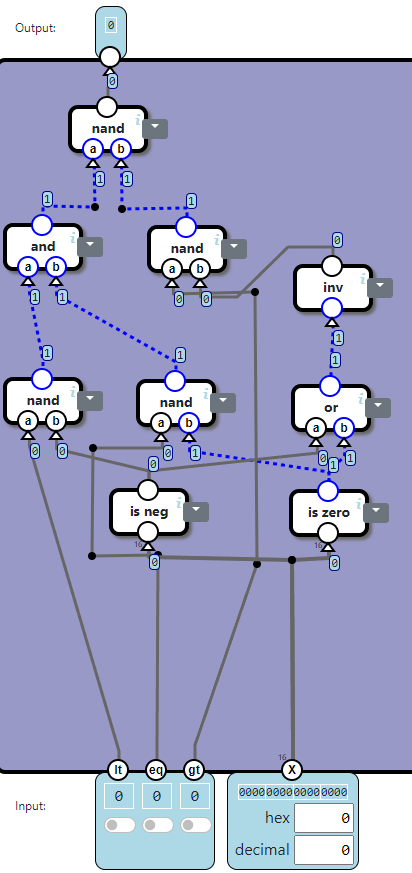

We have in this part three flags, which indicate three posssible conditions for the number X:

Flag	Condition
lt	Less than zero
eq	Equal to zero
gt	Greater than zero

In the condition that the input flags is true. The flags can be combined so:

Input	Input	Input	Output
u	op1	op0
0	0	0	X and Y
0	0	1	X or Y
0	1	0	X xor Y
0	1	1	invert X
1	0	0	X + Y
1	0	0	X - Y
1	1	1	X + 1
1	1	1	X - 1

Memory

Latch

Latch . In this part we crearte a latch component, which stores and outputs a single bit. For example wenn st(store) is 1, the value on d is stored and emitted. Or when st is 0 the value of d will be ignored, and the previously stored value is still emitted. We have here a table to introduce the input and output.

Input	Input	Effect	Output
st	d
1	0	set out to 0	out
1	1	set out to 1	out
0	1	-	out
0	0	-	out

Data Flip-Flop

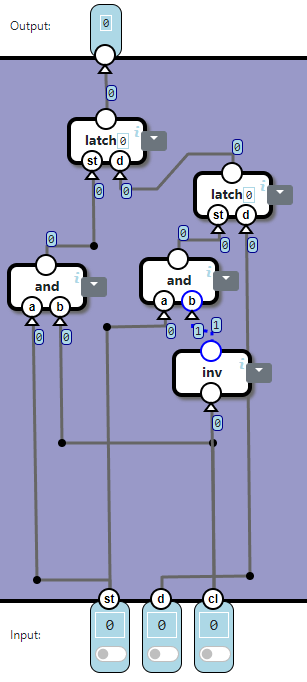

We introduce here the DFF component, which can store and output one bit. The output change only when the clock signal input (cl) changes from 0 to 1. If st=1 at the time of the clock tick, the d-input becomes the new output. Otherwise, the output does not change. Changing cl from 1 to 0 does not have any effect on the output. Until the first clock tick, output should be 0. Effect of inputs at the time of the clock tick:

Input	Input	Effect
st	d
1	0	1
1	1	0
0	1	unchanged
0	0	unchanged

Counter

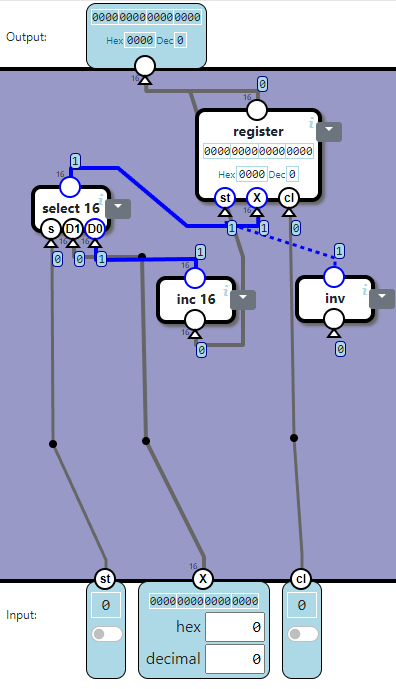

We have here a counter component which increments a number for each clock cycle. The counter output changes when cl changes to 1. If st is 0, then the previous counter value is incremented with 1. If st is 1, then the input value X is used as the new counter value. We have a table using two variables, in and out, which stores 16-bit numbers:

Input	Input	Effect	Output
st	cl
0	0	set in to out + 1	out
1	0	set in to X	out
-	1	set out to in	out

BYTE

This is actually part of an 8-bit register that is part of /m500_memory/Register.arc in our MontiArc model. The input is 8-bits, each DFF can store 1 bit of data, and the output is the stored data. However, based on subsequent practical requirements, two additional control inputs need to be added: w(write) and r(read). For this, it is necessary to combine this part with the previous 8-bit Tri-State gate to get the final Register.

Register

8-bit register with inputs w and r for read and write control.

RAM8

Memory capable of randomly accessing eight 8-bit data. In the MontiArc model, multiple ports cannot be connected to the same output port, so an additional Selector88 is needed to merge the outputs. In addition, according to our implementation, we default the read operation constant to true and the write signal == st(store signal).

Porcessor

Combined Memory

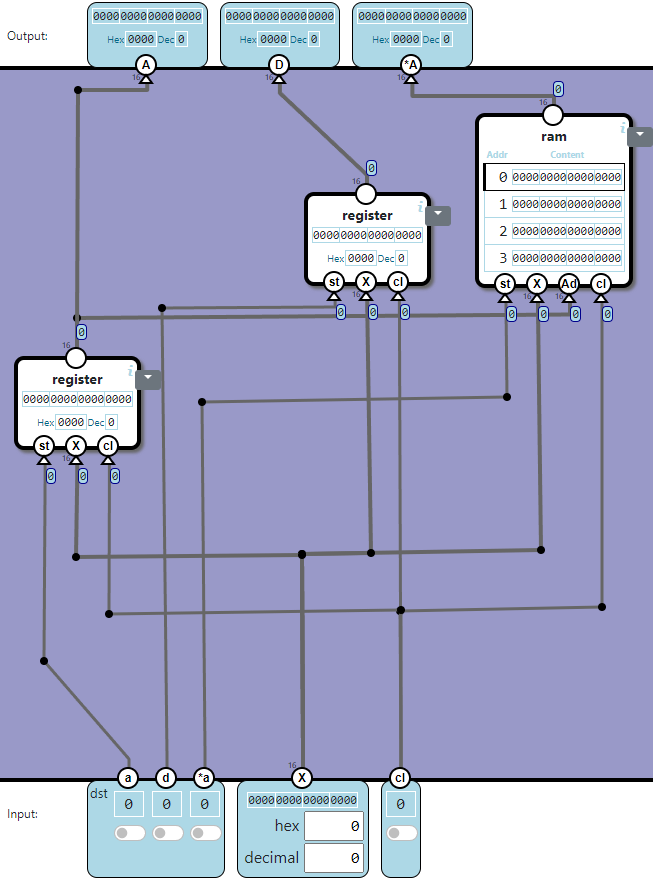

We have in the combined memory two 8-bit registers called A and D, and as well as a RAM unit. The combined memory also contains the a, d, sa flags and the X input, their usage is shown in the table below:

Flag
a	Write X to the A register
d	Write X to the D register
sa	Write X to RAM at the address given by the A register

The flags can also be combined, so that X is written to multiple registers in the same time. If all three flags are 0, then the input X is unwatched.

Output
A	The current value of the A register
D	The current value of the D register
SA	The current value in RAM at the address given by A the register

Instruction

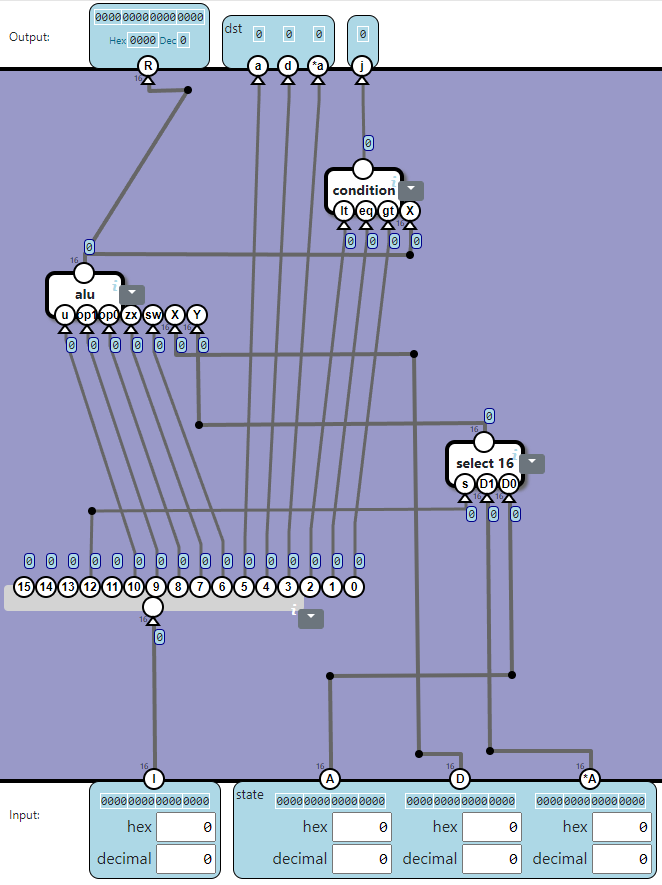

We have here an I indicates instruction to the ALU and condition components. The following table describes the oerations:

Input	Output	Output
Bit	Group	flag
10	ALU	u
9	ALU	op1
8	ALU	op0
7	ALU	zx
6	ALU	sw
5	destination	a
4	destination	d
3	destination	sa
2	condition	lt
1	condition	eq
0	condition	gt

The A, D and SA inputs are the values of the registers The X input to the ALU should be D, the Y input should be either A or SA depending on bit 12 in the instruction. If bit 12 is 0, it is A, if 1, SA. The R output indicates the result of the ALU operation. The j flag indicates if the ALU output which shows the condition specified in bit 0-2.

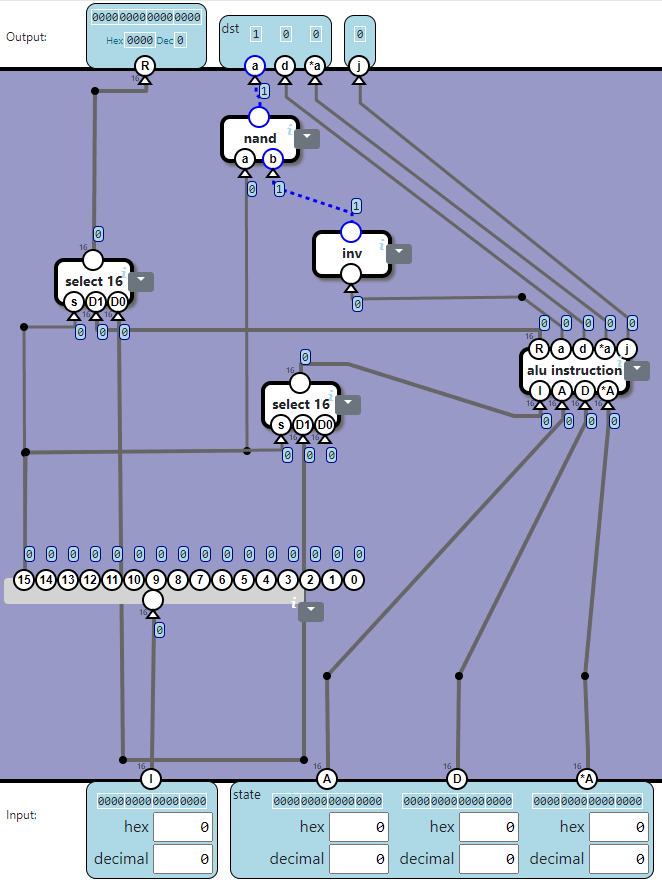

Control Unit

We create an additional control unit to determine wether the ALU instructions or data instructions should be executed. The functionality of this control unit depends on the high-bit of the instruction I:

Bit 15
0	Data instruction
1	ALU instruction

To ALU and Data instructions we have further introductions: For ALU instructions, the output should be as specified in the previous level. R is the result of the ALU operation. For a data instruction, the output R should be the I input, and destination should be the A register. I.e. a should be 1 and d, a*, and j flags should be 0.

Computer

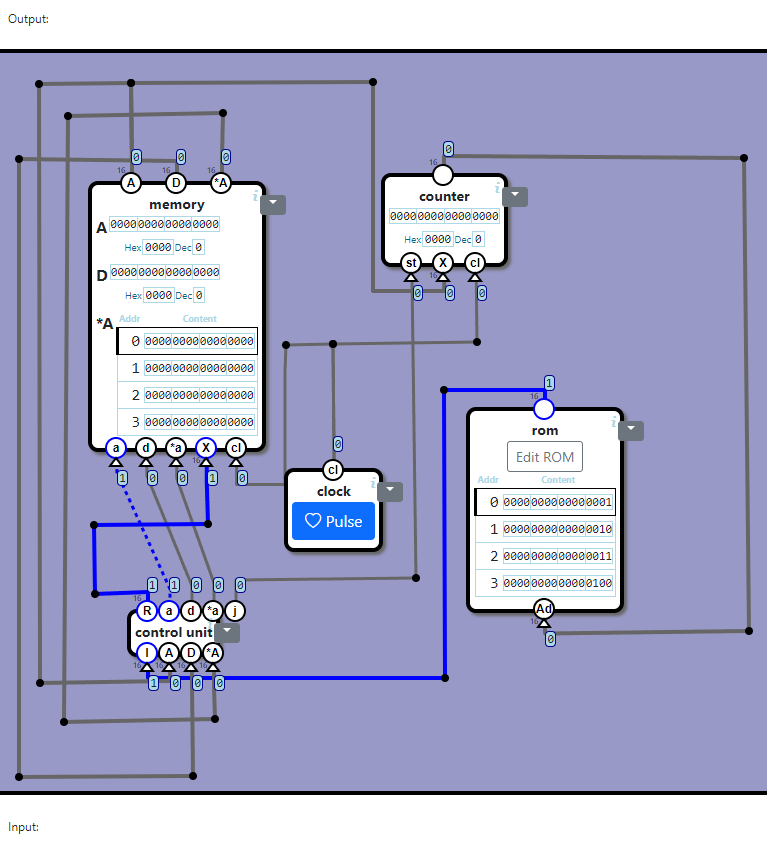

In this part, we have built a working programmable microprocessor.

A computer is made up of:

• A control unit
• Storage memory (RAM and registers)
• A program memory unit (ROM).
• A counter which keeps track of the current instruction address ('program counter').
• A clock unit

The word at the PC address in the program memory is the I input to the control unit. Each clock cycle changes the program counter depending on j: If j=0, the program counter should advance with 1. If j=1, the program counter should be set to the value on A.

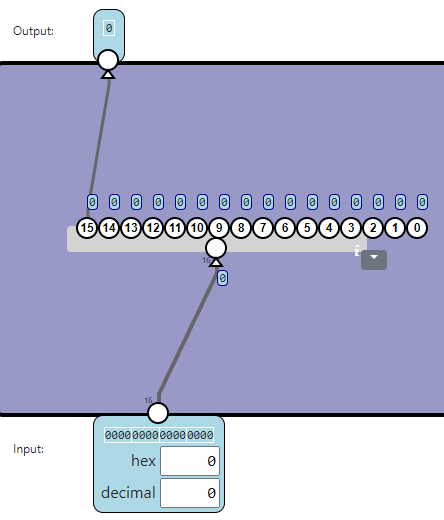

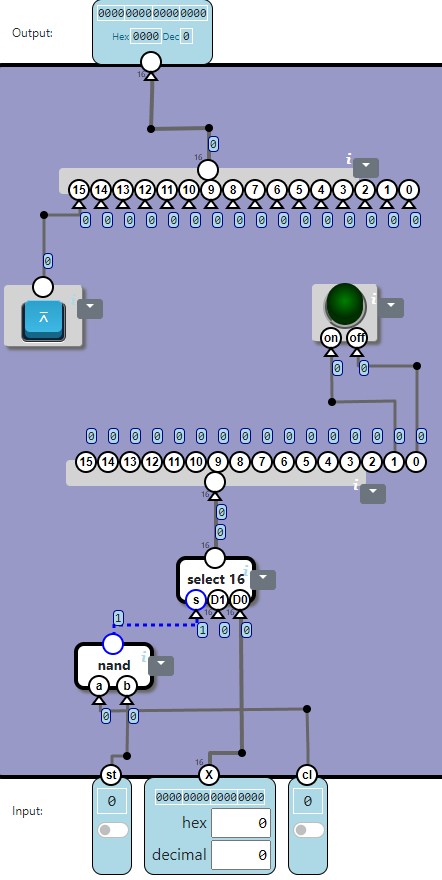

Input and Output

Computers must be able to communicate with the outside world to achieve basic functions, which must happen through hardware devices such as screen, keyboard, touch sensors, network interface, and so on. As a result, we integrated it with simple hardware devices - a lamp and a button, which have been connected together so that they could be accessed like a memory address.

1. Output: The lamp is controlled by bit 0 and 1 of X. When bit 1 is 1, the lamp should get a signal on on. When bit 0 is 1, the lamp should get a signal on off. Signals should be sent to the hardware when st (store) is 1 and cl (clock signal) is 1.
2. Input: The button state is shown in bit 15 of the component output. When the button is pressed, bit 15 should be 1. When it is not pressed, it should be 0.

Implementation

With the powerful architecture description language MontiArc, we can model the above components easily. For most of the components, we implment them by point out its dependencies, in/output and the connections of components inside. Below is an example of the implementation for HalfAdder.

package processor.m200_arithmetics;

import processor.m100_logicGates.XORGate;
import processor.m100_logicGates.ANDGate;


component HalfAdder {
    port in boolean a;
    port in boolean b;
    port out boolean sum;
    port out boolean carry;

    XORGate xorGate;
    ANDGate andGate;

    a -> xorGate.a;
    a -> andGate.a;
    b -> xorGate.b;
    b -> andGate.b;

    xorGate.out -> sum;
    andGate.out -> carry;
}

Difficulties And Solutions

1. Latch

Latches are digital circuits that store a single bit of information and hold its value until it is updated by new input signals.

To implement this special physical feature, we use the powerful tool (or term) in MontiArc called automation and <<deleyed>>. You can refer to the code in m500_memory\CombineLatch.arc and m500_memory\LastOutOne.arc for the details of the implementations.

2. Computer

In the arthitecture of computer shown above, there is a in-and output chain cycle between Memory and Control Unit. Again, we use automation and <<delayed>> to implement this feature, by simply deley the output from memory and init its value which used by the input of control unit.

Unit Test

src\test\java\UnitTest.java is the unit test file, where lines 11-15 show the units being tested.

File src\test\java\IOTest.java then shows the final IO case for our CPU model.

We use JUnit 5 for unit testing. Since our final implementation of the model does not contain many modules, we write the tests in separate functions and call them in the only @Test section to simplify the code structure.

At the beginning of the Memory section, our components all need to take the clock input into account, i.e., the internal data of the component changes only when the clock is on a rising edge, so after each data is passed to the component and computed, <object of component>.tick() has to be called to allow the component to move to the next time slice.

Similarly, clock changes need to be represented in the production of input data.

Computer

(In file src\test\java\UnitTest.java)

This Computer component, i.e., our CPU, is therefore the most important (and top) test for this part.

The component has in total 17 inputs, which are:

cl: Clock
i15, i14, i13: Unused.
ci: Instruction. 0, Data instruction;
                 1, ALU instruction
i11: Unused.
*: 1, pointer to the address a(sa).
   0, not point to sa.
u, op1, op0, zx, sw: ALU flag.
a,d,sa: Destination flag.
lt, eq, gt: Condition flag.

In this part of the test, we first tested the validity of the input to register a, followed by testing the addition calculation and storing the result into RAM.

To confirm that all the Computer's sub-components are working correctly, we performed a manual trace of the data in lines 590-752 of the test file involving the sub-components CU, AU, ALU, and INSTRUCTION. The final result shows that the data transfer is correct.

IO

(In file src\test\java\IOTest.java)

The code structure in this section is broadly consistent with the previous document.

The code in this section implements the reading of the string computation formula, performs the computation with our CPU model, and outputs the result.

You can find the relevant use case on line 421 of the code.

Our agreed-upon operation symbols:

+: Addtion.
-: Subtraction (2-53) or Negation
&: Per Bitwise AND
|: Per Bitwise OR
^: Per Bitwise XOR
~: Per Bitwise NOT

For example:
Input: "15+3", "3-15", "3&1", "4|3", "7^5", "~4","-50"

Output:

Result: 8-bit binary number.
LastLocation: The index of the register in RAM that was last accessed.
ResultInt: Decimal number.

// 15+3
Result = false false false true false false true false
LastLocation = 0
ResultInt = 18

// 3-15
Result = true true true true false true false false
LastLocation = 1
ResultInt = -12

// 3&1
Result = false false false false false false false true
LastLocation = 2
ResultInt = 1

// 4|3
Result = false false false false false true true true
LastLocation = 3
ResultInt = 7

// 7^5
Result = false false false false false false true false
LastLocation = 4
ResultInt = 2

// ~4
Result = true true true true true false true true
LastLocation = 5
ResultInt = -5

// -50
Result = true true false false true true true false
LastLocation = 6
ResultInt = -50

// 1&0
Result = false false false false false false false false
LastLocation = 7
ResultInt = 0

// 1|0
Result = false false false false false false false true
LastLocation = 0
ResultInt = 1

// 15-3
Result = false false false false true true false false
LastLocation = 1
ResultInt = 12

You can see that when LastLocation reaches 7, it will go back to 0 the next time. This means that our write operation is cyclic. Our implementation of RAM is capable of holding up to eight 8-bit data, so when more than eight data need to be stored, it goes back to the beginning to overwrite.

In addition, lines 192-228 show that our CPUs still have the potential to perform more computational functions.
