studio: add Autotune audio effect (real-time pitch correction, Rust/WASM DSP)#321
Open
SynthsBack-lab wants to merge 1 commit into
Open
studio: add Autotune audio effect (real-time pitch correction, Rust/WASM DSP)#321SynthsBack-lab wants to merge 1 commit into
SynthsBack-lab wants to merge 1 commit into
Conversation
📝 WalkthroughWalkthroughAdds a monophonic Autotune audio effect with YIN detection, scale snapping, TD-PSOLA pitch shifting, WASM integration, studio registration, parameter controls, telemetry, and a live tuner display. ChangesAutotune DSP core
Device runtime and studio integration
Studio UI
Estimated code review effort: 5 (Critical) | ~120 minutes Sequence Diagram(s)sequenceDiagram
participant AudioInput
participant AutotuneDevice
participant Autotune
participant Psola
participant Tuner
AudioInput->>AutotuneDevice: provide stereo audio block
AutotuneDevice->>Autotune: feed audio and detect target
AutotuneDevice->>Psola: set period and correction ratio
Psola->>AudioInput: write processed output block
AutotuneDevice->>Tuner: broadcast MIDI, target, and voiced state
Suggested reviewers: 🚥 Pre-merge checks | ✅ 5✅ Passed checks (5 passed)
✨ Finishing Touches🧪 Generate unit tests (beta)
Thanks for using CodeRabbit! It's free for OSS, and your support helps us grow. If you like it, consider giving us a shout-out. Comment |
SynthsBack-lab
marked this pull request as ready for review
July 21, 2026 07:26
![coderabbitai[bot]](https://avatars.githubusercontent.com/in/347564?s=60&v=4){kind=small}
There was a problem hiding this comment.
Actionable comments posted: 1
🧹 Nitpick comments (1)
packages/studio/core-processors/src/devices/audio-effects/AutotuneDeviceProcessor.ts (1)
29-29: 📐 Maintainability & Code Quality | 🔵 Trivial | ⚡ Quick winMove
#tunerconstruction into the constructor for consistency.
#tuneris inline-initialized at the field declaration, while every sibling field (#output,#dsp,#core,#peaks) is constructed inside the constructor body. As per coding guidelines, "Move complex field initializations into the constructor instead of using inline field initializers."♻️ Proposed fix
- readonly `#tuner` = new Float32Array(3) + readonly `#tuner`: Float32Array `#source`: Option<AudioBuffer> = Option.None constructor(context: EngineContext, adapter: AutotuneDeviceBoxAdapter) { super(context) this.#adapter = adapter this.#output = new AudioBuffer() this.#dsp = new Psola(sampleRate) this.#core = new Autotune(sampleRate) this.#peaks = this.own(new PeakBroadcaster(context.broadcaster, adapter.address)) + this.#tuner = new Float32Array(3)Also applies to: 33-39
🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the rest with a brief reason, keep changes minimal, and validate. In `@packages/studio/core-processors/src/devices/audio-effects/AutotuneDeviceProcessor.ts` at line 29, Move the Float32Array construction for `#tuner` from its field declaration into the constructor, alongside the existing initialization of `#output`, `#dsp`, `#core`, and `#peaks`. Keep `#tuner` declared as a readonly field and preserve its length of 3.Source: Coding guidelines
🤖 Prompt for all review comments with AI agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.
Inline comments:
In `@docs/autotune.md`:
- Around line 449-450: Correct Step 7 in the autotune documentation to reference
packages/studio/core-wasm/build-wasm.sh, removing the incorrect src/ segment
while preserving the instruction to update DEVICE_CRATES.
---
Nitpick comments:
In
`@packages/studio/core-processors/src/devices/audio-effects/AutotuneDeviceProcessor.ts`:
- Line 29: Move the Float32Array construction for `#tuner` from its field
declaration into the constructor, alongside the existing initialization of
`#output`, `#dsp`, `#core`, and `#peaks`. Keep `#tuner` declared as a readonly field and
preserve its length of 3.
🪄 Autofix (Beta)
Fix all unresolved CodeRabbit comments on this PR:
- Push a commit to this branch (recommended)
- Create a new PR with the fixes
ℹ️ Review info
⚙️ Run configuration
Configuration used: defaults
Review profile: CHILL
Plan: Pro
Run ID: 4aea1a52-5f8c-48d1-8992-d3dcdada9a84
⛔ Files ignored due to path filters (2)
crates/Cargo.lockis excluded by!**/*.lockdocs/autotune-device.pngis excluded by!**/*.png
📒 Files selected for processing (32)
crates/dsp/src/autotune.rscrates/dsp/src/lib.rscrates/dsp/src/pitch_shift.rscrates/dsp/src/psola.rscrates/stock-devices/device-autotune/Cargo.tomlcrates/stock-devices/device-autotune/src/lib.rscrates/studio-boxes/src/registry.rsdocs/autotune.mdpackages/app/studio/src/ui/devices/DeviceEditorFactory.tsxpackages/app/studio/src/ui/devices/audio-effects/AutotuneDeviceEditor.sasspackages/app/studio/src/ui/devices/audio-effects/AutotuneDeviceEditor.tsxpackages/app/studio/src/ui/devices/audio-effects/AutotuneTuner.sasspackages/app/studio/src/ui/devices/audio-effects/AutotuneTuner.tsxpackages/app/wasm/test/param-mapping-parity.test.tspackages/lib/dsp/src/autotune.test.tspackages/lib/dsp/src/autotune.tspackages/lib/dsp/src/index.tspackages/lib/dsp/src/pitch-shift.test.tspackages/lib/dsp/src/pitch-shift.tspackages/lib/dsp/src/psola.test.tspackages/lib/dsp/src/psola.tspackages/studio/adapters/src/BoxAdapters.tspackages/studio/adapters/src/DeviceManualUrls.tspackages/studio/adapters/src/devices/audio-effects/AutotuneDeviceBoxAdapter.tspackages/studio/core-processors/src/DeviceProcessorFactory.tspackages/studio/core-processors/src/devices/audio-effects/AutotuneDeviceProcessor.tspackages/studio/core-wasm/build-wasm.shpackages/studio/core-wasm/src/engine-modules.tspackages/studio/core/src/EffectBox.tspackages/studio/core/src/EffectFactories.tspackages/studio/forge-boxes/src/schema/devices/audio-effects/AutotuneDeviceBox.tspackages/studio/forge-boxes/src/schema/devices/index.ts
Comment on lines
+449
to
+450
| 7. **Add the crate to the WASM build:** append its name to `DEVICE_CRATES` in | ||
| `packages/studio/core-wasm/src/build-wasm.sh`. |
There was a problem hiding this comment.
📐 Maintainability & Code Quality | 🟡 Minor | ⚡ Quick win
🧩 Analysis chain
🏁 Script executed:
#!/bin/bash
# Locate the actual build-wasm.sh under core-wasm to confirm the documented path.
fd -a build-wasm.sh packages/studio/core-wasmRepository: andremichelle/openDAW
Length of output: 218
Fix the build-wasm.sh path Step 7 points to packages/studio/core-wasm/src/build-wasm.sh, but the file lives at packages/studio/core-wasm/build-wasm.sh. The extra src/ will send readers to the wrong place.
🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.
In `@docs/autotune.md` around lines 449 - 450, Correct Step 7 in the autotune
documentation to reference packages/studio/core-wasm/build-wasm.sh, removing the
incorrect src/ segment while preserving the instruction to update DEVICE_CRATES.
Owner
|
Thanks for this, it is a really strong contribution. The device follows the stock-device conventions closely, the abi One thing needs sorting before we can merge. The branch is based on
They are all additive, both sides just add a new device or entry to the same lists, so it is a matter of keeping both. The one to watch is Once it is rebased and |
A stock audio-effect device: YIN pitch detection (2:1-decimated, f64-exact decisions) drives a scale-mask note snap with hysteresis and octave fold, glided by Retune/Smooth with a separate vibrato-flatten path, rendered through a zero-allocation TD-PSOLA shifter (no doppler, formants preserved). - Rust no_std DSP (crates/dsp: autotune, psola) + device crate compiled to WASM; no TypeScript audio path - key/scale snapping across 8 scales; chromatic always snaps the nearest semitone (hysteresis is diatonic-only), verified by an all-scales nearest-note property test and a golden decision fixture - TS parameter adapter with a param-mapping parity test case - editor UI with live tuner telemetry (detected note, target, cents needle) streamed over the broadcast path - docs/autotune.md: full concept, DSP reference, and integration guide Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
SynthsBack-lab
force-pushed
the
device-autotune
branch
from
July 22, 2026 09:39
d287489 to
0106cf8
Compare
There was a problem hiding this comment.
🧹 Nitpick comments (1)
crates/dsp/src/autotune.rs (1)
262-266: 📐 Maintainability & Code Quality | 🔵 Trivial | 💤 Low valueMinor clippy cleanups (cosmetic only).
Static analysis flags a few purely stylistic spots; behavior is unaffected:
- Line 263:
((note % 12) + 12) % 12is a manualrem_euclid—note.rem_euclid(12)is equivalent and clearer.- Lines 275-281: the
if/else ifbodies are identical (best = candidate; best_distance = distance;); could be merged with||, though keeping them separate arguably documents the two distinct tie-break rationales.- Line 349:
f0 >= F0_MIN_HZ && f0 <= F0_MAX_HZcould use(F0_MIN_HZ..=F0_MAX_HZ).contains(&f0).None of these affect correctness.
Also applies to: 268-284, 349-349
🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the rest with a brief reason, keep changes minimal, and validate. In `@crates/dsp/src/autotune.rs` around lines 262 - 266, Apply the cosmetic clippy cleanups in the autotuning code: update allowed to use note.rem_euclid(12), merge the identical best/candidate assignment branches around the tie-break logic while preserving their combined condition, and replace the f0 range comparisons with an inclusive range contains check. Preserve all existing behavior and tie-break semantics.Source: Linters/SAST tools
🤖 Prompt for all review comments with AI agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.
Nitpick comments:
In `@crates/dsp/src/autotune.rs`:
- Around line 262-266: Apply the cosmetic clippy cleanups in the autotuning
code: update allowed to use note.rem_euclid(12), merge the identical
best/candidate assignment branches around the tie-break logic while preserving
their combined condition, and replace the f0 range comparisons with an inclusive
range contains check. Preserve all existing behavior and tie-break semantics.
ℹ️ Review info
⚙️ Run configuration
Configuration used: defaults
Review profile: CHILL
Plan: Pro
Run ID: dda7d2eb-6dbd-4812-93d1-99494488413c
⛔ Files ignored due to path filters (2)
crates/Cargo.lockis excluded by!**/*.lockdocs/autotune-device.pngis excluded by!**/*.png
📒 Files selected for processing (23)
crates/dsp/src/autotune.rscrates/dsp/src/lib.rscrates/dsp/src/psola.rscrates/stock-devices/device-autotune/Cargo.tomlcrates/stock-devices/device-autotune/src/lib.rscrates/studio-boxes/src/registry.rsdocs/autotune.mdpackages/app/studio/src/ui/devices/DeviceEditorFactory.tsxpackages/app/studio/src/ui/devices/audio-effects/AutotuneDeviceEditor.sasspackages/app/studio/src/ui/devices/audio-effects/AutotuneDeviceEditor.tsxpackages/app/studio/src/ui/devices/audio-effects/AutotuneTuner.sasspackages/app/studio/src/ui/devices/audio-effects/AutotuneTuner.tsxpackages/app/wasm/test/param-mapping-parity.test.tspackages/studio/adapters/src/BoxAdapters.tspackages/studio/adapters/src/DeviceManualUrls.tspackages/studio/adapters/src/devices/audio-effects/AutotuneDeviceBoxAdapter.tspackages/studio/core-wasm/build-wasm.shpackages/studio/core-wasm/src/engine-modules.tspackages/studio/core/src/EffectBox.tspackages/studio/core/src/EffectFactories.test.tspackages/studio/core/src/EffectFactories.tspackages/studio/forge-boxes/src/schema/devices/audio-effects/AutotuneDeviceBox.tspackages/studio/forge-boxes/src/schema/devices/index.ts
🚧 Files skipped from review as they are similar to previous changes (15)
- crates/studio-boxes/src/registry.rs
- packages/studio/forge-boxes/src/schema/devices/index.ts
- packages/studio/core/src/EffectBox.ts
- packages/studio/core-wasm/src/engine-modules.ts
- packages/app/studio/src/ui/devices/audio-effects/AutotuneDeviceEditor.tsx
- packages/studio/adapters/src/BoxAdapters.ts
- crates/stock-devices/device-autotune/Cargo.toml
- packages/studio/forge-boxes/src/schema/devices/audio-effects/AutotuneDeviceBox.ts
- packages/app/studio/src/ui/devices/DeviceEditorFactory.tsx
- packages/studio/core/src/EffectFactories.ts
- packages/app/studio/src/ui/devices/audio-effects/AutotuneTuner.tsx
- packages/app/wasm/test/param-mapping-parity.test.ts
- crates/stock-devices/device-autotune/src/lib.rs
- crates/dsp/src/psola.rs
- packages/studio/adapters/src/devices/audio-effects/AutotuneDeviceBoxAdapter.ts
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
2 participants
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.

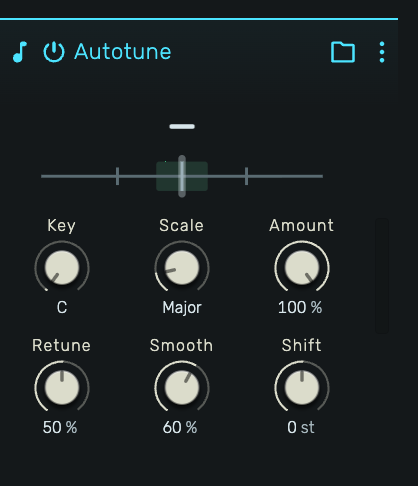

Adds Autotune, a stock audio-effect device for real-time monophonic pitch correction, listed in the Audio Effects browser as "Pitch Correction".
Feature set
Architecture: Rust-only DSP
All DSP is
no_std, zero-allocation Rust compiled to WASM — there is no TypeScript audio path, matching the engine architecture on currentmain:crates/dsp/src/autotune.rs— detection + note decision + correction dynamics (control core, never touches audio)crates/dsp/src/psola.rs— streaming TD-PSOLA shiftercrates/stock-devices/device-autotune/— the device (params, telemetry broadcast, per-block wiring)The TypeScript side contributes only the parameter adapter (UI/automation value mappings) and the editor. Determinism is guarded by a Rust golden decision fixture plus an all-scales nearest-note property test, and the WASM↔adapter parameter mapping by an
autotunecase inparam-mapping-parity.test.ts(EffectFactories.keyOfBoxcoverage included).docs/autotune.mddocuments the full concept, every DSP stage with its constants, the parameters, and a step-by-step integration recipe for a Rust/WASM device.Verification (all on this branch, standalone off
main@d998a2d7)turbo build: 27/27 tasks (all packages incl. studio app + full core-wasm)cargo test -p dsp: 95 passed,-p device-autotune: 3 passedlib-dspvitest: 95 passed;EffectFactories.test.ts: 3 passedpackages/app/wasm): 43 passed, including the newautotuneWASM↔TS-adapter case🤖 Generated with Claude Code
Summary by CodeRabbit
