A Rust crate for building Neutral Landscape Models.
nlmrs is available as a Rust crate or as a CLI tool. Language bindings are also provided for Python, R, Julia, WASM, and C.
cargo add nlmrsuse nlmrs;
fn main() {
let arr = nlmrs::midpoint_displacement(10, 10, 1.);
println!("{:?}", arr);
nlmrs::export::write_to_csv(arr, "./data.csv");
}Deterministic spatial fields derived from direction, distance, or position.

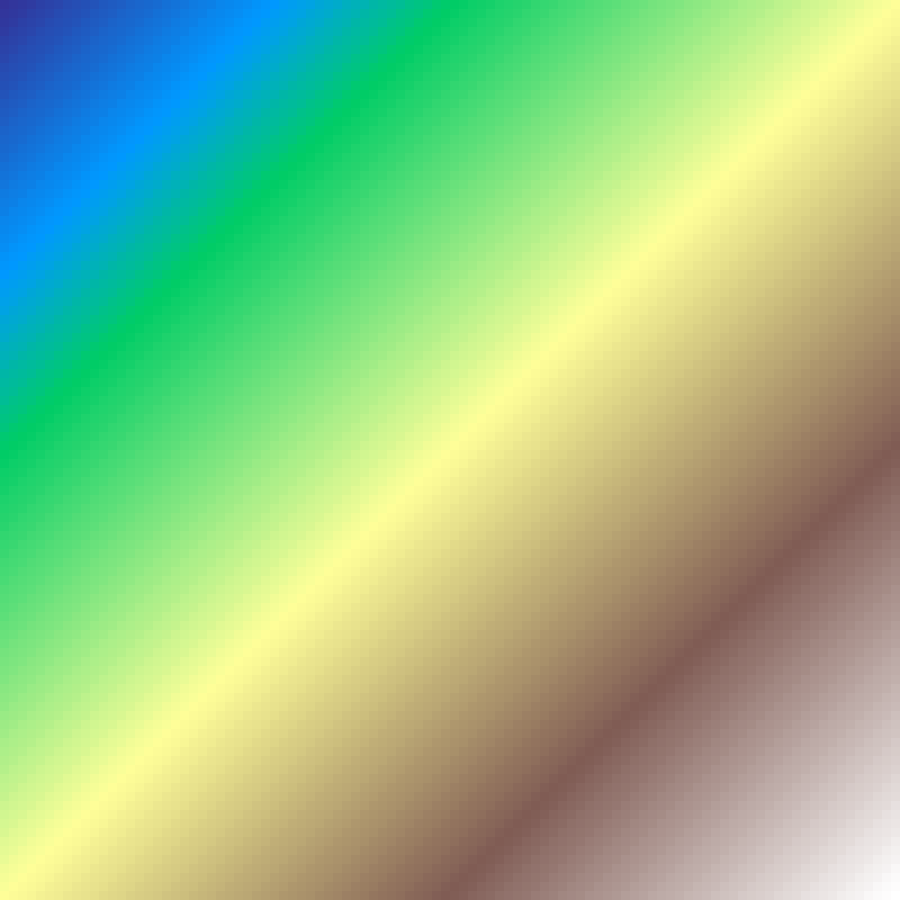

planar_gradient(rows: 100, cols: 100, direction: 45.0, seed: 42)
Linear ramp at a given direction angle, increasing uniformly from 0 to 1 across the grid.

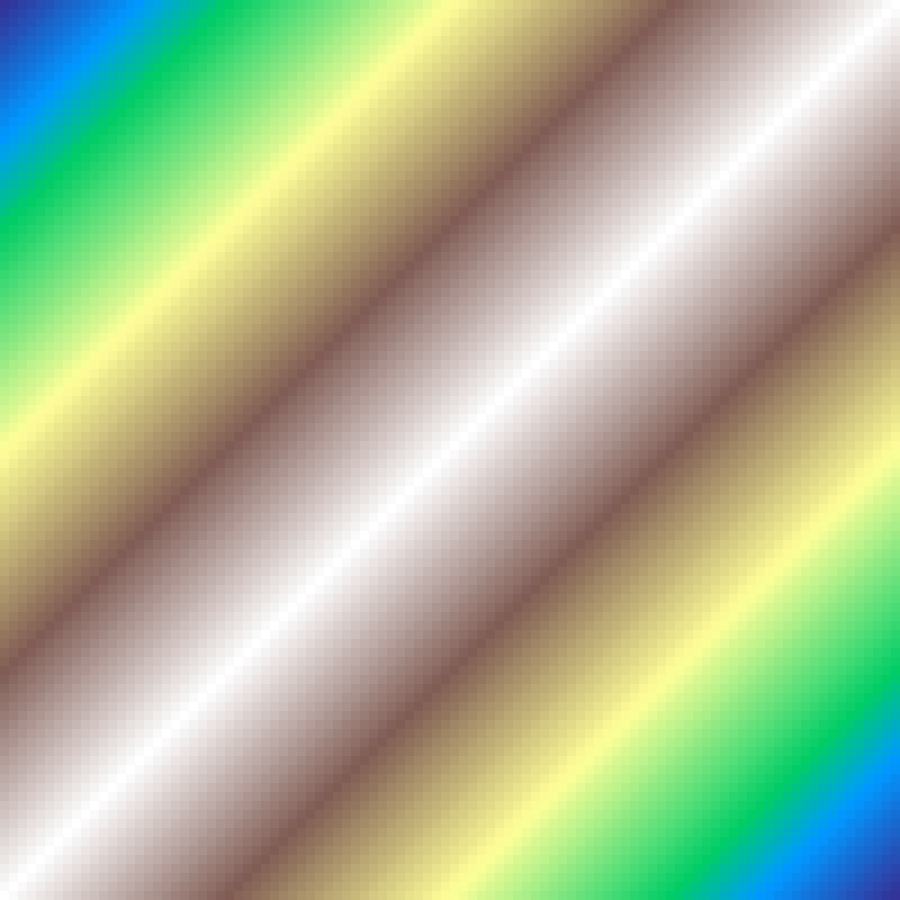

edge_gradient(rows: 100, cols: 100, direction: 45.0, seed: 42)
Symmetric version of the planar gradient: values peak at 1.0 along the central axis and fall to 0.0 at both edges.

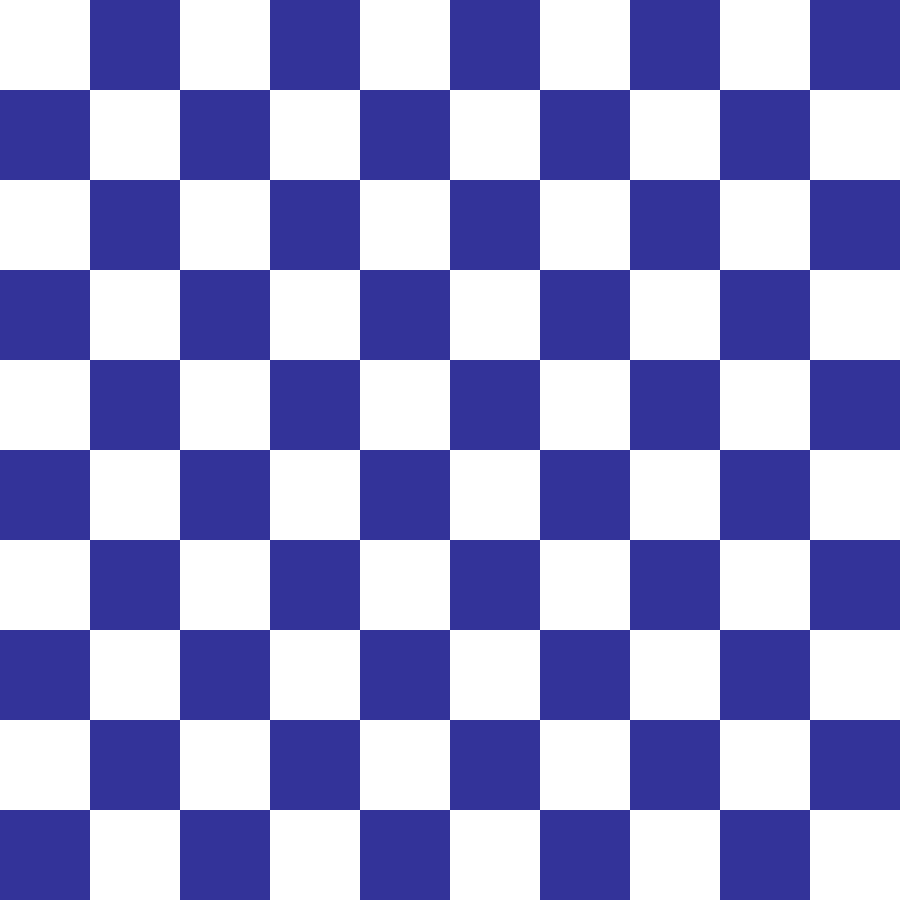

checkerboard(rows: 100, cols: 100, scale: 10, seed: 42)
Deterministic alternating binary pattern of axis-aligned squares with side length scale cells. Canonical control landscape for spatial autocorrelation analysis.

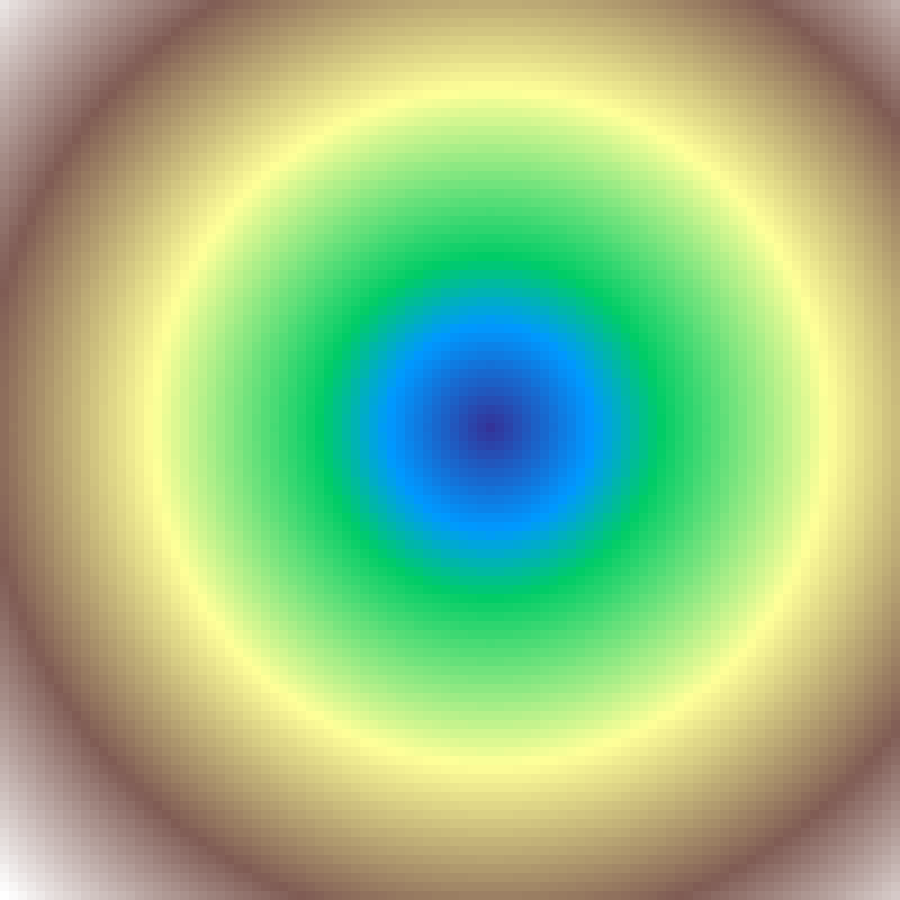

distance_gradient(rows: 100, cols: 100, seed: 42)
Euclidean distance transform from random seed cells, producing a smooth radial falloff from 0 at the seeds outward to 1 at the most distant point.

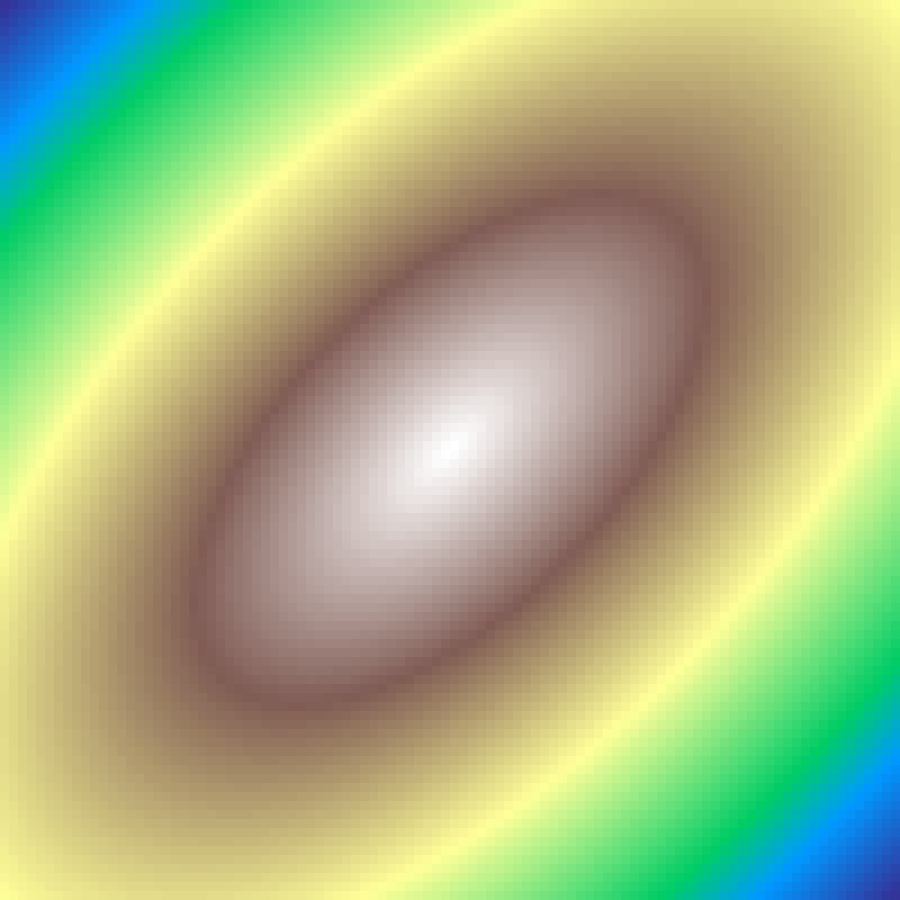

landscape_gradient(rows: 100, cols: 100, direction: 45.0, aspect: 2.0, seed: 42)
Elliptical gradient centred at the grid midpoint. direction orients the major axis; aspect controls elongation (1.0 = circular). More flexible than distance_gradient.

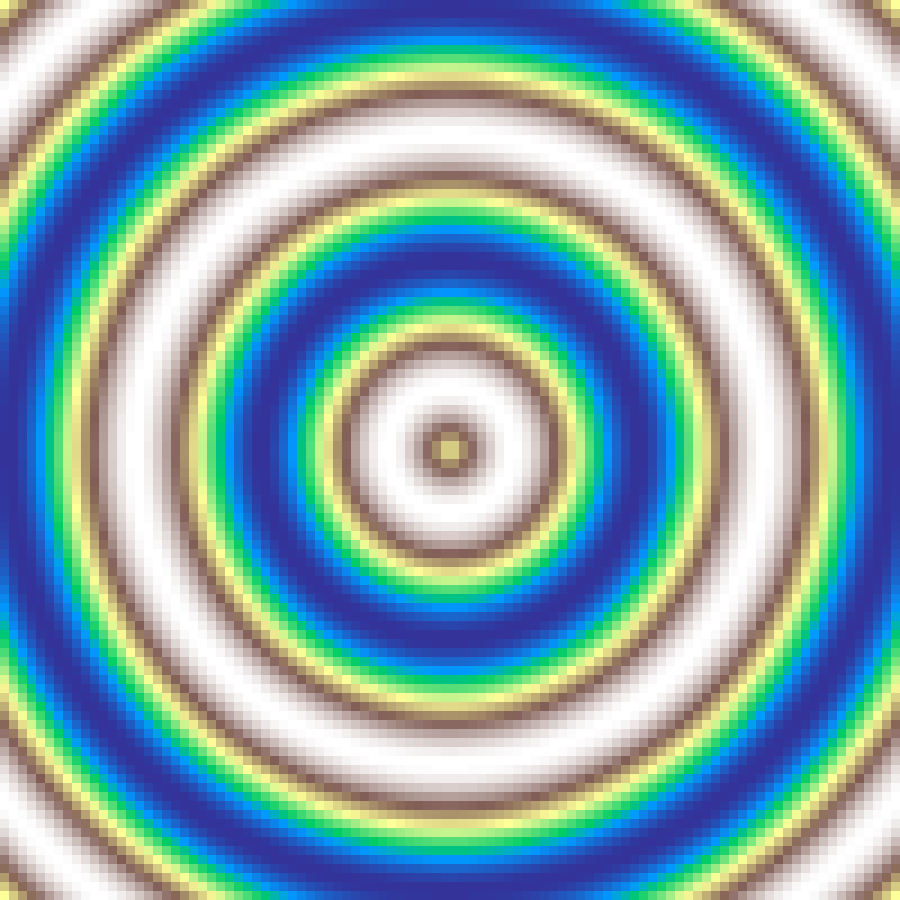

concentric_rings(rows: 100, cols: 100, frequency: 5.0, seed: 42)
Sinusoidal rings centred at the grid midpoint. frequency controls how many oscillations span the grid radius; higher values produce tighter, more closely-spaced rings.

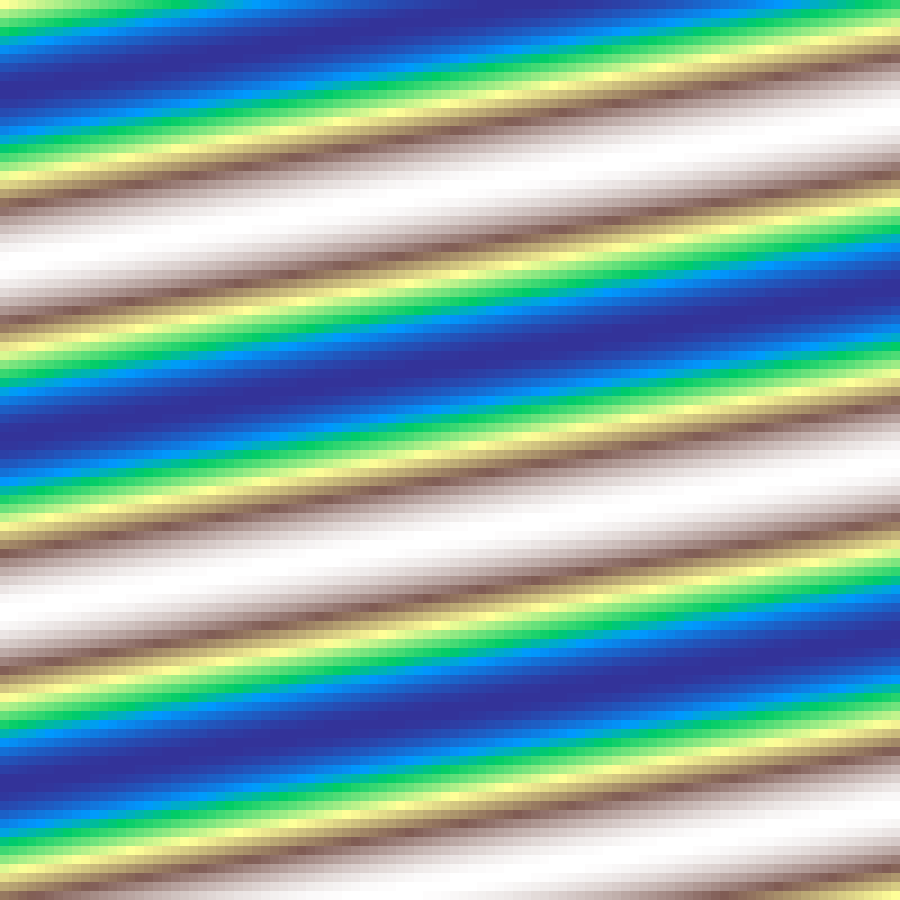

wave_gradient(rows: 100, cols: 100, period: 3.0, seed: 42)
Sinusoidal wave oriented at a given direction angle, cycling repeatedly from 0 to 1 and back at the specified period.

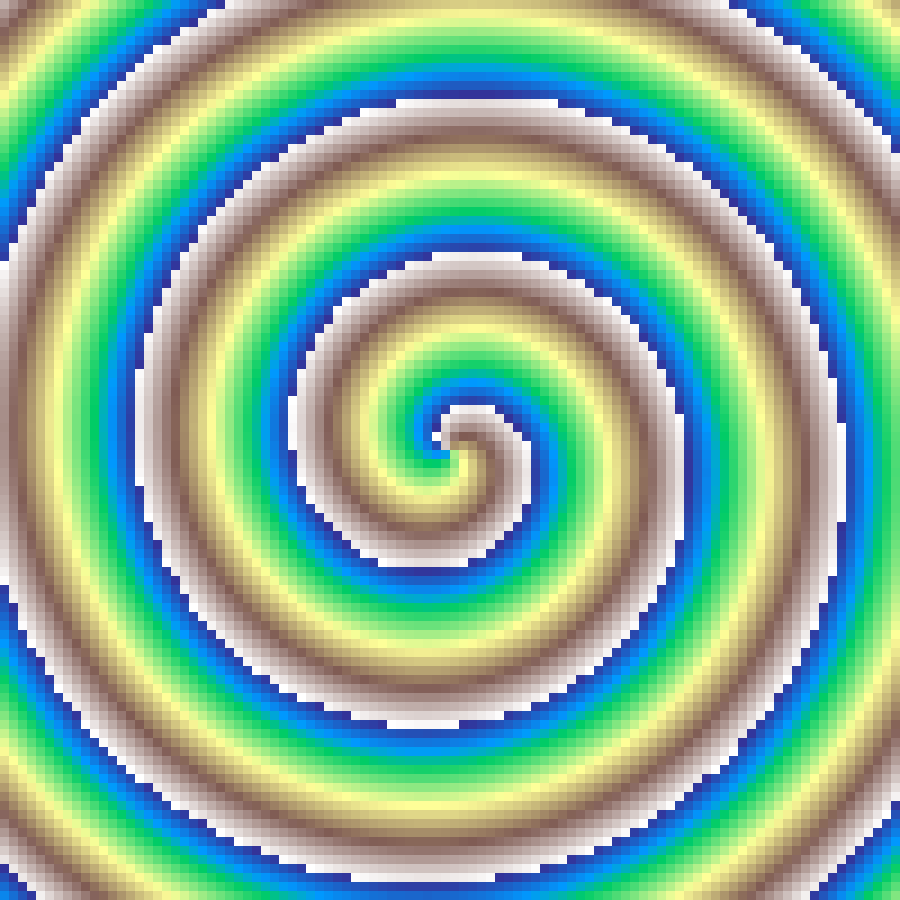

spiral_gradient(rows: 100, cols: 100, turns: 4.0, seed: 42)
Archimedean spiral radiating outward from the grid centre. Values increase along the spiral arms; turns controls how many full rotations span the grid radius.

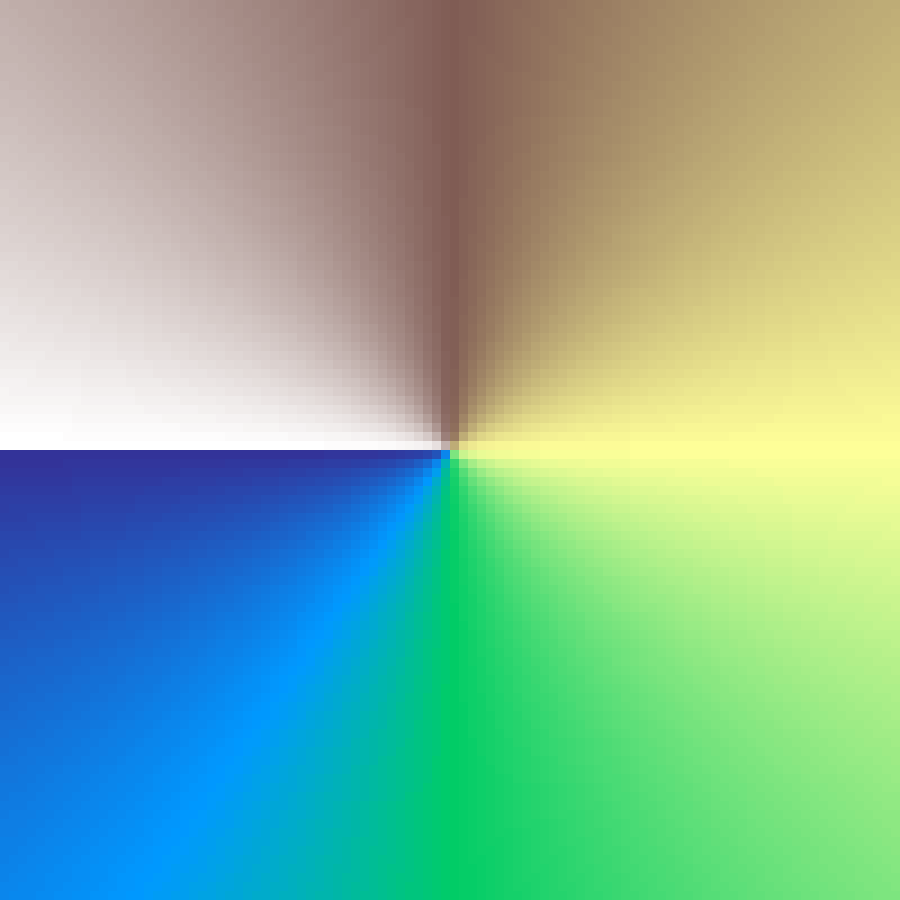

radial_sweep(rows: 100, cols: 100, seed: 42)
Deterministic gradient encoding the clockwise angle from the grid centre. Values range from 0 at the top (north) through 0.5 at the bottom, back to 1 at the top, mapping the full 360-degree sweep to [0, 1].
Continuous stochastic fields, from single-layer lattice noise to multi-octave fractal composites.

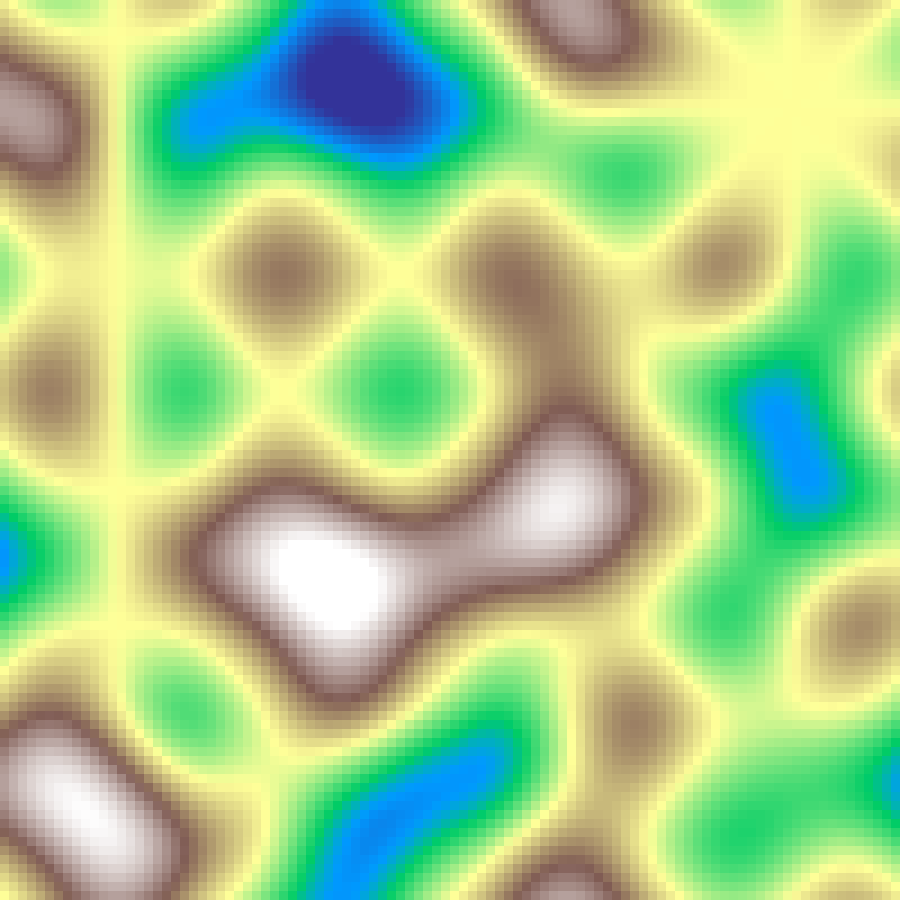

perlin_noise(rows: 100, cols: 100, scale: 4.0, seed: 42)
Smooth gradient noise built from dot products of random gradient vectors at lattice points, producing continuous, natural-looking variation.
Source: Perlin (1985)

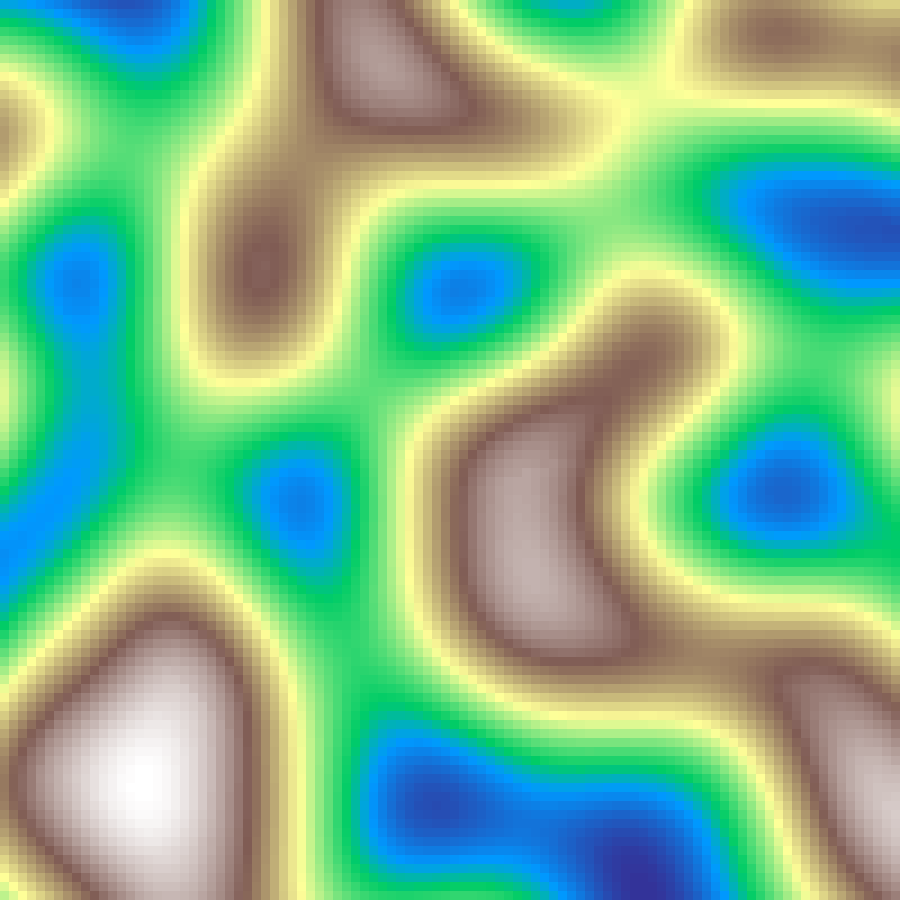

simplex_noise(rows: 100, cols: 100, scale: 4.0, seed: 42)
An open-source alternative to Perlin noise with fewer directional artefacts.

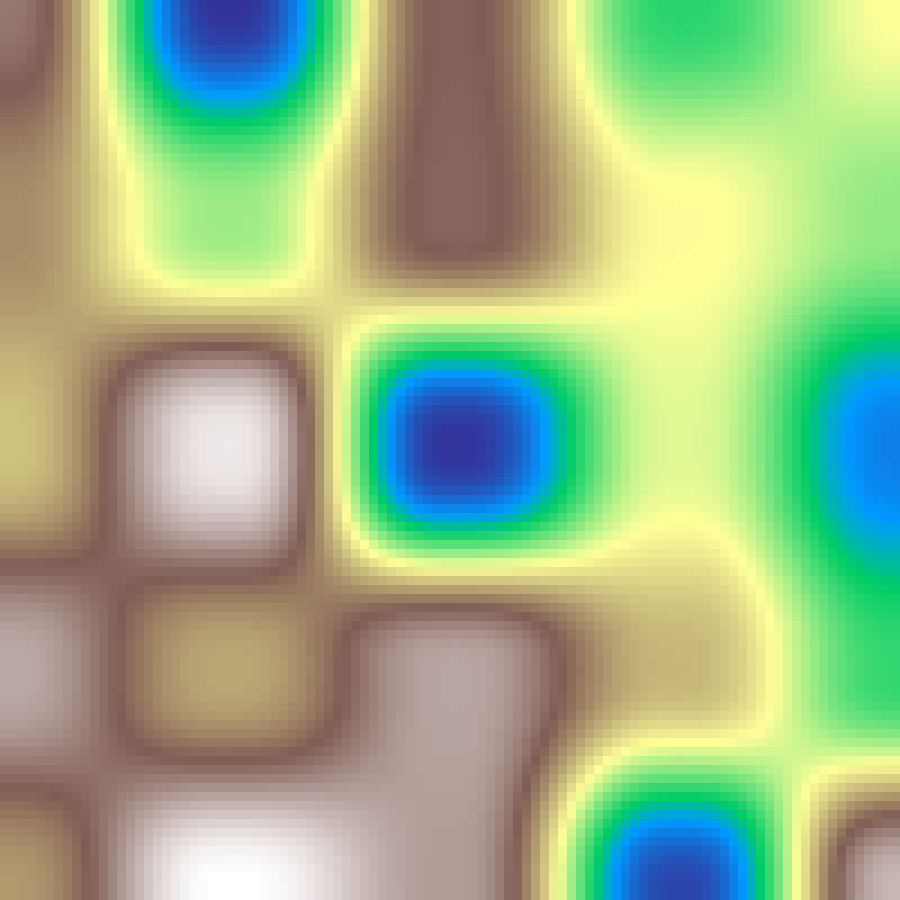

value_noise(rows: 100, cols: 100, scale: 4.0, seed: 42)
Interpolated lattice noise that is smoother and more rounded than Perlin noise.

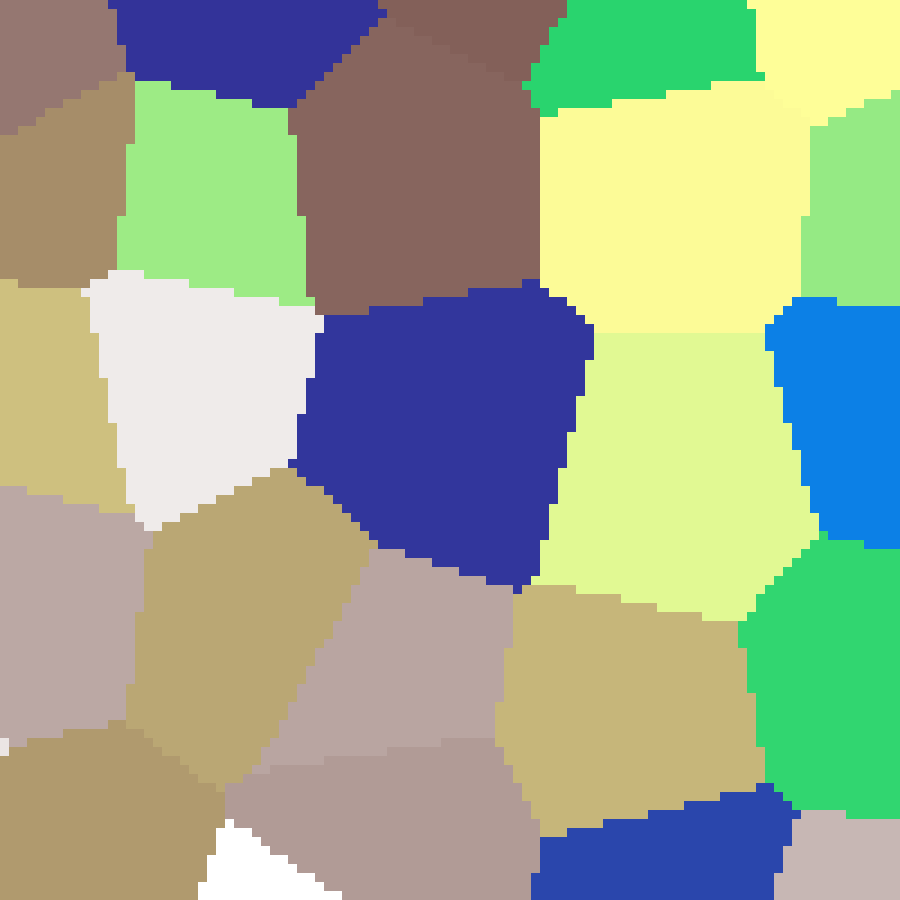

worley_noise(rows: 100, cols: 100, scale: 4.0, seed: 42)
Cell noise built from distances to random feature points, producing cellular, cracked-earth, or mosaic-like patterns.
Source: Worley (1996)

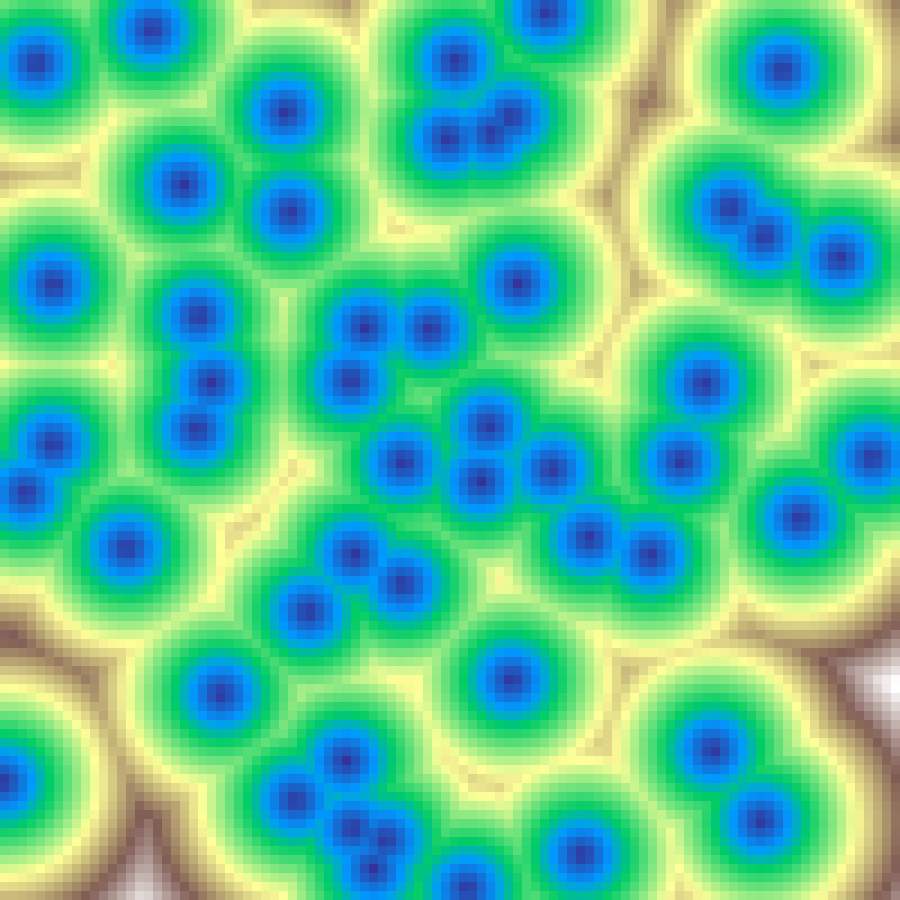

voronoi_distance(rows: 100, cols: 100, n: 50, seed: 42)
Scatters n random feature points across the grid and fills each cell with the Euclidean distance to the nearest point, producing smooth conical gradients centred on each point.

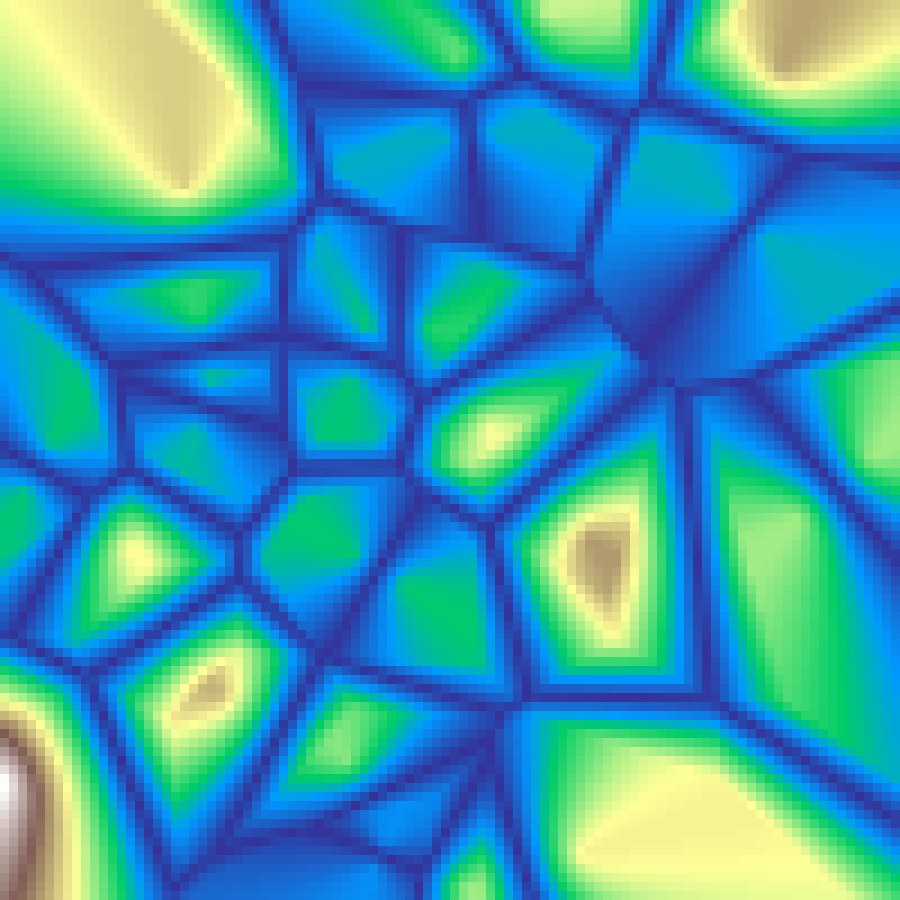

voronoi_crease(rows: 100, cols: 100, n: 30, seed: 42)
F2-F1 Worley noise: the difference between distances to the two nearest seed points. Values peak at Voronoi cell boundaries and fall off toward cell centres, highlighting the skeleton of the Voronoi diagram.
perlin_worley(rows: 100, cols: 100, scale: 4.0, seed: 42)
Hybrid of Perlin and Worley noise computed on the same cell grid. Perlin values are blended with inverted Worley distances, producing fluffy, cloud-like structures with soft cellular interiors.

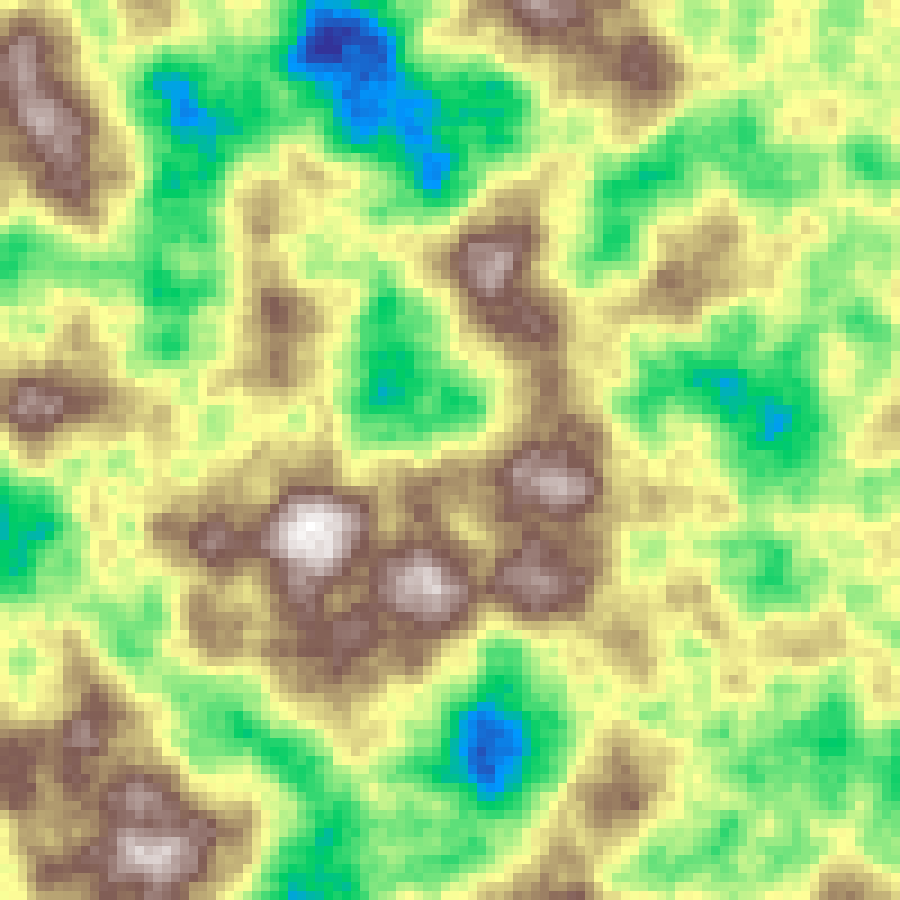

fbm_noise(rows: 100, cols: 100, scale: 4.0, octaves: 6, seed: 42)
Fractal Brownian motion layers multiple octaves of Perlin noise for more natural-looking terrain detail.
Source: Mandelbrot & Van Ness (1968); Voss (1985)

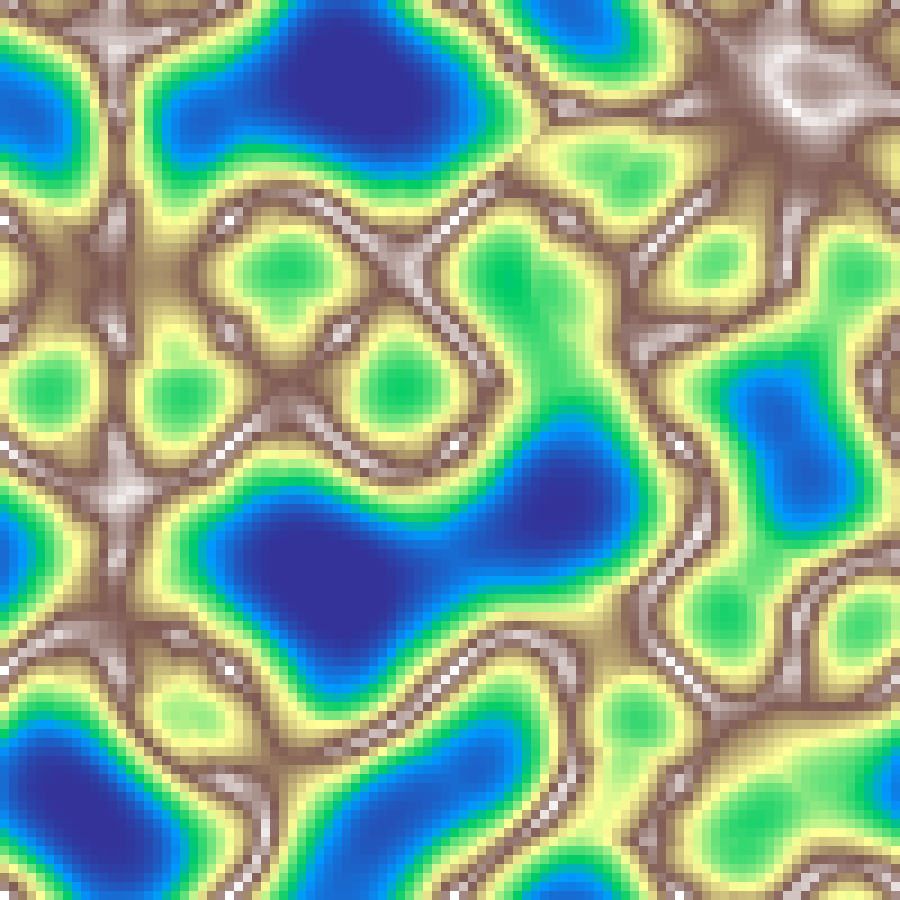

ridged_noise(rows: 100, cols: 100, scale: 4.0, octaves: 6, seed: 42)
Multi-octave noise where each octave is inverted and folded, producing sharp mountain ridges and valleys.
Source: Musgrave, Kolb & Mace (1989)

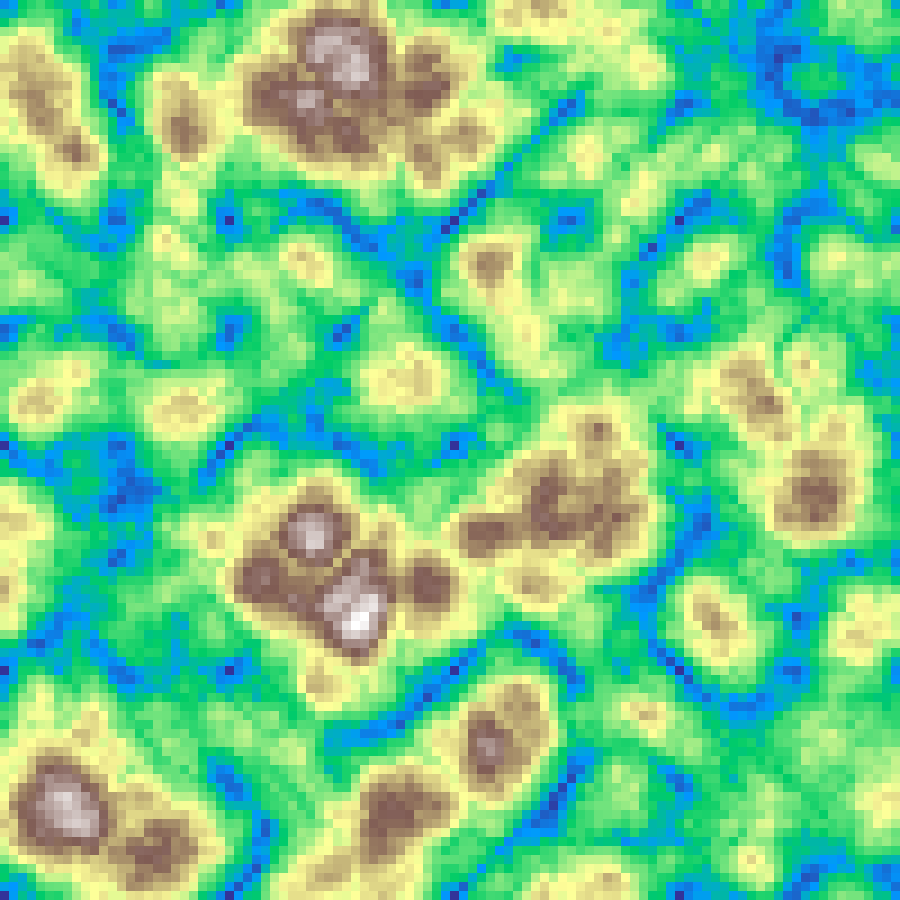

billow_noise(rows: 100, cols: 100, scale: 4.0, octaves: 6, seed: 42)
Multi-octave noise with absolute-value folding applied before accumulation, producing rounded billowing clouds or rolling dune shapes.
Source: Ebert et al., Texturing and Modeling: A Procedural Approach (2002)

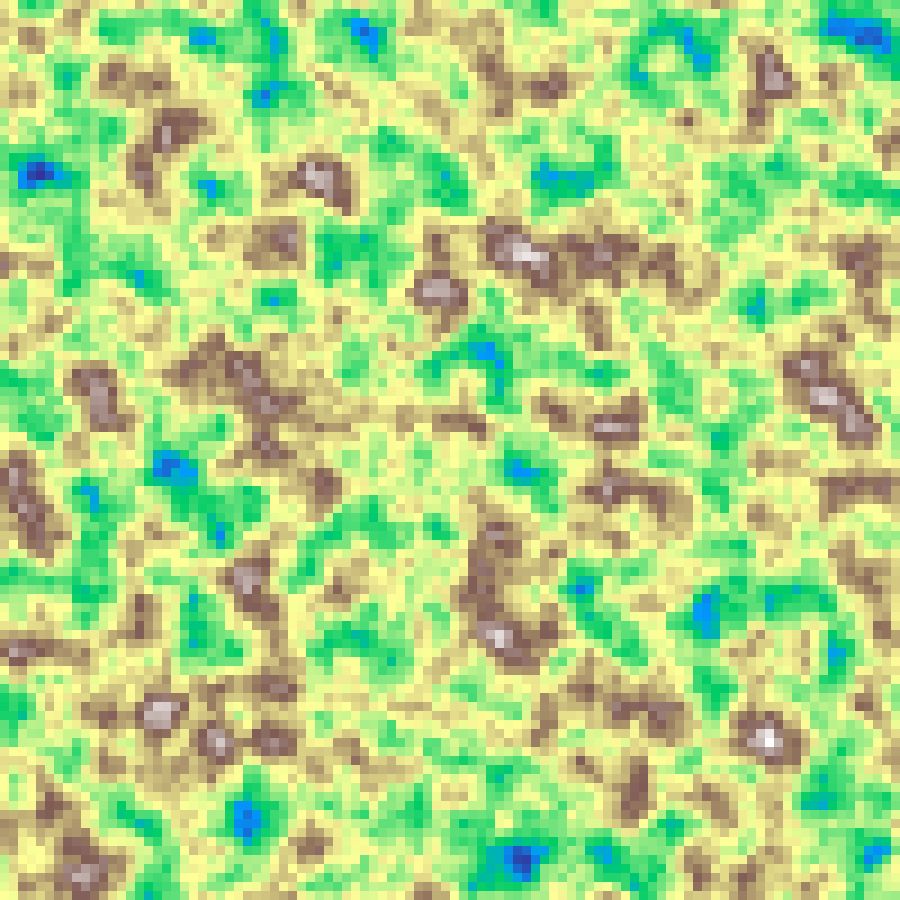

hybrid_noise(rows: 100, cols: 100, scale: 4.0, octaves: 6, seed: 42)
Hybrid multifractal noise combines fBm-style layering with a multiplicative weighting that amplifies high-frequency detail near peaks.
Source: Musgrave, Kolb & Mace (1989)
turbulence(rows: 100, cols: 100, scale: 4.0, octaves: 6, seed: 42)
fBm with absolute-value folding per octave, producing sharp ridges and a storm-cloud appearance.
Source: Perlin (1985)

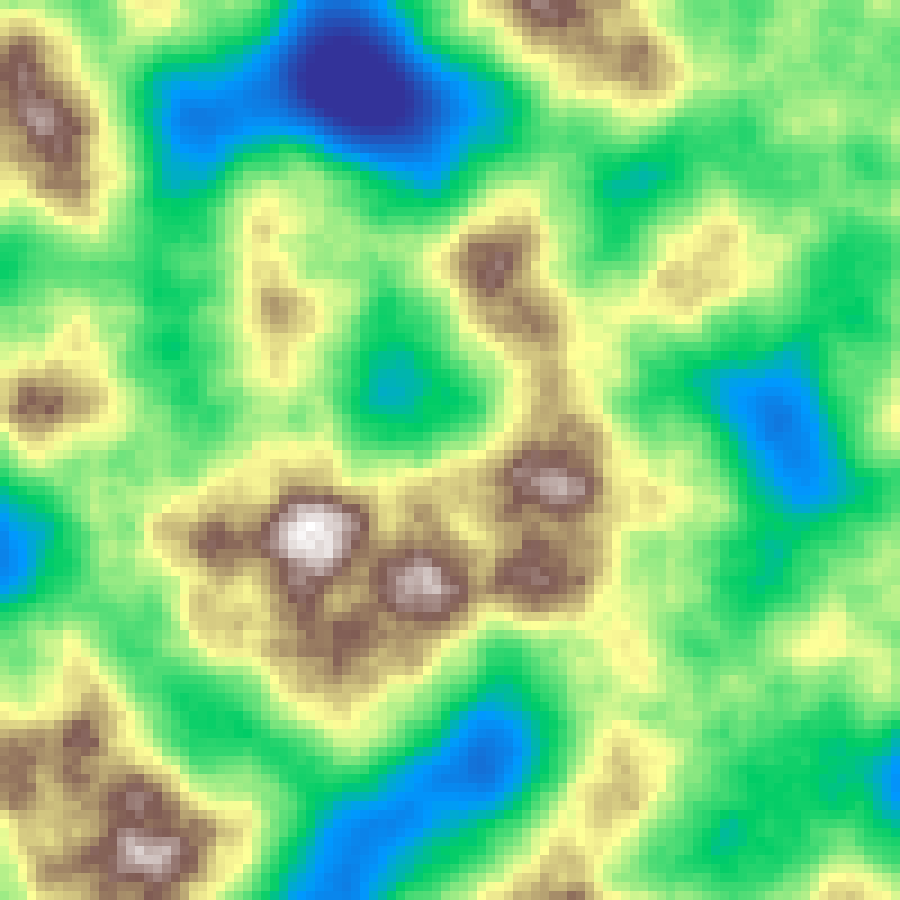

multifractal_terrain(rows: 100, cols: 100, scale: 4.0, octaves: 6, seed: 42)
Musgrave's heterogeneous multifractal: each successive octave is weighted by the accumulated signal, so low-lying areas remain smooth while ridges and peaks accumulate rugged fine detail. Produces terrain with realistic geological stratification.
Source: Musgrave et al. (1989)

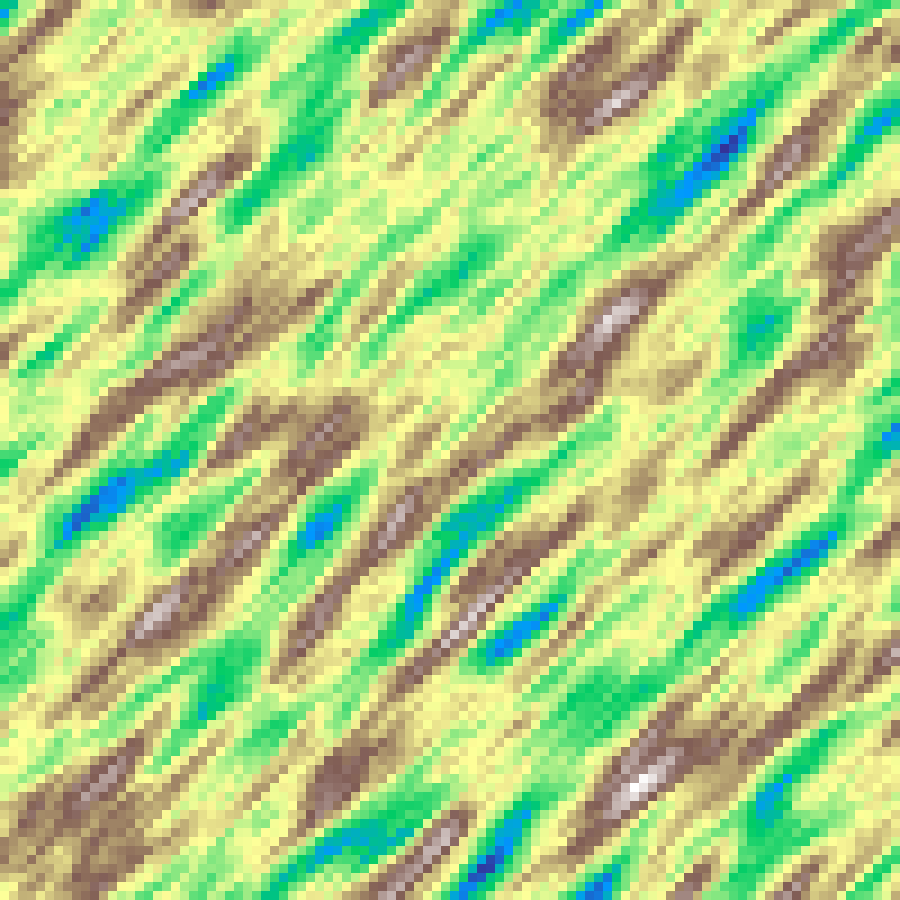

anisotropic_noise(rows: 100, cols: 100, scale: 4.0, octaves: 6, direction: 45.0, stretch: 4.0, seed: 42)
Fractal Brownian motion computed in a rotated and stretched coordinate frame, producing directionally biased textures. direction sets the elongation axis; stretch controls the anisotropy ratio.

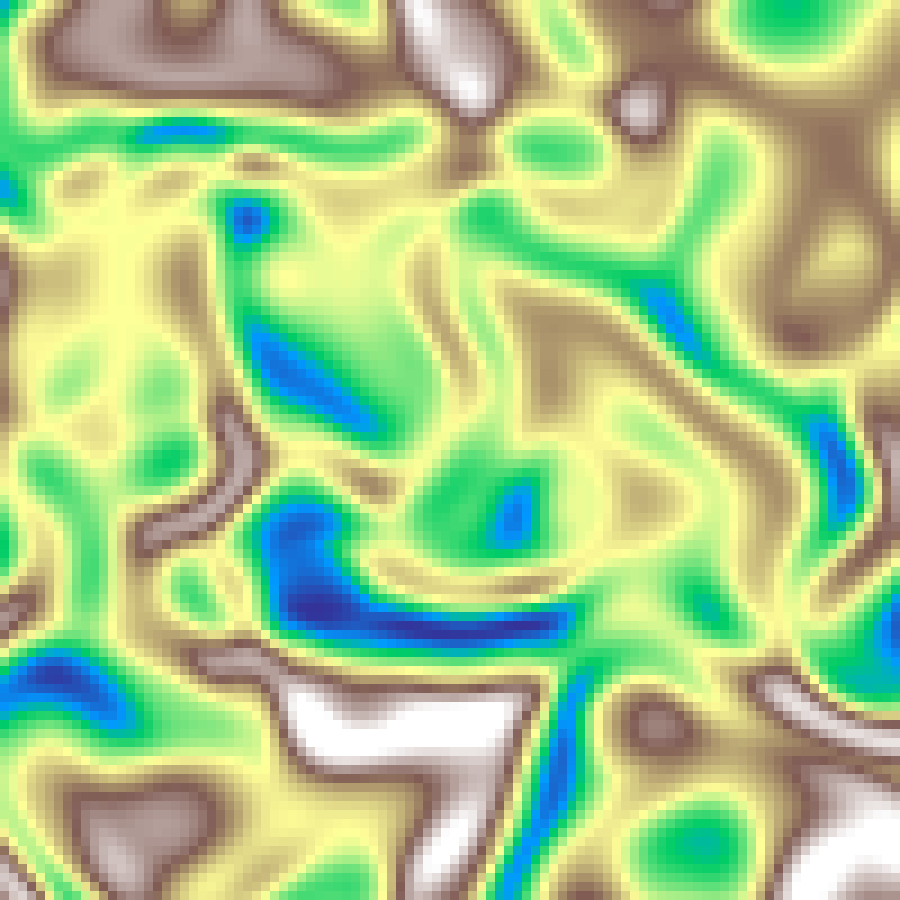

domain_warp(rows: 100, cols: 100, scale: 4.0, warp_strength: 1.0, seed: 42)
Perlin noise sampled at coordinates displaced by a second Perlin field, producing organic swirling patterns.
Source: Quilez (2002)

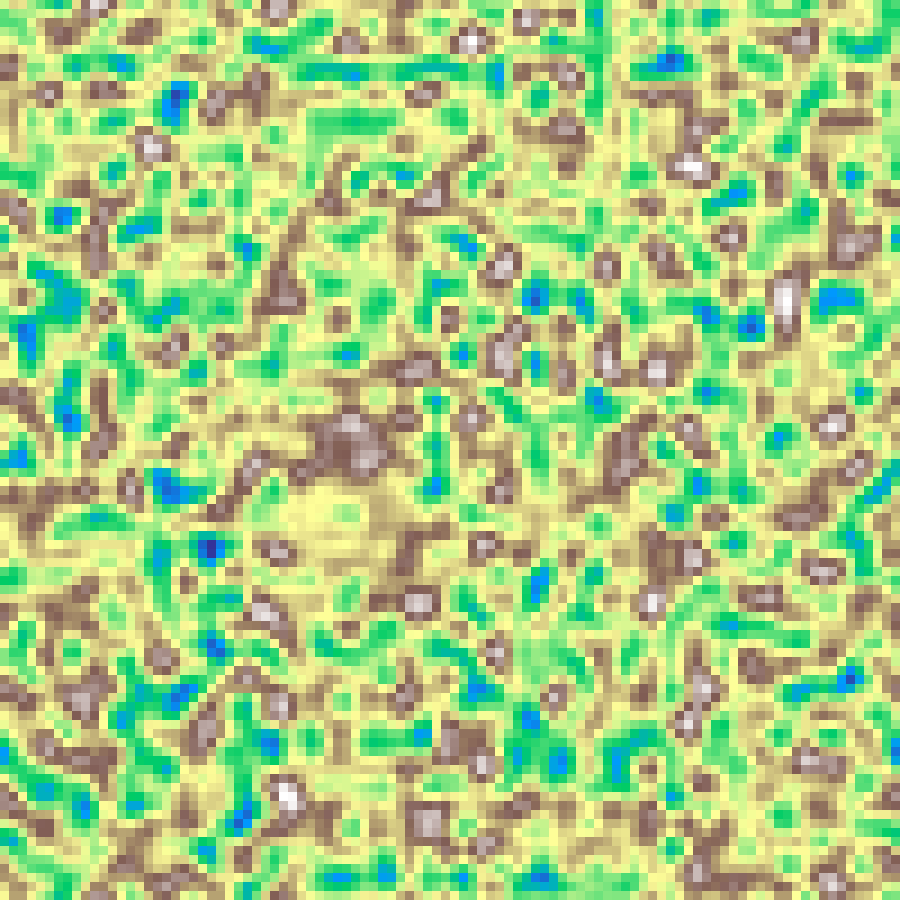

tiled_noise(rows: 100, cols: 100, scale: 4.0, seed: 42)
Seamlessly tileable Perlin noise generated by embedding the grid on a 4D torus, ensuring that the left/right and top/bottom edges match perfectly.

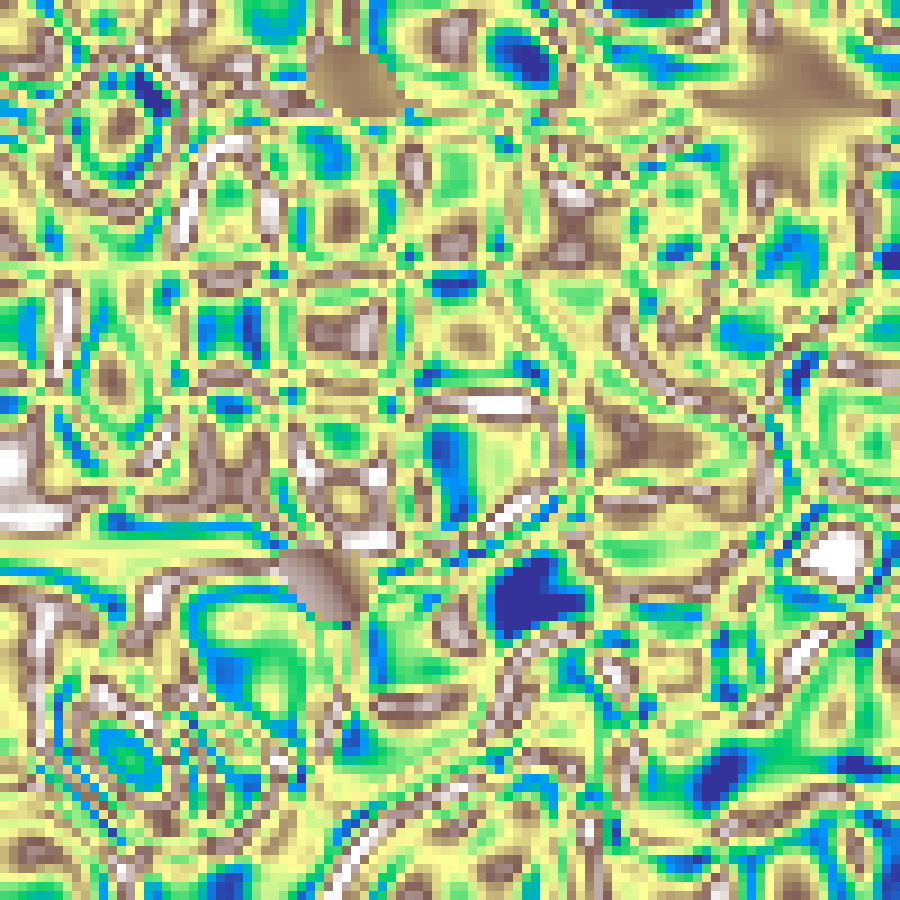

curl_noise(rows: 100, cols: 100, scale: 4.0, seed: 42)
Computes the curl (gradient rotated 90 degrees) of a Perlin potential field using finite differences, producing a divergence-free velocity field. Sample coordinates of a second Perlin generator are warped by this field, yielding swirling, flow-aligned patterns without directional clumping.

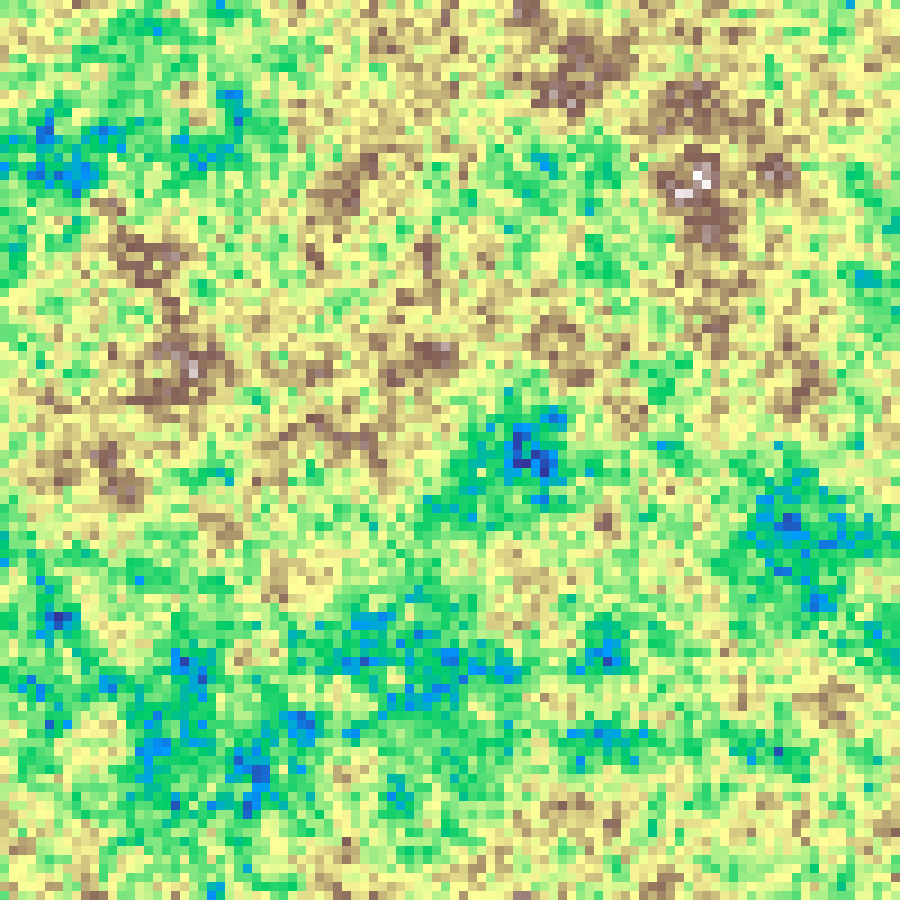

spectral_synthesis(rows: 100, cols: 100, beta: 2.0, seed: 42)
Generates correlated noise in the frequency domain by scaling each component's amplitude by f^(-beta/2), giving a power spectrum proportional to 1/f^beta. Higher beta produces smoother, more spatially correlated landscapes.
Source: Peitgen & Saupe (1988)

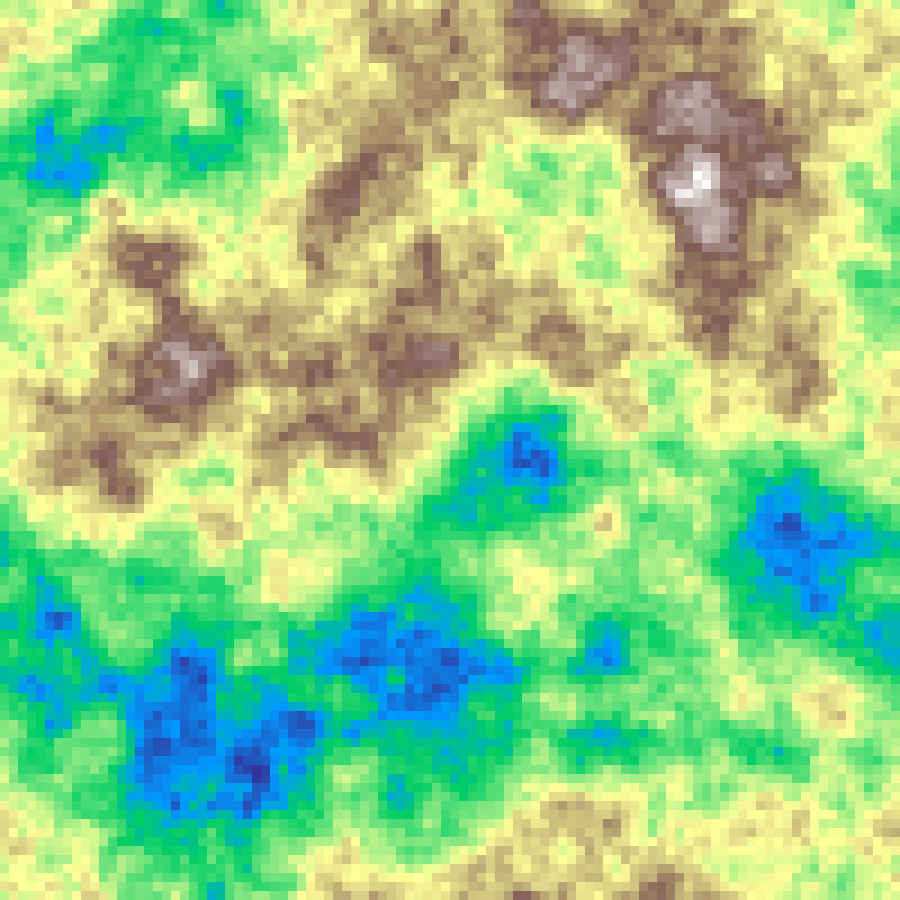

fractal_brownian_surface(rows: 100, cols: 100, h: 0.5, seed: 42)
Spectral synthesis parameterised by the Hurst exponent h ∈ (0, 1), which has direct ecological meaning. h near 0 is rough; h near 1 is smooth. Related to spectral_synthesis by β = 2h + 2.

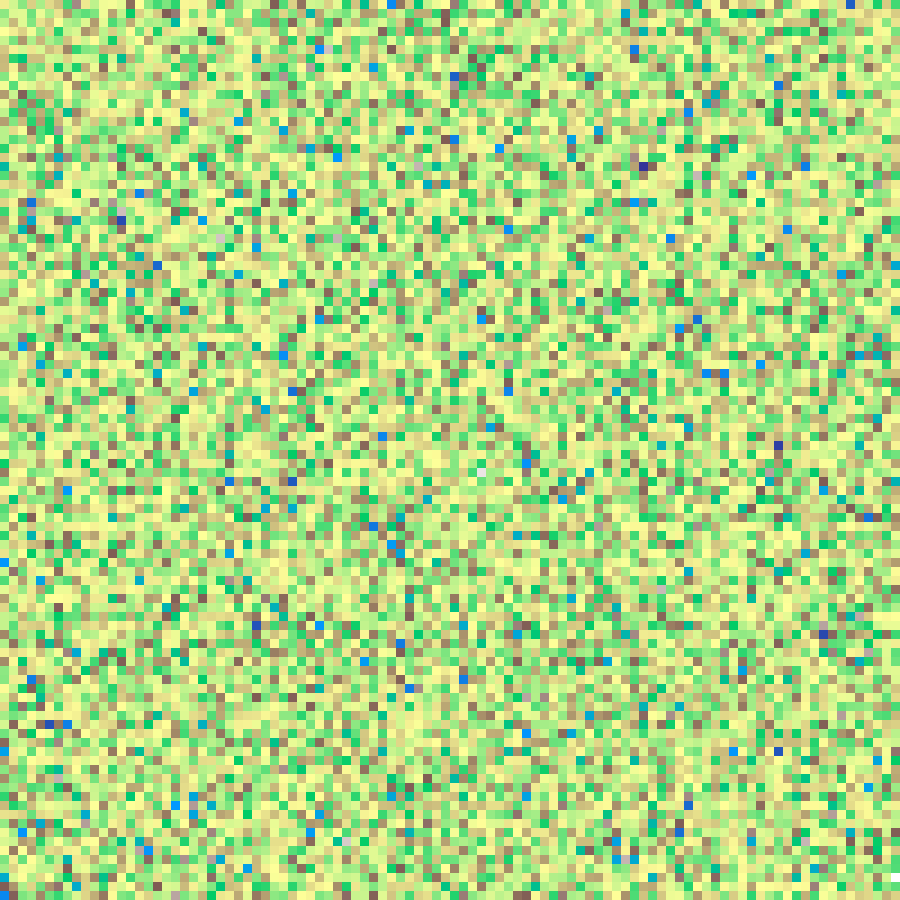

blue_noise(rows: 100, cols: 100, seed: 42)
Spectral noise with energy concentrated at high spatial frequencies. Generated via FFT by assigning amplitudes proportional to wavenumber magnitude and random phases, then transforming back to the spatial domain. Produces visually uniform, near-Poisson point distributions.

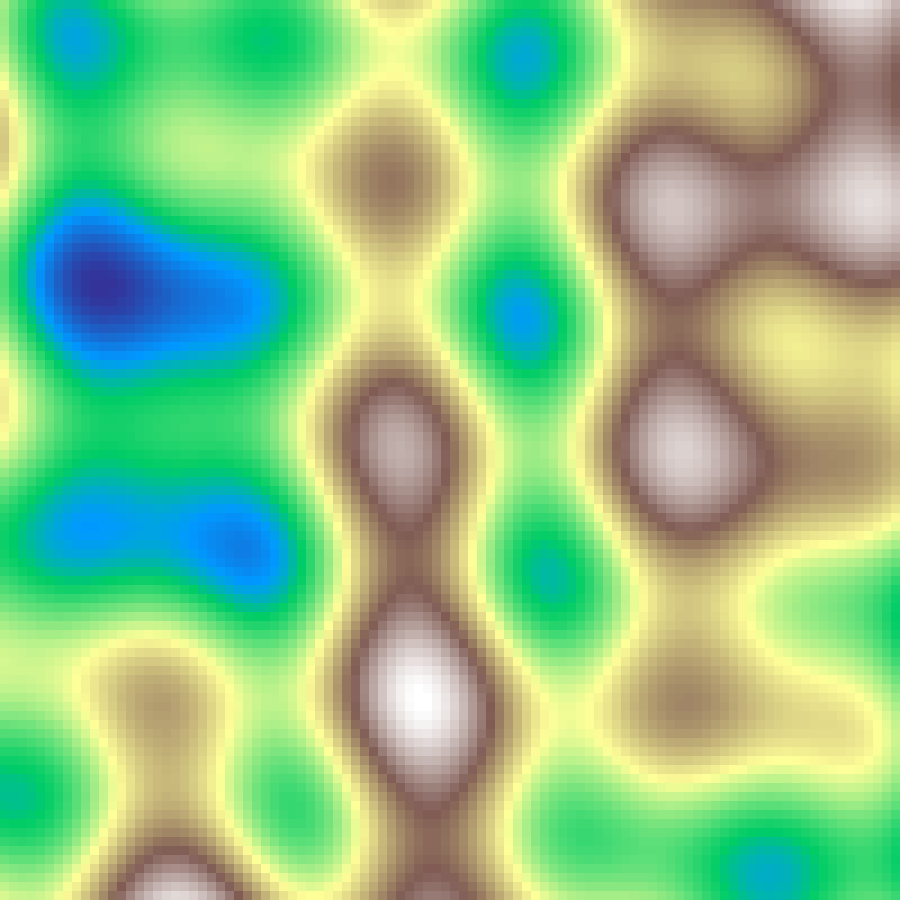

sine_composite(rows: 100, cols: 100, waves: 8, seed: 42)
Superposes waves sinusoidal plane waves, each with a random orientation, frequency, and phase. The interference of multiple waves produces standing-wave patterns whose complexity grows with the number of waves.

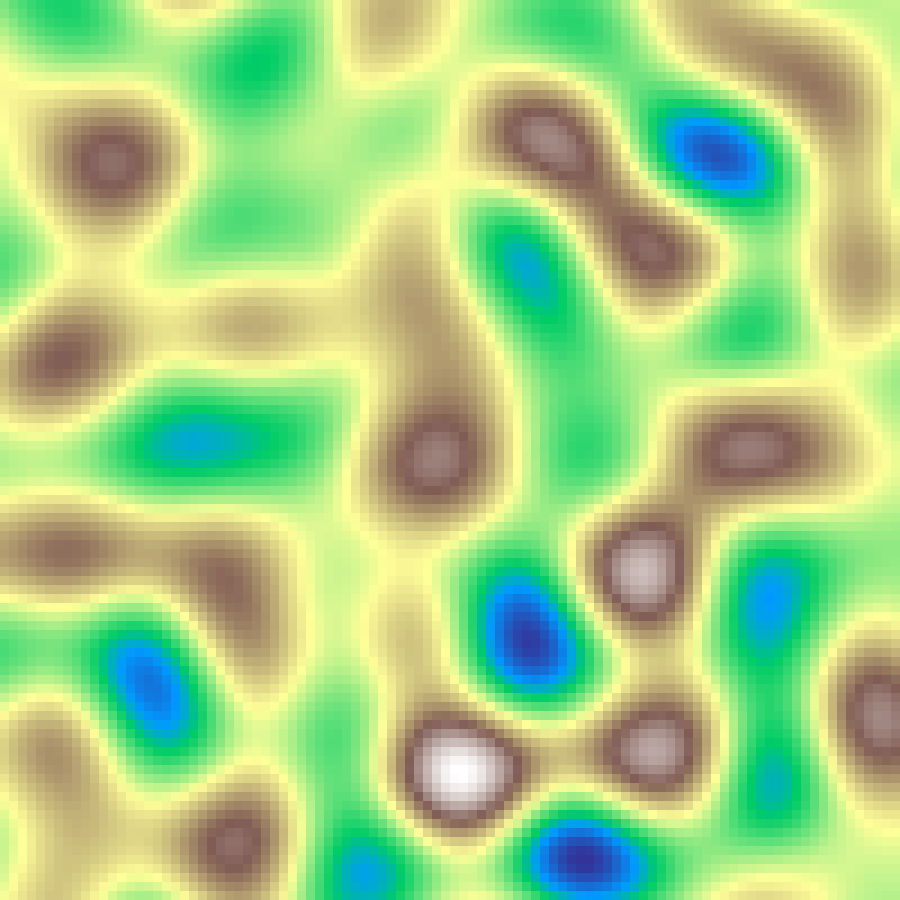

gabor_noise(rows: 100, cols: 100, scale: 4.0, n: 500, seed: 42)
Sums n random Gabor kernels (Gaussian-windowed sinusoidal patches) over the grid. Each kernel has a random centre, orientation, and phase; the result is a spatially correlated texture whose dominant frequency is controlled by scale.

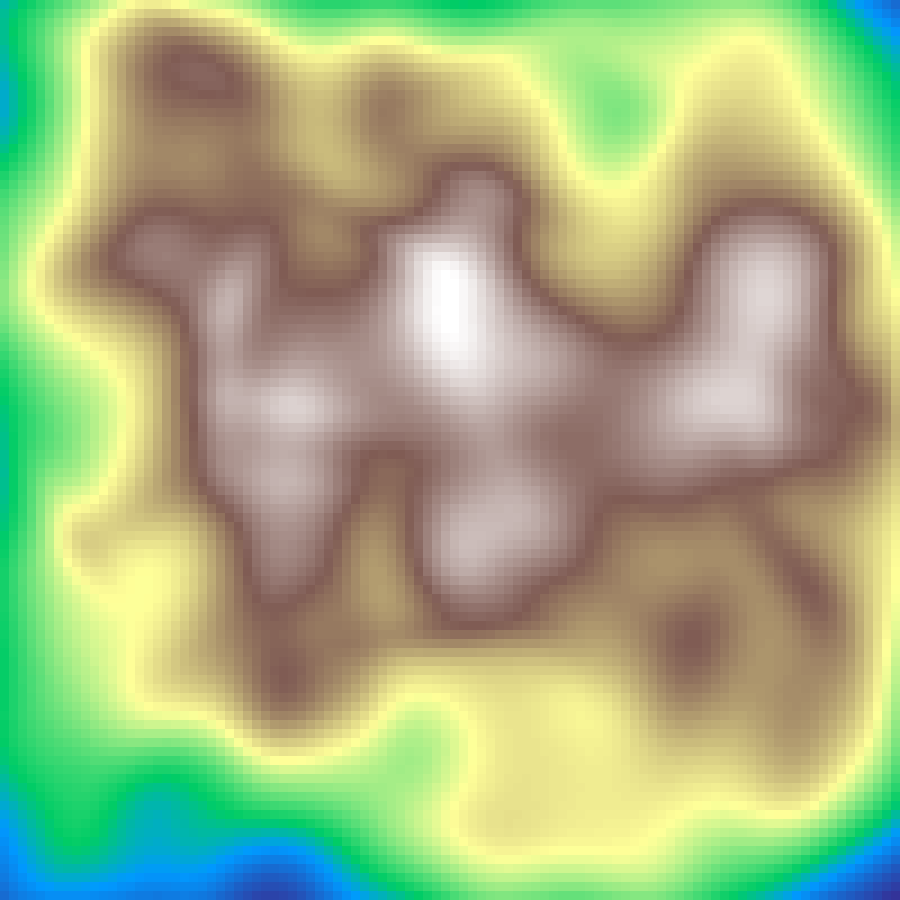

spot_noise(rows: 100, cols: 100, n: 200, seed: 42)
Places n random elliptical Gaussian spots on the grid, each with an independent orientation, major radius, and aspect ratio. The superimposed spots produce an anisotropic, texture-like field.

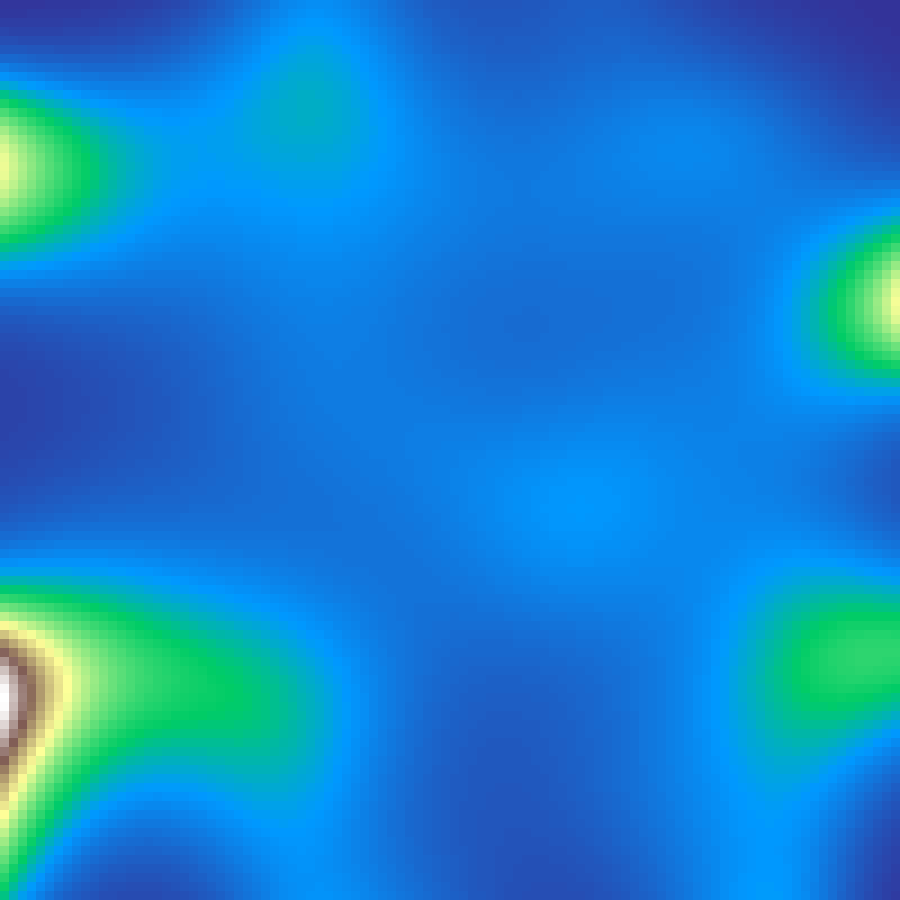

lognormal_field(rows: 100, cols: 100, sigma: 10.0, seed: 42)
Gaussian random field transformed by an exponential, giving a right-skewed distribution with rare intense hotspots embedded in a low-value background, typical of ecological quantities such as resource concentrations and population densities.
Discrete spatial patterns built from random processes, clustering, or hierarchical partitioning.

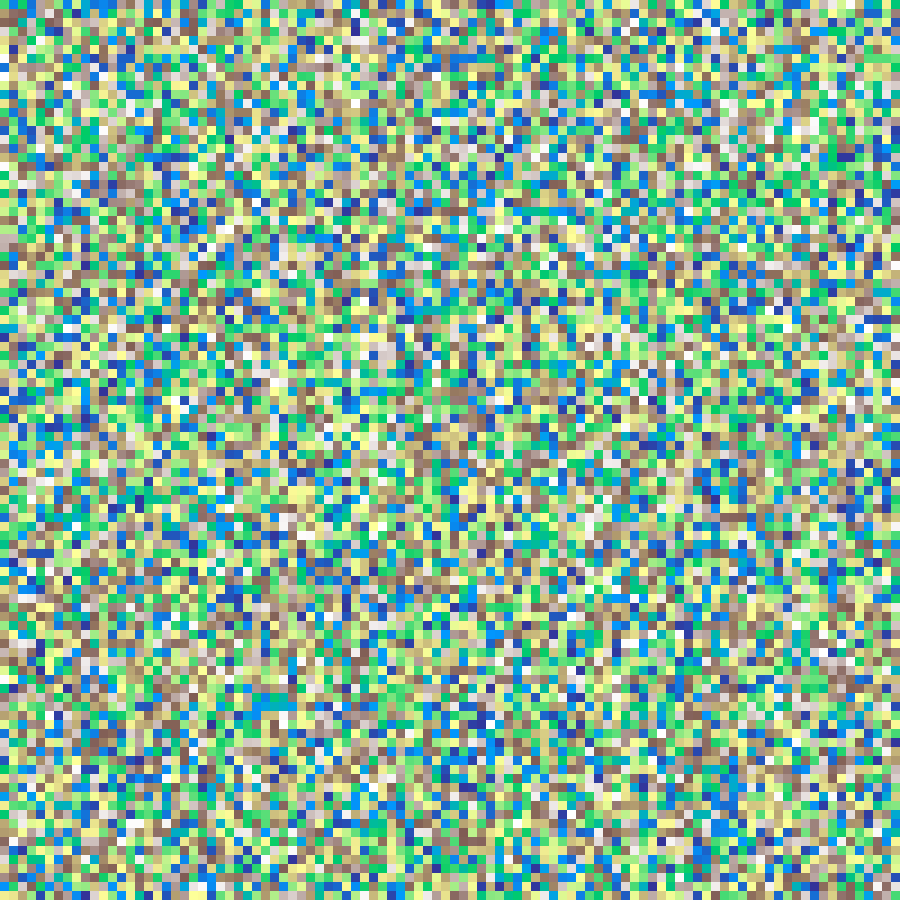

random(rows: 100, cols: 100, seed: 42)
Independent uniform random values at each cell, with no spatial structure.

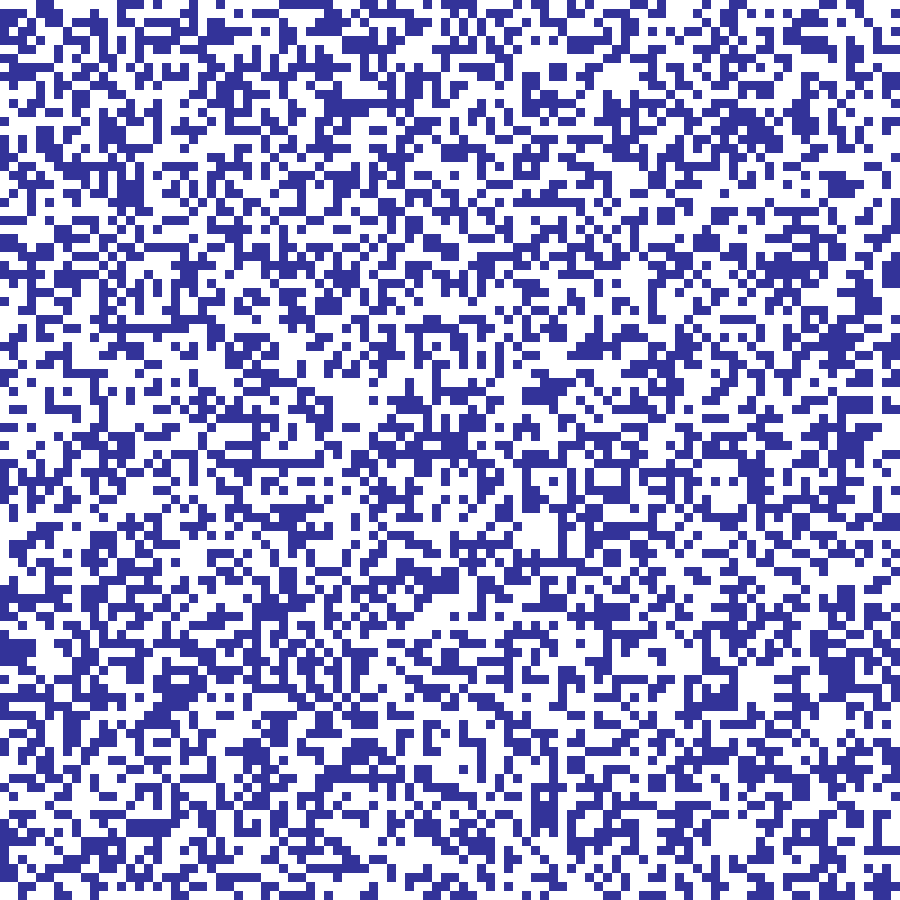

percolation(rows: 100, cols: 100, p: 0.55, seed: 42)
Binary Bernoulli lattice where each cell is independently set to 1 with probability p, producing binary habitat maps. The critical percolation threshold for 4-connectivity is approximately 0.593.
Source: Gardner et al. (1987)

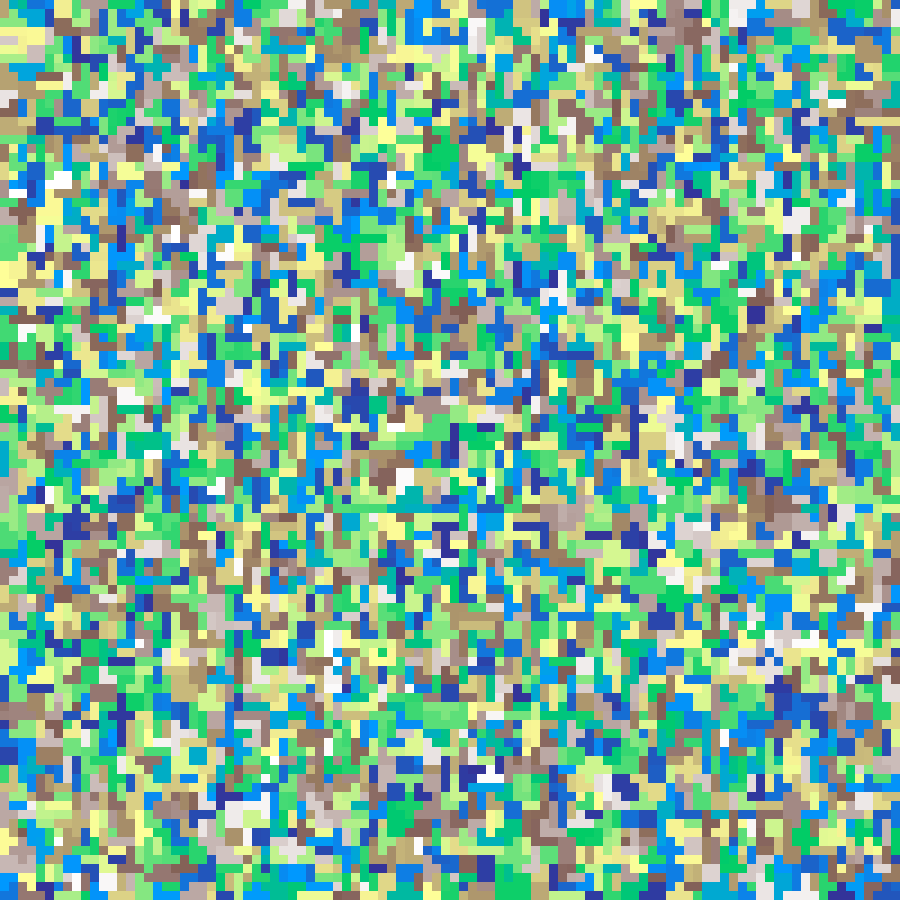

random_element(rows: 100, cols: 100, n: 5000, seed: 42)
Places n labelled seed cells at random positions, then fills all remaining cells with the value of the nearest seed using nearest-neighbour interpolation.
Source: Etherington, Holland & O'Sullivan (2015)

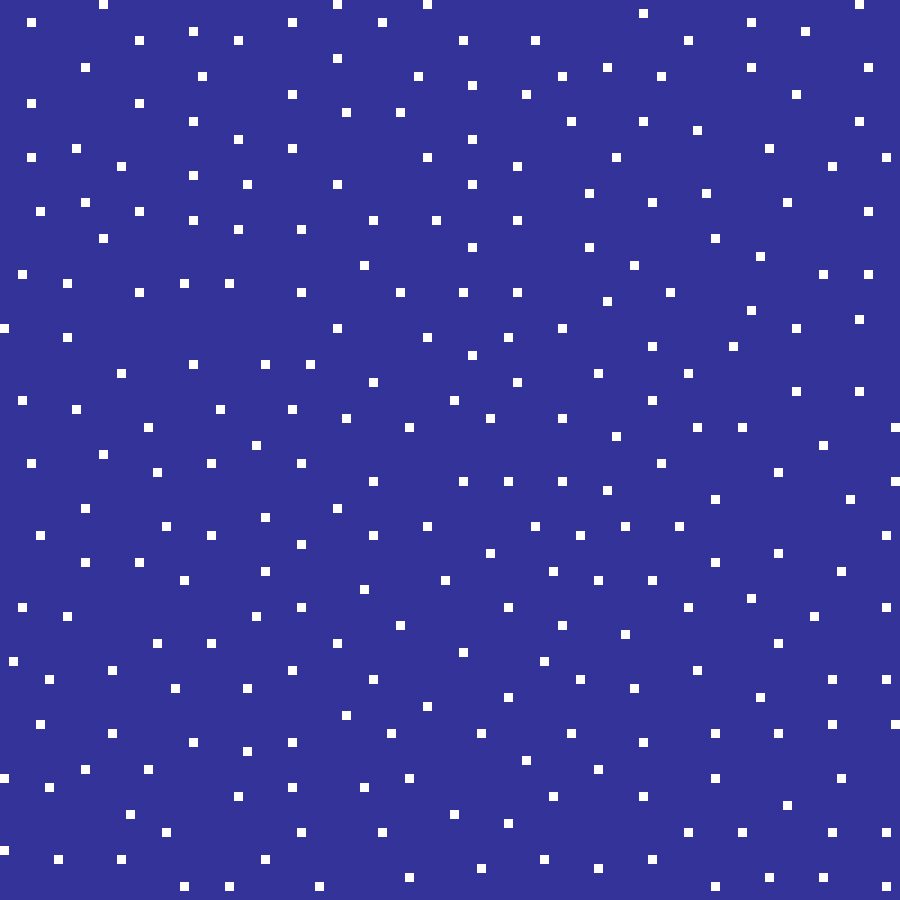

poisson_disk(rows: 100, cols: 100, min_dist: 5.0, seed: 42)
Uses Bridson's algorithm to place points such that no two are closer than min_dist. The resulting inhibition pattern has regular, even spacing compared to random point placement, modelling processes such as territorial behaviour or tree canopy competition.

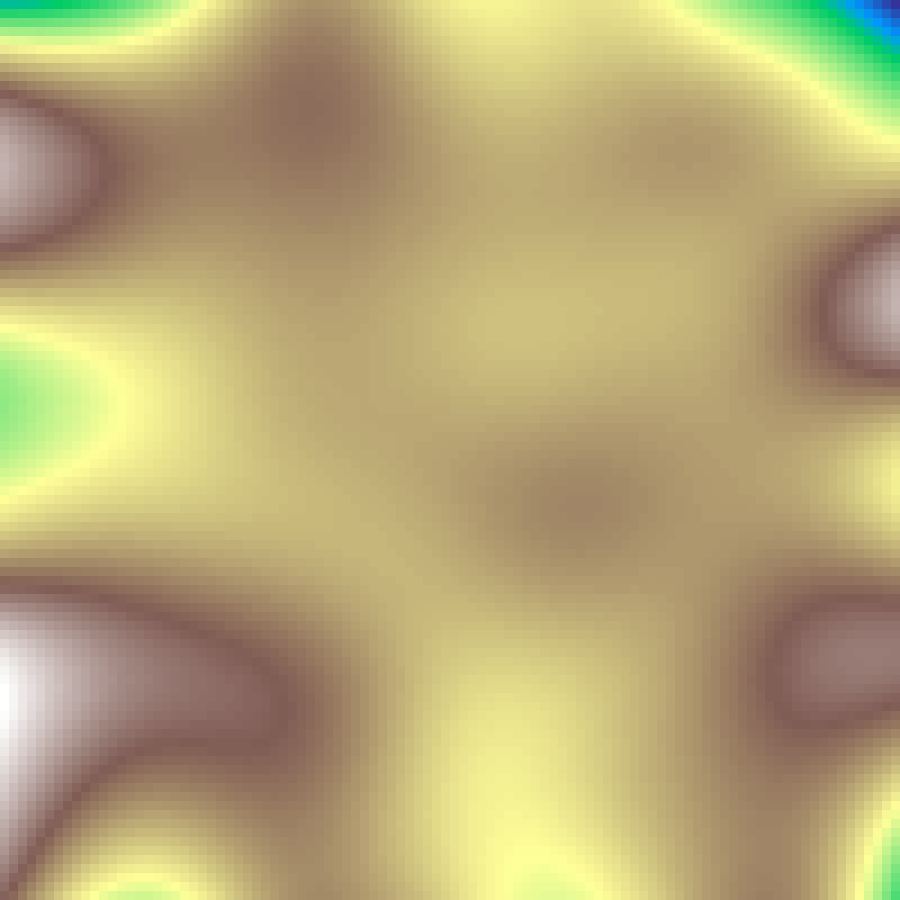

gaussian_field(rows: 100, cols: 100, sigma: 10.0, seed: 42)
White noise smoothed by a Gaussian blur kernel with standard deviation sigma, producing spatially correlated fields where patch size scales directly with sigma.

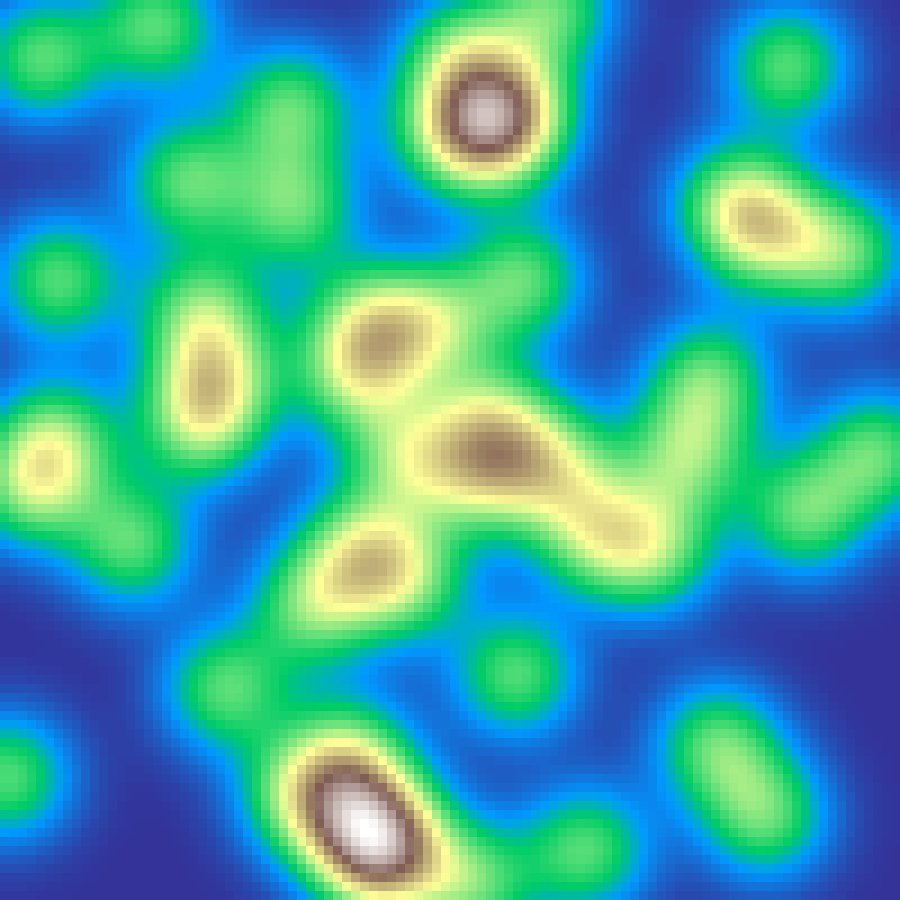

gaussian_blobs(rows: 100, cols: 100, n: 50, sigma: 5.0, seed: 42)
Places random Gaussian kernel centres and accumulates their contributions across the grid, then rescales to [0, 1]. Produces smooth blob-like elevation fields.

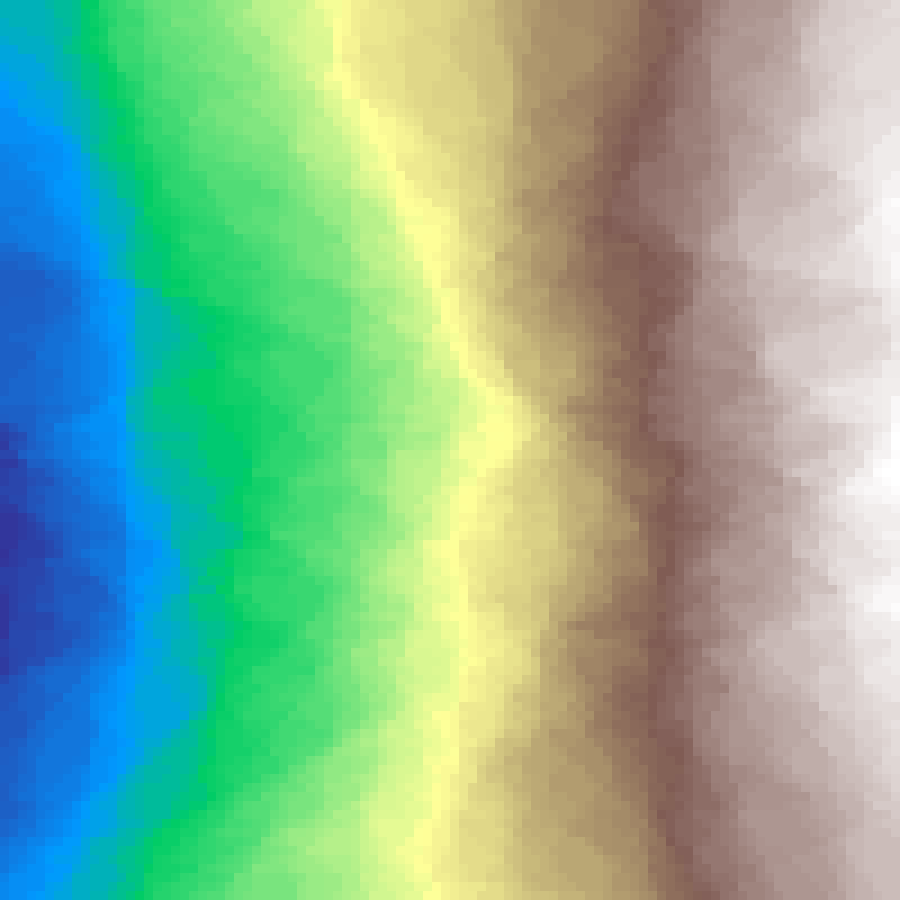

random_cluster(rows: 100, cols: 100, n: 200, seed: 42)
Applies n random fault-line cuts across the grid, accumulating the field on each side, then rescales. Produces spatially clustered landscapes with the linear structural elements characteristic of geological fault patterns.
Source: Saura & Martínez-Millán (2000)

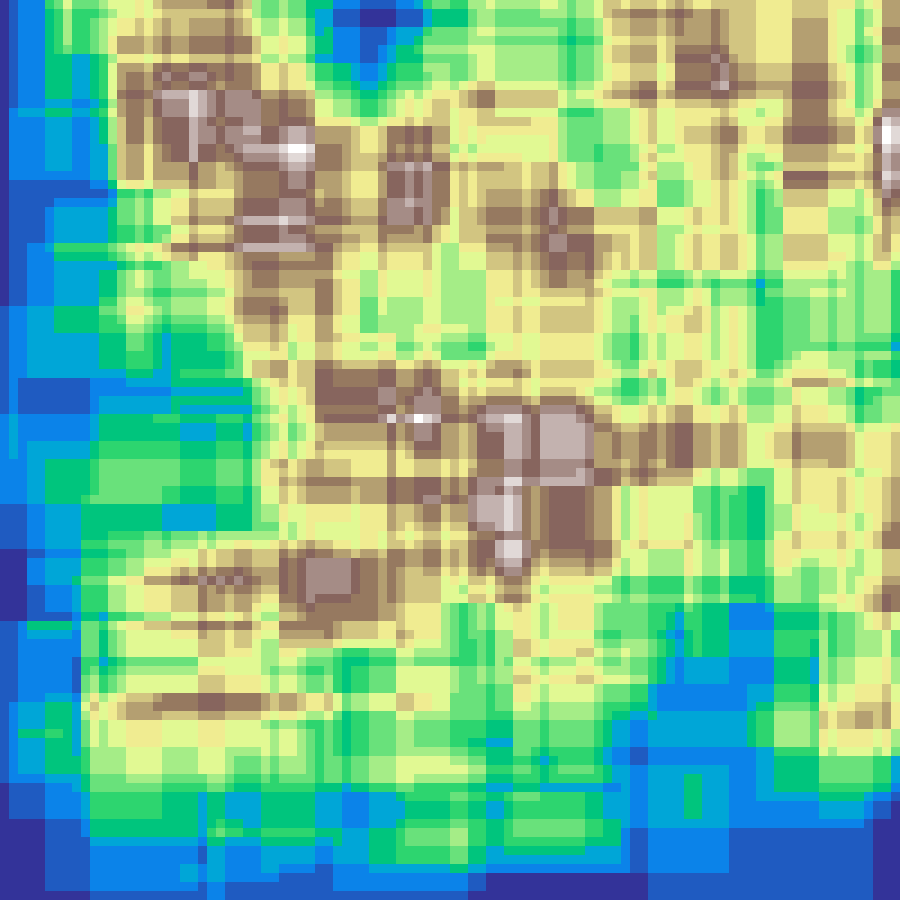

rectangular_cluster(rows: 100, cols: 100, n: 300, seed: 42)
Overlapping random axis-aligned rectangles accumulated and scaled, producing blocky clustered patches.

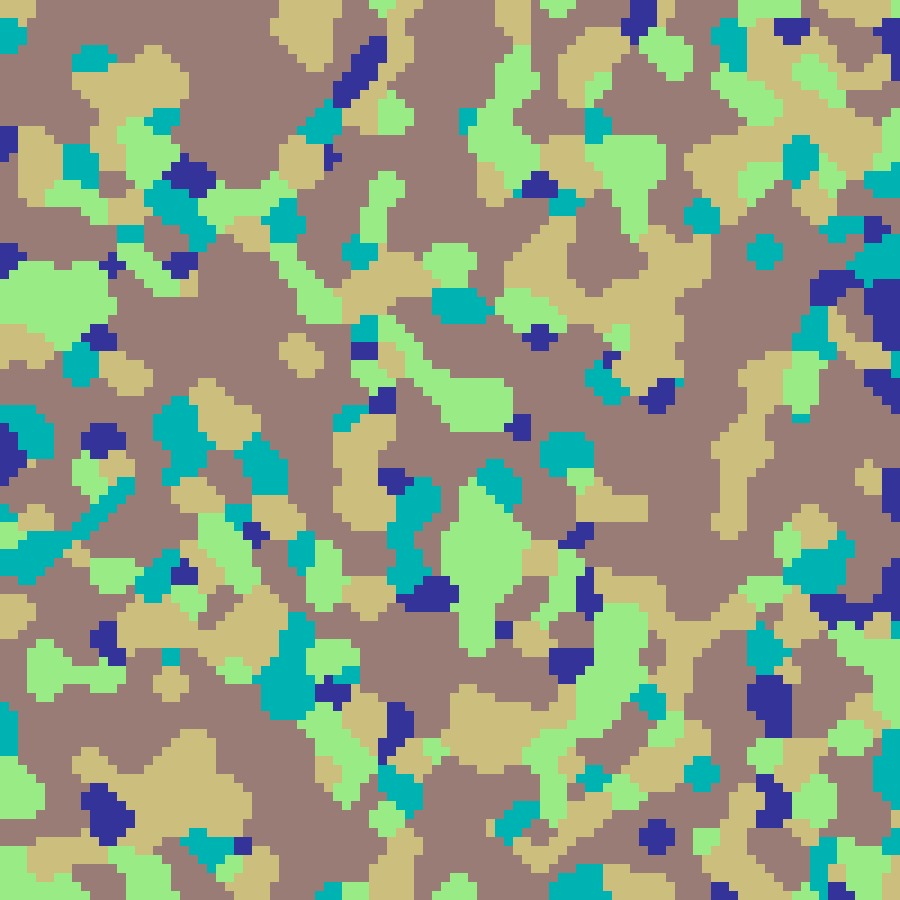

neighbourhood_clustering(rows: 100, cols: 100, k: 5, iterations: 10, seed: 42)
Initialises a grid with k random classes then repeatedly applies a majority-vote rule: each cell adopts the most common class in its 3×3 Moore neighbourhood. More iterations produce larger, smoother organic patches.

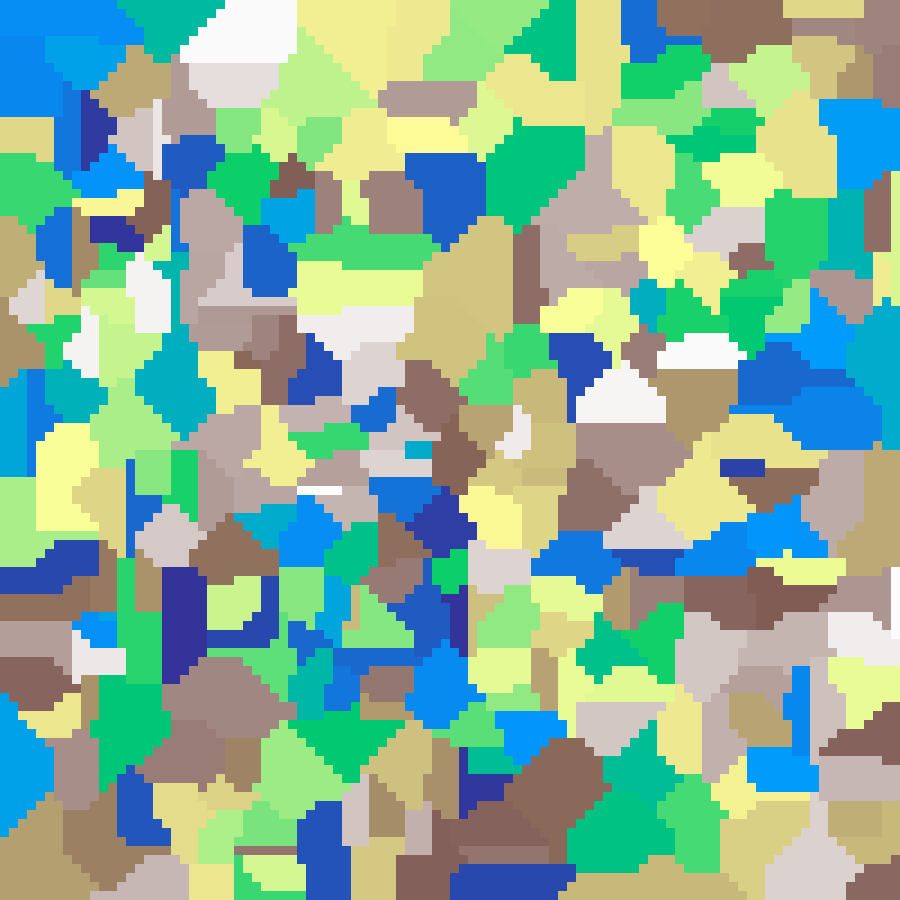

mosaic(rows: 100, cols: 100, n: 300, seed: 42)
Discrete Voronoi map where each region is a flat colour determined by its nearest seed point, producing a stained-glass or territory effect.

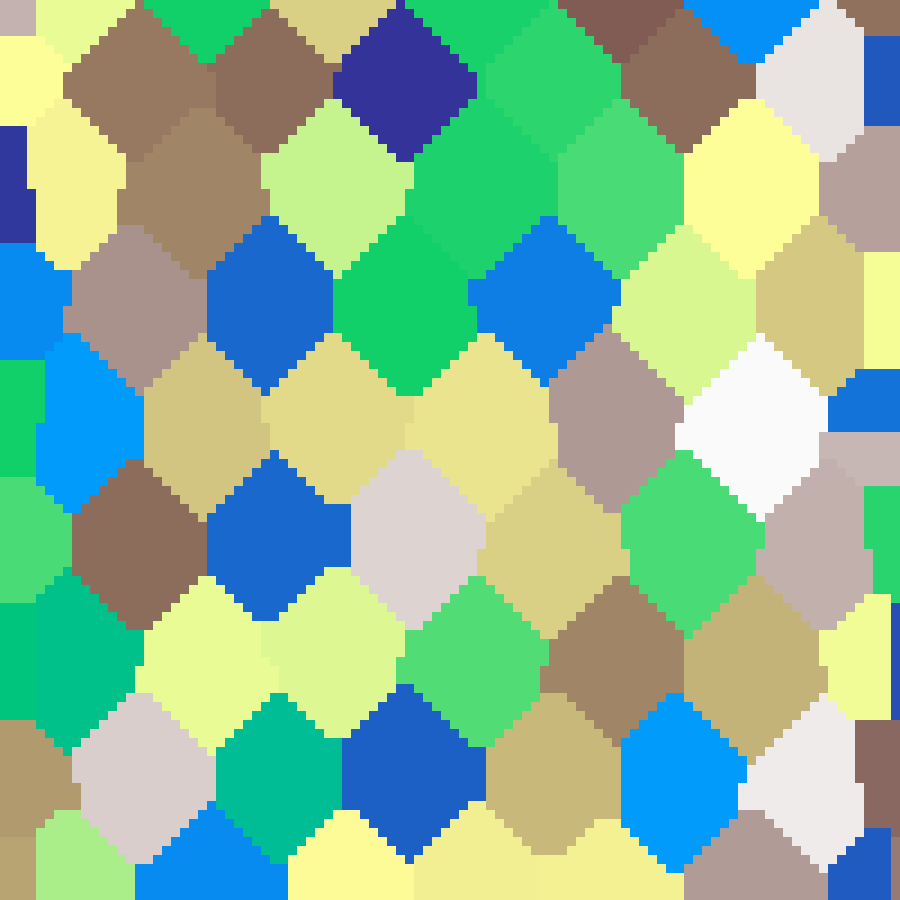

hexagonal_voronoi(rows: 100, cols: 100, n: 50, seed: 42)
Places seed points on a slightly jittered hexagonal lattice and uses nearest-neighbour BFS to fill each Voronoi cell with a random flat value, producing a regular honeycomb-like mosaic.

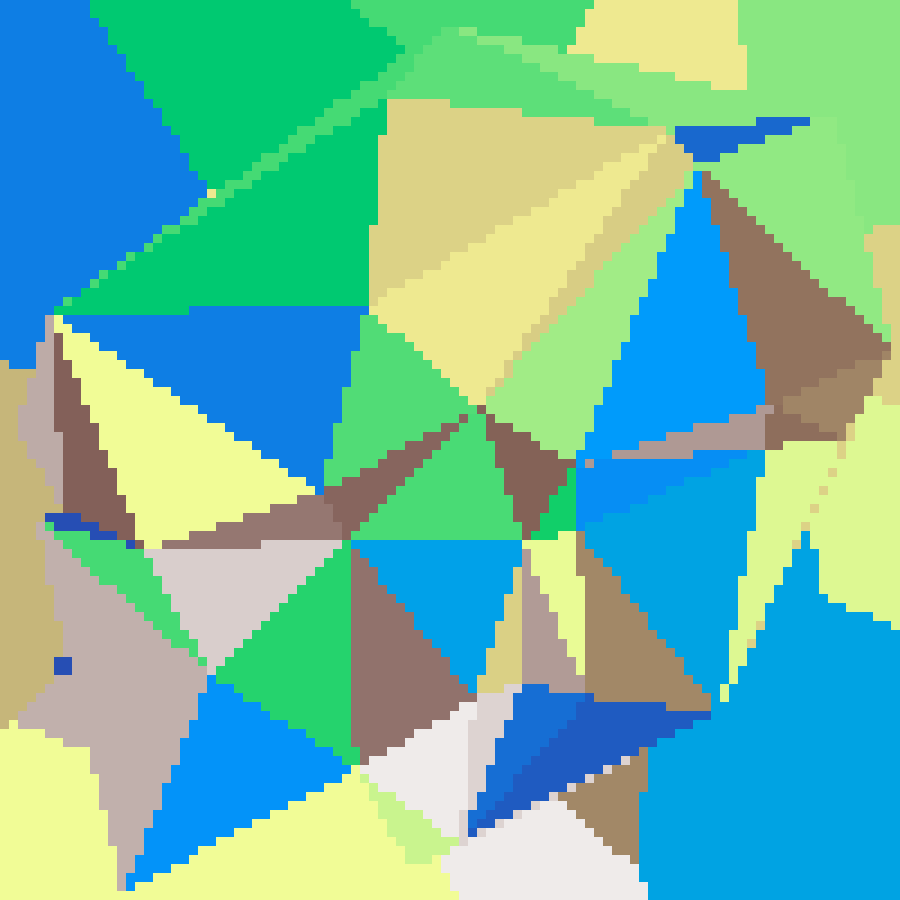

triangular_tessellation(rows: 100, cols: 100, n: 30, seed: 42)
Scatters n random points and computes their Delaunay triangulation via the Bowyer-Watson algorithm. Each triangle is assigned a uniform random value, producing a mosaic of flat-shaded triangles with straight edges.

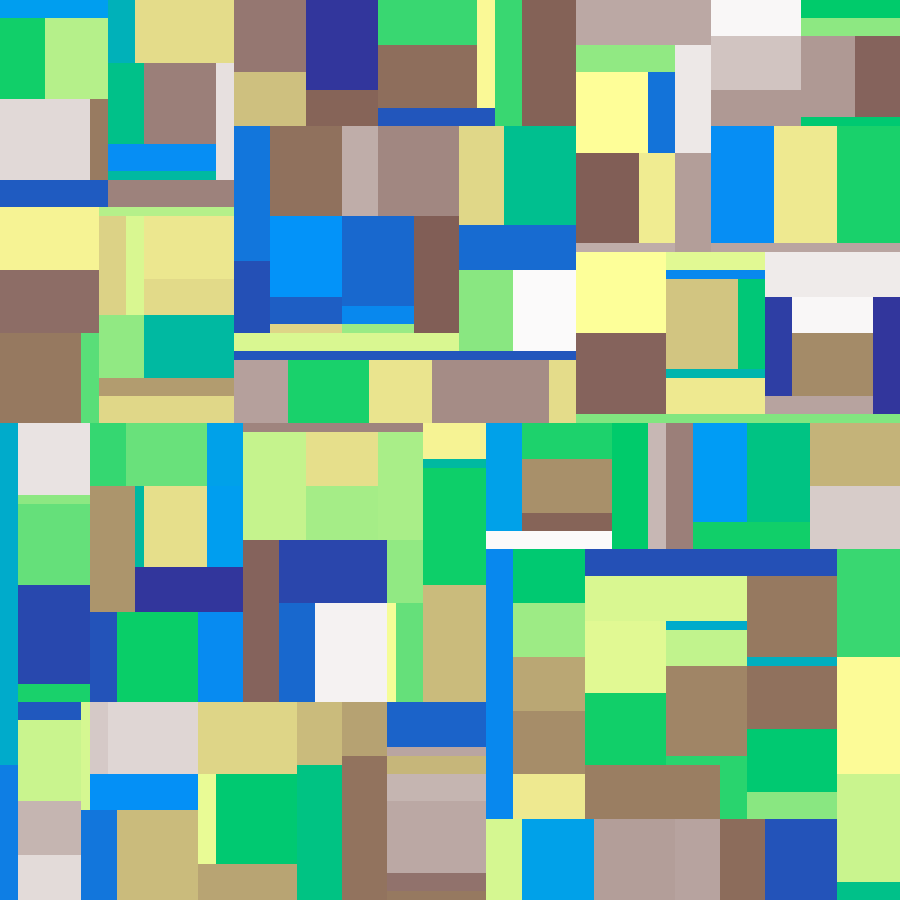

binary_space_partitioning(rows: 100, cols: 100, n: 200, seed: 42)
Hierarchical rectilinear partition: the largest rectangle is repeatedly split along its longest dimension until n leaf regions remain, each assigned a random value. Produces structured blocky landscapes.
Source: Etherington, Morgan & O'Sullivan (2022)

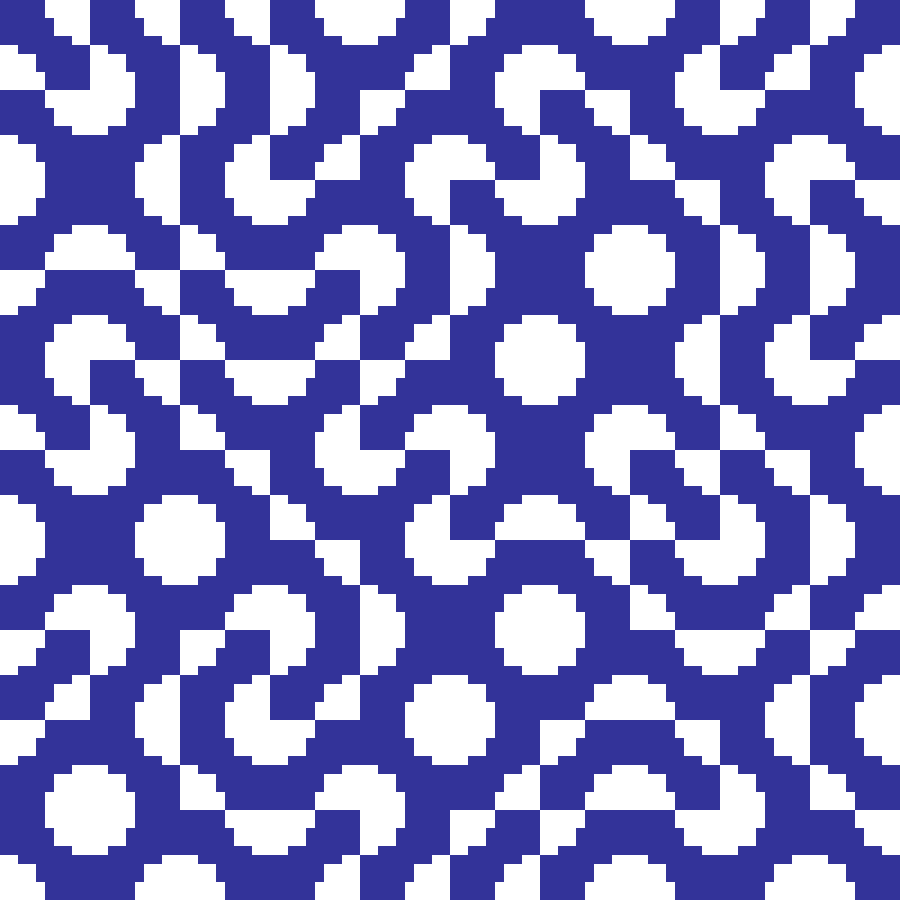

truchet(rows: 100, cols: 100, n: 10, seed: 42)
Divides the grid into square macro-tiles of side n. Each tile is randomly assigned one of two orientations: quarter-circle arcs connecting either the top-left/bottom-right corners or the top-right/bottom-left corners. The interlocking curves produce flowing maze-like patterns.

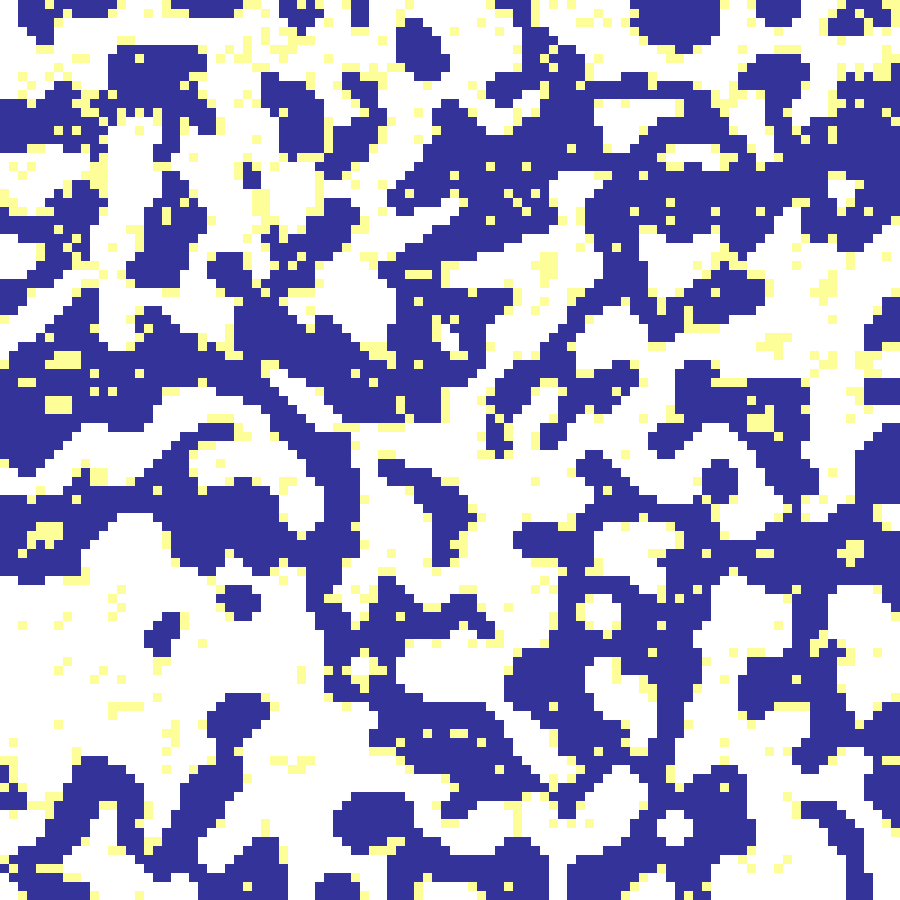

schelling(rows: 100, cols: 100, tolerance: 0.5, iterations: 50, seed: 42)
Schelling's model of residential segregation: cells of two types relocate to random empty slots whenever fewer than tolerance of their neighbours share their type. Even mild thresholds produce strong spatial segregation, generating sharp-edged binary cluster patterns.
Source: Schelling (1971)

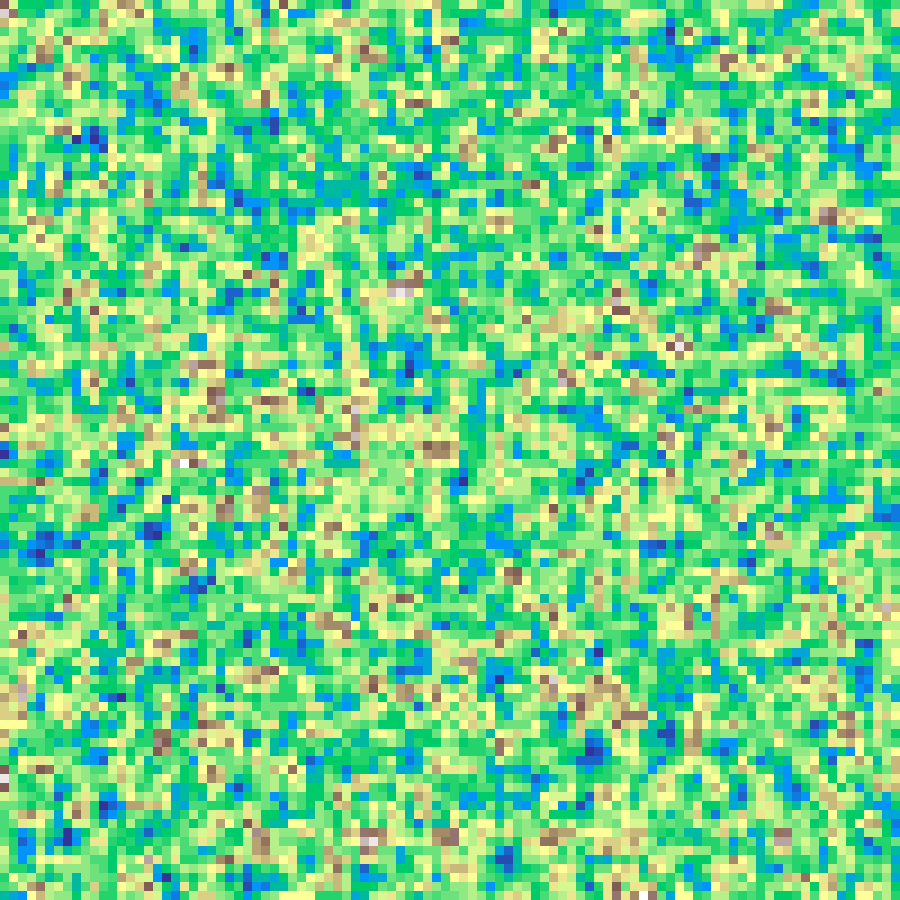

hill_grow(rows: 100, cols: 100, n: 20000, seed: 42)
Iteratively stamps a smooth convolution kernel at randomly selected cells, building up hill-like mounds. With runaway=True, taller cells attract more growth, causing hills to cluster into ridges.
Source: Etherington, Holland & O'Sullivan (2015)

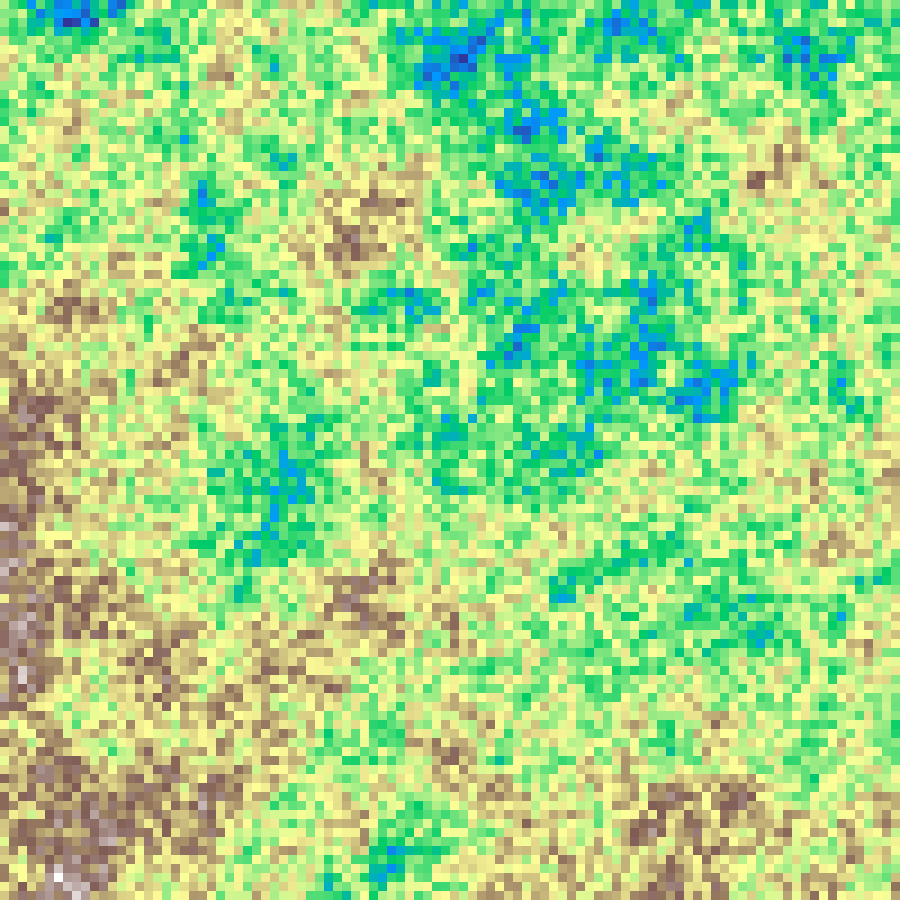

midpoint_displacement(rows: 100, cols: 100, h: 0.8, seed: 42)
Recursive fractal terrain generation: grid midpoints are displaced by decreasing random amounts at each subdivision step, with h controlling the roughness (0 = rough, 1 = smooth).
Source: Fournier, Fussell & Carpenter (1982)

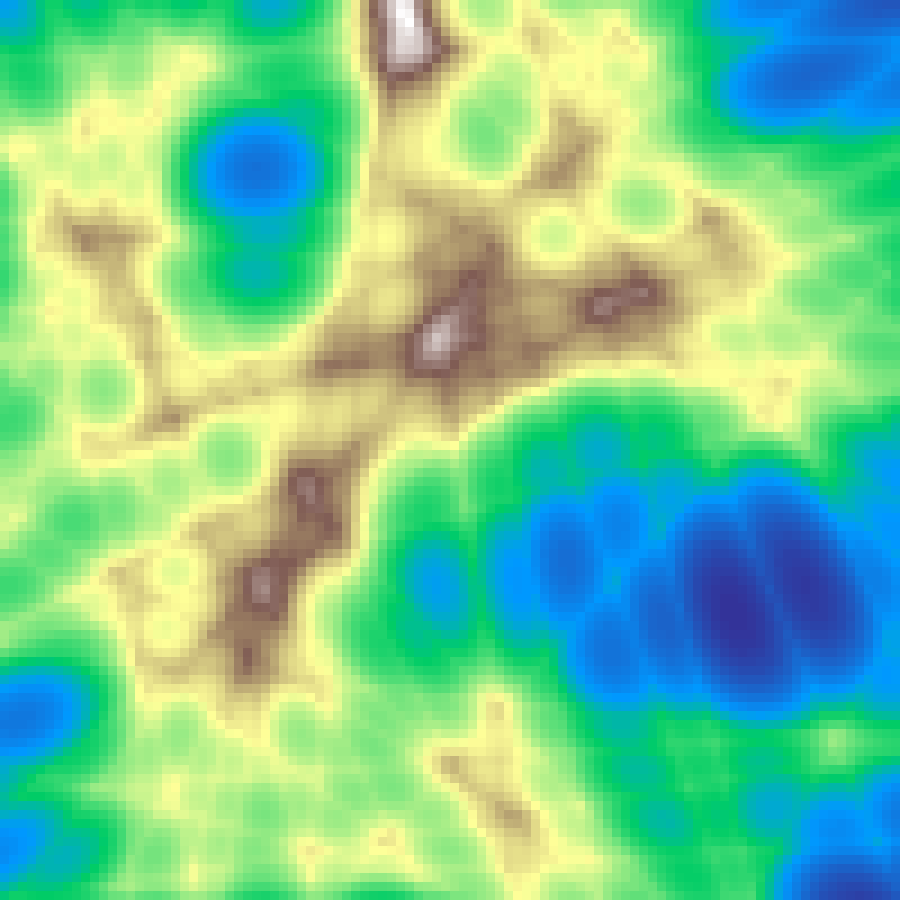

fault_uplift(rows: 100, cols: 100, n: 50, seed: 42)
Places n random fault lines across the grid and adds an exponential ridge of elevation along each one. Superimposing many ridges produces a crumpled, tectonically-inspired terrain with narrow elevated seams.

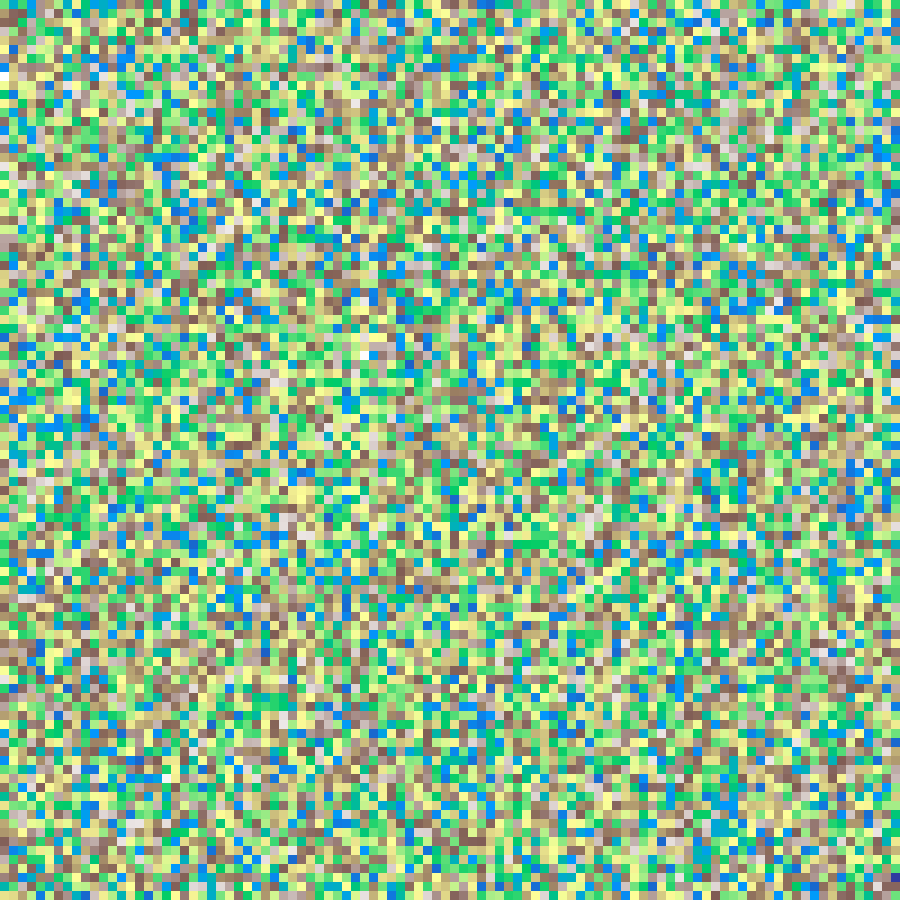

hydraulic_erosion(rows: 100, cols: 100, n: 500, seed: 42)
Generates a random initial heightmap, then simulates n water droplets flowing downhill. Each droplet carries sediment, eroding steeper terrain and depositing on flatter areas. The result resembles naturally worn terrain with drainage channels, alluvial fans, and rounded ridges.

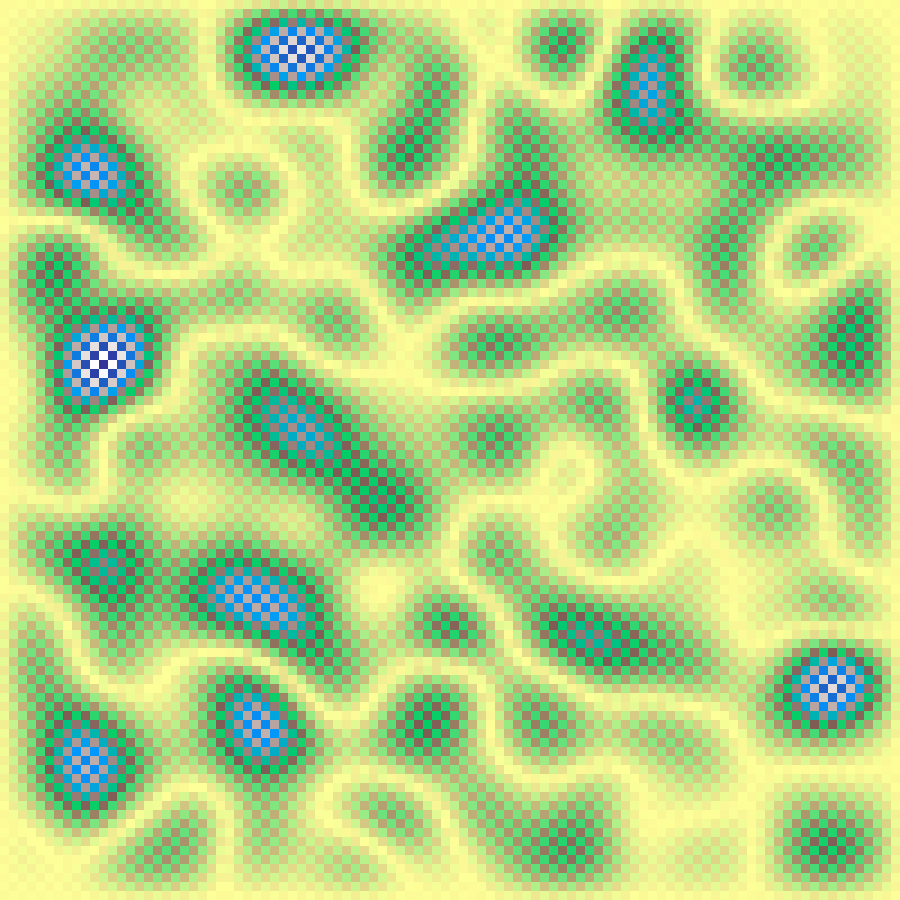

thermal_erosion(rows: 100, cols: 100, n: 50, seed: 42)
Multi-octave Perlin heightmap eroded by repeated talus-slope diffusion. Each pass transfers material from steep cells to their lowest neighbour whenever the height difference exceeds the talus angle, smoothing cliffs while preserving gentle slopes.

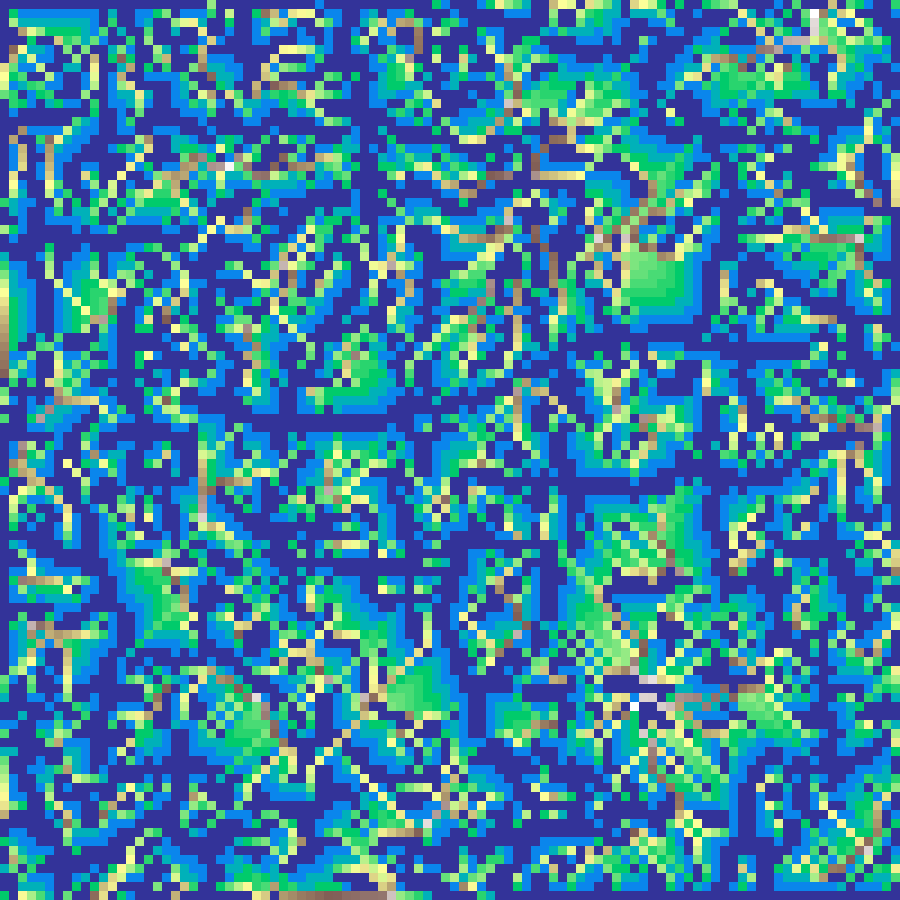

river_network(rows: 100, cols: 100, seed: 42)
Generates a fractal Brownian terrain, computes D8 steepest-descent flow directions, then accumulates upstream drainage area. Log-scaling the flow accumulation reveals branching river networks with realistic headwater-to-trunk gradients.

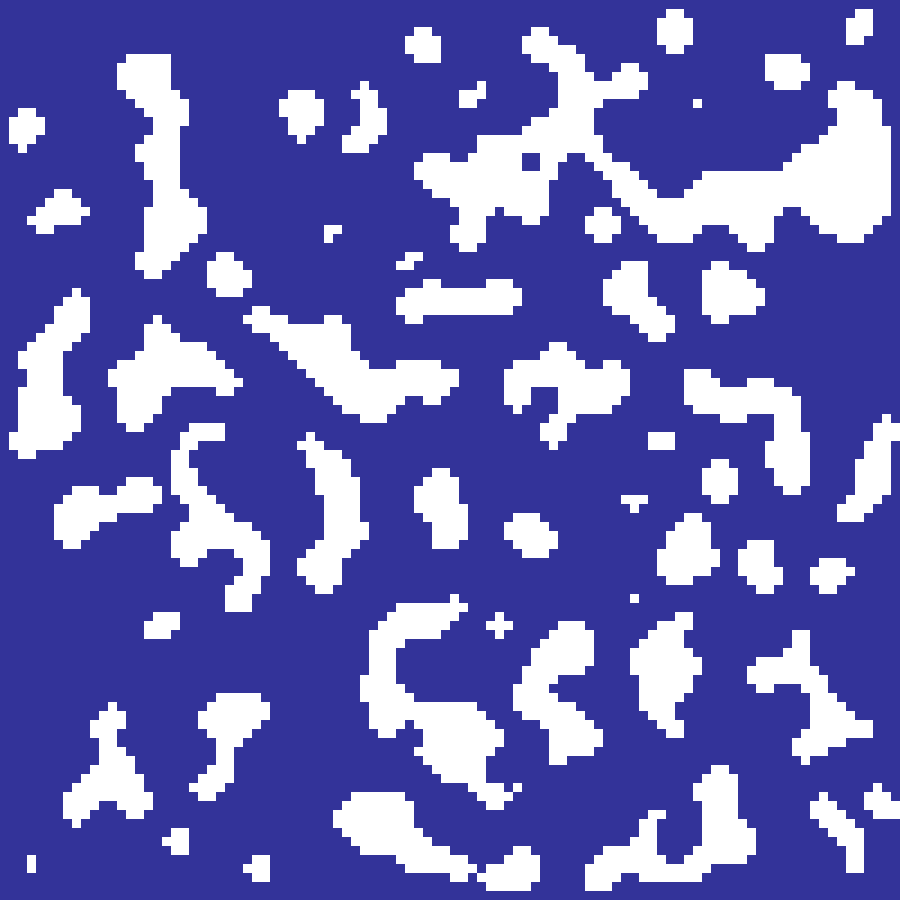

cellular_automaton(rows: 100, cols: 100, p: 0.45, iterations: 5, seed: 42)
Random binary grid evolved by Conway-style birth/survival rules: a dead cell is born if it has at least birth_threshold live neighbours; a live cell survives if it has at least survival_threshold. Produces cave-like binary landscapes.

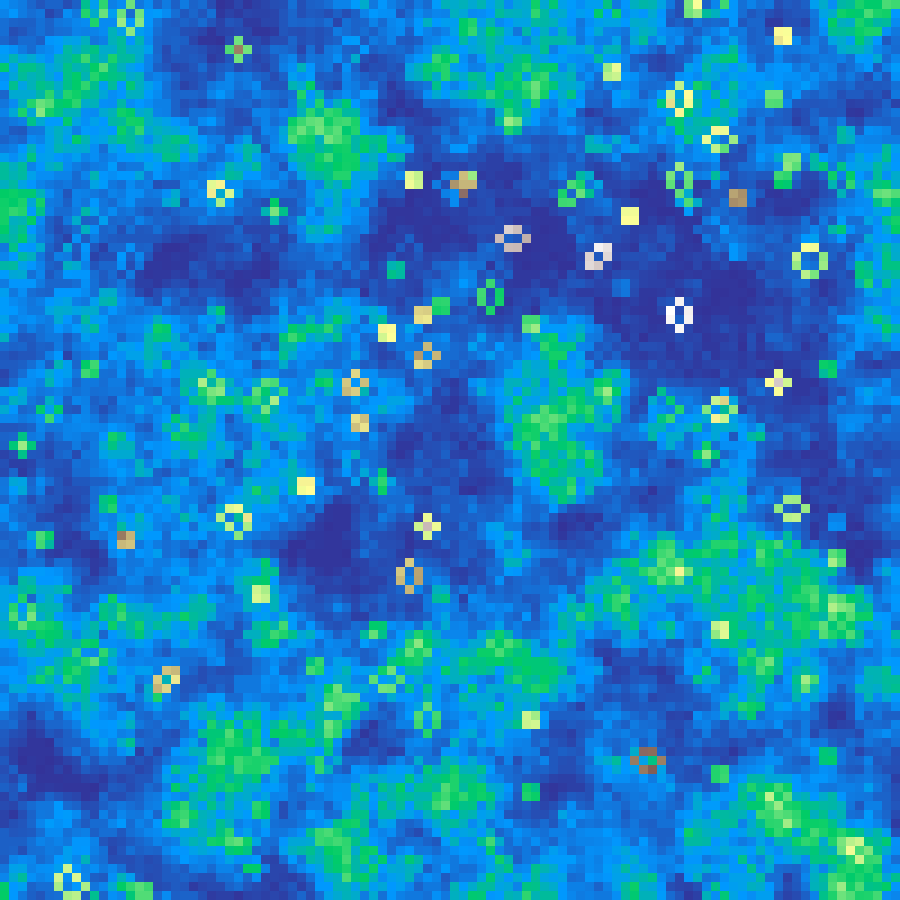

game_of_life(rows: 100, cols: 100, iterations: 200, seed: 42)
Conway's B3/S23 cellular automaton run on a random initial state. Cells are born with exactly 3 live neighbours and survive with 2 or 3; all other cells die. The output is the visit-density: the fraction of generations each cell spent alive, revealing long-lived stable structures, oscillators, and glider paths.

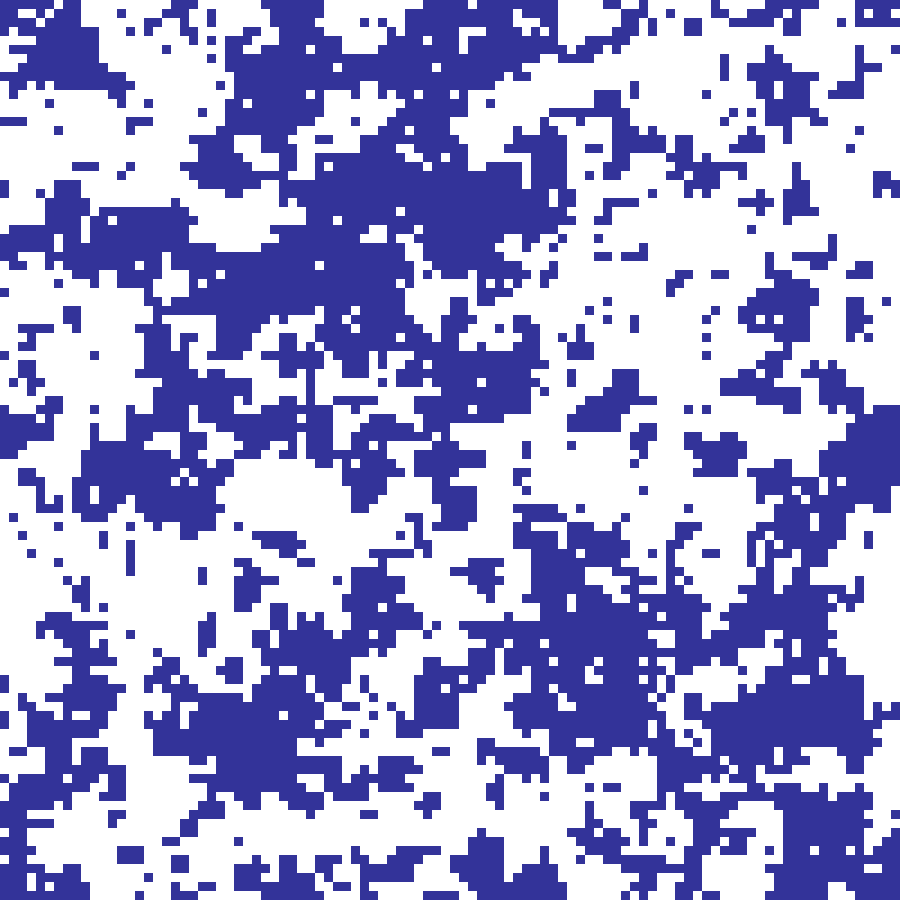

ising_model(rows: 100, cols: 100, beta: 0.4, iterations: 1000, seed: 42)
Simulates a 2D Ising spin lattice via Glauber dynamics. Near the critical inverse temperature (β ≈ 0.44) the model produces scale-free, patchy binary patterns reminiscent of habitat mosaics.

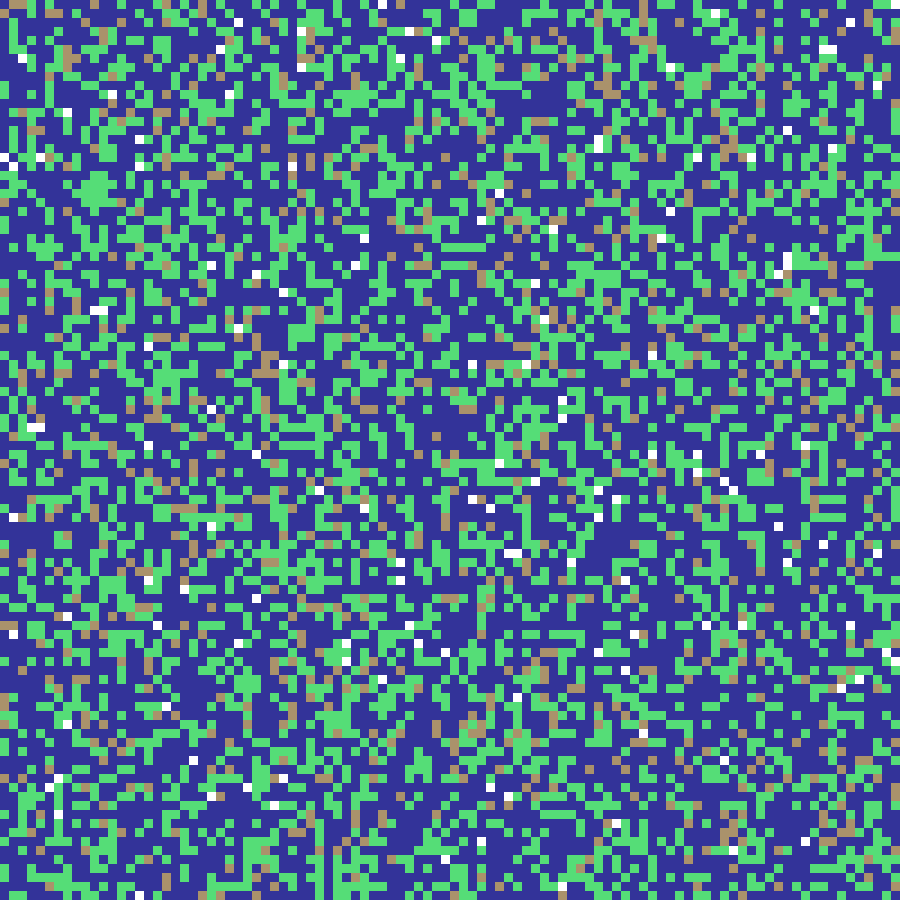

sandpile(rows: 100, cols: 100, n: 5000, seed: 42)
Bak-Tang-Wiesenfeld sandpile model: n grains are dropped at random cells; any cell accumulating 4 or more grains topples, distributing one grain to each of its four neighbours. The resulting grain-count map reveals self-similar avalanche structure characteristic of self-organized criticality.
Source: Bak, Tang & Wiesenfeld (1987)

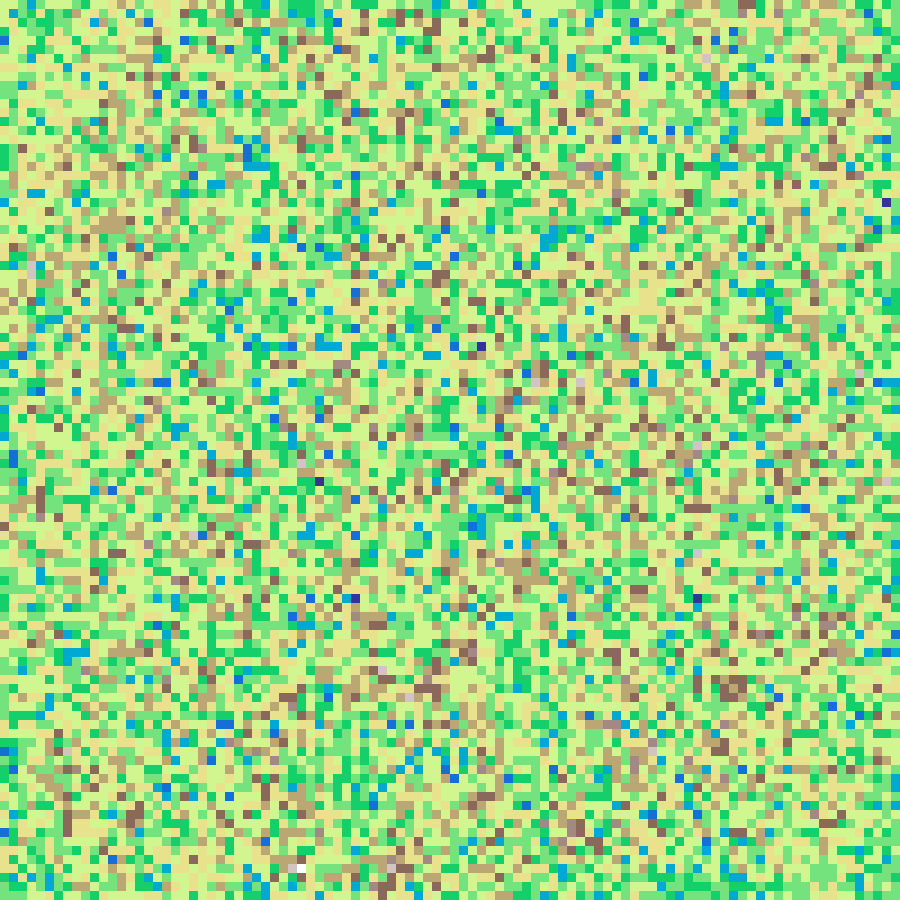

forest_fire(rows: 100, cols: 100, p_tree: 0.02, p_lightning: 0.001, iterations: 500, seed: 42)
Drossel-Schwabl forest fire cellular automaton: empty cells grow trees with probability p_tree; trees ignite from lightning with probability p_lightning and spread to neighbouring trees. The cumulative burn count, scaled to [0, 1], captures spatial fire-scar patterns.

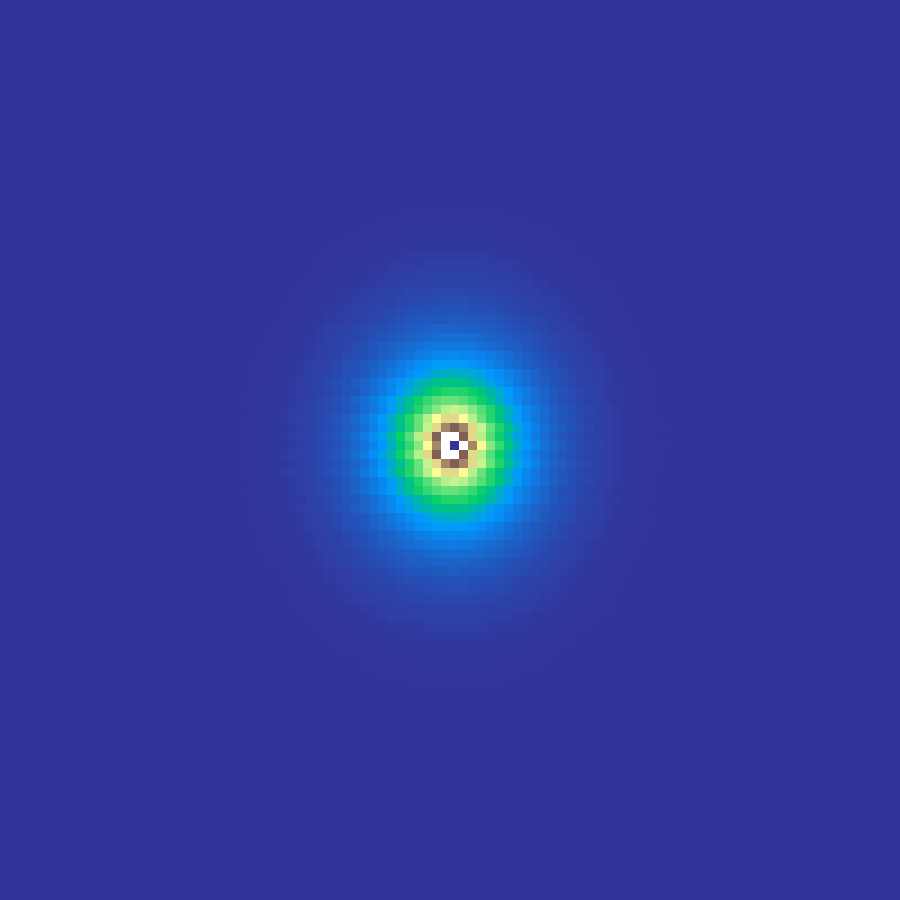

crystal_growth(rows: 100, cols: 100, iterations: 300, seed: 42)
Reiter's (1996) hexagonal cellular automaton model of snowflake growth. A single frozen seed at the centre absorbs water vapour from receptive cells (those adjacent to the crystal), which freeze when their accumulated level reaches 1. The result is a six-fold symmetric crystal with intricate branching arms.
Source: Reiter (1996)

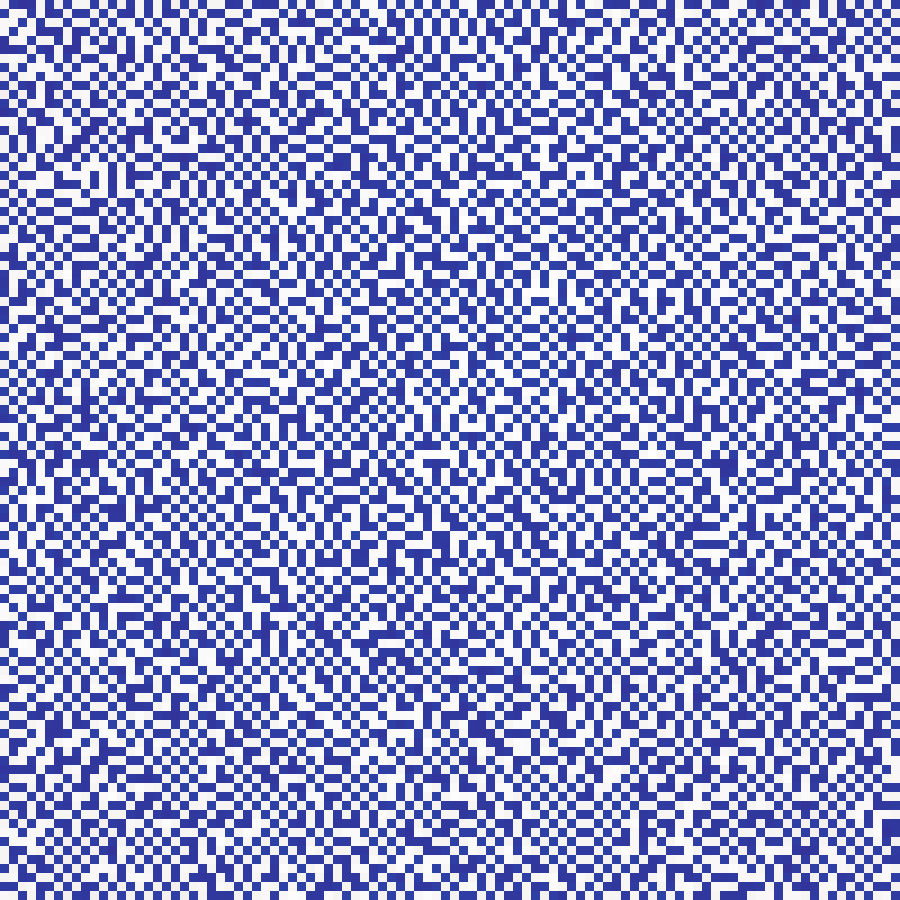

cahn_hilliard(rows: 100, cols: 100, iterations: 2000, seed: 42)
Numerically integrates the Cahn-Hilliard PDE for spinodal decomposition: ∂u/∂t = ∇²(u³ - u - ε²∇²u). Starting from small random perturbations, a binary mixture spontaneously phase-separates into smooth, rounded domains that coarsen over time.
eden_growth(rows: 100, cols: 100, n: 2000, seed: 42)
Compact cluster grown from the grid centre by randomly selecting a boundary cell at each step. Produces irregular blob shapes with fractal perimeters.

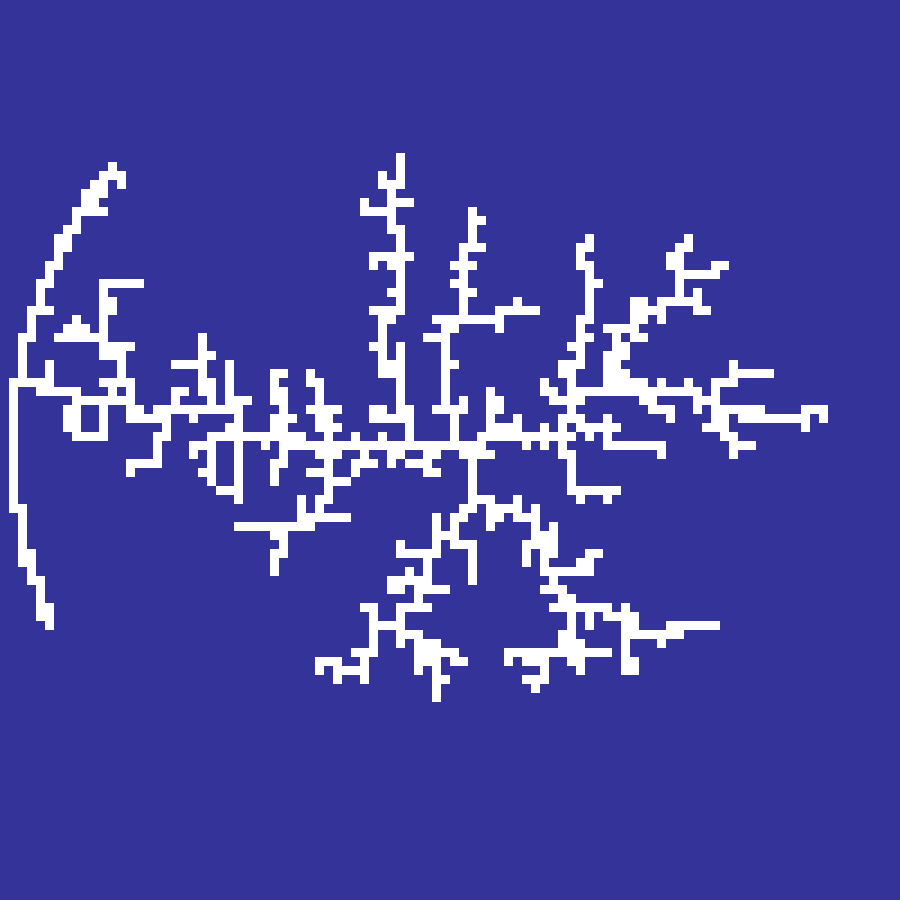

diffusion_limited_aggregation(rows: 100, cols: 100, n: 2000, seed: 42)
Random-walking particles released from a spawn ring stick when adjacent to the growing cluster, producing intricate branching fractal structures.

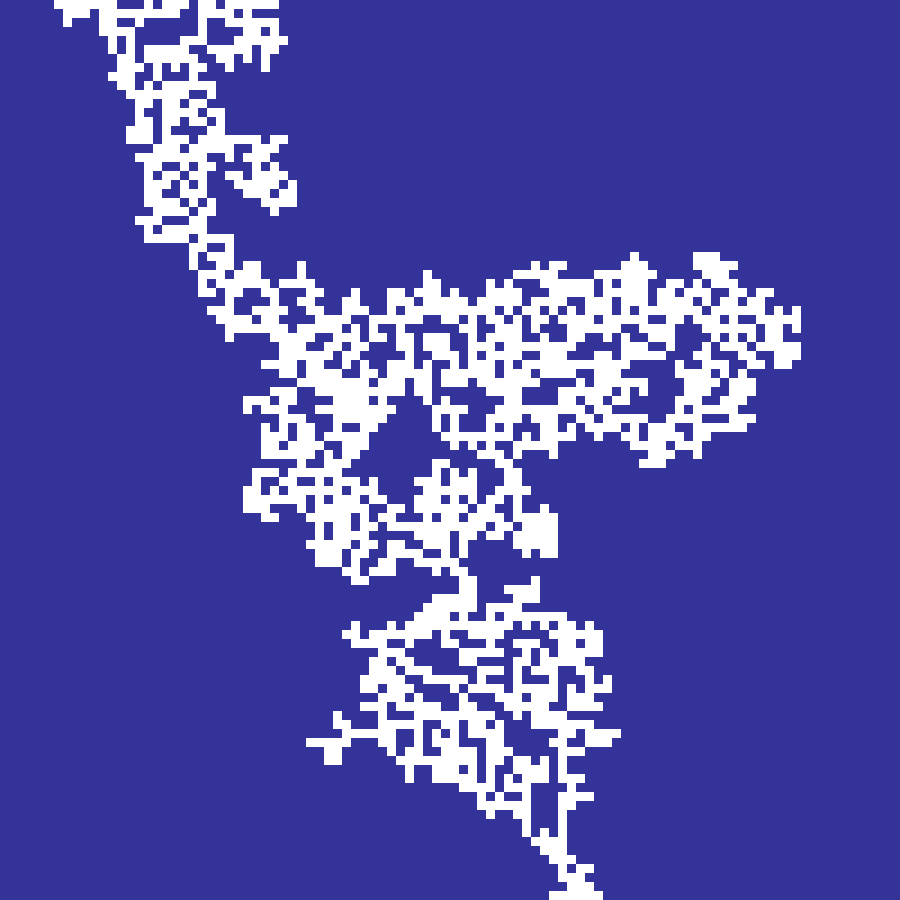

invasion_percolation(rows: 100, cols: 100, n: 2000, seed: 42)
Grows a cluster from the grid centre by always invading the boundary cell with the lowest random weight, producing fractal-like connected binary patches.

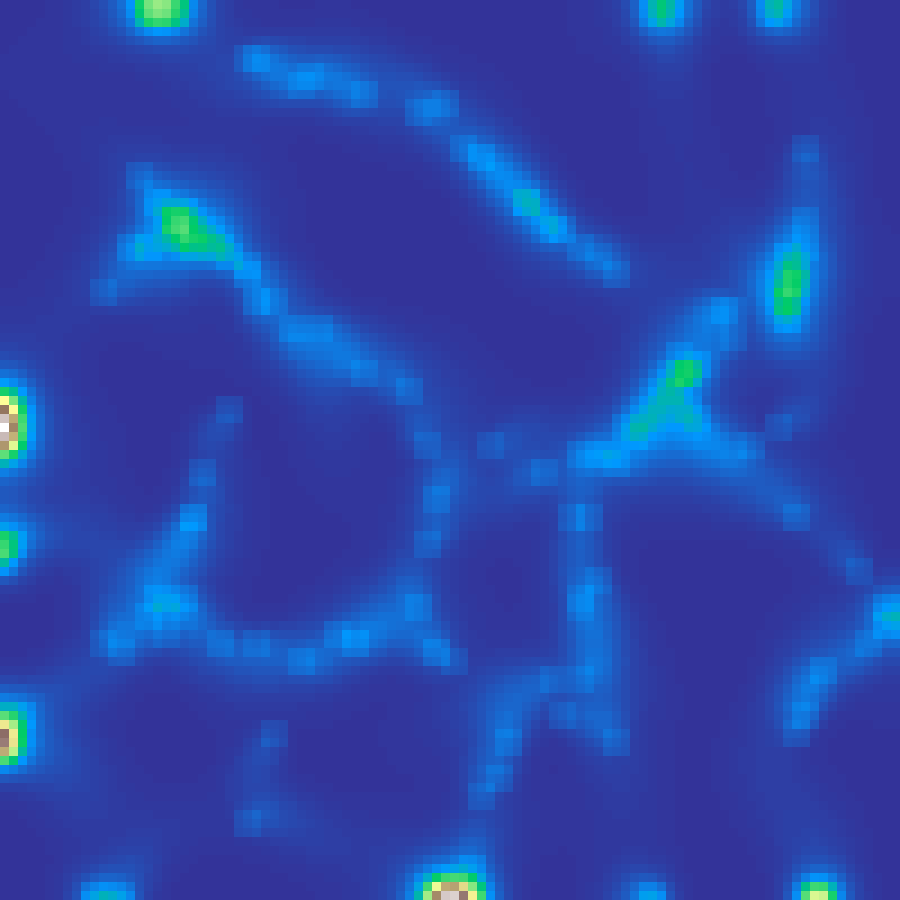

physarum(rows: 100, cols: 100, n: 1000, iterations: 300, seed: 42)
Agent-based simulation of Physarum polycephalum (slime mould). Agents sense a chemical trail at ±45° ahead and steer toward the strongest signal, then deposit trail at their new position. Trail diffuses and decays at each step. The emergent network of reinforced paths resembles efficient transport networks.
Source: Jones (2010)
space_colonization(rows: 100, cols: 100, n: 200, seed: 42)
Auxin-based vascular branching network (Runions et al. 2005). Random auxin attractors in the upper portion of the grid draw nearby network nodes toward them; attractors within the kill distance are consumed. The result is a hierarchical branching tree resembling leaf venation or river tributaries.
Source: Runions et al. (2005)

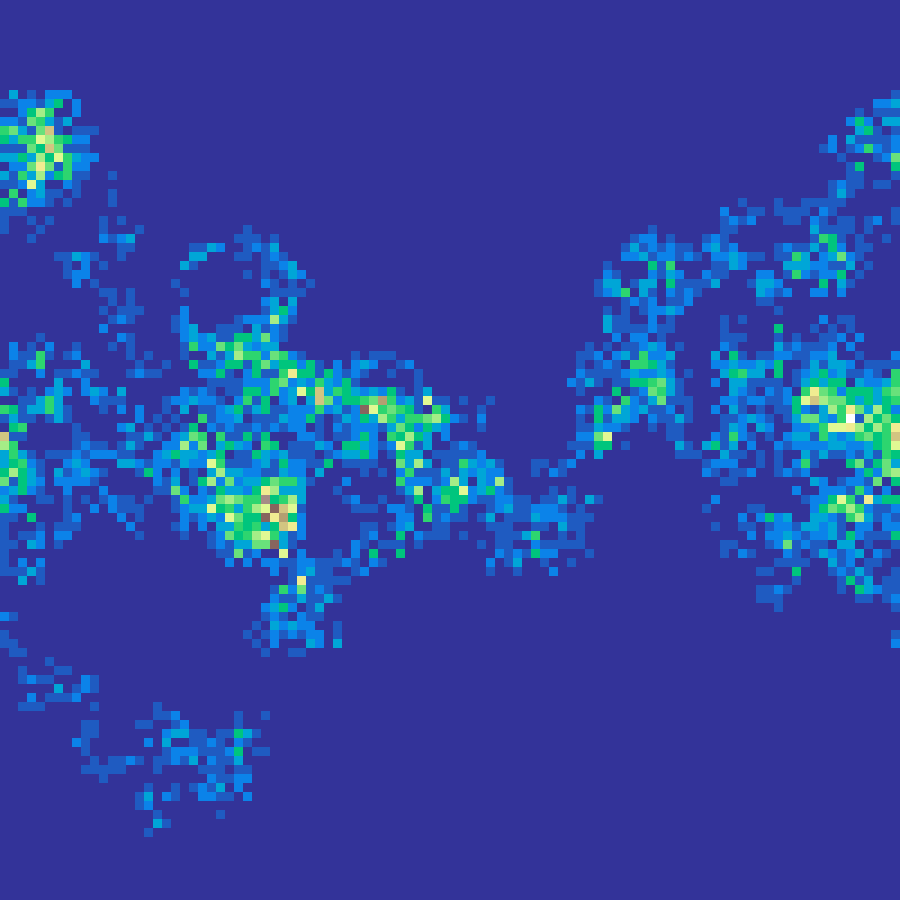

brownian_motion(rows: 100, cols: 100, n: 5000, seed: 42)
Simulates n steps of a 2D Brownian random walk on a toroidal grid and accumulates visit counts, producing a visit-density map with dense hotspots along the walker's path.

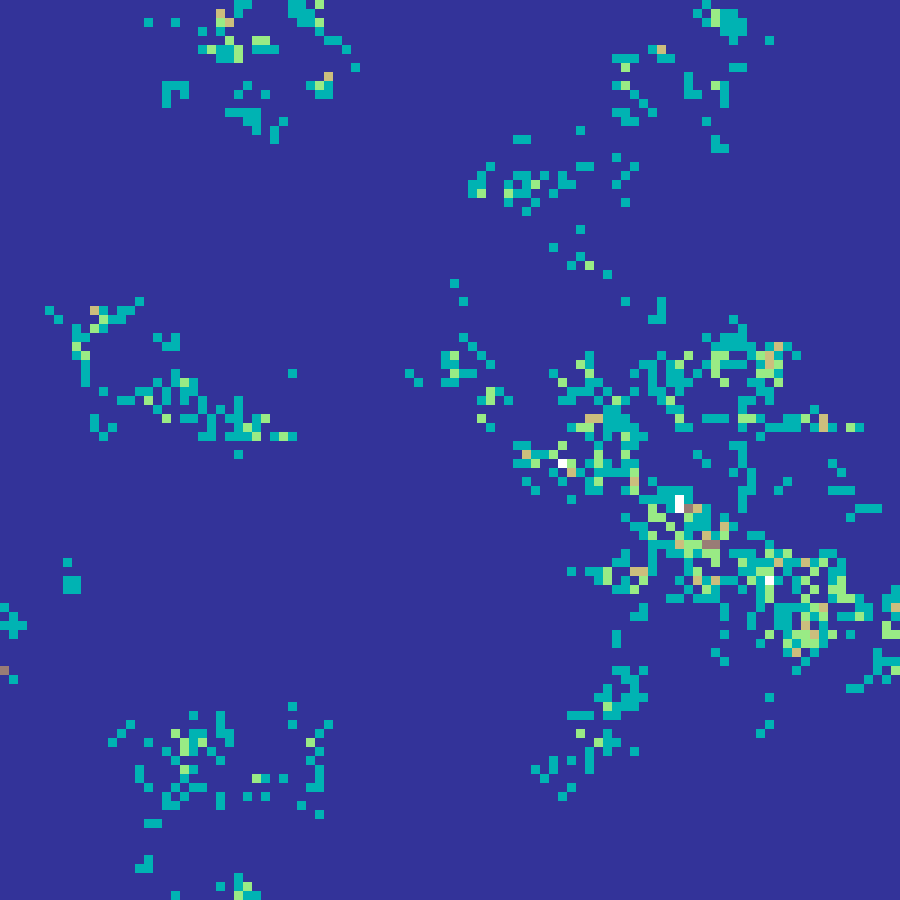

levy_flight(rows: 100, cols: 100, n: 1000, seed: 42)
Simulates a Levy flight: a random walk where step lengths follow a power-law (heavy-tailed) distribution. The resulting visit-density map has clustered hotspots with occasional long-range jumps, modelling dispersal or foraging patterns.

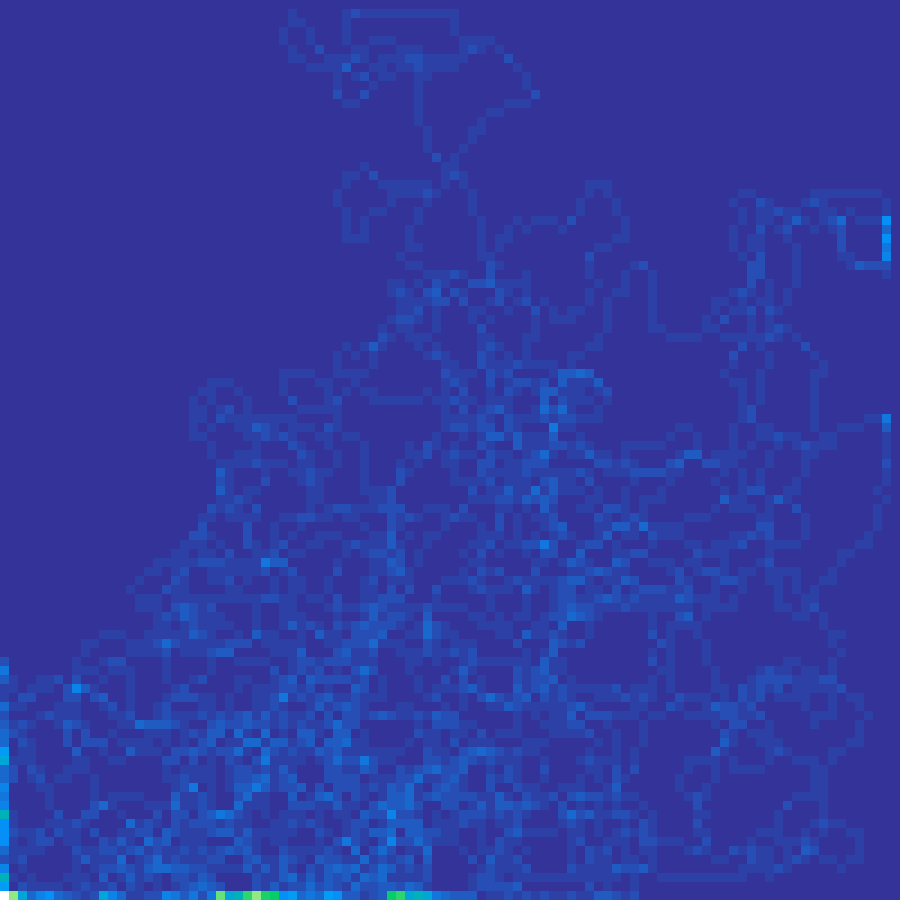

correlated_walk(rows: 100, cols: 100, n: 5000, kappa: 2.0, seed: 42)
A random walk where each step direction is drawn from a wrapped normal distribution centred on the previous heading. Higher kappa values produce straighter, more directional trajectories; kappa = 0 reduces to isotropic Brownian motion. The visit-density map models correlated animal movement or dispersal paths.

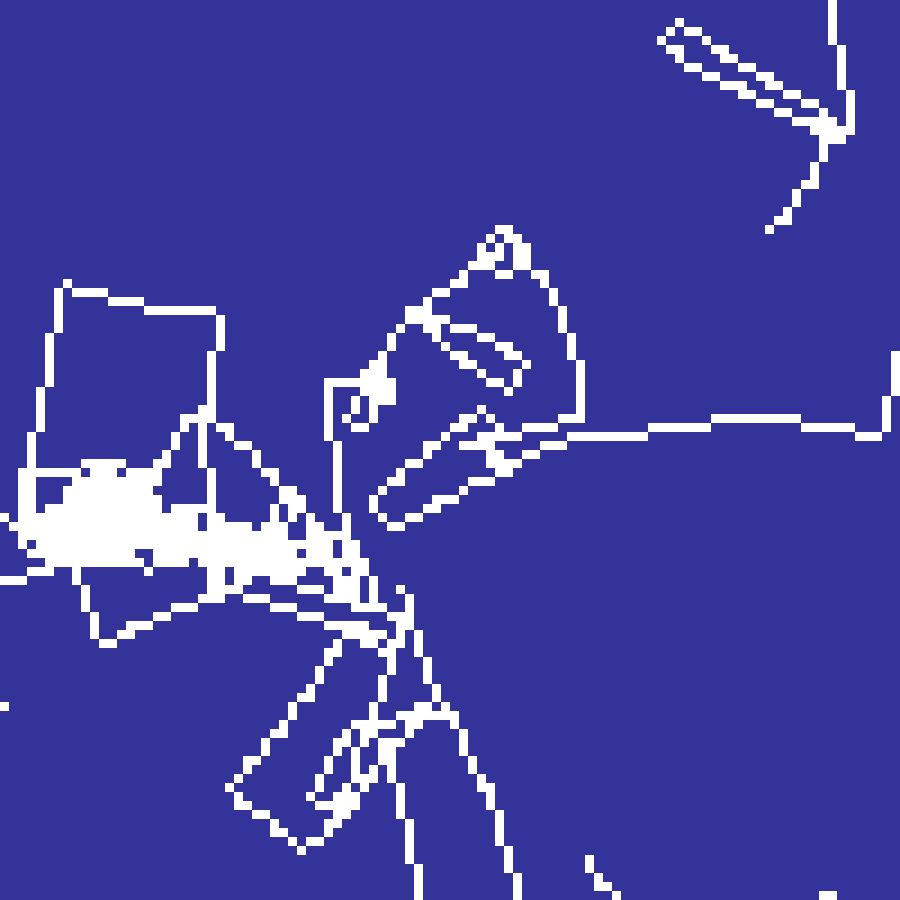

substrate(rows: 100, cols: 100, n: 10, seed: 42)
Jared Tarbell's crack propagation algorithm. Cracks originate from random seed points and propagate with a small Gaussian angular deviation each step. When a crack meets an existing crack it deflects perpendicularly, producing an organic network of intersecting fractures reminiscent of dried mud or cracked glaze.

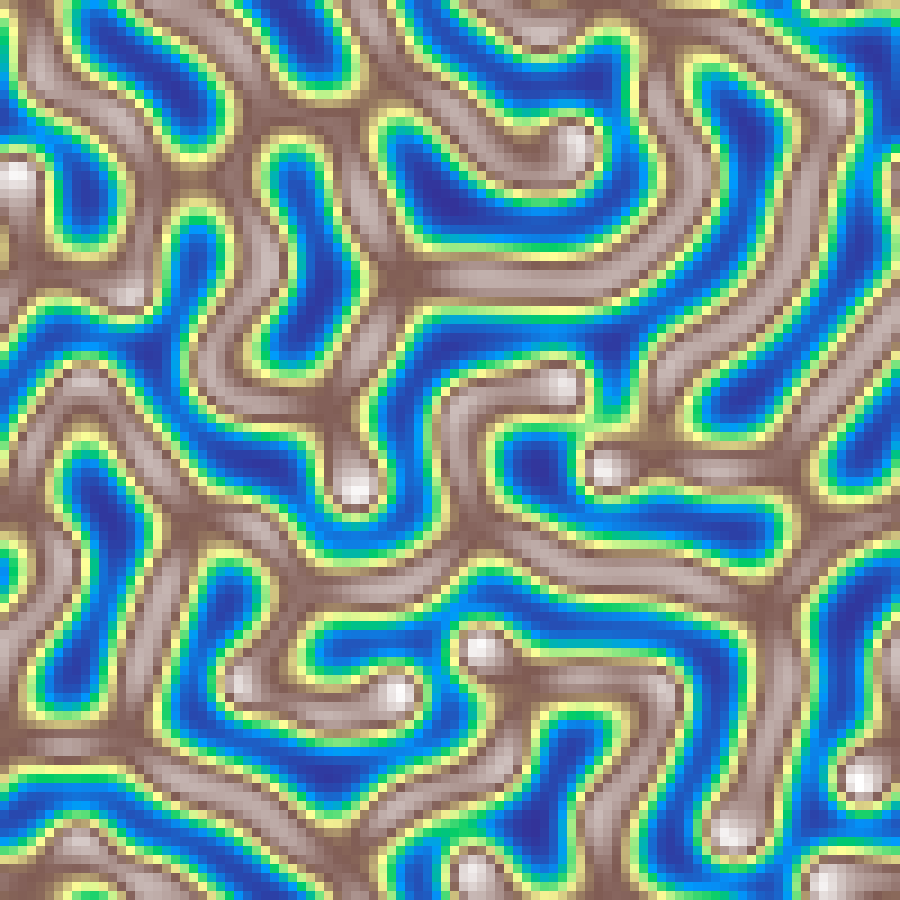

reaction_diffusion(rows: 100, cols: 100, iterations: 1000, feed: 0.055, kill: 0.062, seed: 42)
Gray-Scott reaction-diffusion model where two chemicals (A and B) diffuse and react across the grid. Different feed/kill combinations produce spots, stripes, labyrinths, and other Turing-pattern morphologies.

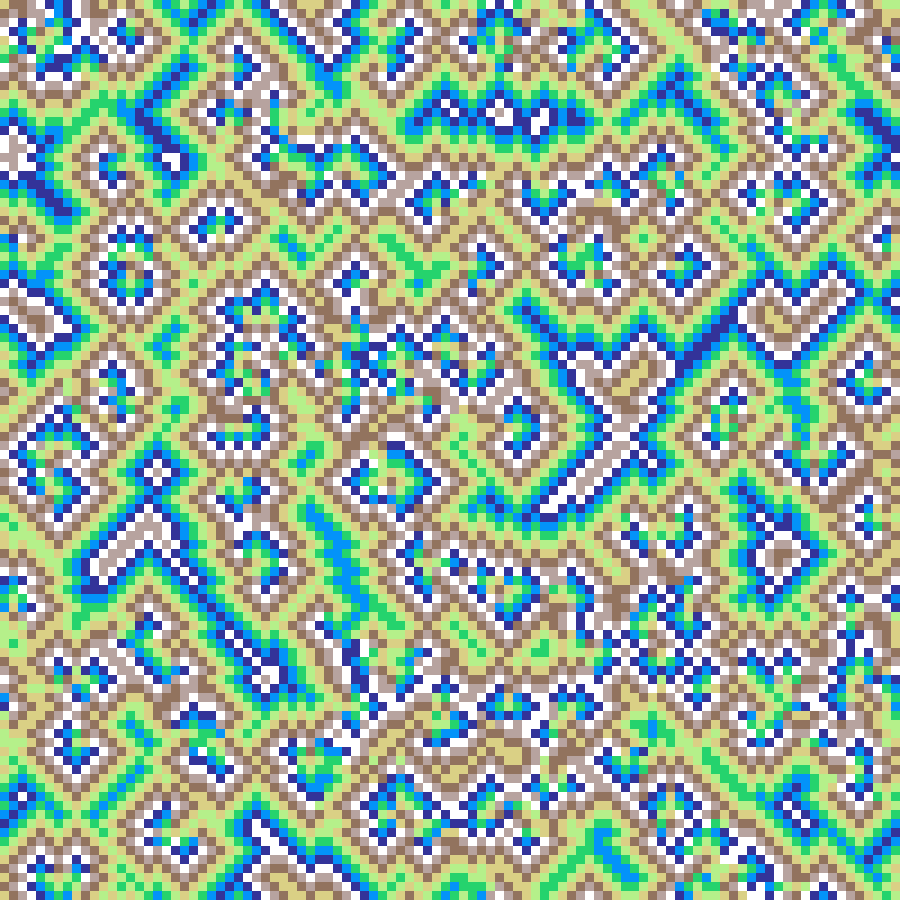

excitable_media(rows: 100, cols: 100, iterations: 150, seed: 42)
Greenberg-Hastings excitable media model. Each cell cycles through resting, excited, and refractory states. A resting cell becomes excited if any cardinal neighbour is excited; excited cells enter a refractory chain before returning to rest. Random initial states seed broken wave fronts that self-organise into propagating spiral waves and target patterns.

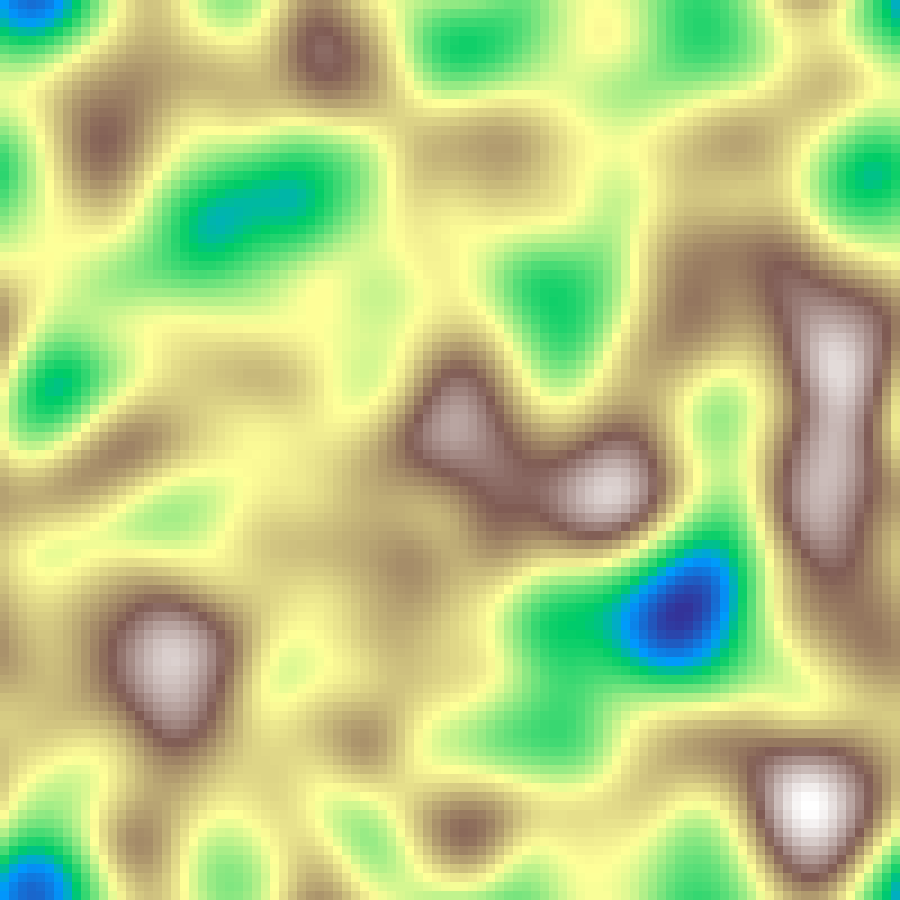

predator_prey(rows: 100, cols: 100, iterations: 500, seed: 42)
Spatial Lotka-Volterra PDE with diffusion. Two fields, prey (u) and predators (v), interact via classic predation kinetics while diffusing across the grid. Initialised near the coexistence equilibrium with small noise, the system self-organises into travelling waves and spiral patterns.

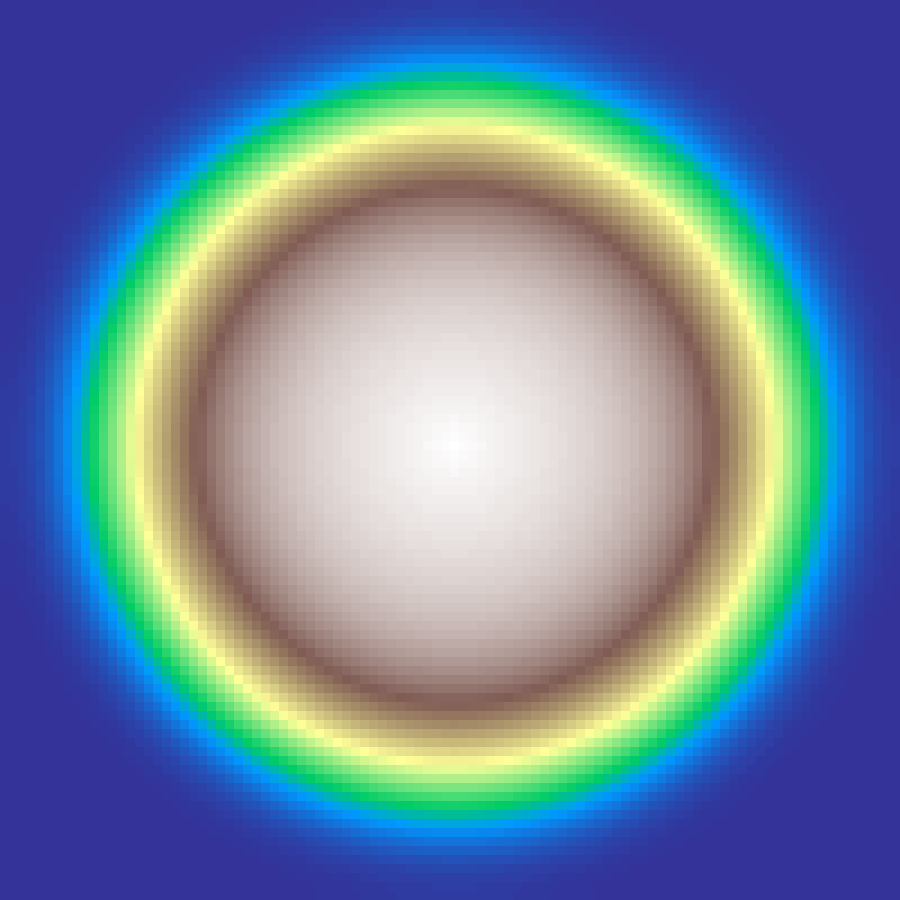

sir_epidemic(rows: 100, cols: 100, beta: 0.3, gamma: 0.1, iterations: 200, seed: 42)
Spatial SIR reaction-diffusion model. Susceptible (S), infected (I), and recovered (R) compartments evolve via a PDE with diffusion and mass-action infection kinetics. The output is the recovered field, showing which regions were swept by the epidemic wavefront.

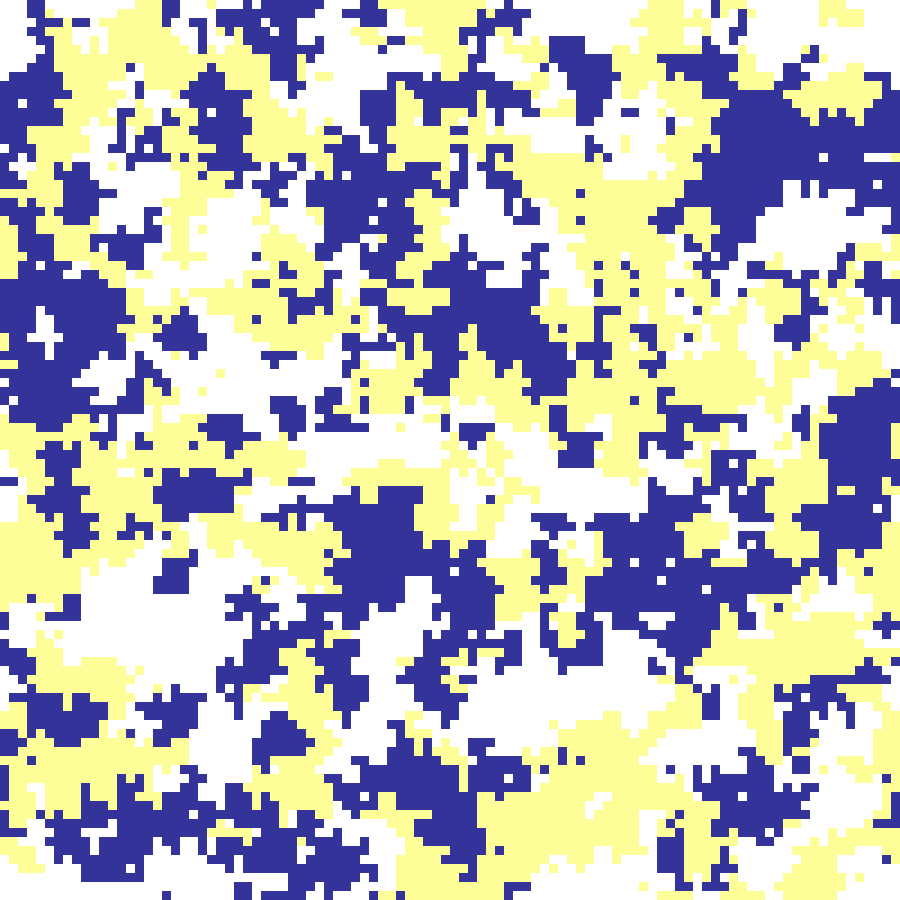

rock_paper_scissors(rows: 100, cols: 100, iterations: 200, seed: 42)
Spatial cyclic dominance model with three competing species (0, 1, 2). Each generation performs rows × cols Monte-Carlo trials: a random cell is selected along with one random neighbour; if the neighbour carries the predator state (state + 1) % 3, the cell is consumed. Asynchronous updates allow domains to coarsen and rotate into the characteristic spiral waves of cyclic competition.
nlmrs is available as a Rust crate or as a CLI tool. Language bindings are also provided for Python, R, Julia, WASM, and C.
cargo add nlmrsuse nlmrs;
fn main() {
let grid = nlmrs::midpoint_displacement(100, 100, 1.0, seed: Some(42));
println!("{:?}", grid.data);
}The export module provides functions to save a grid to disk.
use nlmrs::{midpoint_displacement, export};
fn main() {
let grid = midpoint_displacement(rows: 100, cols: 100, h: 0.8, Some(42));
export::write_to_png(&grid, "terrain.png").unwrap();
export::write_to_png_grayscale(&grid, "terrain_gray.png").unwrap();
export::write_to_tiff(&grid, "terrain.tif").unwrap();
export::write_to_csv(&grid, "terrain.csv").unwrap();
export::write_to_json(&grid, "terrain.json").unwrap();
export::write_to_ascii_grid(&grid, "terrain.asc").unwrap();
}A command-line binary is included. Output format is inferred from the file extension (.png, .csv, .json, .tif, .asc).
cargo install nlmrs
nlmrs midpoint-displacement 200 200 --h 0.8 --seed 42 --output terrain.png
nlmrs fbm 300 300 --scale 6.0 --octaves 8 --seed 99 --output landscape.png
nlmrs hill-grow 200 200 --n 20000 --runaway --output hills.csv
nlmrs perlin 500 500 --scale 4.0 --grayscale --output noise.png
nlmrs --help # list all subcommands and optionsThe operation module exposes combinators for building composite NLMs:
use nlmrs::{midpoint_displacement, planar_gradient, operation};
fn main() {
let mut terrain = midpoint_displacement(100, 100, 0.8, Some(1));
let gradient = planar_gradient(100, 100, Some(90.), Some(2));
operation::multiply(&mut terrain, &gradient);
operation::scale(&mut terrain);
}Available operations: add, add_value, multiply, multiply_value, invert, abs, scale, min, max, min_and_max, classify, threshold.
nlmrs is available as a Python package. Every function returns a 2D numpy array.
pip install nlmrsOr build from source (requires Rust and maturin):
maturin develop --features python # editable install into the active venvimport nlmrs
import matplotlib.pyplot as plt
# All functions accept an optional seed for reproducible output.
grid = nlmrs.midpoint_displacement(100, 100, h=0.8, seed=42) # numpy array (100, 100)
plt.imshow(grid, cmap="terrain")
plt.axis("off")
plt.show()Post-processing functions are also available:
grid = nlmrs.fbm_noise(100, 100, scale=4.0)
nlmrs.classify(grid, n=5) # quantise into n equal-width classes
nlmrs.threshold(grid, t=0.5) # binarise at threshold tnlmrs is available as an R package via the extendr framework. Every function returns a numeric matrix.
# Install from source (requires Rust)
remotes::install_github("tom-draper/nlmrs", subdir = "bindings/r")library(nlmrs)
# All functions accept an optional integer seed.
m <- nlm_midpoint_displacement(100, 100, h = 0.8, seed = 42L)
image(m, col = terrain.colors(256))nlmrs is available as a Julia package. Every function returns a Matrix{Float64}.
# Requires Rust (https://rustup.rs) - builds the C library automatically.
import Pkg
Pkg.add(url="https://github.com/tom-draper/nlmrs", subdir="bindings/julia")using nlmrs
# All functions accept an optional seed keyword for reproducible output.
m = midpoint_displacement(100, 100, h=0.8, seed=42) # Matrix{Float64} (100, 100)nlmrs exposes a C-compatible shared/static library, making it usable from any language with C FFI support (C++, Go, MATLAB, Fortran, etc.).
cd bindings/c
cargo build --release
# → ../../target/release/libnlmrs_c.so (Linux shared)
# → ../../target/release/libnlmrs_c.a (Linux static)
# → include/nlmrs.h (generated header)#include "nlmrs.h"
#include <stdio.h>
int main(void) {
uint64_t seed = 42;
// Generate a 200×200 midpoint displacement grid.
NlmGrid grid = nlmrs_midpoint_displacement(200, 200, 0.8, &seed);
printf("rows=%zu cols=%zu\n", grid.rows, grid.cols);
// Access row-major data: value at (r, c) = grid.data[r * grid.cols + c]
printf("value at (0,0): %f\n", grid.data[0]);
nlmrs_free(grid); // release Rust-owned memory
return 0;
}Compile and link against the shared library:
gcc example.c -I bindings/c/include -L target/release -lnlmrs_c -o exampleSeeds and optional floats (e.g. gradient direction) are passed as pointers. Pass NULL to use the default (random seed / random direction):
// Random seed
NlmGrid g1 = nlmrs_perlin_noise(200, 200, 4.0, NULL);
// Fixed direction, random seed
double dir = 45.0;
NlmGrid g2 = nlmrs_planar_gradient(200, 200, &dir, NULL);
nlmrs_free(g1);
nlmrs_free(g2);The header include/nlmrs.h is generated automatically by cbindgen during the build.
nlmrs can run in the browser or Node.js via WebAssembly.
cd bindings/wasm
wasm-pack build --target webimport init, * as nlmrs from "./pkg/nlmrs_wasm.js";
await init();
const grid = nlmrs.midpoint_displacement(100, 100, 0.8, 42);
console.log(grid.rows, grid.cols); // 100 100
// Flat Float64Array in row-major order
const flat = grid.data;
const value = flat[r * grid.cols + c];
grid.free(); // release Rust memorySeeds are passed as plain integers. Omit the seed argument for random output.
Contributions, issues and feature requests are welcome.
- Fork it (https://github.com/tom-draper/nlmrs)
- Create your feature branch (
git checkout -b my-new-feature) - Commit your changes (`git commit -am 'Add some feature')
- Push to the branch (
git push origin my-new-feature) - Create a new Pull Request
