Running scripts

Script engine

Scripts are run by IronPython 2.7.5 engine, which is an implementation of Python 2.7.

Script source

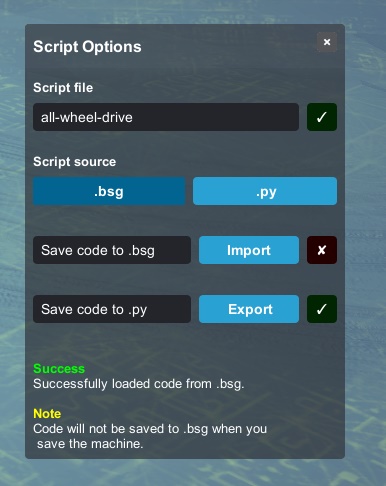

The mod can run scripts embedded in machine save file or external scripts in .py files. You can choose between script sources through Script Options window (Ctrl+U).

• Script file
  Use this input field to select which script file you want to run. You can enter absolute or relative path. Extension can be omitted. The checkmark shows you if the script file has been found.

• Script source
  Use these toggle buttons to choose between running code from machine save file (.bsg) or external script file (.py)

• Import
  Toggle this to embed the script file in the machine file. Code gets saved next time when you save the machine.

• Export
  Use this to save embedded code to a script file for editing. Checkmark shows you if machine currently contains embedded code.

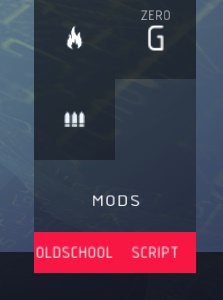

The scripts starts executing at the start of simulation and ends at the end of it. If you do not want scripts executing, turn off the toggle in the settings menu.

Script structure

At the start of the simulation, the script gets compiled and executed.

Following functions are later called by the mod:

• Update
  Gets called at every frame of the simulation. Use this for reading input and manipulating blocks.

• FixedUpdate
  Gets called at every frame of the simulation at a fixed rate. Use this if you need your program to run independent of in-game timescale slider or framerate.

Example script:

wheel = Besiege.GetBlock("WHEEL 1")
direction = 1

wheel.SetToggleMode("AUTOMATIC", True)

def Update():
    """ updates the speed on every frame """
    global direction # direction variable is defined in global scope

    # read input
    if Input.GetKey(KeyCode.U):
        speed = 1 # set speed to 1 if U is pressed down
    else:
        speed = 0

    if Input.GetKeyDown(KeyCode.I):
        direction *= -1 # invert direction when I is pressed

    wheel.SetSliderValue("SPEED", speed * direction)

Script scope

In the main script scope the mod automatically imports the following modules:

import clr # Common Language Runtime to call .NET members

clr.AddReference("System")

clr.AddReference("UnityEngine")
from UnityEngine import Vector2, Vector3, Vector4, Mathf, Time, Input, KeyCode, Color"

clr.AddReference("LenchScripterMod")
from LenchScripter import Functions as Besiege

You can import additional modules from Common Language Runtime or Python built-in or external modules yourself, but note that the above modules will not be loaded in the imported scopes. If you want to access them from other modules imported by the script, you will have to import them yourself.

I recommend using built-in Python modules like math instead of CLR modules like UnityEngine.Mathf as you might have problem with method overloads.
