DHOTools: Advanced Utility Suite for RIGOL DHO800/900 Oscilloscopes
DHOTools is an application designed to expand the capabilities of RIGOL oscilloscopes of the DHO800 and DHO900 series. It allows you to perform advanced analyses, such as FFT averaging, long-term data logging, and arbitrary zoom of a signal, from a PC with Windows or Linux, directly on the oscilloscope or from your mobile device (cell phone or tablet) via a network connection.
DHOTools.mp4
More info at the discussion page: #1
Note
This version only works if you have previously installed the Sparrow Extended update.
Donations
Thank you for your support, I receive donations through Patreon and Paypal
DHO Network Visor
Experimental visors v1.1 for the Rigol oscilloscopes DHO series.
The release version will be made available alongside the new extended version of Sparrow as part of a bundle and will include faster execution and automatic reconnection.
Usage:
.\DHOvisor_opencv.exe --host 192.168.1.105
.\DHOvisor_sdl2.exe --host 192.168.1.105
The SDL2 version allows you to resize and move the window while the stream is playing but it may require the SDL2.DLL library, place the dll file in your /Windows/System32 folder.
These visors only play the video stream provided by the Rigol WebControl, which can only serve one client at a time. Therefore, it is not possible to launch more than one client at a time (this includes the web browser client). Unfortunately, the stream quality is fixed in the original Rigol Webcontrol APK.

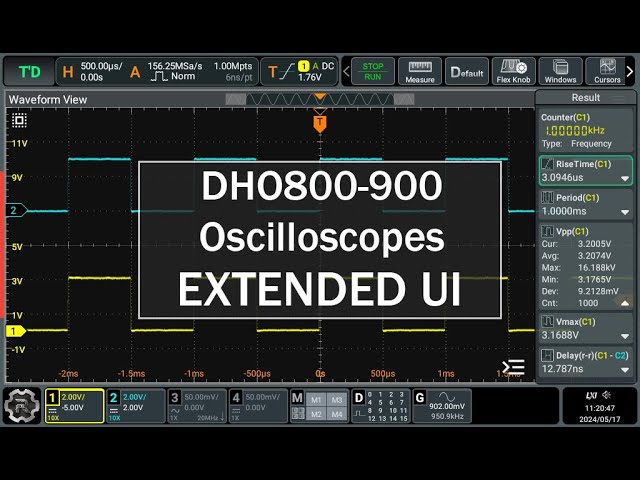

Sparrow Extended GUI
Note
The releases in this page do not have the new features like the fullscreen option, these are versions behind of the latest ones which can be found at:
For 00.01.04 firmware: https://www.patreon.com/posts/141472182
For 00.01.02 firmware: https://www.patreon.com/mriscoc/shop/rigol-dho800-900-sparrow-extended-gui-v0-204640
Please use it only if you know that you are doing.
Warning
Be sure that you download the proper apk compatible with your firmware version 00.01.02, 00.01.03 or 00.01.04
Installing the apk manually
Rename the downloaded file to SparrowExt.apk and open a terminal (CMD) window inside of the folder where
the file is located. Execute the following commands, replacing ###.###.###.### with the correct IP of the device.
adb connect ###.###.###.###:55555
adb root
adb shell
::####################################################################################
::# Uninstall old version
::####################################################################################
am force-stop com.rigol.launcher
am force-stop com.rigol.scope
pm uninstall com.rigol.scope
exit
::####################################################################################
::# Scope APK install
::####################################################################################
adb push SparrowExt.apk /mnt/tmp/app/SparrowExt.apk
adb shell
pm install -g -r /mnt/tmp/app/SparrowExt.apk
rebootKnown issues:
- Without privileged system access the application can't take screenshots.
Donations
Thank you for your support, I receive donations through Patreon and Paypal
Disclaimer
THIS SOFTWARE AND ALL OTHER FILES IN THE DOWNLOAD ARE PROVIDED WITH NO WARRANTY OR GUARANTEE. SUPPORT IS NOT INCLUDED JUST BECAUSE YOU DOWNLOADED IT. WE ARE NOT LIABLE FOR ANY DAMAGE TO YOUR EQUIPMENT, PERSON, OR ANY OTHER PROPERTY DUE TO THE USE OF THIS SOFTWARE. IF YOU DO NOT AGREE TO THESE TERMS THEN DO NOT USE IT.
Sparrow Extended GUI
Note
The releases in this page do not have the new features like the fullscreen option, these are versions behind of the latest ones which can be found at:
For 00.01.04 firmware: https://www.patreon.com/posts/141472182
For 00.01.02 firmware: https://www.patreon.com/mriscoc/shop/rigol-dho800-900-sparrow-extended-gui-v0-204640
Please use it only if you know that you are doing.
Telegram DHO800/900 channel: https://t.me/S2084K/2
Warning
Be sure that you download the proper apk compatible with your firmware version 00.01.02, 00.01.03 or 00.01.04
Installing the apk manually
Rename the downloaded file to SparrowExt.apk and open a terminal (CMD) window inside of the folder where
the file is located. Execute the following commands, replacing ###.###.###.### with the correct IP of the device.
adb connect ###.###.###.###:55555
adb root
adb shell
::####################################################################################
::# Uninstall old version
::####################################################################################
am force-stop com.rigol.launcher
am force-stop com.rigol.scope
pm uninstall com.rigol.scope
exit
::####################################################################################
::# Scope APK install
::####################################################################################
adb push SparrowExt.apk /mnt/tmp/app/SparrowExt.apk
adb shell
pm install -g -r /mnt/tmp/app/SparrowExt.apk
rebootKnown issues:
- Without privileged system access the application can't take screenshots.
Donations
Thank you for your support, I receive donations through Patreon and Paypal
Disclaimer
THIS SOFTWARE AND ALL OTHER FILES IN THE DOWNLOAD ARE PROVIDED WITH NO WARRANTY OR GUARANTEE. SUPPORT IS NOT INCLUDED JUST BECAUSE YOU DOWNLOADED IT. WE ARE NOT LIABLE FOR ANY DAMAGE TO YOUR EQUIPMENT, PERSON, OR ANY OTHER PROPERTY DUE TO THE USE OF THIS SOFTWARE. IF YOU DO NOT AGREE TO THESE TERMS THEN DO NOT USE IT.

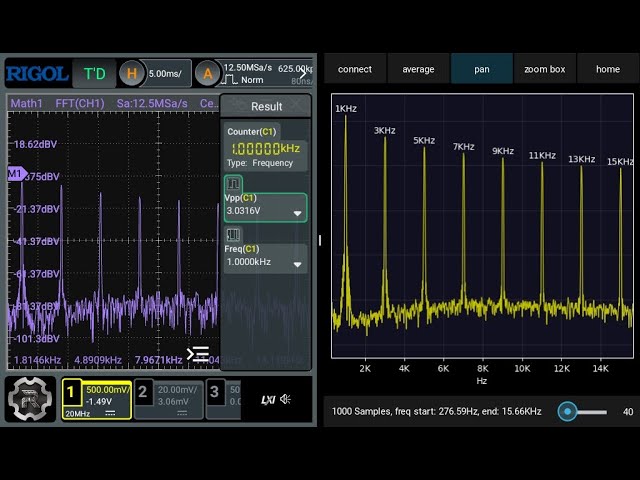

FFTAvg utility preview 0.3.3
This special release includes the installable APK for the FFTAvg utility which allows to get a better FFT plot with configurable frame average and peak detection.
Important
Start the utility when the Math1:FFT is open in the oscilloscope application.
What's new in 0.3.3
Added "x log" button which allows toggle the X axis between linear and logarithmic scale
Added Y value to the peak annotation
How to install
Connect the Oscilloscope to the network and check its current IP. Copy the apk file to android-sdk\platform-tools on your PC, then execute this command inside of the platform-tools folder:
> adb connect [oscilloscope IP]:55555
connected to [oscilloscope IP]:55555
Uninstall previous version:
> adb uninstall org.mriscoc.fftavgInstall the utility using:
> adb install FFT.Avg_0.3.3.apk
Performing Streamed Install
Success
Start the application from the launcher or by using adb:
> adb shell monkey -p org.mriscoc.fftavg -c android.intent.category.LAUNCHER 1
Events injected: 1
## Network stats: elapsed time=36ms (0ms mobile, 0ms wifi, 36ms not connected)
Donations
Thank you for your support, I receive donations through Patreon and Paypal
FFTAvg utility preview 0.3.2
This is not the latest version, to get the updated version go here: https://github.com/mriscoc/RIGOL_DHO800_DHO900_GUI/releases/tag/FFTAVG0.3.3
First release
